Pantech Mississippi C740 User manual

1
MISSISSIPPI USER MANUAL

Thank you for choosing the Pantech Mississippi, our latest 3G mobile
phone.
The Pantech Mississippi has many features designed to enhance your
mobile experience. From its sleek, stylish design and QWERTY keypad,
we know you will enjoy the entire Mississippi experience.
This User Guide contains important and useful information that will
maximize your familiarity with all that the Pantech Mississippi has to offer.

Specifications
Design
Dual slider with QWERTY keypad
Displays
z260k colors TFT LCD with 2.2” internal display
z176*220 resolution
z7 lines for text in basic mode with 16-point font
zTwo soft keys and four-way scroll and selection OK keys
Melodies
MP3, MIDI, iMelody, MMF, WAV, SMAF, AAC+
Camera
Integrated 1.3M CMOS Camera
zResolution up to 1280 x 1024 (330,000 pixels)
zMpeg4 Video recording/playing up to 15f/s(QCIF size)
zSelf-timer function (5 seconds or 10 seconds)
zPhoto album and video album
Dimensions & Weight
zWeight: 132g (with standard battery)
zDimensions: 102 mm x 50 mm x 19.9 mm
Power Management (Performance)
Battery Type Capacity Standby Time Talk Time
Standard
Lithium-Ion
(Li-ion) Up to 920 mAh Up to 250 hours Up to 3 hours
Operating Frequency
•GSM 850Mhz, GSM 900Mhz, DCS 1800Mhz, and PCS 1900Mhz
networks in North America, South America, Europe, Africa, and Asia-
Pacific where these networks are supported.
•Automatic band switching.

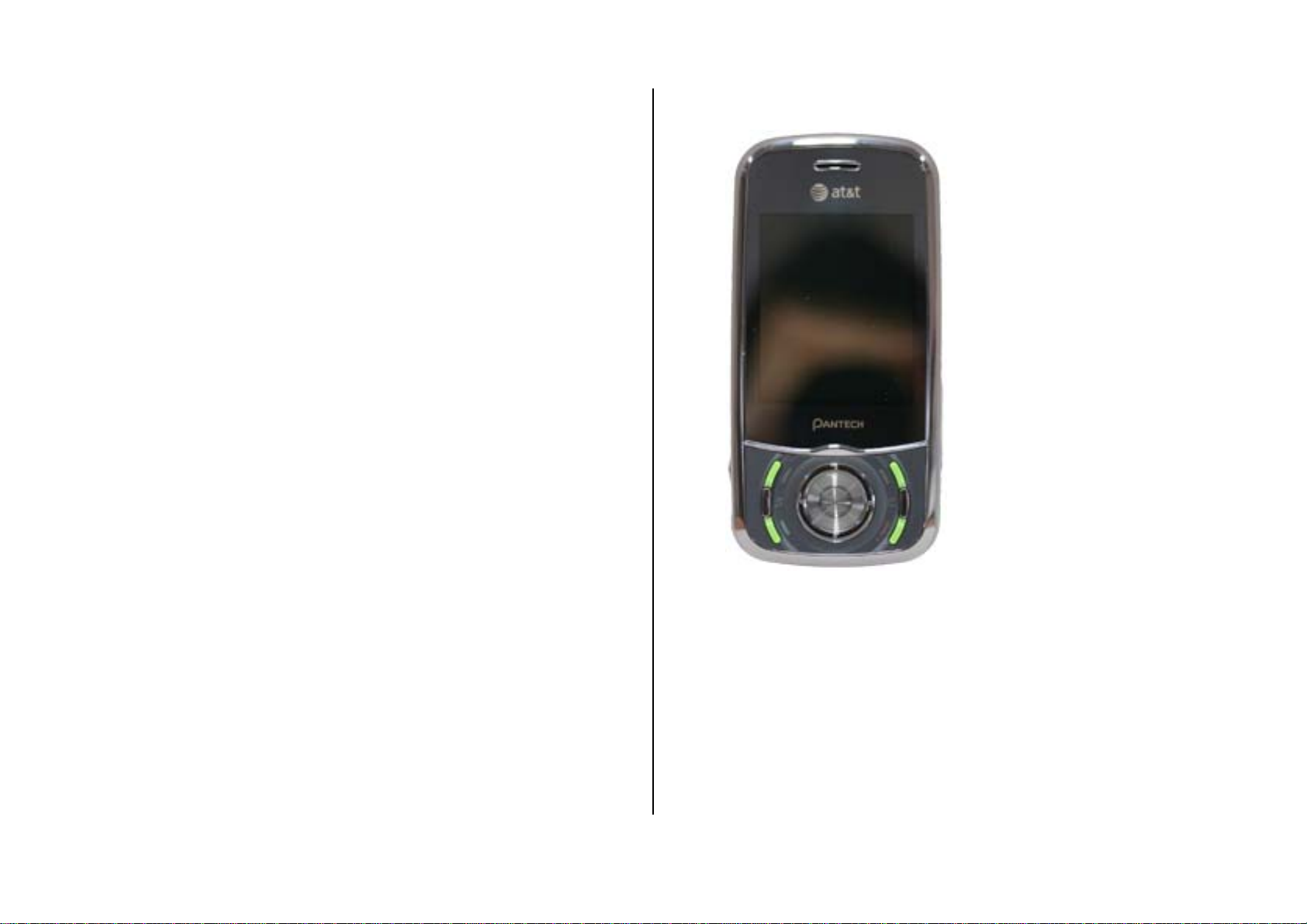

Phone overview
Number pad view
Power on&off/Menu exit key/End key
Turns phone on/off, ends calls, exits menus
Send key
Clear key
Returns to previous screen or
deletes characters in text mode.
Vibrate mode
Microphone Prefix international call key
Navigation key
Scroll through the menu options
Left/Right Soft key
Perform the functions shown
at the bottom line of the
display.
OK key or access MEdia Net
Press to enter menu system
Voicemail
Camera
Side Key
Camera key
microSD slot
Earpiece
Display
NOTE: Holding device at internal antenna area might affect call
quality reception.
Internal antenna
Music key
Charger slot/Ear mic

QWERTY keyboard view
Left/Right Soft key
Perform the functions
shown at the bottom line of
the display.
CAPS/Shift key
To type a single uppercase letter,
press this key then a letter
Function key
To enter a number or a symbol,
press the function key, and press
the corresponding key
Space key
Press to enter a space
Clear/Back key
Returns to previous screen or
deletes characters in text mode.
Enter key
Press to create new line while writing a
message
Delete key
Press to delete a number or letter
Note: To use the QWERTY keyboard, ensure that the Number pad is closed, then hold the phone horizontally and slide the screen up.

Using shortcuts
Numbered menu items, such as menus, sub-menus, and options can be
quickly accessed by using their shortcut numbers. In Menu mode, Main
Menus can be accessed by pressing the number keys (1 to 0)
corresponding to their location on the screen.
Example: Accessing the Language menu.
1. Press Menu.
2. Press the [9] for Settings.
3. Press the [4] for Phone.
4. Press the [1] for Language.
5. Press Select for Screen Text.
5. Press the [up] or [down] scroll key to display the list of available
languages.
Menu overview
1 AT&T Music
1. Music Player
2. Shop Music
3. Music ID
4. XM Radio
5. Music Videos
6. The Buzz
7. Community
8. Music Apps
2 Messaging
1. Create Message
2. Inbox
3. Mobile Email
4. IM
5. Sent
6. Outbox
7. Drafts
8. Voice Mail
9. Settings
10. Templates
11. Memory Info
3 Yellowpages.com
4 MEdia Net
1. MEdia Net Home
2. Bookmarks
3. Enter Address
4. History
5. Manage
5 AT&T Mall
1. Shop Tones
2. Shop Games

3. Shop Graphics
4. Shop Multimedia
5. Shop Applications
6. Shop Themes
7. Shop Videos
8. MEdia Net
6 AT&T GPS
1. AT&T Navigator
7 My Stuff
1. Graphics
2. Video
3. Audio
4. Other Files
5. Games & Apps
6. Tools & Utilities
7. Memory Info
8 Address Book
1. Contact
2. Add Contact
3. Speed Dial
4. Groups
5. My Business Card
6. Memory in Use
7. My Phone Number
8. Memory Info
9. Service Numbers*
10. FDN List*
9 Settings
1. Profiles
2. Display
3. Call
4. Phone
5. Network Connections
6. Network
7. Connectivity
8. Security*
9. Software
10. Reset
11. TTY
* SIM dependent
** Network dependent

Quick & Easy
Keys Functions
Perform the functions shown at the bottom line of the
display by using these soft keys.
Scroll through the menu options in Menu mode. In standby
mode,
Left: Access Music menu
Right: Access IM menu
Up: Access Write New text message menu
Down: Access Contact menu
Select a menu function or store user-input information, such
as names. Also use this key for confirmation as the [OK]
key.
Launch the MEdia Net directly if pressed in standby mode.
Delete characters from the display, or return to previous
menu.
Make or receive a call. Show the recent call list in standby
mode.
Re-dial the last call number if pressed and held in standby
mode.
Complete the current call. Turn on/off the phone if pressed
and held.
Cancel user input and return to main screen while in Menu
mode.
Quickly connect to the voice mail server if pressed and held
in standby mode.
~ Enters numbers, letters or special characters. Go to the dial
screen if pressed in standby mode.
Enter or exit from vibrate mode if pressed and held in
standby mode.
Show the symbol input screen if pressed and held in text
input mode.
Work in Word search mode if pressed in the Predictive text
input mode.
Enter a prefix international dialling.
Enter the space character in text input mode.
Change various text input modes if pressed and held at the
text-editing screen.
Adjust the earpiece volume while making a call.
Control the Ringtone volume, vibrate mode and silent all
mode in standby.
Mute the ringtone of an incoming call.
Reject the incoming call if pressed and held when you
receive an incoming call.
Turn camera capture mode on.
Work as a camera shutter in capture mode.

Contents
Specifications.......................................................... 3
Phone overview Using shortcuts........................... 6
Using shortcuts..오류! 책갈피가 정의되어 있지 않습
니다.
Menu overview ........................................................ 6
Quick & Easy........................................................... 8
1. Getting Started ...................................................11
SIM card and battery ...............................................................................12
Turn on/off the phone .............................................................................. 13
Keypad lock.............................................................................................13
Essential display indications....................................................................13
Memory card............................................................................................14
Assigning the menu................................................................................. 14
Updating software.................................................................................... 15
2. Calls and address book.................................... 16
Making, receiving and ending a call ........................................................17
Using video share....................................................................................18
Options during a call................................................................................19
Call Setting...............................................................................................20
Checking all calls.....................................................................................21
Speed dialing...........................................................................................22
Using address book.................................................................................22
Caller identification ..................................................................................23
Using your headset..................................................................................24
Service number and fixed dialing ............................................................24
3. Messaging ..........................................................25
Entering text.............................................................................................26
Messaging................................................................................................27
Receiving message .................................................................................27
Creating and sending text messages......................................................28
Creating a multimedia message..............................................................28
Message template ...................................................................................30
Message settings.....................................................................................30
Setting voice message.............................................................................31
Email........................................................................................................31
Using instant messenger.........................................................................31

4. Multimedia ......................................................... 33
Camera....................................................................................................34
Photo album.............................................................................................36
Video album.............................................................................................37
Audio album.............................................................................................38
Music Player............................................................................................38
Settings for music player .........................................................................41
Media player............................................................................................42
Other files ................................................................................................42
Managing the memory.............................................................................43
Playing games.........................................................................................43
5. Useful Features................................................. 44
Alarm .......................................................................................................45
Calendar.................................................................................................. 45
Notepad and voice memo........................................................................ 46
Calculator, converter and stopwatch .......................................................46
Business card..........................................................................................47
Memory information................................................................................. 47
6. Connectivity....................................................... 48
Bluetooth.................................................................................................. 49
Using the browser....................................................................................50
Profiles setting .........................................................................................50
7. Settings...............................................................52
Language.................................................................................................53
Time and date..........................................................................................53
Ringtones.................................................................................................53
Decorating the display.............................................................................53
Locks........................................................................................................54
To enable fixed dialing.............................................................................54
Reset........................................................................................................54
TTY..........................................................................................................54
8. Appendix.............................................................56
Alert message..........................................................................................57
Troubleshooting checklist ........................................................................57
Safety information....................................................................................58
Safety precautions...................................................................................59
About the battery usage...........................................................................59
FCC Regulatory Compliance...................................................................60
Warranty ..................................................................................................62

1. Getting Started
SIM card and battery
Turn on/off the phone
Keypad lock
Essential display indications
Memory card
Assigning the menu
Updating software

SIM card and battery
About your SIM card
When you subscribe to your network operator, you receive a SIM
(Subscriber Identity Module) card containing your registration information,
PIN code, etc.
Like a credit card, it should be kept secure and handled carefully. Do not
bend, scratch or expose it to moisture. Avoid static electricity.
To avoid corrupting your SIM card’s memory, always switch off your phone
before removing or inserting your SIM card
About your battery
Your phone uses a Li-Ion battery. Make sure to use an authorized battery
and charger only. For more details, please inquire at your nearest dealer.
NOTE: Your phone is powered by a Lithium Ion (Li-Ion) battery. This means
that, unlike other forms of battery technology, you can recharge your
battery while some charge remains without reducing your phone’s
autonomy due to the “battery memory effect” inherent in those technologies.
Installing/removing SIM card and battery
1. Remove the battery cover from the unit. To fit the
battery cover, put it on the guide rail and push up.
2. Insert the SIM card into the slot. The gold
contacts of the SIM card should go against the
metal contacts of the phone. Put the contacts of
the battery into the hole located at the bottom of
the unit insert and press the upper side of the
battery until you hear the “click”.
3. To remove the battery push the bottom of the
battery to upwards(1) and remove(2) the battery.. Push the SIM card in
the arrow direction as shown.
To charge your battery
1. To charge, open the protective cover on the top right
side and connect the charger adapter.
2. To remove the adapter connection press the
adapter’s side buttons(1) and pulling the adapter
away(2).
1
1
1
2
1 2
1 2

Turn on/off the phone
To turn on
1. Press and hold [ ].
To turn off
1. Press and hold [ ].
Keypad lock
Locking the keypad
1. Press and hold [ ] to lock.
Unlocking the keypad
1. Press Unlock > [ ] within 3 seconds to unlock.
Essential display indications
Signal strength. The greater the number of bars, the
stronger the signal. When network is in searching mode
is displayed.
A call is being made. When you are in no service area is
displayed
Call forwarding* is active
Data* folder
Incoming calls set to ring only (Normal)
Incoming calls set to Loud
Incoming calls set to Vibrate Only
Incoming calls set to Silent
Flight Mode is active
Received one or more text messages
Received one or more multimedia messages
Received one or more WAP push messages
Received one or more other messages
Received one or more voice messages
A message is being sent
A message is being received
An alarm is set
Bluetooth is active
Headset is connected
TTY is active
An EDGE signal is available. It is displayed when there is
an active EDGE session
A GPRS signal is available. It is displayed when there is an
active GPRS session
A 3G signal is available. It is displayed when there is an
active 3G session
WAP is connected. When the security is set is displayed.
Battery strength. When the battery charge is low, is
displayed
Available,Away, Invisible Status of AIM
Online, Away, Busy, Offline Status of MSN
Available, Busy, Invisible Status of YAHOO
You have received one or more IM messages
* Network dependent

Memory card
You can use microSD card as memory card. It gives
you more space to save pictures, videos, music and
etc.
Inserting and removing the memory card
1. Open the memory card slot.
2. Insert the card. The [ ] icon will be display.
3. Press the card to remove.
Using memory card
You can save, move and delete the files between your phone and external
memory card. You can also move and copy the files to computer from your
phone.
Resetting the card
1. Press Menu > Settings > Reset.
2. Enter the password > External Memory Reset.
Note: The default password is ‘1234’.
To copy the file to the card
1. Select the file > Options > Copy to External Memory.
2. To copy the file back to phone, press Options > Copy to Phone.
To move the file to the card
1. Select the file > Options > Move to External Memory.
2. To move the file back to phone, press Options > Move to Phone.
To delete the file from the card
1. Select the file from the card > Options > Delete.
To move the file from the card to the computer
1. Connect the data cable with mobile and the computer.
2. Press Menu > Settings > Connectivity.
3. Press Select USB Mode.
4. Select Mass Storage or Ask on Connection.
5. Follow the instruction on your computer screen.
Note: When you want to add music to play list in your device select Music
Player. When you select Ask on Connection, it will ask you to select Music
Player or Mass Storage every time when you connect with your computer.
Assigning the menu
You can set the most commonly used menu in Options in standby mode.
1. Press Options in standby mode > select Unassigned.

2. Press Options > Edit.
3. Select the menu and sub menu.
Note: User can change Options menu except AT&T Navigator and AT&T
Music.
Updating software
You can update your software without visiting your nearest dealer.
To update the software
1. Press Menu > Settings > Software > Software Update.
2. Press Check for Update > Yes to check whether you need to update
the software or not.
Note: After downloading the software the device will ask you weather
update the software now or later. If you choose to update the software now,
it will restart the handset. If you postpone updating the software, you can
select the time in the Options for 30 min, 1 hour or 4 hours. After selecting
the updating time, you will get back to standby mode. If you go to Software
Update while you are in postponing, press Continue Update.
To view the version of software
1. Press Menu > Settings > Software.
2. Press Phone Information and scroll down to Software Version.

2. Calls and address book
Making, receiving and ending a call
Using video share
Options during a call
Call Setting
Checking all calls
Speed dialing
Using address book
Caller identification
Using your headset
Service number and fixed dialing

Making, receiving and ending a call
Making a call
1. Enter the area code and phone number.
2. Press [ ] key.
Answering a call
1. Press [ ].
Ending a call
1. Press [ ].
Once the call is completed, a call summary is displayed.
Rejecting a call
1. Press [ ] or Ignore.
Making a call using call list
Your phone logs up to 20 dialed, received and missed call numbers.
1. Press [ ] to display the Recent Calls list.
2. Select All Calls, Missed Calls, Received Calls, or Dialed Calls
pressing the [ /].
3. Select a number.
4. Press [ ] to dial the selected number.
NOTE: To redial the last number in the Recent Calls list, press [ ].
Making a call during a call
1. Enter the phone number or look it up in Address Book.
2. Press [ ] to dial the second call. The first call is automatically put on
hold.
Switching between two calls
1. Press Swap.
Making an international call
1. Press and hold [ ] key for the international prefix until the ‘+’
character appears.
2. Type the country code, area code, and phone number.
3. Press [ ].
Making an emergency call
You can make emergency calls even if your phone does not have a SIM
card.
1. Press Emergency Number, or press SOS if your phone does not have
a SIM card.
2. Press [ ].
Replying to a missed call**
1. Press View to display the list of missed calls.

2. Select a number to call by pressing the [ /] l key.
3. Press [ ].
Answering a second call**
1. Press [ ]. The first call is automatically put on hold.
2. Press [ ] to end the second call.
The call on hold is automatically reconnected.
Using video share
You can share live or recorded video while on the call. You can send or
receive video.
<Call mode> <Video Share Mode>
Making video share call
1. Enter the area code and phone number > [ ].
2. Press Options > Video Share.
3. Select Live or Recorded.
Turning off the speakerphone
1. Press OK or press Options > Speakerphone off during video share
mode.
2. Press Options > Mute to mute the sound.
Stopping video share
1. Press [ ] or press Options > Stop.
Increasing or decreasing the brightness
1. Press Options > Brightness.
2. Adjust the brightness by pressing [ / ].
Zoom in and out
1. Press Options > Zoom. It ranges from x1 to x3.
Stopping the recording
1. Press Options > Stop Recording.
For details on setting for automatic recording, see page 19.

Ending video share
1. Press Stop to end the video share.
2. It will ask you weather you will stop video share > Yes to stop.
Note: Even you end video share the call will not be ended. Press [ ] to
end the call. The recorded video will be saved in My Stuff > Video.
Receiving video share
1. After receiving video share, it will ask you weather to accept or reject
the video share > Yes to accept and No for reject.
2. Press Options > Landscape to landscape the screen.
Options during a call
Microphone off and on
Switching your phone’s microphone off
1. Press Options > Mute [].
Switching your phone’s microphone back on
1. Press Options > Unmute.
Talking on speaker
1. Press Speaker Phone [].
Putting a call on hold and return**
Putting a call on hold
1. Press Options > Hold or press [].
Returning to a held call
1. Press Options > Unhold or press [ ] again.
Multi-party calls**
You can talk with more than one person or conference call.
Making a multi-party call
1. Call the first participant.
2. Call the second participant. The first call is automatically put on hold.
3. Press Options > Join.
Having a private conversation with one participant
1. Press Options > Split.
2. Press OK.
3. Select the participant and press OK.
All of the multi-party call participants can now hear each other.
Removing one participant from a multi-party call
1. Press Options > Disconnect.
2. Select the participant and press OK.

The call ends with that participant, but you can continue to talk with other
participants.
Searching a number in address book during a call
1. Press [ ] or press Menu > Address Book > Contact.
2. Select a number > [ ].
Searching for a name or group in address book
Enter the first letters of the name for Name Search. The entries are
displayed starting with the first entry matching your input.
Finding a name manually in address book
1. Press the [ /] key.
Viewing the details of highlighted entry in address book
1. Press OK.
For details on address book, see page 21.
Reading a message during a call
1. Press Options > View Message.
2. Press Inbox > select a message
Writing a message during a call
1. Press Option > Create Message.
2. Press Create New Message.
For details on creating a text message, see page 27.
NOTE: During the call, you can only send text messages. Multimedia
messages cannot be sent, but can be saved.
Call Setting
Setting auto redial
1. Press Menu > Settings > Call > Auto Redial.
2. Select On or Off.
Answering with any key press
1. Press Menu > Settings > Call > Any Key Answer.
2. Select Answer with Any Key.
NOTE: you can answer with any key except [ ] and Reject.
Settings for video share
Turning on/ off the alert
1. Press Menu > Settings > Call > Video Share.
2. Press Alert.
3. Select On or Off > Select.
