Paragon Pro TELPRO PANELLIFT 195 T User manual

O
P
E
R
A
T
O
R
’
S
M
A
N
U
A
L
For Model 195 T Loader Attachment
WARNING
Read and become familiar with this manual BEFORE operating unit.
Before operating this equipment, thoroughly read this set of instructions, make sure
you understand them, and only then follow the step-by-step directions. Failure to do
so could result in serious property damage and / or serious bodily injury.
Made in China for

To our valued customer,
Thank you for choosing a product by
Manufacturing Solutions. We are pleased that we are able to provide equipment to
make your work easier.
Our efforts are focused on producing the finest quality equipment of which we
are capable. We make sure to spend extra time and effort on our design and produc-
tion in order to reduce your time and effort spent using the product.
We take pride in providing the best for our customers. Quality, innovation, and
excellence are all qualities this company ensures. No product is sent without being
factory tested and inspected to ensure the highest quality for you.
It all began in 1972 when Roland Young designed our first product, the PANEL-
LIFT® Brand Drywall Lift, and revolutionized the drywall industry. To this day we are
continuously making advancments in manufacturing and design.
Thank you again for giving us the opportunity to work with you. Any questions
or comments that you have are always welcome.
Thank you for choosing a product by

CONTENTS
Warning/ Instructional Information . . . . . . . . . . . . . . . . . . . Page 1
Initial Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 2-3
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Parts Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
Order Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8

Form 42-26-00-00 version 1.6
Warning
Read and follow these warnings and the instructions that follow. Failure to do so could
result in serious property damage and/or serious bodily injury.
Questions? - Call Paragon Pro Manufacturing Solutions Customer Service at
1-800-448-0822 or 1-800-441-0551
• BEFORE operating this equipment, thoroughly read this
set of instructions, make sure you understand them, and
only then follow the step-by-step directions. FAILURE TO
READ AND FOLLOW THESE INSTRUCTIONS could
result in failure of the equipment. Failure of the equipment
while the lift is raised can include a sudden and rapid
lowering of the lift and load possibly resulting in serious
property damage and/or serious bodily injury.
• Use and maintenance of the Cabinetizer ™ Cabinet Lift shall be
limited to authorized personnel who are trained in the proper
techniques for its safe operation and maintenance and who are
familiar with the various hazards of overhead material handling.
•It shall be the resposibility of any and all users of the Cabinetizer
™ Cabinet lift to become familiar and comply with all:
- aspects of assembly, operation and necessary safety
precautions
- applicable federal, state, and local statutes or regulations.
• The weight capacity of the Cabinetizer™ Cabinet Lift is 300
lbs. (136 kg). DO NOT load the unit beyond this limit. Failure to
follow this warning can result in damage to the Cabinetizer™
Cabinet Lift contributing to a sudden failure of the machine and
serious property damage and/or serious bodily injury.
• Do Not ATTEMPT TO USE YOUR Cabinetizer™ cabinet Lift IF ANY
PART IS MISSING, DAMAGED OR WORN. ORDER A REPLACEMENT
PART IMMEDIATELY. Using a Cabinetizer™ Cabinet Lift with
missing, damage or worn components can result in failure of the
unit and possibly severe property damage and/or serious bodily
injury.
• INSPECT THE STRAP BEFORE EACH USE. REPLACE AT THE
FIRST SIGN OF WEAR. A worn, damaged or improperly installed
strap can fail resulting in a sudden and rapid lowering of the lift
and the load and possibly resulting in serious property damage
and/or serious bodily injury.
• DO NOT ROLL a loaded Cabinetizer™ Cabinet Lift while the
load is raised. Always keep the load lowered until the lift is in
place beneath the space in which the cabinets will be installed.
Rolling a Cabinetizer™ Cabinet Lift while the load is raised can result
in tipping the lift and load possibly resulting in serious property
damage and/or serious bodily injury.
• The Cabinetizer™ Cabinet Lift is designed exclusively as a material
lift and shall be used for no other purpose. The Cabinetizer™ Cabinet
Lift is not a personnel lift or platform and shall not be used as such.
DO NOT sit or stand on any part of the Cabiinetizer™. Using the
Cabinetizer™ Cabinet Lift for purposes other than material lift can
subject the unit to stresses and loads that it was not designed to
carry. This can result in failure of the unit which may include a
sudden and rapid lowering of the lift and the load possibly resulting
in serious property damage and/or serious bodily injury.
• Keep body parts out from under load at all times
• Use the Cabinetizer™ Cabinet Lift only on smooth level surfaces.
• The Cabinetizer™ Cabinet Lift is made of steel which conducts
electricity. KEEP THE UNIT AWAY FROM LIVE ELECTRICAL WIRES.
Failure to do so could result in electrocution.
• Use only factory authorized replacement parts. Installation of other
parts can compromise the safe design of the Cabinetizer™ Cabinet
Lift and may cause failure of the unit possibly resulting in serious
property damage and/or serious bodily injury.
• Do not transport an assembled Cabinetizer™ Cabinet Lift.
• Be Observant Of Any Potentially Hazardous Conditions, such as,
but not limited to:
-Any Obstruction -Holes
-Loose Materials -Electrical installations
-Moving Machinery -Stairwells
-Open ducts -Changes in oor elevations
-Wires -Etc.
• Before loading Cabinetizer™ Cabinet Lift, BE SURE THE MAIN
UPRIGHT BOOM IS firmly secured to the Base and the SPLIT BOOM
CONNECTOR is fastened securely.
• Always balance the load on the Cabinetizer™ cabinet Lift. Failure to
do so can result in tipping the lift and load possibly resulting in
serious property damage and/or serious bodily injury.
1

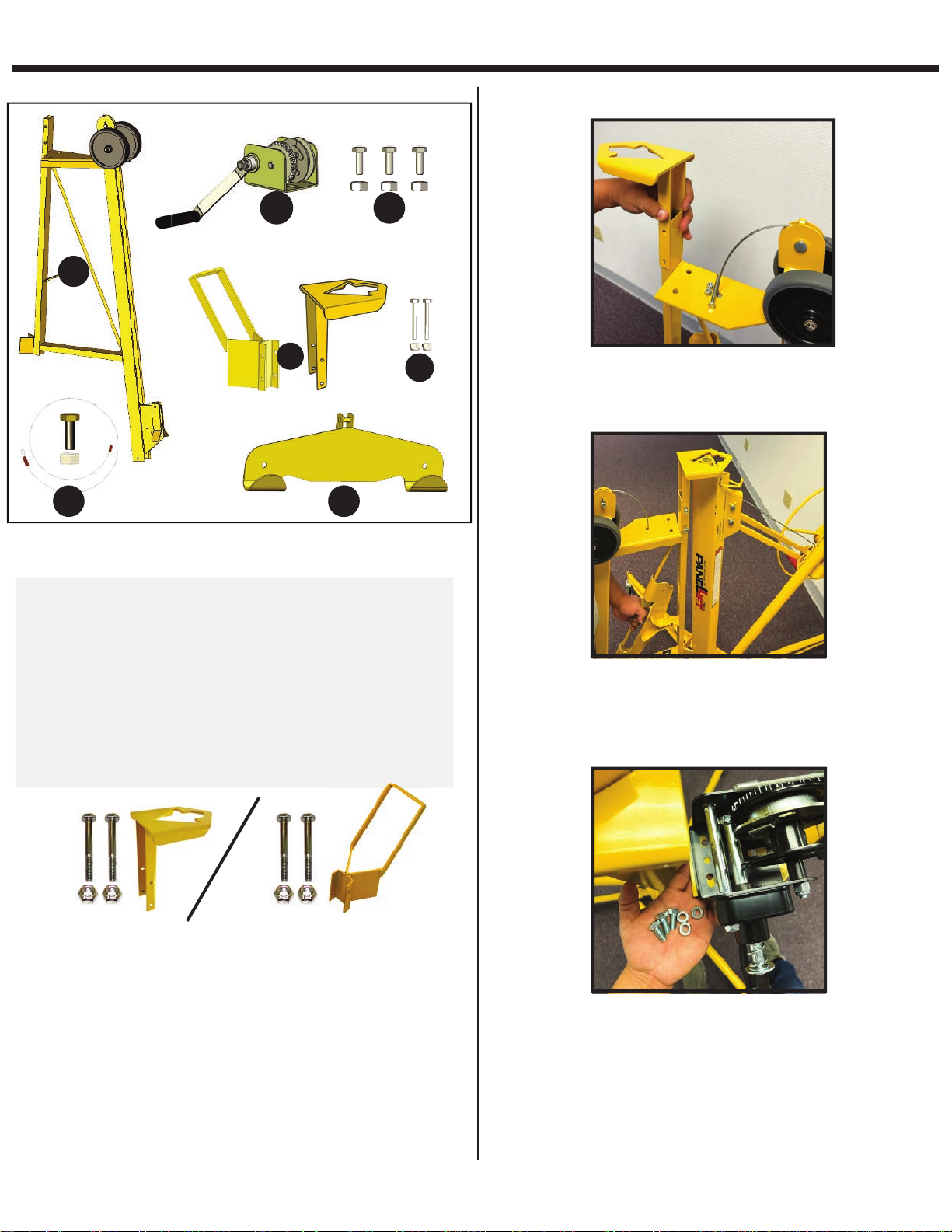

1. Unpack contents and ensure that you have these
items:
A. Two Mount Brackets
B. 1/4” X 2 1/4” bolts w/ nuts (2)
C. Frame Assembly w/ guide wheels & roller
pocket
D. Winch
E 3/8” x 1” bolts and nuts (3)
F. Cable w/ 1/4” x 1” bolt and nut
G. Foot Bracket
2. Select the correct mount bracket that corresponds to
the model of the PANELLIFT® drywall lift you are using:
-Bracket “A” is for use with PANELLIFT® drywall lift
models 138-2 and 125.
-Bracket “B” is for use with PANELLIFT® drywall lift
models 439 and 460.
If you are in doubt as to which model of PANELLIFT®
drywall lift you are using call us at Paragon Pro and we’ll
help you identify it.
[phone] or [phone]
B
3. Attach the bracket to the loader frame using the
1/4” x 2 1/4” bolts and lock nuts.
4. Hang the loader on the PANELLIFT® drywall lift
frame.
5. Attach the winch to the loader frame using the
3/8” x 1” bolts with fasteners. NOTE: Install the
bolts with at washers from the top down
through the winch and fasten the lock washers
and nuts from underneath the winch mount plate.
INITIAL ASSEMBLY
2
AB
C
DE
FG
A

6. Pass the crimped end of the cable over the
sheave pocket as shown
7. Insert the crimped end of the cable through the
oblong hole in the winch ange and behind the
mooring tab as shown.
8. Pull the stack out of the cable to seat the
crimped end securely behind the mooring tab
as shown.
9. Rotate the winch handle clockwise to take up
the slack in the cable around the winch drum.
10. Push back on the foot bracket latch, insert
bracket, and release latch.
11. Insert the cradle on the PANELLIFT® Drywall
Lift and you’re ready to lift drywall from
oor to ceiling.
INITIAL ASSEMBLY Cont.
3

1. To load, lift board by one end and place
in the foot bracket making sure it is
centered on the bracket.
2. Raise the board by rotating the winch
handle.
3. When the board is fully raised, swing the
cross arm support hooks under the
board.
4. Raise the board o the loader foot
bracket by rotating the PANELLIFT®
Drywall Lift winch slightly and tilt the
board horizontal.
5. Install the board as normal using your
PANELLIFT® Drywall Lift.
OPERATION
4

PARTS INDEX LOADER ATTACHMENT 195 T
Part# Description
125-206 Cable Sheave w/ Axle & Pins
32-20 Stop Bolt w/ Fasteners
32-21 Guide Wheel w/ Fasteners
32-22 Lift Bracket Rollers
32-23 Welded Frame
32-24 Foot Bracket
32-25 Roller Pocket
32-26 Mount Bracket w/ Fasteners 138-2/125
32-27 Mount Bracket w/ Fasteners 439/460
32-28 Loader Winch w/ Fasteners
32-29 Cable 54”
32-30 Winch Fasteners (3 nuts, bolts, washers)
PARTS LIST:
32-30 Winch Fasteners (3 nuts, bolts, washers)
To Order Parts Call: (1 [phone]
5
125-206
32-23
32-29
32-20
32-24
32-28
32-21
32-30
32-26
32-27

6
VISA
MC
DISCOVER
AM EX
CHECK
MONEY ORDER
Ship to Name (Please print clearly)
Address
City State Zip Code
Phone #
Shipping address must be the same as billing address
SIGNATURE (required for credit card purchases)
CARD#
EXP. DATE
*CVV2 #
ORDER FORM
*CVV2 is an authentication process established by credit card companies to reduce fraud for internet transactions. It
consists of requiring a card holder to enter the CVV2 number in at transaction time to verify the card is on hand. For VISA, MASTERCARD, or
DISCOVER, the 3 digit number is found on the back of the card. This number is printed on the signature area (last 3 digits after the card number). For
AMERICAN EXPRESS cards, the 4 digit number is printed above to the right of the imprinted credit card number on the front of the card. Please call
Telpro at 1.800.448.0822 if you have questions.
Copy this order form to place orders.
Phone# [phone] Fax# [phone]
E-mail: [email protected]
Quantity Part# Description Price Each Total Price
Sub Total
Shipping
Total
MAIL ORDER TO:
ATTN: Sales Dept.
7251 South 42nd St. Grand Forks, ND 58201
www.paragonpromfg.com

SAFETY INFORMATION
7
This product contains trace amounts of the following items which are known to cause.
These chemicals are not hazerdous under product’s intended use.
Please review CAS# for more information.
Chemical Hazard CAS# % By Weight
Arsenic
Cadmium
Chromium
Ethylbenzene
Lead
Methanol
Methylene Chloride (Dichloromethane)
Nickel
Propylene glycol monobutyl ether
Toluene
Carbon Black
Cancer
Developmental
Cancer, Developmental
Cancer
Cancer
Developmental
Cancer
Cancer
Cancer
Developmental
Cancer
7440-38-2
7440-43-9
7440-47-3
100-41-4
7439-92-1
67-56-1
75-09-2
7440-02-0
5131-66-8
108-88-3
1333-86-4
Trace
Trace
Trace
Trace
Trace
Trace
Trace
Trace
Trace
Trace
Trace

PARAGON PRO MANUFACTURING SOLUTIONS INC
LIMITED WARRANTY
TELPRO INC products manufactured by PARAGON PRO MANUFACTURING SOLUTIONS INC are warranted to be
free from defects in material and workmanship under normal use for one year from date of purchase.
If a TELPRO INC product is proven to be defective in material or workmanship within the covered time frame
from the date of purchase, return the defective part to PARAGON PRO MANUFACTURING SOLUTIONS INC and
we will either repair or replace the part at our option. We will neither assume nor authorize any other person
to assume for us any other liability.
Written notice including commercial invoice detailing the nature of the defect, date of purchase, and the
company from which you purchased your unit must be received and acknowledged by PARAGON PRO MANU-
FACTURING SOLUTIONS INC before any units may be returned. Shipping costs shall be the responsibility of the
product purchaser.
This warranty shall not apply to any equipment that has been repaired or altered outside of the factory in any
way so as in our judgment to aect its stability or reliability nor which has been subjected to abuse, misuse, or
negligence.
PARAGON PRO MANUFACTURING SOLUTIONS INC reserves the right to make changes or improvements in
design without incurring obligation to install the same on previous units.
PARAGON PRO MANUFACTURING SOLUTIONS INC shall not be liable for loss, damage, or expense directly or
indirectly from use of its products, their transportation, their repair, or from any other cause. Acceptance of
the manufacturer’s product constitutes agreement to the terms of this warranty and further that the manufac-
turer shall have no liability for any special or consequential damages.
This Warranty is in lieu of all warranties express or implied.
Fill in the following information, attach a copy of your sales receipt or invoice and le in a safe place.
Date of purchase: __________/__________/___________
Name& model# _______________________________________________________________________
Serial #: __________________________________________
NOTE: The following components of the PANELLIFT® Model 439 Drywall Lift are warranted to be free from
defects in material and workmanship under normal use for three years from date of purchase.
Part# Description
52-03 #35 chain assembly 52-05 #40 chain assembly
52-07 #50 chain assembly 52-09 1 1/4” #50 roller assembly
52-10 #Outer planet set w/ bronze 52-11 Drive assembly
52-11 #1/2” x 2 1/4”Shoulder bolt w/ fastners 52-15 Clutch assembly w/sprocket
52-16 #40 Winch drive chain
8
WARRANTY

Questionsabout assembly?
Can’t find a part?
Need some other help?
Call us:
1.800.448.0822
701.775.0551
We’ll get you set up!
W
W
W
W
e
e
W
W
e
WeW
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
ou set up!
y
y
ou set up!
y
y
y
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
W
W
W
W
W
W
W
e
W
e
WeW
W
e
W
e
WeW
W
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
’ll get
y
ou set up!
y
y
ou set up!
y
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
ou set up!
