Paragon P8 Series User manual

P 8 Series
OWNER MANUAL
INCLUDES
USER INSTRUCTION
&
INSTALLATION & MAINTENANCE
INSTRUCTIONS
Please read these instructions carefully before you start installing or using this
appliance
Keep this booklet handy for future reference
This appliance is
for use in Great Britain or
IRELAND only
Paragon Fires
Charlton & Jenrick LTD
Telford
Shropshire
TF3 3AR

2 LT6523 ( Iss 4 10/14 )

3 LT6523 ( Iss 4 10/14 )
P8 Instructions
CONTENTS
PAGE
USERS INSTRUCTIONS
SECTION ONE Introduction Consumer Protection Information 3
Heath & Safety Notice 3
Introduction 3
Important Information 4
SECTION TWO Operating Appliance Lighting the Appliance 5
Replacing Hand Set Battery 6
Replacing Appliance Battery 7
SECTION THREE Cleaning Cleaning Pilot Assembly 8
Cleaning Glass panel 8
Removing Glass Panel 9
SECTION FOUR Fuel Bed Cleaning & Layout Cleaning Fuel Bed 9
Log Fuel Bed Layout 10
SECTION FIVE General Points 12
INSTALLATION INSTRUCTIONS
SECTION SIX Appliance Data 13
SECTION SEVEN Regulations and Warnings 14
SECTION EIGHT Siting the Appliance Flue (Class1) 15
SECTION NINE To Install Appliance Checking the Flue and Fire Opening 17
Gas Supply Routing 17
SECTION TEN Checking Fire Operation Check Gas soundness 18
Checking Product Clearance 19
Advice To Customer 19
MAINTENANCE INSTRUCTIONS
SECTION ELEVEN Maintenance General 20
Pilot Linting 20
To remove the burner tray 20
Replacement of gas control 20
Replacement of injectors 20
Replacement of Oxy-pilot assembly 21
Replacement of Control Unit (EDB) 21
SECTION TWELVE Wiring Diagram 21

4 LT6523 ( Iss 4 10/14 )
P8 Users Instructions
SECTION ONE Introduction
Consumer Protection Information
As manufacturers and suppliers of heating products, we take every care, as far as is reasonably
practicable, that these products are so designed and constructed as to meet the general safety
requirement when properly used and installed. To this end, our products are thoroughly tested and
examined before despatch.
IMPORTANT NOTICE: Any alteration that is not approved by the appliance manufacturer could
invalidate the approval of the appliance, operation of the warranty and could affect your statutory
rights.
Health and Safety Notice
Important
This appliance could contain some of the materials, indicated below, that could be interpreted as
being injurious to health and safety. It is the users / installers responsibility to ensure that the
necessary personal protective clothing is worn when handling these materials, see below for
information.
Artificial Fuels, Mineral Wool, Insulation Material, Refractory/Ceramic Fibres, Glass Yarn - may
be harmful if inhaled, may be irritating to skin, eyes, nose and throat.
When handling avoid inhaling and contact with skin or eyes. Use disposable gloves, facemasks and
eye protection. After handling wash hands and other exposed parts. If a vacuum is used for cleaning
the coals or cleaning after servicing / installation it is recommended that it be of the type fitted with a
HEPA filter.
Disposal of refractory/ceramic materials. To keep dust to a minimum these materials should be
securely wrapped in polythene and be clearly labelled ‘RCF waste’. These materials are not classified
as ‘hazardous waste and should be disposed of at a site licensed for the disposal of industrial waste.
INTRODUCTION
The Paragon P8 as been designed and tested to the requirements of EN 613 and is suitable for
use in GB (Great Britain) and IE (Ireland).
The Paragon P8 incorporates a single gas control, which selects ignition pilot, with variable setting
between low and high settings and is operated via remote control. The system is powered by a
battery pack; therefore no mains electrical supply is required.
Like all appliances incorporating an aerated burner a low frequency noise may be heard, this may
be more noticeable on the low setting.
The Paragon P8 incorporates a safety device in the form of an Oxygen Depletion System, which
constantly monitors the oxygen in the room and will cause the fire to switch off if the oxygen level
reduces, for instance due to insufficient ventilation or a blocked flue.
If this regularly occurs do not attempt to relight the appliance until a qualified engineer has
checked it, the problem may not be due to lack of air or a defective flue.
The pilot can be left on (standby setting) or the pilot can be extinguished and relit each time the
fire is used.

5 LT6523 ( Iss 4 10/14 )
P8 Users Instructions
SECTION ONE Introduction Continued
The Paragon P8 is battery operated; therefore no mains electrical supply is required. Power to the
appliance is provided by 6 high power alkaline 1.5V batteries (AA size) (a spare set of 6 AA batteries
is supplied with the appliance).
If you hear a repeated ‘bleep’ sound come from the appliance this indicates the appliance battery
pack is low and should be changed. If this is ignored the system will go into a lock out mode, which
will not allow the appliance to be use until a new set of batteries are loaded. (See Page 6)
IMPORTANT INFORMATION
The appliance is for use on Natural Gas G20 @ 20mbar only.
The chimney or flue (unless new or previously used with a gas appliance) shall be swept before
installation if it has been used for solid fuel.
Failure to install appliance correctly could lead to prosecution.
In GB (Great Britain), the appliance must be installed by a competent person i.e. GAS SAFE-
registered, in accordance with the GAS SAFETY (INSTALLATION AND USE) REGULATIONS,
The Building Regulations (or The Building Regulations (Scotland) or The Building Regulations
(Northern Ireland)) and The Current I.E.E. Wiring Regulations, if appropriate.
In IE (Ireland), the appliance must be installed by a competent person and installed in accordance
with the current edition of I.S.813 Domestic Gas Installation, the current Building Regulations and
the current ETCI rules for electrical installation, if appropriate.
The glass front of this fire acts as a dress guard, conforming to BS 1945 (1997) however; a
fireguard conforming to BS6539 (1997) must be used to protect young children, the elderly or
infirm.
The appliance MUST NOT be used with the glass safety screen removed or if it is damaged or
cracked.
During initial firing, an odour may be evident. This is the starch binder used during the
manufacture of the fibre components of the fire, and there are no harmful effects produced.
During the normal operation of the fire some black staining may appear on some parts of the fuel
bed. This is quite normal and adds to the appearance of the appliance. However, if excessive
black staining does occur it may be due to the fuel bed being incorrectly laid. This should be
checked prior to contacting a service engineer.

6 LT6523 ( Iss 4 10/14 )
P8 Users Instructions
SECTION TWO Operating the Appliance
Before attempting to operate the appliance check
that nothing has been placed in front of the
appliance that may interfere with the remote sensor
operation.
To light the appliance using the remote hand set:
a. Point the remote control hand set in the direction of
the appliance and simultaneously press the buttons
marked ‘ off’ and ‘standby’. Continue to hold in
these two buttons until a ‘bleep’ is heard
(approximately 2-3 sec.) and then release these
buttons. The appliance will automatically go through
the ignition sequence and the pilot should ignite.
Once the pilot is alight the appliance will
automatically go to the high setting (approximately
20-25sec). If the ignitor stops sparking and the pilot
fails to light, repeat this procedure.
b. The appliance can be adjusted up or down by pressing the
appropriate button ' ' (low setting) or '' (high setting).There are 5 heat settings and the fire will
give a double bleep when the maximum or minimum heat setting is reached. To switch off the
appliance press the OFF ' ' button or if the appliance is to be switch off for a short period it is
recommended that the ‘standby’ button be used. This switches the main burner off but leaves the
pilot on and will extend battery life.
c. The appliance can be switched off with out using the hand set by removing the appliance
batteries located behind the ash pan cover. When the batteries are removed there will be a delay
(up to 3minutes) after which double bleeps may be heard and shortly after the appliance will
extinguish. Ensure that the battery is reconnected once the fire as been extinguished. The
appliance cannot be operated without the use of the handset. If the fire fails to light or
extinguishes for any reason, it will be necessary to re-set the fire. This can be done by pressing
the off button then following the normal lighting procedure.
NOTE: If the fire is extinguished for any reason wait 3 minutes before relighting.

7 LT6523 ( Iss 4 10/14 )
P8 Users Instructions
LOW BATTERY INDICATION (HAND SET)
If while pressing any of the buttons on the remote hand
set the low battery indicator lamp either stops flashing
or appreciably slows then the battery should be
changed.
TO REPLACE BATTERIES IN HAND SET (AAA 1.5 V
LR3 X2 )
Remove the cover from the rear of the handset and fit
replacement batteries, taking care not to strain the
battery connections.
LOW BATTERY INDICATION (APPLIANCE)
If you hear a repeated ‘bleep’ sound come from the
appliance this indicates the appliance battery pack is
low and should be changed as soon as possible. The appliance will continue to work normally for a
short period but if the warning is ignored you may experience difficulty lighting the appliance or the
appliance may automatically switch off for no apparent reason.
NOTE: The appliance cannot be used when the battery is completely flat.
P8 Users Instructions
TO REPLACE APPLIANCE BATTERIES (6 High Power Alkaline AA 1.5V)
(Rechargeable batteries can be used providing they are a nickel metal hydride type 1.5V AA
with a minimum capacity of 2200mAh).
a. Remove the two side panels (held on by magnets)
b. Lift out the front grill
c. The battery holder is located at the left hand side. Carefully lift out the battery holder and replace
the six high power alkaline AA batteries as a complete set, or recharge where rechargeable
batteries have been used. If rechargeable batteries are used they MUST be a Nickel Metal
Hydride type with a minimum capacity of 2200mAh
d. WARNING: batteries will overheat if fitted incorrectly, when fitting the batteries ensure that
they are fitted as per the marking on the rear of the holder (i.e. minus of battery against
spring)
e. Once the new batteries are loaded the fire will continue to bleep until re-set. This can be done by
pressing the “off “button on the handset followed by the normal ignition sequence as above. If the
fire continues to bleep this may indicate a loose connection or badly loaded batteries

8 LT6523 ( Iss 4 10/14 )
P8 Users Instructions
SECTIONTHREE Cleaning
Warning: -
Before you clean any part of the appliance ensure that the
appliance is turned off and cold.
CLEANING: PILOT ASSEMBLY (With Fireplace
frame fitted)
(Before cleaning ensure that the appliance is turned off
and cold)
In some instances you may experience ignition problems
even when the appliance is new. This may be due to the
aeration hole in the pilot body being partial blocked with
dust, pet hairs, or other foreign matter. The source of this
debris could be such things as carpet fibres, decorating or
pet etc.

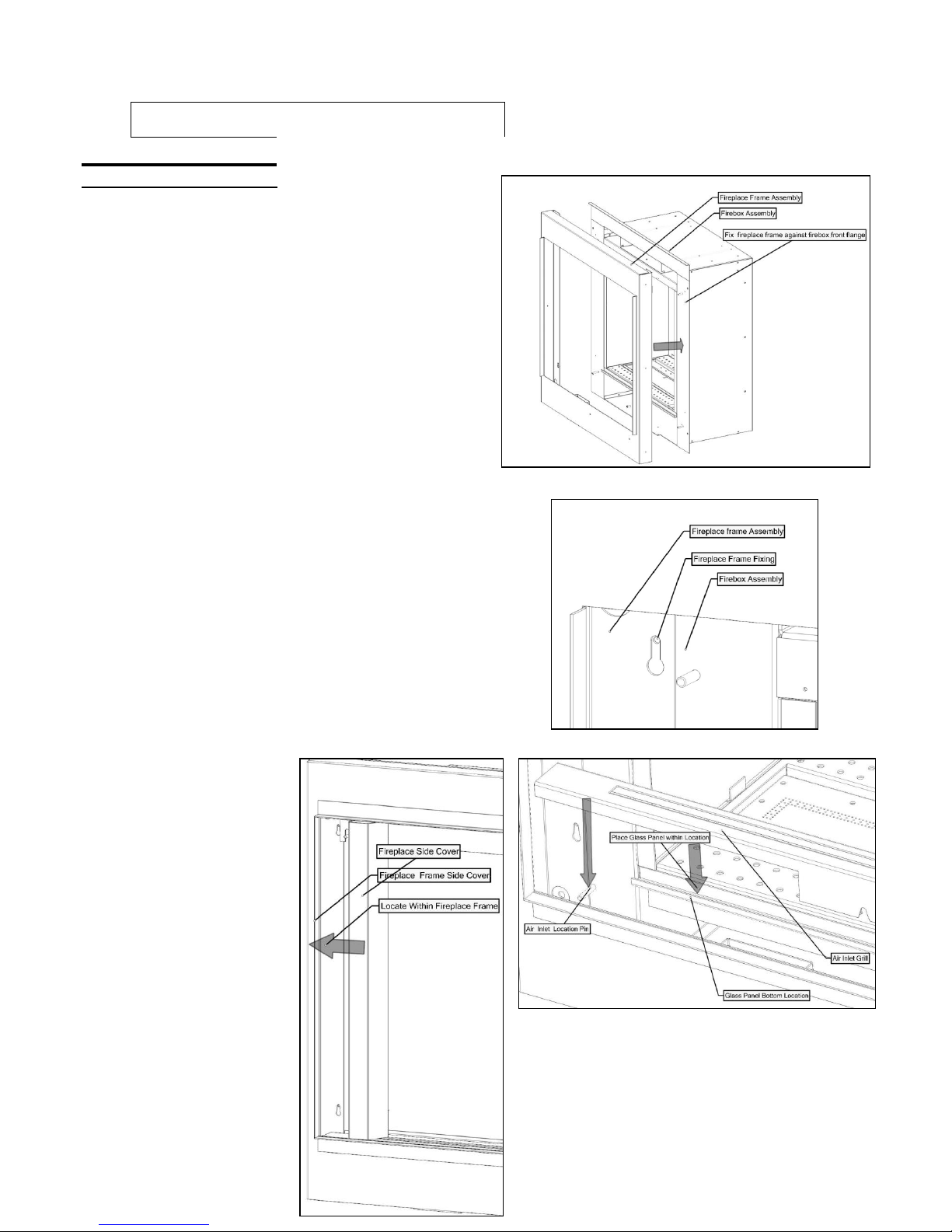

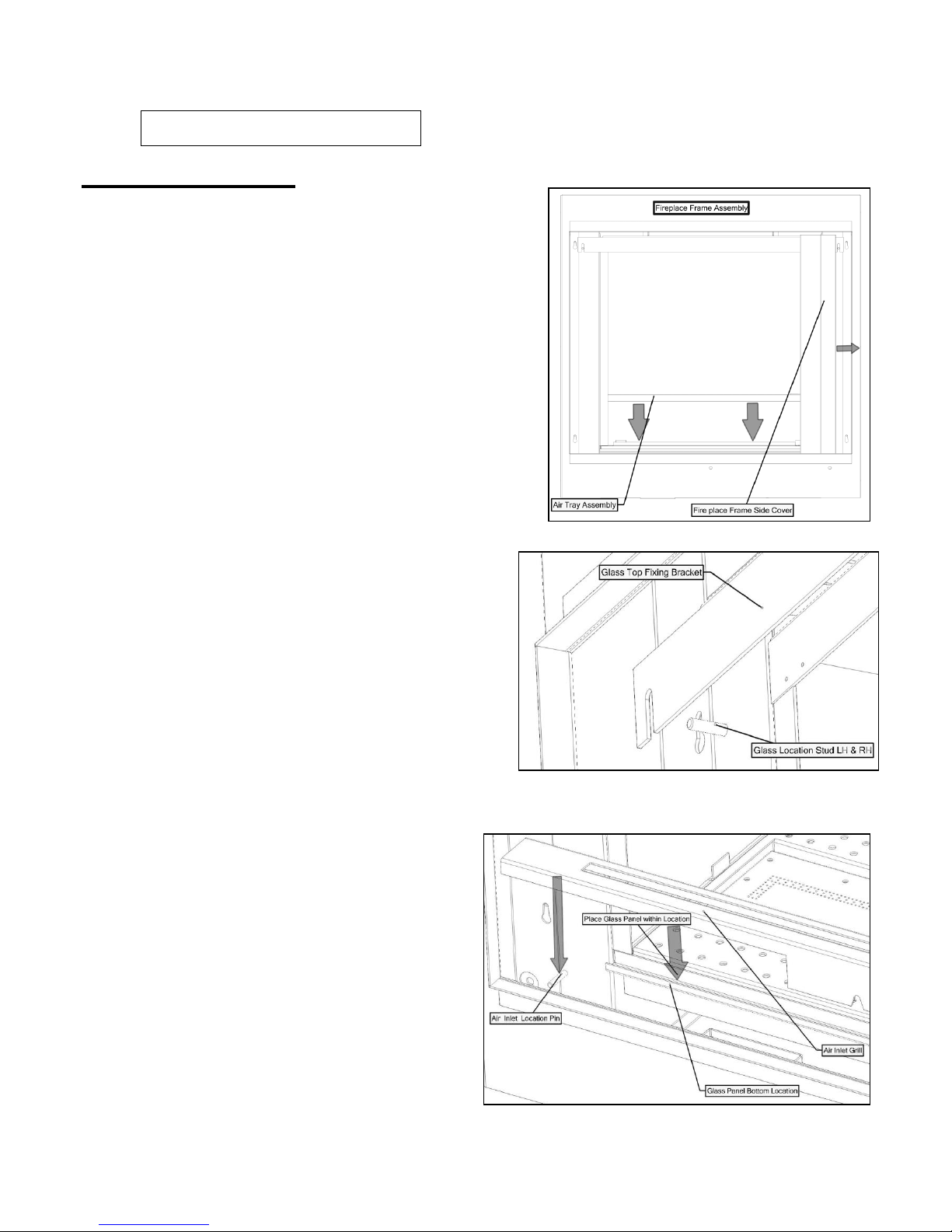

To gain access to the pilot please do the following.
Remove the two side covers LH and RH.
Undo the four M4 nuts retaining the glass fixing
bracket using the tool provided then pull clear
and from the location studs.
Carefully lift the glass panel from within the
bottom location slot.

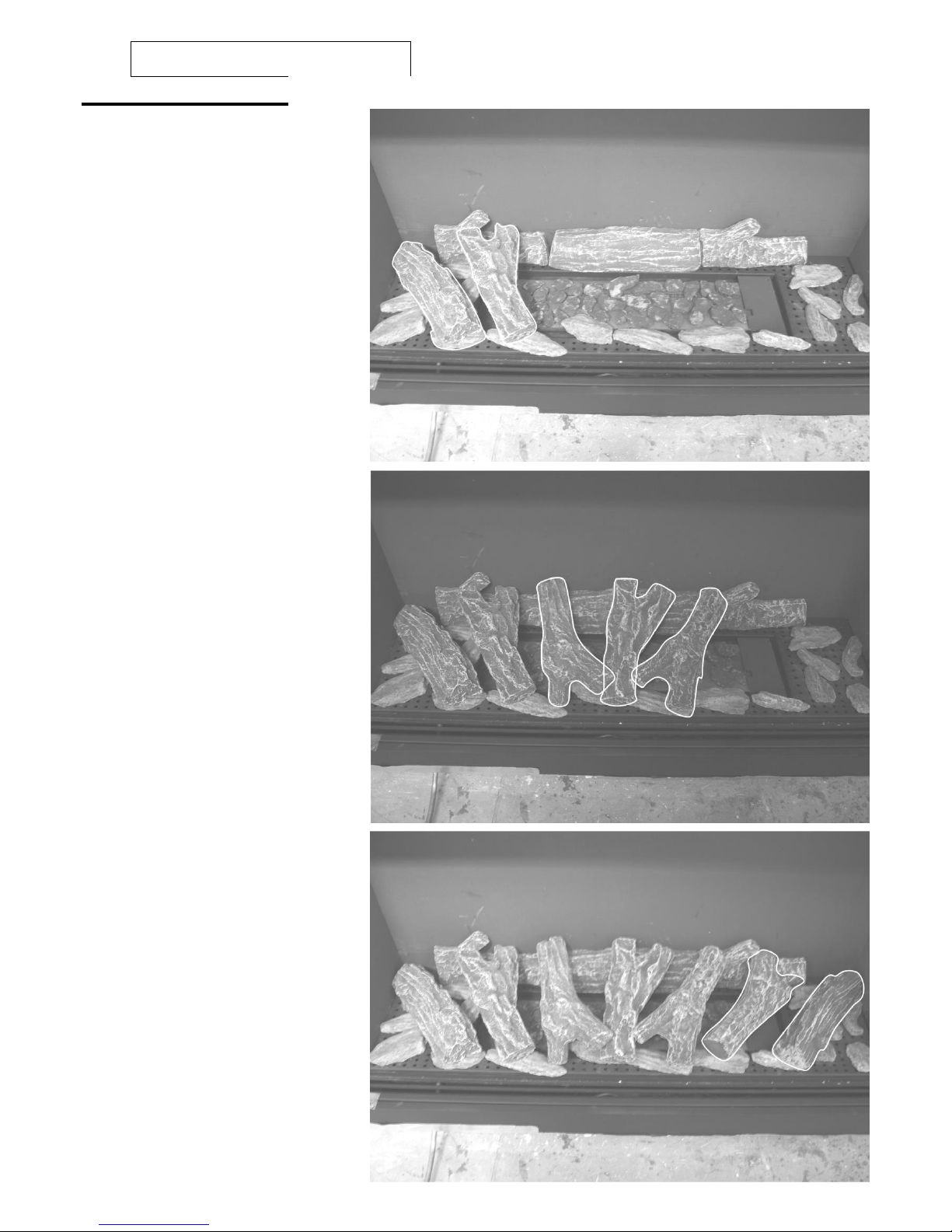

Remove the log fuel bed shapes and bark
shapes.
Lift out the air tray assembly from the location
points within the shelf.
The pilot is located on the right hand side of the
appliance, any debris in or around the aeration hole
should be remove using the nozzle of a vacuum
cleaner. It is advisable not to blow the debris into the
hole as this may cause more of a restriction and not rectify the problem.
Note: - Take care when cleaning in this area so as not to damage the pilot assembly.
CLEANING: PILOT ASSEMBLY (With
Four sided Trim Fitted)
(Before cleaning ensure that the appliance is
turned off and cold)
In some instances you may experience ignition
problems even when the appliance is new. This
may be due to the aeration hole in the pilot body
being partial blocked with dust, pet hairs, or other
foreign matter. The source of this debris could be
such things as carpet fibres, decorating or pet etc.
To gain access to the pilot please do the
following.

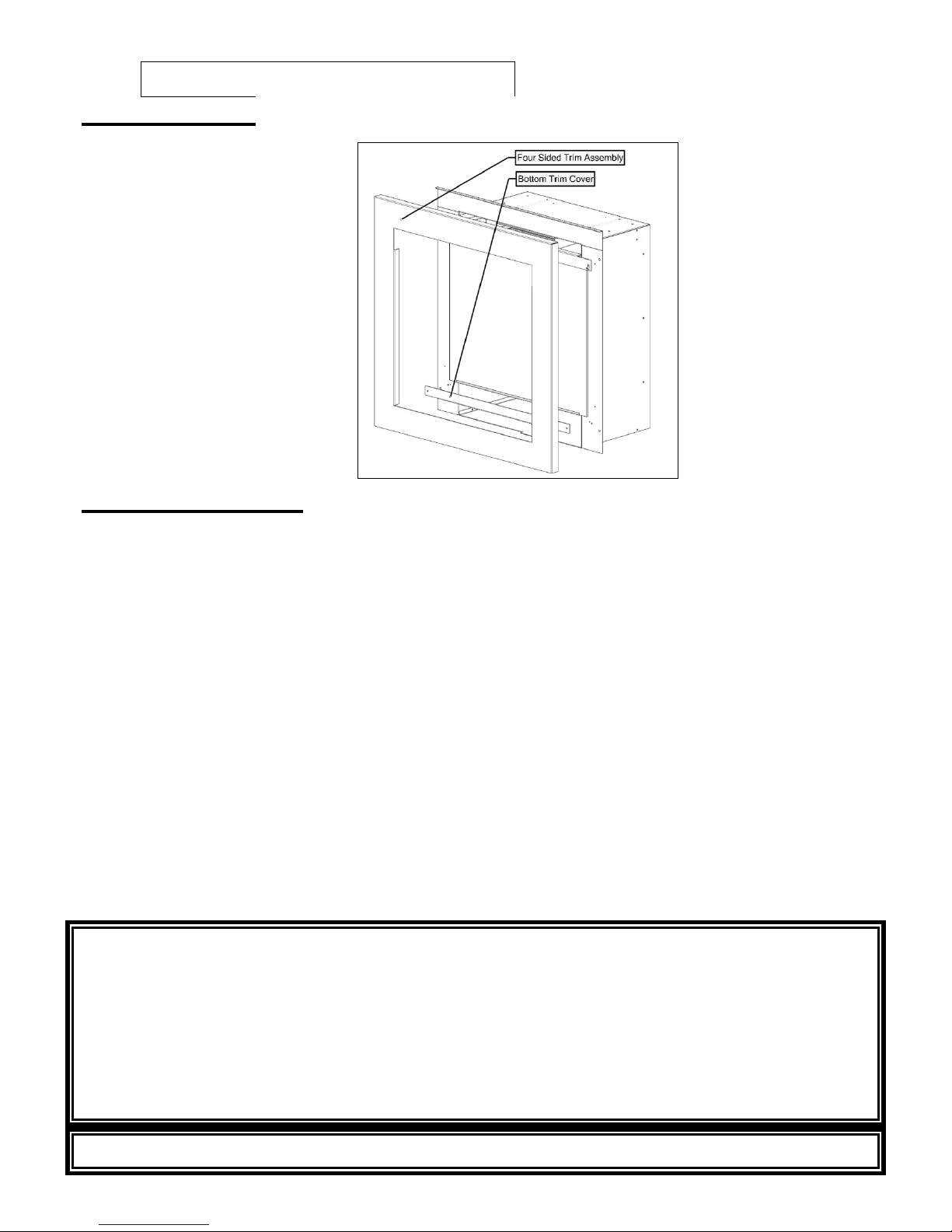

Lift the four sided trim away from the firebox which is held on using four magnets.
Undo the four M4 nuts retaining the glass fixing bracket using the tool provided then pull clear
and from the location studs.

9 LT6523 ( Iss 4 10/14 )
Carefully lift the glass panel from within the bottom location slot.
Remove the log fuel bed shapes and bark shapes.
Lift out the air tray assembly from the location points within the shelf.
P8 Users Instructions
SECTIONTHREE Cleaning Continued
GLASS CLEANING
From time to time it will be necessary to clean the glass panel of your P4. We recommend you use a
Ceramic hob cleaner these are available for all leading super markets: - i.e. ASDA, TESCO,
SAINSBURY’S Etc.
Brands of hob cleaning we have tested and found suitable are - HOB BRITE & VITRO CLEAN.
Ensure the fire as been turned OFF for at least four hours to ensure it is cool.
Remove the glass panel as described below.
Lay the glass panel down on a flat working surface on top of an old opened newspaper with the
side to be cleaned uppermost.
Follow the instructions on the Hob Cleaner Bottle.
On stubborn stains (where the appliance as been used for a long period without glass panel being
cleaned), use a new Brillo Pad well wetted with the Hob cleaner applied directly to it.
Ensure all the residues of the cleaner are removed with a damp cloth and the glass panel is
completely dry before fitting to the appliance.
Important:- The appliance must not be used if the glass panel is missing or damaged.
Note: - The glass may discolour quickly when first installed, and it should be cleaned. This is
due to the burning off process of the refractory fuel bed shapes.
REMOVING GLASS PANEL
Remove the two side covers LH and RH which
are held on with magnets.
Undo the four M4 nuts retaining the glass
fixing bracket using the tool provided then
pull clear from location studs.
Carefully lift the glass panel from within the
bottom location slot.

10 LT6523 ( Iss 4 10/14 )
P8 Users Instructions
SECTION FOUR Fuel Bed Cleaning and Layout
Before you clean any part of the appliance ensures that the appliance is turned off and cold.
Use only the fuel bed components provided and no additional parts must added.
Incorrect positioning of the fuel bed components could result in the staining of the glass panel.
Important: - Refer to the ‘Health & Safety Notice located on page 3 of this booklet before
cleaning or replacing any refractory material.
The fuel bed components are delicate and they should be handled with great care.
The moulded shapes may be removed for cleaning. They can be brushed very gently with a soft
brush to remove dust or any deposits.
A vacuum cleaner may only be used after the loose components and moulded shapes have been
removed.
CARE SHOULD BE TAKEN TO AVOID CONTACT WITH THE REFRACTORY LINING THIS IS A
DELICATE SURFACE AND SHOULD NOT BE WIPED OR RUBBED.
It is important that all the fuel bed moulded shapes are positioned as shown in these
instructions.
P8 Users Instructions
SECTION FOUR Fuel Bed Cleaning and Layout
Place air tray within burner
shelf assembly. Place a single
layer of black bark chippings
across the burner top plate.
Place three off the log shapes
along the back edge of the air
tray as shown. Finally place a
single layer of the large bark
chippings along the front and
sides of the air tray.

11 LT6523 ( Iss 4 10/14 )
P8 Users Instructions
SECTION FOUR Fuel Bed Cleaning and Layout Continued
Place the two log shapes as
shown.
Place the three log shapes as
shown.
Place the two log shapes as
shown.

12 LT6523 ( Iss 4 10/14 )
P8 Users Instructions
SECTION FIVE General Points
Like all appliances incorporating an aerated burner a low
frequency noise may be heard, particularly on the low
setting, this is quite normal and does not affect the
operation of the appliance.
It is advised that a competent person service the P8 fire
annually. The fire is more likely to provide trouble-free
operation.
Dulling and slight discoloration inside the firebox will
occur adding to the realism of the appliance. This is
normal.
It is important that: -
The chimney or flue is checked annually to ensure
clearance of combustion products. This can be
inspected by removing the inner firebox and removal of
the inspection covers located on the back and top of the
outer firebox. This can be obtained by doing the
following.

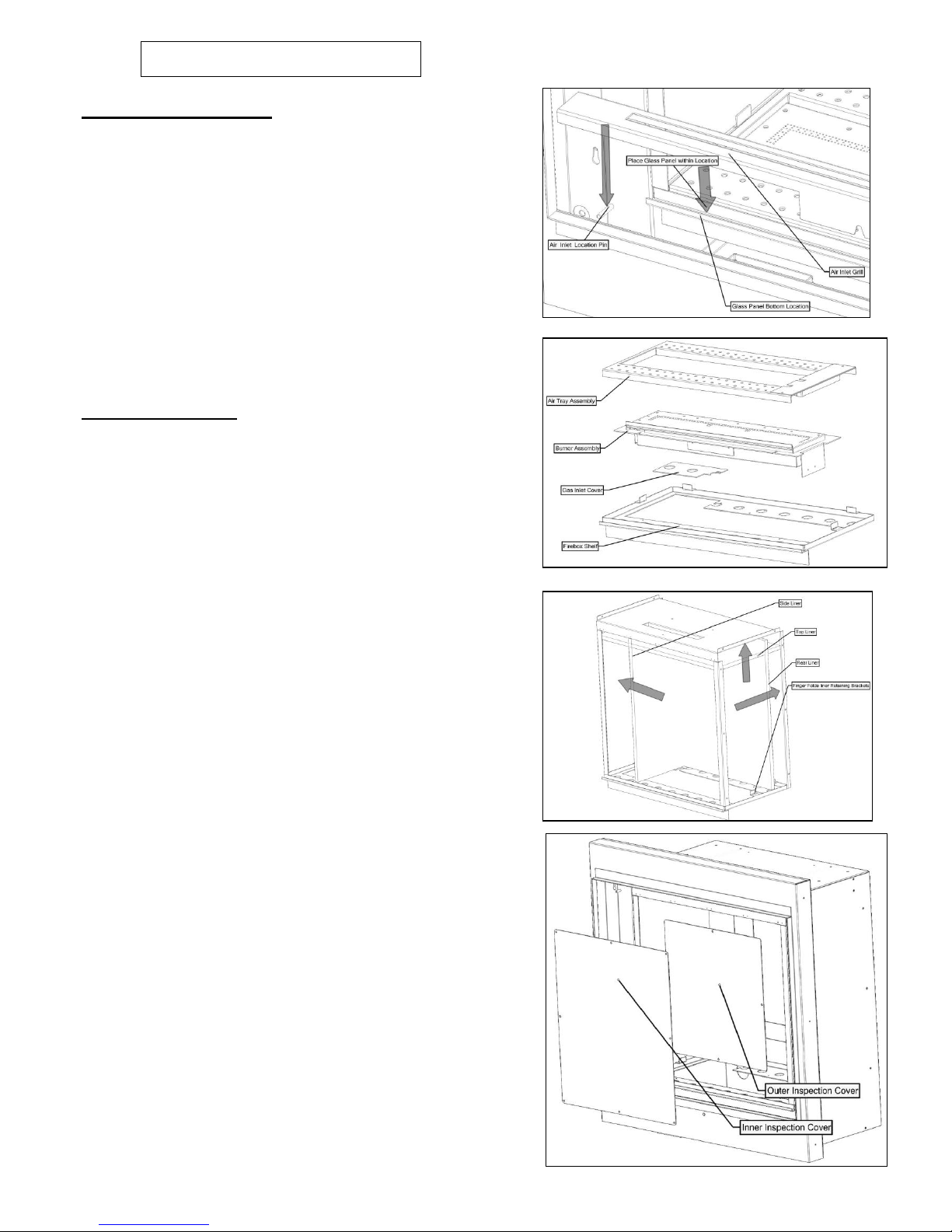

Remove the two side covers LH and RH which
are held with magnets.
Undo the two M4 and 2 M4 hexagon nuts retaining
the glass fixing bracket using the tool provided
then pull clear and remove from location studs.
Carefully lift the glass panel from within the bottom
retaining slot.
Remove the log fuel bed shapes.
Lift out the air tray assembly from the location
points within the shelf.
Pull out the air grill and disconnect the battery
holder from the lead and remove.
Remove the two screw retaining the gas
connection cover from within the burner shelf and
remove cover. Shut down restrictor elbow and
disconnect the 8mm inlet nut.
Undo the three fixing screws from the burner tray
and lift out burner tray assembly taking care not to
damage the liners.
Carefully bend down the 4 off finger folds located
on the fire box shelf.
Carefully remove the sides top and rear ceramic
liners.
Remove the 4 off fixing screws retaining the inner
inspection plate and remove.
Remove a further 4 off fixing screws retaining the
outer inspection plate and remove.
After inspection for clearance is completed
reassemble in reverse order.

13 LT6523 ( Iss 4 10/14 )
P8 Installation Instructions
SECTION SIX Appliance Data
NATURAL GAS
Gas Type: CATEGORY I 2 H
Gas Pressure: 20 mbar +/- 1.0mbar
Pressure Test Point Location: Gas inlet elbow
Gas Input: 6.6 kW Gross (Max.)
2.4 kW Gross (Min.)
Injectors: Mk 460
Oxy pilot: 9079 N.G.
NOx Classification ………………. 5
Gas Connection: 8mm compression: semi-rigid or rigid
Data Badge Location: Located on the base of the appliance on the L/H side beneath the grill.
Battery Remote handset 9 V Size MN1604
Appliance 6 x 1.5V AA high power alkaline.
Appliance Dimension
NOTE: The efficiency of this appliance has been measured as specified in BS7977-1 2009 +A1:2013 and the result is 72.71 %. The gross calorific
value of the fuel has been used for this efficiency calculation. Gastec have certified the test data from which it has been calculated. The efficiency value
may be used in the UK Government’s Standard Assessment Procedure (SAP) for energy rating of dwellings. Please note: Within the appliance
packaging will be a outlet restrictor, this is there to achieve the maximum efficiency. This, however, may not be fitted due to the flue underperforming.
Fireplace Frame Option
Slip Bracket Option

14 LT6523 ( Iss 4 10/14 )
P8 Installation Instructions
SECTION SIX Appliance Data Continued
Four Sided Trim Option
SECTION SEVEN Regulations and Warnings
This appliance must only be installed in Great Britain or Ireland.
The appliance is suitable for use on natural gas only.
GB (Great Britain) This fire does not normally require purpose build ventilation.
IE (Ireland) Permanent ventilation must comply with the current edition of IS813.
In GB, (Great Britain)
It is the law that all gas appliances must be installed by a competent person; i.e. a GAS SAFE registered installer, in
accordance with the Current Gas Safety (Installation And Use) Regulations (as amended), all relevant parts of the
local and national building regulations and all relevant recommendations of the following British Standards. Failure to
do so could lead to prosecution.
The following are relevant codes of practice and British Standards: -
B.S. 5871
B.S. 5440 PART 1 & PART 2
B.S. 6891
This appliance must be installed to current versions of the above standards and include any relevant
amendments to:-
The Building Regulations Issued By The Department Of The Environment.
The Building Standards (Scotland) (Consolidated) Regulations Issued By The Scottish Development Office.
IN IE, (Ireland)
The appliance must be installed by a competent person and installed in accordance with the current edition of I.S.813
Domestic Gas Installation, the current building regulations, and the current ETCI rules for electrical installation, if
appropriate.
Prior to the installation ensure that the local distribution conditions (identification of type of gas and pressure) and
adjustment of the appliance are compatible. (G20@20mbar & G21@37mbar)
WARNINGS
The glass front of the fire act as a dress guard, conforming to BS 1945 (1971) and satisfies the heating appliance regulations (1991) However, a
guard conforming to BS6539 (1984) must be used to protect young children, the elderly or infirm.
This appliance incorporates a safety device in the form of an Oxygen depletion system. IT MUST NOT BE ADJUSTED OR PUT OUT OF
OPERATION! THIS IS A NON-SERVICABLE ITEM AND MUST BE EXCHANGED AS A COMPLETE ASSEMBLY; USING ONLY THE
ORIGINAL MANUFACTURER'S PART.
A suitable proprietary fire surround with a 150°C minimum rating is required.
During initial firing, an odour may be evident. This is the starch binder used during the manufacture of the fibre components of the fire, and there
are no harmful effects produced.
Care must be taken to prevent any damage being caused to surrounding soft furnishing or decoration; e.g. many embossed vinyl wall coverings
may become discoloured if placed too close to the appliance.

15 LT6523 ( Iss 4 10/14 )
P8 Installation Instructions
SECTION EIGHT Siting the Appliance
CLASS ONE
That is a conventional brick or stone chimney as used for a solid fuel appliance with an effective cross-
sectional dimension of 225 x 225 mm (9” x 9”) or a lined flue with a minimum diameter of 125mm (5”). The
chimney must have a minimum effective height of at least 3 metres. Any permanent flue restriction or variable
dampers are to be removed or locked fully open. The chimney should be swept prior to installation if it has
previously been used with solid fuel. This is not necessary if the flue has previously been used with a gas
appliance or if it is a new installation.
Note: A brick or stone chimney with a 125 mm (5 ins) minimum diameter flue liner conforming to BS 715 may
be used. Provided a suitable sealing plate is fitted to the base of the liner and the appliance does not restrict
the opening into the liner. Ensure a smooth lead into the flue way and no combustible materials are used. A
void of 50mm must be maintained from the top of the firebox to gather into flue.
PREPARING THE OPENING FOR FIREPLACE FRAME AND FOUR SIDED FRAME INSTALLATIONS
Please note that a min of 50mm from floor is required when fitting with the 4-sided trim option.
The front face and the base of the fire opening must be flat to ensure that a good seal is formed between the
rear and base of the appliance and the chimney to avoid any reduction of natural draught.
790-890mm
610-635mm
Floor
This area behind the trim/fascia
must be clear of combustible
material and be flat for the seal.
330mm Min Depth

16 LT6523 ( Iss 4 10/14 )
P8 Installation Instructions
SECTION EIGHT Siting the Appliance
PREPARING THE OPENING FOR INSTALLATION WITH MARBLE SLIPS
The front face and the base of the fire opening must be flat to ensure that a good seal is formed between the
rear and base of the appliance and the chimney to avoid any reduction of natural draught.
Locate the slip mounting brackets (supplied as an optional extra) by hooking onto the existing studs on the fire
Clearance to Shelf
Minimum clearance from hearth or base of opening to underside of combustible shelf should be 800mm
provided the shelf depth is 75mm (3”). This gives a minimum clearance above the appliance of 140mm. For a
shelf of 150mm (6”) the minimum height above the hearth or base of opening must be 880mm. This will give a
minimum clearance above the appliance of 220mm.
Clearance to Sides of Fire
Minimum width between vertical sides of combustible surround should not be less than 875 mm provided fire
is central to the surround and sides do not project more than 150 mm. When vertical side forward projection is
increased by 12.5 mm add 50 mm to inside width of surround.
940 - 980mm
610-635mm
350mm
Min Min
Floor
This area behind the trim/fascia
must be clear of combustible
material and be flat for the seal.

17 LT6523 ( Iss 4 10/14 )
P8 Installation Instructions
SECTION EIGHT Siting the Appliance Continued
CHECKING THE FLUE AND FIRE OPENING
Check that the chimney conforms to the required specifications as previously stated. Examine the
condition and carry out any remedial work including removing any debris from the base.
If the flue has been used for solid fuel it should be swept prior to the installation
Prior to installing the appliance a smoke test (using a smoke bomb) should be carried out to check
that satisfactory smoke clearance has been established.
If all the smoke is not drawn into the flue, pre-heat the flue with a blowtorch or similar and re-
check. If there is any uncertainty examine for the cause and, if necessary, seek expert advice.
No combustible material should be fitted inside the fireplace opening.
When installing this appliance against a dry lined (plasterboard) wall ensure that any void
between the plasterboard and the wall is sealed with a suitable non-combustible material (i.e.
plaster or mortar).
P8 Installation
Instructions
SECTION NINE To Install the
Appliance
GAS SUPPLY ROUTING
Use rigid or semi –rigid tube to connect the supply.
Determine the gas supply pipe route to the
appliance before installing the fire. Please note
that if the fireplace frame option is required the
inlet cover retaining screws and nut should be fitted from the rear of the firebox flange at this
stage. The required fixing can be found within the fireplace frame packaging
Fixing Firebox Assembly
Slide the firebox into the fireplace open guiding the gas
supply pipe through the hole at the rear LH bottom of the
firebox.
Retain the Firebox using wall plugs and screw using the four
holes within the firebox flange.
Refit the grommet over the pipe and seal around the inlet
hole.
Remove the gas connection cover located within the burner
shelf left hand side and connect to the restrictor elbow
provided.
Note: - The isolation valve must be fitted at a angle
to allow access to the restrictor plug plus gas
pressure test nipple.

18 LT6523 ( Iss 4 10/14 )
P8 Installation Instructions
SECTION NINE To Install the Appliance continued

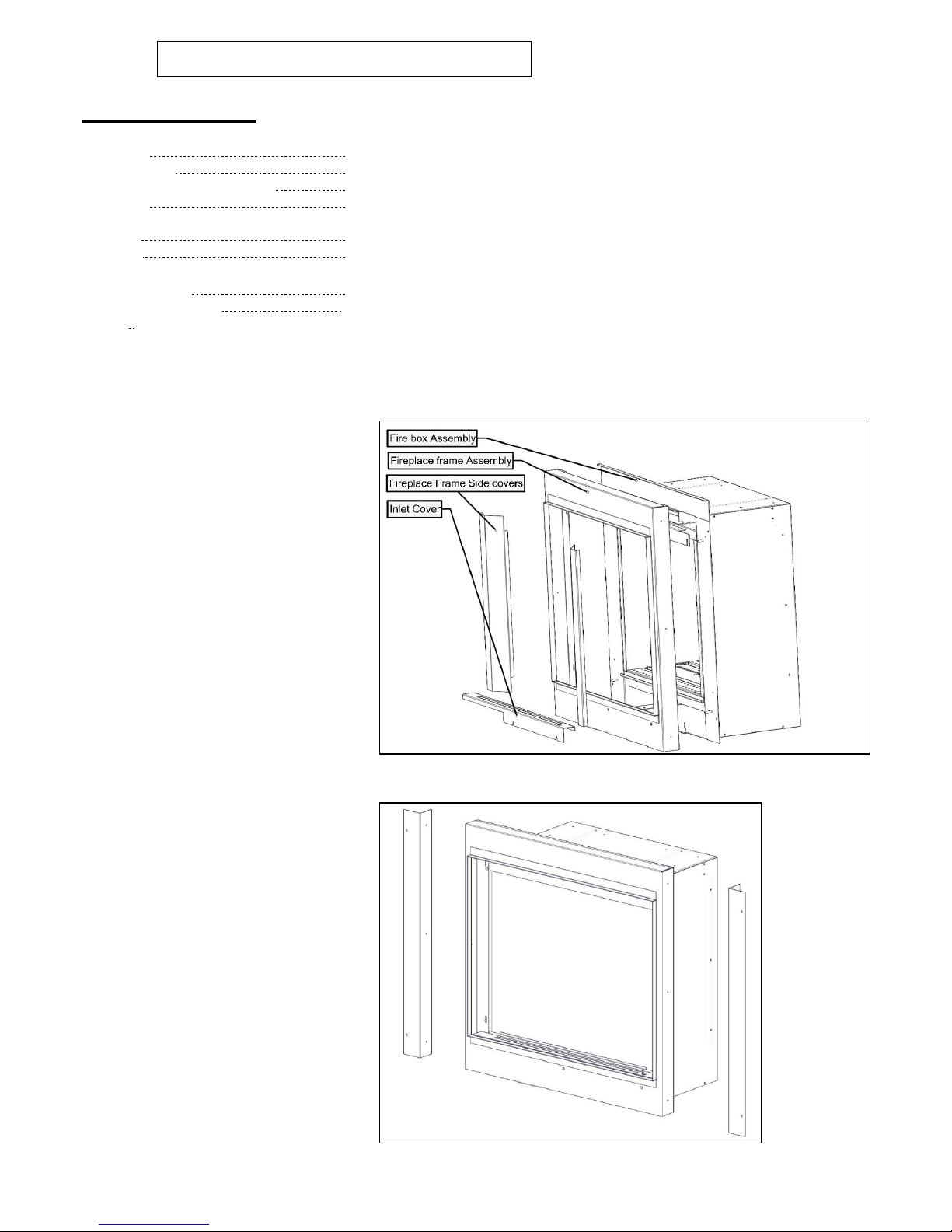

Fireplace Frame Option
At this point the fireplace or false chimney breast
front will need to be constructed.
Offer the fireplace frame assembly up to the
firebox and secure using the 4 off fixing screws
provide
Connect battery pack as described in section 2.
(Operating the appliance). Locate the battery
pack in the holder positioned within the fireplace
frame.
Locate the receiver eye within the inlet cover
with the head of the receiver visible.
Inset the inlet Cover within the fireplace frame and
glass panel location bracket.
Operate the handset as described in section one.
Lay the fuel bed as described in section four.
Place the Glass panel within the location bracket within
the fire box shelf assembly.
Retain the glass panel
by using the glass
fixing bracket and
fixing nut provided
Finally locate the
Fireplace Covers LH
and RH within the
frame.

19 LT6523 ( Iss 4 10/14 )
P8 Installation Instructions
SECTION NINE To Install the Appliance continued
Slip Bracket Option
Fit the Fire place frame assembly to the
Firebox Flange using the six off fixing
screws provided.
Attached the 2 off Slip bracket LH and
RH onto the Fireplace frame assembly
using the 6 off fixing pins provided.
Slide the firebox into the opening
guiding the gas supply pipe through the
hole at the rear LH bottom of the
firebox.
Retain the Firebox through the fixing
holes within the slip fixing bracket using
appropriate wall plugs and fixing
screws.
Refit the grommet over the pipe and
seal around the inlet hole.
Remove the gas connection cover
located within the burner shelf left hand
side and connect to the restrictor elbow
provided.
Assembly the fireplace frame as
described in the previous section.
Four Sided Trim Option
Slide the Firebox into the opening
guiding the gas supply pipe through the
hole at the rear LH bottom of the
firebox.
Refit the grommet over the pipe and
seal around the inlet hole.
Remove the gas connection cover
located within the burner shelf left side
and connect to the restrictor elbow
provided.
Fit Air tray assembly and lay fuel bed as
described in section four.

20 LT6523 ( Iss 4 10/14 )
Place the Glass panel within the location bracket within the fire box shelf assembly.
P8 Installation Instructions
SECTION NINE To Install the Appliance continued
Retain the glass panel by using the glass
fixing bracket and nuts provided.
Connect the battery pack as described in
section one with the insulation sleeve
provided. Place on the fire box base along
the front edge on the left hand side.
Fit the trim bottom cover along the bottom
edge of the shelf assembly using the 2 off
fixing pins provided.
Position the loose magnet against the
inner return of the four sided trim
assembly.
Locate the remote receiver eye within the
clip located at the bottom edge of the trim
making sure the complete curved face is
projecting clear of the bottom trim edge.

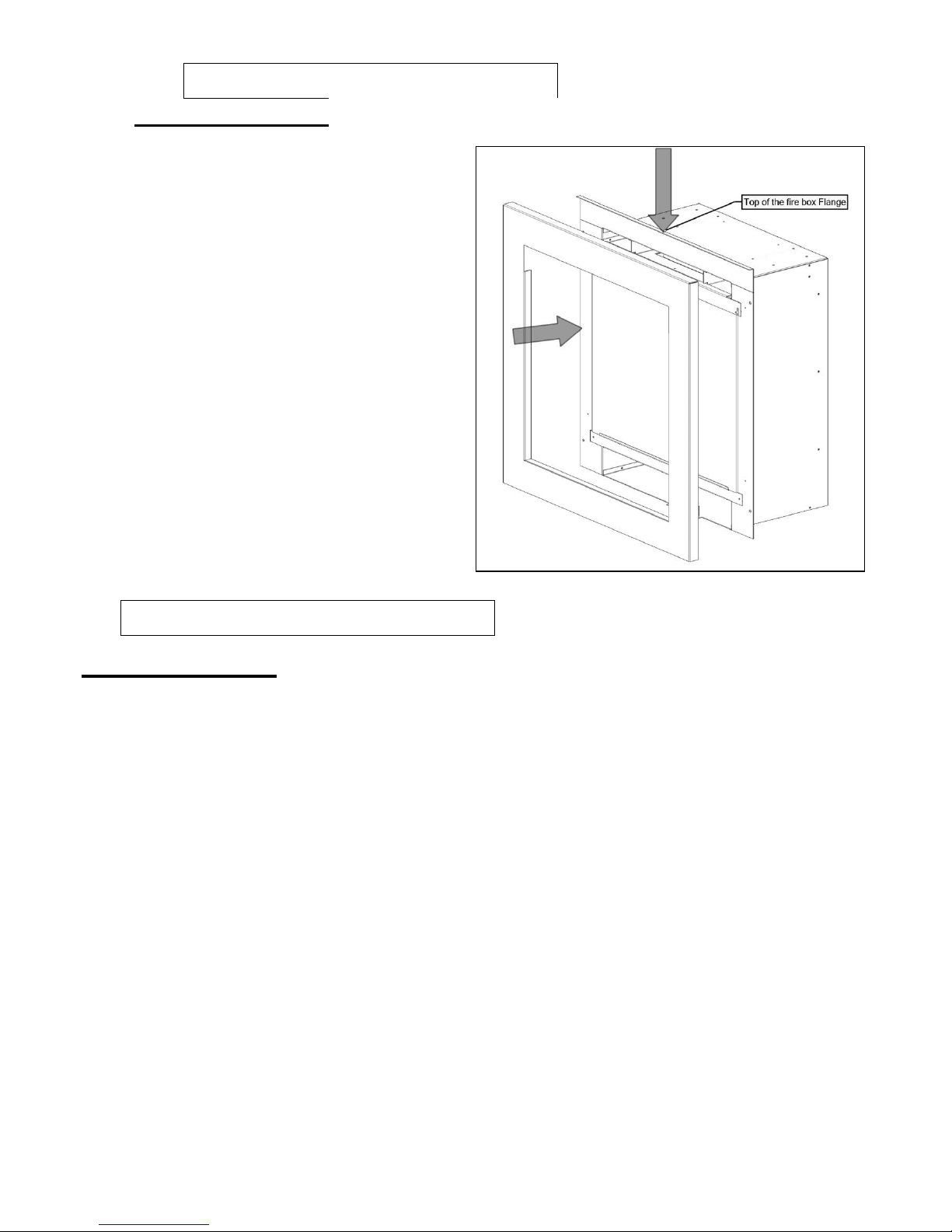

Offer the trim up against the firebox, with
the top return of the trim rest upon the top
of the fire box flange.
P8Installation Instructions
SECTION NINE To Install the Appliance Continued
CHECKING GAS SOUNDNESS AND RUNNING PRESSURE.
Turn on the gas supply to the appliance and check for soundness in accordance with current codes of practice.
Turn off the gas supply at the external Isolation valve.
Remove the pressure test point screw from the inlet elbow and connect the pressure gauge.
Turn on the gas to the appliance at the Isolation valve.
Light the appliance as described in section 2.
Check the inlet pressure is 20mbar. +/- 2.0 37mbar +/- 2.0
Turn off gas supply, at the isolation valve. Disconnect the pressure gauge and replace the pressure test point screw.
Turn on the supply to the appliance and check the pressure test point for soundness with detection fluid.
Refit the gas connection cover.
Fit the air tray within the location with the burner shelf.
Construction of a false chimney breast front.
Using 50mm K.D Sawn stud-work will provide the required rebate.
The vertical sides of the stud-work should not be less than 502mm from the centre of the firebox. The horizontal
stud-work should not be less than 764mm from the base of the firebox. This will ensure 50mm minimum
clearance from the sides and 110mm clearance from the top of the firebox is maintained.
An insulation material (20mm “Super lux” or equivalent) should be attached to the underside face of the horizontal
stud-work directly above the firebox assembly.
Line the opening with 12mm thick non-combustible material.
