Paragon Slimline 2 Slide User manual

SECTION ONE
Consumer Protection Information
As manufacturers and suppliers of heating products,we take every care,as far as is
reasonably practicable, that these products are so designed and constructed as to meet the
general safety requirement when properly used and installed. To this end,our products are
thoroughly tested and examined before despatch.
IMPORTANT NOTICE: Any alteration that is not approved by the appliance manufacturer
could invalidate the approval of the appliance,operation of the warranty and could affect
your statutory rights.
Health and Safety Notice
Important
This appliance could contain some of the materials, indicated below,that could be
interpreted as being injurious to health and safety. It is the users / installers responsibility to
ensure that the necessary personal protective clothing is worn when handling these
materials,see below for information.
Artificial Fuels, Mineral Wool, Insulation Material, Refractory/Ceramic Fibres, Glass
Yarn - may be harmful if inhaled,may be irritating to skin,eyes,nose and throat.
When handling avoid inhaling and contact with skin or eyes. Use disposable gloves,
facemasks and eye protection.After handling wash hands and other exposed parts. If a
vacuum is used for cleaning the coals or cleaning after servicing /installation it is
recommended that it be of the type fitted with aHEPA filter.
Disposal of refractory jceramic materials. To keep dust to a minimum these materials
should be securely wrapped in polythene and be clearly labelled 'RCF waste'. These
materials are not classified as 'hazardous waste and should be disposed of atasite
licensed for the disposal of industrial waste.
• The PARAGON SLlMLlNE 2 Slide is a decorative fuel effect appliance with a radiant heat
conserver box for improved efficiency.
• This appliance is intended for decorative purposes.
• The PARAGON SLlMLlNE 2 Slide is designed and tested to the requirements of the EN
509.
• The appliance is for use on Natural Gas only and should be installed by a competent
person i.e. CORGI-registered,in accordance with the GAS SAFETY (INSTALLATION
AND USE) REGULATIONS.
• The chimney or flue (unless new or previously used with a gas appliance) should be
swept before installation if it has been used for solid fuel.
This appliance has a naked flame,as with all such fires it is recommended that a fireguard
should be used for the protection of children, the elderly and infirm. Fireguards should
conform to SS 6539 (1984) (Fireguards for use with solid fuel appliances).

SECTION ONE
The PARAGON SLlMLlNE 2 Slide incorporates a single gas control,which selects ignition
pilot,low or high settings. It is operated via a slide lever on the upper right hand side of the
appliance.
The appliance incorporates a safety device in the form of an Oxygen Depletion System,
which constantly monitors the oxygen in the room and will cause the fire to switch off if the
oxygen level reduces,for instance due to insufficient ventilation or a blocked flue.
If this regularly occurs do not attempt to relight the appliance until a qualified engineer has
checked it, the problem may not be due to lack of air or a defective flue.
SECTION TWO • •.
THE FULL LIGHTING PROCEDURE IS AS FOLLOWS: .
a. Push slide control lever down, as far as possible a clicking noise will be heard and pilot
will light,HOLD DOWN FIRMLY FOR ABOUT 20 SECONDS.
b. Allow the lever to spring up the pilot light should remain alight and the main burner
should light on its low setting.
c. Should the pilot fail to light, pull the lever fully up to turn off the appliance, wait 3 minutes
and repeat the procedure (a &b).If the pilot does not light and no clicking noise is heard
replace the battery and try again.
d.After lighting the pilot flame and the main burner on its low setting the control lever may
be lifted until slight resistance is felt, this will put the burner on its high setting.
e.To completely extinguish the fire, pull the lever up past the resistance to its fullest extent.
The fire may be operated on either its low or high setting.
f. It is recommended that the appliance be operated on its high setting for a short period
before adjusting to the low setting.
g. BEFORE REQUESTING HELP SHOULD THE FIRE FAIL TO LIGHT,ENSURE A NEW
BATTERY IS FITTED
Note: - If the ignition fails the pilot can be lit with a taper or a
match held at the pilot head.
Remove fret for access and replace after lighting.
If the fire is extinguished for any reason wait 3 minutes before
reliting.
58184
Fig.1x
LT2893 Issue 2(04-02)

Paragon Slimline 2 Slide & 2
Slide Lo

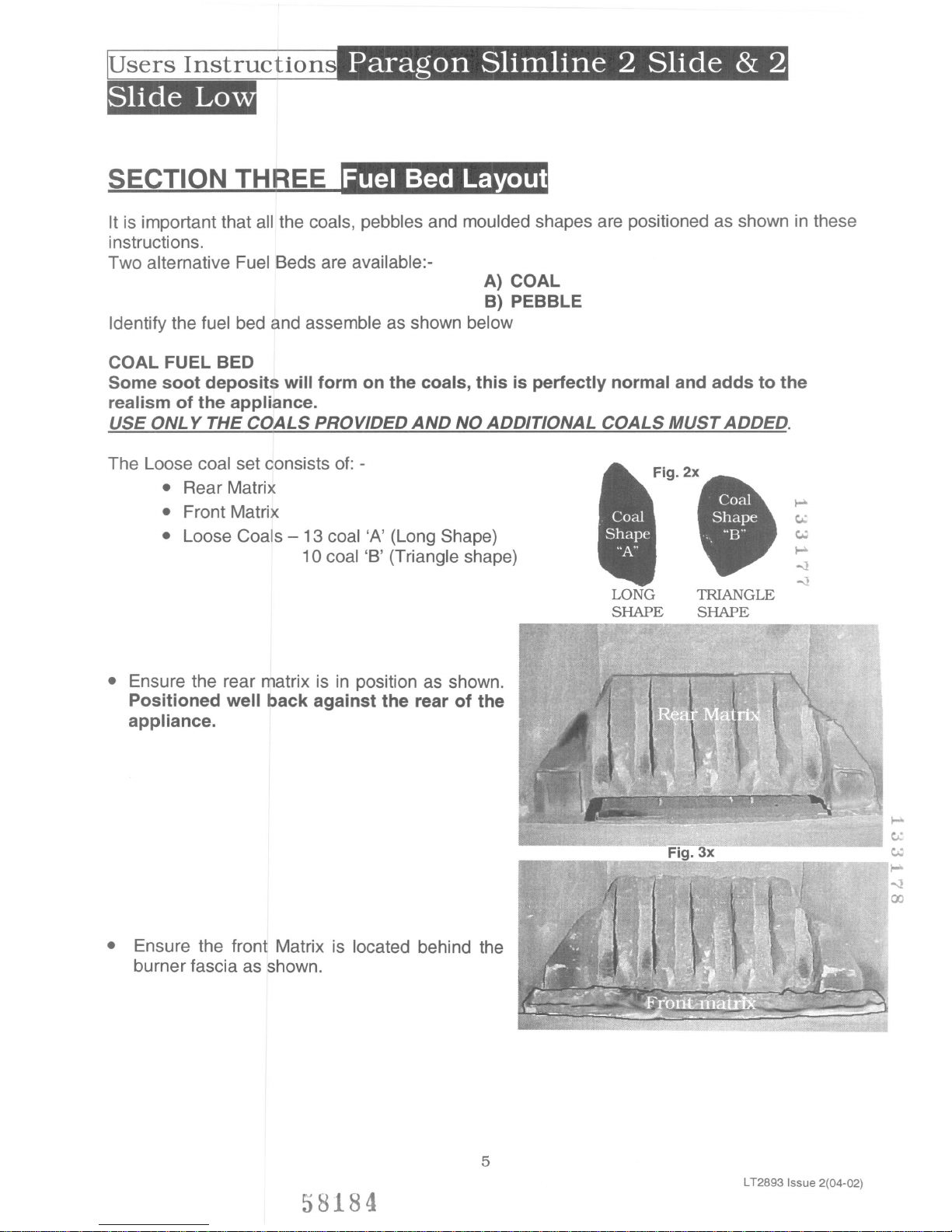

SECTION THREE
It is important that all the coals, pebbles and moulded shapes are positioned as shown in these
instructions.
Two alternative Fuel Beds are available:-
A) COAL
B) PEBBLE
Identify the fuel bed and assemble as shown below
COAL FUEL BED
Some soot deposits will form on the coals, this is perfectly normal and adds to the
realism of the appliance.
USE ONL Y THE COALS PROVIDED AND NO ADDITIONAL COALS MUST ADDED
The Loose coal set consists of: -
• Rear Matrix
• Front Matrix
• Loose Coals - 13 coal 'A' (Long Shape)
10 coal 'B'(Triangle shape)
LONG
SHAPE TRIANGLE
SHAPE
• Ensure the rear matrix is in position as shown.
Positioned well back against the rear of the
appliance.
• Ensure the front Matrix is located behind the
burner fascia as shown.
58 84

SECTION THREE

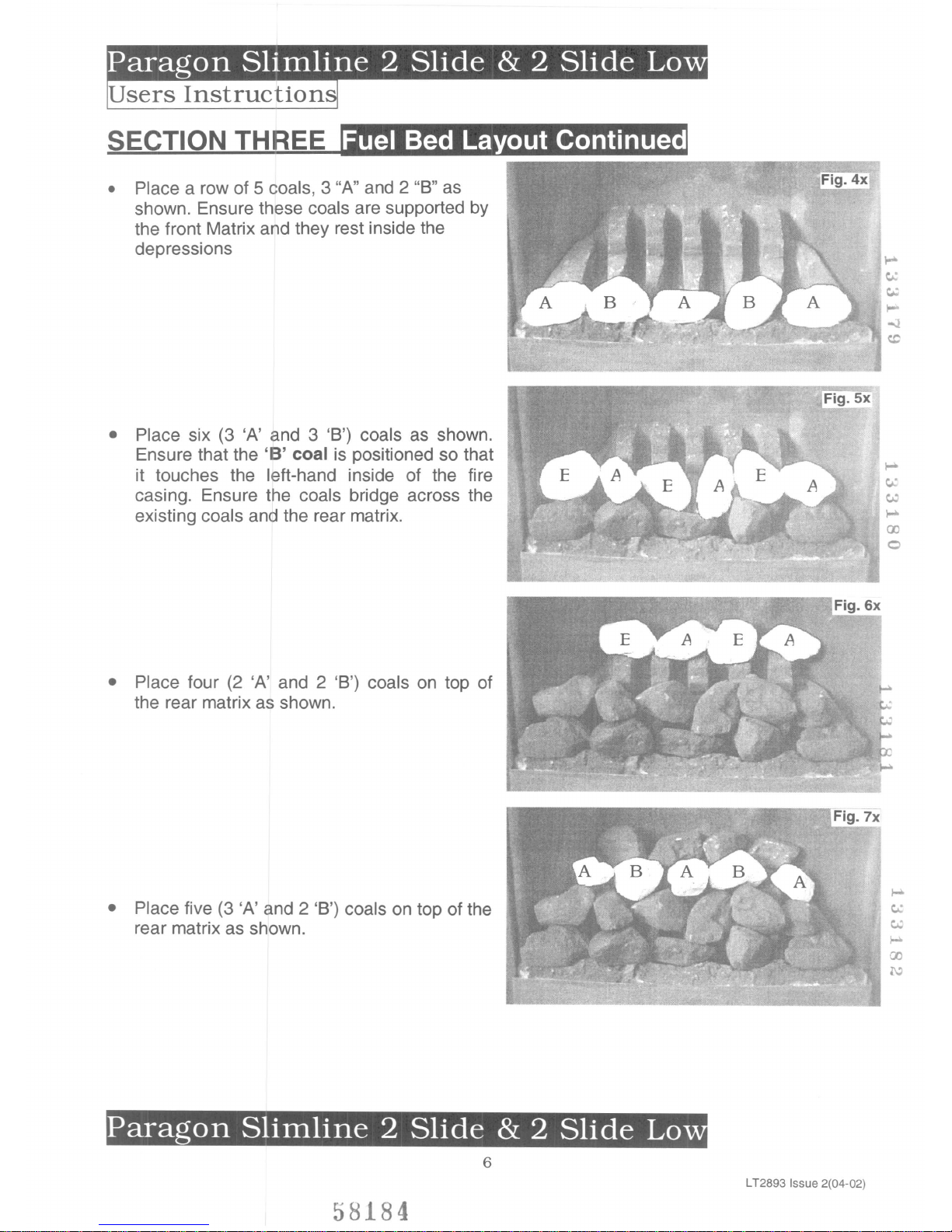

• Place a row of 5 coals,3 "A"and 2 "B" as
shown. Ensure these coals are supported by
the front Matrix and they rest inside the
depressions
• Place six (3 'A' and 3 'B') coals as shown.
Ensure that the 'B' coal is positioned so that
it touches the left-hand inside of the fire
casing. Ensure the coals bridge across the
existing coals and the rear matrix.
• Place four (2 'A'and 2 'B') coals on top of
the rear matrix as shown.
• Place five (3 'A' and 2 'B') coals on top of the
rear matrix as shown.
Paragon Slimline 2 Slide & 2 Slide Lo
58184

IUsers Instructionij

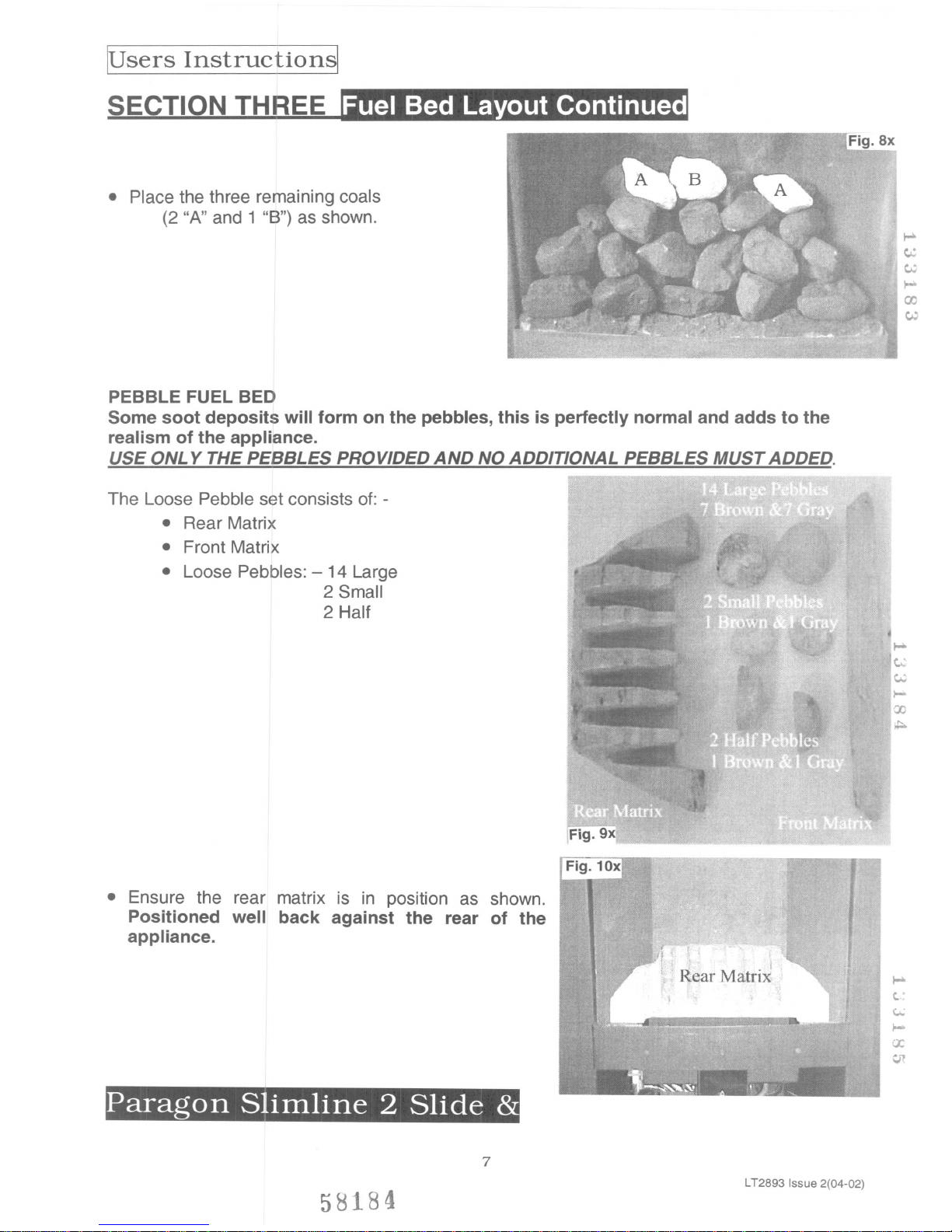

• Place the three remaining coals
(2 "A" and 1 "B") as shown.
SECTION THREE
PEBBLE FUEL BED
Some soot deposits will form on the pebbles, this is perfectly normal and adds to the
realism of the appliance.
USE ONL Y THE PEBBLES PROVIDED AND NO ADDITIONAL PEBBLES MUST ADDED.
The Loose Pebble set consists of: -
• Rear Matrix
• Front Matrix
• Loose Pebbles: - 14 Large
2 Small
2 Half
• Ensure the rear matrix is in position as shown.
Positioned well back against the rear of the
appliance.
Paragon Slimline 2 Slide &
58184

• ••• •
Users Instruction
SECTION THREE

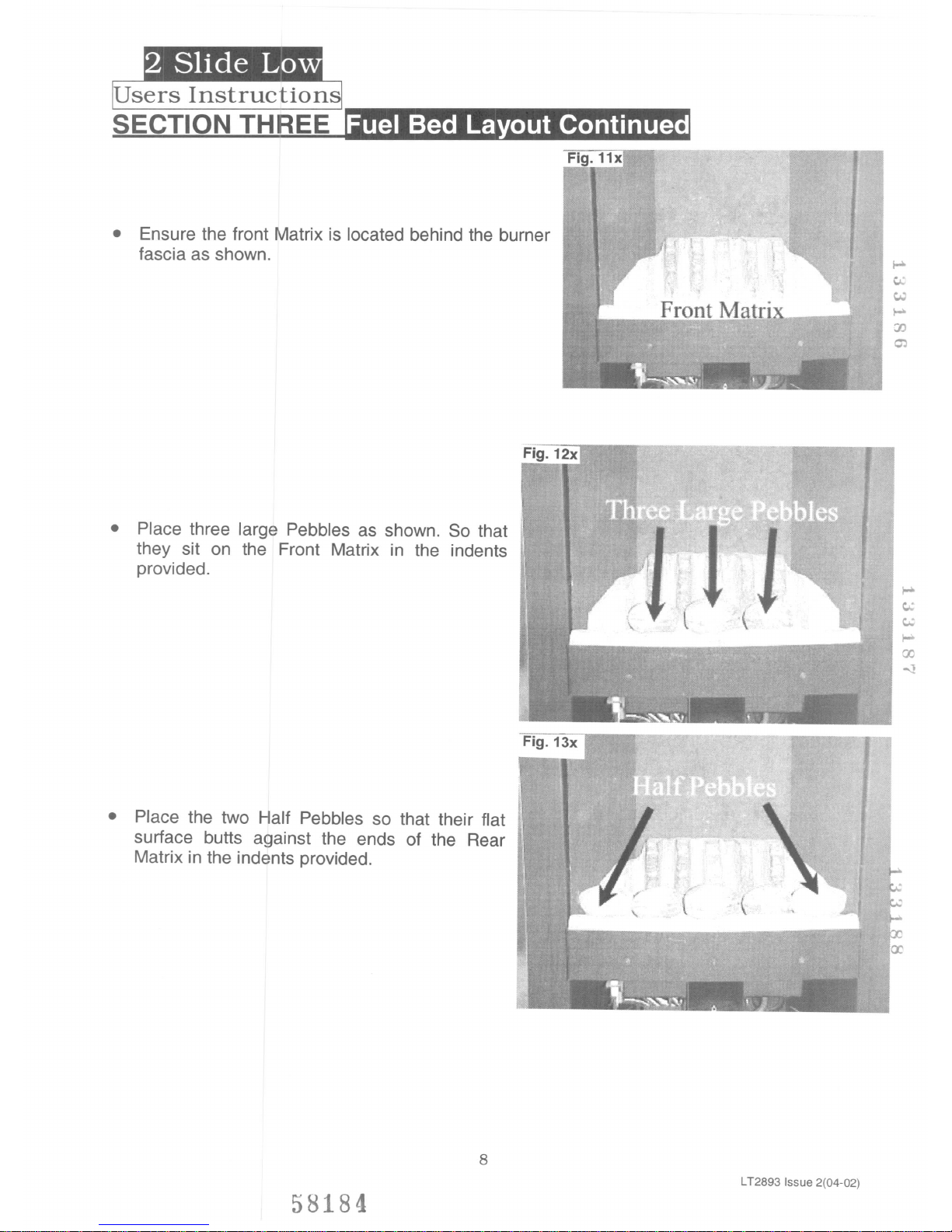

• Ensure the front Matrix is located behind the burner
fascia as shown.
• Place three large Pebbles as shown. So that
they sit on the Front Matrix in the indents
provided.
• Place the two Half Pebbles so that their flat
surface butts against the ends of the Rear
Matrix in the indents provided.
58 84

SECTION THREE
I
• Place Three Large Pebbles on top of the Rear
Matrix as shown,so that they are pushed tightly
against the rear of the firebox. Position the Two
Small Pebbles so that they sit on the slopping
sides of the Rear Matrix and the top edge of the
Half Pebbles as shown.
• Place four large Pebbles on top of the Rear
Matrix as shown,position them in the spaces
between the frontrow of Pebbles.
• Place four large Pebbles on top the previous
row of Pebbles as shown.
58 84

Paragon Slimline 2 Slide & 2 Slide Lo
Cleaning
Users Instruction
SECTION FOUR
Warning: -Before you clean any part of the appliance ensure that the appliance is turned off
and cool.
CLEANING: BRASS DECORATIVE TRIM & FRET
• The finish of the brass trim and fret will from time to time need cleaning with a proprietary
brass cleaner i.e.: Brasso
• The trim and fret should be removed for cleaning. The fret should be removed before
removing the trim, which is held in place by four magnetic strips.
CLEANING: BLACK PAINTED or CHROME EFFECT SURFACES
• These surfaces should be dusted regularly and any marks removed with a soft cloth.
• Abrasive or chemical cleaner should never be used.
CLEANING COALS AND PEBBLES
Important: - Refer to the Heath & Safety Notice located on page 3 of this
booklet before cleaning or replacing any refractory material.
• The coals, pebbles and ceramic parts are delicate and they should be handled with great
care.
• The loose coals and pebbles may be removed for cleaning. They can be brushed very
gently with a soft brush to remove dust or any deposits.
• Care should be taken to avoid contact with the refractory lining, this is a delicate surface
and should not be wiped or rubbed.
• A vacuum cleaner may only be used after all the loose coals and pebbles have been
removed.
SECTION FIVE
Like all appliances incorporating an aerated burner a Low frequency noise may be heard,
particularly on the Low setting, this is quite normal and does not affect the operation of the
appliance.
It is advised that the fire is serviced annually this is more likely to provide trouble-free
operation.
It is important that: -
• The chimney or flue is checked annually to ensure clearance of combustion products.
• The fire does not normally require purpose-built ventilation but if for any special reason
purpose-built ventilation is provided it should be checked periodically to ensure freedom
from obstruction.
• Any debris from the chimney or flue should be removed.The fire should be allowed to cool
for three to four hours before it is removed.
• Rubbish must not be thrown onto the fuel bed under any circumstances.
• The cast fire front must be positioned in front of the fire whilst it is burning
5S184

Users Instruction
SECTION FIVE
The only user removable parts are: -
• Cast fret
• Loose fuel bed components
• Decorative effect trim
jInstallation Instructionsl
SECTION SIX • ••
Category of appliance: BIIAS Category 1
2H
Overall dimensions:_ Height 605mm (or 555mm for the Low
version).Width 505mm
Forward Projection: .?5mm, (From fireplace opening including fret.)
Weight 11kg (Boxed excluding fret)
9.5kg (Unboxed excluding fret)
Gas Type: G20 Natural Gas
Gas Pressure: 20 mbar +/- 1.0mbar
Pressure Test Point Location:Gas inlet elbow
Gas Input (Gross): .?0 kW (Maximum) 4.4 kW (Minimum)
Injector: Marked 460
Gas Connection:8.0mm 0/0, tube.
Data Badge Location: Behind decorative trim
PACK CONTENTS
• Appliance
• Owners Instruction
• Foam Seal
• Trim
Refractory Fuel Bed Components
• Rear Matrix
• Front Matrix
• Loose Coals - 13 coal 'A' (Long)
10 coal 'B'(Triangle)
• or Loose Pebbles - 14 Large,2 Small
& 2 Half
SECTION SEVEN • - •
• THIS APPLIANCE MUST ONLY BE INSTALLED IN GREAT BRITAIN OR IRELAND.
• THE APPLIANCE IS SUITABLE FOR USE ON NATURAL GAS ONLY.
• THE APPLIANCE IS INTENDED FOR DECORATIVE PURPOSES.
• (GB) NO SPECIAL VENTILATION BRICKS OR VENTS ARE REQUIRED INTO THE ROOM
CONTAINING THE APPLIANCE, PROVIDING NORMAL ADVENTITIOUS ROOM
VENTILATION EXISTS. THE INSTALLER MUST SATISFY THIS POINT BY CARRYING OUT
THE MANDATORY SPILLAGE TEST.
(lE) PERMANENT VENTILATION MUST COMPLY WITH THE REGULATIONS CURRENTLY
IN FORCE.
