Parish Supply 1000DX-200 Speedster User manual

1
Instructions for
1000DX-200,1001DX-200,
1003DX, 1005DX Speedster®
Please read before use.
Model #
Serial #
Form # ADP-Speedster
5-14
1000DX-200 p.3
1001DX-200 p.9
1003DX p.15
1005DX p.21
General information p.27
Register your product
at http://www.mytee.
com/support/register

2

3

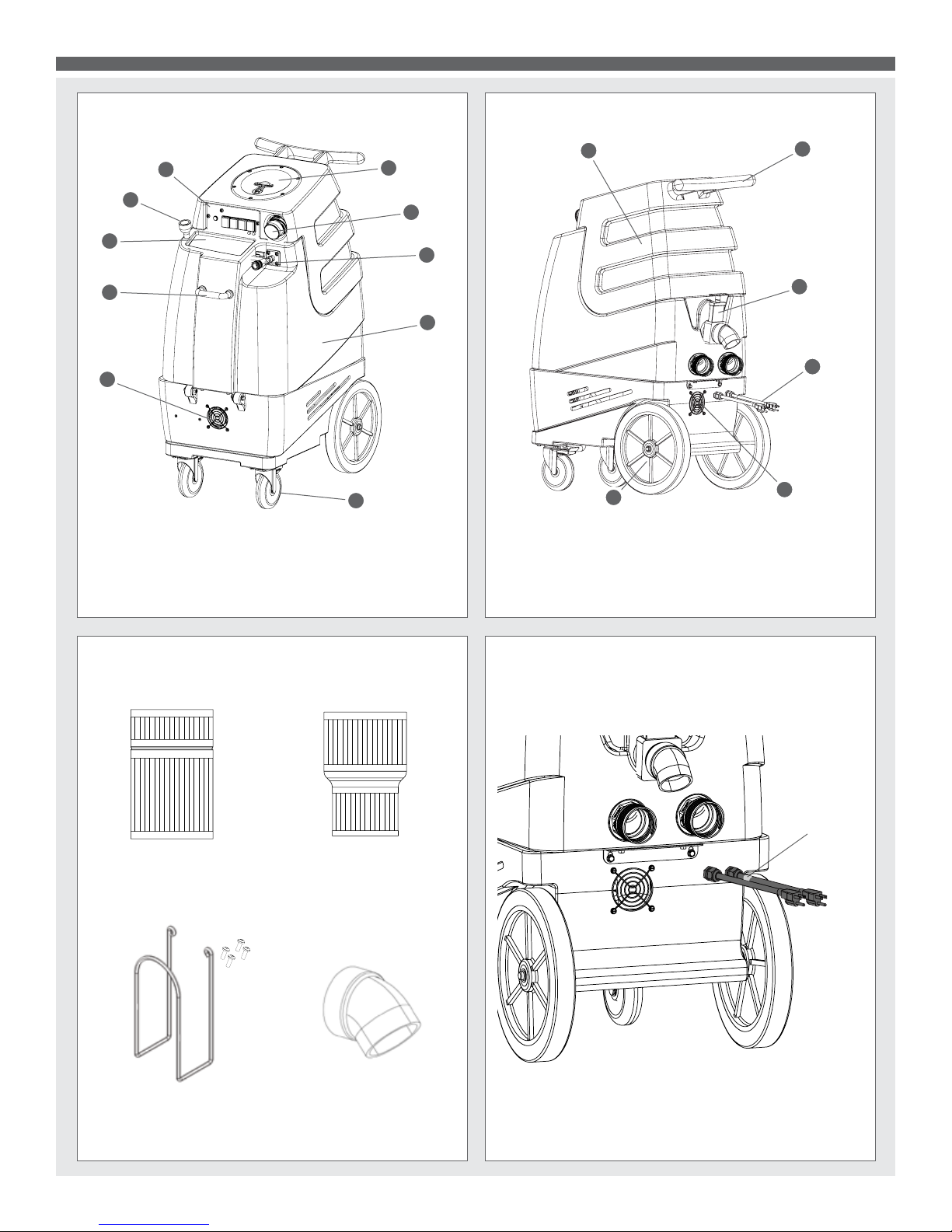

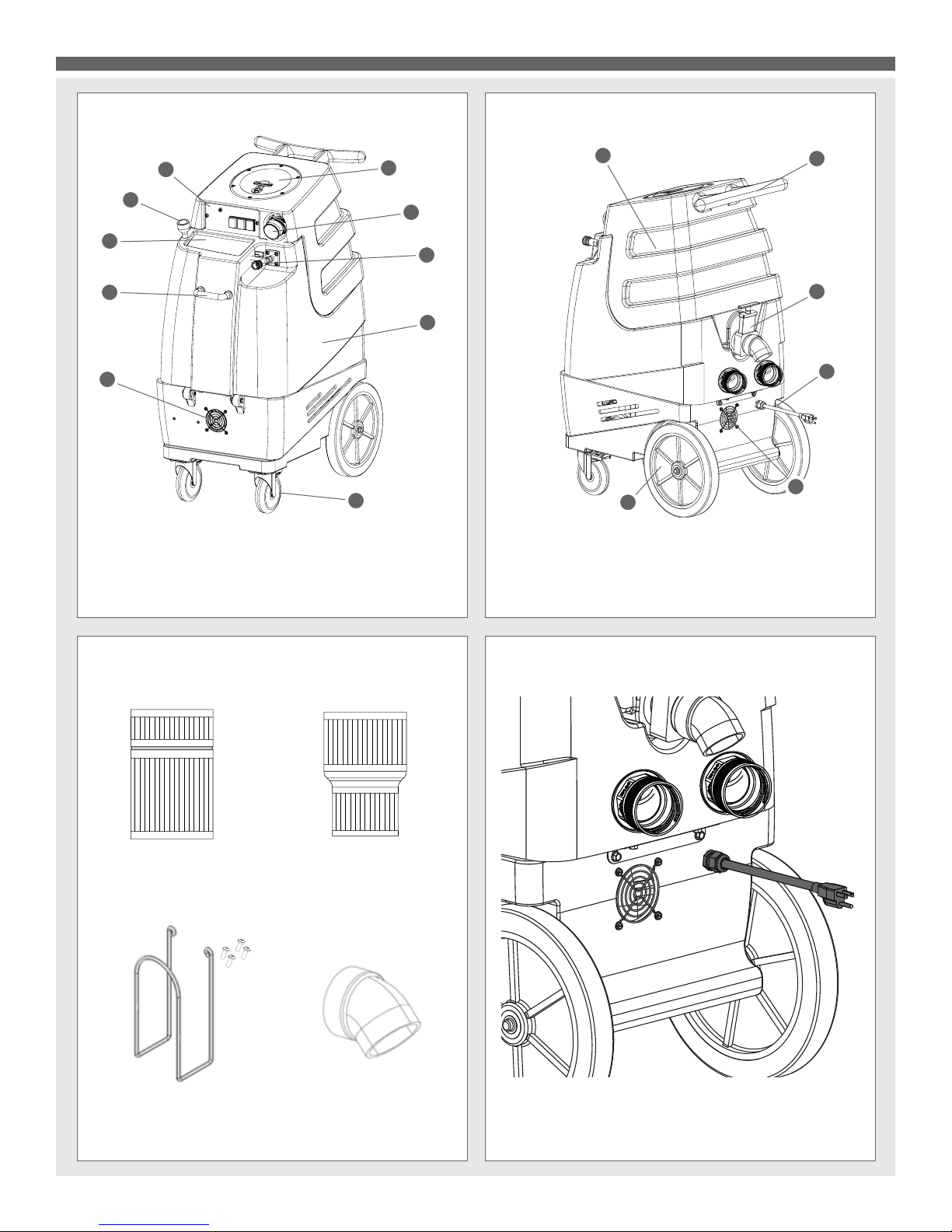

H375- Hose Hanger H226 Drain Elbow
(4) screws
6. 5” locking casters
7. Solution tank
8. Female quick disconnect
9. 2” Male Cuff-Lynx™
10. Recovery lid
1. Switch plate
2. Easy faucet ll
3. Solution tank lid
4. Front handle
5. Front vent
11. Recovery tank
12. Push handle
13. Drain valve
14. Power cord
15. Back vent
12
14
16. 12” Rear wheels
11
3
7
13
15
1
8
16
5
2
6
1000DX-200 SPEEDSTER® BACK1000DX-200 SPEEDSTER® FRONT
1000DX-200 SPEEDSTER® ITEMS INCLUDED
H110 Cuff-Lynx™ H141 Cuff-Lynx™
2” Hose Adapter 2” Hose Reducer to 1.5”
1000DX-200 SPEEDSTER® CORD
Plug the power cord into a single, 20A grounded wall outlet.
1000DX-200 SPEEDSTER
4
10
9

4

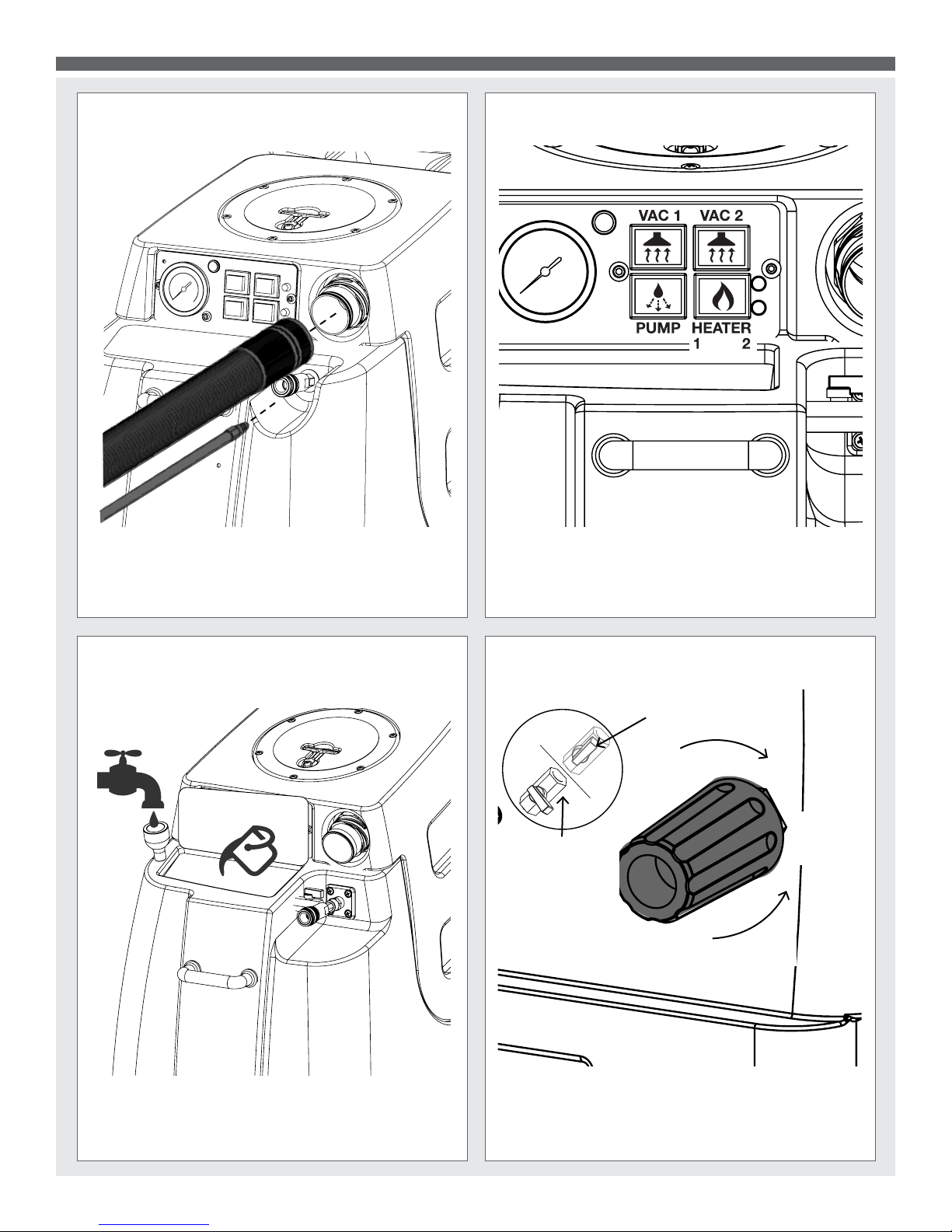

Turn on Vac 1, Vac 2 and Pump switches.Attach one end of a solution hose to a wand or other tool,
the other end to the Speedster’s® front quick disconnect.
Attach one end of a vacuum hose to the tool, the other end
to the Speedster’s® Cuff-Lynx™ vacuum hose port.
1000DX-200 SPEEDSTER® FLOAT SWITCH
The Speedster® is equipped with an electronic oat switch
inside the recovery tank. The recovery oat switch is ac-
tivated by rising water to prevent suction into the vacuum
stacks damaging the motors.
1000DX-200 SPEEDSTER® SWITCHES
1000DX-200 SPEEDSTER® FILL SOLUTION TANK
Lift lid and manually ll the solution tank or use the easy
faucet ll.
1000DX-200 SPEEDSTER® VAC/SOL
HOSE CONNECTIONS
1000DX-200 SPEEDSTER

5
1000DX-200 SPEEDSTER®
LOCKING CASTERS
Locking casters help keep the machine remain stationary
during use.
1000DX-200 SPEEDSTER®
FILTER MAINTENANCE
INTAKE
FILTER

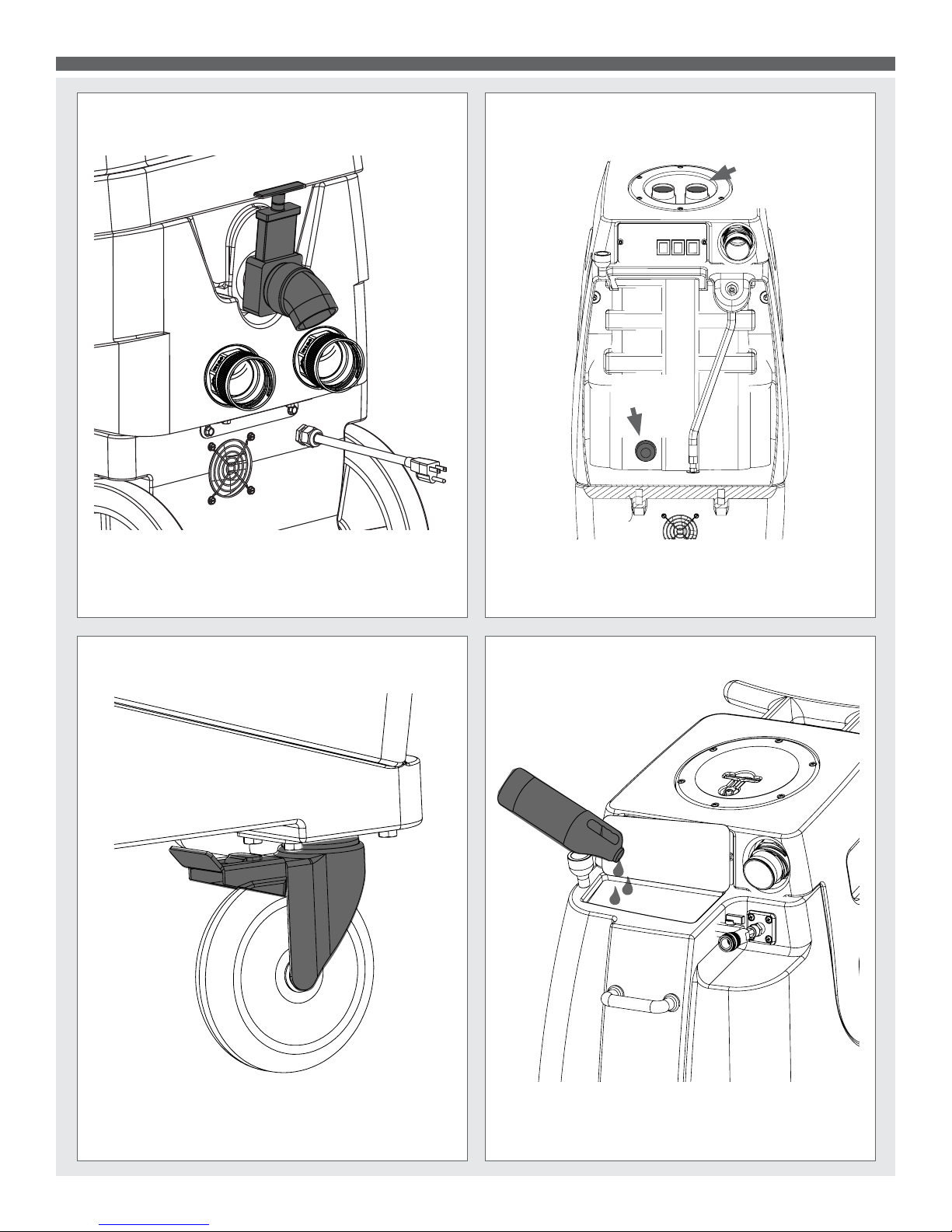

1000DX-200 SPEEDSTER® DUMP VALVE
Attach the 45˚ drain elbow to the drain spout in back. Lift up
the dump valve and empty the tank.
Weekly ushing of the solution system with Mytee® System
Maintainer helps keep lines clean and prevents chemical
build-up, improving pump life, performance and pressure.
1000DX-200 SPEEDSTER
MYTEE® SYSTEM MAINTAINER
Check and clean the vacuum stack lters and solution
tank lter daily by twisting off, rinsing with clean water and
replacing.
VACUUM
STACK
FILTER

6
1000DX-200 SPEEDSTER PARTS & PRICING
Part prices are subject to change.Order parts at: www.mytee.com/products/product.php?id=1000DX
ITEMS NOT SHOWN
PART NO.
DESCRIPTION
QTY
MSRP
G008
piglet lter
1
$6.29 pak
G085
gasket, strip, 3/4" x 36" x 1/8"
1
$4.99 ea
H375
hanger, wire formed, hose
1
$10.99 ea
H230
screw, 10-32 x 1/2" phil pan head, s/s
2
$0.99 ea
H141
Cu-Lynx, 2" x 1.5" reducer
1
$3.99 ea
H110
Cu-Lynx, 2" hose x 2" fem swivel Cu-Lynx
1
$3.99 ea
E530
power cord, ext 50', 12/3 black
1
$74.99 ea
ITEM
NO.
PART NO.
DESCRIPTION
QTY.
MSRP
1
C317
fan, cooling, 115V
1
$21.49 ea
2
H343
screw, #10 x 5/8" hex head, zinc
12
$0.99 ea
3
H296
guard, cooling fan, wire
3
$2.99 ea
4
H186
screw, 10-32 x 3/4, phil at full thread
2
$0.99 ea
5
E370
controller, water level, dual pump or vac
1
$94.99 ea
6
H273
nut, kep, #10-32 zinc
8
$0.99 ea
7
H216
nut, lock, 1/4-20, nylon insert, s/s
10
$0.99 ea
8
H210
washer, 1/4" at, s/s
22
$0.99 ea
9
H342
bolt, 1/4-20 x 1" hex head, s/s 8
$0.99 ea
10
H666
caster, 5", Black hub & gray tread
2
$23.19 ea
11
H371
axle, 18.25" x .50" dia
1
$9.99 ea
12
H254
washer, axle, cut 1/2" id
4
$0.99 ea
13
H251
wheel, 12"
2
$41.99 ea
14
H219 cap, axle, 1/2"
2
$0.99 ea
15
H221
nut, lock, 1/2" steel
1
$1.99 ea
16
H220
tting, strain relief, cord
1
$3.19 ea
17
E550
power cord, pigtail, 30", 12/3, black
1
$11.49 ea
18
P731
base, speedster
1
$141.99 ea
19
H202
bolt, 1/4-20 x 3/4" hex head, s/s
6
$0.99 ea
20
PH615-26
sol hose, 1/2" kuri 100psi
1
$8.99/ft
21
H347
clamp, hose, 5/16-29/32
4
$1.99 ea
22
B160
adapter, brass, 1/2" barb x 3/8" fsw, ball end
1
$3.49 ea
23
B186
elbow, brass, 90 deg, 3/8"mpt x 3/8" fmpt
1
$8.99 ea
24
AH120
sol hose, 28" x 1/4", 1/4 fpt 1
$35.49 ea
25
B136
elbow, brass, 90 deg, 1/4" mpt x 1/4" mpt
1
$4.99 ea
26
B105
bushing, brass, 3/8"mpt x 1/4"
1
$3.19 ea
27
H299
washer, 11/16"id x 1-1/2"od x .075, s/s
4
$0.99 ea
28
H222
screw, 10-32 x 1-1/4" phil pan head, s/s 4
$0.99 ea
29
C322D
pump, 220psi, diaphragm,115V
1
$208.99 ea
30
B172
elbow, brass, 90 deg, 1/2" barb x 3/8"mpt
1
$9.49 ea
31
H912
bracket, rear, fb/spy
1
$9.99 ea
32
H770
bolt, 1/4-20 x 1/2" serrated hex ange, zinc
4
$0.99 ea
33
H307
washer, star, 1/4" steel zinc
2
$0.99 ea
34
G052
washer, buna 1-1/8" od x 3/16" id
6
$1.99 ea
35
H211
washer, 1/4"id x 1"od, at, s/s
6
$0.99 ea
36
H124
Cu-Lynx, 2" mpt x 2" female cu
2
$3.99 ea
37
H194
coupler, 2" dia x 2.5" length, s/s
2
$10.00 ea
38
H217
clamp, hose, 2-1/4 dia
4
$1.49 ea
39
PH628-24
vac hose, 2", wire reinforced
1
$8.99/ft
40
H213
washer, 1/4" lock, s/s
10
$0.99 ea
41
H215
nut, hex, 1/4-20 s/s
2
$0.99 ea
42
H178
faucet ll
1
$10.99 ea
43
G018
cover, sol tank (sp)
1
$12.99 ea
44
P732
sol tank, speedster
1
$141.99 ea
45
H768
bolt, 1/4-20 x 3/4" serrated hex ange, zinc
2
$0.99 ea
46
B107
nipple, brass, 1/4"m, hex
3
$3.19 ea
47
H484
plate, mounting, QD
1
$4.99 ea
48
H256
screw, 10-32 x 3/4" phil pan head, zinc
4
$0.99 ea
49
B142
coupling, brass, 1/4" fpt x 1/4" fpt
1
$4.49 ea
50
B135
tee, brass, 1/4" mpt
1
$5.49 ea
51
B102
qd, brass, 1/4" f
1
$17.99 ea
52
B656
ball valve, 1/4'' 1
$13.49 ea
53
B109
adapter, brass, 1/4" barb x 1/4" mpt
1
$1.99 ea
54
PH634-36 sol hose, 1/4", silicone braided, clear
1
$6.49 ft
55
H485
handle, breeze and dx
1
$6.99 ea
ITEM
NO.
PART NO.
DESCRIPTION
QTY.
MSRP
56
H378
bracket, front hinge, sp/fb
1
$8.99 ea
57
B119A
lter, strainer, 1/2"
1
$6.49 ea
58
B210
bushing, brass, 1/2"mpt x 3/8" fpt, hex
1
$2.49 ea
59
B216
nipple, brass, 3/8" x close
1
$1.99 ea
60
H226
spout, drain, 45 degree
1
$3.19 ea
61
H225
valve, drain, 1-1/2" 1
$20.99 ea
62
P733
vac tank, speedster
1
$190.99 ea
63
H314
nut, lock, 1-1/2", steel
2
$1.99 ea
64
PH633-03
pipe, pvc, 1-1/2"
4
$4.99/ft
65
PH633-4
pipe, pvc, 1-1/2"
2
$4.99/ft
66
P502
adapter, 1.5" pvc, fslip x fslip
2
$5.00 ea
67
G097
screen, mesh lter, 1-1/2" dia
2
$4.99 ea
68
G022
lter, foam, 2-3/8" x 1"
2
$2.99 ea
69
PH633-1
pipe, pvc, 1-1/2"
2
$4.99 ft
70
P503
adapter, 1.5" pvc, 45 deg, fslip x fslip
4
$3.29 ea
71
P520
adapter, pvc, 1-1/2" mpt x 1-1/2" fms
2
$2.99 ea
72
G090 lid, vac tank, clear, 7"
1
$36.99 ea
73
H304
screw, #8 x 5/8 phil oval, s/s
6
$0.99 ea
74
G091
gasket, 7", vac lid
1
$11.99 ea
75
A926
elbow, inlet assembly 2"
1
$15.99 ea
76
G083
gasket, 2" inlet
1
$2.49 ea
77
H135
Cu-Lynx, 2" m cu x 2" mpt
1
$3.99 ea
78
E515
switch, rocker, 2 position
3
$13.99 ea
79
P967A
plug
1
$1.99 ea
80
H389
screw, 10-32 x 1/2" SHCS, alloy 3
$0.99 ea
81
H612
Washer, #8, at regular
3
$0.99 ea
82
H348
plate, switch, 1000DX-200
1
$6.99 ea
83
B156
nut, 1/4" npt
1
$1.99 ea
84
H212
at washer, 9/16"ID x 1 1/16"OD, AN960-C916
1
$0.99 ea
85
E373
level switch, vacuum shut-o, rear threads
1
$13.99 ea
86
B207
elbow, brass, 90 deg, 1/4" fpt x 1/4" fpt
1
$5.99 ea
87
H390A
bracket, "L"
2
$6.99 ea
88
H034
plastite screw, 1/4 x 1"
4
$2.99 ea
89
H096
bolt, hex, 1/4-20 x 4", zinc Finish
6
$0.99 ea
90
H503
vac support, 3 stage, 3.25", no thrds
6
$3.99 ea
91
C302LA
vac motor, 3 stage, low amp
2
$139.99 ea
92
G004
gasket, vac motor - Speedster
2
$8.99 ea
D
C
B
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
1000DX-200
SHEET 1 OF 3
speedster
10/2013
C
SCALE: 1:48
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
CHECKED
DRAWN
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MYTEE PRODUCTS, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MYTEE PRODUCTS, INC. IS PROHIBITED.
A
DO NOT
SCALE DRAWING
858-679-1191
mytee
PRODUCTS, INC.
M. LaBarbera

7

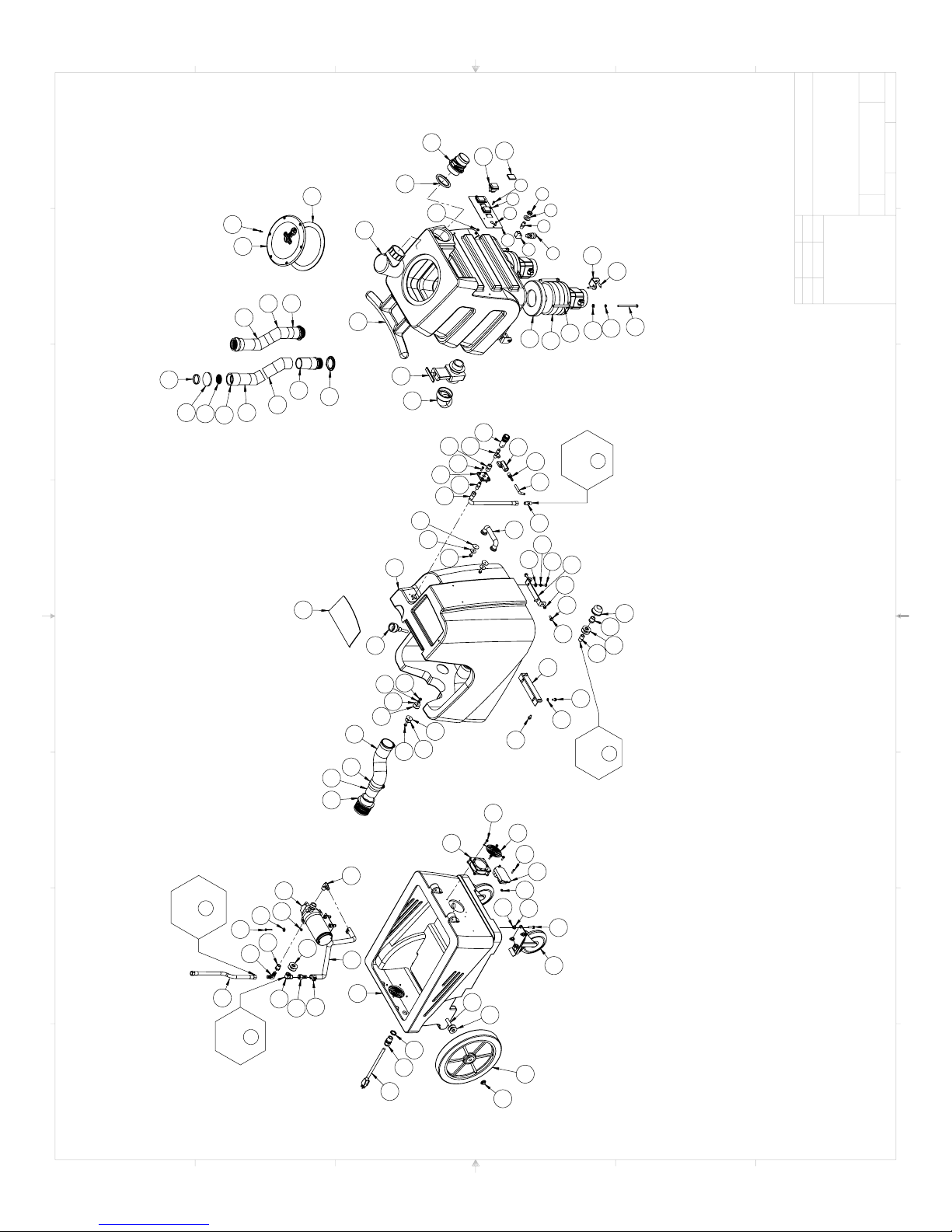

1000DX-200 SPEEDSTER PARTS & PRICING
2
3
10
11
12
13
14
15
16
17
18
89
40
8
20
21
22
23
25
26
27
8
28
29
36
38
31
32
33
32
41
40
35
34
34
35
19
44
45
35 34
20
46
47
48
49 50
51
52
53
54
46
55
8
40
19
7
19 8
59
27 58
57
60
61
62
63
71
72
73
74
75
76
77
78
79
80
81
80
82
6
87
6
30
56
24
to female qd
thru B107
46
to sol tank
lter thru
B216
59
to pump
"OUT"
thru AH120
24
to pump
"IN"
thru B186
23
37
90
92
43
70
70
1
4
5
6
42
64
64
65
66
68
67
69
88
83
84
46
85
86
91
37
7
8
9
D
C
B
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
1000DX-200
SHEET 2 OF 3
speedster
10/2013
C
SCALE: 1:48
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
CHECKED
DRAWN
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MYTEE PRODUCTS, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MYTEE PRODUCTS, INC. IS PROHIBITED.
A
DO NOT
SCALE DRAWING
858-679-1191
mytee
PRODUCTS, INC.
M.LaBarbera

8

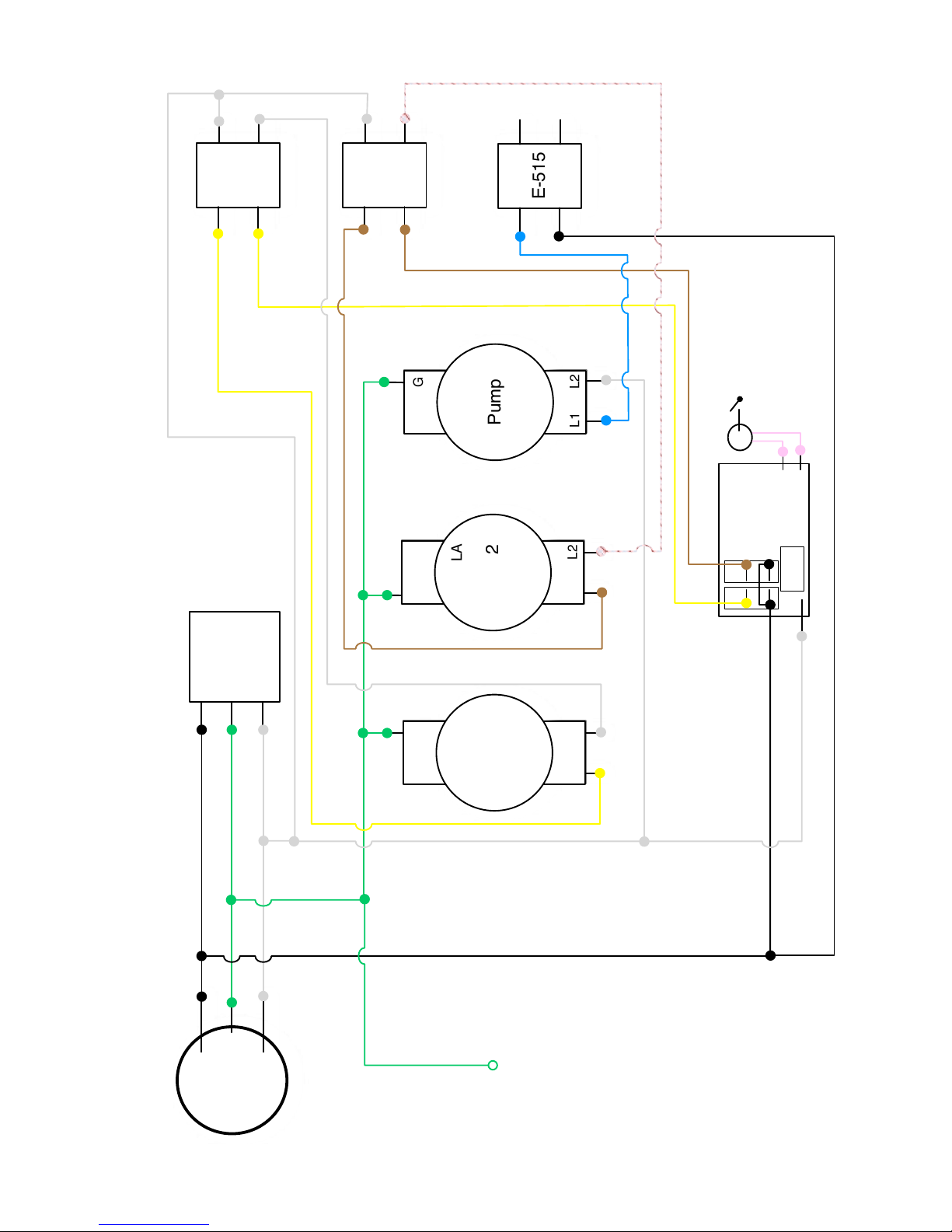

1000DX-200 SPEEDSTER WIRING SCHEMATIC
L1 L2
GE-515
E-515
E-515
Cooling
Fan
C-317
VAC 1
L2L1
G
VAC 2
L2L1
G
C-302LA C-302LA
115V
relays
Float
Switch
#E-370 N/O
Pump
L2L1
G
1000DX-200
115 Volt System
1/24/2014
C-322D
Ground to
Metal Plate

9
6. 5” locking casters
7. Solution tank
8. Female quick disconnect
9. 2” Male Cuff-Lynx™
10. Recovery lid
1. Switch plate
2. Easy faucet ll
3. Solution tank lid
4. Front handle
5. Front vent
11. Recovery tank
12. Push handle
13. Drain valve
14. Dual power cords
15. Back vent
16. 12” Rear wheels
1001DX-200 SPEEDSTER® BACK1001DX-200 SPEEDSTER® FRONT
1001DX-200 SPEEDSTER® ITEMS INCLUDED
H375- Hose Hanger H226 Drain Elbow
(4) screws
H110 Cuff-Lynx™ H141 Cuff-Lynx™
2” Hose Adapter 2” Hose Reducer to 1.5”
1001DX-200 SPEEDSTER® CORDS
Plug each power cord into a separate, 20A grounded wall
outlet. Outlets must be on two separate breakers. When
the amber light on the switch plate illuminates, the machine
is on separate circuits (not necessarily 20A circuits). You
can identify the primary cord by the yellow tag.
Left cord: Powers Vac 2 & Heater 2.
Right cord: Powers Vac 1, Heater 1 & Pump.
1001DX-200 SPEEDSTER
12
14
11
13
15
16
Yellow tag
indicates primary
cord.
3
7
1
8
5
2
6
4
10
9

10
1001DX-200 SPEEDSTER® SWITCHES
1001DX-200 SPEEDSTER®
FILTER MAINTENANCE
Check and clean the vacuum stack lters and solution
tank lter daily by twisting off, rinsing with clean water and
replacing.
“On” switches are located on the plate in front of the ma-
chine. To use vacuums, turn on Vac 1 and Vac 2 switches.
To use pump, turn on Pump switch. To activate heat, turn
on Heater switch. Heater 1 for 1000 watts of heat. Heater
2 for 2000 watts of heat.
1001DX-200 SPEEDSTER®
FILL SOLUTION TANK
1001DX-200 SPEEDSTER® VAC/SOL
HOSE CONNECTIONS
Attach one end of a solution hose to a wand or other tool,
the other end to the Speedster’s® front quick disconnect.
Attach one end of a vacuum hose to the tool, the other end
to the Speedster’s® Cuff-Lynx™ vacuum hose port.
INTAKE
FILTER
1001DX-200 SPEEDSTER
VACUUM
STACK
FILTER
Lift lid and manually ll the solution tank or use the easy
faucet ll.

11
1001DX-200 SPEEDSTER® DUMP VALVE
Attach the 45˚ drain elbow to the drain spout in back. Lift
up the dump valve and empty the tank.
1001DX-200 SPEEDSTER®
LOCKING CASTERS
Locking casters help keep the machine remain stationary
during use.
1001DX-200 SPEEDSTER
MYTEE® SYSTEM MAINTAINER
Weekly ushing of the solution system with Mytee® System
Maintainer helps keep lines clean and prevents chemical
build-up, improving pump life, performance and pressure.
1001DX-200 SPEEDSTER® FLOAT SWITCH
The Speedster® is equipped with an electronic oat switch
inside the recovery tank. The recovery oat switch is ac-
tivated by rising water to prevent suction into the vacuum
stacks damaging the motors.

12
1001DX-200 SPEEDSTER PARTS & PRICING
Part prices are subject to change.Order parts at: www.mytee.com/products/product.php?id=1001DX
ITEMS NOT SHOWN
PART NO.
DESCRIPTION
QTY
MSRP
G008
piglet lter
1
$6.29 pak
G085
gasket, strip, 3/4" x 36" x 1/8"
1
$4.99 ea
H375
hanger, wire formed, hose
1
$10.99 ea
H230
screw, 10-32 x 1/2" phil pan head, s/s
2
$0.99 ea
H141
Cu-Lynx, 2" x 1.5" reducer
1
$3.99 ea
H110
Cu-Lynx, 2" hose x 2" fem swivel Cu-Lynx
1
$3.99 ea
E530
power cord, ext 50', 12/3 black
2
$74.99 ea
ITEM
NO.
PART NO.
DESCRIPTION
QTY.
MSRP
1
C317
fan, cooling, 115V
1
$21.49 ea
2
H343
screw, #10 x 5/8" hex head, zinc
12
$0.99 ea
3
H296
guard, cooling fan, wire
3
$2.99 ea
4
H186
screw, 10-32 x 3/4, phil at full thread
2
$0.99 ea
5
E370
controller, water level, dual pump or vac
1
$94.99 ea
6
H273
nut, kep, #10-32 zinc
10
$0.99 ea
7
H216
nut, lock, 1/4-20, nylon insert, s/s
10
$0.99 ea
8
H210
washer, 1/4" at, s/s
22
$0.99 ea
9
H342
bolt, 1/4-20 x 1" hex head, s/s 8
$0.99 ea
10
H666
caster, 5", Black hub & gray tread
2
$23.19 ea
11
P731
base, speedster
1
$141.99 ea
12
H371
axle, 18.03" x .50" dia
1
$9.99 ea
13
H254
washer, axle, cut 1/2" id
4
$0.99 ea
14
H251
wheel, 12"
2
$41.99 ea
15
H219 cap, axle, 1/2"
2
$0.99 ea
16
AH105
hose, pulse, 3/8" x 17-1/2", (OAL), f
1
$31.99 ea
17
AH156
hose, 3/8", (OAL), f x fs, 5400 gray
1
$23.99 ea
18
B103
elbow, brass, 90 deg, 1/4"mpt x 1/4" fpt
2
$4.49 ea
19
H256
screw, 10-32 x 3/4" phil pan head, zinc
6
$0.99 ea
20
H528
bracket, heater mounting, dual
1
$29.99 ea
21
E519
heating rod, 1000W, 115V
2
$51.99 ea
22
B142
coupling, brass, 1/4" fpt x 1/4" fpt
2
$4.49 ea
23
B108
valve, brass, 1/4" check
1
$13.99 ea
24
H274
screw, 6 x 3/16, phil pan head, self-tapping
10
$0.99 ea
25
H903A
heater, aluminum cast, single
2
$78.99 ea
26
E573
Thermostat, 200°, Auto, 1/4"
2
$16.49 ea
27
E574
Thermostat, 310°F ± 10°F, Manual, 1/4"
2
$17.99 ea
28
AH120
sol hose, 28" x 1/4", 1/4 fpt
2
$35.49 ea
29
H221
nut, lock, 1/2" steel
2
$1.99 ea
30
H220
tting, strain relief, cord
2
$3.19 ea
31
E550
power cord, pigtail, 30", 12/3, black
2
$11.49 ea
32
PH615-26
sol hose, 1/2" kuri 100psi
1
$8.99/ft
33
B160
adapter, brass, 1/2" barb x 3/8" fsw, ball end
1
$3.49 ea
34
B186
elbow, brass, 90 deg, 3/8"mpt x 3/8" fmpt
1
$8.99 ea
35
B136
elbow, brass, 90 deg, 1/4" mpt x 1/4" mpt
1
$4.99 ea
36
B105
bushing, brass, 3/8"mpt x 1/4"
1
$3.19 ea
37
H299
washer, 11/16"id x 1-1/2"od x .075, s/s
4
$0.99 ea
38
H222
screw, 10-32 x 1-1/4" phil pan head, s/s 4
$0.99 ea
39
C322D
pump, 220psi, diaphragm,115V
1
$208.99 ea
40
B172
elbow, brass, 90 deg, 1/2" barb x 3/8"mpt
1
$9.49 ea
41
B173
ferrule, 1/2", brass
2
$0.99 ea
42
H912
bracket, rear, fb/spy
1
$9.99 ea
43
H770
bolt, 1/4-20 x 1/2" serrated hex ange, zinc
8
$0.99 ea
44
H307
washer, star, 1/4" steel zinc
2
$0.99 ea
45
G052
washer, buna 1-1/8" od x 3/16" id
6
$1.99 ea
46
H211
washer, 1/4"id x 1"od, at, s/s
6
$0.99 ea
47
H203
bolt, 1/4-20 x 1-1/4"
2
$0.99 ea
48
H124
Cu-Lynx, 2" mpt x 2" female cu
2
$3.99 ea
49
H194
coupler, 2" dia x 2.5" length, s/s
2
$10.00 ea
50
H217
clamp, hose, 2-1/4 dia
4
$1.49 ea
51
PH628-15
vac hose, 2", wire reinforced
2
$8.99/ft
52
H213
washer, 1/4" lock, s/s
10
$0.99 ea
53
H215
nut, hex, 1/4-20 s/s
2
$0.99 ea
54
G018
cover, sol tank (sp)
1
$12.99 ea
55
PH612-36
clear tubing, 1/2" OD x 3/8" ID, faucet ll
1
$1.99/ft
56
H178
faucet ll
1
$10.99 ea
57
P732
sol tank, speedster
1
$141.99 ea
58
H768
bolt, 1/4-20 x 3/4" serrated hex ange, zinc
2
$0.99 ea
59
B107 nipple, brass, 1/4"m, hex
3
$3.19 ea
60
H484
plate, mounting, QD
1
$4.99 ea
61
B135
tee, brass, 1/4" mpt
1
$5.49 ea
62
B102
qd, brass, 1/4" f x 1/4" fpt
1
$17.99 ea
ITEM
NO.
PART NO.
DESCRIPTION
QTY.
MSRP
63
B656
ball valve, 1/4'' 1
$13.49 ea
64
B109
adapter, brass, 1/4" barb x 1/4" mpt
1
$1.99 ea
65
B170
ferrule, 1/4" brass
2
$0.99 ea
66
PH634-20 sol hose, 1/4", silicone braided, clear
1
$6.49 ft
67
H485
handle, breeze and dx
1
$6.99 ea
68
H201
bolt, 1/4-20 x 1/2", hex head, zinc
2
$0.99 ea
69
H378
bracket, front hinge, sp/fb
1
$8.99 ea
70
H316
bolt, 1/4x1-1/2", hex head zinc
2
$0.99 ea
71
B119A
lter, strainer, 1/2"
1
$6.49 ea
72
B210
bushing, brass, 1/2"mpt x 3/8" fpt, hex
1
$2.49 ea
73
B216
nipple, brass, 3/8" x close
1
$1.99 ea
74
H226
spout, drain, 45 degree
1
$3.19 ea
75
H225
valve, drain, 1-1/2"
1
$20.99 ea
76
P733
vac tank, speedster
1
$190.99 ea
77
A926
elbow, inlet assembly 2"
1
$15.99 ea
78
PH633-4
pipe, pvc, 1-1/2"
2
$4.99/ft
79
PH633-03
pipe, pvc, 1-1/2"
2
$4.99/ft
80
PH633-06
PIPE, 1-1/2" x 6" PVC
2
$4.99 ft
81
P502
adapter, 1.5" pvc, fslip x fslip
2
$5.00 ea
82
G097
screen, mesh lter, 1-1/2" dia
2
$4.99 ea
83
G022
lter, foam, 2-3/8" x 1"
2
$2.99 ea
84
PH633-1
pipe, pvc, 1-1/2"
2
$4.99 ft
85
G091
gasket, 7", vac lid
1
$11.99 ea
86
G090 lid, vac tank, clear, 7"
1
$36.99 ea
87
H304
screw, #8 x 5/8 phil oval, s/s
6
$0.99 ea
88
P503
adapter, 1.5" pvc, 45 deg, fslip x fslip
4
$3.29 ea
89
P520
adapter, pvc, 1-1/2" mpt x 1-1/2" fms
2
$2.99 ea
90
H314
nut, lock, 1-1/2", steel
2
$1.99 ea
91
G083
gasket, 2" inlet
1
$2.49 ea
92
H135
Cu-Lynx, 2" m cu x 2" mpt
1
$3.99 ea
93
E511
light, red, 250v
2
$5.99 ea
94
E516
switch, rocker, 3 position
1
$14.99 ea
95
E515
switch, rocker, 2 position
3
$13.99 ea
96
E512B
light, indicator, 125v (amber)
1
$9.99 ea
97
H389
screw, 10-32 x 1/2" SHCS, alloy 4
$0.99 ea
98
H612
Washer, #8, at regular
3
$0.99 ea
99
H348
plate, switch, 1000DX-200
1
$6.99 ea
100
B156
nut, 1/4" npt
1
$1.99 ea
101
H212
at washer, 9/16"ID x 1 1/16"OD
2
$0.99 ea
102
E373
level switch, vacuum shut-o, rear threads
1
$13.99 ea
103
B207
elbow, brass, 90 deg, 1/4" fpt x 1/4" fpt
1
$5.99 ea
104
H390A
bracket, "L"
2
$6.99 ea
105
H096
bolt, hex, 1/4-20 x 4", zinc Finish
6
$0.99 ea
106
H503
vac support, 3 stage, 3.25", no thrds
6
$3.99 ea
107
C302LA
vac motor, 3 stage, low amp
2
$139.99 ea
108
G004
gasket, vacuum motor
2
$8.99 ea
109
E564
controller, circuit light
1
$62.99 ea
D
C
B
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
1001DX-200
SHEET 1 OF 3
speedster
10/2013
C
SCALE: 1:48
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MYTEE PRODUCTS, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MYTEE PRODUCTS, INC. IS PROHIBITED.
A
DO NOT
SCALE DRAWING
858-679-1191
mytee
PRODUCTS, INC.
M. LaBarbera

13
1001DX-200 SPEEDSTER PARTS & PRICING
2
3
1
10
11
12
13
14
15
16
18
6
20
21
24
22
23
25
24
26
27 28
17
19
31
30
29
32 41
33
34
35 36 37 38
839
40
6
48
51
50
71
72
37
73
42
43
44
43
45
46
47
45
46 52
53
57
28
59
60
19
22
61
62
63
64
65
59
58
46
45
67
8
52
68
7
8
70
69
74 75
76
99
94
96
97
98
104
109
97
6
92
91
77
85
86
87
89
90
93
95
to heater
"OUT"
thru AH105
28
to female
QD thru
B107
59
to pump
"OUT"
thru B136
35
to heater
"IN"
thru AH156
16
to sol tank
lter thru
B216
73
to pump
"IN"
thru B186
34
49
105
52
8
106
107
108
78
54
88
88
4
5
6
56
79
80
81
83
82
84
100
101
59
103
102
43
7
8
9
66
55
D
C
B
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
1001DX-200
SHEET 2 OF 3
speedster
10/2013
C
SCALE: 1:48
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MYTEE PRODUCTS, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MYTEE PRODUCTS, INC. IS PROHIBITED.
A
DO NOT
SCALE DRAWING
858-679-1191
mytee
PRODUCTS, INC.
M.LaBarbera

14

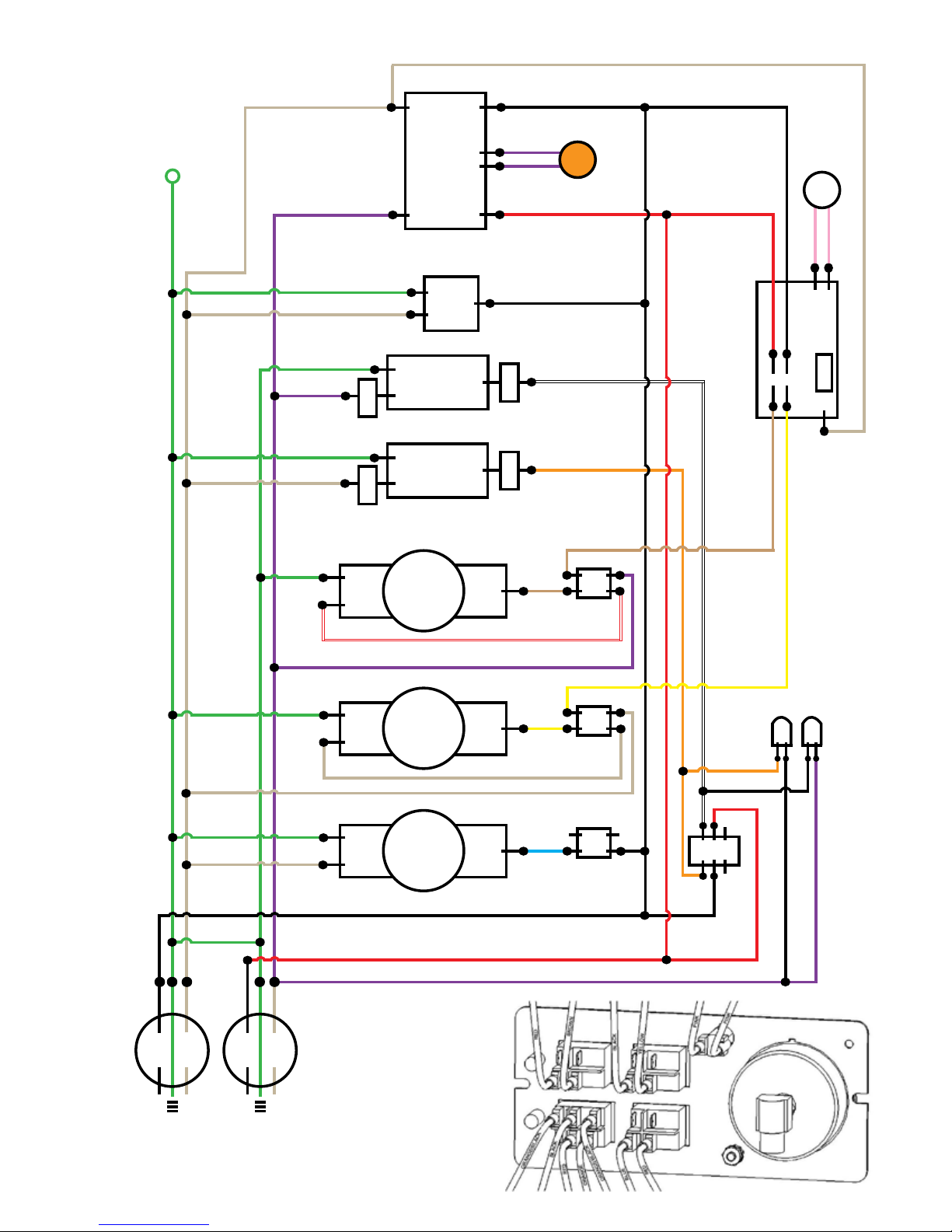

1001DX-200 SPEEDSTER WIRING SCHEMATIC
Speedster 1001DX-200
115 Volt
L2
GND
L1
L2
GND
L1
L2B L2A
E-564
L1B L1A
Thermal
Switch
Thermal
Switch
Heater 1
1000W
Cooling
Fan
Thermal
Switch
Pump
L2
GND
L1
Vacuum
1
L2
GND
L1
L2
GND
L1
Thermal
Switch
SW
E-515
SW
E-516
Service
Light
Power In
1
Heater 2
1000W
Vacuum
2
C322D C302LA C302LA
C317
Power In
2
SW
E-515
SW
E-515
A901
A901
E-370 Float
Switch
115V
Ground to
Metal Plate

15
Left cord: Powers Vac 2 & Heater 2.
Right cord: Powers Vac 1, Heater 1 & Pump.
1003DX SPEEDSTER® ITEMS INCLUDED
H375- Hose Hanger H226 Drain Elbow
(4) screws
H110 Cuff-Lynx™ H141 Cuff-Lynx™
2” Hose Adapter 2” Hose Reducer to 1.5”
1003DX SPEEDSTER® CORD
1003DX SPEEDSTER
6. Pressure Regulator
7. Solution tank
8. Female QD with Prime Valve
9. 2” Male Cuff-Lynx™
10. Recovery lid
1. Switch plate
2. Easy Faucet Fill
3. Solution lid
4. Front handle
5. Front cooling fan
11. Push handle
12. Recovery tank
13. Drain valve
14. Dual Power cords
15. 12” Rear wheels
14
16. Back vent
17. 5” locking casters
3
1
8
10
5
4
2
6
1003DX SPEEDSTER® BACK1003DX SPEEDSTER® FRONT
9
Plug each power cord into a separate, 20A grounded wall
outlet. Outlets must be on two separate breakers. When
the amber light on the switch plate illuminates, the machine
is on separate circuits (not necessarily 20A circuits). You
can identify the primary cord by the yellow tag.
Yellow tag
indicates primary
cord.
11
12
13
15
16
7
17

16
1003DX SPEEDSTER® SWITCHES
“On” switches are located on the plate in front of the ma-
chine. To use vacuums, turn on Vac 1 and Vac 2 switches.
To use pump, turn on Pump switch. To activate heat, use
lower right switch. Press to the left for 1,000 watts, press
to the right for 2,000 watts.
1003DX SPEEDSTER® FILL SOLUTION TANK
1003DX SPEEDSTER® VAC/SOL
HOSE CONNECTIONS
Attach one end of a solution hose to a wand or other tool,
the other end to the Speedster’s® front quick disconnect.
Attach one end of a vacuum hose to the tool, the other end
to the Speedster’s® Cuff-Lynx™ vacuum hose port.
1003DX SPEEDSTER
1003DX SPEEDSTER® PRIME VALVE
& PRESSURE REGULATOR
Prime the pump by turning the valve to the Prime position
(as shown above) for 30 seconds, then turn right to the
Run position. Turn the Pressure Regulator to the left to
decrease water pressure. Turn the Pressure Regulator to
the right to increase water pressure.
PRESSURE
REGULATOR
HIGHER PSI
LOWER PSI
RUN POSITION
*Ball valve is
located near
the QD.
Lift lid and manually ll the solution tank or use the easy
faucet ll.
PRIME POSITION

17
MYTEE® SYSTEM MAINTAINER
Weekly ushing of the solution system with Mytee® System
Maintainer helps keep lines clean and prevents chemical
build-up, improving pump life, performance and pressure.
1003DX SPEEDSTER® DUMP VALVE
& LOCKING CASTERS
Above, empty the recovery tank by attaching the 45˚ drain
elbow to the drain spout in back. Lift up the dump valve
and empty the tank. Below, locking casters help keep the
machine remain stationary during use.
1003DX SPEEDSTER® FILTER MAINTENANCE
Check and clean the vacuum stack lters and solution
tank lter daily by twisting off, rinsing with clean water and
replacing.
INTAKE
FILTER
1003DX SPEEDSTER
1003DX SPEEDSTER® FLOAT SWITCH
The Speedster® is equipped with an electronic oat switch
inside the recovery tank. The recovery oat switch is ac-
tivated by rising water to prevent suction into the vacuum
stacks damaging the motors.
VACUUM
STACK
FILTER

18
1003DX SPEEDSTER PARTS & PRICING
Part prices are subject to change.Order parts at: www.mytee.com/products/product.php?id=1003DX
ITEMS NOT SHOWN
ITEM
NO.
PART NO.
DESCRIPTION
QTY.
MSRP
1
C317
fan, cooling, 115V
1
$21.49 ea
2
H296
guard, cooling fan, wire
3
$2.99 ea
3
H343
screw, #10 x 5/8" hex head zinc
12
$0.99 ea
4
H186
screw, 10-32 x 3/4, phil at full thread
4
$0.99 ea
5
E370
controller, water level, dual pump or vac
1
$94.99 ea
6
H273
nut, kep, #10-32 zinc
8
$0.99 ea
7
H216
nut, lock, 1/4-20, nylon insert, s/s
14
$0.99 ea
8
H210
washer, 1/4" at, s/s
26
$0.99 ea
9
H342
bolt, 1/4-20 x 1" hex head, s/s 12
$0.99 ea
10
H666
caster, 5", Black hub & gray tread
2
$23.19 ea
11
E564
controller, circuit light
1
$62.99 ea
12
H254
washer, axle, cut 1/2" id
6
$0.99 ea
13
H371
axle, 18.25" x .50" dia
1
$9.99 ea
14
H251
wheel, 12"
2
$41.99 ea
15
H219
cap, axle, 1/2"
2
$0.99 ea
16
H221
nut, lock, 1/2" steel
2
$1.99 ea
17
H220
tting, strain relief, cord
2
$3.19 ea
18
E550
power cord, pigtail, 30", 12/3, black
2
$11.49 ea
19
P731
base, speedster
1
$141.99 ea
20
H256
screw, 10-32 x 3/4" phil pan head, zinc
6
$0.99 ea
21
H528
bracket, heater mounting, dual
1
$29.99 ea
22
H903A
heater, aluminum cast, single
2
$78.99 ea
23
E571
heating rod, 600W, 115V
1
$49.99 ea
24
E574
Thermostat, 310°F ± 10°F, Manual, 1/4"
2
$17.99 ea
25
H274
screw, 6 x 3/16, phil pan head, self-tapping
10
$0.99 ea
26
E573
Thermostat, 200°, Auto, 1/4"
2
$16.49 ea
27
E519
heating rod, 1000W, 115V
1
$51.99 ea
28
B207
elbow, brass, 90 deg, 1/4" fpt x 1/4" fpt 2
$5.99 ea
29
B107 nipple, brass, 1/4"m, hex
6
$3.19 ea
30
AH156
hose, 3/8" x 6.5", (OAL), f x fsw, 5400 Gray
1
$23.99 ea
31
B103
elbow, brass, 90 deg, 1/4"mpt x 1/4" fpt
5
$4.49 ea
32
B113
tee, brass, 1/4" fpt
1
$6.99 ea
33
B643
adapter, brass, 3/8" fnpt x 1/4" mnpt
1
$4.99 ea
34
AH108S
hose, pulse, 3/8" x 17-1/2", (OAL)
2
$31.99 ea
35
B259
qd, brass, 1/4" fqd x mpt
1
$11.99 ea
36
B260
qd, brass, 1/4" mqd x fpt
1
$10.49 ea
37
AH184
hose, pulse, 3/8" x 17-1/2", (OAL)
2
$31.99 ea
38
B652
elbow, brass, 90 deg, 3/8"mpt x 1/4"mpt
3
$8.49 ea
39
B259A
qd, brass, 1/4" fqd x mpt
3
$15.99 ea
40
B260A
qd, brass, 1/4" mqd x fpt
3
$8.99 ea
41
C313A
pump, CAT, 50-500 PSI, 120/240v
1
$599.99 ea
42
B186
elbow, brass, 90 deg, 3/8"mpt x 3/8" fmpt
2
$8.99 ea
43
B105
bushing, brass, 3/8"mpt x 1/4"
1
$3.19 ea
44
PH615-36
sol hose, 1/2" kuri 100psi
1
$8.99/ft
45
H347
clamp, hose, 5/16-29/32
6
$1.99 ea
46
B644
adapter, brass, 1/2" barb x 1/4" mpt
1
$2.49 ea
47
B160
adapter, brass, 1/2" barb x 3/8" fsw, ball end
1
$3.49 ea
48
PH634-20
sol hose, 1/4", 300psi, black
1
$6.49/ft
49
B119
lter, strainer, 1/4"
1
$3.99 ea
50
B152
elbow, brass, 90 deg, 1/4" barb x 1/4" mpt
1
$5.49 ea
51
H044
bracket, regulator, panel mount
1
$27.99 ea
52
B127
plug, brass, 1/4"mpt, hex
1
$0.99 ea
53
C313C
regulator, 450 psi, silver spring
1
$86.99 ea
54
H770
bolt, 1/4-20 x 1/2" serrated hex ange, zinc
2
$0.99 ea
55
H912
bracket, rear, fb/spy
1
$9.99 ea
56
H768
bolt, 1/4-20 x 3/4" serrated hex ange, zinc
8
$0.99 ea
57
H124
Cu-Lynx, 2" mpt x 2" female cu
2
$3.99 ea
58
H194
coupler, 2" dia x 2.5" length, s/s
2
$10.00 ea
59
H217
clamp, hose, 2-1/4 dia
4
$1.49 ea
60
PH628-20
vac hose, 2", wire reinforced
2
$8.99/ft
61
P732
sol tank, speedster
1
$141.99 ea
62
H390A
bracket, "L"
2
$6.99 ea
63
H178
faucet ll
1
$10.99 ea
64
G018
cover, sol tank (sp)
1
$12.99 ea
65
H203
bolt, 1/4-20 x 1-1/4"
2
$0.99 ea
66
H211
washer, 1/4"id x 1"od, at, s/s
6
$0.99 ea
67
G052
washer, buna 1-1/8" od x 3/16" id
6
$1.99 ea
68
H213
washer, 1/4" lock, s/s
10
$0.99 ea
69
H215
nut, hex, 1/4-20 s/s
2
$0.99 ea
ITEM
NO.
PART NO.
DESCRIPTION
QTY.
MSRP
70
H484
plate, mounting, QD
1
$4.99 ea
71
B142
coupling, brass, 1/4" fpt x 1/4" fpt
1
$4.49 ea
72
B135
tee, brass, 1/4" mpt
1
$5.49 ea
73
B102
qd, brass, 1/4" f
1
$17.99 ea
74
B656
ball valve, 1/4'' 1
$13.49 ea
75
B109
adapter, brass, 1/4" barb x 1/4" mpt
1
$1.99 ea
76
PH634-36 sol hose, 1/4", 300 PSI
1
$6.49 ft
77
H485
handle, breeze and dx
1
$6.99 ea
78
H316
bolt, 1/4x1-1/2", hex head zinc
2
$0.99 ea
79
H378
bracket, front hinge, sp/fb
1
$8.99 ea
80
H201
bolt, 1/4-20 x 1/2", hex head, zinc
2
$0.99 ea
81
H299
washer, 11/16"id x 1-1/2"od x .075, s/s
4
$0.99 ea
82
B216
nipple, brass, 3/8" x close
1
$1.99 ea
83
B210
bushing, brass, 1/2"mpt x 3/8" fpt, hex
1
$2.49 ea
84
B119A
lter, strainer, 1/2"
1
$6.49 ea
85
H314
nut, lock, 1-1/2", steel
2
$1.99 ea
86
P520
adapter, pvc, 1-1/2" mpt x 1-1/2" fms
2
$2.99 ea
87
PH633-4
pipe, pvc, 1-1/2"
2
$4.99/ft
88
PH633-03
pipe, pvc, 1-1/2"
2
$4.99/ft
89
P502
adapter, 1.5" pvc, fslip x fslip
2
$5.00 ea
90
G097
screen, mesh lter, 1-1/2" dia
2
$4.99 ea
91
G022 lter, foam, 2-3/8" x 1"
2
$2.99 ea
92
PH633-1
pipe, pvc, 1-1/2"
2
$4.99 ft
93
PH633-06
PIPE, 1-1/2" x 6" PVC
2
$4.99 ft
94
P503
adapter, 1.5" pvc, 45 deg, fslip x fslip
4
$3.29 ea
95
H226
spout, drain, 45 degree
1
$3.19 ea
96
H225
valve, drain, 1-1/2" 1
$20.99 ea
97
P733
vac tank, speedster
1
$190.99 ea
98
A926
elbow, inlet assembly 2"
1
$15.99 ea
99
G091
gasket, 7", vac lid
1
$11.99 ea
102
G090 lid, vac tank, clear, 7"
1
$36.99 ea
101
H304
screw, #8 x 5/8 phil oval, s/s 6
$0.99 ea
102
G083
gasket, 2" inlet
1
$2.49 ea
103
H135
Cu-Lynx, 2" m cu x 2" mpt
1
$3.99 ea
104
E512B
light, indicator, 125v (amber)
1
$9.99 ea
105
H337
plate, switch,1003DX, 1005DX
1
$8.99 ea
106
E511
light, red, 250v
2
$5.99 ea
107
E515
switch, rocker, 2 position
3
$13.99 ea
108
E516
switch, rocker, 3 position
1
$14.99 ea
109
H389
screw, 10-32 x 1/2" SHCS, alloy 1
$0.99 ea
110
H612
Washer, #8, at regular
3
$0.99 ea
111
H246
screw, 8-32 x 3/8" SHCS, alloy, Black
2
$0.99 ea
112
H308D
gauge, pressure, 2000 PSI
1
$38.99 ea
113
AH203
hose, pulse, 38" x 34"
1
$47.99 ea
114
B156
nut, 1/4" npt
1
$1.99 ea
115
H212
at washer, 9/16"ID x 1 1/16"OD, AN960-C916
2
$0.99 ea
116
E373
level switch, vacuum shut-o, rear threads
1
$13.99 ea
117
H503
vac support, 3 stage, 3.25", no thrds
6
$3.99 ea
118
H096
bolt, hex, 1/4-20 x 4", zinc Finish
6
$0.99 ea
119
C302LA
vac motor, 3 stage, low amp
2
$139.99 ea
120
G004
gasket, vacuum motor
2
$8.99 ea
PART NO.
DESCRIPTION
QTY.
MSRP
G008
piglet let
1
$6.29 pak
G085
gasket, strip, 3/4" x 36" x 1/8"
1
$4.99 ea
H375
hanger, wire forned, hose
1
$10.99 ea
H230
screw, 10-32 x 1/2" phil pan head, s/s
2
$0.99 ea
H141
Cu-Lynx, 2" to 1.5" reducer
1
$3.99 ea
E530
power cord, ext 50', 12/3 black
2
$74.99 ea
H110
Cu-Lynx, 2" hose x 2" fem swivel Cu-Lynx
1
$3.99 ea
AD127
stop sign, register your product
1
ADM-SPEEDSTERS
manual, speedsters
1
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
REV
1003DX (9-2012)
D
1003DX
SHEET 1 OF 3
speedster
SCALE: 1:48
REV
DWG. NO.
D
SIZE
TITLE:
NAME
DATE
COMMENTS:
CHECKED
DRAWN
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MYTEE PRODUCTS, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MYTEE PRODUCTS, INC. IS PROHIBITED.
mytee
PRODUCTS, INC.
858-679-1191
M. LaBarbera
10/2013
C
DO NOT SCALE DRAWING

19
1003DX SPEEDSTER PARTS & PRICING
2
3
1
10
12
13
14
15
16
17
18
19
6
20
21 22
24
25
26
27 28
29
30
31
31
36
35 34
29
32
33
7
8
9
37
38
39
40
41
42 43 40
44
4546
39
47
48
31 12
29
49
12 38
39
40 38 50
52
53
38
57
58 59
60
62
65 66
67
67
66
68
69
56 66
67
32
29
70
20
71
72
73
74
75
76
29
77
78
8
7
79
80
68
84
83
81
8281
42
85
86
88
95
96
97
98
99
101
102
103
105
106 107
108
109
110
111
113
104
6
31
112
120 119
8
68
118
117
54
8
55
56
61
102
to pump
"OUT"
thru AH184
37
to heater
"IN"
thru B107
29
to pressure
gauge
thru AH203
113
to female
QD
thru B107
29
to sol
tank lter
thru B186
42
to pump
"IN"
thru B160
47
to heater
"OUT"
thru B113
32
23
to heater
"OUT"
thru B643
33
64
93
94
94
63
89
91
90
92
114
29
116
28
87
4
5
6
56
115
51
6
11
4
7
8
9
D
C
B
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
1003DX
SHEET 2 OF 3
speedster
10/2013
C
SCALE: 1:48
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
CHECKED
DRAWN
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MYTEE PRODUCTS, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MYTEE PRODUCTS, INC. IS PROHIBITED.
A
DO NOT
SCALE DRAWING
858-679-1191
mytee
PRODUCTS, INC.
M.LaBarbera

20
1003DX SPEEDSTER WIRING SCHEMATIC
Speedster 1003DX
115 Volt
L2
GND
L1
L2
GND
L1
L2B L2A
E-564
L1B L1A
Thermal
Switch
Thermal
Switch
Heater 1
600W
Cooling
Fan
Thermal
Switch
Pump
L2
GND
L1
Vacuum
1
L2
GND
L1
L2
GND
L1
Thermal
Switch
SW
E-515
SW
E-516
Service
Light
Power In
1
Heater 2
1000W
Vacuum
2
C313 C302LA C302LA
C317
Power In
2
SW
E-515
SW
E-515
A905A
A901
E-370 Float
Switch
115V
Ground to
Metal Plate
