Parker PV0110BSPH Guide

Model:
PV0110BSPH
PV0285KSPH
PV9308HSPH
Vac-35 Hydrostatic Drive PV9908KLPSP
H
OPERATION SERVICE PARTS CARE

2
TABLE OF CONTENTS
Table of contents 2
Declaration of conformity 3
General Safety Instructions 4 & 5
Warning Decal Replacement 6
Operating Instructions 7 & 8
Assembly Instructions 9

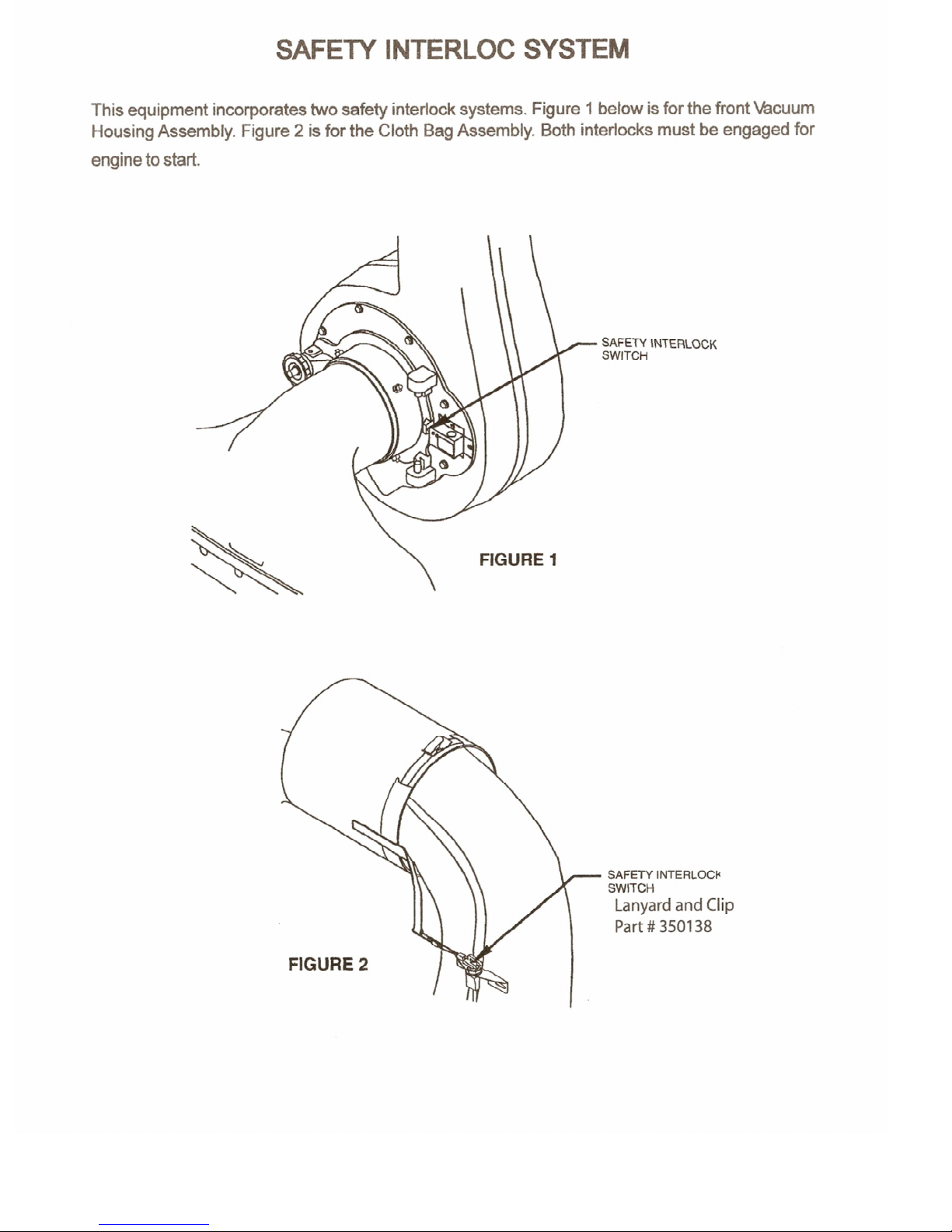

Safety Interlock 10
Accessories 11
Upper Handle Assembly 12
Upper Control Assembly 13 & 14
Traction Drive Assembly 15 & 16
Housing Assembly 17 & 18
Turf Wheel Kit 19 & 20
Honda 8 Hp 21
Kawasaki LP 8 Hp 22 & 23
Kohler 8.5 Hp 24
Briggs & Stratton 10 Hp 25
Limited Warranty 26

3
DECLARATION OF CONFORMITY
Manufacturers Name: Parker Company Inc.
Manufacturers
Address: 3700 East Anne Street
Phoenix, AZ 85040 USA
Equipment
Description: Vac 35 Self Propelled
Equipment Model
Designation: PV0110BSPH, PV9308HSPH
PV0285KSPH, PV9908KLPSPH
Application of Council Directives: EN50366, 2000/14/EC, EN12100-1
EN12100-2, EN55012
Additional Standards: ISO5349-1, ISO5349-2
Sound Vibration
25.8m/s2
I, the undersigned, hereby declare that the equipment specified above conforms to the
above Directive(s) and Standard(s).
Signature: Date: 04/07/2009
Printed Name: Joseph Bongiovi
Title: Director Technical Services

4
IMPORTANT SAFETY INSTRUCTIONS READ ALL
INSTRUCTIONS BEFORE USING
WARNING
To prevent personal injury or property damage, do not attempt to start engine until all assembly steps are
complete and you have read and understand the safety and operating instructions in this manual.
Under California law, and under laws of several other states, you are not permitted to operation internal
combustion's engine using hydrocarbon fuels on any forest covered, brush covered, or grass covered land, or on
land with grain, hay, or other flammable agricultural crop, without an engine spark arrester in continuous
effective working order. The engine on your power equipment, like most outdoor power equipment, is an internal
combustion engine that burns gasoline, a hydrocarbon fuel. Therefore, your power equipment must be equipped
with a spark arrester muffler in continuous effective working order. The spark arrester must be attached to the
engine exhaust system in such a manner that flames or heat from the system will not ignite flammable material.
Failure of the owner/operator of the equipment to comply with this regulation is a misdemeanor under California
law, and may also be a violation of other state and/or federal regulations, laws, ordinances, or codes. Contact
your local fire marshal or forest service for specific information about what regulations apply in your area.
Wear approved safety glasses when operating this equipment. The operation of any powered
machine can result in foreign objects being thrown by high-speed rotating parts.
Wear work gloves, sturdy footwear, and hearing protection when operating this equipment.
Remove hearing protection and watch for traffic when operating near, or when crossing roadways.
Before inspecting or servicing any part of equipment, shut off engine, disconnect spark plug wire from spark
plug, and make sure that all moving parts have come to a complete stop. Be aware that rotating blades slow
down gradually after engine is shut off.
Exercise extreme caution on slopes and avoid excessively steep slopes.
Never leave equipment unattended when engine is running. Shut off engine and disconnect spark plug wire from
spark plug before leaving equipment. Turn off fuel shut-off if equipped.
Do not vacuum any burning or smoldering materials such as cigars, cigarettes, ashes, or cinders.
Do not vacuum areas that have been recently treated with fertilizers, pesticides, or herbicides.
Follow chemical manufacturer's safety instructions regarding contact with treated areas.
Do not vacuum flammable liquids such as gasoline, kerosene, diesel fuel, paint thinner, etc.
Do not vacuum any airborne combustibles, dust from wood, paper, metal ECT.
Do not operate the equipment on a paved, gravel, or hard surface unless the collection bag is
installed. Discharged material may bounce from a hard surface.
Never pick up or carry equipment while the engine is running.
Walk, never run.
Never allow children or untrained adults to operate this equipment.
Keep the area of operation clear of all persons, particularly small children, and pets. Keep bystanders at least 25
feet away from the area of operation.

5
 Do not run engine in an enclosed area. Engine exhaust contains carbon monoxide gas, a deadly poison that is
odorless, colorless, and tasteless.
 Before removing or installing collection bag, shut off engine, disconnect spark plug wire from spark
plug, and allow all moving parts to come to a complete stop.
 Do not allow hands or any other part of the body or clothing inside the vacuum inlet.
 Do not start engine or operate this equipment with any safety guards or housing removed.
 If equipment jams or becomes clogged, immediately shut off engine, disconnect spark plug wire from spark plug,
and allow all moving parts to come to a complete stop. Use only a wooden stick to clear away debris.
 Empty the collection bag after each use. Decomposed debris could generate enough heat to catch fire. Before
emptying the collection bag, shut off engine, disconnect spark plug wire from spark plug, and allow all moving parts
to come to a complete stop.
DANGER
Liquid propane is highly flammable and its vapors are explosive. To prevent personal injury or property damage:
 Do not allow open flame, matches, or smoking in area.
 Never overfill a propane tank. The tank supplied with this machine is a horizontal vapor withdrawal 20 lb. tank.
Weight fill tank only 80% of rated capacity. Tare weight is stamped on the tank.
 Always store propane tank outside in an approved, secured, tamper proof enclosure to provide safety form
vandalism and accidents.
 Never use a non-UL listed propane tank.
Never change or alter the fuel system unless authorized by The Parker Company Service Department.
DANGER
Gasoline is highly flammable and its vapors are explosive. To prevent personal injury or property damage:
Do not add fuel if engine is running or still hot from recent operation. Allow engine to cool for at least three
minutes.
Do not fill fuel tank indoors. After filling, wipe up any spills and move away from gasoline fumes before
starting engine.
Do not allow open flame, matches, or smoking in area.
Fill fuel tank with fresh, clean unleaded regular automotive gasoline, (leaded regular and unleaded or leaded
premium grades of gasoline are acceptable substitutes).
Do not mix oil with gasoline.
Clean the area around the fuel fill cap and remove the cap from the fuel tank. Insert a clean funnel into
the fuel tank.
Fill the tank to 1/2 inch below the bottom of the filter neck to provide space for any fuel expansion.
Reinstall the fuel fill cap securely and wipe up any spilled gasoline.
SAVE THESE INSTRUCTIONS

6

7
OPERATING INSTRUCTIONS
READ SAFETY AND OPERATING INSTRUCTIONS BEFORE OPERATING EQUIPMENT
1. Heavy concentration of sand and gravel should be
avoided. These materials are extremely abrasive, and
while the VAC 35 will handle moderate amounts of
these materials, it is not designed for heavy
applications. Treat your VAC 35 with reasonable care
and it will repay you with long, trouble-free service.
2. The VAC 35 will handle most common kinds of debris
found around industrial plants, commercial buildings,
homes and farms. Acid contaminated materials,
magnesium, dust and other DANGEROUS DEBRIS
that is considered hazardous should not be handled
with the VAC 35.
3. The efficiency of this unit depends on the breathing
capacity of the dust bag. Under extremely dusty
conditions the bag should be emptied and cleaned
frequently. Always empty and clean bag before storing
after use. Debris allowed to remain in the bag may
cause spontaneous combustion, resulting in an
explosion or fire. See instructions supplied with dust
bag.
DUST BAG CARE
1. To clean dust bag, turn the bag inside out and reattach
to unit.
2. Start engine and run at full throttle. Lightly tap bag to
release dirt trapped in the weave.
3. When clean, turn bag right side out and reattach to
unit.
4. Bag can be washed if extremely dirty.
Clearing the Machine of Clogs and Jams
BEFORE STARTING ENGINE
IMPORTANT: Read the Engine Manual CAREFULLY
before operating the VAC 35. Before starting the engine
read and understands the following:
1. Be sure the engine crankcase is filled with the
proper type and amount of oil.
2. Spin-Pak® is in place.
3. Dust bag or discharge hose is in place.
4. Intake housing or hose kit is attached to the fan
housing.
TO START ENGINE
IMPORTANT: Read the dangers of liquid propane fuel be-
fore operating the VAC-35.
1. Move the throttle lever to the full throttle position.
2. Move the choke lever to the choke on position.
3. Open the valve on the propane tank by turning the
knob counterclockwise. (propane units only)
4. This engine does not require a primer to start. A
couple of quick pulls on the starter cord will disengage
the safety lock-off and allow propane to flow to the
engine.
5. Upon engine startup move the choke lever to the
choke off position then adjust throttle lever.
TO STOP ENGINE
1. Move the throttle lever to the slow/stop position.
2. Close the valve on the propane tank by rotating the
handle clockwise .(propane units only)
3. Allow the engine to run until all of the propane in the
fuel line has been used up. When the engine stops the
safety lock-off will automatically engage.
4. Remove any hearing protection and listen for all mov-
ing parts to come to a complete stop.
LUBRICATION
Add a few drops of oil to the throttle control cable and wire
to help keep it operating smoothly.
.
A clog or jam in the machine can cause the vacuuming operation to decrease or even stop completely. If this occurs, take the following
steps:
1. STOP THE ENGINE IMMEDIATELY and disconnect the spark plug wire from the spark plug. Wait for all moving parts to come to a
complete stop.
2. Check (and clean, if necessary) the following areas in this order:
Check that the collection bag is not overfilled. Remove and empty bag.
While the bag is removed, check that the discharge deflector is not clogged or jammed. Use a stick to clear away any debris.
Check that the vacuuming attachment is not clogged or jammed. Remove the attachment and thoroughly clean the opening.
While the attachment is removed, check the inlet opening to the machine. Use a stick to clear away any debris.

8
OPERATING INSTRUCTIONS VAC 35 HYDROSTATIC DRIVE
Figure1
Figure 1 shows control assembly.
To Move Forward:
Push control handle forward for forward motion the further the control is pushed the faster the forward
motion will be.
To Stop:
Release the control handle, controller will return to neutral.
For Reverse:
Pull Control Handle to rear.
Figure 2
Figure 2 shows transmission release (used to move unit when engine is not running.)
When release is in the down position unit will be engaged. (This is the normal operation position as shown in figure 2.)
When release is in the up position unit can be rolled. (Wheels are free.)
Note:
If release is in the up position unit will not move when control is moved for forward or reverse.

9
ASSEMBLY INSTRUCTIONS
TO ASSEMBLE UPPER HANDLE
NOTE: See Upper Handle Assembly Page 12 of this owner’s guide for reference numbers used in these instructions.
Insert upper handle into lower struts and install 4 bolts (10) Washers (11) Nuts (12). Once bolts are installed they can be
tightened.
Place controller assembly onto upper handle and insert 2 bolts and secure (Refer to upper handle assembly page 12.)
Use Bolt (4) and (8) with nut (5) and washer (6).
Install throttle cable (15) to upper handle using 2 bolts (16) and 2 Nuts (17) and tighten.
TO ASSEMBLE SPIN-PAK

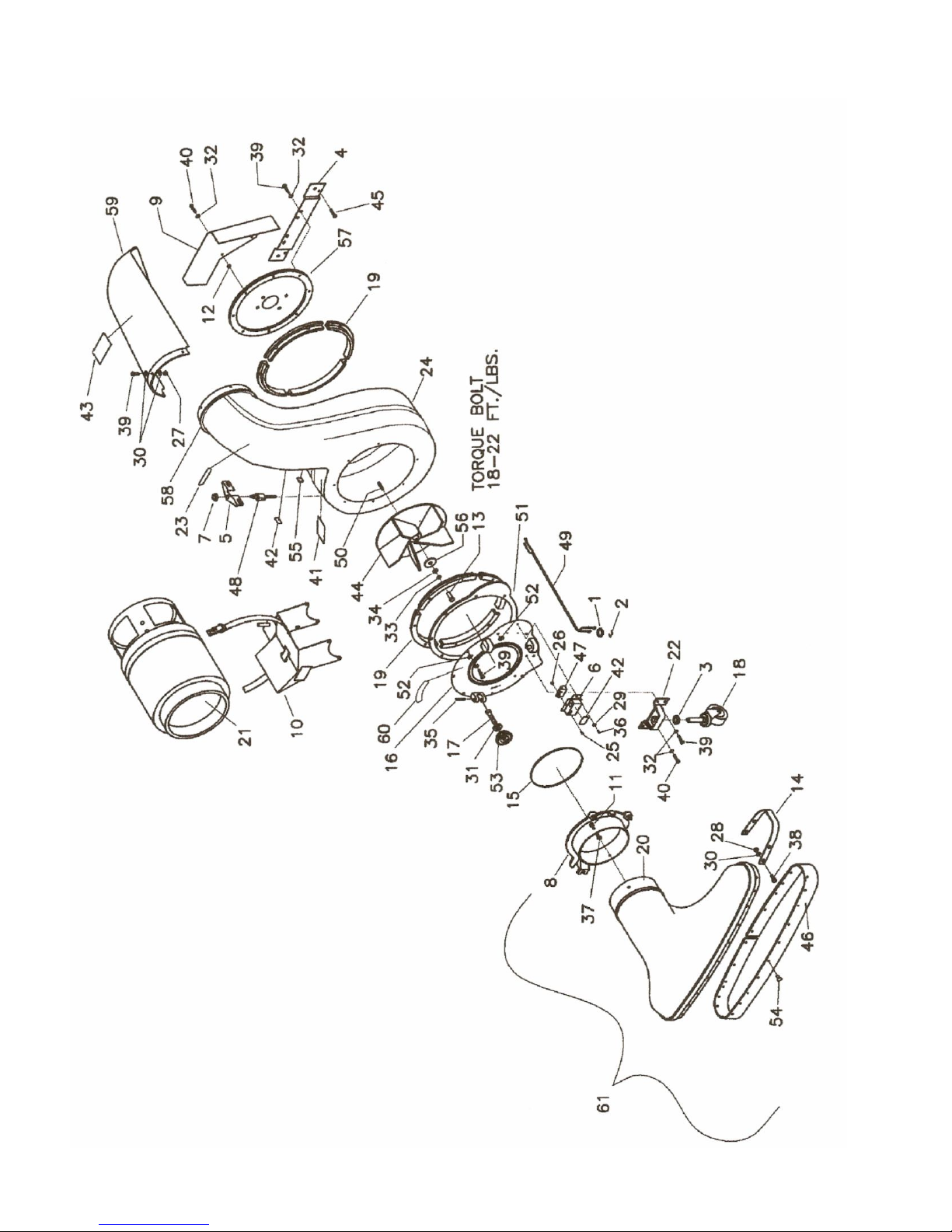

NOTE: See Housing Assembly Page 17 of this owner's guide for reference to numbers used in the following
instructions.
1. Remove hex head bolts (39), flat washers (30), and lock nuts (27) from the three upper holes used to secure
retaining ring (58) to housing assembly (24). DO NOT remove the bottom bolt or retaining ring from housing
assembly.
2. Align the holes in Spin-Pak (59) with three upper holes in retaining ring and housing assembly.
3. Replace hardware removed in Step 1 and tighten.
ATTACHING INTAKE HOUSING
1. Insert hinge bosses on collar of intake housing (61) behind the hinged extension on front cover assembly (16).
2. Swing intake housing (61) to lay flat against front cover assembly (16).
3. Secure by placing f1atwasher (31) and adjusting knob (53), on pivot bolt, over the collar of intake housing and
tighten adjusting knob.
ATTACHING DUST BAG
1. Place large loop in upper bag straps over the upper handles.
2. Place neck of dust bag over Spin-Pak until tie strap can be pulled tight around neck of housing, just over bead on
retaining ring. Bead must be covered.
3. Place bag hooks onto loops in lower bag straps and hook to lower crossbar.
WARNING: Failure to attach bag hooks to lower crossbar can cause premature wear of bag and neck at the Spin-Pak.
The Spin-Pak may also break prematurely due to excessive weight from the bag.
WARNING: The engine contains NO OIL. Read the Engine Instruction Manual carefully before operating the VAC 35.
Be sure you know how to start and stop the engine before proceeding further. Do not start the engine until all assembly
is finished.
WARNING: Make a thorough inspection to see that all fastenings are tight and all parts are properly installed. DO NOT
start engine without intake housing and dust bag in place. If engine is started without intake housing attached, serious
injury may result by drawing clothing or parts of the body into the fan. If engine is run without Spin-Pak or dust bag,
small stones or other objects may be picked up and propelled at operator or bystanders through the unprotected
opening causing serious injury.

10

11
4.
5.
ACCESSORIES

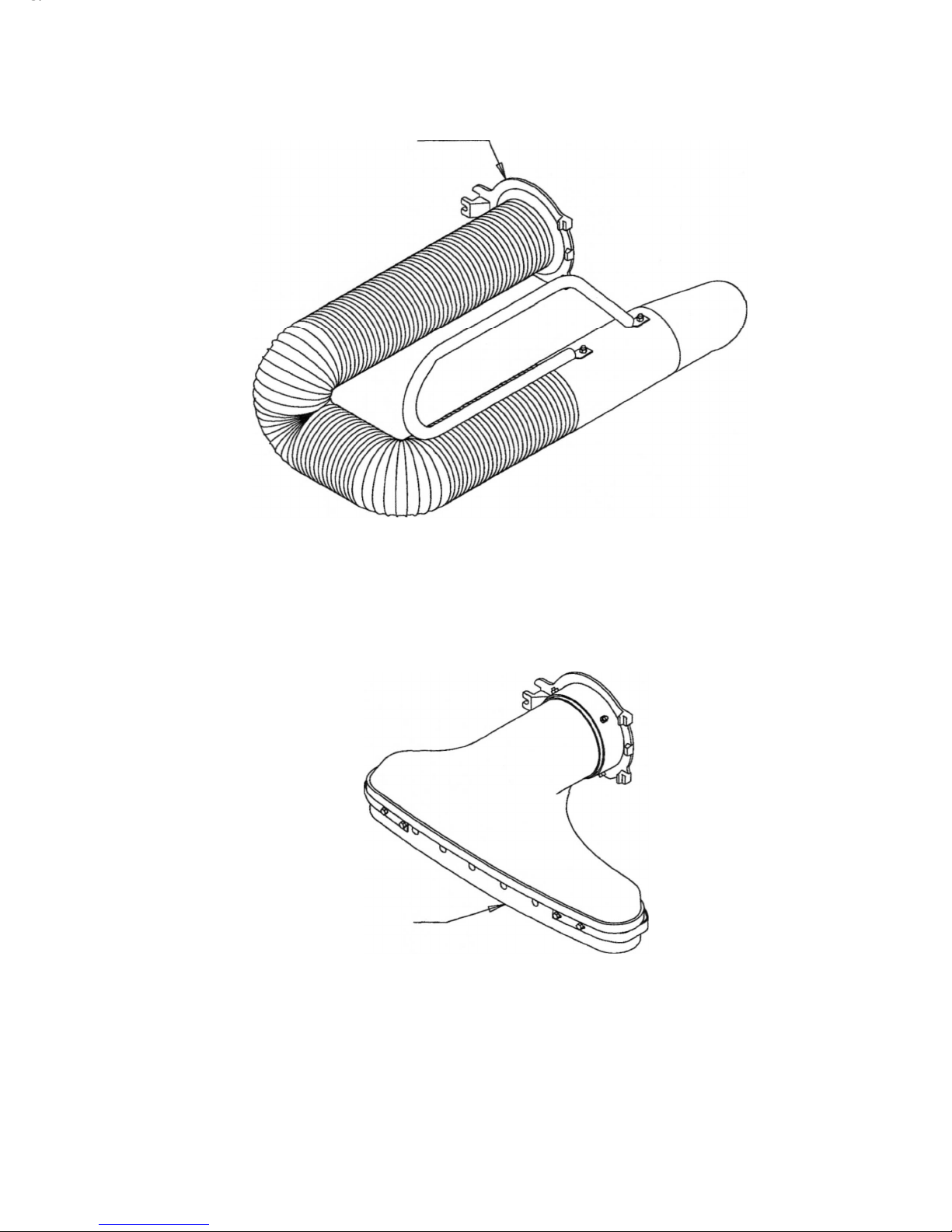

MA-620-D 8 inch Hose Kit
350265 6 inch Hose Kit
MA-622-D 4 inch Hose Kit
Optional MA-113-D 24 inch Intake
Standard MA-251-D 30 inch Intake
Optional MA-120-D 36 inch Intake

12
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 360707 Vac 35 Handle upper 1
2 360622 Handle Cross Brace 1
3 81-172-A Tube Connector round to round 2
4 70-416-21 Blt 1/4 – 20 x 1 1/2 1
5 711373 Nut Nyloc 1/4 2
6 711505 Wsr-Flt. 1/4 2
7 80-148-A 1” 16-22 Ga.MetalTube Connector 2
8 70-416-23 Blt-HH1/4 – 20 x 2 1
9
713008 Blt-HH 1/4-20 x 2.25 2
10 713030 Blt-HH 5/16-18 x 1 3/4 2
11 711506 Washer Flat 5/16 4
12 711374 Nut Nyloc 5/16-18 2
13 360717 Vac 35-H Controller Assembly 1
14 360108-A Sleeve Handle 15” 2
15 83-25-B-49 Cable-Throttle Assy. 1
16 515-10-24 Blt HH 10-24 x 1.5 #5 2
17 712638 Nut-Nyloc 10-24 2
18 80-276-A Clamp cable 2
19 350800 Bag w/lanyard 1
19A 350852 Optional Dust Bag Cover 9 Cu. Ft. 1
20 63-304-A Hook, Bag 4
Vac 35 Hydro Upper Handle Assembly

13
Vac 35 Upper Control Assembly

14
Vac 35 Upper Control Assembly
PART
ITEM
NO. NUMBER
DESCRIPTION QTY.
1 360627 Nylon Bushing 2
2 360628 4 x 1/4 Selftaping Sheet Metal Screw 4
3 360632 Shld-Bolt 5/16 x 1/4 1
4 360636 VAC-35 Controller Bracket 1
5 360701 VAC-35 Controller Arm 1
6 360633 Ball Joint 1/4-28 Female 1
7 360637 Ball Joint 1/4-28 Male 1
8 711505 Wsr-Flt 1/4 7
9 713002 BIt-HH 1/-20 x.75 #5 2
10 711373 Nut Nylock 1/4-20 5
11 360639 VAC -35 Spring Controller 1
12 360714 VAc-35 Controller Lever Weldment 1
13 360715 VAC-35 Controller Housing Weldment 1
14 360624-A VAC-35 Control Handle Right Weldment 1
15 360624-B VAC-35 Control Handle Left Weldment 1
16 78-71-A Grip Handle Black 2
17 80-148-0 1"-16-22 GA Metal Tube Connector 2
18 711550 Wsr- 1 1/4 x 9/32 Zinc 2
19 350136 Cable Sviwel Barrel 1
20 711544 Wsr- Helical 1/4 2
21 713004 Blt-HH 1/4-20 x 1.25 #5 2

15
Vac 35 Hydro Traction Assembly

16
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
1
360700 Hydrostatic Transmission 1
2 360614 Throttle Cable Bracket 1
3 360718 Bearing holder weldment 1
4 360702 Frame Basket 1
5 360704 Basket side plate IF 1
6 360705 Basket side plate RH 1
7 68-310-B Wheel Assembly 2
8 350134 Pulley bracket center 1
9 350109 Pulley bracket LF 1
10 350108 Pulley bracket -RH 1
11 350166 Pulley Assy 3
12 82-135-A Spacer - 0.316X.0498XO. 197 6
13 711281 Shld. Bit 1.25 x 5/16 2
14 711373 Nut Nyloc 1/4-20 12
15 350187 Pulley Stud 1
16 711506 Wsr- Fit. 5/16 26
17 712540 SCR·MC 10-24 x .37 SS TH 1
18 713002 BIt·HH 1/-20 x .75 #5 9
19 711544 Wsr- Helical 1 /4 8
20 350106-A VAC-35 Transm. Mtg. Bkt·Hydro 2
21 340742 Bearing-Fig Presweep Zinc 4
22 881059 Bearing -Collar.75 2
23 350115-A VAC-353/4" Drive Shaft Hydro 1
24 713027 BIt-HH 5/16-18 xl #5 11
25 711545 Wsr-Helical 5/16 8
26 350304-B VAC-35 Tensioner Eng. Dr 1
27 76-456-A Pulley 2
28 712081 Blt-Shld 0.375 x 0.75 x 1/4-20 2
29 711523 WSR- Wave .370 x .68 x .08 2
30 711374 Nut Nyloc 5/16·18 14
31 360630 Spring Holder Bracket 1
32 210035 Spring Return 1
33 350293-B VAC-35 Lever Tensioner 1
34 713028 BIt-HH 5/16-18 x 1.25 #5 1
35 360713 Throttle Control Lever 1
36 360710 Headless Sholder Bolt 1
37 360726 Drive Control Bracket Weldment 1
38 711505 Washer Flat 1/4 4
39 713031 Blt-HH 5/16-18 x 2 # 5 4
ITEM
NO
PART
NUMBER
DESCRIPTION QTY.
40 86-86-A Spacer .391 x .75 x .156 2
41 713033 Blt-HH 5/16-18 x 2 1/2 #5 2
42 69-416-24 Blt-Cont Hd 1/4-20 x 1.5 #5 4
43 713044 Blt-HH 5/16-18 x 2 3/4 #5 4
44
360618 Parking Brake Cable Bracket 1
45 360619 Brake Cable Strap 1
46 710230 Scr-Mc 8-32 x .62 Zinc 3
47 711372 Nut Nyloc 1/4-20 3
48 360620 Parking Brake Lever 1
49 711202 Blt-HH 1/4-20 x .50 Stl. Zinc 1
50 711715 Ret Ring Ext .750 1
51 712041 Blt-Shldr .31 x .375 x 1/420 1
52 360703-A Handle Strut Weldment 2
53 350100-HA Vac 35 Hydro Base Weldment 1
54 360708 Belt Cover 1
55 350307-A Belt 3VX560 1
56 80-44-A Pin Clevis CP-43-M 2
57 711808 Pin Hairpin Cotter # 13 2
58 360760 Transmission Cable 1
59 350125 Cable Brake SPVAC 1
60 711383 Nut-Hex CTR Loc 5/16-18 4
61 82-138-B-1 Wsr-Special 2
62 713036 Blt-HH 5/16-18 x 1 3/4 #5 1
63 350186-1 Rope Guide 1
64 711507 Wsr-Flat .37 x 1.12 x .06 1
65 430051 Spring Tensioner .438 x 2.938 1
66 713003 Blt-HH1/4-20 x 1.00 1
67 711516 Wsr-Flt. .31 x 1.25 x .05
#
5
1
68 713008 Blt-HH 1/4-20 x 2 1/4 #5 1
69 360640 Bottom Plate Cover 1
70 713001 Blt-HH 1/4-20 x .62 #5 8
71 360621 Screw # 10 1/8 x 1/2 self tap 5
72 350121 Pulley 3.5 x 3/4
1
1
73 762375 Key-Sq .187 x .750 2
74 89-133-C Pulley Drive Shaft 1
75 721516 Set Screw 5/16-18 x .025 3
76 711377 Nut-Stover Loc 1/4-20 2
77 81-120-A Bushing .62 x .315 x .215 2
78 90-118 Belt Truflex 1260 3L260 1
Vac 35 Hydro
Traction Assembly

17
Vac 35 Housing Assembly

18
PARTS LIST
ITEM PART NO. REQ'D DESCRIPTION
1 101008 1 GROMMET, RUBBER
2 250136 1 STRAIN RELIEF
3 340·1216 1 NUT-JAM 3/4
4 350128 1 HOUSING SUPPORT
5 350129 1 SWITCH BRACKET FOR 7050·10
6 350130 1 SWITCH BRACKET 6400
7 350135 1 SWITCH NUT 6250
8 350152 1 COLLAR
9* 350275 1 **HEAT SHIELD VAC35 LP ** USED ON PROPANE UNITS ONLY**
10* 350285 1 **TANK BRACKET ASSV VAC35LP ** USED ON PROPANE UNITS ONLY**
11 369-416 4 NUT-NVLOC SERATED 1/4-20
12 54-227·A 2 SPACER·.328 X.50 X .156
13 60.516-24 1 BL T·HH 5/16-24 X 1.5 #5
14 62-98-C 2 GUARD
15 63-190-A 1 O RING GASKET
16 63-191-D 1 CASTING-COVER FRONT
17 63-192-A 1 PIVOT BOLT
18 64-71-A 1 CASTER
19 64-78-C 8 ANTI-WRAP SEGMENTS
20 65-567-F 1 INTAKE HOUSING 24w
20A 77-18-F 1 INTAKE HOUSING 3D"
20B MA-121 1 INTAKE HOUSING 36w
21* 65-747-B 1 **L.P. TANK 20LB. VAPOR ** USED ON PROPANE UNITS ONLY**
22 66-43O-C 1 CASTER BRACKET
23 67-08-A 1 DECAL-8PIN PAK
24 70-103-F 1 HOUSING BLOWER VAC35
25 710130 2 SCR-MC 8-32 X .62 NICKEL
26 711372 2 NUT-NVLOC 8-32
27 711373 4 NUT-NVLOC 1/4-20
28 711377 8 NUT-NVLOC 1/4-20
29 711503 3 WSR-FLT#10
30 711505 20 WSR-FLT 1/4
31 711509 1 WSR-FLT 1/2
32 711544 18 WSR-HELICAL 1/4
33 711585 1 WSR-EXT LOCK 5116
34 711575 1 WSR-FLT .31 X .75 X .06 STL
35 711661 1 PIN-ROLL .250 X 1 3/4
36 712810 3 SCR-MC 10-24 X .37 ZINC
37 713001 4 BL T-HH 1/4·20 X .62 #5
38 713002 12 BL T-HH 1/4-20 X .75 #5
39 713003 14 BLT-HH 1/4-20 X 1.00 #5
40 713004 2 BLT-HH 1/4-20 X 1.25 #5
41 715300 1 DECAL-WARNING FINGERS
42 715313 1 DECAL-8AFETVINTERLOC
43 715318 1 DECAL.-DANGER
44 72-175-0 1 FAN WHEEL 1WBORE
45 72-416-10 4 BLT ST 1/4 X
518
46 73-67- 1 SKIRT 30· HOUSING
46A 73-74-D 1 SKIRT 36wHOUSING
46B 73-76-C 1 SKIRT 24wHOUSING
47 740282 1 SWITCH-DELTA 6451
48 741031 1 SWITCH BAG SAFETY KAWASAKI
49 740291 1 WIRE ASSEMBL V
50 74·112-A 1 KEV-1/4 X 1/4 X 2 1/2 (SP MODEL)
50A 63·1300A 1 KEV·1/4 X 1 3/4 LONG MAN. MODEL)
51 75-03C 1 GASKET FRONT COVER
52 78·1200A 2 CLAMP-P
53 80-29-A 1 KNOB-PLASTIC
54 80-332-A 15 )(MAS TREE FASTNER
55 809443 1 CLIP-WIRE & CORD
56 82-138-8-3 1 WSR-AREA VAC 35
57 84-3436-C 1 BACK PLATE & GASKET,PV-8
58 85-59-C 1 RETAINING RING MACHINED
59 85-81.0 1 SPIN PAC DEFLECTOR
60 85-151-A 1 DECAL-8TOPFANBEFORE
61 MA-113-D 1 24wINTAKE HOUSING
61A MA-120-D 1 36" INTAKE HOUSING COMP
61B SA-911-D 1 INTAKE ASSV 30" VAC35

19

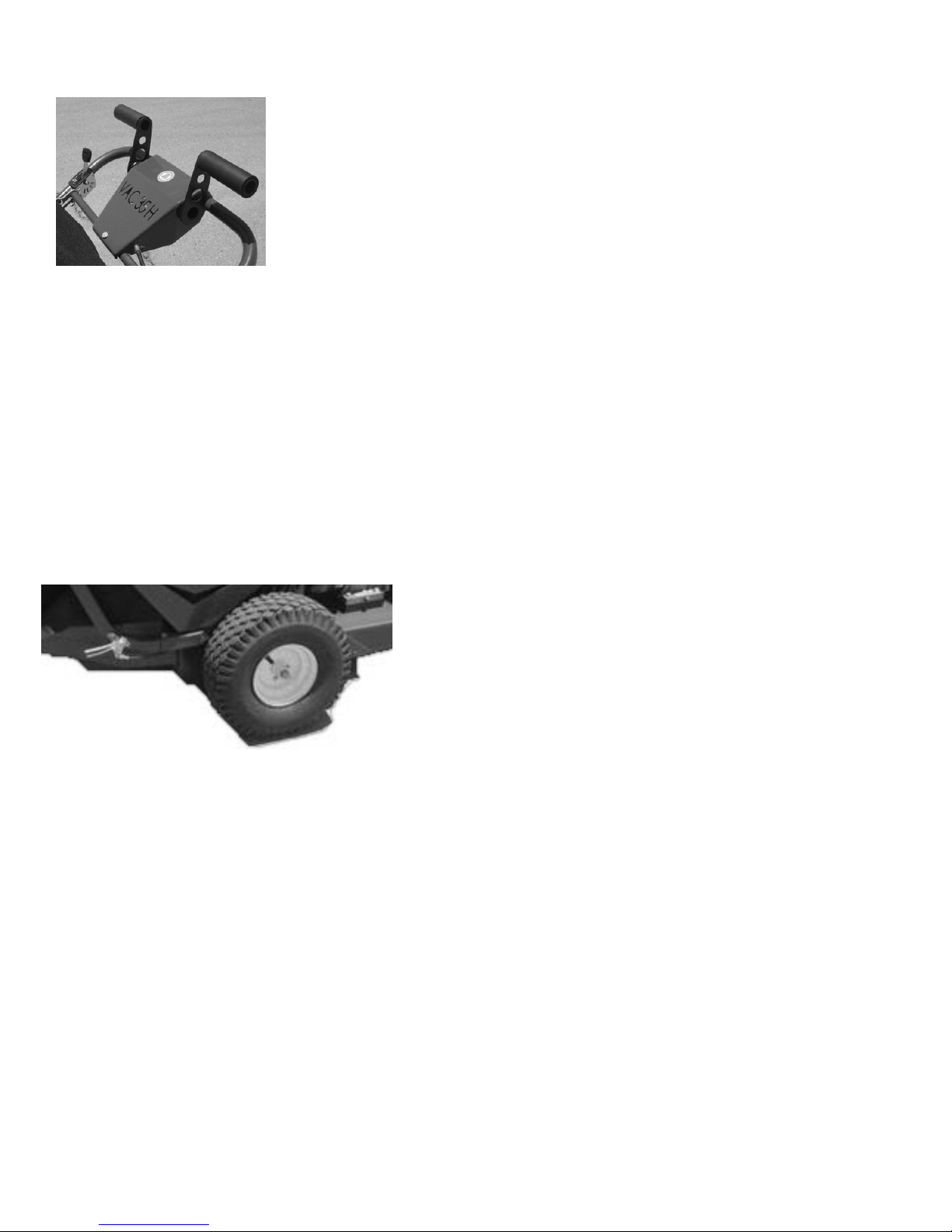

Optional Vac-35 Turf Wheel Kit

20
OPTIONAL VAC-35 TURF WHEEL KIT
PART
ITEM
NO.
NUMBER DESCRIPTION QTY.
1 SA-914-B V AC-35 Front Arm Weldment 1
2 64-134-A Spacer .75 x 1.43 x .25 1
3
7118
09
Pin Cotter 1 .
8
x 1 ZC 2
4
58
-
06
-
A
Sleeve 1
5 711509 Wsr-Flt 1/2 STL Zinc 3
6
8
O
-
29
-
A
Knob - Plastic 1
7
8
09311
Pin -Cotter 7/32 x 1 1
8
350011 V AC-35 Wheel Support Weldment 2
9 350012 VAC-35 Adjustment Bracket Weldment 1
10 350013 VAC-35 Front Bracket Support Weldm. 1
11 712115 Blt-Shld. 1/2 x 3.25 2
12 711380 Nut-Nylock 3/8-16 2
13 360157 Tire-Pneu 9 x 2.50 2
14
711592
Wsr
-
Flt
.940 x .506 x .064 NYL
4
14A SA-914-A Complete Assembly 1
