Introduction
Congratulations on the purchase of your
new device. With it, you have chosen a
high quality product.
During production, this equipment has
been checked for quality and subjected to
a nal inspection. The functionality of your
equipment is therefore guaranteed.
The operating instructions constitute
part of this product. They contain
important information on safety, use
and disposal. Before using the prod-
uct, familiarise yourself with all of
the operating and safety instructions.
Use the product only as described
and for the applications specied.
Keep this manual safely and in the
event that the product is passed on,
hand over all documents to the third
party.
Intended use
The wet/dry grinder is suitable for sharp-
ening tools (e.g. knives, scissors, chisels),
and deburring and grinding smaller metal
workpieces.
The device is not intended for all other
types of applications (e.g. grinding with
unsuitable grinding tools, grinding with a
coolant solution, grinding hazardous mate-
rials such as asbestos).
The equipment is intended for use in the
eld of DIY. It is not designed for commer-
cial use.
The equipment is designed for use by
adults. Young people under the age of 16
are permitted to use the equipment only
under supervision. The manufacturer shall
not be liable for damages caused by use
other than for the intended purpose or by
incorrect operation.
Content
Introduction .................................5
Intended use................................5
General description......................6
Scope of delivery............................. 6
Function description.......................... 6
Summary ........................................ 6
Technical specications.................7
Safety Instructions........................7
Symbols and icons ........................... 8
General safety instructions ................ 8
Further Safety Instructions................ 10
Residual risks................................. 11
Assembly...................................11
Assemble/set workpiece supports .... 12
Assemble/adjust spark protection .... 12
Screw device on to workbench ........ 12
Insert the rubber closure.................. 12
Operation ..................................12
Switching on and off ...................... 13
Grinding with the dry grinding disc.. 13
Grinding with the wet grinding disc . 14
Change grinding disc..................... 14
Change dry grinding disc ............... 14
Change wet grinding disc............... 15
Cleaning and maintenance.........15
Cleaning....................................... 15
General maintenance ..................... 16
Storage......................................16
Waste disposal and environ-
mental protection.......................16
Replacement parts/accessories...16
Trouble Shooting........................17
Guarantee .................................18
Repair Service............................19
Service-Center............................19
Importer .................................... 19
Translation of the original
EC declaration of conformity ......39

6
GB IE
General description
The illustrations can be found
on the front and rear fold-out
pages.
Scope of delivery
Unpack the equipment and check that it is
complete. Dispose of the packaging mate-
rial correctly.
• Appliance
• Pre-assembled spark protection
• Assembly material for mounting the
spark protection on the machine
Adjusting screw incl. washer and snap
ring, nut
• Workpiece support
• Assembly material for mounting the
workpiece support on the machine
- star grip nut, washer, lock washer
and screw
• Instruction Manual
Function description
The wet/dry grinder is a combination ma-
chine, equipped with two grinding discs
with different grain sizes for rough grind-
ing and nishing. One dry grinding disc
and one wet grinding disc.
The device is provided with a spark protec-
tion and protective hoods for the protection
of the user.
For the function of the operating parts,
please refer to the descriptions below.
Summary

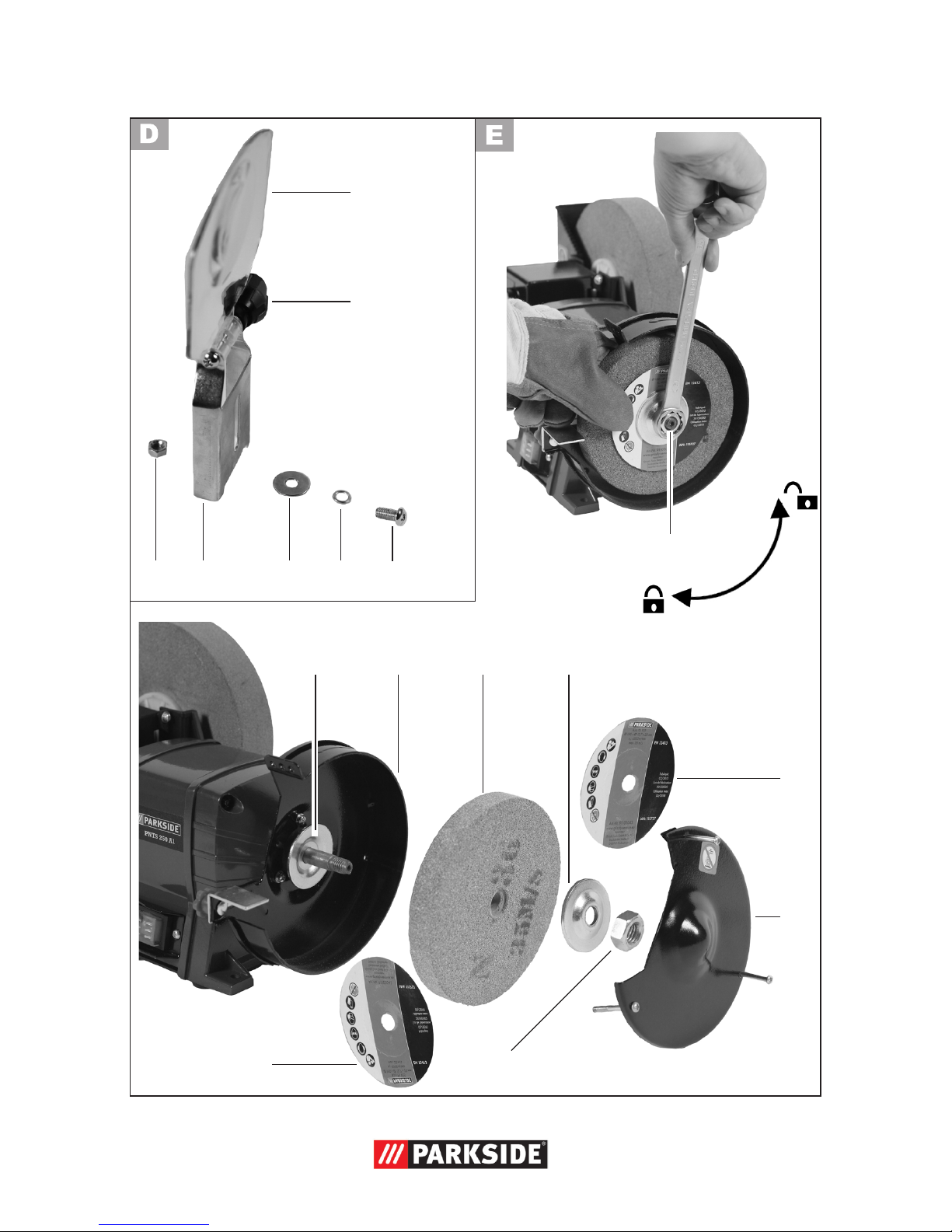

1 Wet grinding disc
2 Spark protection
3 Adjusting screw nut for spark
protection
4 Grinding disc cover
5 Dry grinding disc
6 Workpiece support
7 Star grip nut to mount/adjust the
workpiece support
8 On/off switch
9 Rubber foot
10 Drillholes for table mounting
11 Rubber cap (not visible)
12 Power cable
13 Water tank
14 Lock washer
15 Washer
16 Mounting screw for workpiece
support
11 Rubber cap
17 Nut
18 Spark protection holder
19 Washer
20 Spring ring
21 Adjusting screw for spark protec-
tion fastener
22 Grinding disc nut
23 Clamping ange
24 Intermediate layers made of
cardboard
25 Grinding disc cover
26 Washer
27 Clamping ange made of plastic
28 Clamping ange made of plastic

7
GB IE
Technical specications
Nominal input voltage ......230 V~, 50 Hz
Power consumption ..................... 250 W
(S2 30 min)*
Safety class ..........................................I
Mechanical rating.......................... IP 20
Measurement idling speed n0... 2950 min-1
Weight (incl. accessories).........ca. 8,6 kg
Sound pressure level
(LpA).....................63 dB (A); KpA= 3 dB
Sound power level (LwA)
measured............. 76 dB(A); KWA= 3 dB
guaranteed ...........................79 dB(A)
Vibration total value (ah).......... 2,5 m/s2
Wet grinding disc
Outer diameter ...................Ø 200 mm
Bore hole .............................Ø 20 mm
Thickness .................................40 mm
Grain size......................................80
Speed n0.................... max. 3820 min-1
Working speed................ max. 40 m/s
Dry grinding disc
Outer diameter ...................Ø 150 mm
Bore hole ..........................Ø 12,7 mm
Thickness .................................20 mm
Grain size......................................36
Speed n0.................... max. 4500 min-1
Working speed................ max. 35 m/s
* A break is introduced after 30 minutes of
uninterrupted operating duration until the de-
vice temperature differs 2 K (2°C) less than
room temperature.
Noise and vibration values have been
determined according to the standards and
regulations mentioned in the declaration of
conformity.
Technical and optical changes may be
undertaken in the course of further develop-
ment without notice. All dimensions, refer-
ences and information in this instruction
manual are therefore not guaranteed. Legal
claims made on the basis of the instruction
manual can therefore not be considered as
valid.
The stated vibration emission value was
measured in accordance with a standard
testing procedure and may be used to com-
pare one power tool to another.
The stated vibration emission value may
also be used for a preliminary exposure
assessment.
Warning!
The vibration emission value may
differ during actual use of the
power tool from the stated value
depending on the manner in which
the power tool is used.
Safety precautions aimed at protect-
ing the user should be based on
estimated exposure under actual
usage conditions (all parts of the
operating cycle are to be consid-
ered, including, for example, times
during which the power tool is
turned off and times when the tool
is turned on but is running idle).
Safety Instructions
WARNING!
When using power tools, observe
the following basic safety measures
for the prevention of electric shocks
and the risk of injury and re.
Please read all these instructions
before using the electric tools and
please keep the safety instructions.

8
GB IE
Symbols and icons
Symbols on the device:
Warning!
Risk of injury from the rotating tool!
Keep hands away.
Risk of electric shock! Disconnect
from the mains before carrying out
maintenance and repair work.
Read the instruction manual.
Wear ear protection.
Wear eye protection.
Wear breathing protection.
Wear cut-resistant gloves.
Use grinding disc only for dry
grinding.
Use grinding disc only for grinding
with water.
Do not dispose of electrical equip-
ment in household waste.
Other symbols on the discs:
Never use faulty grinding discs.
Symbols in the manual:
Warning symbols with in-
formation on damage and
injury prevention.
Instruction symbols (the instruction is
explained at the place of the excla-
mation mark) with information on
preventing damage.
Help symbols with information on
improving tool handling.
General safety instructions
The term “power tool” used in the safety in-
structions refers to mains-operated electric
tools (with a mains cable) and to battery-
operated electric tools (without a mains
cable).
Safe operation:
• Keep work area clear. Cluttered
areas and benches invite injuries.
• Consider work area environ-
ment.
- Do not expose tools to rain. Do not
use tools in damp or wet locations.
Water entering a power tool will in-
crease the risk of electric shock.
- Keep work area well lit.
- Do not use tools in the presence of
ammable liquids or gases.
Power tools create sparks which may
ignite the dust or fumes.
• Guard against electric shock.
Avoid body contact with earthed or
grounded surfaces (e.g. pipes, radia-
tors, ranges, refrigerators).
• Keep other persons away.
Do not let persons, especially children,
not involved in the work touch the tool
or the extension cord and keep them
away from the work area.
• Store idle tools. When not in use,
tools should be stored in a dry locked-
up place, out of reach of children.

9
GB IE
• Do not force the tool. It will do
the job better and safer at the rate for
which it was intended.
• Use the right tool.
- Do not force small tools to do the job
of a heavy duty tool.
- Do not use tools for purposes not
intended; for example do not use cir-
cular saws to cut tree limbs or logs.
Use of the power tool for operations dif-
ferent from those intended could result in
a hazardous situation.
• Dress properly.
- Do not wear loose clothing or jewel-
lery, they can be caught in moving
parts.
- Anti-slip footwear is recommended
when working outdoors.
- Wear protective hair covering to con-
tain long hair.
• Use protective equipment.
- Use safety glasses.
- Use face or dust mask if working op-
erations create dust.
• Connect dust extraction equip-
ment. If the tool is provided for the
connection of dust extraction and col-
lecting equipment, ensure these are
connected and properly used.
• Do not abuse the cord. Never
yank the cord do disconnect it from the
socket. Keep the cord away from heat,
oil and sham edges.
• Secure work. Where possible use
clamps or a vice to hold the work. It is
safer than using your hand.
• Do not overreach. Keep proper
footing and balance at all times.
This enables better control of the power
tool in unexpected situations.
• Maintain tools with care.
Many accidents are caused by poorly
maintained power tools.
- Keep cutting tools sharp and clean
for better and safer performance.
- Follow instruction for lubricating and
changing accessories.
- Inspect tool cords periodically and if
damaged have them repaired by an
authorized service facility.
- Inspect extension cords periodically
and replace if damaged.
- Keep handles dry, clean and free
from oil and grease.
• Disconnect tools. When not in use,
before servicing and when changing
accessories disconnect tools from the
power supply.
Such preventive safety measures reduce
the risk of starting the power tool acci-
dentaIly.
• Remove adjusting keys and
wrenches. Form the habit of check-
ing to see that keys and adjusting
wrenches are removed from the tool
before turning it on. A wrench or a key
left attached to a rotating part of the
power tool may result in personal injury.
• Avoid unintentional starting.
Ensure switch is in “off” position when
plugging in.
• Use outdoor extension leads.
When the tool is used outdoors, use
only extension cords intended for out-
door use and so marked.
• Stay alert, watch what you are
doing and use common sense
when operating a power tool.
Do not use a power tool while you are
tired or under the inuence of drugs,
alcohol or medication. A moment of
inattention white operating power tools
may result in serious personal injury.
• Check damaged parts.
This will ensure that the safety of the
power tool is maintained.

10
GB IE
- Before further use of tool, it should be
carefully checked to determine that it
will operate properly and perform its
intended function.
- Check for alignment of moving parts,
binding of moving parts, breakage of
parts, mounting and any other condi-
tions that may affect its operation.
- A guard or other part that is dam-
aged should be properly repaired or
replaced by an authorized service
centre unless otherwise indicated in
this instruction manual.
- Have defective switches replaced by
an authorized service centre.
- Do not use the tool if the switch does
not turn it on and off.
There is a risk of injury.
• Warning.
The use of any accessory or attach-
ment other than one recommended in
this instruction manual may present a
risk of personal injury.
• Have your tool repaired by a
qualied person. This electric tool
complies with the relevant safety rules.
Repairs should only be carried out by
qualied persons using original spare
parts, otherwise this may result in con-
siderable danger to the user.
Further Safety Instructions
• Connect the device only to a power
point with a residual current protective
device (RCD) with a measured residual
current of not more than 30 mA.
• Keep the mains cable and extension
cable away from the grinding disc.
In the event that it is damaged or sev-
ered, immediately disconnect the plug
from the socket.
Do not touch the cable before it has
been disconnected from the mains.
Risk of electric shock.
• The replacement of the plug or the con-
nection line must always be executed
by the manufacturer of the electric tool
or his/her customer service in order to
avoid any hazards.
• Only switch the device on once it is
safely xed to the worktop.
• For your own safety only use acces-
sories and attachments which were
stated in the operating instructions or
recommended or specied by the tool
manufacturer.
• Only use grinding tools recommended
by the manufacturer. Do not use any
saw blades. Ensure that the dimensions
match those of the device.
• Only use grinding discs where the
printed rotational speed is at least as
high as what has been specied on the
name plate of the device.
• Carry out a visual inspection of the
grinding disc before use. Do not use
any damaged or deformed grinding
discs. Replace any damaged or worn
grinding discs.
• Never operate the device without spark
protection or protective hoods.
Periodically readjust the spark protec-
tion in order to offset the wear and tear
of the grinding disc (distance max. 2
mm).
• Replace the grinding disc if the spark
protection and the workpiece support
can no longer be readjusted to a dis-
tance of max. 2 mm at the latest.
• Make sure that the sparks produced by
grinding do not present a danger, e.g.
reach people or ignite ammable sub-
stances.

11
GB IE
c) Damages to health due to
- touching the area of the grinding tool
which was not covered;
- the ejection of pieces from workpiece
or damaged grinding discs.
d) Damage to your health caused by
swinging your hands and arms when
operating the appliance for longer pe-
riods of time or if the unit is not held or
maintained properly.
Warning! During operation, this
electric tool generates an electro-
magnetic eld which, under certain
circumstances, may impair the func-
tionality of active or passive medical
implants. To reduce the risk of seri-
ous or lethal injuries, we recommend
that persons with medical implants
consult their doctor and the manufac-
turer of their medical implant before
operating the machine.
Assembly
Caution! Risk of injury!
- Ensure that you have sufcient
space in which to work, and that
you do not endanger other peo-
ple.
- Always fasten the device on to the
work surface with screws featuring
the sufcient length and thickness
in order to maintain control of the
device.
- All covers and protective devices
must be assembled properly be-
fore commissioning.
- Disconnect the mains plug before
changing the setting on the device.
• Always wear safety glasses, safety
gloves, respiratory protection and ear
protection when grinding, brushing
and separating.
• Never keep the ngers between the
grinding disc and spark protection
or in close proximity to the protective
hoods. There is a risk of crushing.
• The rotating parts of the device cannot
be covered due to functional reasons.
Therefore, proceed cautiously and hold
the workpiece rmly in order to avoid
slipping which could cause your hands
to come into contact with the grinding
disc.
• The workpiece gets hot during grind-
ing. Do not touch the machined area,
allow it to cool down. There is a risk
of burning. Do not use coolants or the
like.
• If you are tired or have consumed al-
cohol or tablets, do not work with the
device. Always have a break on time.
• Switch the device off and remove the
mains plug
- to loosen a blocked insertion tool,
- if the connection line is damaged or
entangled,
- in case of unusual sounds.
Residual risks
Even if properly operating and handling
this electric tool, some residual risks will
remain. Due to its construction and build,
this electric tool may present the following
hazards:
a) Lung damage, if suitable respiratory
protection is not worn.
b) Hearing damage, if suitable ear pro-
tection is not worn.

12
GB IE
Assemble/set workpiece
supports
1. Screw the workpiece supports
(6) on to the device.
To do this, use the screw (16),
washer (15), toothed washer (14)
and star nut (7) supplied.
2. Set the workpiece support (6) of
the grinding disc with the star
grip nut (7) so that the distance
between the grinding disc
( 5) and the workpiece sup-
port is max. 2 mm.
Periodically readjust the workpiece
support in order to offset the wear
and tear of the grinding disc (dis-
tance max. 2 mm).
Assemble/adjust spark
protection
1. Screw the spark protection holder
(18) onto the protective hood. For
this, use the adjusting screw inclu-
ding the snap ring and washers
(21/19) and the nut (17).
2. Adjust the spark protection holder
(18) with the aid of the adjusting
screw (21) - the distance between
the grinding disc ( 5) and the
spark protection holder (18) must
be max. 2 mm (see small image).
Periodically readjust the spark pro-
tection in order to offset the wear
and tear of the grinding disc (dis-
tance max. 2mm).
Despite the spark protection, you
should always wear protective glass-
es when working in order to avoid
eye injuries.
Screw device on to work-
bench
Screw the device onto the work-
bench with 4 screws and nuts.
Insert the screws through the 4 bore
holes (13) on the base of the de-
vice.
The screws and nuts required for as-
sembly are not part of the scope of
delivery.
Insert the rubber closure
1. Insert the rubber closure (11)
into the drain opening of the wa-
ter tank ( 13).
2. You can now ll water into the
water tank ( 13). For this,
notice the marking on the water
tank.
The wet grinding disc is to be 1/3
submerged in water..
Operation
Caution! Risk of injury!
- Always disconnect the plug from
the mains socket before working.
- Use only grinding discs and acces-
sories recommended by the manu-
facturer. The use of other insertion
tools and other accessories may
cause risk of injury.

13
GB IE
- Only use grinding tools which
bear information about the manu-
facturer, type of binding, dimen-
sion and permitted number of
revolutions.
- Only use grinding discs where
the printed rotational speed is at
least as high as what has been
specied on the name plate of
the device.
- Do not use broken, cracked or oth-
erwise damaged grinding discs.
- Never operate the device without
the visual protection disc.
- Always inspect the grinding disc
before starting the device:
Check the distance between
the spark protection holder and
grinding disc as well as work-
piece support and grinding disc
(distance maximum 2 mm).
- The grinding disc must be re-
placed once the spark protection
holder and workpiece support
on the grinding disc do not have
distance of max. 2 mm.
- Switch on the equipment only
when it is safely installed on the
work surface.
Keep your hands away from
the grinding disc when the
device is in operation. Injury
hazard!
Switching on and off
Ensure that the mains voltage
matches the specications on the
rating plate.
Connect the equipment to the mains.
1. To switch on, press the “I” On switch
and the device starts up ( 8).
2. To switch off, press the “0” off switch
and the device switches off ( 8).
After switching on the device, wait until the
device has reached its max. speed. Only
then must you start with the grinding.
The disc will continue to
run after the equipment is
switched off. There is a risk of
injury.
Test run:
Before starting work and after each change
of grinding disc, carry out a test run of at
least 60 seconds with no load. Switch off
the equipment immediately if the disc runs
lumpy, substantial vibrations occur, or ab-
normal noises are generated.
Grinding with the dry
grinding disc
• Place the workpiece on the workpiece
support ( 6) and slowly bring it to its
desired angle on the grinding disc
( 5).
• Move the workpiece slightly from side
to side in order to achieve an optimal
grinding result. This way, the grinding
disc is worn uniformly. Occasionally,
allow the workpiece to cool down.
• The magnifying glass set into the spark
protection window ( 2) helps you to
work accurately.

14
GB IE
Grinding with the wet
grinding disc
• Stand in front of the wet grinding disc
( 1).
• Hold the workpiece with both hands
and lower it slowly onto the wet grind-
ing disc.
• The workpiece can also be supported
on the teeth of the water tank ( 13).
Change grinding disc
Information on replace-
ment:
• Never operate the device without
protective equipment.
• Ensure that the rotation speed
stated on the grinding disc is the
same or higher than the nominal
rotation speed of the device.
• Ensure that the grinding disc
dimensions match those of the
device.
• Only use awless grinding discs
(sound test: an undamaged grind-
ing disc hanging freely on a
string will result in a clear sound
if it is tapped with a plastic ham-
mer).
• Never re-drill a locating hole
which is too small to make it
larger.
• Never use separate bushings or
adapters in order to make grind-
ing discs whose hole is too large
t the device.
• Do not use any saw blades.
• To clamp the grinding tools only
use the clamping ange provid-
ed. The pads between the clamp-
ing ange and the grinding tools
must be made of elastic materials
e.g., rubber, soft cardboard etc.
• Always reassemble the device
completely after replacing the
grinding disc.
Switch the device off and remove
the mains plug.
Allow the device to cool down.
Wear protective gloves when
changing the grinding discs in or-
der to avoid cutting damages.
Change dry grinding disc
1. Loosen the xing screws and re-
move the grinding disc cover (25).
2. Unscrew the grinding disc nut (22)
and hold against the grinding disc
with one hand wearing a glove.
Unscrew the nut (right-hand th-
read): turn counter-clockwise.
3. Remove the clamping ange (23)
and the grinding disc (5).
4. Fit on the new grinding disc
(5) with the intermediate card-
board layers (24) and the clam-
ping ange (23), and screw the
grinding disc nut (22) manually
onto the nut (right-hand thread):
turn clockwise.
5. Tighten the grinding disc nut with
a screw wrench (SW19) applying
modest manual force.
6. Screw the grinding disc cover
(25).
7. Adjust the spark protection holder
(
D
18) and the workpiece sup-
port ( 6) - the distance to the
grinding disc
(5) is max. 2 mm (see „Assem-
bly“)

15
GB IE
The grinding disc nut must not be
screwed too tightly in order to
avoid a breaking of the grinding
disc and nut.
8. Test run:
Before starting work and after each
change of grinding disc, carry out a
test run of at least 60 seconds with no
load. Switch off the equipment immedi-
ately if the disc runs lumpy, substantial
vibrations occur, or abnormal noises
are generated.
Change wet grinding disc
1. Loosen the xing screws and re-
move the water tank (13).
2. Unscrew the grinding disc nut (22)
and hold against the grinding disc
(1)with one hand wearing a
glove. Unscrew the nut (right-hand
thread):
turn counter-clockwise.
3. Remove the washer (26) with a
plastic clamping ange (27) and
the grinding disc (( 1).
4. Fit on the new grinding disc (13)
and the plastic clamping ange
(27) with the washer and screw
the grinding disc nut (22) manu-
ally onto the right-side nut (right-
hand thread):
turn clockwise.
The two plastic clamping anges
(27/28) are not identical.
5. Tighten the grinding disc nut with
a screw wrench (SW19) applying
modest manual force.
6. Push the water tank back over the
wet grinding disc and onto the
gear unit housing ( 13).
7. Fasten the water tank ( 13)
back on the gear unit housing
(29) using the three screws.
The grinding disc nut must not be
screwed too tightly in order to
avoid a breaking of the grinding
disc and nut.
8. Test run:
Before starting work and after each
change of grinding disc, carry out a
test run of at least 60 seconds with no
load. Switch off the equipment immedi-
ately if the disc runs lumpy, substantial
vibrations occur, or abnormal noises
are generated.
Cleaning and
maintenance
Disconnect the plug before adjust-
ment, maintenance or repair.
Have any work not described
in these instructions carried
out by a specialist workshop.
Use only original components.
Allow the equipment to cool
before carrying out any main-
tenance and cleaning work.
There is a risk of burns.
Cleaning
Do not use cleaning agents or sol-
vents. Chemical substances may
attack plastic parts of the equipment.
Never clean the equipment under
running water.

16
GB IE
• Clean the equipment thoroughly after
each use.
• Clean the surface of the equipment
with a brush or cloth.
General maintenance
Before each use, check the equipment
for obvious defects such as loose, worn
or damaged components and check that
screws or other parts are sitting correctly.
In particular, check the grinding disc. Re-
place damaged parts.
Storage
• Store the appliance in a dry place well
out of reach of children.
• Grinding discs must be stored dry and
upright and are not to be stacked.
Waste disposal and en-
vironmental protection
Be environmentally friendly. Return the
tool, accessories and packaging to a recy-
cling centre when you have nished with
them.
Machines are not to be place with
domestic waste.
Hand over the device at an utilization loca-
tion. The plastic and metal parts employed
can be separated out into pure materials
and recycling can be implemented. Ask
your Service Center about this. Defective
units returned to us will be disposed of for
free.
Replacement parts/accessories
Spare parts and accessories can be obtained at www.grizzly-service.eu
If you do not have internet access, please contact the Service Centre via telephone
(see “Service-Center” page 19). Please have the order number mentioned below ready.
Position Description Order
Instruction number
manual
5 Dry grinding disc 91103553
1 Wet grinding disc 30211041
11,13 Set Water tank 30211042
22,26,27,28 Set Clamping ange, wet 30211043
22,23 Set Clampin ange, dry 30211044
2,3,17-21 Set Spark protection 30211045
6,7,14-16 Set Workpiece support 30211046
25 Set Grinding disc cover, outer 30211047
25a Set Grinding disc cover ,inner 30211048

17
GB IE
Trouble Shooting
Always disconnect the plug from the mains socket before working.
Danger of electric shock.
Problem Possible Cause Error correction
Device doesn‘t start
Mains voltage missing
Main circuit breaker is tripped
Check the socket, mains cable,
line, mains plug, repairs to be
carried out by qualied electri-
cian if necessary, check main
circuit breaker.
On/off switch ( 8) may be
defective Repair by Customer Care
Engine faulty
Grinding tools do
not move although
the engine is run-
ning
Grinding disc nut loose Tighten grinding disc nut (see
„Changing the grinding disc“)
Workpiece, remaining work-
pieces or remaining grinding
tools block drive Remove blockages
Engine is slower
and stops Device is overloaded through workpiece
Reduce pressure on grinding tool
Workpiece unsuitable
Grinding disc does
not rotate smoothly,
abnormal noises
can be heard
Grinding disc nut loose Tighten grinding disc nut (see
„Changing the grinding disc“)
Grinding disc ( 1/5) faulty Change grinding disc
Spark protection ( 2) or
workpiece support ( 6) set
incorrectly
Set spark protection or work-
piece support (see „Assembly“)

18
GB IE
Guarantee
Dear Customer, this equipment is provided
with a 3-year guarantee from the date of
purchase. In case of defects, you have stat-
utory rights against the seller of the prod-
uct. These statutory rights are not restricted
by our guarantee presented below.
Terms of Guarantee
The term of the guarantee begins on the
date of purchase. Please retain the original
receipt. This document is required as proof
of purchase.
If a material or manufacturing defect occurs
within three years of the date of purchase
of this product, we will repair or replace –
at our choice – the product for you free of
charge. This guarantee requires the defec-
tive equipment and proof of purchase to be
presented within the three-year period with
a brief written description of what consti-
tutes the defect and when it occurred.
If the defect is covered by our guarantee, you
will receive either the repaired product or a
new product. No new guarantee period be-
gins on repair or replacement of the product.
Guarantee Period and Statutory
Claims for Defects
The guarantee period is not extended by
the guarantee service. This also applies for
replaced or repaired parts. Any damages
and defects already present at the time of
purchase must be reported immediately af-
ter unpacking. Repairs arising after expiry
of the guarantee period are chargeable.
Guarantee Cover
The equipment has been carefully produced
in accordance with strict quality guidelines
and conscientiously checked prior to delivery.
The guarantee applies for all material and
manufacturing defects. This guarantee
does not extend to cover product parts
that are subject to normal wear and may
therefore be considered as wearing parts
(e.g. grinding discs, carbon brushes, stop-
per, protective screen) or to cover damage
to breakable parts (e.g. switches, batteries,
or parts made of glass).
This guarantee shall be invalid if the prod-
uct has been damaged, used incorrectly or
not maintained. Precise adherence to all of
the instructions specied in the operating
manual is required for proper use of the
product. Intended uses and actions against
which the operating manual advises or
warns must be categorically avoided.
The product is designed only for private and
not commercial use. The guarantee will be
invalidated in case of misuse or improper han-
dling, use of force, or interventions not under-
taken by our authorised service branch.
Processing in Case of Guarantee
To ensure quick handling of you issue,
please follow the following directions:
• Please have the receipt and identica-
tion number (IAN 115727) ready as
proof of purchase for all enquiries.
• Please nd the item number on the rat-
ing plate.
• Should functional errors or other de-
fects occur, please initially contact the
service department specied below by
telephone or by e-mail. You will then
receive further information on the pro-
cessing of your complaint.

19
GB IE
GB
IE
• After consultation with our customer
service, a product recorded as defective
can be sent postage paid to the service
address communicated to you, with the
proof of purchase (receipt) and speci-
cation of what constitutes the defect
and when it occurred. In order to avoid
acceptance problems and additional
costs, please be sure to use only the ad-
dress communicated to you. Ensure that
the consignment is not sent carriage
forward or by bulky goods, express or
other special freight. Please send the
equipment inc. all accessories supplied
at the time of purchase and ensure ad-
equate, safe transport packaging.
Repair Service
For a charge, repairs not covered by the
guarantee can be carried out by our ser-
vice branch, which will be happy to issue
a cost estimate for you. We can handle
only equipment that has been sent with ad-
equate packaging and postage.
Attention: Please send your equipment to
our service branch in clean condition and
with an indication of the defect.
Equipment sent carriage forward or by
bulky goods, express or other special
freight will not be accepted.
We will dispose of your defective devices
free of charge when you send them to us.
Service-Center
Service Great Britain
Tel.: [phone]
(£ 0.10/Min.)
E-Mail: [email protected]
IAN 115727
Service Ireland
Tel.: [phone]
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: [email protected]
IAN 115727
Importer
Please note that the following address is
not a service address. Please initially con-
tact the service centre specied above.
Grizzly Tools GmbH & Co. KG
Stockstädter Straße 20
63762 Großostheim
Germany
www.grizzly-service.eu

20
DE AT CH
Inhalt
Einleitung...................................20
Bestimmungsgemäße
Verwendung.............................. 20
Allgemeine Beschreibung ...........21
Lieferumfang..................................21
Funktionsbeschreibung....................21
Übersicht ......................................21
Technische Daten........................22
Sicherheitshinweise.................... 22
Symbole und Bildzeichen................23
Allgemeine Sicherheitshinweise für
Elektrowerkzeuge...........................23
Weiterführende Sicherheitshinweise...26
Restrisiken .....................................27
Montage ....................................27
Werkstückauagen montieren/
einstellen.......................................27
Funkenschutz montieren/einstellen....28
Gerät auf Arbeitstisch verschrauben...28
Gummiverschluß einsetzen ...............28
Bedienung .................................28
Ein- und Ausschalten.......................29
Schleifen mit der Trocken-
schleifscheibe ................................29
Schleifen mit der Nassschleifscheibe 29
Schleifscheibe wechseln..................30
Trockenschleifscheibe wechseln........30
Nassschleifscheibe wechseln ...........31
Reinigung und Wartung ............. 31
Reinigung .....................................32
Allgemeine Wartungsarbeiten .........32
Lagerung ...................................32
Entsorgung/Umweltschutz ..........32
Ersatzteile/Zubehör ...................33
Fehlersuche................................ 34
Garantie ....................................35
Reparatur-Service ......................36
Service-Center............................36
Importeur .................................. 36
Original EG-Konformitäts-
erklärung ..................................41
Einleitung
Herzlichen Glückwunsch zum Kauf Ihres
neuen Gerätes. Sie haben sich damit für
ein hochwertiges Gerät entschieden.
Dieses Gerät wurde während der Produkti-
on auf Qualität geprüft und einer Endkon-
trolle unterzogen. Die Funktionsfähigkeit
Ihres Gerätes ist somit sichergestellt.
Die Betriebsanleitung ist Bestandteil
dieses Gerätes. Sie enthält wichtige
Hinweise für Sicherheit, Gebrauch
und Entsorgung. Machen Sie sich
vor der Benutzung des Gerätes mit
allen Bedien- und Sicherheitshin-
weisen vertraut. Benutzen Sie das
Gerät nur wie beschrieben und für
die angegebenen Einsatzbereiche.
Bewahren Sie die Betriebsanleitung
gut auf und händigen Sie alle Unter-
lagen bei Weitergabe des Gerätes
an Dritte mit aus.
Bestimmungsgemäße
Verwendung
Der Nass-/Trockenschleifer ist zum Schär-
fen von Werkzeugen (z.B. Messern,
Scheren, Meißeln) und zum Entgraten und
Schleifen von kleineren Werkstücken aus
Metall geeignet.
Für alle anderen Anwendungsarten (z.B.
Schleifen mit nicht geeigneten Schleifwerk-
zeugen, Schleifen gesundheitsgefährden-
der Materialien wie Asbest) ist das Gerät
nicht vorgesehen.
Das Gerät ist für den Einsatz im Heimwer-
kerbereich bestimmt. Es wurde nicht für
den gewerblichen Dauereinsatz konzipiert.
Das Gerät ist zum Gebrauch durch Er-
wachsene bestimmt. Jugendliche über
16Jahre dürfen das Gerät nur unter Auf-
sicht benutzen.
