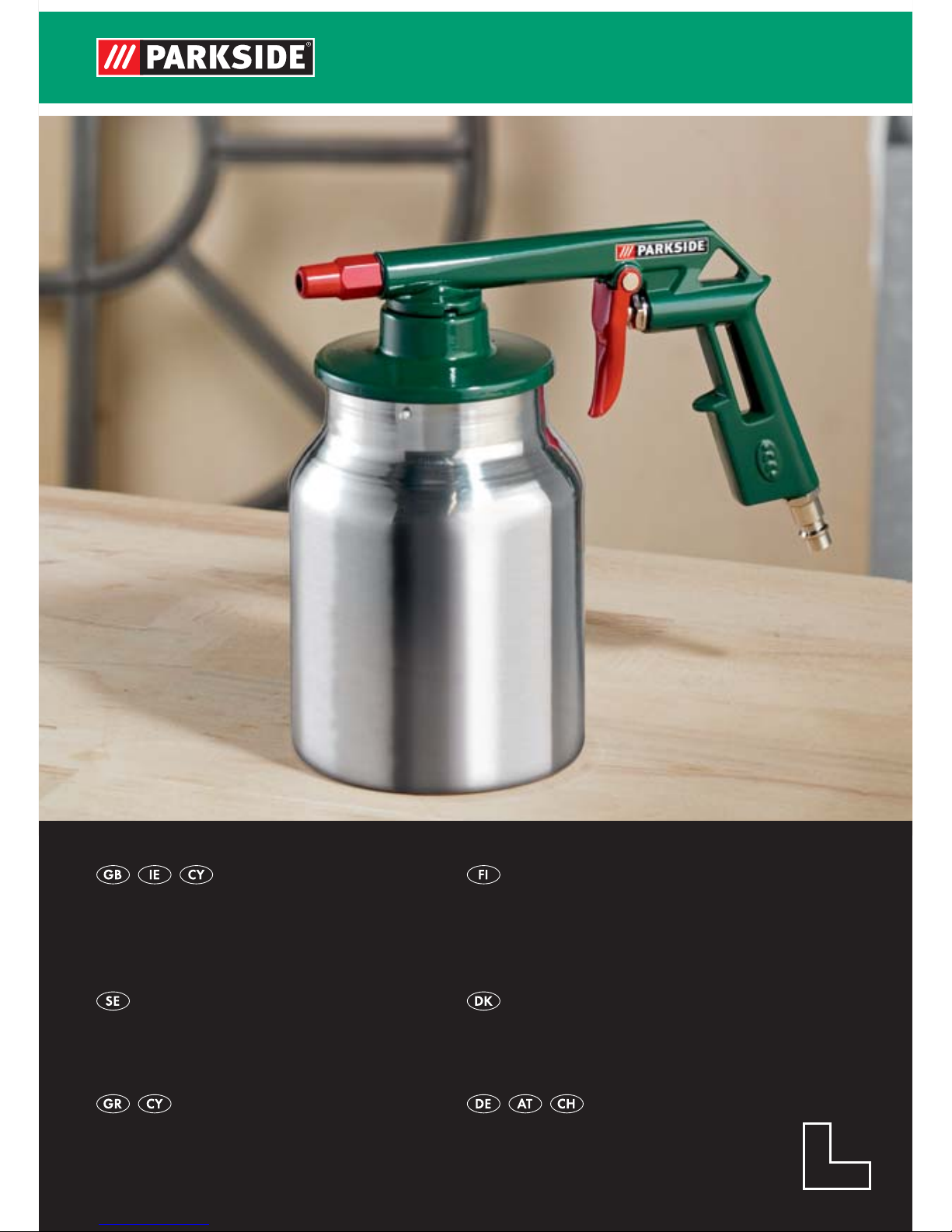

Parkside PDSP 1000 A1 SANDBLASTER GUN User manual

PDSP 1000 A1
DRUCKLUFT-SANDSTRAHLPISTOLE
Bedienungs- und Sicherheitshinweise
Originalbetriebsanleitung 3
BLÄSTRINGSPISTOL, TRYCKLUFT
Bruksanvisning och säkerhetsanvisningar
Översättning av bruksanvisning i original
TRYKLUFT-SANDBLÆSERPISTOL
Brugs- og sikkerhedsanvisninger
Oversættelse af den originale driftsvejledning
PAINEILMAKÄYTTÖINEN
HIEKKAPUHALLUSPISTOOLI
Käyttö- ja turvaohjeet
Alkuperäisen käyttöohjeen käännös
SANDBLASTER GUN
Operation and Safety Notes
Translation of original operation manual
ΠΙΣΤΟΛΙ ΑΜΜΟΒΟΛΗΣ ΠΙΕΣΗΣ
Υποδείξεις χειρισμού και ασφαλείας
Μετάφραση των αυθεντικών οδηγιών λειτουργίας

GB/IE/CY Operation and Safety Notes Page 5
FI Käyttö- ja turvaohjeet Sivu 17
SE Bruksanvisning och säkerhetsanvisningar Sidan 29
DK Brugs- og sikkerhedsanvisninger Side 41
GR/CY Υποδείξεις χειρισμού και ασφαλείας Σελίδα 53
DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 65
Before reading, unfold the page containing the illustrations and familiarise yourself with all
functions of the device.
Käännä ennen lukemista kuvallinen sivu esiin ja tutustu seuraavaksi laitteen kaikkiin
toimintoihin.
Vik ut bildsidan och ha den till hands när du läser igenom anvisningarna och gör dig
bekant med apparatens/maskinens funktioner.
Før du læser, vend siden med billeder frem og bliv bekendt med alle apparatets funktioner.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικειωθείτε με όλες τις
λειτουργίες της συσκευής.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich
anschließend mit allen Funktionen des Gerätes vertraut.

1
5
34
C
A EB
1.
2.
2

5GB/IE/CY
Introduction
Proper use............................................................. Page 7
Features and equipment ...................................... Page 7
Included items ...................................................... Page 8
Technical data...................................................... Page 8
Safety advice................................................ Page 8
Operation
Connecting the compressed air source .............. Page 10
Filling the blast medium container....................... Page 11
Using the sandblasting gun (see Figs. B, C)......... Page 11
Cleaning ............................................................ Page 12
Service................................................................ Page 12
Warranty.......................................................... Page 13
Disposal............................................................. Page 14
Declaration of Conformity/
Manufacturer............................................... Page 15
Table of contents

6 GB/IE/CY

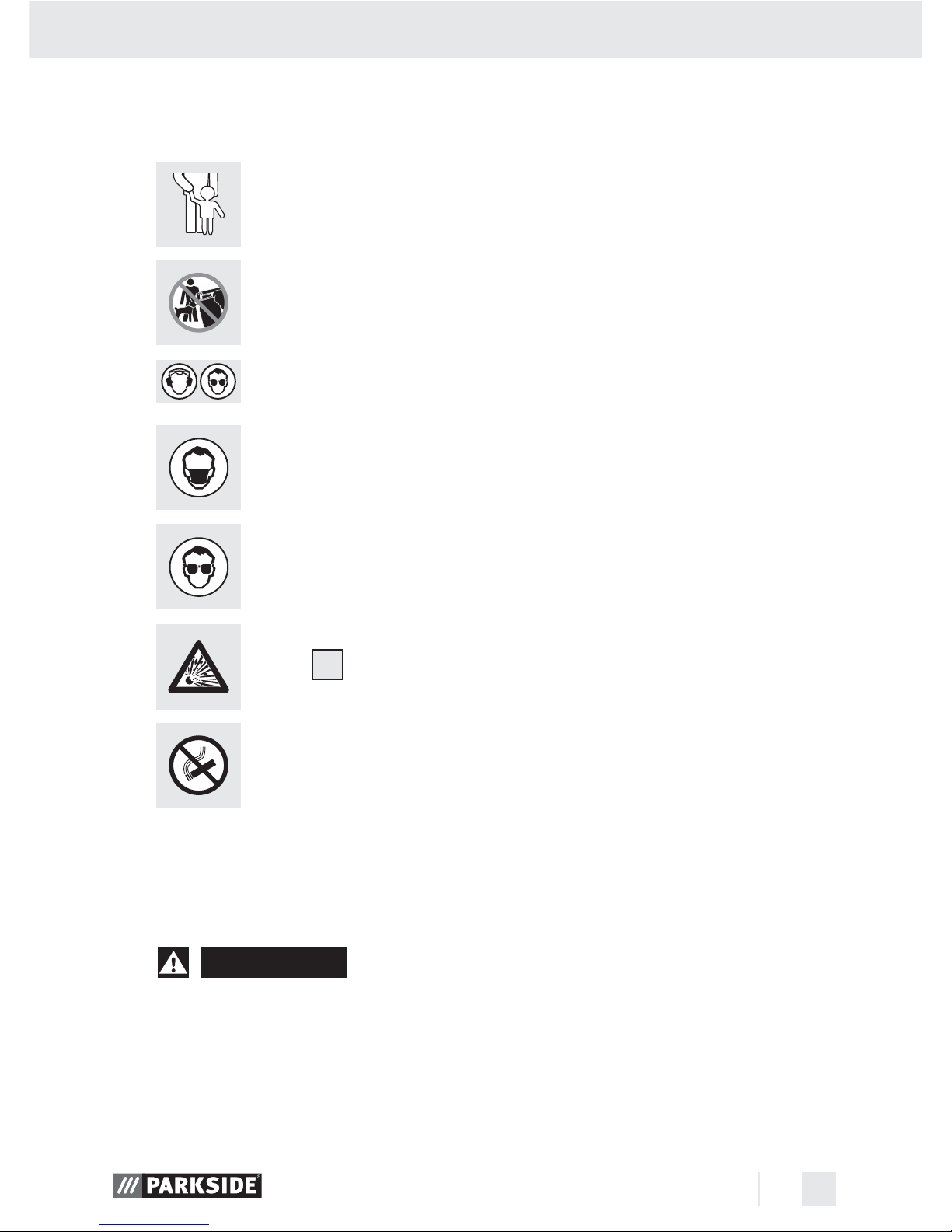

The following pictograms are used in these operating
instructions/on the device:
Read instruction manual!
Observe caution and safety notes!
Risk of explosion!
Wear hearing protection, dust protection mask
and protective glasses.
Keep children away from the device!
Never point the device at people or animals.
No smoking!
Dispose packaging and appliance in an
environmentally-friendly way!

7GB/IE/CY
Sandblaster gun PDSP 1000 A1

Introduction
Please make sure that you familiarise yourself fully with the
way the sandblasting gun works before you use it for the first
time and that you understand how to handle compressed
air sand blasting guns correctly. To help you do this, please read the
accompanying operating instructions. Keep these instructions in a safe
place. If you pass the sandblasting gun on to anyone else, please ensure
that you also pass on all the documentation. Keep these instructions in
a safe place. If you pass the device on to anyone else, please ensure
that you also pass on all the documentation.

Proper use
This device is intended for the removal of rust and paint from metal
surfaces. Any other use or modification to the device shall be considered
as improper use and could give rise to considerable risk of accident.
We will not accept liability for loss or damage arising from improper
use. The device is intended for private, domestic use only.

Features and equipment
1Sandblasting gun
2Trigger
3Plug-in nipple for compressed air connection
4Blast medium container
5Blast nozzle
Introduction

8 GB/IE/CY
Introduction/Safety advice

Included items
1 Sandblaster gun PDSP 1000 A1
1 Operating instructions

Technical data
Max. Working pressure: 8bar
Recommended working air pressure: 3–5bar
Compressed air consumption: 130–260l/min
Nozzle ø: 2.8mm
Container capacity: 1000ml
Volume flow rate: typically 200–220g/Min.
Required air quality: Cleaned and oil-free
Working settings: Working air pressure setting at
the pressure reducer max. 8bar.
Sound pressure level: xxdB(A)
Sound power level: xxdB(A)
Values determined in accordance with EN 14462 (EN1953/A1:2009).
Safety advice
WARNING! Read all the safety advice and instructions.
Even minor failures to observe the safety advice and instructions could
lead to severe injury.
KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE
PLACE FOR FUTURE REFERENCE.

9GB/IE/CY
Safety advice
 Check the device for damage before bringing it into
use. Do not use the device if you discover any defects.
 Keep children and other people away while
you are operating the sandblasting gun. Dis-
tractions can cause you to lose control of the device.
 RISK OF INJURY! IMPROPER USE! Never point
the device at people or animals.
 For your own safety, wear suitable personal
protective equipment.
 Wear an approved dust mask/
protective hood!
 Wear protective glasses!
 RISK OF EXPLOSION! Do not use the sandblasting
gun 1in environments containing gases, open flames,
fires or gas-operated water heaters.
 NO SMOKING!
 Work in adequately ventilated spaces only.
 Never use oxygen or other combustible gas as the
energy source.

Never exceed the maximum working air pressure of 8bar.
 WARNING! RECOIL FORCES! High working pressures can
give rise to recoil forces that under certain conditions can result in
danger from continuous loading.
 DANGER OF INJURY! Disconnect the device from the compressed
air source before carrying out any repairs or maintenance of the
device or moving it to another location.

10 GB/IE/CY
 DANGER OF INJURY! Disconnect the device from the compressed
air source before filling it with blast medium.
 NOTE! Please observe the safety advice provided by the manu-
facturer of the blast medium.
 Use only materials for the blast medium that are suit-
able for the sandblasting gun. Do not use quartz sand.
There is the danger of toxic silicon dust forming.
 Take precautions to ensure that other people are not
contaminated (dust generation).
 Ensure that the spent blast medium is trapped and
collected so that it can be disposed of in an environ-
mentally compatible manner.
 Do not remove rating plates or labels - they are safety-relevant
parts of the device.
 If you are inexperienced in the use of this type of device, you should
seek out information or training to learn how to handle it safely.

Operation

Connecting the compressed air source
NOTE: Operate the sandblasting gun 1only with cleaned, conden-
sate- and oil-free compressed air and never exceed the maximum
working air pressure at the device of 8bar.
NOTE: The compressed air source must be fitted with a (filter)/pres-
sure reducer so that the air pressure can be regulated.
 Connect the sandblasting gun to a suitable compressed air source
by connecting the quick-release coupling of the air supply hose with
the plug-in nipple 3to the sandblasting gun 1. It locks itself in
place automatically.
Safety advice/Operation

11GB/IE/CY
Operation

Filling the blast medium container
 Always use a suitable blast medium for your sand blasting work.
NOTE: We recommend using a silica-free blast medium
(e.g. ground blast furnace slag) with a grading of 0.2mm–0.8mm.
 Ensure that the blast medium is completely dry and not too coarse.
NOTE: The maximum particle size is 0.8mm.
 Turn the bayonet cap of the blast medium container 4to open it.
 Pull the blast medium container 4off downwards.
 Fill the blast medium container 4with the desired amount of
blast medium.
 Ensure that the maximum capacity of the container (1000ml) is
not exceeded.
 Screw the blast medium container 4back on and lock it in place
by inserting and turning it on to the container lid (see Figs. A).

Using the sandblasting gun
(see Figs. B, C)
 Carefully prepare the workpiece before sand blasting it.
Clean it if necessary.
NOTE: Deposits of dust and grease can have a considerably
detrimental effect on the result.
 Carefully mask or tape off everything that is not to be sand blasted.
 Ensure that there is always a minimum distance of 20cm between
the sandblasting gun 1and the surface being sand blasted.
Switching on:
 Press the trigger 2to start operating the sandblasting gun 1.
