Parkside PMSSA 8 A1 User manual

IAN 354826_2004
Cordless Handheld Vacuum Cleaner
PMSSA 8 A1
Akku-Staubsauger
Originalbetriebsanleitung
Cordless Handheld
Vacuum Cleaner
Translation of the original instructions

Before reading, unfold the page containing the illustrations and familiarise
yourself with all functions of the device.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie
sich anschließend mit allen Funktionen des Gerätes vertraut.
GB Translation of the original instructions Page 4
DE / AT / CH Originalbetriebsanleitung Seite 21

12
3456
7
10
8
9
346
7
11a
11
12 13

GB
4
Translation of the
original EC
declaration of
conformity .................. 40
Exploded Drawing ...... 44
During production, this equip-
ment has been checked for
quality and subjected to a nal
inspection. The functionality
of your equipment is therefore
guaranteed.
Contents
Introduction .................. 4
Intended purpose.......... 5
General description....... 5
Extent of the delivery ..........5
Description of functions....... 5
Overview.......................... 6
Technical Data............... 6
Safety information ........ 7
Symbols used in the
instructions ........................7
Symbols on the device........7
Graphical symbols on the
charger:............................ 7
General safety
instructions ................... 8
Correct handling of the
charger device................. 10
Charging process ........ 11
Charging the battery ........12
Initial start-up ............. 12
Operation ................... 13
Crevice nozzle................. 13
Wet vacuuming ............... 13
Working instructions ... 13
Switching on/off ......... 13
Emptying the collection
container .................... 14
Cleaning ..................... 15
Maintenance ............... 15
Replacing the lter ...........15
Storage....................... 16
Disposal/environmental
protection ................... 16
Replacement parts/
Accessories ................. 17
Guarantee .................. 18
Repair Service............. 20
Service-Center............. 20
Importer ..................... 20
Introduction
Congratulations on the purcha-
se of your new device. With it,
you have chosen a high quality
product.

GB
5
The operating instruc-
tions constitute part of
this product. They contain im-
portant information on safety,
use and disposal.
Before using the product, fami-
liarise yourself with all of the
operating and safety instruc-
tions. Use the product only as
described and for the applica-
tions specied.
Keep this manual safely and
in the event that the product is
passed on, hand over all docu-
ments to the third party.
Intended purpose
The cordless vacuum cleaner is
only suitable for vacuuming dry
and wet surfaces. You can va-
cuum dry and wet material and
small volumes of liquid. The
suction of ammable, explosive
or hazardous substances is
prohibited.
The device may be used by
children aged 8 and older un-
der supervision.
The device is intended to be
used by do-it-yourselfers. It was
not designed for commercial
use. The warranty is void in the
case of commercial use.
The manufacturer is not liable
for damage caused by impro-
per use or incorrect operation.
General description
The illustration of
the principal functi-
onin g parts can be
found on the front
foldout page.
Extent of the delivery
Carefully unpack the appliance
and check that it is complete:
Dispose of the packaging ma-
terial properly.
• Cordless Handheld Vacuum
Cleaner
• Crevice nozzle
• Charger
• Instruction Manual
Description of functions
The cordless vacuum cleaner is
equipped with a robust, trans-
parency plastic container for
holding dirt.
Refer to the following descrip-
tions for the function of control
elements.

GB
6

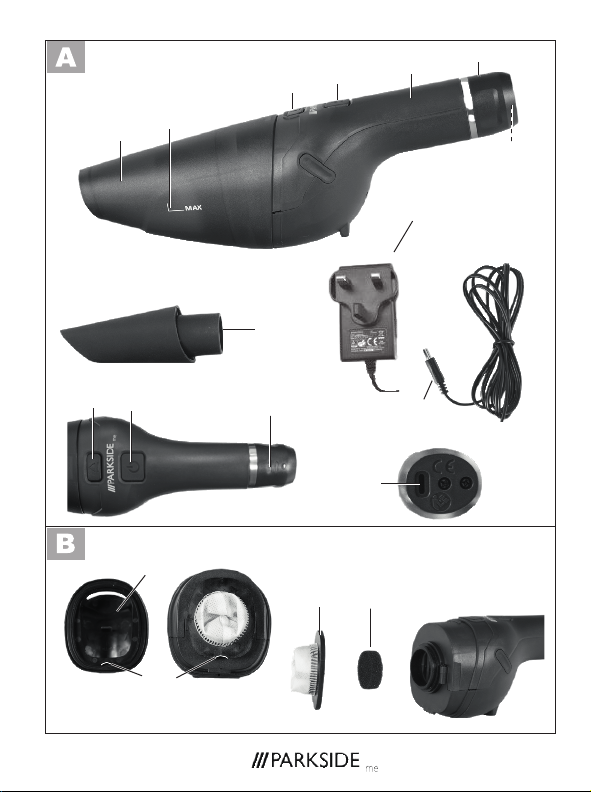

Overview
1 Collection container
2 “MAX” marking
3 Release button
4 On/Off switch
5 Handgrip area
6 Battery charge level
indicator
7 Charging socket
8 Charger
9 Charging plug
10 Crevice nozzle
11 Filter holder
11a Protrusions
12 Lamella ne lter
(HEPA)
13 Foam lter
Technical Data
Cordless Handheld
Vacuum Cleaner...PMSSA 8 A1
Nominal voltage U....... 8 V
Suction power ....max. 2.8 kPa
Run time (idle)........15 - 20 min
Collection volume (gross), ma-
ximum
Dust..........................250 ml
Liquid ..........................25ml
Rechargeable battery (Li-
Ion)
Battery cells.........................2
Nominal voltage ........... 8 V
Capacity........................2 Ah
Charging time .... approx. 1 h*
* only in conjunction with the
supplied charger.
Charger
.............. XZ0900-2400ENCNC
Grizzly Tools GmbH & Co. KG
Stockstädter Straße 20
DE-63762 Großostheim
HRA: 5468, Amtsgericht
Aschaffenburg
Input voltage ...... 100-240 V~;
Input AC frequency .. 50-60 Hz
Input current ..................0.8 A
Output voltage......... 9.0 V ;
Output current ...............2.4 A
Output power ............ 21.6 W
Average
active efciency .......... 87.0 %
Efciency at low
load (10%)................ 82.9 %
Power consumption
at zero load .............. 0.05 W
Protection class ................ II
Protection type................ IP20

GB
7
Safety information
This section describes the
basic safety rules when
working with the device.
Symbols used in the
instructions
Hazard symbols
with information
on prevention of
personal injury and
property damage.
Precaution symbol
(explanation of
precaution instead
of exclamation
mark) with informa-
tion on prevention
of harm/damage.
Notice symbol with
information on how
to handle the de-
vice properly.
Symbols on the
device
Read the instruction
manual carefully.
Do not dispose
of the device
with the bat-
tery installed
in household
waste.
Graphical symbols
on the charger:
Read the instruction
manual carefully.
The charger is only
suitable for use in-
doors.
Safety transformer -
short-circuit proof
Switch-mode power
supply
T2A
130°C
Device fuse
Protection class II

GB
8
Electrical devices
must not be dispo-
sed of with dome-
stic waste.
General safety
instructions
This device can be used
by children aged 8 ye-
ars and up as well as
individuals with reduced
physical, sensory or men-
tal abilities or a lack of
experience and knowled-
ge if they are supervised
or have been instructed in
the safe use of the device
and understand the re-
sulting hazards. Children
must never play with the
device. Cleaning and user
maintenance must not be
carried out by children if
they are not supervised.
Attention! The follo-
wing basic safety
precautions must
be observed while
using electrical
devices to protect
against electric
shock, injury and
risk of re:
This is how to avoid acci-
dents and injuries:
• Never leave the de-
vice unattended at the
workplace when it is
ready for use.
• Do not allow the va-
cuum to come into
contact with people or
animals.
• While in operation, ne-
ver aim the device and
nozzles at yourself or
other people; particu-
larly not eyes or ears.
There is a risk of injury.
• Do not vacuum hot,
glowing, ammable,
explosive or hazardous
substances. These in-
clude hot ashes, petrol,
solvents, acids or alka-
lis amongst others. Risk
of re and injury.
• Check the device and
accessories regularly
for damage.
Do not use the device
or accessories if da-
maged.

GB
9
This is how to avoid ac-
cidents and injuries from
an electric shock:
• Switch the device off
- When you are not
using the device or
when you are trans-
porting or leaving it
unattended;
- When you inspect
the device, clean it
or remove blocka-
ges;
- When you perform
cleaning or main-
tenance work, or
swap accessories;
- After contact with
foreign objects or if
abnormal vibration
occurs.
• Do not submerge the
device in water and
do not operate it in a
damp environment.
• Do not submerge the
device in water!
• Do not touch the de-
vice with wet or damp
hands!
This is how to avoid da-
mage to the equipment
and possible personal in-
juries resulting from this:
• Make sure before use
that the device is pro-
perly assembled and
that the lters are in
the correct position.
• Do not operate the de-
vice without lters. The
device could become
damaged.
• Only use original spare
parts and accessories
(see “Spare parts/ac-
cessories”) which are
supplied and recom-
mended by our service
centre. Using externally
produced parts results
in the immediate loss of
the warranty claim.
• Only have repairs per-
formed by customer
service centres authori-
zed by us.
• Comply with the de-
vice’s cleaning
and
maintenance instruc-
tions.
• Store the device in a
dry place and out of
reach of children.

GB
10
• Do not use any acces-
sories that are not re-
commended by PARK-
SIDE. This can result in
electric shock or re.
Correct handling of
the charger device
a) This device can be
used by children aged
8 years and up as
well as individuals
with reduced physical,
sensory or mental abi-
lities or a lack of expe-
rience and knowledge
if they are supervised
or have been instruc-
ted in the safe use of
the appliance and
understand the resul-
ting hazards. Children
must never play with
the device. Cleaning
and user maintenance
must not be carried
out by children if they
are not supervised.
b) Do not charge any
non-rechargeable bat-
teries with the charger.
c) Before each use,
check the charger,
cable and plug,
and have repairs
carried out by
qualied person-
nel using only
original spare
parts. Do not use
the charger if de-
fective and do not
open it yourself.
This ensures the safety
of the device is main-
tained.
d) Make sure that
the mains voltage
matches the de-
tails on the char-
ger’s type plate.
Risk of electric shock.
e) Disconnect the
charger from the
mains supply be-
fore closing or
opening connec-
tions to the electric
tool. This ensures the
rechargeable battery
and charger are not
damaged.
f) Keep the charger
clean and away
from moisture and

GB
11
k) If the connection
cable of this de-
vice is damaged,
it must be repla-
ced by the manu-
facturer or their
customer service
or by a similarly
qualied person in
order to avoid ha-
zards.
Charging process
Do not expose the
battery to extreme
conditions such as
heat and shocks.
There is a risk of
injury caused by
leaking electrolyte
solution! In case of
contact with eyes or
skin, rinse the affec-
ted sites with water
or a neutralising
agent and seek me-
dical attention.
The battery must
only be charged up
in dry areas.
There is a risk of
personal injuries
rain. Never use
the charger out-
doors. Soiling and
penetration of water
increase the risk of
electric shock.
g) The charger may
only be used with
the corresponding
original rechar-
geable batteries.
Charging other bat-
teries can lead to
injuries and the risk of
re.
h) Avoid mechanical
damage to the
charger. This can
lead to internal short
circuits.
i) The charger must
not be operated
on ammable sur-
faces (e.g. paper,
textiles). Risk of re
due to heating caused
by charging.
j) In order to minimi-
se the risk of elec-
tric shock, pull the
charger plug out
of the socket prior
to cleaning it.

GB
12
from an electric
shock.
• The device may only be
powered with SELV (Safety
Extra Low Voltage) as indi-
cated by the label on the
appliance.
• Charge the battery before
using it for the rst time.
• To charge the Li-ion battery
integrated in the appliance,
use only the XZ0900-
2400ENCNC charger
supplied.
• Always comply with the
latest safety instructions,
as well as the regulations
and information relating to
environmental protection.
• Defects resulting from im-
proper handling are not
covered by the warranty.
Charging the
battery
1. Connect the charging
cable connector (9) to the
charging socket (7) on the
device.
2. Plug the charger ( 8)
into a socket.
3. The battery indicator (6)
lights up:
Flashing red - battery
almost empty,
charging
Flashing orange (red illu-
minated) - battery
2/3 empty, char-
ging
Flashing green (red/oran-
ge illuminated)
- battery 1/3
empty, charging
Red/orange/green illuminated
-battery is fully
charged
4. Once charging is complete,
disconnect the charger
( 8) from the mains sup-
ply.
Initial start-up
Before each use, ensure the
lter (12) and lter holder (11)
are sitting correctly in the col-
lection container (1).
Also inspect the device visually
for damage.
Do not operate the
device if damaged or
incorrectly assembled!
Replace damaged parts

GB
13
and dirty lters. See
“Spare parts/accesso-
ries”.
1. Remove the collection
container (1) by pressing
the release button (3) and
detaching the collection
container (1).
2. Check that the lter holder
(11) is sitting securely
against the mechanical stop
in the collection container
(1) by lightly pressing the
lter holder (11). Due to its
shape, the lter holder (11)
can only be inserted into
the collection container (1)
in one position.
3. Check whether the lter
(12) is sitting securely in
the lter holder (11). Lightly
press the lter into the lter
holder (11).
4. Re-attach the collection con-
tainer (1) onto the device.
Place it on the underside
of the device and allow it
to latch into the interlock
release on the top side of
the device. Note the catch
on the bottom of the device
and the collection container
(1).
Operation
Crevice nozzle
The crevice nozzle (10) is suita-
ble for dry vacuuming crevices,
corners and radiators.
Wet vacuuming
• For wet vacuuming, remove
the lamella ne lter (12).
• When vacuuming liquids,
pay attention to the “MAX”
marking on the collection
container (1). The maximum
volume for liquids is 25ml.
Working instructions
• Ensure that the collection
container (1), lter holder
(11) and lter (12) are dry
when changing directly
from wet to dry vacuuming!
Switching on/off
Before switching on,
ensure that the lter (12)
and lter holder (11)
are ready for us. See
“Initial start-up”.

GB
14
Attach the crevice nozz-
le (10) as needed.
To switch on or off, briey
press the On/Off switch (4)
once.
Emptying the
collection container
Empty the collection container
(1) after every use.
Empty the collection container
if suction performance is
decreasing.
If the collection container is full
of dust or the lter becomes
wet from wet vacuuming, the
cordless hand-held vacuum cle-
aner may become damaged!
Emptying the collec-
tion container after
wet vacuuming:
Hold the collection
container with the
tip pointing down-
wards when remo-
ving it to prevent
liquid getting into
the device!
1. Remove the collection con-
tainer (1) carefully by pres-
sing the release button (3)
and removing the collection
container (1).
2. Carefully remove the lter
(12) and lter holder (11)
from the collection cont-
ainer (1).
3. Empty the collection cont-
ainer (1).
4. Clean the collection con-
tainer (1) with a damp
cloth if required. If required,
clean the lter (12) as in-
dicated in the “Cleaning”
section.
5. Place the lter holder (11)
and lter (12) back into
the collection container (1).
Due to its shape, the lter
holder (11) can only be
inserted into the collection
container (1) in one positi-
on.
6. Re-attach the collection con-
tainer (1) onto the device.
Place it on the underside
of the device and allow it
to latch into the interlock
release on the top side of
the device.Note the catch
on the bottom of the device
and the collection container
(1).

GB
15
Cleaning
Always remove the
rechargeable bat-
tery before carrying
out work on the de-
vice.
Risk of injury!
Never spray down
the device with
water or place it
in water! Do not
use any abrasive
cleaning agents or
solvents. The device
could become da-
maged.
• Clean the housing with a
dry cloth or paint brush.
• Tap the lter (12) and clean
it with a brush or compres-
sed air.
If the lter is contaminated
and cannot be cleaned,
replace it!
See “Spare parts/Accesso-
ries”.
• Wash the foam lter ( 13)
with lukewarm water and
soap and let it dry.
• Empty the collection cont-
ainer (1) after every use.
Clean the collection cont-
ainer (1) with a damp cloth.
• Always keep the ventilation
slit on the device housing
unobstructed otherwise the
device will overheat.
Maintenance
Replacing the lter
If contaminated, replace the lter
with a new one.
New lters can be acquired from
the online shop. See “Replace-
ment parts/Accessories”.
1. Remove the collection
container (1) by pressing
the release button (3) and
detachingn the collection
container (1).
2. Remove the lter (12) from
the lter holder (11).
3. Place the new lter into the
lter holder. Ensure the lter
is positioned correctly and
securely.
4. Re-attach the collection
container (1) onto the de-
vice by placing it on the
underside of the device and
allowing it to latch into the

GB
16
interlock release on the top
side of the device.
Storage
• Store the device in a dry
and dustproof location and
out of reach of children.
• Only store the batteries in
the partially-charged state.
The charge status should
amount to 40-60% during a
lengthy storage period (1-2
LEDs are on).
• Store the device between
10°C and 25°C. Avoid
extreme cold or heat during
storage, so that the batte-
ries do not lose power.
• Check the battery charge
status approximately every
3 months during a lengthy
storage period and rechar-
ge if necessary.
Disposal/
environmental
protection
The device, accessories and
packaging should be properly
recycled.
Machines do not belong
with domestic waste.
Li-ion
Do not dispose of
the device with
a built-in battery
in the household
waste, a re (risk of
explosion) or water.
Damaged batteries
can harm the en-
vironment and your
health if poisonous
fumes or liquids
escape.
• Dispose of the device with
the battery discharged. Do
not open the device or bat-
tery.
• Dispose of the device in
accordance with the local
regulations. Return the
device to a collection point
from where it can be sub-
mitted for environmentally

GB
17
Replacement parts/Accessories
Spare parts and accessories can be obtained at
www.grizzlytools-service.eu
If you have issues ordering, please use the contact form.
If you have any other questions, contact the ”Service-Center”
(see page 21).
Position Description Order
10 Crevice nozzle 91105431
1 Collection container 91105432
12 Lamella ne lter (HEPA) 91105433
13 Foam lter 91105423
8 Charger EU 80001348
Charger UK 80001349
compatible recycling. For
more information, please
contact your local waste
management provider or
our service centre.
• We will dispose of any
defective devices that you
send to us free of charge.

GB
18
her the repaired product or a
new product. No new guaran-
tee period begins on repair or
replacement of the product.
Guarantee Period and
Statutory Claims for De-
fects
The guarantee period is not
extended by the guarantee
service. This also applies for
replaced or repaired parts.
Any damages and defects
already present at the time
of purchase must be reported
immediately after unpacking.
Repairs arising after expiry of
the guarantee period are char-
geable.
Guarantee Cover
The equipment has been care-
fully produced in accordance
with strict quality guidelines
and conscientiously checked
prior to delivery.
The guarantee applies for all
material and manufacturing de-
fects. This guarantee does not
extend to cover product parts
that are subject to normal wear
and may therefore be consi-
dered as wearing parts (e.g.
Guarantee
Dear Customer,
This equipment is provided
with a 3-year guarantee from
the date of purchase.
In case of defects, you have
statutory rights against the
seller of the product. These sta-
tutory rights are not restricted
by our guarantee presented
below.
Terms of Guarantee
The term of the guarantee
begins on the date of purcha-
se. Please retain the original
receipt. This document is requi-
red as proof of purchase.
If a material or manufacturing
defect occurs within three ye-
ars of the date of purchase of
this product, we will repair or
replace – at our choice – the
product for you free of charge.
This guarantee requires the
defective equipment and proof
of purchase to be presented
within the three-year period
with a brief written description
of what constitutes the defect
and when it occurred.
If the defect is covered by our
guarantee, you will receive eit-

GB
19
lter) or to cover damage to
breakable parts (e.g. switches).
This guarantee shall be invalid
if the product has been dama-
ged, used incorrectly or not
maintained. Precise adherence
to all of the instructions speci-
ed in the operating manual
is required for proper use of
the product. Intended uses and
actions against which the ope-
rating manual advises or warns
must be categorically avoided.
The product is designed only
for private and not commercial
use. The guarantee will be
invalidated in case of misuse
or improper handling, use
of force, or interventions not
undertaken by our authorised
service branch.
Processing in Case of Gu-
arantee
To ensure quick handling of
you issue, please follow the
following directions:
• Please have the receipt
and item number
(IAN354826_2004) rea-
dy as proof of purchase for
all enquiries.
• Please nd the item number
on the rating plate.
• Should functional errors or
other defects occur, please
initially contact the service
department specied below
by telephone or by e-mail.
You will then receive further
information on the proces-
sing of your complaint.
• After consultation with our
customer service, a product
recorded as defective can
be sent postage paid to the
service address communi-
cated to you, with the proof
of purchase (receipt) and
specication of what consti-
tutes the defect and when it
occurred. In order to avoid
acceptance problems and
additional costs, please be
sure to use only the address
communicated to you. En-
sure that the consignment is
not sent carriage forward
or by bulky goods, express
or other special freight.
Please send the equipment
inc. all accessories sup-
plied at the time of purcha-
se and ensure adequate,
safe transport packaging.

GB
20
Repair Service
For a charge, repairs not co-
vered by the guarantee can
be carried out by our service
branch, which will be happy to
issue a cost estimate for you.
We can handle only equipment
that has been sent with ade-
quate packaging and postage.
Attention: Please send your
equipment to our service
branch in clean condition
and with an indication of the
defect.
Equipment sent carriage
forward or by bulky goods,
express or other special freight
will not be accepted.
We will dispose of your de-
fective devices free of charge
when you send them to us.
Service-Center
GB Service Great Britain
Tel.: [phone]
E-Mail: [email protected]
IAN 354826_2004
Importer
Please note that the following
address is not a service ad-
dress. Please initially contact
the service centre specied
above.
Grizzly Tools GmbH & Co. KG
Stockstädter Straße 20
63762 Großostheim
GERMANY
www.grizzlytools-service.eu
