Parrot Products LE1001 User manual

LECTERN
LE 1001
LECTERN WITH WIRELESS MIC
Accessories included:
POWER
~230V 50Hz
010 010
BASS
AUX 1
WIRELESS-MIC 3
MIC 2
PRE-OUT
AUX 1 REC OUT
MIC 1
0 10
1 GND
2 HOT
3 COLD
TREBLE
MIC 2
0
-5 +5
0 10
0
-5 +5
0 10 0 10
PL
MIC LAMP

[ S A F E T Y P R E C A U T I O N S ]
2
Be sure to read the instructions in this section carefully before use.
Make sure to observe the instructions in this manual as the conventions of safety symbols and messages
regarded as very important precautions are included.
We also recommend you keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and
understand the safety symbols and messages so you are thoroughly aware of the potential safety
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
When Installing the Unit
Do not expose the unit to rain or an environment
where it may be splashed by water or other liquids,
as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on the
unit. Using a voltage higher than that which is
specified may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the
power supply cord. In addition, avoid using the
power cord in close proximity to heaters, and never
place heavy objects -- including the unit itself -- on
the power cord, as doing so may result in fire or
electric shock.
Be sure to replace the unit's terminal cover after
connection completion. Because high voltage is
applied to the speaker terminals, never touch these
terminals to avoid electric shock.
Be sure to ground to the safety ground (earth)
terminal to avoid electric shock. Never ground to a
gas pipe as a catastrophic disaster may result.
Avoid installing or mounting the unit in unstable
locations, such as on a rickety table or a slanted
surface. Doing so may result in the unit falling
down, causing personal injury and/or property
damage.
When the Unit is in Use
Should the following irregularity be found during
use, immediately switch off the power, disconnect
the power supply plug from the AC outlet and
contact your nearest dealer. Make no further
attempt to operate the unit in this condition as this
may cause fire or electric shock.
If you detect smoke or a strange smell coming
from the unit.
If water or any metallic object gets into the unit
If the unit falls, or the unit case breaks
If the power supply cord is damaged (exposure of
the core, disconnection, etc.)
If it is malfunctioning (no tone sounds.)
To prevent a fire or electric shock, never open nor
remove the unit case as there are high voltage
components inside the unit. Refer all servicing to
your nearest dealer.
Do not place cups, bowls, or other containers of
liquid or metallic objects on top of the unit. If they
accidentally spill into the unit, this may cause a fire
or electric shock.
Do not insert nor drop metallic objects or
flammable materials in the ventilation slots of the
unit's cover, as this may result in fire or electric
shock.

3
[ S A F E T Y P R E C A U T I O N S ]
An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in
the electrical installation of the building.
When Installing the Unit
Never plug in nor remove the power supply plug
with wet hands, as doing so may cause electric
shock.
When unplugging the power supply cord, be sure
to grasp the power supply plug; never pull on the
cord itself. Operating the unit with a damaged
power supply cord may cause a fire or electric
shock.
When moving the unit, be sure to remove its power
supply cord from the wall outlet. Moving the unit
with the power cord connected to the outlet may
cause damage to the power cord, resulting in fire or
electric shock. When removing the power cord, be
sure to hold its plug to pull.
Do not block the ventilation slots in the unit's cover.
Doing so may cause heat to build up inside the unit
and result in fire.
Avoid installing the unit in humid or dusty locations,
in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke or
steam as doing otherwise may result in fire or
electric shock.
When the Unit is in Use
Do not place heavy objects on the unit as this may
cause it to fall or break which may result in
personal injury and/or property damage. In
addition, the object itself may fall off and cause
injury and/or damage.
Make sure that the volume control is set to
minimum position before power is switched on.
Loud noise produced at high volume when power is
switched on can impair hearing.
Do not operate the unit for an extended period of
time with the sound distorting. This is an indication
of a malfunction, which in turn can cause heat to
generate and result in a fire.
Contact your dealer as to the cleaning. If dust
is allowed to accumulate in the unit over a long
period of time, a fire or damage to the unit may
result.
If dust accumulates on the power supply plug or in
the wall AC outlet, a fire may result. Clean it
periodically. In addition, insert the plug in the wall
outlet securely.
Switch off the power, and unplug the power supply
plug from the AC outlet for safety purposes when
cleaning or leaving the unit unused for 10 days or
more. Doing otherwise may cause a fire or electric
shock.
Due to product upgrades, while some of the features and specification in the user manual does not
match the actual functions, sorry for any inconvenience and thanks for your kind understanding!

[ L E C T E R N A M P L I F I E R I N S T R U C T I O N M A N U A L ]
Installation 5
Installation 3
Installation 2
Installation 4
Installation 1

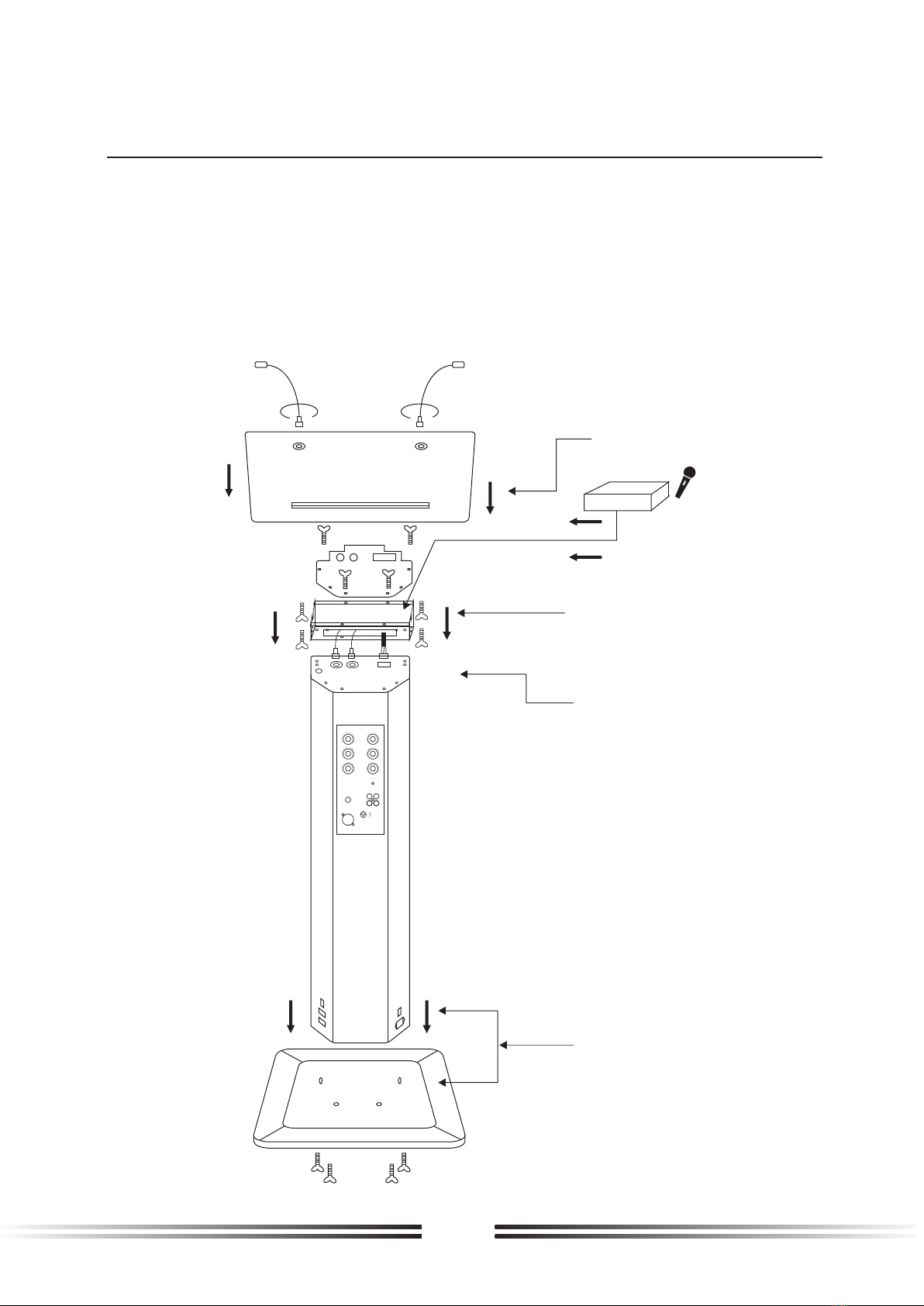

1 Installation
1. Screw out four screws from the bottom of the column speaker, and then connect the bottom with the speaker
and install well.
2. Use screws to connect the MIC, make sure the Lectern can work.
3. Screw out the four screws from the top of the speaker, then connect U shape bracket with column speaker
then fix them.
4. Fix the wireless MIC receiver on the U shape bracket.
5. Connect the panel with the U shape bracket and fix them.
BASS
AUX 1
WIRELESS-MIC 3
MIC 2
PRE-OUT
AUX 1 REC OUT
MIC 1
0 10
1 GND
2 HOT
3 COLD
TREBLE
MIC 2
0
-5 +5
0 10
0
-5 +5
0 10 0 10
PL
4

1. 4R output port
2. 1 AUX input , Independent control
3. Short-circuit,clipping and high-temp protection
4. Bass, Treble volume control
5. 24V phantom power
6. 1 line balance output
7. 1 recording output
8. 3 MIC input，Independent control. MIC 1 capacitive microphone,
MIC 2 handheld microphone, MIC 3 for wireless microphone .
[ L E C T E R N A M P L I F I E R U S E M A N U A L ]
1 FEATURES
2 PRODUCT STRUCTURE INSTRUCTION
3 RECEIVER FEATURES
1. Power on indicator: glows green when the receiver is powered on.
2. RF signal indicator:glows yellow when therefore signals are received.
3. Transmitter audio peak indicator:flashes red when the audio signal.
4. Volume control:adjusts the output volume of the receiver.
5. Telescoping antenna:receives signals from the transmitter.
6. Audio output:output the audio signals for connection to amplifiers.
7. Metal:receiver metal shell.
8. Power input:accepts power from supplied AC adapter.
Note:
1 The MIC2 on the platform will be automatically cut off when the MIC2 on the column be input.
2.When the MIC 2 on the column is disconnect, the MIC2 can be input and the volume can be
controlled by the MIC.

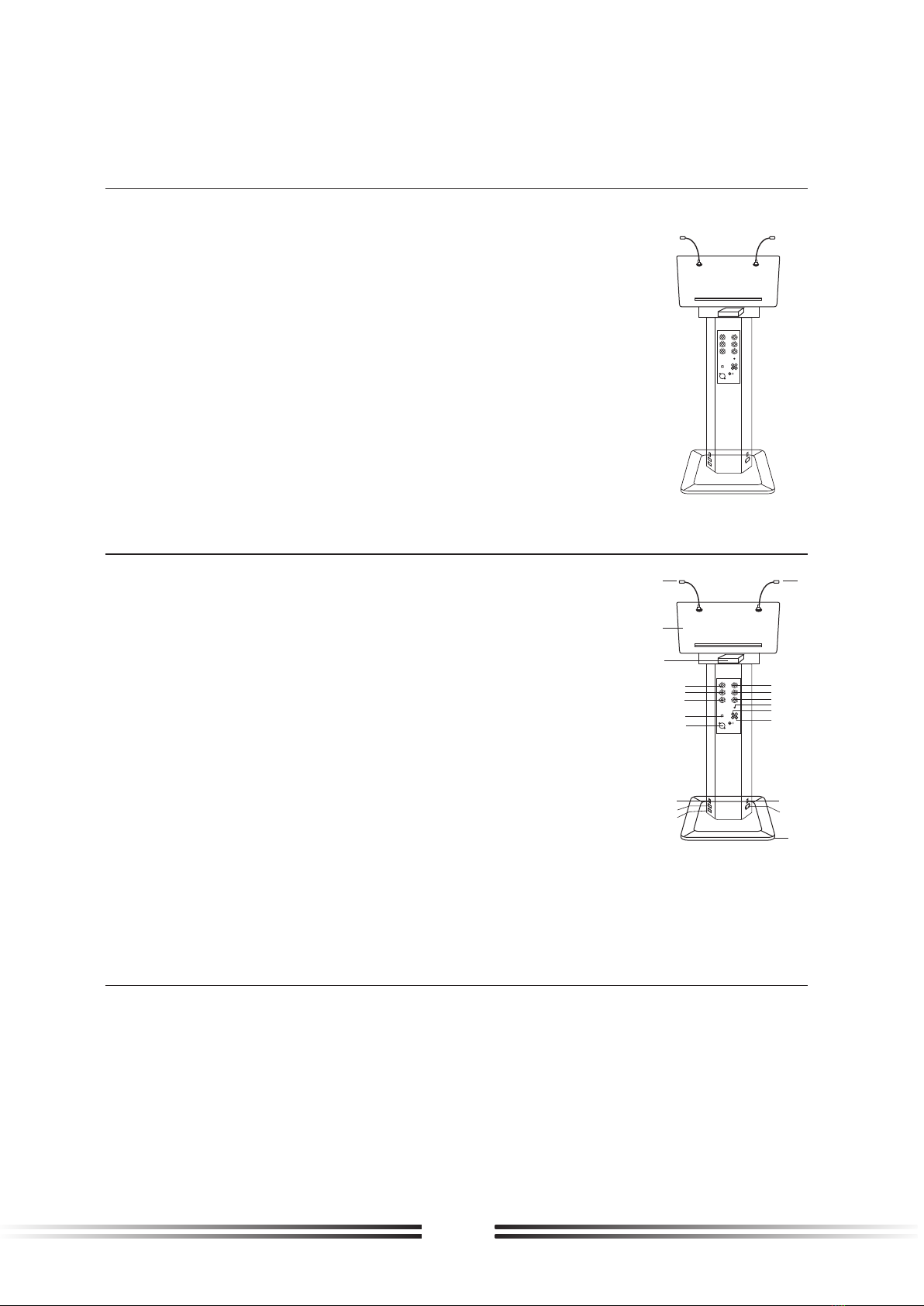

1. Goose neck MIC 1
2.
3. Panel
4. Wireless MIC receiver
5. MIC1 volume control
6. MIC2 volume control
7. Wireless-MIC 3 control
8. Treble control
9. Bass control
10. AUX 1 volume control
Lamp indicator
11. Power indicator
12. AUX 1 input
13. Recording output.
14. Pre-Amp output
15. MIC 2 input
16. Power switch
17. Power input
18. Selection switch of speaker output.
19. Speaker left channel
20. Speaker right Channel
21. Bottom
12
3
4
21
5
6
7
16
10
11
15 12
14
17
18
19
20
8
9
13
BASS
AUX 1
WIRELESS-MIC 3
MIC 2
PRE-OUT
AUX 1 REC OUT
MIC 1
0 10
1 GND
2 HOT
3 COLD
TREBLE
MIC 2
0
-5 +5
0 10
0
-5 +5
0 10 0 10
PL
BASS
AUX 1
WIRELESS-MIC 3
MIC 2
PRE-OUT
AUX 1 REC OUT
MIC 1
0 10
1 GND
2 HOT
3 COLD
TREBLE
MIC 2
0
-5 +5
0 10
0
-5 +5
0 10 0 10
PL
5

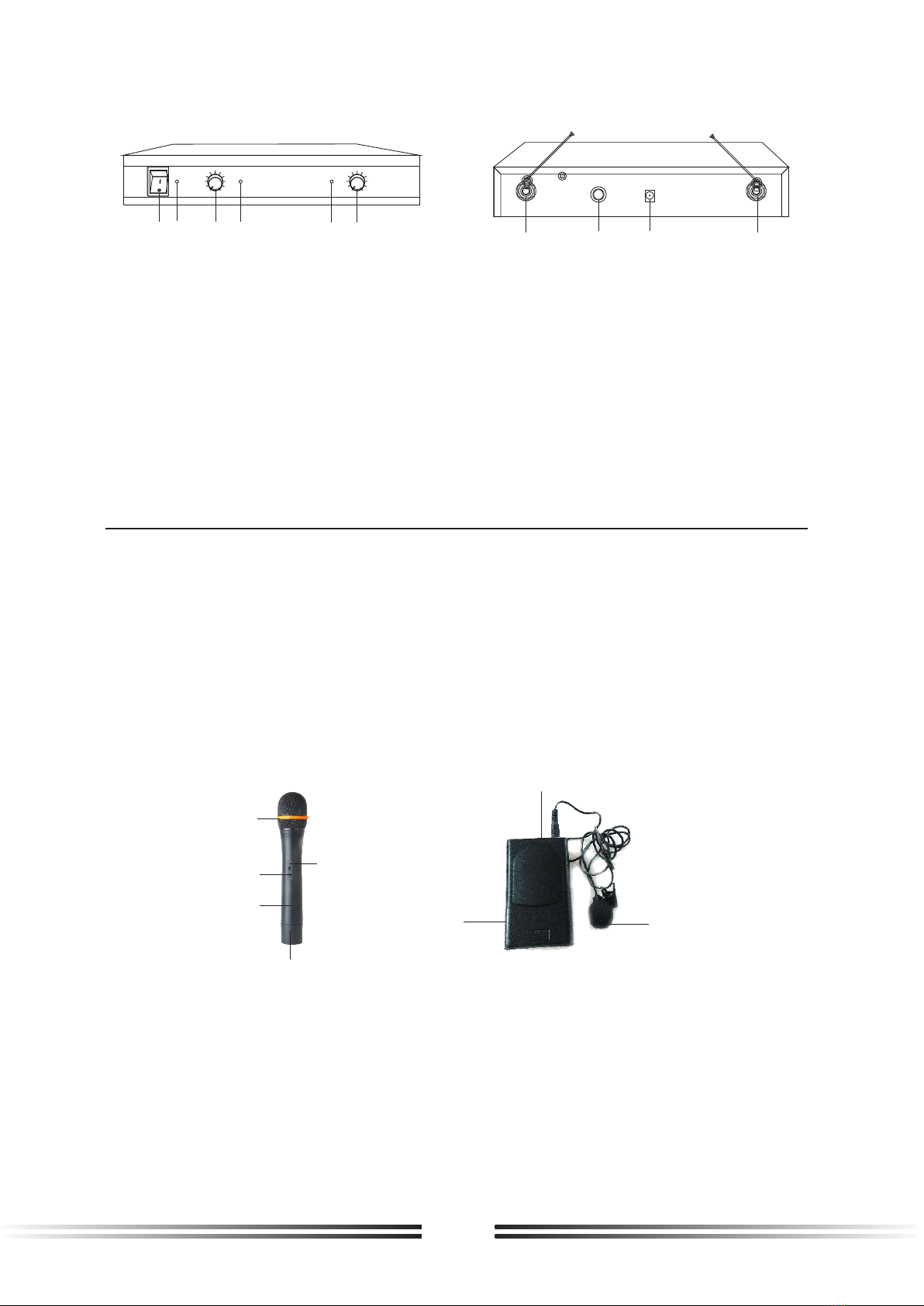

4 CONTROL AND FUNCTION (MICROPHONE)
1. A head of receiving sound.
2. Handhole shell.
3. A battery state indicator.
4. Power switch.
5. A box for a battery.
6. A head of receiving sound There are packages of microphone in it.
7. Power switch Turn it, microphone is working. Push it the middle, it is pause working.
8. A box for a battery.
5
8
1
43
2
7
6
1. Power switch.
2. Power indicator.
3. Volume control.
4. Audio signal indicator.
5. Wireless loop line.
6. Audio signal output.
7. DC 12V power input.
LE 1002
3 4 341 2
POWER VOLUME SIGNAL VOLUME SIGNAL
LE 1002
5675
ANT.B OUT ANT.A
DC: 12V
6

5 SPECIFICATIONS
Type NO
Item LECTERN AMPLIFIER
100W
80Hz~16,000Hz
Below 0.5%
60W
Above 65dB
1V / 0dB
Bass: ±10dB / Treble: ±10dB
580(L)×420(W)×1100(H)mm
AUX 1
MIC 1
MIC 2
MIC 3
Input Balances output Recording output Amplifier output
350MV 1V 200mV 14V
12MV 1V 200mV 14V
7MV 1V 200mV 14V
130MV 1V 200mV 14V
Sensitivity
Consumption power
Frequency response
T.H.D rate
Output power
(S/N)signal noise ratio
Pre output
Audio control
Dimension
AC power source ~230V 50Hz
7

VersionV0.1
This machine has black, white options, concrete circumstance in kind prevail,
this product manuals final interpretation manufacturers all.
