Parrot Products LE1001 User manual

Accessories included:
POWER
~230V 50Hz
010 010
BASS
AUX 1
WIRELESS-MIC 3
MIC 2
PRE-OUT
AUX 1 REC OUT
MIC 1
0 10
1 GND
2 HOT
3 COLD
TREBLE
MIC 2
0
-5 +5
0 10
0
-5 +5
0 10 0 10
PL
MIC L AMP

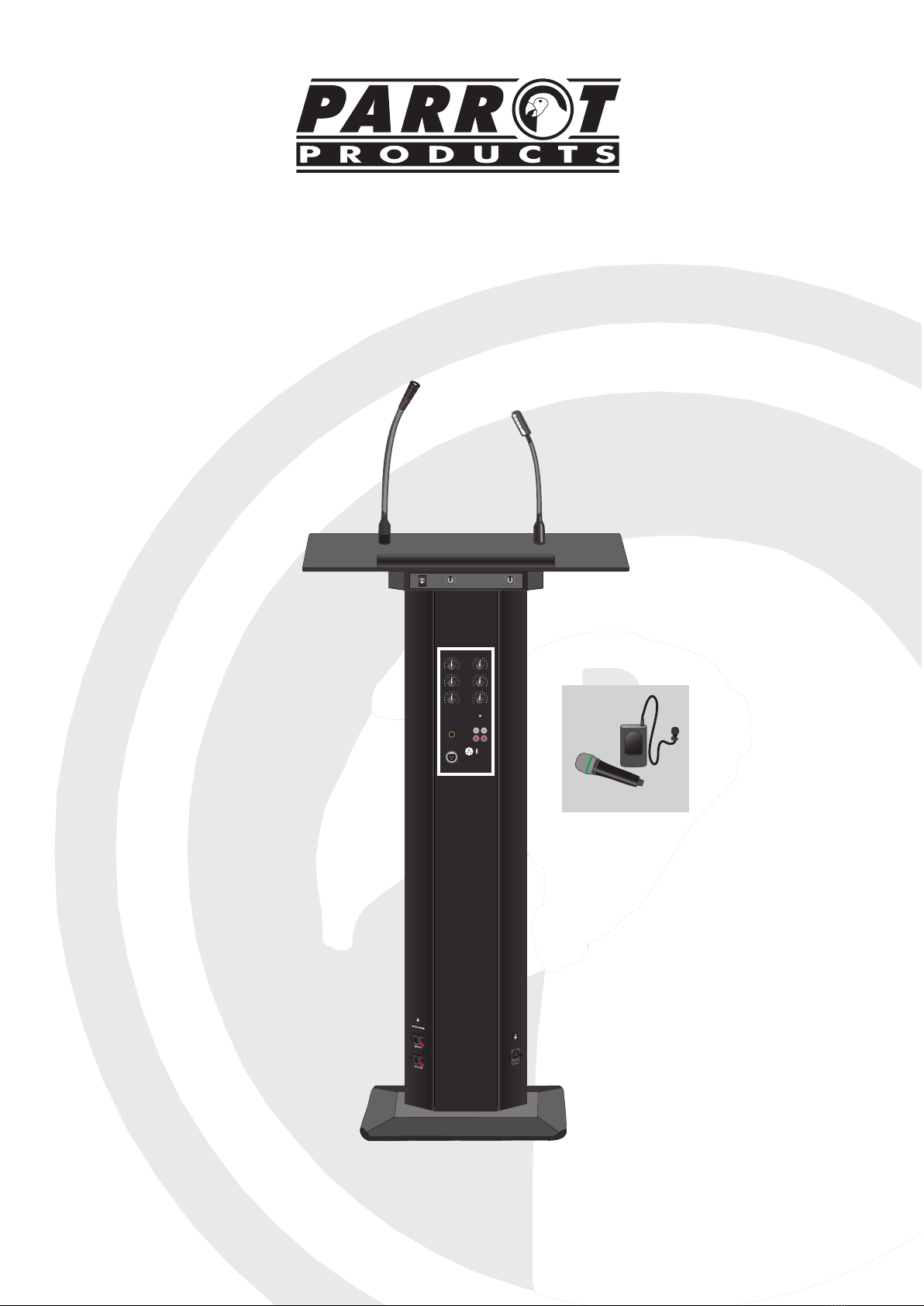

Lectern with Wireless Mic - LE1001
User Manual
Tel: (RSA) 010 140 4900 / Email: [email protected]
www.parrot.co.za

2
Please read through this manual before using the Lectern.
Save the user manual for future reference.
Safety Message and Alert Symbols
The two (2) Safety messages shown below will inform you about potential hazzards that could injure you or others.
The Safety messages, specifically address the level of exposure to the operator and are preceded by one of two
words: WARNING, or CAUTION.
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
When Installing the Unit
Do not expose the unit to rain or an environment
where it may be splashed by water or other liquids,
as doing so may result in fire or electric shock.
Use the unit only with the voltage specified. Using
a voltage higher than that which is specified
may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the
power supply cord. void using the power cord A
in close proximity to heaters. Never place heavy
, ,objects including the unit itself on the power cord,
as doing so may result in fire or electric shock.
Be sure to replace the unit's terminal cover after
connection completion. High voltage is applied to
the speaker terminals. Never touch these terminals
to avoid electric shock.
Lectern on a flat, stable surface to avoid Install the
any damage or personal injury and/or property
damage.
When the Unit is in Use
Should the irregularities be found during below
use, immediately switch off the power, disconnect
the power supply and unplug from the power outlet.
Contact your nearest dealer immediately. Do not attempt
to operate the unit in this condition as this
may cause fire or electric shock.
If you detect smoke or a strange smell coming
from the unit.
If water or any metallic object gets into the unit
If the unit falls, or the unit case breaks
If the power supply cord is damaged (exposure of
the core, disconnection, etc.)
If malfunctioning (no tone sounds.)the unit is
To prevent fire or electric shock, never open or
remove the unit case as there are high voltage
components inside the unit. Refer all servicing to
your nearest dealer.
Do not place cups, bowls, or other containers of
liquid or metallic objects on top of the unit. If they
accidentally spill, this may cause a fire or an
electric shock.
Do not insert or drop metallic objects or flammable
materials in the ventilation slots of the units’ cover,
as this may result in fire or electric shock.
Key safety instructions

3
When Installing the Unit
Never plug in or remove the power supply plug
with wet hands, as doing so may cause electric
shock.
When unplugging the power supply cord, be sure
to hold the power supply plug; never pull on the
cord itself. Operating the unit with a damaged
power supply cord may cause a fire or electric
shock.
When moving the unit, be sure to remove its power
supply cord from the wall outlet. Moving the unit
with the power cord connected to the outlet may
cause damage to the power cord, resulting in fire or
electric shock.
Do not block the ventilation slots in the unit's cover.
Doing so may cause heat build up inside the unit
and result in fire.
Avoid installing the unit in humid or dusty
environments, environments exposed to the direct
sunlight, near heaters, or in locations generating
smoke or steam as doing so may result in fire or
electric shock.
When the Unit is in Use
Do not place heavy objects on the unit as this may
cause it to fall or break. This may result in
personal injury and/or property damage. In
addition, the object itself may fall off and cause
injury and/or damage.
Make sure that the volume control is set to
the lowest volume setting before power is switched
on. Loud noise produced at high volumes when power
is switched on can impair hearing.
Do not operate the unit for an extended period of
time with the sound distorting. This is an indication
of a malfunction.
Contact your dealer to arrange unit cleaning. If dust
accumulates in the unit over a long period of time,
this may result in fire or damage to the unit.
If dust accumulates on the power supply plug or in
the wall power outlet, a fire may result. Clean it
periodically. Ensure that the plug is inserted into the
wall socket securely.
Switch off the power, and unplug the power supply
plug from the power outlet for safety purposes when
cleaning or leaving the unit unused for 10 days or
more.
Due to product upgrades, some of the features and specifications may vary.
Key safety instructions

Installation 5
Installation 3
Installation 2
Installation 4
Installation 1
Installation
1. Unscrew the four screws from the bottom of the column speaker. Connect the base with the speaker
and fasten.
2. Unscrew the supplied screws from column. Align the base-plate holes to the speaker column holes
and fasten screws to secure.
3. Secure U-shaped brackets to each side of the receiver, fasten receiver & brackets to the platform base-plate.
4. Unscrew supplied screws from the panel and position panel to base plates and fasten
5. Connect the Lectern with the U-shape bracket and fasten.
BASS
AUX 1
WIRELESS-MIC 3
MIC 2
PRE-OUT
AUX 1 REC OUT
MIC 1
0 10
1 GND
2 HOT
3 COLD
TREBLE
MIC 2
0
-5 +5
0 10
0
-5 +5
0 10 0 10
PL
4
Panel
Receiver
Base Plate
Column
Speaker

1. 4R output port
2. 1 AUX input , Independent control
3. Short-circuit,clipping and high-temp protection
4. Bass & Treble volume control
5. 24V phantom power
6. 1 line balance output
7. 1 recording output
8. 3 MIC input，Independent control. MIC 1 capacitive microphone,
MIC 2 handheld microphone, MIC 3 for wireless microphone .

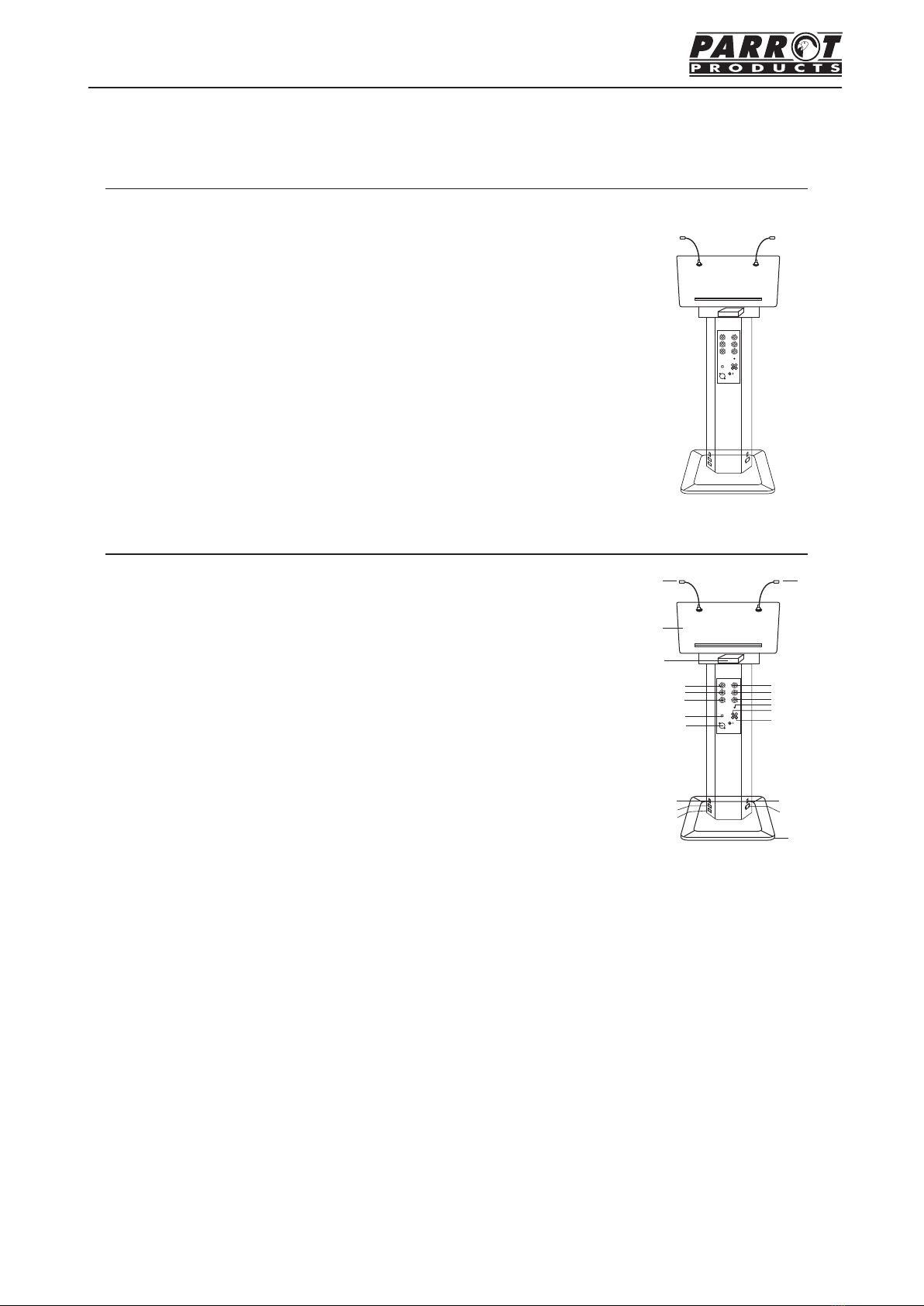

1 Features
2 Product Structure Instruction
Note:
MIC 1 and MIC 2 will operate simultaneously should they both be plugged in at the same time
1. Goose neck MIC 1
2. Lamp indicator
3. Panel
4. Wireless MIC receiver
5. MIC1 volume control
6. MIC2 volume control
7. Wireless-MIC 3 control
8. Treble control
9. Bass control
10. AUX 1 volume control
11. Power indicator
12. AUX 1 input
13. Recording output.
14. Pre-Amp output
15. MIC 2 input
16. Power switch
17. Power input
18. Selection switch of speaker output.
19. Speaker left channel
20. Speaker right Channel
21. Bottom
12
3
4
21
5
6
7
16
10
11
15 12
14
17
18
19
20
8
9
13
BASS
AUX 1
WIRELESS-MIC 3
MIC 2
PRE-OUT
AUX 1 REC OUT
MIC 1
0 10
1 GND
2 HOT
3 COLD
TREBLE
MIC 2
0
-5 +5
0 10
0
-5 +5
0 10 0 10
PL
BASS
AUX 1
WIRELESS-MIC 3
MIC 2
PRE-OUT
AUX 1 REC OUT
MIC 1
0 10
1 GND
2 HOT
3 COLD
TREBLE
MIC 2
0
-5 +5
0 10
0
-5 +5
0 10 0 10
PL
5

4 Control and Function (microphone)
1. Microphone capsule (Handheld)
2. Hand shaft
3. Power Indicator.
4. Power switch.
5. Battery chamber
6. Microphone capsule (Lapel Mic)
7. Power switch (Push the switch to the middle to allow for pausing)
8. Battery chamber (Lapel Mic)
5
8
1
43
2
7
6
1. Power switch.
2. Power indicator.
3. Volume control.
4. Audio signal indicator.
LE 1002
3 4 341 2
POWER VOLUME SIGNAL VOLUME SIGNAL
LE 1002
5675
ANT.B OUT ANT.A
DC: 12V
6
3 Receiver Features
1. Power on indicator: glows green when the receiver is powered on.
2. RF signal indicator: glows yellow when signals are received.
3. Transmitter audio peak indicator: flashes red when there is audio signal.
4. Volume control: adjusts the output volume of the receiver.
5. Telescoping antenna: receives signals from the transmitter.
6. Audio output: outputs the audio signals for connection to the amplifiers.
7. Metal: receiver metal shell.
8. Power input: accepts power from supplied AC adapter.
5. Wireless loop line.
6. Audio signal output.
7. DC 12V power input.

5 Specifications
Type NO
Item LECTERN AMPLIFIER
100W
80Hz~16,000Hz
Below 0.5%
60W
Above 65dB
1V / 0dB
Bass: ±10dB / Treble: ±10dB
580(L)×420(W)×1100(H)mm
AUX 1
MIC 1
MIC 2
MIC 3
Input Balances output Recording output Amplifier output
350MV 1V 200mV 14V
12MV 1V 200mV 14V
7MV 1V 200mV 14V
130MV 1V 200mV 14V
Sensitivity
Consumption power
Frequency response
T.H.D rate
Output power
(S/N)signal noise ratio
Pre output
Audio control
Dimension
AC power source ~230V 50Hz
