Parrot 3200 LS-Color User manual

Hands-free
Car Kit
3200 LS-COLOR
3400 LS-GPS
User manual
For Bluetooth
Mobile Phone
ENG
FRE
TUR
ARA
P.5
P.15
P.25
P.44

Warning
The manufacturer Parrot S.A. and its affiliates should not be held liable towards end users or third parties to prejudice caused by misusage of the product, nor for usage that
would be in violation of local traffic regulations and laws.
Disclaimer
The information in this document is subject to change without notice and does not represent a commitment on the part of vendor. No warranty or representation, either expressed or
implied, is made with respect of quality, accuracy or fitness for any particular purpose of this document. The associated with it at any time without obligation to notify any person
or organisation of such changes. In no event will the manufacturer to liable for direct, indirect, special, incidental or consequential damages arising out of the use or inability to
use this product or documentation, even if advised of the possibility of such damages. This document contains material protected by copyright. All right are reserved. No part of
this manual may be reproduced or transmitted in any forme, by any means or for any purpose without express written consent. Product names appearing in this document are
mentioned for identification purposes only. All trademarks, product names appearing in this document are registred property of their respective owners.
FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions.
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Declaration of Conformity
We, Parrot S.A. of 174 quai de Jemmapes, 75010 Paris, France, declare under our sole responsibility that our product, the Parrot 3200 LS-Color, 3400LS-GPS, to which this
declaration relates is in conformity with appropriate standards EN300328, EN301489-17, EN 60950 following the provision of Radio Equipment and Telecommunication
Equipment directive, with requirements covering EMC directive 89/336/EEC and Low Voltage directive 73/23/EEC.
Bluetooth®
The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by Parrot S.A. is under license. Other trademarks and trade names are
those of their respective owners.
Correct Disposal of This Product ( Waste Electrical & Electronic Equipment )
(Applicable in the European Union and other European countries with separate collection systems). This marking shown on the product or its literature, indicates
that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncon-
trolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household
users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for
environ, mentally safe recycling. Business users should contract their supplier and the terms and conditions of the purchase contract. This product should not be mixed with other
commercial wastes for disposal.

English
Français
Türkçe
عربي
3200 LS-COLOR / 3400 LS-GPS
Directions for use - User guide
5

6
INTRODUCTION
The Bluetooth® technology enables voice and data communications
via a short-distance radio link. It allows several electronic devices to
communicate with each other, particularly telephones and hands-free
kits.
Parrot is drawing on its long years of experience in signal processing
and voice recognition technology to introduce a hands-free kit offering
superior audio quality during calls.
Thank you for buying a Parrot hands-free kit. With the Parrot 3200 LS-Color,
you will be able to make telephone calls from your car while keeping your
hands on the wheel.
With its colour interface and customisable wallpaper, the Parrot 3200 LS-
Color is the most user-friendly hands-free kit. It acts as a real extension of your
mobile phone. We hope that the kit will give you complete satisfaction.
KIT CONTENTS
n Colour LCD screen
n Installation cable
n Electronic control unit
n Directions for use
n Fitting accessories
n Microphone
FITTING
First of all, choose the place for the colour screen inside your vehicle.
We would advise you to fit it in the centre of the dashboard or near you.
Make sure that you can view the screen at a good angle and that it does not
obstruct your view of the road. Once the hands-free kit is fully installed and
switched on, you can adjust the screen's brightness.
There are two places where you can choose to fit the microphone connec--
tion: either directly at the side of the screen or on the cable connected to the
bottom of the screen. Place the microphone to the left of the rear-view mirror
to ensure optimum audio quality.
The installation cable is equipped with ISO connectors and a line-out jack for
connecting directly to your amplifier, if applicable.
Car stereo with line-in jacks:
Preferably use this type of connection by connecting the brown and white
wires (or red and black), along with the yellow mute wire to the back of your
car stereo.
Car stereo with ISO connectors:
Disconnect the car stereo's audio and power leads. Join the female connec--
tors of the kit's cable to the car stereo. Join the vehicle's audio and power
supply cables to the male connectors. If the car stereo features a mute jack,
connect the yellow wire of the kit's cable to one of the "mute-in" jacks (1,
2 or 3).
Car stereo without ISO connectors:
You must purchase an ISO adapter cable.

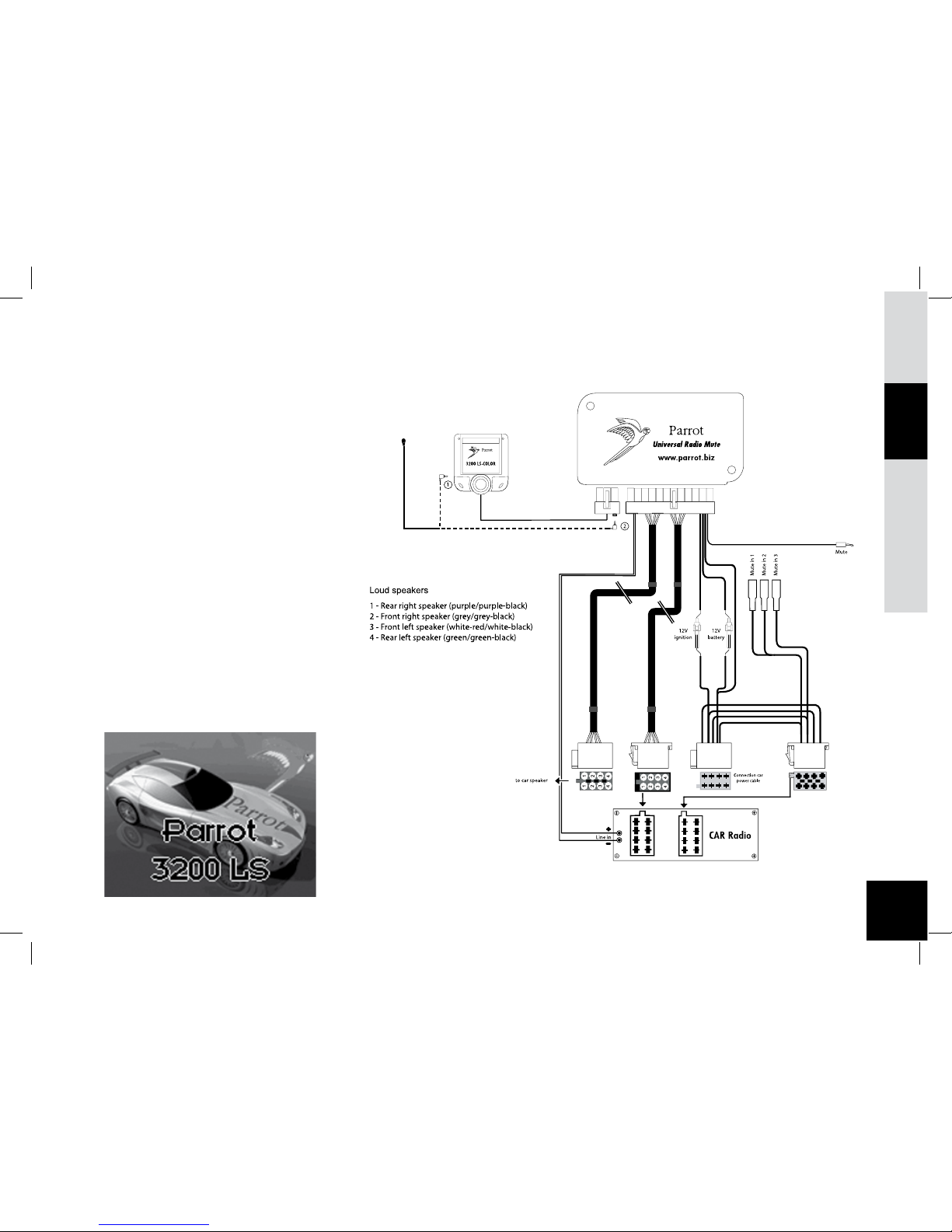

Fitting the kit's cable:
. The red wire of the kit's cable must be connected to the constant 12V
supply,
the orange wire to the ignition 12V and the black wire to earth.
. Check the wiring diagram of the car stereo's ISO lead.
On some vehicles, the red and orange wires may need to be reversed.
This can easily be done by reversing the two fuse holders.
. Do not connect the orange wire to the constant 12V supply, as you could
run down the vehicle's battery.
Checking the installation:

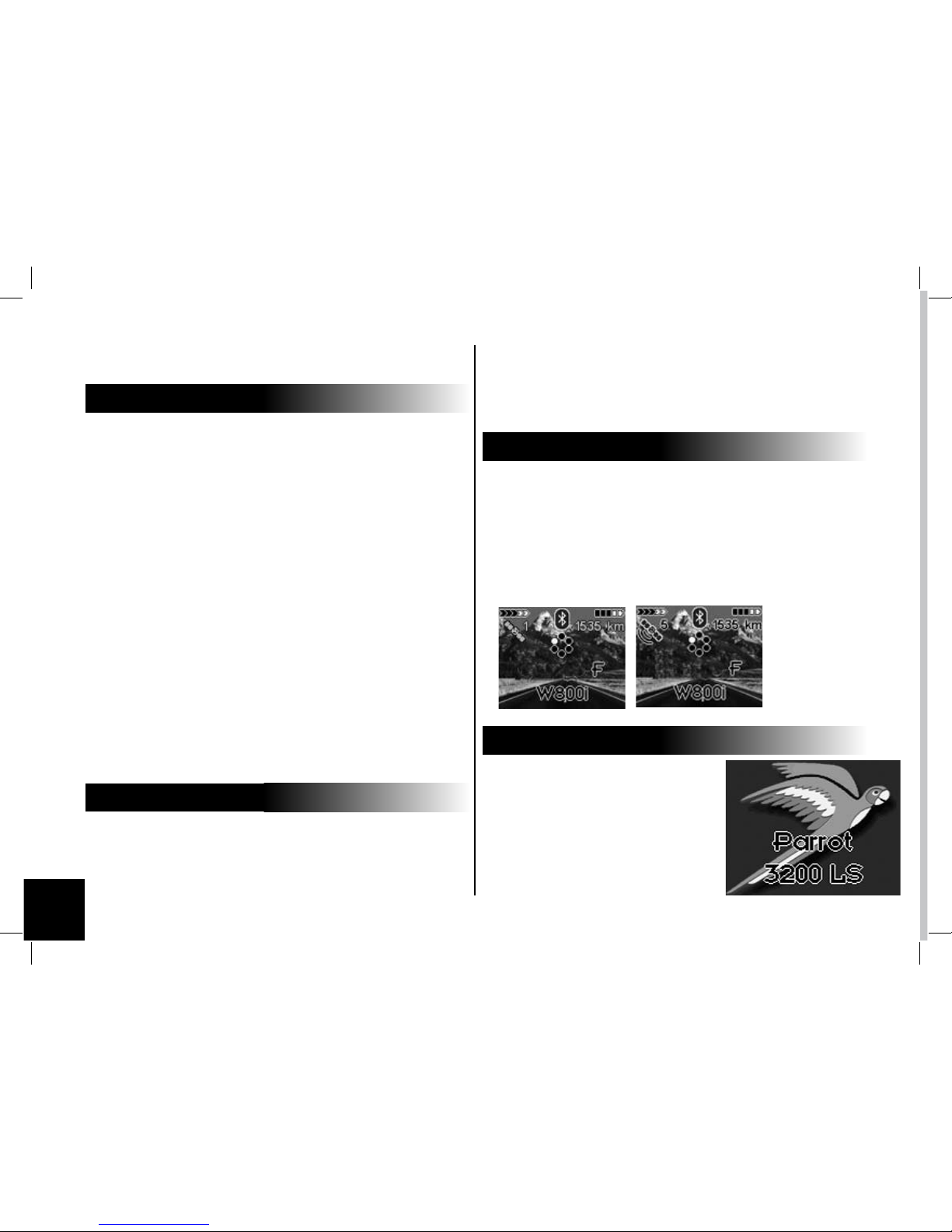

. If your 3200 LS-Color is correctly fitted, you should see the message
"Goodbye" on the screen when you switch off your car's ignition.
Otherwise, the ignition 12V and the constant 12V supply have been reversed.
In this case, reverse the two fuse holders on the kit's power supply lead.

7
English
Français
Türkçe
عربي

8
PAIRING WITH YOUR MOBILE PHONE:
Using for the first time
The first time that you switch on the 3200 LS-Color, you must pair your
mobile phone with the kit.
. Enable the Bluetooth mode on your phone.
. On the hands-free kit, scroll through the menus until you come to Settings
Pair with phone…, and select the relevant option for your phone.

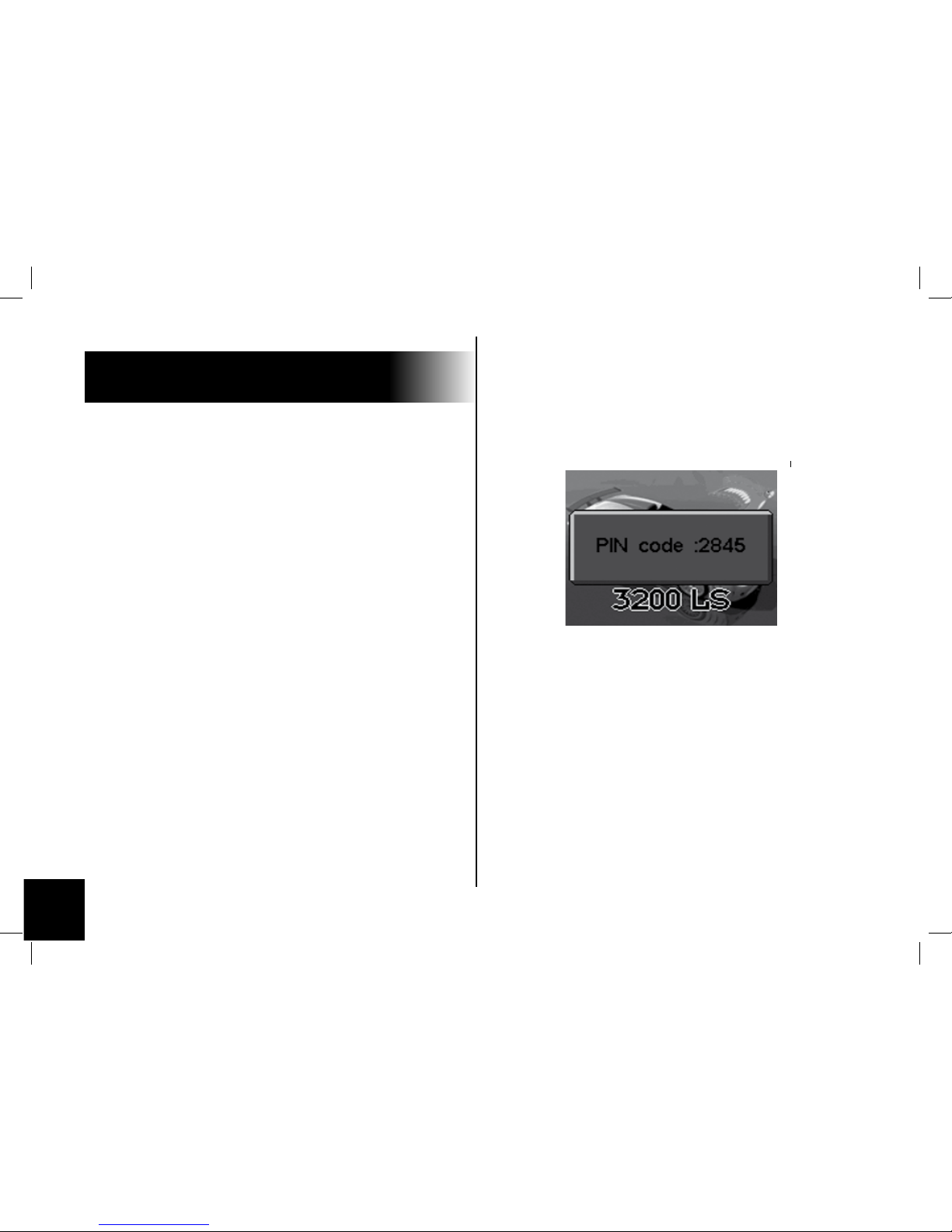

A 4-digit PIN code then appears on screen. Memorise it.
. Search for any peripherals: for further information on this procedure,
refer to the Bluetooth chapter in your mobile phone's user guide or
check out our website at :
www.parrot.biz/guide_chm/3200LS COLOR/index.html
. Once the search has finished, "Parrot 3200LS" is displayed on your
phone.
. Select the kit. Your phone prompts you to enter a code: key in the
code shown on the kit screen and confirm on your phone
. The kit's screen displays "Pairing".
. Once the data has been exchanged, "pairing successful" appears on
the 3200 LS-Color.
. The 3200 LS-Color then connects to your phone. Once the connection
has been made, the Bluetooth logo is displayed on the screen (except
for certain phones using the Headset profile).
. Some phones offer additional features, such as displaying your pho--
ne's name on the kit's screen, as well as the battery and signal levels
and the operator's name.
You can now access the menus and their name is announced by the
hands-free kit when you turn the scroll wheel. Press the green button (or
the scroll wheel) to access the menus, and press the red button to exit
them.
You can now use your hands-free kit to make and receive calls.
. Receiving a call: press the green button to answer the call.
.Ending a call: press the red button.
.Redial function: hold down the green key on the kit for two
seconds to redial the last number dialled.
.Adjusting the volume: turn the scroll wheel during a call to adjust--
the volume.

9
English
Français
Türkçe
عربي
FEATURES
The kit's screen displays your mobile phone's main information, in particular your phonebook.
w Automatic downloading of your phonebook.
w Display of the caller's name and image.
w Contacts phoned using the kit's voice recognition feature.
w Car stereo muting during calls.
w Call records.
w Volume adjustment during calls.
w Dual call management.
w Automatic redial of the last caller.
w Wallpaper change.
w Brightness settings.
w Ringtone selection.
w Language setting.
w DTMF: when you receive a call from your message system, press the scroll wheel so that you can access the digits allowing you to
manage your message.
Note: most of these features depend on your phone.

10
o Phonebook
A, B, C...
o Calls record
Calls received
Calls made
Missed calls
o Dial
o Settings
Contacts management
Contacts
A, B, C...
Names
Record a voice tag
Delete a voice tag
See the picture
Delete picture
Delete contact
Receive a contact
Delete all contacts
Sort Order
  Paired devices
List
Connect
Disconnect
Delete
Define default phone
Paired with phone
Other Phones
Phone HS
P800/P900
Windows CE®
Samsung E530/E720
Languages
Automatique
English...
Voice Cmds
Choose voice recognition
Phone
Carkit
Keywords
Office, Home, Mobile, General, Other.
Display
Brightness
Phonebook zoom
Wallpaper
Color’s theme
Sound
Volume
Spoken menus
Choose the ringtone
Automatic answer
Information
Update software
MENUS

11
English
Français
Türkçe
عربي
PREFERENCES
This menu enables you to fine-tune your 3200 LS-Color for easier use.
Contact management
This menu enables you to manage contacts in the Parrot 3200 LS-Color.
Once you have selected the contact from the list (which you access via
the Contact management menu) you can record or delete a voiceprint,
view or delete the photo, or delete the contact from the phonebook.
You can also receive a contact with the relevant photo (if supported by the
phone) by selecting Receive a contact. Select on your phone the contact
you want to send via Bluetooth to the hands-free kit. From then on, whene--
ver this person calls you, his or her photo and name will appear on the kit
screen.
Refer to your phone's user guide or check out.
www.parrot.biz/guide_CHM/3200LS Color/index.html.
You can also delete all the contacts in the kit or reverse the sort order from
surname-first name to first name-surname
ACCESSING THE MENUS
Phonebook
After pairing your phone with the 3200 LS-Color, synchronisation with your
phonebook will begin automatically (*). Once the synchronisation process is
complete, you can access your phonebook from the hands-free kit screen. To
access your phonebook and call a contact, turn the scroll wheel to access the
menus, then select Phonebook. Scroll through the letters until you reach the
first letter of the relevant person's name and confirm. You will then see this
person's name and the various phone numbers you have for them.
(*) Depending on the model of your Bluetooth phone. Visit our website at www.parrot.biz for the latest
information on synchronisation.
Call records
This menu option displays the list of calls and is divided into three sub-
menus:
Missed calls / Calls received / Calls made.
It is automatically synchronised with your phone's call records (*) and you
can access them to call back a missed call.
w Select the contact from these menus.
w Press the scroll wheel or the green button to call the contact back.
(*) Depending on the model of your Bluetooth phone.
Dial
Select this menu to dial a number directly via the kit.
w Turn and press the scroll wheel to select a digit.
w The trashcan icon deletes the last digit.
w Once the number has been dialled, press the green button to call.

12
VOICE RECOGNITION
Select voice recognition
The voice recognition capability featured by the 3200 LS-Color is more
extensive and robust than that boasted by mobile phones, and can work
in noisy surroundings.
- Car kit reco: the selected voiceprints are those recorded in the
memory of the hands-free kit.
- Phone reco: the selected voiceprints are those recorded in the
memory of the phone.
Keywords
Recording keywords enables you to phone without taking your hands off
the wheel. You can control the whole call with your voice.
Keywords: Home, Work, Mobile, General, Other.
Keywords are used to select the required phone number when several
different numbers are associated with the same contact. All keywords
must be recorded, so that they can be validated.
Once the keywords have been recorded, you need to say the following
sequence of words to be able to make a call using the voice recognition
feature.
Press the green button and after the beep, say: "John Smith… (beep)…
Work…". And this will put you in touch with John Smith using the phone
number classified as his work number.
Paired devices
The 3200 LS-Color lets you pair up to five Bluetooth phones, but bearing
in mind that only one can be connected at any one time.
The Paired devices menu allows you to connect, disconnect or delete a
phone from the kit's memory.
From the Define default phone menu option, you can control the priority
level given to the Bluetooth phone during connections with several phones
in the car.
Caution:
Deleting a paired phone will clear any voiceprints attributed to the
contacts on that phone.
Pair a phone
Before pairing your Bluetooth phone, you must enable the mode corres--
ponding to your Bluetooth phone.
The different modes are as follows:
- Other phones
- Headset phones
- P800-P900
- Windows CE
- E720-E530
- Sony-Ericsson K600, K750
- Samsung E530, E620, D500
Once the relevant mode has been selected, a (random) 4-digit code
appears. Start searching for Bluetooth peripherals from your phone.
Once you have found the hands-free kit, select it and enter this code.
Note: for greater compatibility with phones, new pairing modes are likely to be added to future
versions.

13
English
Français
Türkçe
عربي
Language
Select the language for displaying the menus on your 3200 LS-Color.
Display
Five options are available for customising the way in which information
is displayed:
.Brightness: use the scroll wheel to obtain the required
level and confirm by clicking the scroll wheel.
.Phonebook zoom: used to display the Phonebook menu over
3 or 4 lines.
.Wallpaper: allows you to select a wallpaper image.
.Theme: allows you to select a color theme.
Sounds
. Volume: use the scroll wheel to control the volume level of the call
and the microphones' sensitivity.
. Speaking menus: adjust the volume of the hands-free kit's prompts
to the required level.
. Ringtone selection: for phones that do not play a specific ringtone for
incoming calls, select the ringtone that you wish to hear when you receive a call.
Automatic answer
Enable this mode if you want the 3200 LS-Color to automatically answer
any incoming calls.
Information
This menu provides information on the version of the built-in software.
UPDATE
You can update the software version of your 3200 LS-Color by
Bluetooth. Enable this mode before updating. The update is performed
by Bluetooth from a computer equipped with Bluetooth.
Updating provides access to new features and improves compatibility
with the advanced functions on an even wider range of phones.
For further information, visit our website: www.parrot.biz.
PARROT 3400 LS-GPS
The Parrot 3400 LS-GPS kit features a built-in GPS module (Global
Positioning System) providing real-time information on the vehicle's cur--
rent position. This information is available by Bluetooth over a channel
that can be accessed by most PDAs and smartphones equipped with
navigation software.
Procedure for connecting to the GPS service
If a navigation application is installed on your PDA or smartphone,
simply pair your device with the Parrot 3400 and establish a Bluetooth
serial connection with the GPS port (the number of the outgoing serial
port to be used will depend on your PDA or smartphone).
The configuration to be chosen on your device is NMEA 0183v2 9600
if prompted by your navigation software.
Several statuses may be encountered:
- Status 1: no GPS connected - No fix (satellite icon greyed out)
- Status 2: no GPS connected - Fix (satellite icon coloured)
- Status 3: GPS connected - No fix (satellite icon greyed out, with a
transmission symbol)
- Status 4: GPS connected - Fix (satellite icon coloured, with a transmis--
sion symbol)

14
Note: the fix indicates that the satellite data received by the hands-free
kit is valid.
Procedure for connecting to the GPS service:
1.If you are already connected via Bluetooth to your phone:
wDisconnect your phone (hold down the red button on the hands-free
kit for two seconds). The hands-free kit then changes to status 1 or 2 (if the
fix is established).
wFrom your navigation software (installed on your PDA or smart--
phone), connect to the GPS service of the 3400 LS-GPS. The hands-free kit
then changes to status 3 or 4.
wOnce connected, a transmission symbol appears beneath the satellite.
If the satellite icon is coloured, the fix is established (hands-free kit in status
4). The distance travelled will then be displayed in the top-right corner of
the screen.
wOnce the GPS connection is established, the kit automatically recon--
nects to your phone's telephony service.
2.If you are not already connected via Bluetooth to your
phone:
wFrom your navigation software (installed on your PDA or smart--
phone), connect to the GPS service of the 3400 LS-GPS. The hands-free kit
then changes to status 3 or 4.
wOnce connected, a transmission symbol appears beneath the satellite.
If the satellite icon is coloured, the fix is established (hands-free kit in status
4). The distance travelled will then be displayed in the top-right corner of
the screen.
wYou can now pair/connect your phone.
Voice indications for navigation
Once the GPS service is connected, you can listen to the voice instructions
via your vehicle's speakers. Navigation will then be plain sailing (this fea-
-
ture is only available on certain types of PDA and smartphone, and may
also depend on the software).
To enable voice indications, simply open the Headset service available on
the hands-free kit from your PDA or smartphone.
When you are connected to the hands-free kit's GPS service, incoming
and outgoing calls are managed automatically to ensure that use of the
telephony service is made as easy as possible.
GPS menu
In this section, you can completely disable the GPS service to prevent
anyone else from connecting to this service.
You will also find menus for customising the display when connected to
the GPS: number of satellites, distance (kilometres or miles), and much
more.
Note: if your vehicle is fitted with an athermic windscreen, the GPS
signal received might be of poor quality, in which case, you can add an
external aerial that plugs into the back of the screen. To acquire such an
aerial, contact your dealer.
HOTLINE
Our hotline is at your disposal. You can
contact the hotline by email or telephone.
Open from Monday to Friday between 9
am and 6 pm (GMT+1).
Check out our website (www.parrot.biz)
for further information.

English
Français
Türkçe
عربي
3200 LS-COLOR / 3400 LS-GPS
Notice d’utilisation - Guide d’utilisateur
15

16
INTRODUCTION
La technologie Bluetooth® permet d’établir des communications
voix et données via une liaison radio courte distance.
Elle permet à de nombreux équipements électroniques de com--
muniquer entre eux, notamment les téléphones et les kits mains-
libres.
Parrot tire bénéfice des ses longues années d’expérience en
traitement du signal et reconnaissance vocale pour introduire un
kit mains-libres avec une qualité audio supérieure lors des com--
munications.
Merci d’avoir acheté un kit mains-libres Parrot. Avec le Parrot
3200 LS-Color vous allez pouvoir passer des appels télépho--
niques depuis votre voiture en gardant les mains sur le volant.
Avec son interface couleur et son fond d’écran personnalisable,
le Parrot 3200 LSColor est le kit mains-libres le plus agréable à
utiliser.
Il fonctionne comme une véritable extension de votre téléphone
portable.
Nous espérons qu’il vous donnera entière satisfaction
CONTENU DE L’EMBALLAGE
nEcran LCD couleur.
nCâble d’installation.
nBoîtier électronique.
nNotice d’utilisation.
nSupports de fixation.
nMicrophone.
INSTALLATION
Choisissez d’abord l’emplacement de l’écran couleur dans
l’habitacle de votre véhicule. Nous vous conseillons de le position-
-
ner au centre de votre tableau de bord ou proche de vous.
Assurez-vous d’avoir un bon angle de vue sur l’écran et que celui-
ci ne gène pas votre vision de la route. Une fois le kit mains-libres
complètement installé et mis en service vous pourrez régler la
luminosité de l’écran. La prise du micro s’installe à deux endroits
au choix. Directement sur le côté de l’écran, ou sur le câble
connecté sur le dessous de l’écran. Le micro se positionne sur la
gauche du rétroviseur pour une meilleure qualité audio.
Le câble d’installation est équipé de connecteurs “ ISO “, ainsi
qu’une sortie “ line out “ pour se connecter directement sur
l’amplificateur si vous en avez un.
Autoradio avec entrées “ line in “ :
Utilisez de préférence ce type de connexion en reliant les fils mar-
-
ron et blanc (ou rouge et noir) ainsi que le fil jaune du Mute à
l’arrière de votre autoradio.
Autoradio avec connecteur “ ISO “ :
Déconnectez les faisceaux audio et alimentation de votre autora--
dio. Reliez les connecteurs femelles du câble du kit à l’autoradio.
Reliez les faisceaux audio et alimentation du véhicule aux con-
-
necteurs mâles. Si l’autoradio est équipé d’une entrée Mute, reliez
le fil jaune du câble du kit à l’une des entrées Mute 1, 2 ou 3.
Autoradio sans connecteurs “ ISO “ :
Vous devez vous procurer un câble adaptateur “ ISO “.
Installation du câble du kit :
. Le fil rouge du câble du kit doit être relié au +12V permanent,

English
Français
Türkçe
عربي
17
le fil orange au 12V après-contact et le fil
noir à la masse.
. Vérifiez le schéma électrique du faisceau “
ISO “ de l’autoradio. Sur certains véhicules,
il est nécessaire d’inverser les fils rouge et
orange. Cette opération s’effectue simple--
ment en inversant les deux portes fusibles.
. Ne connecter pas le fil orange au 12V per--
manent, vous risqueriez de décharger la batte-
-
rie du véhicule. Vérification de l’installation :
. Si votre 3200 LS-Color est bien installé,
vous devez voir le message “ au revoir “ sur
l’écran lors que vous coupez le contact de
votre voiture.
Sinon, c’est que le 12V clé et le 12V perma--
nent sont inversés. Dans ce cas là, veuillez
inverser les deux portes fusibles du câble
d’alimentation du kit.

18
. Certains téléphones offrent des fonctionnalités supplémentaires,
telles que l'affichage du nom de votre téléphone sur l'écran du kit,
affichage également des niveaux de réseau et de batterie ainsi que
du nom de votre opérateur.
Les menus sont accessibles et leur nom est énoncé par le kit mains-
libres lorsque vous faites tourner la molette. Entrez dans les menus
en appuyant sur le bouton vert (ou la molette). Pour en sortir,
appuyez sur le bouton rouge
Vous pouvez maintenant utiliser votre kit mains-libres pour com-
-
muniquer.
.Recevoir un appel : appuyez sur le bouton vert pour décro--
cher l'appel.
.Raccrocher un appel : appuyez sur le bouton rouge.
.Fonction Bis : appuyez deux secondes sur le bouton vert du kit
pour rappeler le dernier numéro composé.
. Réglage volume : tournez la molette pendant une communica--
tion pour régler le volume.
JUMELAGE AVEC VOTRE TELEPHONE :
Première utilisation
Lors de la première mise sous tension du 3200 LS-Color, vous
devez jumeler votre téléphone avec le kit.
. Activez Bluetooth sur votre téléphone.
. Sur le kit mains-libres, naviguez dans les menus jusqu'à :
Préférences, Jumeler téléphone…, et sélectionnez l'option corre-
-
spondante à votre téléphone. Un PIN code de 4 chiffres est alors
affiché à l'écran. Mémorisez-le.
. Lancez une recherche de périphériques : Pour plus d'informations
sur cette opération, veuillez vous référer à la notice de votre télé-
-
phone (chapitre Bluetooth) ou rendez-vous sur notre site Web à :
www.parrot.biz,rubrique guides utilisateurs.
. Une fois la recherche terminée, " Parrot 3200 LS " s'affiche sur
votre téléphone.
. Sélectionnez le kit, votre téléphone vous demande d'entrer un
code : tapez le code affiché sur l'écran du kit, et validez sur votre
téléphone.
. " Jumelage en cours " s'affiche sur l'écran du kit.
. Une fois les données échangées, " jumelage terminé " s'affiche
sur le 3200 LS-Color.
. Le 3200 LS-Color se connecte alors avec votre téléphone. Une fois
la connexion établie, le logo Bluetooth s'affiche sur l'écran (excepté
pour certains téléphones utilisant le profil Headset).

English
Français
Türkçe
عربي
19
FONCTIONNALITES
Sur l'écran du kit, vous retrouvez les principales informations de votre téléphone, notamment votre répertoire.
w Téléchargement automatique de votre répertoire téléphonique.
w Affichage du nom et de l'image de l'appelant.
w Appel de contacts en utilisant la reconnaissance vocale du kit.
w Coupure de l'autoradio pendant la communication.
w Journal d'appel.
w Réglage du volume en communication.
w Gestion du double appel.
w Rappel automatique du dernier correspondant.
w Changement du fond d'écran.
w Réglage de la luminosité.
w Sélection de la sonnerie.
w Réglage de la langue.
w DTMF : lors d'un appel de votre messagerie, appuyez sur la molette afin d'avoir accès au chiffres permettant de gérer vos messages.
Note : Certaines de ces fonctionnalités dépendent de votre téléphone.

20
MENU
o Répertoire
A, B, C...
 

o Journal d’appels
  Appels reçus
  Appels émis
  Appels manqués
o Numéroter
o Préférences
Gérer les contacts
Contacts
     
A, B, C...
      Noms
 Enregistrer une empreinte vocale
 Supprimer l’empreinte vocale
 Voir la photo
 Supprimer le photo
 Supprimer le contact
Recevoir un contact
Supprimer tous les contacts
Ordre de tri
Appareils jumelés
Liste
  Connecter
Déconnecter
Supprimer
Définir téléphone préféré
Jumeler un téléphone
Autres Téléphones
Téléphone HS
P800/P900
Windows CE®
Samsung E530/E720
...
Langues
Automatique
English..
Commande vocale
Choix de la reco vocale
 Téléphone
 Carkit
Mots clés
Bureau, Domicile, Portable, Général, Autre
Affichage
Luminosité
Zoom répertoire
Fond d’écran
Thèmes de couleur
Sons
Volume
Menus parlés
Choix de la sonnerie
Réponse automatique
Informations
Mise à jour logiciel
