Partilink P2K-HL3E1 User manual

P2K-HRSL3E1/ P2K-LHRS1E3
Partilink Technology Co., Ltd Copyright @2016
User manual
P2K-HL3E1 1080p HDMI Extender over IP
P2K-HL3E1-P 1080p HDMI Extender over IP with PoE
P2K-HRSL3E1 / P2K-LHRS1E3
P2K-HRSL3E1-P / P2K-LHRS1E3-P

1. Introduction 2
2. Features & Application 3
3. Specifications 4
4. Hardware Description 4
5. Installation 9
5.1 Device Connection 10
5.2 Configuration 10
5.3 Application Pattern 10
5.4 PC Tool Setup and Control 13
6. Web-based UI configuration 27
7. Package Contents 35

PartilinkTechnology Co., Ltd Copyright @ 2016
2
1. Introduction
HDMI over IP Extender is made for point to point,
point to multi-point, multi- point to multi-point
and screen wall broadcast including RS-232 and
IR control extension. Easy to install and with
networking 10/100 BASE-T switch hub as well
as CAT-5 cable for building up the extension or
broadcast system.
*** P2K-HL3E1-P supports power over Ethernet

PartilinkTechnology Co., Ltd Copyright @ 2016
3
2. Features & Application
RS-232 bi-directional extension
6 bits switch for 64 stream channel selection
HDCP compliant and Blu-Ray ready
Supports IR extension
Automatic or manual EDID configuration
Networking environment under 10/100 BASE-T
Switch hub and CAT-5 cable
Point to point extension, unicast, multicast and
screen wall system
Point to point extension via CATx without
Ethernet switch up to 100M
Supports PC tool Ethernet control
Power over Ethernet version is provided
(P2K-HL3E1-P).

PartilinkTechnology Co., Ltd Copyright @ 2016
4
3. Specifications
P2K-HRSL3E1
P2K-HRSL3E1-P
1080p HDMI
Extenderover IP
P2K-HRSL3E1
P2K-HRSL3E1-P
Transmitter
P2K-LHRS1E3
P2K-LHRS1E3-P
Receiver
VIDEO INPUT
HDMI Type-A female connector
None
VIDEO OUTPUT
HDMI Type-A female connector
for loop through
HDMI Type-A female connector
IR
3.5mm phone jack for IR emitter
to control video source device
3.5mm phone jack for IR receiver
cable to receive remote signal
COMPRESSION
H.264 compression video format Full HDencoder/decoder
MP3 compression audio format stereo 192Kbps encoder/ decoder
Media stream up to 18Mbps
HDMI INPUT RESOLUTION
1080p 60/50, 1080p 30/25, 1080i 60/50,720p 60/50,
480i 60/50, 480p 60/50
HDMI OUTPUT RESOLUTION
1080p 60/50, 1080i 60/50, 720p60/50, 480i60/50,
480p 60/50
AUDIO FORMAT
Stereo 192Kbps
IP PROTOCOL
TCP,UDP,RTSP, RTP, DHCP,IGMP, Multicast,IPV4
LAN PORT
RJ-45 connector for10/100 BASE-T CAT-5 extension
SERIAL
DB-9 female connector for RS-232
POWER INPUT
2.0mm power jack for DC5V/2A
RJ-45, Power over Ethernet 36V~57V / 7W in (PoE model only)
OPERATING TEMPERATURE
OPERATING HUMIDITY
5%~90% RH
POWER ADAPTER
AC in 100~240V (50~60Hz), DC5V/2A out
ESD
ESD protectionair gap
DIMENSION (W x D xL)
130 x 82 x 30.25 mm ( L x W x H )
WEIGHT
290gpertransmitterorreceiver unit
** Product specifications are subject to change without notice.
4. Hardware Description

PartilinkTechnology Co., Ltd Copyright @ 2016
5
■P2K-HRSL3E1 /P2K-HRSL3E1-P (TX)
1. 2.0 mm power jack for DC5V2A power input.
2. LAN port, RJ-45 connector for 10/100
BASE-T CAT5 extension.
3. HDMI Type-A female connector for loop
through video output.
4. HDMI Type-A female input connector.
5. 3.5mm phone jack for IR emitter to control
video source device.
6. DB-9 female connector for RS-232 cable
bi-directional remote extension
7. Display group indication.
8. Group configuration, 6 bits switch for 64
stream channel selection.

PartilinkTechnology Co., Ltd Copyright @ 2016
6
9. Reset button.
Channel
DIP SWITCH
00
000000
01
100000
~
~
63
111111
Dimension
Transmitter
P2K-HRSL3E1
P2K-HRSL3E1-P
Shell
Metal
Width
110mm/130mm
Height
30mm
Depth
86mm
Weight
290g

PartilinkTechnology Co., Ltd Copyright @ 2016
7
■P2K-LHRS1E3 /P2K-LHRS1E3 –P (RX)
1. 2.0 mm power jack for DC5V2A power input.
2. LAN port, RJ-45 connector for 10/100
BASE-T CAT5 extension.
3. HDMI Type-A female connector for video
output.
4. 3.5mm phone jack for IR receiver cable to
receive signal from remote controller.
5. DB-9 female connector for RS-232
bi-directional remote extension.
6. Display group indication.
7. Group configuration, 6 bits switch for 64
stream channel selection.

PartilinkTechnology Co., Ltd Copyright @ 2016
8
8. Reset button.
Channel
DIP SWITCH
00
000000
01
100000
~
~
63
111111
9. Dimension
Receiver
P2K-LHRS1E3
P2K-LHRS1E3-P
Shell
Metal
Width
110mm/130mm
Height
30mm
Depth
86mm
Weight
290g

PartilinkTechnology Co., Ltd Copyright @ 2016
9
5. Installation
5.1 Device Connection
1. Set up the group of transmitters with the
correspondent receivers for signal extension
and display.
2. Connect between the Sources and
transmitters, the Displays and receivers with
HDMI cables.
3. Connect CAT-5 cables with transmitters to the
Ethernet Switch inputs, and CAT-5 cables with
receivers to the Ethernet Switch outputs.
4. Powering the transmitters and receivers with
DC5V power adapter.
5. Turn the Source on and hit play button.
6. Connect the IR emitter cable with transmitters
and the IR receiver cable with the receiver to
control the Source remotely.

PartilinkTechnology Co., Ltd Copyright @ 2016
10
5.2 Configuration
5.3 Application Pattern
■ Unicast

PartilinkTechnology Co., Ltd Copyright @ 2016
11

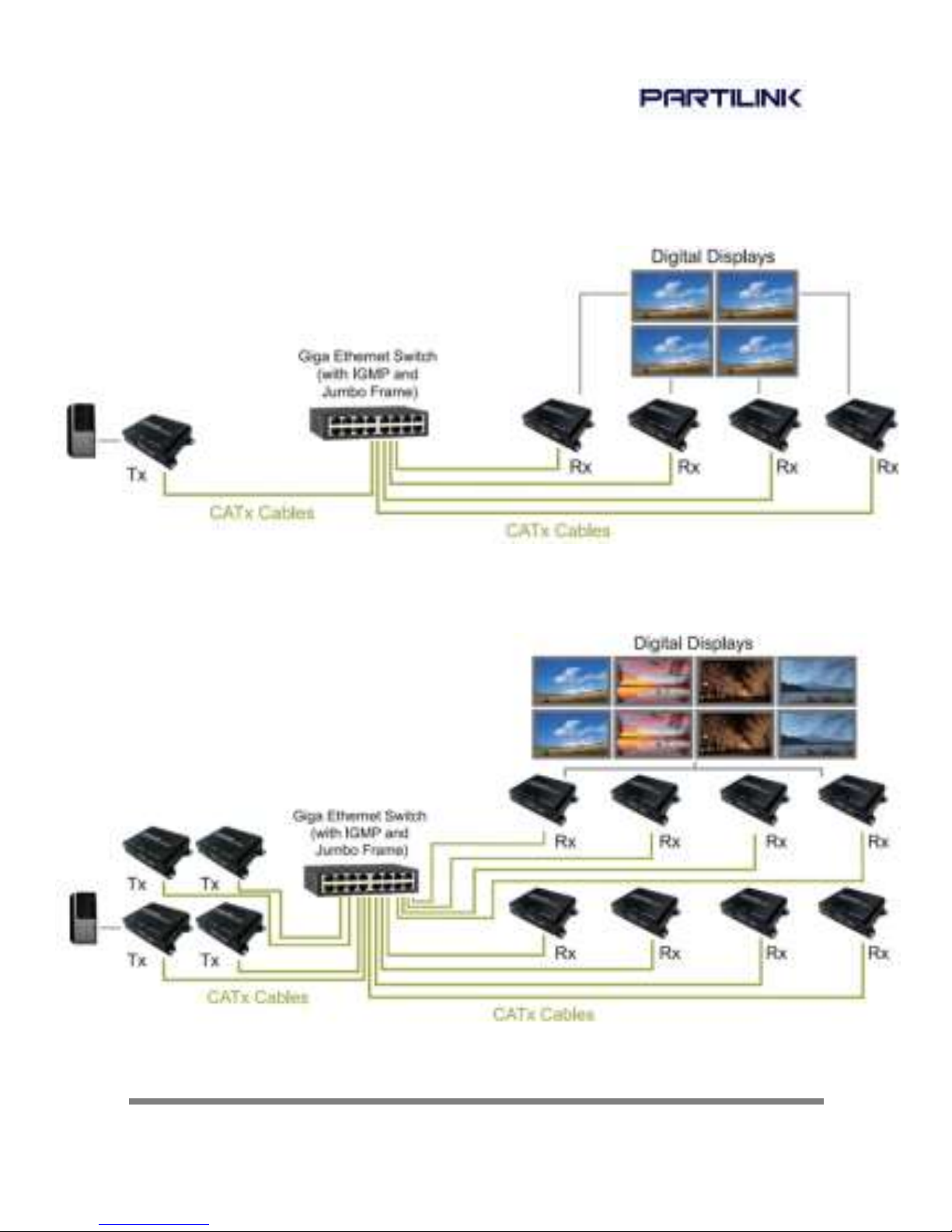

■Multicast

PartilinkTechnology Co., Ltd Copyright @ 2016
12
■Screen Wall

PartilinkTechnology Co., Ltd Copyright @ 2016
13
5.4 PC Tool Setup and Control
The P2K-HL3E1 / P2K-HL3E1-P is a Ethernet
based system, administrator can control the
system by PC via the PC tool ”
IPTV_Control_Center.exe” to set up and control
the system.
※To inquire about the software, visit Partilink
website to download the PC tool or simply
contact us by email.
Download Site: “Technical Service”
http://www.partilink.com/index.php/en/download-2
Service Email: [email protected]m
1. The default IP address of the P2K-HRSL3E1 /
P2K-HRSL3E1-P is B class
Networking :168.254.xxx.xxx, please set up
the IP address of the connected PC as static
IP, such as 169.254.xxx.xxx and the sub mask
as 255.255.0.0.

PartilinkTechnology Co., Ltd Copyright @ 2016
14
2. Connect the PC with the Ethernet Switch of
application site to enter.
3. Activate the tool “IPTV_Control_Center.exe” to
search and setup.

PartilinkTechnology Co., Ltd Copyright @ 2016
15
4. Enter the tool in “Device Scan Page” and click
on “Start Scan” to search for the connected
devices. The connected devices will be
indicated in “Output Window” area. (Illustration
[1] [2])
5. Adjust transmitter settings in “TX Setup Page”

PartilinkTechnology Co., Ltd Copyright @ 2016
16
and receiver settings in “RX Setup Page”.
(Illustration [3])
6. TRANSMITTER SETTINGS
In the “TX Setup Page”, please select the TX
device which is required to setup on the “TX
Device Selection” and the relevant setting
information of the selected TX device will be
shown in the “TX Device Info” area (Illustration
[4] [5])

PartilinkTechnology Co., Ltd Copyright @ 2016
17

PartilinkTechnology Co., Ltd Copyright @ 2016
18
The setting functions of the transmitter clarified
below, please set up based on the request of the
application site.
IP Setup:
Setting the static IP of the selected TX. **We
suggest activating the DHCP automatic IP
assignment to avoid the conflicts of IP
address. (Illustration [6])
Video Bitrate:
Setting the resolution’s video bitrate of each
group on the selected TX (Illustration [7])
Down Scale Setup:
Set the resolution downscale of each group
on the selected TX. (Illustration [8])
Group ID:
Set the selected TX group ID, with maximum
up to 64 groups from 0 to 63. (Illustration [9])
