VIBRAZUM V2
USER MANUAL

INTRODUCTION:
INSTALLATION:
Triple resonant multi-VCF capable of subtle to extreme tone shaping.
The three channels have dedicated frequency outputs and mix output.
It was designed to create movement to the sound thanks to the indivudual
frequency voltage control inputs.
Each channel is able to sweep through all the frequency spectrum.
A dedicated shift control with attenuverter cv input is able to swap all
3 filtres at the same time.
Different types of drawing in the spectrum are possible to play with.
The Vibrazum shines at high feedback with 24dB slope, the resonance is
full of rich harmonics from a gnarly tone-shaping tool of sonic destruction
to vowel robotic sounds.

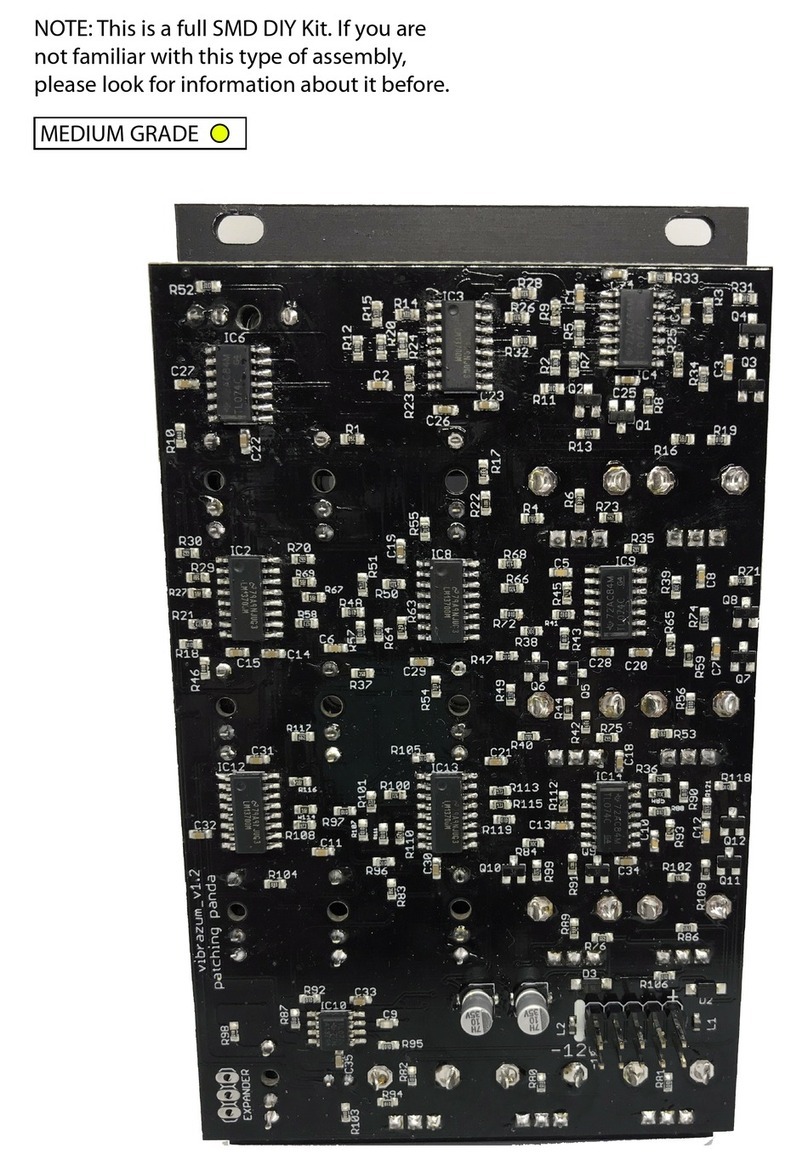

* Disconnect your synth from the power source.
* Double check polarity from the ribbon cable, unfortanetly if you damage
the module by powering in the wrong direction it will not be covered by
the warranty.
* After connecting the module check again you have connected the right
way, the red line should be on the -12V

N
K
F G H I J
A B C D E
L M
O
S
Q R
P
A
B
C
D
E
F
G
H
I
J
INSTRUCTIONS
Audio input
Frequency output 1
Freq3 ResponseFreq1 Response Freq2 Response
Frequency 1 cv input
Frequency 2 cv input
Frequency 3 cv input
Resonance cv input
Shift all freq cv input
Frequency output 2
Frequency output 3
Frequency mixed output
K
L
M
N
O
P
Q
R
S
Gain amount input
Gain amount resonance
Frequency 3 control
Frequency 1 LP/BP swicth
Frequency 2 LP/BP swicth
Shift all freq control
Shift attenuverter control
Frequency 1 control
Frequency 2 control
