Patriot 1.0M User manual

1.0m-1.2m Dual Optic
Offset Antenna
Transmit-Receive

2
This PATRIOT ANTENNA equipment is warranted to be free from defects in material and workmanship un-
der normal use and service. PATRIOT ANTENNA shall repair or replace defective equipment, at no charge,
or at its option, refund the purchase price, if the equipment is returned to PATRIOT ANTENNA not more than
twelve (12) months after shipment. Removal or reinstallation of equipment and its transportation shall not be
at cost of PATRIOT ANTENNA except PATRIOT ANTENNA shall return repaired or replaced equipment
freight prepaid.
This Warranty shall not apply to equipment which has been repaired or altered in any way so as to affect
its stability or durability, or which has been subject to misuse, negligence or accident. This Warranty does
not cover equipment which has been impaired by severe weather conditions such as excessive wind, ice,
storms, lightning, or other natural occurrences over which PATRIOT ANTENNA has no control, and this War-
ranty shall not apply to equipment which has been operated or installed other than in accordance with the
instructions furnished by PATRIOT ANTENNA.
Claimants under this Warranty shall present their claims along with the defective equipment to PATRIOT
ANTENNA immediately upon failure. Noncompliance with any part of this claim procedure may invalidate
this warranty in whole or in part.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER AGREEMENTS AND WARRANTIES, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED
IN DURATION TO THE DURATION OF THIS WARRANTY. PATRIOT ANTENNA DOES NOT AUTHORIZE
ANY PERSON TO ASSUME FOR IT THE OBLIGATIONS CONTAINED IN THIS WARRANTY AND PATRI-
OT ANTENNA NEITHER ASSUMES NOR AUTHORIZES ANY REPRESENTATIVE OR OTHER PERSON
TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE EQUIPMENT DELIVERED OR
PROVIDED.
IN NO EVENT SHALL PATRIOT ANTENNA BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE, IN-
TERRUPTION OF BUSINESS, OR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND.
In no event shall PATRIOT ANTENNA be liable for damages in an amount greater than the purchase price
of the equipment.
Some states do not allow limitations on how long an implied warranty lasts, or allow the exclusion or limita-
tion of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
PATRIOT ANTENNA has the right to void the warranty when the antenna is installed by someone other then
a certified installer.
LIMITED TWELVE (12) MONTH WARRANTY
Product Serial Number- _________________
Date Purchased- ____________
Patriot Antenna Systems
704 North Clark Street
Albion, MI 49224 USA
Tel: [phone]
Fax: [phone]
E-mail: [email protected]

3
.
1. Perform as many functions as possible on the ground.
2. Watch out for overhead power lines. Check the distance to the power lines before starting installation.
We recommend you stay a minimum of 6 meters (20 feet) from all power lines.
3. Do not use metal ladders.
4. Do not install antenna or mast assembly on a windy day.
5. If you start to drop antenna or mast assembly, get away from it and let if fall.
6. If any part of the antenna or mast assembly comes in contact with a power line, call your
local power company. DO NOT TRY TO REMOVE IT YOURSELF! They will remove it safely.
7. Make sure that the mast assembly is properly grounded.
WARNING
Assembling dish antennas on windy days can be dangerous. Because of the antenna surface, even slight
winds create strong forces. For example, a 1.0m antenna facing a wind of 32 km/h (20 mph) can undergo
forces of 269 N (60 lbs.). Be prepared to safely handle these forces at unexpected moments. Do not at-
tempt to assemble, move or mount dish on windy days or serious, even fatal accidents may occur. PA-
TRIOT ANTENNA SYSTEMS is not responsible or liable for damage or injury resulting from antenna
installations.
WARNING
Antennas improperly installed or installed to an inadequate structure are very susceptible to wind damage.
This damage can be very serious or even life threatening. The owner and installer assumes full responsibil-
ity that the installation is structurally sound to support all loads (weight, wind & ice) and properly sealed
against leaks. PATRIOT ANTENNA SYSTEMS will not accept liability for any damage caused by a
satellite system due to the many unknown variable applications.
INSTALLATION OF THIS PRODUCT SHOULD BE PERFORMED ONLY BY A PROFESSIONAL
INSTALLER AND IS NOT RECOMMENDED FOR CONSUMER D.I.Y. (DO-IT-YOURSELF)
INSTALLATIONS.
IMPORTANT!!!
WATCH FOR WIRES!
Installation of this product near power lines is dangerous. For your own safety,
follow these important safety rules.

4
Unpacking and Inspection
Shipping cartons should be unpacked and contents checked for damaged or missing parts. Should there be any parts that
are damaged or missing, please contact technical support for replacement.
Site Selection
The main objective of conducting a site survey utilizing a compass and inclinometer is to choose a mounting location on the
ground that will give you the greatest amount of swing for azimuth and elevation for present as well as future use. A thorough
pre-installation site survey is strongly recommended because it can alert you to any “look angle”, soil, wind or other
problems.
The first and most important consideration when choosing a prospective antenna site is whether or not the area can provide
an acceptable “look angle” to the satellite. A site with a clear, unobstructed view facing south, southeast is required. Your
antenna site must be selected in advance so that you will be able to receive the strongest signal available. Also consider
obstructions that may occur in the future such as the growth of trees.
It is important to conduct an on-site survey with a portable antenna or with a compass and clinometer to avoid interference,
obstructions, etc.
When selecting “look angle”, be sure to observe and take readings approximately 10 deg to the left and right, above and
below your selected “look angle”.
Before Ground Pole Installation, the soil type should be checked because soil conditions vary widely in composition and
load bearing capacity. A soil check will help you to determine the type
and size of foundation required to provide a stable base for the antenna.
Before digging is done, information regarding the possibility of underground telephone lines, power lines, storm drains, etc.,
in the excavation area should be obtained from the appropriate agency.
As with any other type of construction, a local building permit may be required before installing an antenna. It is the property
owner’s responsibility to obtain any and all permits. Ground mounts are certified for 125 mph wind survival.
Introduction
Thank you for purching your Patriot Commercial Antenna. We trust that you will find this to be a well
designed product that will proved many years of reliable service. Please read this manual thoroughly before
beginning assembly. For best results in the assembly process, perform each step in the same sequence as
listed in this manual. Record the serial munber of the unit on to page two for future refferance and read the
warrenty information. The serial number plate can be found on the pedestal mount.

5
ITEM NO. DESCRIPTION PART NO. REV NO. QTY
1 BRKT, 3” PIPE GRAY 210080G 000 2
2 BRKT, AZIMUTH GRAY 212081G 000 1
3 BRKT 1.2m D.O. FEED 212006 000 1
4 SUB REF, D.O. PAINTED 212007 000 1
5 CLEVIS, 3” ELEVATION SMALL 210082G 000 1
6 CLEVIS, UPPER ELEV BIG 210083G 000 1
7 THRD ROD,1/2NF X 13”FINE 3HT08130FS 000 1
SEE PG 9 SPACER, .25L x1.25od x .312 id 3HM11100 000 2
8 TUBE, 1.0m DUAL OPTIC FEED 210005 000 1
* TUBE, 1.2m DUAL OPTIC FEED 212005 000 1
9 ASSY, 1.0m BACK STRUCT. 210002G 000 1
* ASSY, 1.2m BACK STRUCT 212002G 000 1
10 REFLECTOR, 1..0M GRAY 2100-0002 000 1
* REFLECTOR, 1.2m GRAY 212001G 000 1
1
34
5
6
9
8
72
10

6
54.00
ABOVE GROUND
24.00
A A
RsddkL`rs9K<61║:
1,6.7║'62ll(nq2║'65ll(N-C-Stahmf Oktlavhsghm0cdf-
╕Bnmbqdsd92///orh`s17c`xr+ontqdc`f`hmrstmchrstqadcrnhk'@kknvbnmbqdsd13gntqrds
shldadenqdhmrs`kk`shnmne`msdmm`(
╕RnhkAd`qhmfB`o`bhsx=1///ore-
╕Fqntmcsgd@msdmm`snldds`ookhb`akdknb`kBncdr-
72.00
10.00
SECTION A-A
# 5 REBAR
NINE INCH LONG
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
87654321
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
PATRIOT ANTENNA SYSTEMS. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
PATRIOT ANTENNA SYSTEMS IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
FRACTIONAL 1/16"
ANGULAR: 1
X .062"
XX .031"
XX .015"
DRAWN BY:
ENG APPR.
NOTES:
DATE
NAME TITLE:
SIZE
BDWG. NO. REV
SCALE: 1:10
UNLESS OTHERWISE SPECIFIED:
SHEET 1 OF 1
REVISIONS
DESCRIPTION
REV. DATE APPROVED
ZONE
DPRATT 10/09/2006
XXX
XXXXXX
2 7/8 OR 3" IN-GROUND PIPE MT
MATERIAL:
Tolerances:
DIMENSIONS ARE IN INCHES:
CORNERS ARE AT 90

7
Non-Penetrating Mount (optional)
1. Assemble the Non-Penetrating mount per the supplied instructions to provide the mast for
the mount installation.
2. Refer to the ballast chart for the required ballast to be placed in the Non-Pen Ballast Trays.
NOTE: Higher elevation angles can use less ballast. If there are any possible future elevation
adjustments that could result in a lower elevation angle use the 22 deg elevation angle from
the chart for the ballast requirement!
Add-on Dual Tray
(if necesary)
28 lb
9 blocks per tray
4x8x16 Block
Elevation
(deg)
80 100 125
22 259 480 826
40 202 374 644
60 116 216 372
100cm Ballast Chart
Ballast Required (lbs)
Wind Speed (mph)
Dual Tray
Elevation
(deg)
80 100 125
22 411 733 1236
40 321 572 964
60 185 330 556
120cm Ballast Chart
Ballast Required (lbs)
Wind Speed (mph)
*
*
*
* Installations in excess of 100 mph wind
speed requirement are to be tethered.

8

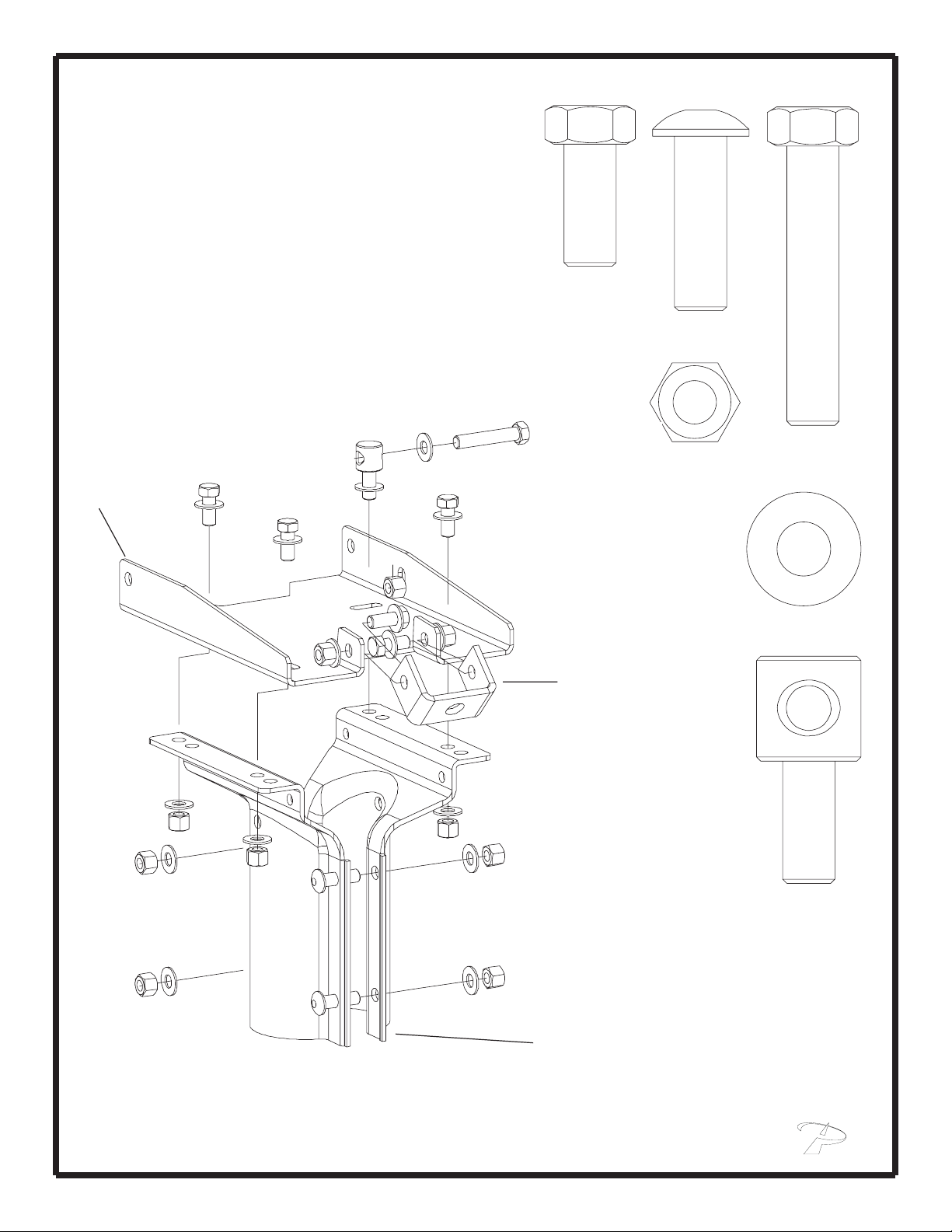

Az-El Mount Assembly
1. Using the hardware illustrated, as-
semble the Pipe brackets, Azimuth
bracket, and Clevis bracket as shown.
Azimuth
Bracket
Pipe
Bracket
Clevis
1x
11x
18x
5x 4x
1x
A
B
C
D
E
F
A
A
A
A
A
B
B
C
D
D
D
D
D
D
D
DD
D
E
E
E
E
E
E
E
E
E
E
E
E
E
FC
E

9
210002G
ASSY, 1.0m BACK STRUCT.
2120022G
ASSY, 1.2m BACK STRUCT.
3HM11100
SPACER, .25Lx1.25od x .312id
FOR USE WITH 1.0m ONLY
2100-0002
REFLECTOR, 1.0m GRAY
212001G
REFLECTOR, 1.2m GRAY
INSTALL CAP
ON THIS END
Back Structure Assembly
1. Attach Reflector to Back Structure as pictured below.
2. Insert plastic cap into end as pictured.
NOTE: Use the two spacers where shown as pictured below ONLY on 1.0m Antenna.

10

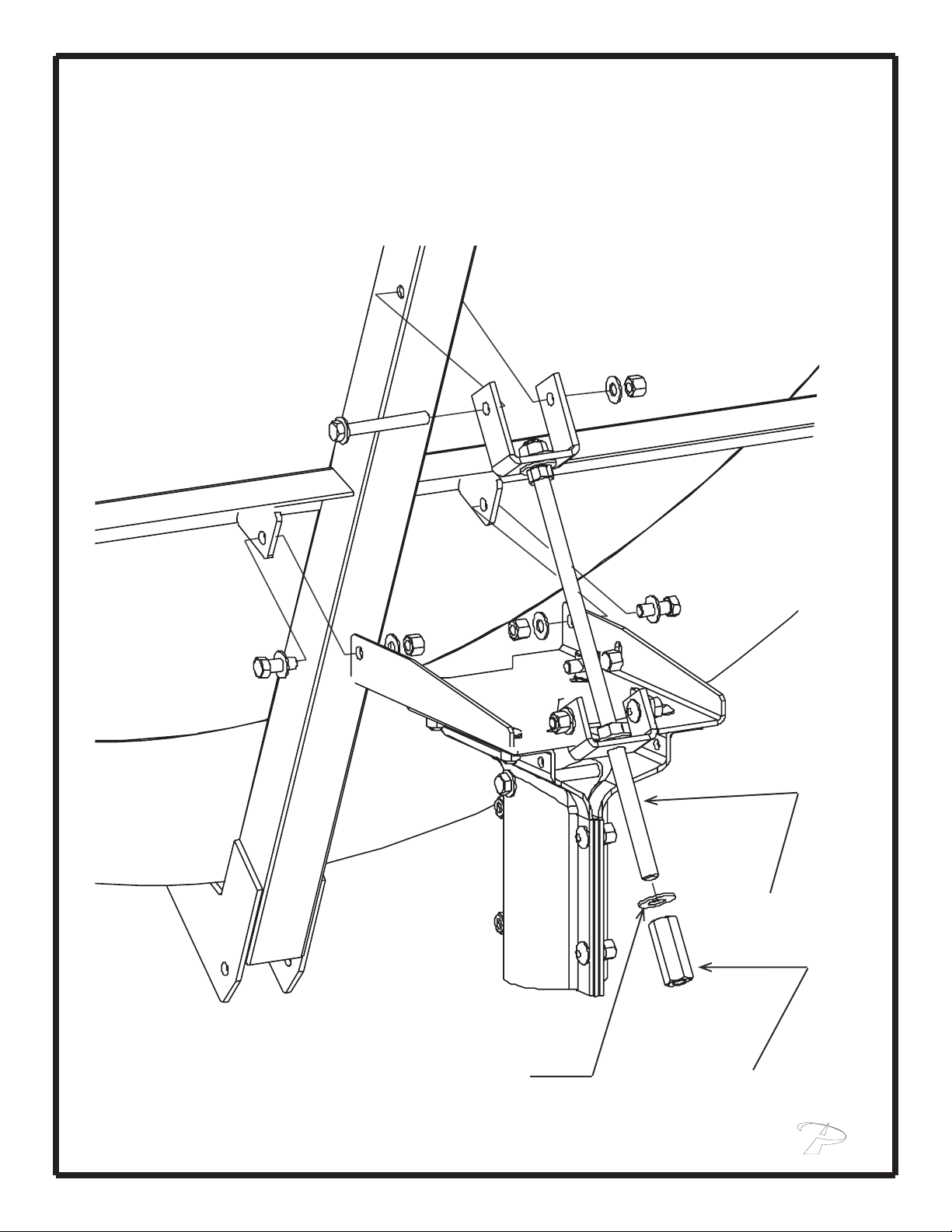

Mount Assembly
1. Attach the Antenna-Back Structure
Assy to the Azimuth Bracket using
the illustrated hardware.
2. Add the Elevation adjustment
hardware and Upper Clevis using the
hardware shown.
3HN050125CNFHXS
NUT, 1/2 NF COUPLING
3HT09130FS
THRD ROD, 1/2 NF x 13”
1/2” WASHER
ON BOTH SIDES
OF THE CLEVIS

11
INSTALL CAP
ON THIS END
INSTALL CAP
ON THIS END
2. Assemble the Sub Reflector to the Feed Support Tube using 4- 1/4x2-1/2 bolts, washers.
3. Assemble the Feed horn, Filter, Radio, and LNB per the instruction sheet supplied in the
Feed Assy Kit.
Feed Support Assembly
1. Bolt the Feed Support Tube to the Back Structure using 2- 3/8 bolts, washers(2 per) and
nuts.
212006
BRKT, 1.2M D.O. FEED
212007
SUB REF., D.O. PAINTED
SEE FEED CHART AT THE
END OF THIS MANUAL
FOR INSTALLATION
DIRECTIONS
210005
TUBE, 1.0m D.O. FEED
202005
TUBE, 1.2m D.O. FEED

12
Antenna Pointing
1) Begin by obtaining the correct Az/El pointing data for the satellite of interest based for your site location.
2) Using an inclinometer or position readout form controller placed on the enclosure drum surface, position the
antenna to the specified elevation angle.
3) Manually scan the antenna (back-and-forth in the azimuth around the direction of the specified azimuth
angle) to achieve the maximum transponder signal.
4) Next repeat the procedure for elevation.
5) Repeat this procedure alternating between the azimuth and elevation until maximum transponder signal is
achieved.
External
Toothed
Washer
Grounding
Grounding Antenna Feed Cables
1. Ground antenna feed cables in accordance
with current National Electric code and local elec-
tric codes. The illustration shows a typical
grounding method.
Clamps that provide a solid connection between
ground wire and a ground source should be used.
Grounding Non-Penetrating
Mount Frame (if applicable)
1. Ground the Non-Penetrating mount
frame. The illustration shows a typical
grounding method.
Refer to the NEC Section 810 and local elec-
tric codes for specific instructions on ground-
ing the remaining end of the ground wire.
Coaxial
Cable
(to LNB)
Ground Block
NEC Section 810
Ground Wire
NEC Section 810
Non-Pen
Frame
Ground
Lug
1/4” Tapping
Bolt

13
1.0 m Type-Approved Ku-Band
Tx/Rx Antenna Systems Intelsat Type-Approval #IA084A00
1.0 m Type-Approved Ku-Band
Tx/Rx Antenna Systems
Ka-Band Receive Transmit Receive Transmit
Polarity Linear Linear Circular Circular
Frequency 18.2 - 21.2 GHz 27.5 - 31 GHz 19.7-20.2 GHz 29.5-30 GHz
Feed - 2 - Port Xpol
Return Loss 17.7 dB typ 20 dB typ 16 dB typ 18 dB typ
Insertion Loss 0.3 dB typ 0.1 dB typ 0.5 dB typ 0.3 dB typ
Tx/Rx Isolation 40 dB 80 dB 40 dB 80 dB
Feed Interface WR42 WR28 WR42 WR28
Antenna
Efficiency 65% 65% 65% 65%
Cross Polarization On Axis 30 dB 35 dB 21 dB 21 dB
within 1 dB Beamwidth 22 dB 25 dB 21 dB 21 dB
Tx/Rx Sidelobe Level 29 - 25 logT 100O/D < T< 20°
-3.5 20° < T< 26.3°
32 - 25 log T26.3° <T< 48°
-10 48° <T
Gain 44.2 dBi 47.8 dBi 44.6 dBi 48.1 dBi
(29.75 Tx, 19.95 Rx)
Noise Temperature 78K @ 30°EL --- 90K @ 10°EL ---
Ku-Band Transmit Receive
Polarity Linear Linear
Frequency 13.75 - 14.5 GH
z
10.7 - 12.75 GHz
Feed - 2 Port Xpol
Return Loss 20 dB typ 17.7 dB typ
Insertion Loss 0.1 dB typ 0.3 dB typ
Tx/Rx Isolation 80 dB 40 dB
Feed Interface WR75 WR75
Antenna Transmit Receive
Efficiency 70% 70%
Cross Polarization On Axis 35 dB 35 dB
within 1 dB Beamwidth 26 dB 26 dB
Tx/Rx Sidelobe Level 29 - 25 log T100O/D < T< 20°
-3.5 20° < T< 26.3°
32 - 25 log T26.3° <T < 48°
-10 48° < T
Gain 41.9 dBi 40.2 dBi
(14.125 Tx, 11.725 Rx)
Noise Temperature --- 61K @ 10°EL
53K @ 30°EL
Dual Optics Specs
Cross Polarization on axis 35 dB 35 dB typ
within 1 dB Beamwidth 35 dB 35 dB typ
Tx/Rx Sidelobe 29 - 25 logT 2.5° < T< 7°
Level +8 7° <T < 9.2°
32 - 25 log T 9.2° < T< 48°
-10 48° < T
Feed - 2 Port Xpol
Return Loss 20 dB typ 17.7 dB typ
Insertion Loss 0.1 dB typ 0.3 dB typ
Tx/Rx Isolation 80 dB 40 dB
Feed Interface WR75 WR75
Antenna Specifications
Efficiency 70% 70%
Midband Gain 41.9 dBi 40.2 dBi
Noise Temperature --- 61 K @ 10° EL
--- 53 K @ 30° EL
Mechanical Data
f/D Ratio 0.635
Focal Distance 25 in / 63.5 cm
Mount Type evation over Azimuth
Mast Pipe Size
3
in / 7.30 or 7.62 cm
Offset Angle 22°
Elevation Adjustment
u
ous Fine Adjustment
Azimuth Adjustment ine, 360° Continuous
Environmental Data
Wind Loading Operational 60 mph, gusts of 100 kph, gusts to
Survival 120 mph 193 kph
Temperature Operational -40° to 140° F ( -40° to 60°C)
Survival '-60° to 180°F ( -51° to 82°C)
Rain Operational 1.5 in/hr (3.1 cm/h)
Survival 3 in/ hr (7.6 cm/h)
Ice Survival 2.5cm (1 inch) radial or 1.3cm (.5 inch)

14
1.2 m
Tx/Rx Antenna Systems
1.2 m
Tx/Rx Antenna Systems EutelsatTypeApproval #EA-A020
IntelsatTypeApproval #IA083A00
Ku-Band
Transmit Receive Transmit Receive Transmit
Frequency 5.7-6.725 GHz 3.625-4.2 GHz 5.85-6.425 GHz Frequency 10.7 - 12.75 GHz 13.75 - 14.5 GHz
Feed - 2 Port Xpol intelsat approved Frequency 10.7 - 12.75 GHz 13.75-14.5 GHz
Return Loss 20 dB typ 17.7 dB typ 20 dB typ eutelsat approved Frequency 10.7 - 12.75 GHz 14.0 - 14.5 GHz
Insertion Loss 0.1 dB typ 0.5 dB typ 0.3 dB typ Feed - 2 Port Xpol
Tx/Rx Isolation 70dB 40 dB 60 dB Return Loss 17.7 dB typ 20 dB typ
Feed Interface WR137 or N WR229 WR137 or N Insertion Loss 0.3 dB typ 0.1 dBtyp
Antenna Tx/Rx Isolation 40 dB 80 dB
Efficiency 72% 68% 68% Feed Interface WR75 WR75
Cross Polarization On Axis 30dB 17.7 dB typ 17.7 dB Dual Optics Specifications
within 1 dB Beamwidth 25 dB 17.7 dB typ 17.7 dB Cross Polarization on axis 35 dB 35 dB typ
Tx/Rx Sidelobe Level 100O/D <T< 48° within 1 dB Beamwidth 35 dB 35 dB typ
qT Tx/Rx Sidelobe 29 - 25 log T 2.5° < T< 7°
Level 8 7° < T< 9.2°
TXFLY-120C 32 - 25 log T 9.2° <T < 48°
Midband Gain 36.4 dBi 32.2 dBi 36.1 dBi -10 48° < T
(6.138 Tx, 3.913 Rx) Antenna
Noise Temperature 65 K@10 Efficiency 70% 70%
45K @ 30°EL 55K@ 30 Cross Polarization On Axis 30 dB 35 dB
within 1 dB Beamwidth 22 dB 26 dB
Transmit Receive Transmit Tx/Rx Sidelobe better than 100O/D < T< 20° 29 - 25 log T
Frequency 27.5 - 31 GHz 19.7 - 20.2 GHz 29.5 - 30 GHz 20° < T< 26.3° -3.5
Feed - 2 Port Xpol 26.3° < T< 48° 32 - 25 log T
Return Loss 20 dB typ 16 dB typ 18 dB typ 48° < T -10
Insertion Loss 0.1 dB typ 0.5 dB typ 0.3 dB typ Midband Gain 41.8 dBi 43.5 dBi
Tx/Rx Isolation 80 dB 40 dB 80 dB (14.125 Tx, 11.725 Rx)
Feed Interface WR28 WR42 WR28 Noise Temperature 58 K @ 10° EL ---
Antenna 53 K @ 30° EL ---
Efficiency 65% 65% 65%
X-Band
Midband Gain 49.5 dBi 46.1 dBi 49.6 dBi Polarity Receive Transmit
Noise Temperature --- 86K @ 10°EL --- Frequency 7.25 - 7.75 GHz 7.9 - 8.4 GHz
81K @ 30°EL Feed - 2 Port Xpol
Cross Polarization On Axis 30 dB 21 dB 21 dB Return Loss 17.7 dB typ 17.7dB
within 1 dB Beamwidth 22 dB 21 dB 21 dB Insertion Loss 0.3 dB typ 0.2 dB typ
Tx/Rx Sidelobe Level 100O/D <T< 48° *Tx/Rx Isolation 30 dB 30 dB
qT Feed Interface WR112 WR112
TXFCC-120KA Antenna Specifications
Efficiency 70% 70%
Midband Gain 38.0 dBi 38.7 dBi
Noise Temperature 50 K @ 10° ---
45 K @ 30°
Cross Polarization On Axis 23 dB 21dB
1 dB beamwidth 23 dB 21 dB
Tx/Rx Sidelobe Level 100 O/D < T< 20° 29 - 25 log T
20° < T< 26.3° -3.5
26.3° < T< 48° 32 - 25 log T
48° <T -10
C-Band Linear C-Band Circular Ku-Band Linear
Ka-Band Linear Ka-Band Circular
X-Band Circular
Mechanical Data
f/D Ratio 0.635
Focal Distance 30 in / 76.2 cm
Mount Type Elevation over Azimuth
Mast Pipe Size 2 7/8 or 3 in / 7.30 cm or 7.62 cm O.D.
Offset Angle 22°
Elevation Adjustment 8° to 90° Continuous Fine Adjustment
Azimuth Adjustment + 3° Fine, 360° Continuous
Environmental Data
Wind Loadin
g
Operational 100 kph, gusts to 130 kph
Survival 193 kph
125mph Wind forcesWind Force
Overturning Moment
Temperature Operational ( -40° to 60°C)
Survival ( -51° to 82°C)
Rain Operational (3.1 cm/h)
Survival (7.6 cm/h)
Ice Survival 2.5cm (1 inch) radial or 1.3cm (.5 inch)

15
Notes:

16
Notes:

Tx Port
Rx Port
X-
B
Cir
Feed Assembly
1. Attach the relevant Feed Assembly.
2. Insert the Feed Assembly into the Feed holder and
assemble to the Feed Support Tube using the
hardware illustrated below.
3. Insert plastic plug into end of feed support tube.
Rx Port
Plug
Feed
Holder
Feed
Support
Tube
Tx Port
C-Band
Circular
Tx Port
Rx Port
Tx Port
Rx Port
X-Band
Circular
Ka-Band
Linear
Rx Ports
1. Adjust the Feed to the appropriate skew angle
using the provided scale reference.
NOTE: Refer to the chart on back for polarization
angle. Elevation and polarity are both dependent on
site azimuth and the difference between satellite and
site longitude.
NOTE: Some satellites have a slant angle with
respect to the satellite belt angle. Contact the satellite
operator for details.
Feed Adjustment (Polarity tuning)
Feed Rotation Chart
Install site west Install site East
of satellite of satellite
CW CCW Northern Hemisphere
CCW CW Southern Hemisphere
CW
CCW
Polarity Scale
Reading Points
LNB
BUC
2MOSF-001 REV002
KA-Band
Circular
Tx/Rx
Ku-Band
Co-Pol
Tx/Rx
Ku Band
Rx
KA-Band
Linear Tx/Rx
C-Band
Linear
Ku Band
Tx/Rx
Tx Port
Rx Port
Tx Port
Rx Port
Rx Port
Tx Port
Rx Port
Tx Port
Rx Port
Tx Port
Rx Port
C-Band Rx C-Band Dual Rx
Tx Port
R x Port

Equipment From The Industry’s Lead-
ing Satellite Equipment
Manufacturer’s
Available Together - In One Place...
We are Cal-Amp’s LARGEST
STOCKING DISTRIBUTOR!
No Long Lead Times...
No Drop Ship Fees...
High Inventory...
Great Prices...
Complete line of Quality Feedhorns,
Receivers and Accessories - from a
name you trust
W e A l s o O f f e r P r o d u c t s f r o m t h e f o l l o w i n g :
Durable Snow Covers for Commercial
Antennas as well as Home System -
Keep snow from interfering with your
signal.
Prevent Snow & Ice from accumlulating
on your system with a De-Icing System. Complete line of Antenna Controllers,
Positioners and Software for your
motorized applications.
Looking to increase your
satellite’s reception? Try
upgrading your feed
system to a Multi-Beam
Feed. Receive up to 4
simultaneous satellites
Products Also Avaliable from:
Offset VSAT
& DBS Antennas Available!
• ADL • General Instruments
• Baird • Norsat
• Drake • Standard Comm
• DX • Thomson-Saginaw
• Force • Wegner
Toll Free 1-800-470-3510

2M10092 REV001
PATRIOT ANTENNA SYSTEMS
704 NORTH CLARK STREET
ALBION, MICHIGAN 49224 USA
WWW.SEPATRIOT.COM
Specifications
Electrical
Tx Band(GHz)
Rx Band(GHz)
Tx Gain dBi (Midband)
Rx Gain dBi (Midband)
Efficiency
Side Lobes
Cross Polarization (on axis)
Mechanical
Antenna Size 1.0m (39.4”) 1.2m (47.3”)
Offset Angle 22 degrees
F/D 0.635
Operational Wind 50mph
Survival Wind 125mph
Operational Temp -40 to 140 F
Survival Temp -60 to 180 F
Rain Operational = 1/2in./hr
Survival = 3in./hr
Ice 1 in. Radial -or-
1/2 in. + 60mph wind
Pole Size 2-7/8” or 3” OD
Ku Band Ka Band
1.0m - 1.2m 1.0m - 1.2m
13.75 - 14.50
10.70 - 12.75
41.90 - 43.50
40.30 - 41.80
70%
ITU-580-5
35dB
29.50 - 30.00
19.70 - 20.20
48.10 - 49.70
44.60 - 46.00
65%
