Patriot 2.4m Offset Antenna User manual

2.4m Oset Antenna
Receive only and
Transmit-Receive

2
This PATRIOT ANTENNA equipment is warranted to be free from defects in material and workmanship un-
der normal use and service. PATRIOT ANTENNA shall repair or replace defective equipment, at no charge,
or at its option, refund the purchase price, if the equipment is returned to PATRIOT ANTENNA not more than
twelve (12) months after shipment. Removal or reinstallation of equipment and its transportation shall not be
at cost of PATRIOT ANTENNA except PATRIOT ANTENNA shall return repaired or replaced equipment
freight prepaid.
This Warranty shall not apply to equipment which has been repaired or altered in any way so as to affect
its stability or durability, or which has been subject to misuse, negligence or accident. This Warranty does
not cover equipment which has been impaired by severe weather conditions such as excessive wind, ice,
storms, lightning, or other natural occurrences over which PATRIOT ANTENNA has no control, and this War-
ranty shall not apply to equipment which has been operated or installed other than in accordance with the
instructions furnished by PATRIOT ANTENNA.
Claimants under this Warranty shall present their claims along with the defective equipment to PATRIOT
ANTENNA immediately upon failure. Noncompliance with any part of this claim procedure may invalidate
this warranty in whole or in part.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER AGREEMENTS AND WARRANTIES, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED
IN DURATION TO THE DURATION OF THIS WARRANTY. PATRIOT ANTENNA DOES NOT AUTHORIZE
ANY PERSON TO ASSUME FOR IT THE OBLIGATIONS CONTAINED IN THIS WARRANTY AND PATRI-
OT ANTENNA NEITHER ASSUMES NOR AUTHORIZES ANY REPRESENTATIVE OR OTHER PERSON
TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE EQUIPMENT DELIVERED OR
PROVIDED.
IN NO EVENT SHALL PATRIOT ANTENNA BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE, IN-
TERRUPTION OF BUSINESS, OR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND.
In no event shall PATRIOT ANTENNA be liable for damages in an amount greater than the purchase price
of the equipment.
Some states do not allow limitations on how long an implied warranty lasts, or allow the exclusion or limita-
tion of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
PATRIOT ANTENNA has the right to void the warranty when the antenna is installed by someone other then
a certied installer.
LIMITED TWELVE (12) MONTH WARRANTY
Product Serial Number- _________________
Date Purchased- ____________
Patriot Antenna Systems
704 North Clark Street
Albion, MI 49224 USA
Tel: [phone]
Fax: [phone]
E-mail: [email protected]om

3
.
1. Perform as many functions as possible on the ground.
2.Watch out for overhead power lines. Check the distance to the power lines before starting installation.
We recommend you stay a minimum of 6 meters (20 feet) from all power lines.
3. Do not use metal ladders.
4. Do not install antenna or mast assembly on a windy day.
5. If you start to drop antenna or mast assembly, get away from it and let if fall.
6. If any part of the antenna or mast assembly comes in contact with a power line, call your
local power company. DO NOT TRY TO REMOVE IT YOURSELF! They will remove it safely.
7. Make sure that the mast assembly is properly grounded.
WARNING
Assembling dish antennas on windy days can be dangerous. Because of the antenna surface, even slight
winds create strong forces. For example, a 1.0m antenna facing a wind of 32 km/h (20 mph) can undergo
forces of 269 N (60 lbs.). Be prepared to safely handle these forces at unexpected moments. Do not at-
tempt to assemble, move or mount dish on windy days or serious, even fatal accidents may occur. PA-
TRIOT ANTENNA SYSTEMS is not responsible or liable for damage or injury resulting from antenna
installations.
WARNING
Antennasimproperlyinstalledorinstalledtoaninadequatestructureareverysusceptibletowinddamage.
Thisdamagecanbevery serious or evenlifethreatening.Theownerand installerassumesfull responsibil-
ity that the installation is structurally sound to support all loads (weight, wind & ice) and properly sealed
against leaks. PATRIOT ANTENNA SYSTEMS will not accept liability for any damage caused by a
satellite system due to the many unknown variable applications.
INSTALLATION OF THIS PRODUCT SHOULD BE PERFORMED ONLY BY A PROFESSIONAL
INSTALLER AND IS NOT RECOMMENDED FOR CONSUMER D.I.Y. (DO-IT-YOURSELF)
INSTALLATIONS.
IMPORTANT!!!
WATCH FOR WIRES!
Installation of this product near power lines is dangerous. For your own safety,
follow these important safety rules.

4
Introduction
Unpacking and Inspection
Shipping cartons should be unpacked and contents checked for damaged or missing parts. Should there be any parts that
are damaged or missing, please contact technical support for replacement.
Thank you for purchasing your Patriot Commercial Antenna. We trust that you will find this to be a well designed product
that will provide many years of reliable service. This manual covers the assembly and installation of the7.5m Antenna
System. Read this manual thoroughly before beginning assembly. For best results in the assembly process. Perform each
step in the same sequence as listed in this manual. Record the serial number of the unit on to page 2 for future reference
and read the warranty information. The serial number can be found on the antenna back structure.
Site Selection
The main objective of conducting a site survey utilizing a compass and inclinometer is to choose a mounting location on the
ground that will give you the greatest amount of swing for azimuth and elevation for present as well as future use. A thorough
pre-installation site survey is strongly recommended because it can alert you to any “look angle”, soil, wind or other
problems.
The first and most important consideration when choosing a prospective antenna site is whether or not the area can provide
an acceptable “look angle” to the satellite. A site with a clear, unobstructed view facing south, southeast is required. Your
antenna site must be selected in advance so that you will be able to receive the strongest signal available. Also consider
obstructions that may occur in the future such as the growth of trees.
It is important to conduct an on-site survey with a portable antenna or with a compass and clinometer to avoid interference,
obstructions, etc.
When selecting “look angle”, be sure to observe and take readings approximately 10 deg to the left and right, above and
below your selected “look angle”.
Before Ground Pole Installation, the soil type should be checked because soil conditions vary widely in composition and
load bearing capacity. A soil check will help you to determine the type
and size of foundation required to provide a stable base for the antenna.
Before digging is done, information regarding the possibility of underground telephone lines, power lines, storm drains, etc.,
in the excavation area should be obtained from the appropriate agency.
As with any other type of construction, a local building permit may be required before installing an antenna. It is the property
owner’s responsibility to obtain any and all permits. Ground mounts are certified for 125 mph wind survival.
4
1. Follow the specifications for materials, layout, and preperation in Appendix A for the Foundation.
Foundation
Introduction
Thank you for purching your Patriot Commercial Antenna. We trust that you will nd this to be a well
designed product that will proved many years of reliable service. Please read this manual thoroughly before
beginning assembly. For best results in the assembly process, perform each step in the same sequence as
listed in this manual. Record the serial munber of the unit on to page two for future reerance and read the
warrenty information. The serial number plate can be found on the pedestal mount.

5

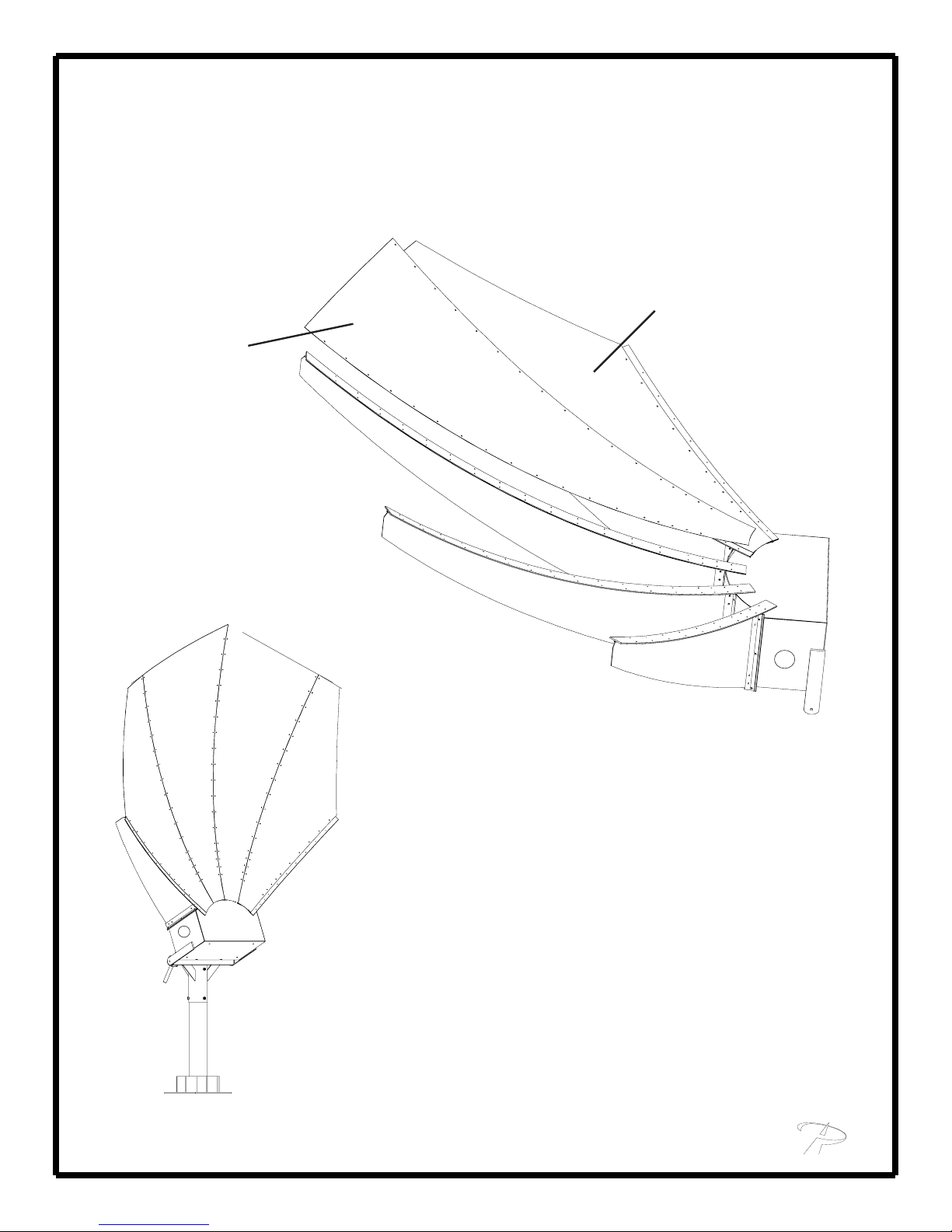

Item Number Part Description Part Number REV Quantity
1 PANEL,2.4 OFFSET B RIGHT 224099 000 1
2 PANEL,2.4 OFFSET A LEFT 224100 000 1
3 PANEL,2.4 OFFSET A RIGHT 224101 000 1
4 PANEL,2.4 OFFSET B LEFT 224102 000 1
5 ASSY, RADIAL BEAM 2.4 OFFSET A 224103 001 1
6 ASSY, RADIAL BEAM 2.4 OFFSET B 224106 001 2
7 ASSY, RADIAL BEAM 2.4 OFFSET C 224109 001 2
8 TUBE,SUPPORT 2.4 OFFSET FEED 224112 000 2
9 ASSY,2.4 OFFSET HUB 224115 000 1
10 ASSY, FEED ADAPTER, 2.4 OFFSET 224122 000 1
11 ASSEMBLY, 2.4OFFSET CURFING SHORT 224128 001 2
12 ASSEMBLY, 2.4OFFSET CURFING LONG 224129 001 2
pg 13 SHIM, 2.4M BOOM .125” 224131 000 4
pg 13 SHIM, 2.4M BOOM .25” 224132 000 4
13 BLOCK,3.1 PIVOT GALV 231104G 000 1
14 ANGLE,4.5 HUB 4M45004 000 5
15 ASSY,3.8 AZ-EL MOUNT 238011 002 1
(See Page 8 for further break down of this item)
16 ASSY,3.8 THREADED ROD 238002 001 1
2.4M.OFFSET MASTER HARDWARE 3HP240000 002 1
4
32
1
13
16
15
5
6
7
9
10 8
12
11
14

6

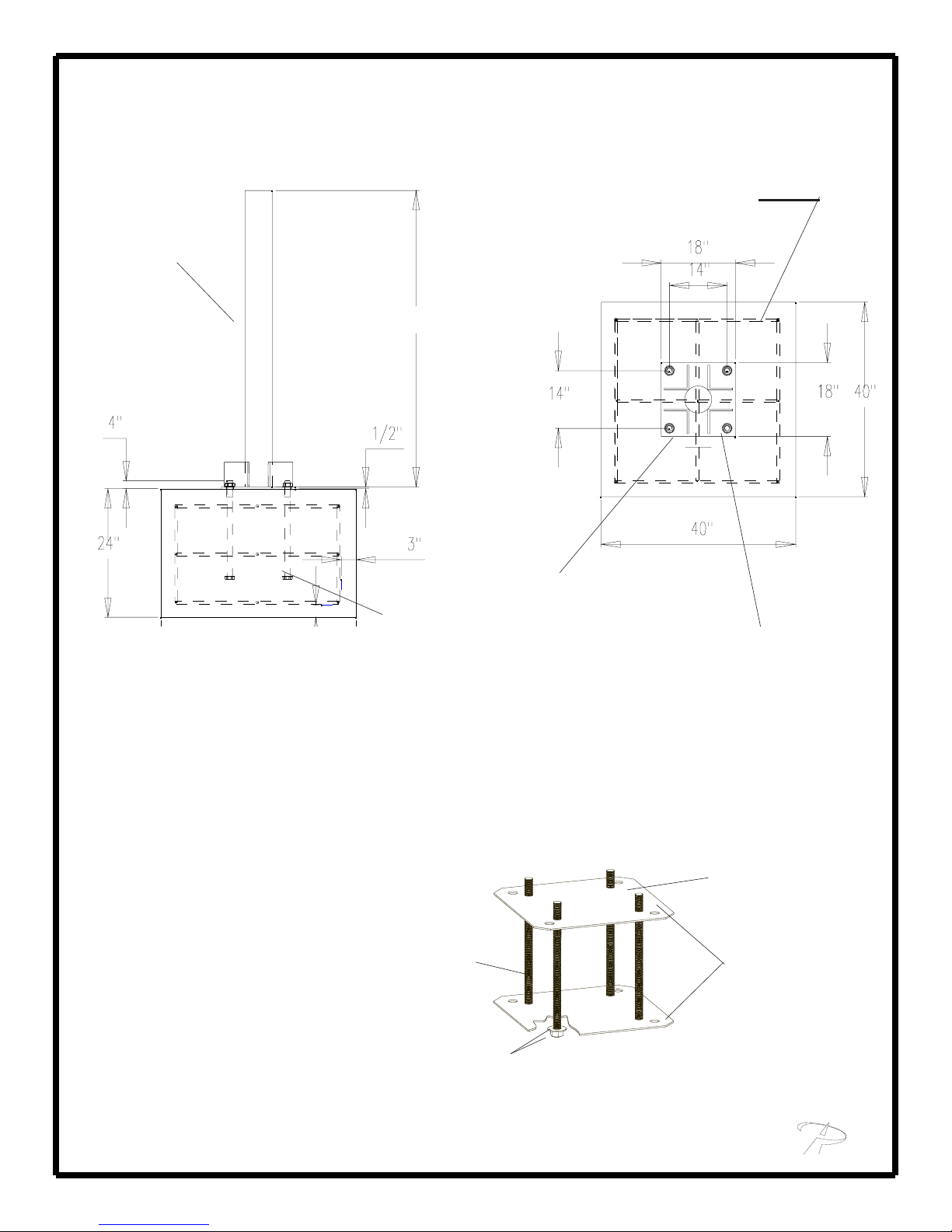

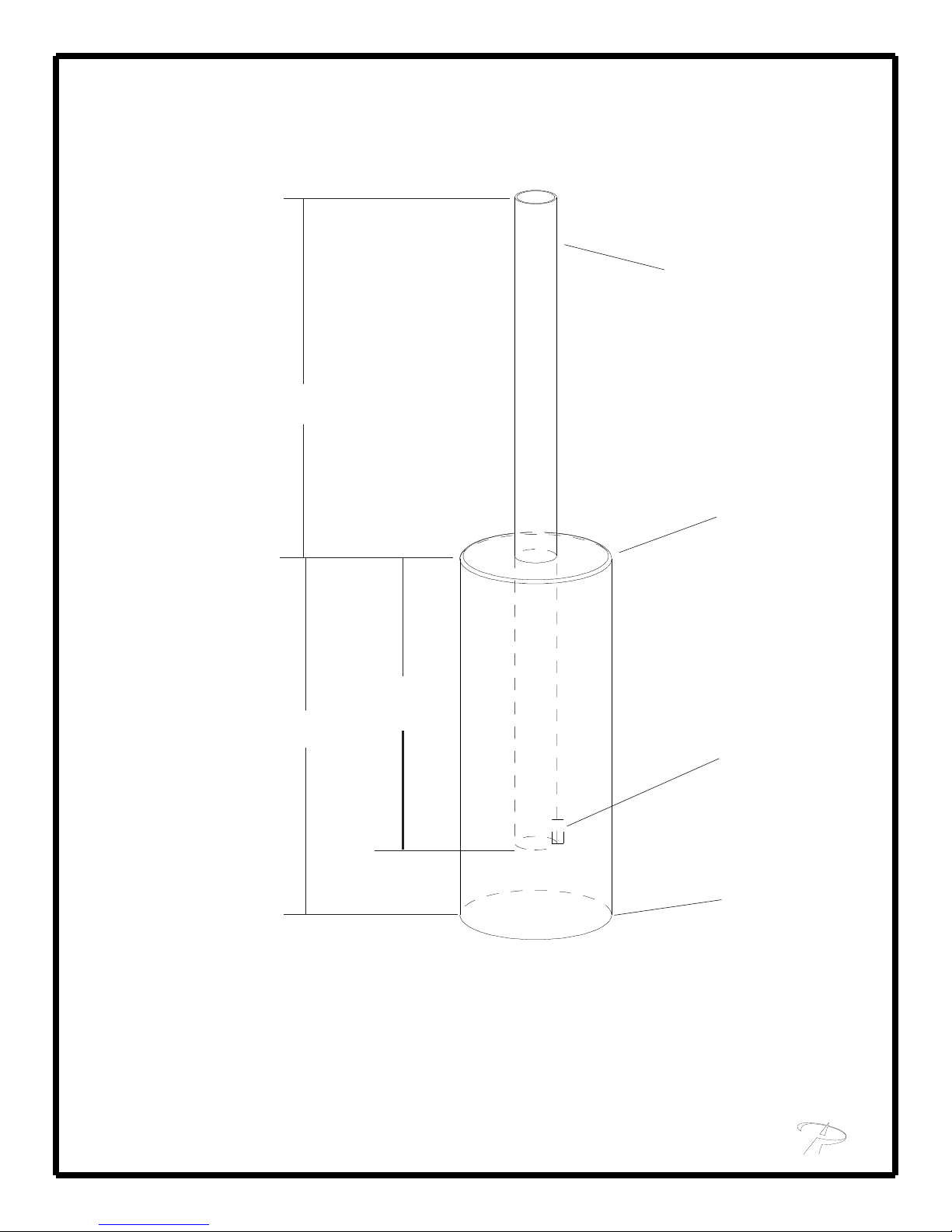

In-Ground Mast Foundation
Foundation Requirements & Specifications:
• Steel Mast: 6” Schedule 80, L=96”; 6 5/8” O.D.
• Concrete: 3000 psi at 28 days, poured against undistrurbed soil
(Allow concrete 24 hour set time before installation of antenna)
• Soil Bearing Capacity > 2000 psf.
• Ground the Antenna to meet applicable local Codes.
6-5/8in. O.D. Pipe
Grade Level
Anti-Twist
Weldment
24” Diam.
48”
60”
48”
min.
4

7
Schedule 40 6” (6-5/8” OD)
4’ Mast Steel Pipe
18”x18”x1/2” Base Plate
with 14” Centered Holes
Reinforced Steel Angles for Support
The Optional Kit Includes:
Bolt and Template Kit with Pipe
(On one skid) = 215 Lbs.
Note: See Foundation Requirements
& Specifications on previous page.
Mast Pipe(optional)
with Bolt & Template Kit
6 5/8” O.D.
Steel Pipe
4 Anchor Bolts
1 1/4” Diam.
#4 Rebar in all concrete
pad surfaces
Base Plate
18”x18”x1/2”
4 Typ 1 1/4”
Diam.x24”
48”
A
CREMAINING 4 NUTS AND WASHERS
ARE USED TO SECURE MOUNT TO
FOUNDATION PAD
REMOVED AFTER
CONCRETE CURES
B
5
PRT-BTKPS
A: (2) 18”x18” Templates
B: (4) 1-1/4x24” Threaded Rod (Bolts)
C: (8) 1-1/4” Nuts & Washers
PRT-BTKPS
A: (2) 18”x18” Templates
B: (4) 1-1/4x24” Threaded Rod (Bolts)
C: (8) 1-1/4” Nuts & Washers

8
Fine Tune Assembly
1. Slide pre-assembled ne tune mount assembly over post.
2. Point mount towards general location of desired satellite.
3. Draw bolts on Prt# 238014 tight to pipe.
4. Snug bolts on Prt# 238018 to pipe. (D0 not tighten at this time. Make contact to
hold mount in place during hub install)
218001
ASSY,1.8M TX AZ ADJ ROD
PLATED
218006
ASSY,1.8TX CLEVIS
238018
ASSY,3.8 AZ-EL MOUNT
238014
ASSY,2.4/3.8 AZ-EL FINE
TUNE BOT PL
This is a reference drawing only. Actual
parts may vary as to location of adjustment
ears.

9
6

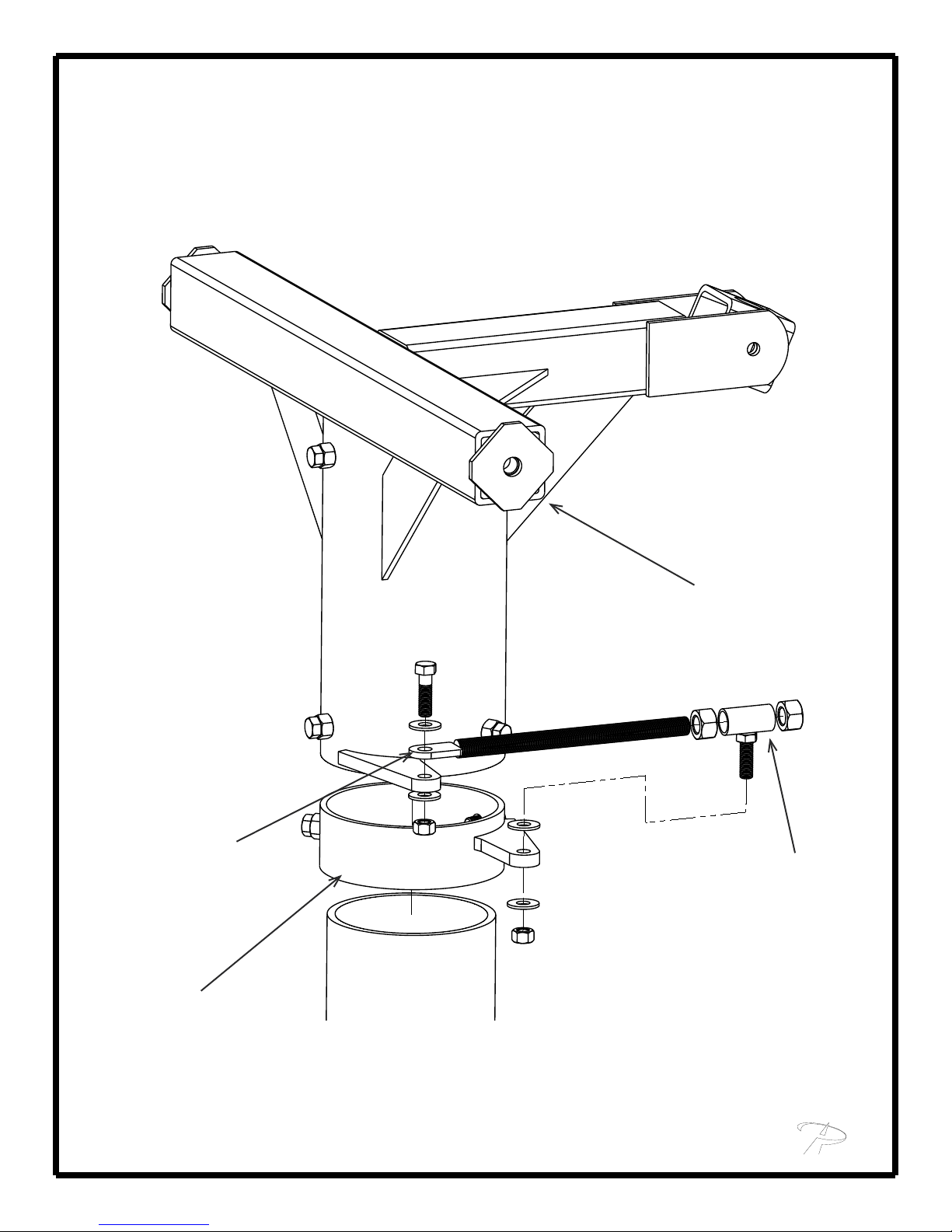

Mount Assembly
1. Place the pre-assembled Az-El pole mount on top of the 6 5/8” OD pipe, leaving the bolts
loose.
2. Add nuts and washers from the Az-El Elevation pack hardware to the Threaded Elevation
Rod as shown. Thread the nut all the way up to the welded end. Insert the rod into the
Anchor Block pre-assembled on the Az-El pole mount.
3. With 2 helpers place the hub assembly in the zenith (bird bath) position on top of the Az-El
mount as shown. Insert bolts and washers to hold the hub assembly to the mount cross bar.
Assemble the Threaded Elevation Rod to the hub extension as shown using pre-installed 3/4”
hardware.
NOTE: You must position
the hub in the position
shown below or it will be
unsafe to build the reflec-
tor. You will also be able
to assemble the dish with
out moving your ladder.
With the mount pipe bolts
loose the dish can spin on
the pipe for ease of assem-
bly.
Hub
Az-El
mount
29”
Elev.
Rod
224115
238001
238002
Pivot Block
231104G

10
7

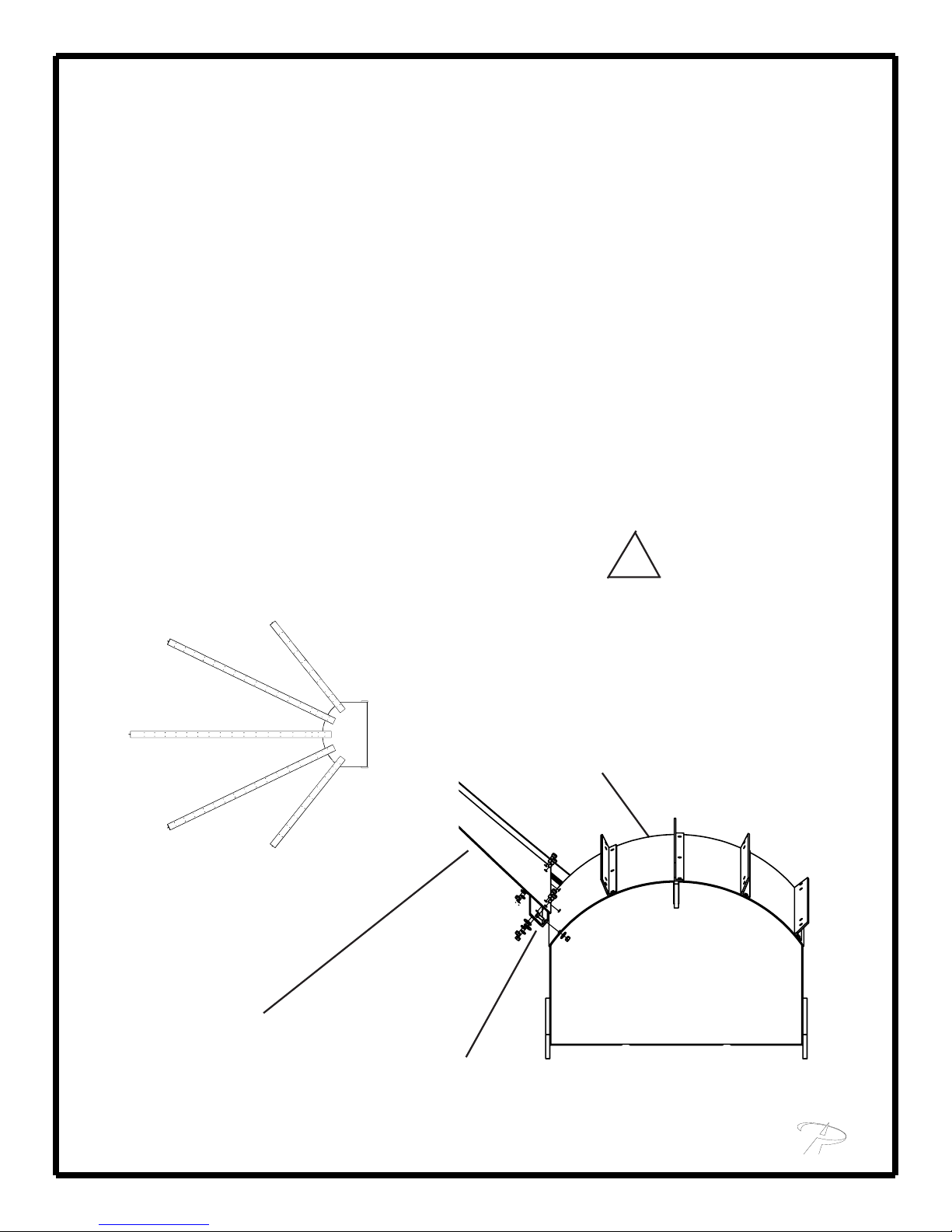

Reflector Assembly
1. Fasten 5- Hub Angles to Hub as shown, using 3- 3/8x1 bolt hardware from Hub to Angle
Hardware Pack. (2- 3/8” washer, 1-nut per)
2. Adjust the Hub into the position shown, and select the shortest Radial Beam assembly - “C”
and place into the outermost location inside the Hub. Fasten using 3/8in shoulder bolt from
Radial Beam to Angle Hardware Pack. (1 - 3/8” washer,1- 5/16 lock washer & 1-nut per) Leave
1/2 turn loose.
Do the same with the opposing “C” Radial Beam assembly.
NOTE: Hard to reach hardware can be accessed by reaching inside and around the end of the
Radial Beam to reach the back side.
3. Repeat step 2 for “B”, and “A” Radial Beam assemblies.
4. Tighten all Radial Beam hardware in steps 1 through 3.
C
C
B
B
A
RADIAL BEAM
ASSEMBLY C
HUB ASSEMBY
HUB ANGLE
Important: Make sure Radial Beams are attached to the
INSIDE of the hub angle to insure proper
beam focus, using one 3/8 washer, one 5/16
lock washer, and one 5/16 nut per
3/8 shoulder bolt.
!
4M45004
224115
224109
224109
224106
224106
224103

11
8

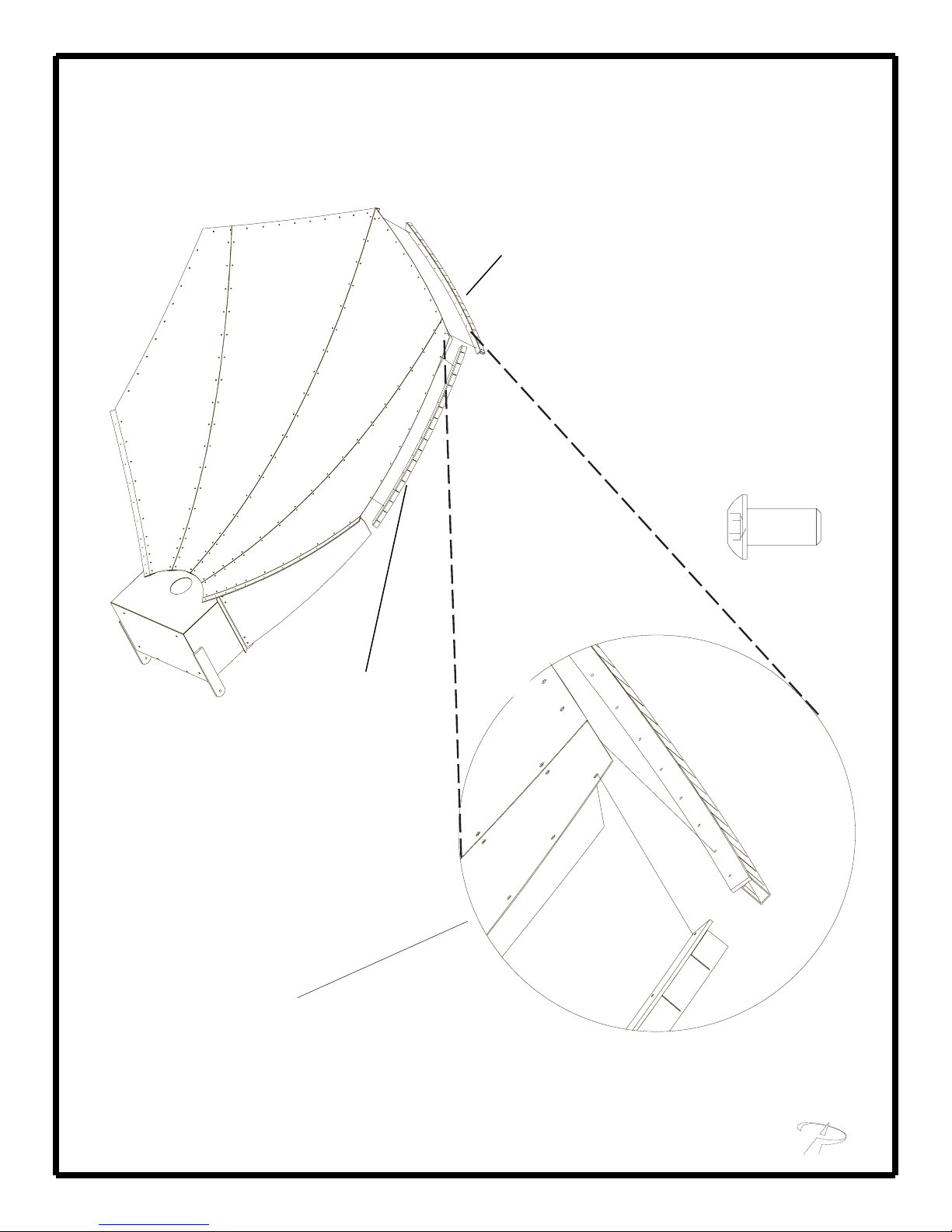

Panel Assembly
Panels are shaped as follows- A-Left/Right, B-Left/Right.
Starting with PanelB Right-
1. Place the panel into place onto the left-most Radial Beam “B” & “C” as shown.
Fasten with 1/4x1/2 truss head bolts. Leave bolts 1/2 turn loose at this time.
B-Right
A-Right
A-Left
B-Left
224102
224101
224100
224099
224102
B-Right

12
9
B-Right
A-Right
2. Set a panel “A-Right” in place next to panel “B-Right” and fasten with
hardware as in Step 1 leaving bolts 1/2 turn loose..
Panel Assembly (cont.)
3. Continue repeating step 2 for the remaining panels.
4. When all panels and hardware is in place tighten
all panel and support angle bolts starting near the hub
and working outward.
NOTE: When working on the panels of the reflector
your wieght can only be placed on the Radial Beam s
where the rows of bolts are being tightened!
224102
224101

13
Panel Assembly (cont.)
5. Attach the outter kurfing segiments using the same cap screw as pictured below.
10
Note:
Make sure the KURFING SEMENTS are
attached as shown to ensure proper fit to
panel
Long Curking Segiment
224129
ShortCurkingSegiment
224128

14

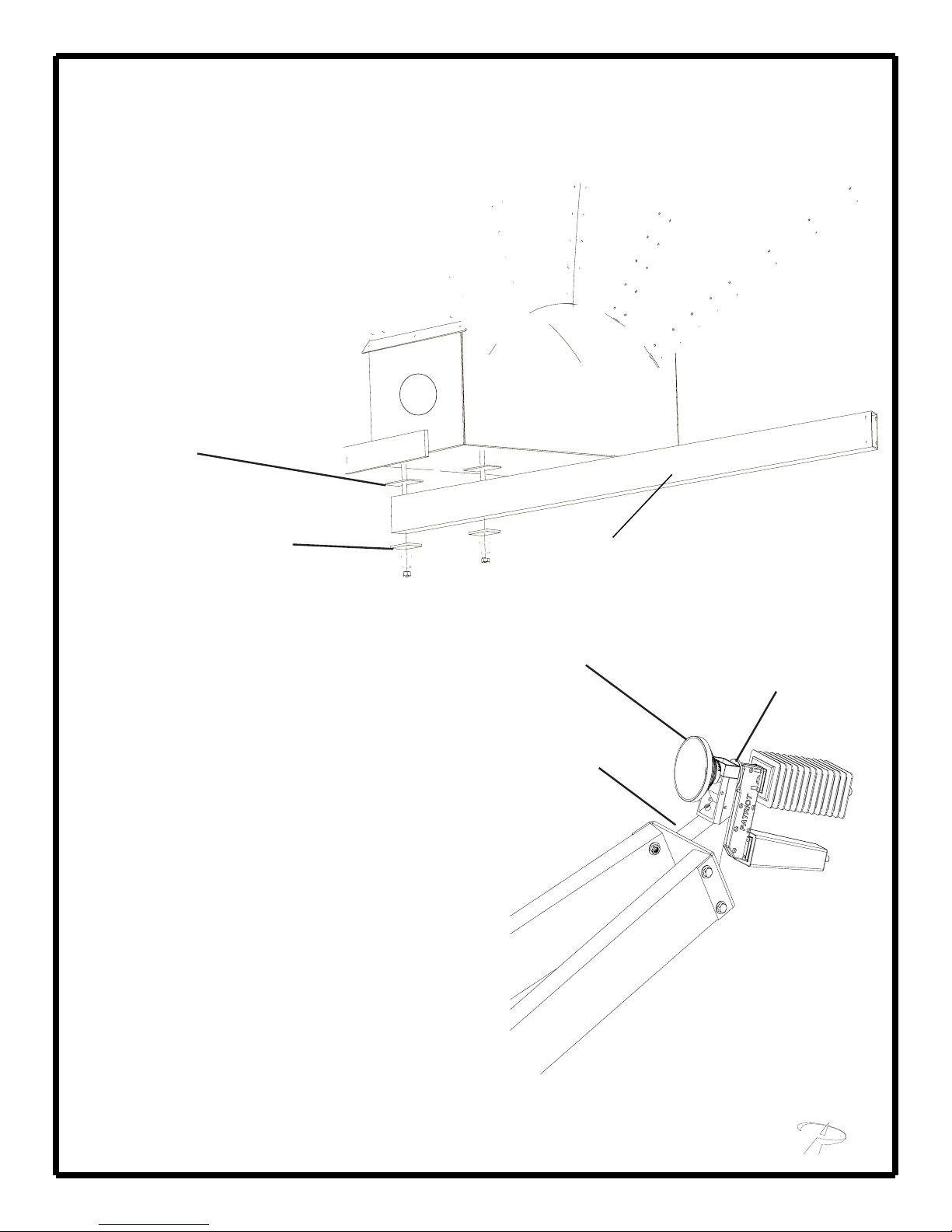

Feed Boom and Feed Assembly
Attach Feed support to bottom side of Hub using 1/2 hardware with bolt and
washer inside of hub. Repeat for remaining Feed Support.
Attach the Feed adaptor to the Feed
supports using 3/8 hardware bolts,
washers, and nuts. Feed angle should
be point up.
Attach Feed holder to Feed adapter
using (3 )1/4 cap screws.
Feed Assembly Feed Holder
Feed Adapter
11
1/8” Thick spacer
this side
1/4” Reinforcement
plate 1/2” flat washer
lock washer and nut
224133
224132
224112
Feed Support Tubes
224122

15
Windload Information
Windload Imposed at 125 mph
Force on Front of Dish - 6,250 lbs
Force on Back of Dish- 3,400 lbs
Torque at Base of Mount- 42,000 ft.lbs.
Overturning moment- 44,000 ft.lbs.
Stress of 6” schedule 40 pipe - 49,233 psi
Stress of 6” schedule 80 pipe - 34,302 psi
Note: For Windloads of 100 mph or more, we recommend using schedule
80 pipe filled with concrete
125mph 50mph
Force on Front of Dish- 3,200 lbs 510 lbs
Force on Back of Dish- 1,900 lbs 300 lbs
Torque at Base of mount- 2,760 ftlbs 300 ftlbs
Overturning Moment- 29,300 ftlbs 4,425 ftlbs
Windload Information
Windload Imposed at 125 mph
Force on Front of Dish - 6,250 lbs
Force on Back of Dish- 3,400 lbs
Torque at Base of Mount- 42,000 ft.lbs.
Overturning moment- 44,000 ft.lbs.
Stress of 6” schedule 40 pipe - 49,233 psi
Stress of 6” schedule 80 pipe - 34,302 psi
Note: For Windloads of 100 mph or more, we recommend using schedule
80 pipe filled with concrete

16
16
Antenna Pointing
NOTE: The Reflector contains a 23 degree offset look angle. Therefore, when the face of the reflector looks perpendicular
to the ground, the antenna is actually looking 23 degrees in elevation.
The antenna look angle is actually the top side of the Feed Support Plates as shown below.
FOR FIXED MOUNT POINTING-
.
1. Adjust the reflector up or down in elevation by turning the two 2” hex nuts on the Elevation Rod Assembly until the
desired elevation is measured (taking Elevation angle measurement from the Feed Support Arms).
4. Patriot recommends the use of cross pol nulling using a spec-
trum analyzer during TX/RX installations. After tightening the
azimuth and elevation hardware, peak the co-pol signal using
the spectrum analyzer. Then rotate the feed assemble roughly
90 degrees to obtain a cross pol null. Fine tune the null. The
scale on the feed horn can be used with the tick mark on feed
holder top or the seam between feed holder top and bottom. The
tick mark and seam are 90 deg. apart.Note that changes may be
necessary to the resolution and video bandwidth to bring the
signal above the noise floor. Note the angle of optimum cross
pol null. Rotate the feed back exactly 90 degrees and tighten the
feed clamp.
2. Azimuth Adjustment: With the electronics set to acquire the satellite, use the double-nut threaded adjustment on the
Azimuth Rod.
NOTE: If signal is not found on first pass of Azimuth, adjust elevation up
or down in 2 deg increments until signal is found.
3. Peak the satellite signal by fine adjustments made in both azimuth
and elevation until the optimum signal is achieved.
Note: Adjust, tighten, recheck until optimum signal is reached in
both Azimuth and Elevation.
Inclinometer
Focal
Axis
Inclinometer
Should read 0 degrees when
feed booms are parallel to earth
Focal Axis
(Parallel to
feed boom)

17
13
Antenna Pointing
1) Begin by obtaining the correct Az/El pointing data for the satellite of interest based for your site location.
2) Using an inclinometer or position readout form controller placed on the enclosure drum surface, position the
antenna to the specified elevation angle.
3) Manually scan the antenna (back-and-forth in the azimuth around the direction of the specified azimuth
angle) to achieve the maximum transponder signal.
4) Next repeat the procedure for elevation.
5) Repeat this procedure alternating between the azimuth and elevation until maximum transponder signal is
achieved.
14
External
Toothed
Washer

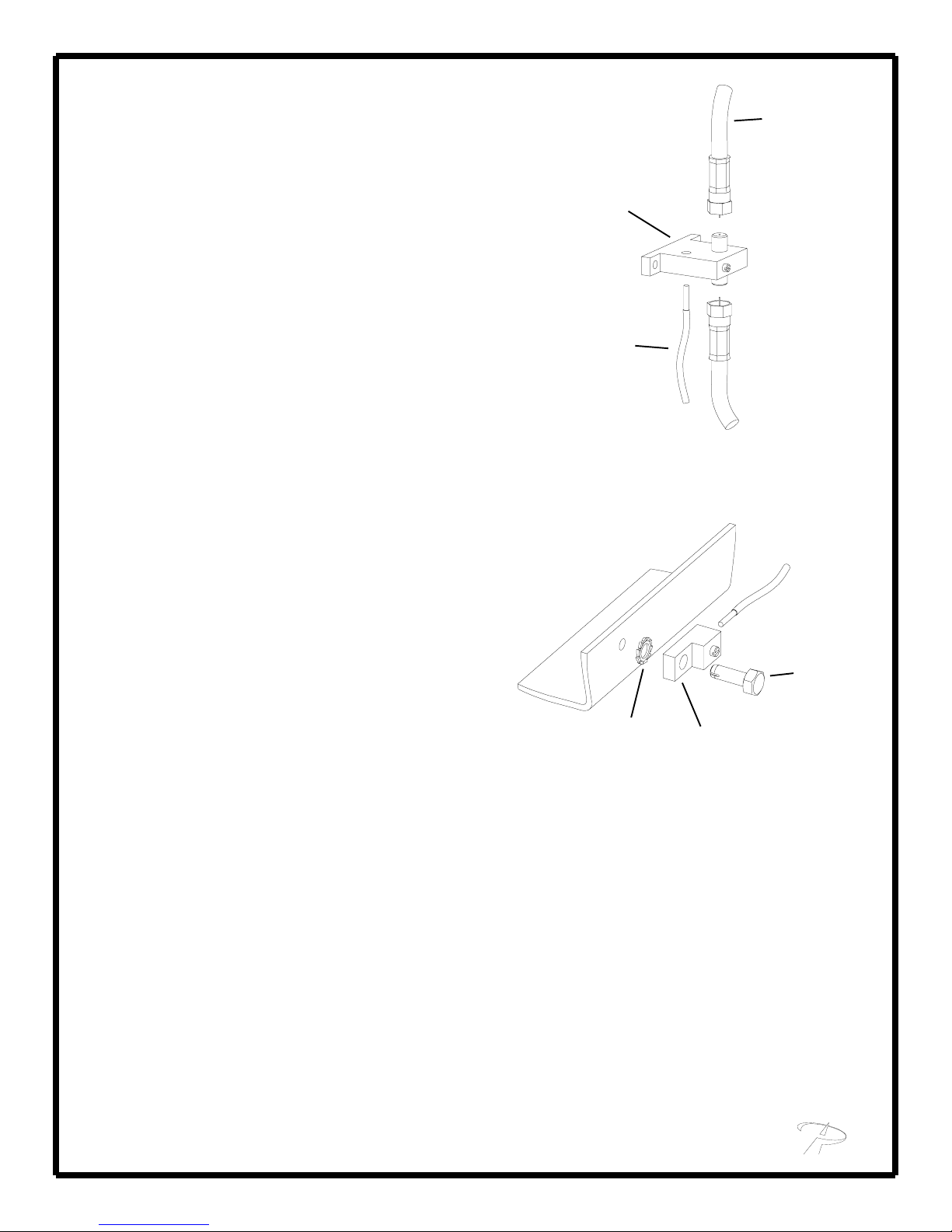

Grounding
Grounding Antenna Feed Cables
1. Ground antenna feed cables in accordance
with current National Electric code and local elec-
tric codes. The illustration shows a typical
grounding method.
Clamps that provide a solid connection between
ground wire and a ground source should be used.
Grounding Non-Penetrating
Mount Frame (if applicable)
1. Ground the Non-Penetrating mount
frame. The illustration shows a typical
grounding method.
Refer to the NEC Section 810 and local elec-
tric codes for specific instructions on ground-
ing the remaining end of the ground wire.
Coaxial
Cable
(to LNB)
Ground Block
NEC Section 810
Ground Wire
NEC Section 810
Non-Pen
Frame
Ground
Lug
1/4” Tapping
Bolt

Feed Assembly
1. Attach the relevant Feed Assembly.
2. Insert the Feed Assembly into the Feed holder and
assemble to the Feed Support Tube using the
hardware illustrated below.
3. Insert plastic plug into end of feed support tube.
1. Adjust the Feed to the appropriate skew angle
using the provided scale reference.
NOTE: Refer to the chart on back for polarization
angle. Elevation and polarity are both dependent on
site azimuth and the difference between satellite and
site longitude.
NOTE: Some satellites have a slant angle with
respect to the satellite belt angle. Contact the satellite
operator for details.
Feed Adjustment (Polarity tuning)
Feed Rotation Chart
Install site west Install site East
of satellite of satellite
CW CCW Northern Hemisphere
CCW CW Southern Hemisphere
CW
CCW
Polarity Scale
Reading Points
LNB
BUC
KA-Band
Circular
Tx/Rx
Ku-Band
Co-Pol
Tx/Rx
Ku Band
Rx
KA-Band
Linear Tx/Rx
C-Band
Linear
Ku Band
Tx/Rx
C-Band
Circular
Tx Port
Rx Port
Tx Port
Rx Port
Rx Port
Tx Port
Rx Port
Tx Port
Rx Port
Tx Port
Rx Port
C-Band Rx C-Band Dual Rx
Rx Port
Plug
Feed
Holder
Feed
Support
Tube
Tx Port
Tx Port
Rx Port
Tx Port
Rx Port
X-Band
Circular
2MOSF-001 REV 000

2MTXINT240KUS REV001
PATRIOT ANTENNA SYSTEMS
704 NORTH CLARK STREET
ALBION, MICHIGAN 49224 USA
WWW.SEPATRIOT.COM
ANTENNA SYSTEMS
704 North Clark Street
Albion, MI 49224 USA
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
Web site: www.sepatriot.com
2MTXINT240KUS Rev-062605
Specifications
Electrical Ku-Band
Gain Midband Tx- 43.5dBi Rx- 42.0
Efficiency 70%
3dB Beamwidth Tx- 1.2 Deg Rx- 1.4 Deg
Side Lobes ITU - 580
Cross Polarization (on axis) >35dB
VSWR Tx- 1.2:1 Rx- 1.3:1
Mechanical
Antenna Size 2.4m
Offset Angle 21.34
F/D .62
Operational Wind 50mph
Survival Wind 125mph
Operational Temp -40 to 140 F
Rain Operational = 1/2in./hr
Survival = 3in./hr
Ice 1 in. Radial -or-
1/2 in. + 60mph wind
Pole Size 6-5/8” OD
