Patriot FMCVYT-120 User manual

This manual contains importatant information regarding your Patriot unit. Please read this manual thoroughly prior to equipment set-up,
operation and maintenance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty.
PATRIOT
INSTRUCTION MANUAL
FMCVYT-120
CONVEYOR TOASTER

V.1.0 | October 2014
PATRIOT
WARNINGS
• Do not touch any hot surfaces
• Do not immerse unit, cord or plug in liquid at any time
• Unplug cord from outlet when not in use and before cleaning
• Plug only into a 3-hole grounded electrical outlet of appropriate voltage
• Do not operate unattended
• Do not use this unit for anything other than intended use
• Do not use outdoors
• Always use on a firm, dry and level surface at least 12” from walls or any other obstruction
• Do not use if unit has a damaged cord or plug, in the event the appliance malfunctions, or has
been damaged in any manner
• Keep children and animals away from unit
• Any incorrect installation, alterations, adjustments and/or improper maintenance can lead to
property loss and injury. All repairs should be done by authorized professionals only
• Ensure that the designated power supply is adequate for continual usage and the voltage is
correct
INSTALLATION
1. Remove the unit and all packing materials from the carton and remove protective covering from
the unit and parts.
2. Remove tape from the discharge chute, crumb tray and toast collector pan.
3. If the unit is not level, use the feet to level.
4. The toast feed ramp is installed at the factory and can be used in two positions:
-When in the upright position, the toaster is set for automatic feed. Bread products enter
the toaster by placing them on the feed ramp and releasing.
-For manual feeding of product, tip the feed ramp until it rests on top of the unit. In this position
bread products can be manually loaded by placing them directly on the conveyor belt.
5. Install toast crumb tray directly below the conveyor belt and below the stop pins. Insert until the
front of the crumb tray meets the stop pins.
TO USE
1. Plug toaster into a properly grounded electrical outlet.
2. Rotate the Rotary switch in the high-heat position.
3. Turn the Color Control to the lightest position while the unit heats up. (Note: Allow
approximately 15 to 20 minutes for a warm-up period.)
4. After warm-up period, set the Color Control to the medium position and toast two slices of bread
product then re-adjust the Color Control to the desired setting. (Note: To toast moist prod-
ucts such as English Muffins, rye bread or whole wheat, slow the conveyor by turning the Color
Control knob to a darker setting clockwise).
5. This unit can be used for one sided toasting, such as buns and English Muffins by rotating the
rotary switch to the top side heat only.
6. Never use the toaster when the crumb tray is not in place.
POWER SAVE MODE
To go into a Power Save Mode, turn the rotary selector to Power Save Mode. The toaster is op-
erating at 25% power. (Note: To place toaster back into full operation turn the selector back into
TOAST. Unit is back up to full power within 5 minutes.)

V.1.0 | October 2014
PATRIOT

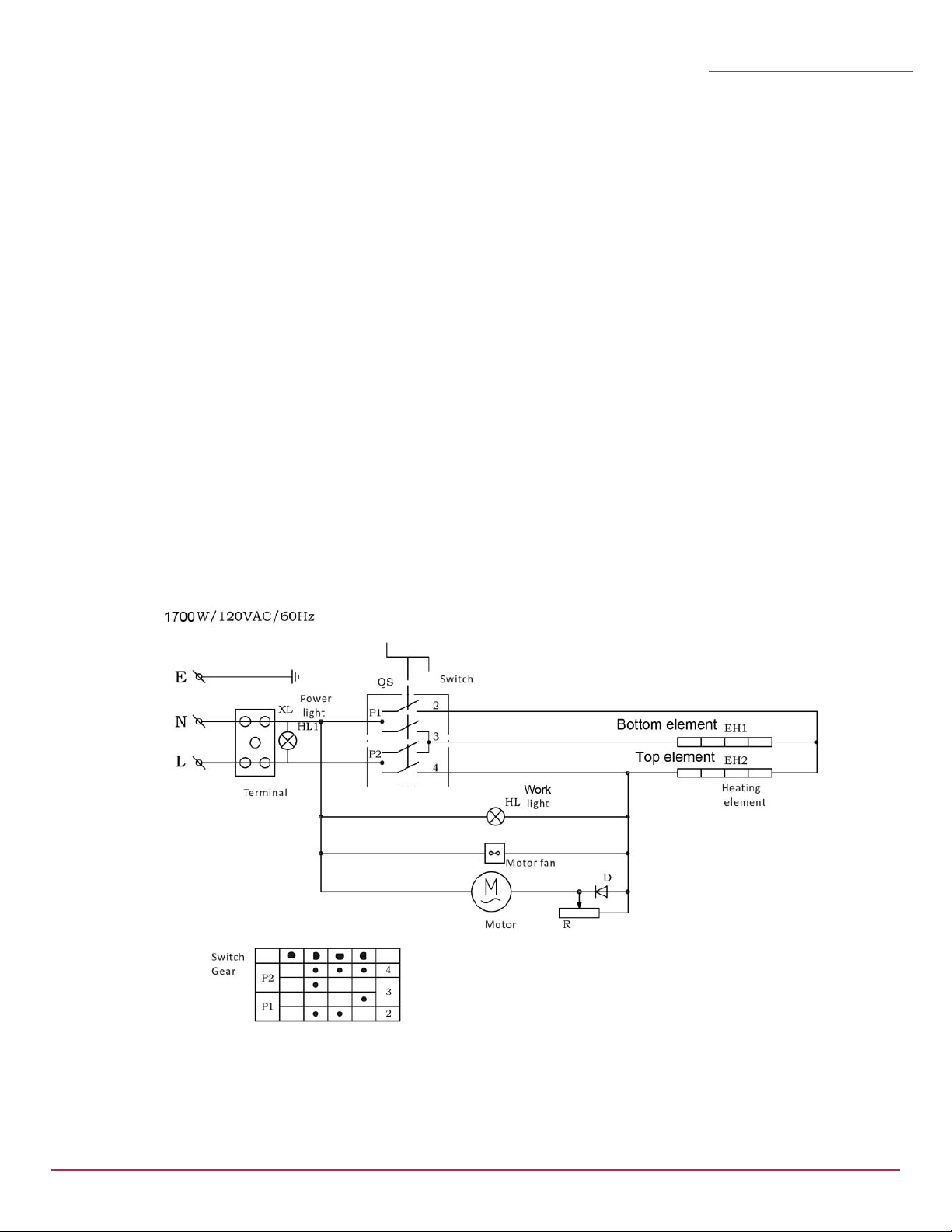

Wiring Diagram for the Conveyor Toaster
CLEANING – NOTE: To maintain cleanliness and increase service life, the oven should be
cleaned daily. Do not immerse the unit in water or any other liquid. If liquid enters the
electrical compartment it may cause a short circuit or electrical shock.
• Disconnect the power cord from the electrical outlet and allow unit to cool down
• To clean the exterior, wipe down with a damp cloth
• Make sure the toaster surface is completely dry before attempting to use again
• To clean the crumb tray, carefully slide the crumb tray out and dispose of any crumbs
• To clean the toast feed ramp, press in the two wire spokes and remove the guide
from the unit
• Wipe clean with a soft, damp cloth and re-install by aligning wire spokes with holes in
toaster
• To avoid damage, do not use abrasive cleaners or scouring pads
• If soap or chemical cleaners are used, be sure they are completely rinsed away with
clear water immediately after cleaning. Chemical residue could damage or corrode
the surfaces of the unit.

V.1.0 | October 2014
PATRIOT

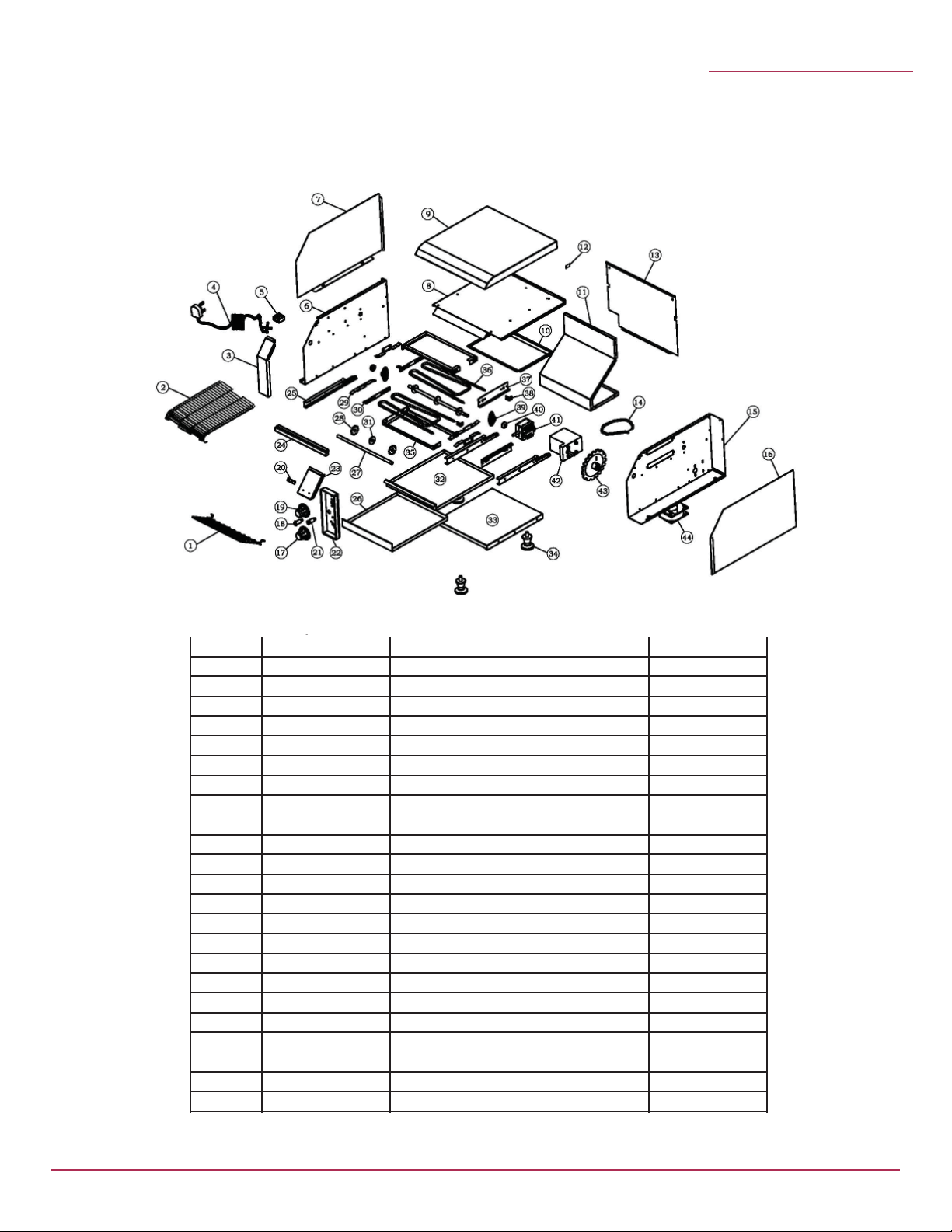

Parts Diagram and Replacement Parts for the Conveyor Toaster
y
Ref. No. Part Number Description QTY
1 CVYT-1 Guide Rack 1
2 CVYT-2 Belt 1
3 Decorate Plate Left 1
4 CVYT-4 Power Cord 1
5 CVYT-5 Terminal 1
6 Inner Plate Left 1
7 Side Plate Left 1
8 Top Plate for Inner Chamber 1
9TopCoverPlate 1
10 Heat Insulation Plate 1
11 Fan Support Plate 1
12 Welding Clip 2
13 Rear Plate 1
14 CVYT-14 Chain 1
15 Inner Plate Right 1
16 Side Plate Right 1
17 CVYT-17 Knob/Gear 1
18 CVYT-18 Indicator Light - Green 1
19 CVYT-19 Knob/Speed 1
20 Adcraft Logo 1
21 CVYT-21 Indicator Light - Orange 1
22 Control Plate 1
23 Decorate Plate Right 1

V.1.0 | October 2014
PATRIOT
Replacement Parts for the Conveyor Toaster
24 Front Support 1
25 Top Slideway 2
26 CVYT-26 Bottom Crumb Tray 1
27 Transmission Shaft 2
28 Wheel with Gear 2
29 Heating Element Rear Baffle 4
30 Heating Element Support Plate 2
31 Wheel without gear 4
32 CVYT-32 Top Crumb Tray 1
33 Bottom Slideway 1
34 CVYT-34 Foot 4
35 Heating Element Support 2
36 CVYT-36 Heating Element 2
37 Heating Element Baffle 2
38 Heating Element Support Rack 2
39 Shaft Jacket Support Rack 4
40 Shaft Jacket 4
41 CVYT-41 Switch 1
42 CYT120-20 Motor for Conveyor Toasters 1
43 Wheel for Motor Chain 1
44 CYT-FAN Fan for Conveyor Toasters 1
y
Ref. No. Part Number Description QTY

V.1.0 | October 2014
PATRIOT
One Year Limited Warranty
Patriot warrants its equipment against defects in materials and workmanship, subject to the following conditions:
Patriot is warranted for one year, effective from the date of purchase by the original owner. A copy of the original
receipt or other proof of purchase is required to obtain warranty coverage. This warranty applies to the original owner
only, and is not assignable.
Should any product fail to function in its intended manner under normal use within the limits defined in this
warranty, at Patriot’s discretion, such product will be repaired, replaced with a refurbished unit, or replaced with a new
unit by Patriot, after defective unit has been inspected and defect has been confirmed. Patriot does not assume any
liability for extended delays in replacing any item beyond its control. This warranty does not apply to rubber and non-
metallic synthetic parts that may need to be replaced due to normal usage, wear or lack of preventative maintenance.
This warranty covers products shipped into the 48 contiguous United States, Hawaii, and metropolitan areas of Alaska
and Canada. Warranty coverage on products used outside the 48 contiguous United States, Hawaii and metropolitan
areas of Alaska and Canada may vary.
The following conditions are not covered by warranty:
• Equipment failure relating to improper installation, improper utility connection or supply and problems due to
improper ventilation.
• Equipment that has not properly been maintained, damage from improper cleaning, and water damage
to controls.
• Equipment that has not been used in an appropriate manner, or has been subject to misuse, neglect, abuse,
accident, alteration, negligence, damage during transit, delivery or installation, fire, flood, riot, or act of God.
• Equipment that has the model number or serial number removed or altered.
• Equipment on which the security seal has been broken.
If the equipment has been changed, altered, modified, or repaired without express written permission from Patriot, then
the manufacturer shall not be liable for any damages to any person or to any property, which may result from the use of
this equipment thereafter.
This equipment is intended for commercial use only and this warranty is void if equipment is used in other than a
commercial application.
For warranty and non-warranty related issues, technical support, purchase replacement parts and warranty registration
visit www.admiralcraft.com or call 1-800-223-7750 for technical support. Please have your model number, serial number
and proof of purchase ready. It is not necessary to contact the place where you originally purchased your product from.
“THE FOREGOING WARRANTY IS IN LIEU OF ANY AND ALL WARRANTIES EXPRESSED OR IMPLIED
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILTY OR FITNESS FOR PARTICULAR
PURPOSES AND CONSTITUES THE ENTIRE LIABILITY OF ACE. IN NO EVENT DOES THE LIMITED
WARRANTY EXTENDBEYOND THE TERMS STATED HEREIN.”
