O
Op pe er ra at ti io on n w wi it th h d de ef fa au ul lt t r re em mo ot te e c co on nt tr ro ol l
ALARM ARMING
Push closing button of default remote control of the vehicle. The arming will
be confirmed by the followings:
•Blinker flashing based on closing features of the vehicle
•1 beep (if it is programmed)
•Switching ON of the LED on the dashboard
•Activation of electric engine immobilization (if it was connected)
•Activation of module outputs (optional ultrasonic sensors,
hyperfrequency etc.)
•The CDL closes the doors
ALARM DISARMING
Push opening button of default remote control of the vehicle. The disarming
will be confirmed by the followings:
•2 beeps (if it is programmed)
•Switching OFF of the LED on the dashboard
•Deactivation of electric engine immobilizer (if it was connected)
•Deactivation of module outputs (optional ultrasonic sensors,
hyperfrequency etc.)
•The CDL opens the doors
•Blinker flashing based on opening features of the vehicle
N
Ne eu ut tr ra al l t ti im me e, , a ar rm me ed d s st ta at tu us s
After the alarm was armed with the default (OEM) remote control or with the PATROLLINE remote
control, the alarm will arm in the next 10 seconds, what signaled by the fixed light of the LED. During
this time, if each sensor will be tested, the alarm will sign it with blinker flashing (number of the blinker
flashing shows cause of the triggering, as table shows it in “Alarm memory” paragraph.)
The flashing of the LED on the dashboard will indicate that the system is ready to react with acoustic-
optic signal for triggering cause.

2020
T
Tr ri ig gg ge er ri in ng g
After the inhibition time, the alarm will be in armed status. The alarm will react with optic-acoustic
signal for triggering event, it will make to operate the horn, or siren and it will make to flash the
blinkers.
Time of the triggering cycle is 30 seconds.
To stop the triggering without disarming of the alarm, push Closing button of the default remote control
or Nr. 2 (panic) button of the PATROLLINE remote control!
To stop the triggering and disarming of the alarm, push Opening button of the default remote control or
Nr. 1 (opening) button of the PATROLLINE remote control!
P
Pa an ni ic c t tr ri ig gg ge er ri in ng g
After the inhibition time, if Nr. 2 (panic) button of the PATROLLINE remote control or closing button of
the default remote control was pushed, the alarm will trigger till 30 seconds (beep/acoustic signal).
Warning! You have to activate the panic function to operate it.
Ask help of the installer to the activation!
U
Ul lt tr ra as so on ni ic c/ /H Hy yp pe er rf fr re eq qu ue en nc cy y/ /D De ef fa au ul lt t s sh ho oc ck k s se en ns so or r e ex xc cl lu us si io on n
This function is necessary, if you can leave dogs or cats in the car without triggering of the alarm. In
active status of the function, other senses of the alarm operate, just the interior protection and the
default shock sensor don’t operate. After locking, during inhibition time, push closing button of the
default or PATROLLINE remote control to switch OFF operation of the ultrasonic / hyperfrequency /
default shock sensor. The alarm signs exclusion of the ultrasonic / hyperfrequence / default shock
sensor with 3 blinker flashings and 3 beeps.
D
De ef fa au ul lt t s sh ho oc ck k s se en ns so or r e ex xc cl lu us si io on n w wi it th h o op pt ti io on na al l P PA AT TR RO OL LL LI IN NE E r re em mo ot te e c co on nt tr ro ol l
This function is that the alarm doesn’t trigger for vibrations concern the car. In active status of the
function other senses of the alarm operate, just the default shock sensor doesn’t operate. After locking,
during inhibition time, push Nr. 2 and 3 button of the PATROLLINE remote control in same time to
switch OFF the default shock sensor. The alarm signs exclusion of the shock sensor with 5 blinker
flashings and 5 beeps.
Warning! This function is usable only with the optional PATROLLINE remote control, not with
default remote control of the car!
O
Op pe er ra at ti io on n w wi it th h o op pt ti io on na al l w wi ir re el le es ss s o op pe en ni in ng g s se en ns so or r
Optional PATROLLINE wireless opening sensors can be memorized for the HPS 845 (H) device. With
help of them opening sensation of buildings (e.g. garage), or door of campers can be solved in near of

2020
the vehicle, in which HPS 845 (H) device is installed. In case of cracking of the garage door or camper
door, HPS 845 alarm installed into the vehicle will trigger. These sensors can be memorized in 2 safety
zones of the HPS 845 (H) alarm: maximum 24 pieces in zone 1., maximum 8 pieces in zone 2.
Difference between the two zones is that sensors memorized in zone 2. (similar to the ultrasonic) can
be disarmed temporarily with twice pushing of closing button of the remote controls.
E
Ex xc cl lu us si io on n o of f s si ir re en n
With help of the default remote control and the PATROLLINE remote control too it is possible to be
excluded the horn or siren function.
In case of usage of default remote control: At disarmed alarm (CDL opened), turn ON and OFF the
ignition key for 3 times and, within 30 seconds, push the default remote control to close the CDL.
At this time, the central unit will sign the attempt to break in by the flashing of the blinkers only.

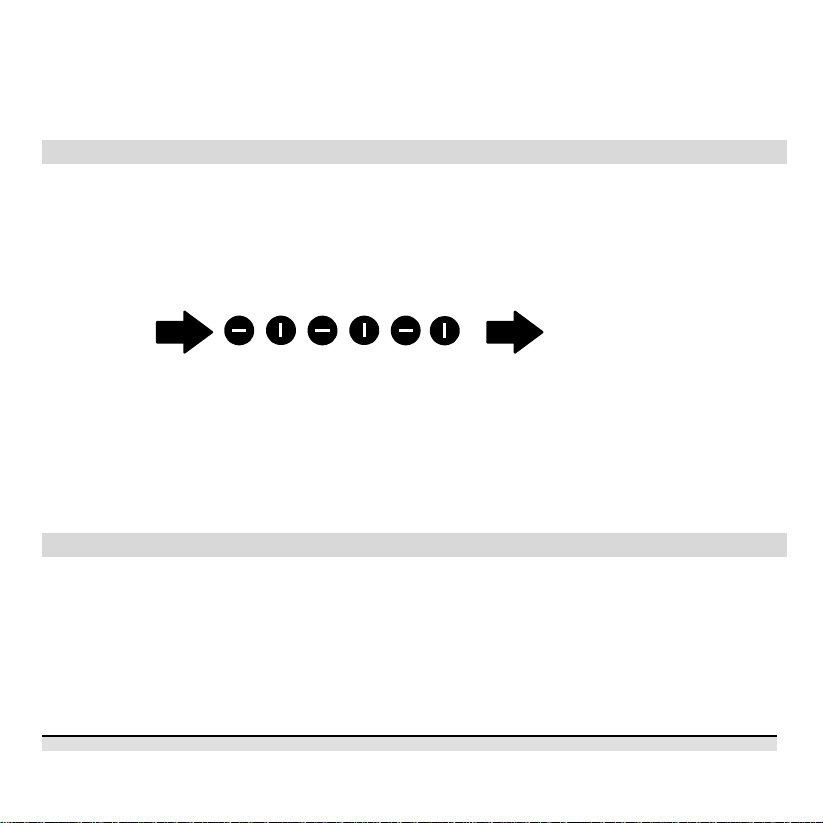

On
Off
1st time
2nd time
3rd time
On
Off
On
Off
(LED off)
IGNITION KEY
control to close the doors
Push the original remote
With CDL open
within 30 seconds
In case of usage of PATROLLINE remote control: After arming of the alarm, within the 10
seconds inhibition time, push Nr. 2 button of the PATROLLINE remote control, from this time, the
device signs the triggering only with the blinker flashing. 4 beeps and 4 blinker flashings will confirm
the exclusion.
Warning! The siren exclusion is valid for only one triggering cycle! If you switch OFF the
alarm with the default or PATROLLINE remote control, the system will be restored
automatically in original state, and for the next arming it will react with beep and acoustic
signals for every triggering causes.
A
Au ut to om ma at ti ic c r re ea ar rm mi in ng g
If the alarm was disarmed with default remote control of the vehicle, but the doors didn’t open, within
15 seconds the CDL closes back automatically the doors, and in same time the alarm switches ON.
Warning! In those cars, in which there isn’t automatic CDL closing back function, ask the
installer to program automatic rearming function of the alarm! If it is programmed,
automatic rearming function of the alarm will operate, but the CDL will close, if the alarm
was connected for it at installation! After programming automatic rearming function of the
alarm, this function will operate with the optional PATROLLINE remote controls too
according to the above mentioned!

2020
S
St ta at tu us s m me em mo or ry y
If the armed alarm is disconnected from its connector, after the reconnection it will stay in armed
status, protected the car further.
A
An nt ti i h hi i- -j ja ac ck k f fu un nc ct ti io on n
The alarm can immobilize the engine while the engine is ON when somebody hijack the car. This
function is disarmed defaulty. Arming of this function can happen based on request of the client in
writing.
To arming of the function, please contact with the installer.
A
An nt ti ia ag gr re es ss si io on n f fu un nc ct ti io on n
The alarm can immobilize the engine when somebody hijacks the car together with its own keys. This
function is disarmed defaulty. Arming of this function can happen based on request of the client in
writing.
To arming of the function, please contact with the installer!
A
Al la ar rm m m me em mo or ry y
If the central unit records one or more triggering causes, after disarming of the alarm, it will show the
triggering cause at opening of the driver’s door, or at pushing of the anti hi-jack button, through the
LED. To verify type of triggering, check number of flashings of the LED with the table below.
N. flashings of the LED
1
CAUSE
DOORS OPENING (WITH CAN-BUS SIGNAL)AND TRIGGERING BY
ADDITIONAL INPUT (BLUE/WHITE WIRE INPUT)
2
DRIVER’S DOOR OPENING WITH MECHANICAL KEY (WITH CAN-BUS
SIGNAL)
3
BONNET OPENING (WITH CAN-BUS SIGNAL)
4
TRUCK OPENING (WITH CAN-BUS SIGNAL)
5
IGNITION PROTECTION (WITH CAN-BUS SIGNAL,OR THROUGH THE GREEN/BLACK
WIRE)
6
SHOCK SENSOR

2020
7
ULTRASONIC SENSOR
8
ADDITIONAL INPUT (BLUE WIRE)
9
ADDITIONAL SENSOR (BLUE/RED WIRE INPUT)
12
RADIO OPENING SENSOR, OR MOVING SENSOR HPS 845 R
13
BONNET OPENING (WITH ANALOG SIGNAL)
14
GAS SENSOR
15
RADIO FREQUENCY DISTURBING HPS 845 R
Safety function
Door protection
Senses door, trunk and bonnet opening
Engine block
Prevents starting of the engine of the car
Shock sensor
Senses the broke of the door’s window
Ignition protection
Senses the ignition of the car
Ultrasonic
Option! Sense moving in the passenger compartment
Anti hi-jack
Triggers in case of running engine, and it can block the engine, if somebody
steal the car
Antiagression
Triggers at starting of the car with its own key and it can block the engine, if
somebody wants to steal the car
P
PI IN N c co od de e
The PIN code is for that the user can switch OFF the alarm, if the remote control or the alarm get
wrong or the battery discharged in the remote control.
PIN code emergency switching OFF function of the alarm, dependent on alarm programming, has 3
types operating opportunities, which are the followings:
1. PIN code emergency switching OFF with ignition key (it is default setting of the alarm).
2. PIN code emergency switching OFF with usage of brake pedal/hand brake (this function can
be used after programming of the alarm).
3. PIN code emergency switching OFF on ignition key ON, automatically (this function can be
used after programming of the alarm).
In all boxes of the alarms can be found an envelop, which contains the secret PIN code.
Only the user can open this envelop. Every alarm has different PIN code! We suggest for the

2020
user as for the perfect safety to change the original set PIN code for a new, own one.
Please follow the next instructions in the followings chapters.
If you have got any further problem with the PIN code, please look for only your importer!
Usage of the PIN code is necessary, when the remote control lost, or the battery was flat, or the alarm
went wrong, but the device is in switched ON status.
Dependent on equipment of the cars, it can be necessary to change the PIN code emergency switching
OFF operation, for example in that case, if the vehicle is equipped with “START & GO” system, by
this time we suggest to program the alarm for the 2. or 3. emergency switching OFF operating mode
instead of the default setting of the PIN code emergency switching OFF function!
Only importer of PATROLLINE and his contracted partners can do the programming of the alarm,
because special software and hardware is necessary to it!
1. PIN code emergency switching OFF with ignition key (it is default setting of the alarm)
The PIN code is a 3-figures number (e.g. 1-2-3). If you would like to use the PIN code, do the
following instructions with ignition key of the vehicle:
At armed alarm, open the driver’s door with mechanical key. The alarm starts trigger, by this time
turn ON the ignition key, and turn OFF the ignition key as many time as first digit of the PIN code.
During turn ON the ignition key the LED is ON, after the first digit you have to wait to switch OFF the
LED.
After that immediately turn ON and OFF the ignition key as many time as the second digit.
After the LED switching OFF, turn ON and OFF the ignition key as many time as the third digit.
If the procedure was successful, the alarm switches OFF. If the procedure was unsuccessful, the alarm
stays in armed status, and triggers, by this time you have to restart the PIN code emergency
switching OFF procedure from first digit giving of the PIN code.
2. PIN code emergency switching OFF with usage of brake pedal/hand brake (this function
can be used after programming of the alarm)
At armed alarm, open the driver’s door with mechanical key. The alarm starts trigger, by this time
turn ON the ignition key, and push/draw the brake pedal/hand brake as many time as first digit of the
PIN code (the brake pedal/hand brake operate with CAN-BUS signals not in every car types, therefore
Open only by the
USER!!!

2020
they can’t be used for PIN code emergency switching OFF not in every cars!) During push/draw of the
brake pedal/hand brake the LED is ON, after the first digit you have to wait to switch OFF the LED.
After that immediately push/draw the brake pedal/hand brake as many time as the second digit.
After the LED switching OFF push/draw the brake pedal/hand brake as many time as the third digit.
If the procedure was successful, the alarm switches OFF. If the procedure was unsuccessful, the alarm
stays in armed status, and triggers, by this time you have to restart the PIN code emergency
switching OFF procedure from first digit giving of the PIN code.
3. PIN code emergency switching OFF on ignition key ON, automatically (this function can
be used after programming of the alarm)
At armed alarm, open the driver’s door with mechanical key. The alarm starts trigger, by this time
turn ON the ignition key, and the transponder identifies the default key, and through the CAN-BUS
network, the alarm will be disarmed automatically.
WARNING! If the Antitheft / Antiagression function are programmed, before starting of the
procedure, push the secret button used to the Antitheft / Antiagression, and keep it pushed
until the procedure wasn’t finished!
M
Mo od di if fi ic ca at ti io on n o of f t th he e P PI IN N c co od de e
Modification of the PIN code is necessary if the client wants to modify the default PIN code for a
personalized PIN code.
Warning! We suggest to user of the product to modify the default PIN code for a new,
personalized PIN code.
To modify the PIN code, do the following instructions with ignition key of the vehicle:
At disarmed alarm, turn ON and OFF the ignition key as many time as first digit of the PIN code.
During turn ON the ignition key the LED is ON and after the first digit you have to wait to switch OFF
the LED.
After that immediately turn ON and OFF the ignition key as many time as the second digit.
After the LED switching OFF, turn ON and OFF the ignition key as many time as the third digit.
After that the LED flashes some times. Turn ON and OFF the ignition key as many time as first digit of
the new PIN code while the LED flashes. During turn ON the ignition key the LED is ON and after the
first digit you have to wait to switch OFF the LED.
After that immediately turn ON and OFF the ignition key as many time as second digit of the new PIN
code.
After the LED switching OFF, turn ON and OFF the ignition key as many time as third digit of the new
PIN code.
If the procedure was successful, the LED signs it with quick flashing. After that only the new PIN code
is usable!

2020
If PIN code function of the alarm was programmed for brake pedal/hand brake mode, you have to do
the above procedure on same way, only you have to push/draw the brake pedal/hand brake instead of
turn ON/OFF the ignition key!
WARNING! If the Antitheft / Antiagression function are programmed, before starting of the
procedure, push the secret button used to the Antitheft / Antiagression, and keep it pushed
until the procedure wasn’t finished!
V
Va al le et t f fu un nc ct ti io on n
This function is, that during service of the vehicle, operating functions of the alarm are suspension.
Usage of the valet function has, independently from programming of the alarm, 3 types operating
opportunities, which are the followings:
1. Valet function with anti hi-jack button.
2. Valet function with ignition key.
3. Valet function with usage of brake pedal/hand brake (this function can be used after
programming of PIN code emergency switching OFF function of the alarm).
1. Valet function usage with anti hi-jack button:
Activation of the valet function:
At disarmed alarm, sit into the car. All doors of
the vehicle have to be closed! Turn ON the
ignition key and immediately push and keep
pushed anti hi-jack button of the alarm, what was
installed into the vehicle. After 10 seconds LED of
the alarm on the dashboard starts trigger and it
flashes till 5 seconds. Till the LED flashes, let off
the anti hi-jack button! By this time the LED
flashes twice slowly, signed arming of the valet
function. If you let off the anti hi-jack button too
early or too late, you have to start the procedure
from starting!
Deactivation of the valet function:
At disarmed alarm, sit into the car. All doors of
the vehicle have to be closed! Turn ON the
ignition key and immediately push and keep
pushed anti hi-jack button of the alarm, what
was installed into the vehicle. After 10 seconds
LED of the alarm on the dashboard starts trigger
and it flashes till 5 seconds. Till the LED flashes,
let off the anti hi-jack button! By this time the
LED flashes four times slowly, signed disarming
of the valet function. If you let off the anti hi-
jack button too early or too late, you have to
start the procedure from starting!

2020
To remind activated status of the valet function, the LED will flash continuously twice if you turn ON the
ignition key.
2. Valet function usage with ignition key (this function operates too, if the PIN code
emergency switching OFF function is programmed for the 3. operating opportunity, for the
PIN code emergency switching OFF on ignition ON, automatically operation):
Activation of the Valet function:
At disarmed alarm, turn ON and OFF the ignition
key as many time as first digit of the PIN code of
the alarm. During turn ON the ignition key the
LED is ON, and after the first digit you have to
wait to switch OFF the LED.
After that immediately turn ON and OFF the
ignition key as many time as the second digit.
After the LED switching OFF, turn ON and OFF the
ignition key as many time as the third digit.
The LED flashes some times signed arming of the
valet function.
Deactivation of the Valet function:
Turn ON and OFF the ignition key as many time as
first digit of the PIN code of the alarm. During
turn ON the ignition key the LED is ON, and after
the first digit you have to wait to switch OFF the
LED.
After that immediately turn ON and OFF the
ignition key as many time as the second digit.
After the LED switching OFF, turn ON and OFF the
ignition key as many time as the third digit.
After that the valet function will be in disarmed
status.
To remind activated status of the valet function, the LED will flash continuously twice if you turn ON the ignition key.
3. Valet function usage with brake pedal/handbrake (this function operates too, if the PIN
code emergency switching OFF function is programmed for the 2. operating opportunity, for
the PIN code emergency switching OFF with usage of brake pedal/hand brake operation):
Activation of the Valet function:
At disarmed alarm, turn ON the ignition key, and
push/draw the brake pedal/hand brake as many
time as first digit of the PIN code (the brake
pedal/hand brake operate with CAN-BUS signals
not in every car types, therefore they can’t be
used for valet function not in every cars!) During
push/draw of the brake pedal/hand brake the LED
is ON, after the first digit, you have to wait to
switch OFF the LED.
After that immediately push/draw the brake
pedal/hand brake as many time as the second
Deactivation of the Valet function:
Turn ON the ignition key, and push/draw the
brake pedal/hand brake as many time as first digit
of the PIN code. During push/draw of the brake
pedal/hand brake the LED is ON, after the first
digit, you have to wait to switch OFF the LED.
After that immediately push/draw the brake
pedal/hand brake as many time as the second
digit.
After the LED switching OFF push/draw the brake
pedal/hand brake as many time as the third
digit. After that the valet function will be in

2020
digit.
After the LED switching OFF push/draw the brake
pedal/hand brake as many time as the third digit.
The LED flashes some times, signed arming of the
valet function.
disarmed status.
To remind activated status of the valet function, the LED will flash continuously twice if you turn ON the ignition key.
WARNING! If the Antitheft / Antiagression function are programmed, before starting of the
procedure, push the secret button used to the Antitheft / Antiagression, and keep it pushed
until the procedure wasn’t finished! (except the „1. Valet function with antitheft button”
mode)!
A
Al la ar rm m m ma ai in nt te en na an nc ce e
Our alarms are sophisticated systems. The reliability as well as time life may be furthermore
incremented just adopting some precautions such as:
Battery changing: Open box of the remote control, remove the old battery, and put the new. Take
into consideration the polarity, what is located on side of the battery. Use litium battery (CR 2032 in
case of the optional PATROLLINE remote control). Suggested the battery changing in every 2. years.
Vehicle cleaning: should you clean the vehicle via high-pressure beams (hydro beam or similar),
please protect the siren prior to commence cleaning. The alarm warranty will be cancelled if water is
detected into the alarm.
Main maintenance: All repairs must be carried at PATROLLINE assistance centers.
Alarm systems pampering by non authorized personnel may invalidate alarm feasibility as well as your
vehicle safety.
D
De ec cl la ar ra at ti io on n o of f c co on nf fo or rm mi it ty y
This product harmonizes with the followings:
E/ECE/324
E/ECE/TRANS/505 Regulation No. 116 >> Rev.2/Add.115
European Directive, so it satisfies all the requirements asked about the functionality of the alarm
devices, and for the electromagnetic compatibility.

2020
The installation certificate of the alarm, included in the box, must be properly filled in every section
and it will be part of the documentation of the vehicle.
It is required to write the following homologation number on the installation certificate to complete the
conformity with the directive.
E24 116R A-000031
Note:
Patrolline Kft
8000 Székesfehérvár, Királysor 30.
Tel/Fax: [phone]
E-mail: [e-mail]
Web: www.canbusriaszto.hu, www.patrolline.eu
