Patton electronics 2041 User manual

USER
MANUAL
MODEL 2041
X.21 to HSSI
Interface Converter
SALES OFFICE
[phone]
TECHNICAL SUPPORT
[phone]
http://www.patton.com
Part# 07M2041-A
Doc# 077241U,
Rev. B
Revised 1/23/08
An ISO-9001
Certified Company

1.0 WARRANTY INFORMATION
Patton Electronics warrants all Model 2041 components to be
free from defects, and will—at our option—repair or replace the product
should it fail within one year from the first date of shipment.
This warranty is limited to defects in workmanship or materials, and
does not cover customer damage, abuse or unauthorized modification.
If this product fails or does not perform as warranted, your sole
recourse shall be repair or replacement as described above. Under no
condition shall Patton Electronics be liable for any damages incurred
by the use of this product. These damages include, but are not limited
to, the following: lost profits, lost savings and incidental or
consequential damages arising from the use of or inability to use this
product. Patton Electronics specifically disclaims all other warranties,
expressed or implied, and the installation or use of this product shall be
deemed an acceptance of these terms by the user.
1.1 RADIO AND TV INTERFERENCE
The Model 2041 generates and uses radio frequency energy, and if
not installed and used properly—that is, in strict accordance with the
manufacturer's instructions—may cause interference to radio and
television reception. The Model 2041 has been tested and found to
comply with the limits for a Class A computing device in accordance
with the specifications in Subpart J of Part 15 of FCC rules, which are
designed to provide reasonable protection from such interference in a
commercial installation. However, there is no guarantee that
interference will not occur in a particular installation. If the Model 2041
does cause interference to radio or television reception, which can be
determined by disconnecting the Model 2041, the user is encouraged to
try to correct the interference by one or more of the following measures:
moving the computing equipment away from the receiver, re-orienting
the receiving antenna and/or plugging the receiving equipment into a
different AC outlet (such that the computing equipment and receiver are
on different branches).
1.2 CE NOTICE
The CE symbol on your Patton Electronics equipment indicates
that it is in compliance with the Electromagnetic Compatibility (EMC)
directive and the Low Voltage Directive (LVD) of the Union European
(EU). A Certificate of Compliance is available by contacting Technical
Support.
1
1.3 SERVICE
All warranty and nonwarranty repairs must be returned freight
prepaid and insured to Patton Electronics. All returns must have a
Return Materials Authorization number on the outside of the shipping
container. This number may be obtained from Patton Electronics
Technical Service at [phone],http://www.patton.com, or at
[email protected].
NOTE: Packages received without an RMA number will not be
accepted.
Patton Electronics' technical staff is also available to answer any
questions that might arise concerning the installation or use of your
Model 2041. Technical Service hours: 8AM to 5PM EST, Monday
through Friday.
2

1.0 WARRANTY INFORMATION
Patton Electronics warrants all Model 2041 components to be
free from defects, and will—at our option—repair or replace the product
should it fail within one year from the first date of shipment.
This warranty is limited to defects in workmanship or materials, and
does not cover customer damage, abuse or unauthorized modification.
If this product fails or does not perform as warranted, your sole
recourse shall be repair or replacement as described above. Under no
condition shall Patton Electronics be liable for any damages incurred
by the use of this product. These damages include, but are not limited
to, the following: lost profits, lost savings and incidental or
consequential damages arising from the use of or inability to use this
product. Patton Electronics specifically disclaims all other warranties,
expressed or implied, and the installation or use of this product shall be
deemed an acceptance of these terms by the user.
1.1 RADIO AND TV INTERFERENCE
The Model 2041 generates and uses radio frequency energy, and if
not installed and used properly—that is, in strict accordance with the
manufacturer's instructions—may cause interference to radio and
television reception. The Model 2041 has been tested and found to
comply with the limits for a Class A computing device in accordance
with the specifications in Subpart J of Part 15 of FCC rules, which are
designed to provide reasonable protection from such interference in a
commercial installation. However, there is no guarantee that
interference will not occur in a particular installation. If the Model 2041
does cause interference to radio or television reception, which can be
determined by disconnecting the Model 2041, the user is encouraged to
try to correct the interference by one or more of the following measures:
moving the computing equipment away from the receiver, re-orienting
the receiving antenna and/or plugging the receiving equipment into a
different AC outlet (such that the computing equipment and receiver are
on different branches).
1.2 CE NOTICE
The CE symbol on your Patton Electronics equipment indicates
that it is in compliance with the Electromagnetic Compatibility (EMC)
directive and the Low Voltage Directive (LVD) of the Union European
(EU). A Certificate of Compliance is available by contacting Technical
Support.
1
1.3 SERVICE
All warranty and nonwarranty repairs must be returned freight
prepaid and insured to Patton Electronics. All returns must have a
Return Materials Authorization number on the outside of the shipping
container. This number may be obtained from Patton Electronics
Technical Service at [phone],http://www.patton.com, or at
[email protected].
NOTE: Packages received without an RMA number will not be
accepted.
Patton Electronics' technical staff is also available to answer any
questions that might arise concerning the installation or use of your
Model 2041. Technical Service hours: 8AM to 5PM EST, Monday
through Friday.
2

2.0 GENERAL INFORMATION
Thank you for your purchase of this Patton Electronics product. It
has been thoroughly inspected and tested and is warranted for One
Year for parts and labor. If you have any questions about this product,
please call Patton Electronics Technical Support at [phone].
2.1 FEATURES
• Bi-directionally converts between X.21 and HSSI.
• Supports synchronous data rates up to 10Mbps.
• Transparent to synchronous protocol.
• DB-15 and HD-50 connectors with integral 6-foot (1.8m) cable.
• Two versions available:
Model 2041FT-MC: Connects X.21 (DCE) to HSSI (DTE)
Model 2041FC-MT: Connects X.21 (DTE) to HSSI (DCE)
• Internal synchronization circuit enables high speed connections
• Externally AC powered.
• Made in the U.S.A.
2.2 DESCRIPTION
The Model 2041 is a X.21 to High Speed Serial Interface (HSSI)
converter that lets a device with an X.21 interface communicate bi-
directionally with a device that has an HSSI interface. Operating up to
a top synchronous data rate of 10Mbps, the 2041 is a perfect problem
solver for mismatched interfaces.
The Model 2041 is available in two versions: The Model 2041FT-
MC lets a X.21 DCE device communicate with a HSSI DTE device.
The Model 2041FC-MT lets a X.21 DTE device communicate with a
HSSI DCE device.
All versions are equipped with a female DB-15 connector on the
converter end, and a male HD-50 on the end of a 6-foot (1.8 m) cable.
Other connector genders and cable lengths are available on a custom
basis. Power is supplied to the Model 2041 by an external desktop AC
transformer.
3
3.0 CONFIGURATION
The Model 2041 is easy to install and is ruggedly designed for
excellent reliability. The following instructions will help you set up and
install the Model 2041 properly.
To use the Patton Model 2041, you must first configure the unit for
your application. To do so, first open the case by inserting a flat head
screw driver into an open slot on either side of the case, as in Figure 1.
Twist the screw driver head slightly and the top half of the case will
separate from the lower half, as in Figure 2. You now have access to
the internal switches used to configure the unit.
After opening the case, please refer to the section that pertains to
your unit for configuration details:
Patton Model Number Section
Model 2041FT-MC ....................................................3.1
Model 2041FC-MT ....................................................3.2
To close the case, fit the 2 halves together snugly and snap them
back in place.
4

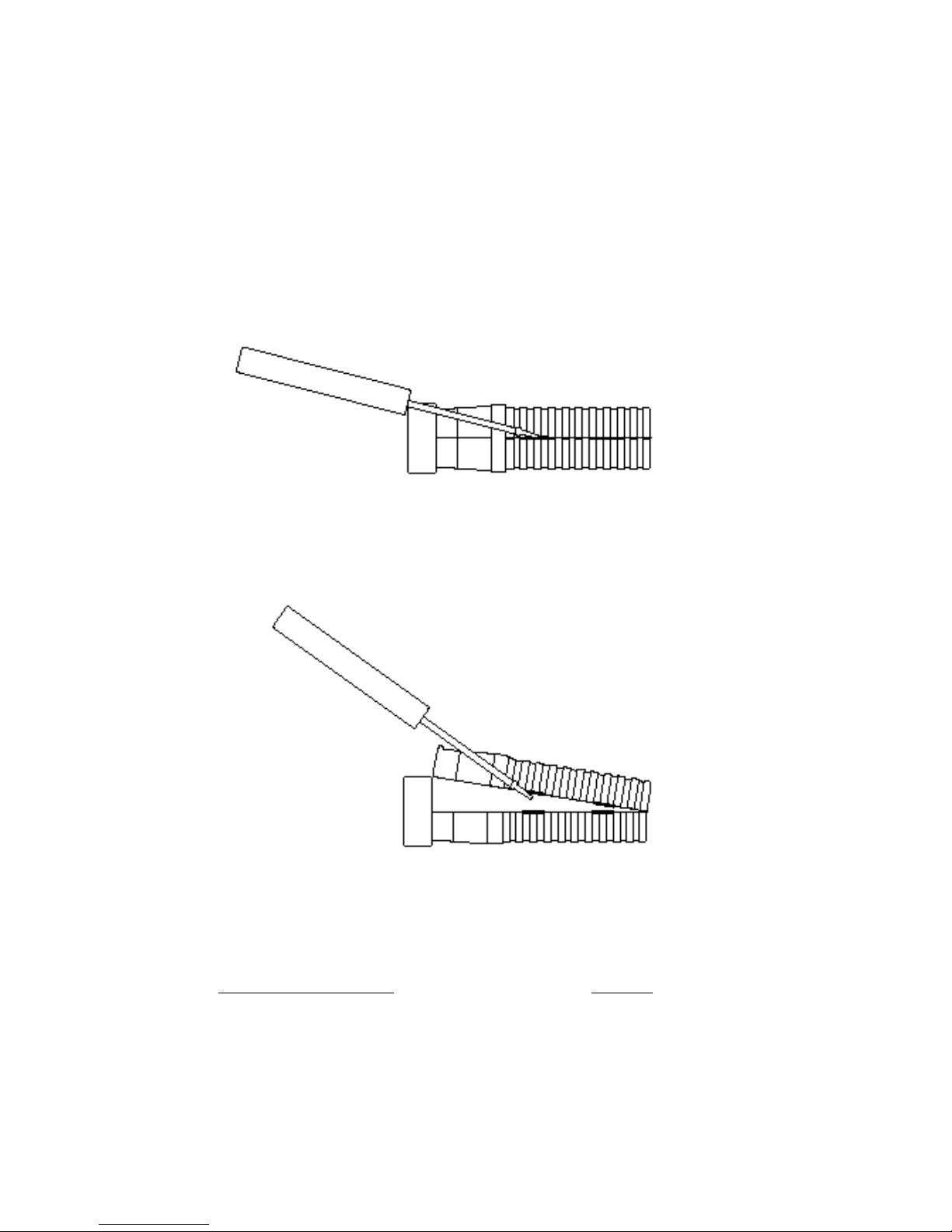

Figure 1: Using a Small Screw Driver to Open the Model 2041 Case
Figure 2: Using a Small Screw Driver to Open the Model 2041 Case

2.0 GENERAL INFORMATION
Thank you for your purchase of this Patton Electronics product. It
has been thoroughly inspected and tested and is warranted for One
Year for parts and labor. If you have any questions about this product,
please call Patton Electronics Technical Support at [phone].
2.1 FEATURES
• Bi-directionally converts between X.21 and HSSI.
• Supports synchronous data rates up to 10Mbps.
• Transparent to synchronous protocol.
• DB-15 and HD-50 connectors with integral 6-foot (1.8m) cable.
• Two versions available:
Model 2041FT-MC: Connects X.21 (DCE) to HSSI (DTE)
Model 2041FC-MT: Connects X.21 (DTE) to HSSI (DCE)
• Internal synchronization circuit enables high speed connections
• Externally AC powered.
• Made in the U.S.A.
2.2 DESCRIPTION
The Model 2041 is a X.21 to High Speed Serial Interface (HSSI)
converter that lets a device with an X.21 interface communicate bi-
directionally with a device that has an HSSI interface. Operating up to
a top synchronous data rate of 10Mbps, the 2041 is a perfect problem
solver for mismatched interfaces.
The Model 2041 is available in two versions: The Model 2041FT-
MC lets a X.21 DCE device communicate with a HSSI DTE device.
The Model 2041FC-MT lets a X.21 DTE device communicate with a
HSSI DCE device.
All versions are equipped with a female DB-15 connector on the
converter end, and a male HD-50 on the end of a 6-foot (1.8 m) cable.
Other connector genders and cable lengths are available on a custom
basis. Power is supplied to the Model 2041 by an external desktop AC
transformer.
3
3.0 CONFIGURATION
The Model 2041 is easy to install and is ruggedly designed for
excellent reliability. The following instructions will help you set up and
install the Model 2041 properly.
To use the Patton Model 2041, you must first configure the unit for
your application. To do so, first open the case by inserting a flat head
screw driver into an open slot on either side of the case, as in Figure 1.
Twist the screw driver head slightly and the top half of the case will
separate from the lower half, as in Figure 2. You now have access to
the internal switches used to configure the unit.
After opening the case, please refer to the section that pertains to
your unit for configuration details:
Patton Model Number Section
Model 2041FT-MC ....................................................3.1
Model 2041FC-MT ....................................................3.2
To close the case, fit the 2 halves together snugly and snap them
back in place.
4
Figure 1: Using a Small Screw Driver to Open the Model 2041 Case
Figure 2: Using a Small Screw Driver to Open the Model 2041 Case

3.1 CONFIGURATION SWITCHES (MODELS 2041FT-MC)
The Model 2041FT-MC has miniature DIP switches that you may
use to configure the units. Each Model 2041FT-MC is factory
configured as DTE on the X.21 end, and DCE on the HSSI end.
Therefore, the X.21 end “wants” to plug directly into a DCE device.
Conversely, the HSSI end of the converter “wants” to plug directly into
DTE.
Please use this section to configure the internal DIP switches so
that the unit will work properly in your application. Figure 3 shows the
position of Switch S1 on the top side of the PC board.
Figure 4 shows the orientation of the switches on DIP Switch S1
through S4 with respect to ON/OFF positions. The default settings for
DIP Switch S1 are shown in the table on page 6. Detailed descriptions
of each switch follow the table.
Figure 3. The Model 2041FT-MC Assembly Drawing
Figure 4. Close-up of DIP Switches Showing “ON” and “OFF” Positions
1234
ON
OFF
ON
DIP Switches S1 - S4
Switches S1 and S2: Synchronization Method
Set Switches S1 and S2 together to allow the Model 2041FT-MC to
compensate for timing delays when transmitting HSSI data at high
speeds (greater than 2.5 Mbps). At high bit rates, set Switch S1 On
and Switch S2 Off. In this setting, HSSI data will be synchronized to
the Signal Element timing signal from the X.21 side before being
converted to X.21 data. At lower bit rates (less than 2.5 Mbps), set
Switch S1 Off and S2 On. In this setting, the X.21 data bypasses the
synchronization circuit and passes straight through to the HSSI DTE.
S1 S2 Description
Off Off Not a Valid Setting
Off On Data Skips Sync Circuit
On Off Data passes through sync circuit.
On On Not a Valid Setting
Switches S3 and S4: Status LED Operation
Set Switches S3 and S4 together to determine the how the Status
LED on he 2041FT-MC triggers.
S3 S4 Description
Off Off Status LED turned On
Off On Status LED controlled by X.21Indication (I)
signal
On Off Status LED controlled by HSSI Data
Terminal Ready (DTR) signal
On On Status LED controlled by both “I” and “DTR”
signals
65
2041FT-MC DIP SWITCH SUMMARY TABLE
Position Function Factory Default
S1 Sync Method Off
S2 Sync Method On
S3 LED Operation On
S4 LED Operation On
}
}
Bypass
Sync Circuit
LED control
by I and TA
ON
OFF

3.1 CONFIGURATION SWITCHES (MODELS 2041FT-MC)
The Model 2041FT-MC has miniature DIP switches that you may
use to configure the units. Each Model 2041FT-MC is factory
configured as DTE on the X.21 end, and DCE on the HSSI end.
Therefore, the X.21 end “wants” to plug directly into a DCE device.
Conversely, the HSSI end of the converter “wants” to plug directly into
DTE.
Please use this section to configure the internal DIP switches so
that the unit will work properly in your application. Figure 3 shows the
position of Switch S1 on the top side of the PC board.
Figure 4 shows the orientation of the switches on DIP Switch S1
through S4 with respect to ON/OFF positions. The default settings for
DIP Switch S1 are shown in the table on page 6. Detailed descriptions
of each switch follow the table.
Figure 3. The Model 2041FT-MC Assembly Drawing
Figure 4. Close-up of DIP Switches Showing “ON” and “OFF” Positions
1234
ON
OFF
ON
DIP Switches S1 - S4
Switches S1 and S2: Synchronization Method
Set Switches S1 and S2 together to allow the Model 2041FT-MC to
compensate for timing delays when transmitting HSSI data at high
speeds (greater than 2.5 Mbps). At high bit rates, set Switch S1 On
and Switch S2 Off. In this setting, HSSI data will be synchronized to
the Signal Element timing signal from the X.21 side before being
converted to X.21 data. At lower bit rates (less than 2.5 Mbps), set
Switch S1 Off and S2 On. In this setting, the X.21 data bypasses the
synchronization circuit and passes straight through to the HSSI DTE.
S1 S2 Description
Off Off Not a Valid Setting
Off On Data Skips Sync Circuit
On Off Data passes through sync circuit.
On On Not a Valid Setting
Switches S3 and S4: Status LED Operation
Set Switches S3 and S4 together to determine the how the Status
LED on he 2041FT-MC triggers.
S3 S4 Description
Off Off Status LED turned On
Off On Status LED controlled by X.21Indication (I)
signal
On Off Status LED controlled by HSSI Data
Terminal Ready (DTR) signal
On On Status LED controlled by both “I” and “DTR”
signals
65
2041FT-MC DIP SWITCH SUMMARY TABLE
Position Function Factory Default
S1 Sync Method Off
S2 Sync Method On
S3 LED Operation On
S4 LED Operation On
}
}
Bypass
Sync Circuit
LED control
by I and TA
ON
OFF

3.2 CONFIGURATION SWITCHES (MODELS 2041FC-MT)
The Model 2041FC-MT has miniature DIP switches that you may
use to configure the units. Each Model 2041FC-MT is factory
configured as DCE on the X.21 end, and DTE on the HSSI end.
Therefore, the X.21 end “wants” to plug directly into a DTE device.
Conversely, the HSSI end of the converter “wants” to plug directly into
DCE.
Please use this section to configure the internal DIP switches so
that the unit will work properly in your application. Figure 5 shows the
position of Switch S1 on the top side of the PC board.
Figure 6 shows the orientation of the Switches on DIP Switch S1
with respect to ON/OFF positions. The default settings for DIP switch
S1 are shown in the Table 2 on page 8. Detailed descriptions of each
switch follow the table.
7
Figure 5. The Model 2041FC-MT Assembly Drawing
Figure 6. Close-up of DIP Switches Showing “ON” and “OFF” Positions
1234
ON
OFF
ON
Switches S1 and S2: Status LED Operation
Set Switches S1 and S2 together to determine the how the Status
LED on the 2041FC-MT triggers.
S1 S2 Description
Off Off Status LED turned On
Off On Status LED controlled by X.21Control (C)
signal
On Off Status LED controlled by HSSI Data
Set Ready (DSR) signal
On On Status LED controlled by both “C” and
“DSR” signals
Switches S3 and S4: Synchronization Method
Set Switches S3 and S4 together to allow the Model 2041FC-MT
to compensate for timing delays when transmitting X.21 data at high
speeds (greater than 2.5 Mbps). At high bit rates, set Switch S3 On
and Switch S4 Off. In this setting, the X.21 data will be synchronized
to the RD timing signal before conversion to HSSI. At lower bit rates
(less than 2.5 Mbps), set Switch S3 Off and S4 On. In this setting, the
X.21 data bypasses the synchronization circuit and is passes straight
through to the HSSI DCE.
S3 S4 Description
Off Off Not a Valid Setting
Off On Data Skips Sync Circuit
On Off Data passes through sync circuit.
On On Not a Valid Setting
8
2041FC-MT DIP SWITCH SUMMARY TABLE
Position Function Factory Default
S1 LED Operation On
S2 LED Operation On
S3 Sync Method Off
S4 Sync Method On
}
}
LED controlled
by”C” or “DTR”
Bypass
Sync Circuit
DIP Switches S1 - S4
ON
OFF

3.2 CONFIGURATION SWITCHES (MODELS 2041FC-MT)
The Model 2041FC-MT has miniature DIP switches that you may
use to configure the units. Each Model 2041FC-MT is factory
configured as DCE on the X.21 end, and DTE on the HSSI end.
Therefore, the X.21 end “wants” to plug directly into a DTE device.
Conversely, the HSSI end of the converter “wants” to plug directly into
DCE.
Please use this section to configure the internal DIP switches so
that the unit will work properly in your application. Figure 5 shows the
position of Switch S1 on the top side of the PC board.
Figure 6 shows the orientation of the Switches on DIP Switch S1
with respect to ON/OFF positions. The default settings for DIP switch
S1 are shown in the Table 2 on page 8. Detailed descriptions of each
switch follow the table.
7
Figure 5. The Model 2041FC-MT Assembly Drawing
Figure 6. Close-up of DIP Switches Showing “ON” and “OFF” Positions
1234
ON
OFF
ON
Switches S1 and S2: Status LED Operation
Set Switches S1 and S2 together to determine the how the Status
LED on the 2041FC-MT triggers.
S1 S2 Description
Off Off Status LED turned On
Off On Status LED controlled by X.21Control (C)
signal
On Off Status LED controlled by HSSI Data
Set Ready (DSR) signal
On On Status LED controlled by both “C” and
“DSR” signals
Switches S3 and S4: Synchronization Method
Set Switches S3 and S4 together to allow the Model 2041FC-MT
to compensate for timing delays when transmitting X.21 data at high
speeds (greater than 2.5 Mbps). At high bit rates, set Switch S3 On
and Switch S4 Off. In this setting, the X.21 data will be synchronized
to the RD timing signal before conversion to HSSI. At lower bit rates
(less than 2.5 Mbps), set Switch S3 Off and S4 On. In this setting, the
X.21 data bypasses the synchronization circuit and is passes straight
through to the HSSI DCE.
S3 S4 Description
Off Off Not a Valid Setting
Off On Data Skips Sync Circuit
On Off Data passes through sync circuit.
On On Not a Valid Setting
8
2041FC-MT DIP SWITCH SUMMARY TABLE
Position Function Factory Default
S1 LED Operation On
S2 LED Operation On
S3 Sync Method Off
S4 Sync Method On
}
}
LED controlled
by”C” or “DTR”
Bypass
Sync Circuit
DIP Switches S1 - S4
ON
OFF

4.0 INSTALLATION
The Model 2041 is designed to connect X.21 devices to devices
which employ the HSSI interface standard. This section describes how
to install the units.
4.2 2041FT-MC CONNECTION
The Model 2041FT-MC is designed to connect a X.21 DCE device
to an HSSI DTE device. In this application, the DB-15 (X.21) and HD-
50 (HSSI) male connector of the Model 2041FT-MC may connect
directly to their respective equipment ports, or they may connect via a
short “straight-through” cable (See Appendix C for Interface Pin
Assignments). Figure 7 below illustrates the proper connection of the
Model 2041FT-MC.
4.1
2041FC-MT CONNECTION
The Model 2041FC-MT is designed to connect an X.21 DTE
device to an HSSI DCE device. In this application, the DB-15 (X.21)
and HD-50 (HSSI) connectors of the Model 2041FC-MT may connect
directly to their respective equipment ports, or they may connect via a
short “straight-through” cable (See Appendix C for Interface Pin
Assignments). Figure 8 below illustrates the proper connection of the
Model 2041FC-MT.
9
Figure 8. An X.21 DTE to HSSI DCE Installation
Figure 7. An X.21 DCE to HSSI DTE Installation
CSU/DSU with
X.21 Interface
(DCE)
Router with
HSSI Interface
(DTE)
Model 2041FT-MC
Model 2041FC-MT
T1/E1 CSU/DSU with
HSSI Interface
(DCE)
T1/E1 Router with
X.21 Interface
(DTE)
4.3 AC POWER CONNECTION
The Model 2041 uses a 5VDC, 2A universal input, power supply
that is equipped with a male IEC-320 power entry connector and
supports a voltage range of 100-250VAC. This transformer connects
to the Model 2041 by means of a cannon jack on the rear panel. There
are a variety of domestic and international power cords available for the
power entry (See Appendix B). The Model 2041 is powered-up as soon
as it is plugged into an AC outlet–there is no power switch.
4.4 DC POWER CONNECTION
You may bypass the DC wall adapter and supply DC power directly
to the Model 2041 power supply jack. DC power supplied must be
5VDC ±5%, 1A minimum, center positive, and can be supplied via a
barrel type plug with 2.1/5.5/10mm I.D./O.D./Shaft Length dimensions.
NOTE: DC power source must be SELV (Circuit, Safety Extra Low
Voltage) specified. (See CENELEC EN60950, Section 1.2.8.5)
10

4.0 INSTALLATION
The Model 2041 is designed to connect X.21 devices to devices
which employ the HSSI interface standard. This section describes how
to install the units.
4.2 2041FT-MC CONNECTION
The Model 2041FT-MC is designed to connect a X.21 DCE device
to an HSSI DTE device. In this application, the DB-15 (X.21) and HD-
50 (HSSI) male connector of the Model 2041FT-MC may connect
directly to their respective equipment ports, or they may connect via a
short “straight-through” cable (See Appendix C for Interface Pin
Assignments). Figure 7 below illustrates the proper connection of the
Model 2041FT-MC.
4.1
2041FC-MT CONNECTION
The Model 2041FC-MT is designed to connect an X.21 DTE
device to an HSSI DCE device. In this application, the DB-15 (X.21)
and HD-50 (HSSI) connectors of the Model 2041FC-MT may connect
directly to their respective equipment ports, or they may connect via a
short “straight-through” cable (See Appendix C for Interface Pin
Assignments). Figure 8 below illustrates the proper connection of the
Model 2041FC-MT.
9
Figure 8. An X.21 DTE to HSSI DCE Installation
Figure 7. An X.21 DCE to HSSI DTE Installation
CSU/DSU with
X.21 Interface
(DCE)
Router with
HSSI Interface
(DTE)
Model 2041FT-MC
Model 2041FC-MT
T1/E1 CSU/DSU with
HSSI Interface
(DCE)
T1/E1 Router with
X.21 Interface
(DTE)
4.3 AC POWER CONNECTION
The Model 2041 uses a 5VDC, 2A universal input, power supply
that is equipped with a male IEC-320 power entry connector and
supports a voltage range of 100-250VAC. This transformer connects
to the Model 2041 by means of a cannon jack on the rear panel. There
are a variety of domestic and international power cords available for the
power entry (See Appendix B). The Model 2041 is powered-up as soon
as it is plugged into an AC outlet–there is no power switch.
4.4 DC POWER CONNECTION
You may bypass the DC wall adapter and supply DC power directly
to the Model 2041 power supply jack. DC power supplied must be
5VDC ±5%, 1A minimum, center positive, and can be supplied via a
barrel type plug with 2.1/5.5/10mm I.D./O.D./Shaft Length dimensions.
NOTE: DC power source must be SELV (Circuit, Safety Extra Low
Voltage) specified. (See CENELEC EN60950, Section 1.2.8.5)
10

5.0 OPERATION
Once you have configured the Model 2041 properly (see Section
3.0) and have correctly connected DTE, DCE and power (see Section
4.0), you are ready to operate the unit. This section describes the LED
status monitors and loopback test modes.
5.1 BACK PANEL LED STATUS MONITORS
The Model 2041 features two LEDs that are located on the back
panel. Figure 9 below shows the positions of the LEDs. Following
Figure 9 is a description of each LED.
Status Glows green to indicate that the selected control signals
are active:
Model 2041FT-MC: The Status LED can be contstantly
On, or it can be controlled by the X.21 “I” and/or HSSI
“DTR” signals (see Section 3.1 to select the desired
configuration signal. Default configuration = LED
controlled by both “I” and “DTR”).
Model 2041FC-MT: The Status LED can be contstantly
On, or it can be controlled by the X.21 “C” or HSSI
“DSR” signals (see Section 3.2 to select the desired
configuration. Default configuration = LED controlled
by both “C” and “DSR”).
Power Glows green to indicate that the unit is receiving power.
11
Figure 9. Model 2041 Rear Panel
External Power Jack HSSI Cable
Power LED
Status LED
APPENDIX A
PATTON MODEL 2041 SPECIFICATIONS
Data Format: Synchronous
Data Rate: 0 - 10Mbps
Clocking: All HSSI co-directional timing patterns are supported.
Standards: Converts ITU/CCITT X.21 to HSSI (ANSI/TIA/EIA-
613 Dec. “93 and ANSI/TIA/EIA-612 NOV. “93)
electrically and mechanically.
Loopbacks: Local and Remote
Interfaces: Model 2041FT-MC: Connects X.21 (DCE) to HSSI
(DTE)
Model 2041FC-MT: Connects X.21 (DTE) to HSSI
(DCE)
Cable: 6 feet (1.8 m)
Connectors: Male HD/Slimline 50-pin (HSSI);
Female DB-15 (X.21)
Compliance: FCC Class A, IEC CE (emissions).
Power: Unit will require an external desk top power supply.
Temperature
Range: 0 to 50º C (32 - 122ºF)
Humidity: 5 to 95%, non-condensing
Size: 3.0”L x 1.8”W x 0.8”H (7.6 X 4.4 X 1.9 CM)
Approval: CE (EMC Directive/EN 50082-1)
12

5.0 OPERATION
Once you have configured the Model 2041 properly (see Section
3.0) and have correctly connected DTE, DCE and power (see Section
4.0), you are ready to operate the unit. This section describes the LED
status monitors and loopback test modes.
5.1 BACK PANEL LED STATUS MONITORS
The Model 2041 features two LEDs that are located on the back
panel. Figure 9 below shows the positions of the LEDs. Following
Figure 9 is a description of each LED.
Status Glows green to indicate that the selected control signals
are active:
Model 2041FT-MC: The Status LED can be contstantly
On, or it can be controlled by the X.21 “I” and/or HSSI
“DTR” signals (see Section 3.1 to select the desired
configuration signal. Default configuration = LED
controlled by both “I” and “DTR”).
Model 2041FC-MT: The Status LED can be contstantly
On, or it can be controlled by the X.21 “C” or HSSI
“DSR” signals (see Section 3.2 to select the desired
configuration. Default configuration = LED controlled
by both “C” and “DSR”).
Power Glows green to indicate that the unit is receiving power.
11
Figure 9. Model 2041 Rear Panel
External Power Jack HSSI Cable
Power LED
Status LED
APPENDIX A
PATTON MODEL 2041 SPECIFICATIONS
Data Format: Synchronous
Data Rate: 0 - 10Mbps
Clocking: All HSSI co-directional timing patterns are supported.
Standards: Converts ITU/CCITT X.21 to HSSI (ANSI/TIA/EIA-
613 Dec. “93 and ANSI/TIA/EIA-612 NOV. “93)
electrically and mechanically.
Loopbacks: Local and Remote
Interfaces: Model 2041FT-MC: Connects X.21 (DCE) to HSSI
(DTE)
Model 2041FC-MT: Connects X.21 (DTE) to HSSI
(DCE)
Cable: 6 feet (1.8 m)
Connectors: Male HD/Slimline 50-pin (HSSI);
Female DB-15 (X.21)
Compliance: FCC Class A, IEC CE (emissions).
Power: Unit will require an external desk top power supply.
Temperature
Range: 0 to 50º C (32 - 122ºF)
Humidity: 5 to 95%, non-condensing
Size: 3.0”L x 1.8”W x 0.8”H (7.6 X 4.4 X 1.9 CM)
Approval: CE (EMC Directive/EN 50082-1)
12

APPENDIX B
PATTON MODEL 2041
FACTORY REPLACEMENT PARTS AND ACCESSORIES
Patton Model # Description
08055DCUI......................100-240VAC (+5V ±5% reg. DC/2A)
Universal Input Adapter
0805EUR.........................European Power Cord CEE 7
0805UK ...........................United Kingdom Power Cord
0805US ...........................American Power Cord
0805AUS.........................Australia/New Zealand Power Cord
0805DEN.........................Denmark Power Cord
0805FR............................France/Belgium Power Cord
0805IN.............................India Power Cord
0805IS.............................Israel Power Cord
0805JAP..........................Japan Power Cord
0805SW...........................Switzerland Power Cord
07M2041-B......................User Manual
13 14
APPENDIX C
PATTON MODEL 2041 HSSI INTERFACE
HD-50 CONNECTOR (DCE OR DTE)
Pin # Signal
1 SGND (Signal Ground)
26 SGND (Signal Ground)
2 RT (Receive Timing-A)
27 RT/ (Receive Timing-B)
3 DSR/(DCE Ready-A)
28 DSR (DCE Ready-B)
4 RD (Receive Data-A)
29 RD/ (Receive Data-B)
5Reserved for Future Use
30 Reserved for Future Use
6 ST (Send Timing - A, DCE Source)
31 ST/ (Send Timing-B, DCE Source)
7Reserved for Future Use
32 Reserved for Future Use
8 DTR (DTE Ready-A)
33 DTR/ (DTE Ready-B)
9 TT (Terminal Timing-A, DTE Source)
34 TT/ (Terminal Timing-B, DTE Source)
10 LA (Loopback A-A)
35 LA/ (Loopback A-B)
11 SD (Send Data A)
36 SD/ (Send Data B)
12 LB (Loopback B-A)
37 LB/ (Loopback B-B)
13 Reserved for Future Use
38 Reserved for Future Use
14 - 18 Reserved for Future Use
39 - 43 Reserved for Future Use
19 Reserved for Future Use
44 Reserved for Future Use
20 - 23 Reserved for Future Use
45 - 48 Reserved for Future Use
24 TM - Test Mode (Indication-A)
49 TM/ - Test Mode (Indication-B)
25 SGND (Signal Ground)
50 SGND (Signal Ground)

APPENDIX B
PATTON MODEL 2041
FACTORY REPLACEMENT PARTS AND ACCESSORIES
Patton Model # Description
08055DCUI......................100-240VAC (+5V ±5% reg. DC/2A)
Universal Input Adapter
0805EUR.........................European Power Cord CEE 7
0805UK ...........................United Kingdom Power Cord
0805US ...........................American Power Cord
0805AUS.........................Australia/New Zealand Power Cord
0805DEN.........................Denmark Power Cord
0805FR............................France/Belgium Power Cord
0805IN.............................India Power Cord
0805IS.............................Israel Power Cord
0805JAP..........................Japan Power Cord
0805SW...........................Switzerland Power Cord
07M2041-B......................User Manual
13 14
APPENDIX C
PATTON MODEL 2041 HSSI INTERFACE
HD-50 CONNECTOR (DCE OR DTE)
Pin # Signal
1 SGND (Signal Ground)
26 SGND (Signal Ground)
2 RT (Receive Timing-A)
27 RT/ (Receive Timing-B)
3 DSR/(DCE Ready-A)
28 DSR (DCE Ready-B)
4 RD (Receive Data-A)
29 RD/ (Receive Data-B)
5Reserved for Future Use
30 Reserved for Future Use
6 ST (Send Timing - A, DCE Source)
31 ST/ (Send Timing-B, DCE Source)
7Reserved for Future Use
32 Reserved for Future Use
8 DTR (DTE Ready-A)
33 DTR/ (DTE Ready-B)
9 TT (Terminal Timing-A, DTE Source)
34 TT/ (Terminal Timing-B, DTE Source)
10 LA (Loopback A-A)
35 LA/ (Loopback A-B)
11 SD (Send Data A)
36 SD/ (Send Data B)
12 LB (Loopback B-A)
37 LB/ (Loopback B-B)
13 Reserved for Future Use
38 Reserved for Future Use
14 - 18 Reserved for Future Use
39 - 43 Reserved for Future Use
19 Reserved for Future Use
44 Reserved for Future Use
20 - 23 Reserved for Future Use
45 - 48 Reserved for Future Use
24 TM - Test Mode (Indication-A)
49 TM/ - Test Mode (Indication-B)
25 SGND (Signal Ground)
50 SGND (Signal Ground)

APPENDIX C
PATTON MODEL 2041 X.21 INTERFACE
DB-15 CONNECTOR (X.21 DCE OR DTE)
Pin # Signal
1 FG (Frame Ground)
2 T (Transmit - A)
3 C (Control - A)
4 R (Receive - A)
5 I (Indication - A)
6 ST (Signal Timing - A)
7 not connected
8 SG (Signal Ground)
9 T/ (Transmit - B)
10 C/ (Control - B)
11 R/ (Receive - B)
12 I/ (Indication - B)
13 ST/ (Transmit Data-B)
14 not connected
15 not connected
15
Dear Valued Customer,
Thank you for purchasing Patton Electronics products! We do appreciate
your business. I trust that you find this user manual helpful.
We manufacture one of the widest selections of data communications
products in the world including CSU/DSU's, network termination units,
powered and self-powered short range modems, fiber optic modems, interface
converters, baluns, electronic data switches, data-line surge protectors,
multiplexers, transceivers, hubs, print servers and much more. We produce
these products at our Gaithersburg, MD, USA, facility, and can custom
manufacture products for your unique needs.
We would like to hear from you. Please contact us in any of the following
ways to tell us how you like this product and how we can meet your product
needs today and in the future.
Web: http://www.patton.com
Sales E-mail: [email protected]
Support E-mail: [email protected]
Phone - Sales [phone]
Phone - Support [phone]
Fax: [phone]
Mail: Patton Electronics Company
7622 Rickenbacker Drive
Gaithersburg, MD 20879 USA
We are committed to a quality product at a quality price. Patton
Electronics is ISO 9001 certified. We meet and exceed the highest
standards in the industry (CE, UL, etc.).
It is our business to serve you. If you are not satisfied with any aspect of
this product or the service provided from Patton Electronics or its distributors,
please let us know.
Thank you.
Burton A.Patton
Vice President
P.S. Please tell us where you purchased this product.

APPENDIX C
PATTON MODEL 2041 X.21 INTERFACE
DB-15 CONNECTOR (X.21 DCE OR DTE)
Pin # Signal
1 FG (Frame Ground)
2 T (Transmit - A)
3 C (Control - A)
4 R (Receive - A)
5 I (Indication - A)
6 ST (Signal Timing - A)
7 not connected
8 SG (Signal Ground)
9 T/ (Transmit - B)
10 C/ (Control - B)
11 R/ (Receive - B)
12 I/ (Indication - B)
13 ST/ (Transmit Data-B)
14 not connected
15 not connected
15
Dear Valued Customer,
Thank you for purchasing Patton Electronics products! We do appreciate
your business. I trust that you find this user manual helpful.
We manufacture one of the widest selections of data communications
products in the world including CSU/DSU's, network termination units,
powered and self-powered short range modems, fiber optic modems, interface
converters, baluns, electronic data switches, data-line surge protectors,
multiplexers, transceivers, hubs, print servers and much more. We produce
these products at our Gaithersburg, MD, USA, facility, and can custom
manufacture products for your unique needs.
We would like to hear from you. Please contact us in any of the following
ways to tell us how you like this product and how we can meet your product
needs today and in the future.
Web: http://www.patton.com
Sales E-mail: [email protected]
Support E-mail: [email protected]
Phone - Sales [phone]
Phone - Support [phone]
Fax: [phone]
Mail: Patton Electronics Company
7622 Rickenbacker Drive
Gaithersburg, MD 20879 USA
We are committed to a quality product at a quality price. Patton
Electronics is ISO 9001 certified. We meet and exceed the highest
standards in the industry (CE, UL, etc.).
It is our business to serve you. If you are not satisfied with any aspect of
this product or the service provided from Patton Electronics or its distributors,
please let us know.
Thank you.
Burton A.Patton
Vice President
P.S. Please tell us where you purchased this product.
