Paugge ENT-SP20B16 User manual

Paugge
18Gbps 4K60Hz HDR
1×16 HDMI Splitter
ENT-SP20B16
VER 1.1

Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction......................................................................................... 1
2. Features............................................................................................... 1
3. Package Contents.............................................................................. 1
4. Specifications. .................................................................................... 2
5. Operation Controls and Functions. ................................................... 3
6. EDID Mode. ......................................................................................... 4
7. Application Example.......................................................................... 5

-1-
1. Introduction
Paugge 18Gbps 1x16 HDMI Splitter can distribute 1 HDMI source signal to
16 HDMI display devices synchronously. Supported video resolution is up to
4K2K@50/60Hz 4:4:4. The product supports advanced EDID management.
It also supports HDR, HDR10, HDR10+, HLG and Dolby vision function. This
product is widely used in multimedia conference halls, TV teaching, large-screen
display projects and other places.
2. Features
☆ HDMI 2.0b, HDCP 2.2 / 1.x and DVI 1.0 compliant
☆ Support 18Gbps video bandwidth
☆ Support video resolution up to 4K2K@50/60Hz 4:4:4
☆ Support digital audio format: DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/
Dolby-AC3/DSD
☆ Support HDR, HDR10, HDR10+, HLG and Dolby vision
☆AOC Fiber HDMI 2.0 & 2.1 Support
☆ Advanced EDID management
☆ Compact design for easy and flexible installation
3. Package Contents
① 1× 18Gbps 1×16 HDMI Splitter
② 1× 12V/2.5A DC Locking Power Adapter
③ 1× User Manual

-2-
4. Specifications
Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance
HDCP 2.2/1.x
Video Bandwidth
594MHz/18Gbps
Video Resolution
Up to 4k2k@50/60Hz 4:4:4
Color Depth
8-bit,10-bit,12-bit(1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
Color Space
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2/4:2:0
HDR
Support HDR, HDR10, HDR10+, HLG, Dolby vision
HDMI Audio Formats
PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-
TrueHD, DTS-HD
ESD Protection
Human body model—±8kV (Air-gap discharge) &
±4kV (Contact discharge)
Connection
Input
1×HDMI Type A (19-pin female)
Output
16×HDMI Type A (19-pin female）
Control
1×SERVICE (Micro USB, Update port）
1x DIAL switch [5-pin]
Mechanical
Housing
Metal Enclosure
Silkscreen Color
Black
Dimensions
300mm (W) × 100mm (D) × 28mm (H)
Weight
900g
Power Supply
Input: AC100 - 240V 50/60Hz, Output: DC 12V/2.5A
(US/EU standards, CE/FCC/UL certified)
Power Consumption
12W
Operation
Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)

-3-
1/
ON
18Gbps HDMI 1x16 Splitter
IN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 O UT
OFF
1 2 3
4

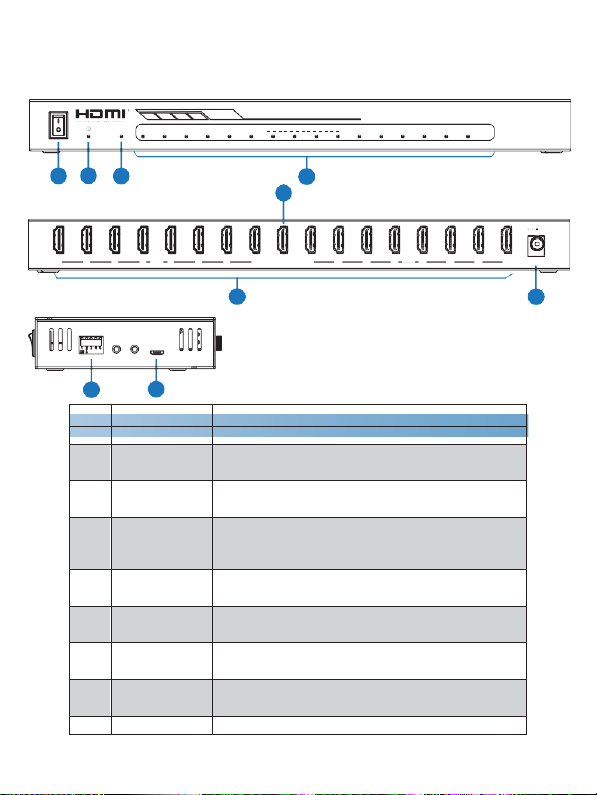

5. Operation Controls and Functions
Front Panel
No.
Name
Function Description
1
POWER switch
Press this switch to power on/off the device.
2POWER LED
When the device is powered on, the power LED
will be on.
3IN LED
When the HDMI IN port connects an active source
device, the green LED will be on.
4OUT LED
(1~16)
When the HDMI OUT port connects an active
display device, the corresponding green OUT
LED will be on.
5HDMI IN port HDMI input port, connect to HDMI source device
such as DVD or set-top box with an HDMI cable.
6
HDMI OUT
port (1~16)
HDMI output port, connect to the HDMI display
device such as TV or Monitor with an HDMI cable.
7DC 12V
Plug the DC 12V power supply into the unit and
connect the adaptor to an AC outlet.
8
EDID DIAL
switch
Used to set EDID mode. Please refer to Section
“6. EDID Mode” for details.
9
SERVICE port
Firmware update port.
EDID
1
SERVICE
0
8
9
Rear Panel
5
1
2
3
4 OU T 5
6
7
8
IN 9
10 11 12 OUT 13 14 15 16 DC 12V
Side Panel
6
7

-4-
6. EDID Mode
The defined EDID setting list of the product is shown as below:
EDID Mode
EDID Description
11111
1080P, Stereo Audio 2.0
11110
1080P, Dolby/DTS 5.1
11101
1080P, HD Audio 7.1
11100
1080I, Stereo Audio 2.0
11011
1080I, Dolby/DTS 5.1
11010
1080I, HD Audio 7.1
11001
1080P 3D, Stereo Audio 2.0
11000
1080P 3D, Dolby/DTS 5.1
10111
1080P 3D, HD Audio 7.1
10110
4K2K30Hz_444, Stereo Audio 2.0
10101
4K2K30Hz_444, Dolby/DTS 5.1
10100
4K2K30Hz_444, HD Audio 7.1
10011
4K2K60Hz_420, Stereo Audio 2.0
10010
4K2K60Hz_420, Dolby/DTS 5.1
10001
4K2K60Hz_420, HD Audio 7.1
10000
4K2K60Hz_444, Stereo Audio 2.0
01111
4K2K60Hz_444, Dolby/DTS 5.1
01110
4K2K60Hz_444, HD Audio 7.1
01101
4K2K60Hz_444, Stereo Audio 2.0 HDR
01100
4K2K60Hz_444, Dolby/DTS 5.1 HDR
01011
4K2K60Hz_444, HD Audio 7.1HDR
01010
copy output 1
01001
1080P, Stereo Audio 2.0
01000
1080P, Stereo Audio 2.0
00111
1080P, Stereo Audio 2.0
00110
1080P, Stereo Audio 2.0
00101
1080P, Stereo Audio 2.0
00100
1080P, Stereo Audio 2.0
00011
1080P, Stereo Audio 2.0
00010
1080P, Stereo Audio 2.0
00001
1080P, Stereo Audio 2.0
00000
PC control mode

-5-
DVD or Blu-ray Player
Power Supply
1 2 3 4 OUT 5 6 7 8 IN 9 10 11 12 OUT 13
14 15 16
DC 12V
7. Application Example
UHDTV UHDTV
