Paxton ins-20601 User manual

ins-20601
Paxton

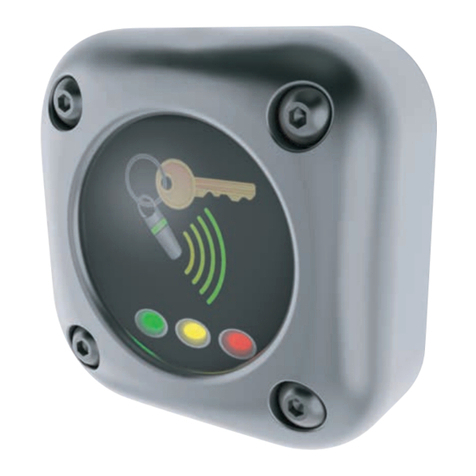

Proximity metal readers

1 2
1
2
1
Mounting
3
Installation guidelines
• Drill a hole in the surface for the rear data cable. Secure the
mounting plate to the surface with four screws as per tting
diagram on page 1.
• Suitable screws and xings are provided for tting the plate to
a wall. Mount the reader on its backplate and secure with the
security screws using the Allen key supplied.
• Ensure the data cable has free access at the rear.
Wiring

3 4
390-737
390-747
390-757
110mA 110mA 110mA
Current
@ 12V DC
Operating
temperature
Waterproof
HID
compatible
Handsfree
Mounted on
metal surface
-35°C - +66°C
-31°F - +151°F
Technical Help
1 - Readers/Keypads not working.
• Software settings - Conrm that the settings of the reader or
keypad are correct.
• Connections - Check the wiring and integrity of the connectors. If
possible, test this reader on the other port.
• Extended cable - Belden 9538/9540 should be used up to a
maximum of 500 feet. Twisted pair alarm cable should not be
used. To conrm that an extended reader cable is not at fault, wire
the reader directly to the port.
• Supply voltage - Conrm that the voltage is within specication.
(see table)
• User token - Conrm that the user token used for testing is OK by
presenting it to a known working reader.
• Interference - Conrm whether the reader works when tested ‘in
hand’ and not mounted on the wall.
• PROXIMITY readers should not be mounted back to back or close
to other RF devices.
2 - Readers / Keypads - Extending cable.
• Only Belden CR9538 / 9540 or a UL equivalent can be used for
cable extensions. The maximum run is 500 feet.
3 - Net2 - Using a door reader as a desktop reader.
• It is possible to congure a door reader to operate as a desktop
reader:
1 - Select the doors menu in the left hand Net2 pane.
2 - Click on the door you wish to change the reader to act as a desktop
reader.
3 - Under the relevant reader tab, change the reader operating mode to
‘Desktop Reader’.
4 - The PC displays‘Would you like to accept desktop reader events from
this reader at the PC?’; click‘Yes’
Now when you present a blank or existing token to that reader it will
allow you to add this new token or edit the existing one.
NOTE: Remember to return the operating mode to the original setting
once the cards have been read or users will not be able to gain access
through the reader. KP Reader - Ensure that Keypad type is set to ‘None’,
otherwise the Desktop reader option will not be available.
4 - Net2. What to do if a user has no access - Check the reader LED’s
when a card is shown.
• No LED’s - the reader has no power.
• No change in display - try the card on a known working reader. If
there is still no response, replace the card.
• Green LED ashing when a card is presented; check relay 1 LED to
check for activity and also the lock wiring.
• Red LED is ashing when a card is presented; check the validity of
the user at the PC.
• Check user’s access level and ensure they should have access by
clicking on Current Validity.
• Check the ‘Expires end’ date and conrm this has not been past.
• Reinstate the ACU from the doors screen. Select the ACU’s you
wish to reinstate and then click OK.
Specications

5 6
[phone]
paxton.support
[e-mail]
[phone]
paxton.support
[e-mail]
[phone]
usapaxton.support
[e-mail]
[phone]
usapaxton.support
[e-mail]
[phone]
paxton.gmbh.support
[e-mail]
[phone]
paxton.benelux.support
[e-mail]
[phone]
paxton.benelux.support
[e-mail]
[phone]
paxton.benelux.support
[e-mail]
[phone]
[e-mail]
[phone]
[e-mail]
[phone]
paxton.support
paxton.support
paxton.support
[e-mail]
Ce dispositif est conforme à la section 15 du règlement de la FCC. Le fonctionnement est soumis aux deux
conditions suivantes : (1) ce dispositif ne doit pas créer d'interférences nuisibles et (2) ce dispositif doit accepter
toute interférence reçue, y compris des interférences qui peuvent causer un fonctionnement non souhaité. Tout
changement ou modication non agréé par la partie responsable de la mise en conformité peut entraîner une
interdiction d'utilisation de l'équipement.
Conformité et limitations du produit
Ce dispositif est conforme au(x) standards RSS de l'industrie Canadienne sans-licence. Le fonctionnement est
soumis aux deux conditions suivantes : (1) ce dispositif ne doit pas créer d'interférences nuisibles et (2) ce dispositif
doit accepter toute interférence reçue, y compris des interférences qui peuvent causer un fonctionnement non
souhaité.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Changes or modications not expressly approved by
the party responsible for compliance could void the user's authority to operate the equipment.
To comply as a UL listed installation, the following conditions must apply:-
• Server based functions (Antipassback, Time and Attendance, etc) have not been evaluated by UL and
cannot be used for UL 294 installations.
• Where an equivalent cable / wire is used it must be ‘ UL Listed ‘All interconnecting devices must be UL
Listed.
• The use of Wiegand readers and the conguration software has not been evaluated by‘UL’
• For CAN/ULC-S319 installations, terminals, leads and wiring methods must comply with CSA, C22.1,
Canadian electrical code, Part 1, safety standards for electrical installations.
• The use of any add-on, expansion, memory or other module manufactured or supplied by the
manufacturer’s representative will invalidate the CAN/ULC-S319 certication.
• Wiring methods shall be in accordance with the National Electrical Code (ANSI/NFPA70), local codes, and
the authorities having jurisdiction.
Pour que l’installation répond aux normes UL, les conditions suivantes sont applicables:-
• Les fonctions serveur (Antipassback, Pointage, etc.) n’ont pas été évalué par l’UL et ne peuvent pas être
utilisé pour les installations UL294.
• L’utilisation des lecteurs Wiegand et le logiciel de conguration n’ont pas été évalués par ‘UL’
• Quand un cable équivalent est utilisé, il doit être‘listé UL’Tout appareil d’interconnexion doit être listé UL
• Pour les installation CAN/ULC-S319, les terminaux, câbles et méthodes de câblage doivent être en accord
avec CSA, C22.1, code électrique canadien, Partie 1, standards de sécurité pour les installations électriques.
• L’utilisation de tout rajout, extension, mémoire ou module fabriqué ou fourni par le représentant du
fabricant invalidera la certication CAN/ULC-S319
• Les méthodes de câblage doivent être en accord avec le code nation électrique (ANSI/NFPA70), codes
locaux et les autorités ayant la juridiction.
North America:- Product compliance and limitations
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
The declaration of conformity is available on request. Contact details are provided at:
http://paxton.info/596
These products are not suitable for retail sale. All warranties are invalid if these products are not installed by
a competent person.
FCC Compliance
Conformité FCC
http://paxton.info/1606

© Paxton Ltd 1.0.0
Made in the UK
01/29/2014
