PCB Piezotronics 3711E1110G User manual

Model 3711E1110G
DC Response Accelerometer
Installation and Operating Manual
For assistance with the operation of this product,
contact PCB Piezotronics, Inc.
Toll-free: 800-828-8840
24-hour SensorLine: 716-684-0001
Fax: [phone]
E-mail: [email protected]
Web: www.pcb.com

Manual 21354 Rev E
ECN 50523
Repair and Maintenance
PCB guarantees Total Customer Satisfaction through its
“Lifetime Warranty Plus” on all Platinum Stock Products
sold by PCB and through its limited warranties on all other
PCB Stock, Standard and Special products. Due to the
sophisticated nature of our sensors and associated
instrumentation, field servicing and repair is not
recommended and, if attempted, will void the factory
warranty.
Beyond routine calibration and battery replacements
where applicable, our products require no user
maintenance. Clean electrical connectors, housings, and
mounting surfaces with solutions and techniques that will
not harm the material of construction. Observe caution
when using liquids near devices that are not hermetically
sealed. Such devices should only be wiped with a
dampened cloth—never saturated or submerged.
In the event that equipment becomes damaged or ceases
to operate, our Application Engineers are here to support
your troubleshooting efforts 24 hours a day, 7 days a
week. Call or email with model and serial number as well
as a brief description of the problem.
Calibration
Routine calibration of sensors and associated
instrumentation is necessary to maintain measurement
accuracy. We recommend calibrating on an annual basis,
after exposure to any extreme environmental influence,
or prior to any critical test.
PCB Piezotronics is an ISO-9001 certified company whose
calibration services are accredited by A2LA to ISO/IEC
17025, with full traceability to SI through N.I.S.T. In
addition to our standard calibration services, we also offer
specialized tests, including: sensitivity at elevated or
cryogenic temperatures, phase response, extended high
or low frequency response, extended range, leak testing,
hydrostatic pressure testing, and others. For more
information, contact your local PCB Piezotronics
distributor, sales representative, or factory customer
service representative.
Returning Equipment
If factory repair is required, our representatives will
provide you with a Return Material Authorization (RMA)
number, which we use to reference any information you
have already provided and expedite the repair process.
This number should be clearly marked on the outside of
all returned package(s) and on any packing list(s)
accompanying the shipment.
Contact Information
PCB Piezotronics, Inc.
3425 Walden Ave.
Depew, NY14043 USA
Toll-free: [phone]
24-hour SensorLine: [phone]
General inquiries: in[email protected]
Repair inquiries: [e-mail]
For a complete list of distributors, global offices and sales
representatives, visit our website, www.pcb.com.
Safety Considerations
This product is intended for use by qualified personnel
who recognize shock hazards and are familiar with the
precautions required to avoid injury. While our equipment
is designed with user safety in mind, the protection
provided by the equipment may be impaired if equipment
is used in a manner not specified by this manual.
Discontinue use and contact our 24-Hour Sensorline if:
Assistance is needed to safely operate equipment
Damage is visible or suspected
Equipment fails or malfunctions
For complete equipment ratings, refer to the enclosed
specification sheet for your product.
Definition of Terms and Symbols
The following symbols may be used in this manual:
DANGER
Indicates an immediate hazardous
situation, which, if not avoided, may
result in death or serious injury.

Manual 21354 Rev E
ECN 50523
CAUTION
Refers to hazards that could damage
the instrument.
NOTE
Indicates tips, recommendations and
important information. The notes
simplify processes and contain
additional information on particular
operating steps.
The following symbols may be found on the equipment
described in this manual:
This symbol on the unit indicates that
high voltage may be present. Use
standard safety precautions to avoid
personal contact with this voltage.
This symbol on the unit indicates that
the user should refer to the operating
instructions located in the manual.
This symbol indicates safety, earth
ground.

Manual 21354 Rev E
ECN 50523
PCB工业监视和测量设备 - 中国RoHS2公布表
PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table
部件名称
有害物质
铅(Pb)
汞
(Hg)
镉
(Cd)
六价铬(Cr(VI))
多溴联苯 (PBB)
多溴二苯醚(PBDE)
住房
O
O
O
O
O
O
PCB板
X
O
O
O
O
O
电气连接器
O
O
O
O
O
O
压电晶体
X
O
O
O
O
O
环氧
O
O
O
O
O
O
铁氟龙
O
O
O
O
O
O
电子
O
O
O
O
O
O
厚膜基板
O
O
X
O
O
O
电线
O
O
O
O
O
O
电缆
X
O
O
O
O
O
塑料
O
O
O
O
O
O
焊接
X
O
O
O
O
O
铜合金/黄铜
X
O
O
O
O
O
本表格依据 SJ/T 11364 的规定编制。
O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。
CHINA RoHS COMPLIANCE

Manual 21354 Rev E
ECN 50523
Component Name
Hazardous Substances
Lead (Pb)
Mercury (Hg)
Cadmium (Cd)
Chromium VI
Compounds
(Cr(VI))
Polybrominated
Biphenyls (PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
Housing
O
O
O
O
O
O
PCB Board
X
O
O
O
O
O
Electrical Connectors
O
O
O
O
O
O
Piezoelectric Crystals
X
O
O
O
O
O
Epoxy
O
O
O
O
O
O
Teflon
O
O
O
O
O
O
Electronics
O
O
O
O
O
O
Thick Film Substrate
O
O
X
O
O
O
Wires
O
O
O
O
O
O
Cables
X
O
O
O
O
O
Plastic
O
O
O
O
O
O
Solder
X
O
O
O
O
O
Copper Alloy/Brass
X
O
O
O
O
O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement of GB/T 26572.
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above the limit
requirement of GB/T 26572.
Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

Manual Number: 32650
Manual Revision: D
ECR Number: 42629
3710 series DC Accelerometer Operating Guide
1
1.0 Introduction
This operating guide contains information that will familiarize
the user with the basic operation and installation of the 3710
Series MEMS DC Accelerometers. However, it is not intended
to cover all of the specific measurement challenges that one
may encounter while using the device. Therefore, if you have
detailed questions or are unsure of how to properly operate the
sensor after reading this “Operating Guide”, please contact a
PCB Application Engineer using our 24-Hour SensorLineTM at
716-684-0001.
2.0 Common Applications and Features
The 3710 Series MEMS DC Accelerometers achieve true DC
response for measuring uniform (or constant) acceleration and
low-frequency vibration. For this reason, they are often used
to:
Perform ride quality assessments of elevators, automo-
biles, trains, and amusement park rides.
Analyze the low frequency characteristics of buildings,
bridges, and large aerospace objects.
Acquire tilt and orientation data for feedback control and
stabilization purposes.
Because of the critical nature of these and similar test applica-
tions, all 3710 series MEMS DC Accelerometers have been
designed and manufactured with the following common char-
acteristics:
Rugged, all-welded titanium housing insures reliability
and durability in demanding applications and environ-
ments.
Built-in microelectronics provide conveniently standard-
ized sensitivities and low-noise output signals unmatched
by similar sensing technologies.
Internal voltage regulator allows sensor to be powered
from virtually any unregulated DC voltage source, such as
a bench-top power supply or portable battery source.
Gas damping extends the upper frequency range, attenu-
ates unwanted high-frequency vibration, and provides
stable performance over the entire operating temperature
range.
Hermetic, multi-pin connector provides a reliable connec-
tion even under the harshest environmental conditions.
3.0 Principle of Operation
The sensor element of the 3710 series features a proof mass,
ring frame, and attachment system between the two. These
features are bulk micro machined from the same single-crystal
silicon wafer. The movement of the proof mass is directly
affected by acceleration applied in the axis of sensitivity.
The sensor element is connected as a bridge element in the
circuit. The electrical characteristics of one portion of the
bridge increase in value while the characteristics of the other
portion decrease when exposed to acceleration. This approach
minimizes common mode errors and improves non-linearity.
A selection of full scale measurement ranges is attained by
modifying the stiffness of the suspension system of the proof
mass. A high natural frequency is accomplished through the
combination of a lightweight proof mass and suspension stiff-
ness.
Ruggedness is enhanced through the use of mechanical stops
on the two outer wafers to restrict the travel of the proof mass.
Damping is used to mitigate high frequency inputs.
The sensor elements use squeeze-film gas damping that is near
critically damped. This is the result of the movement of the
proof mass pressing on the gas in the gap between it and the
outer sensor layer. Damping helps prevent the output of the
accelerometer from becoming saturated, as would happen
when the resonance of an accelerometer with no damping is
excited by random vibration. The advantage of gas damping
over liquid damping is that it is minimally affected by temper-
ature changes.
The 3710 series accelerometers contain conditioning circuitry
that provides a high sensitivity output. This IC also provides
compensation of zero bias and sensitivity errors over tempera-
ture.
An on-board voltage regulator allows a typical excitation
range of 6 to 30 VDC with <30 mA current draw. The 3710
series features a ± 2 V Full Scale zero based output referenced
to power ground. A negative voltage generator provides a suf-
ficient signal swing for negative acceleration outputs with a
positive voltage swing of +4.0 V accommodating positive
accelerations.
An automated calibration step is conducted at the completion
of the accelerometer assembly at discrete temperatures over
the specified operating temperature range. The IC features an
on-chip temperature sensor for accurate thermal corrections.

Manual Number: 32650
Manual Revision: D
ECR Number: 42629
3710 series DC Accelerometer Operating Guide
2
4.0 Typical Measurement System
The 3710 series DC Accelerometers are available in a uniaxial
or triaxial package, with the uniaxial model being the 3711
version and the triaxial model being the 3713 version. The
output signal is routed to follow-on signal conditioning via a
hermetic four-pin receptacle and associated cable assembly;
Model 010 series for the 3711 uniaxial version, and Model
037 series nine-pin cable assembly for the 3713 triaxial ver-
sion. Since the High Sensitivity DC Accelerometers contain a
built-in voltage regulator, they may be powered from virtually
any 6 to 30 VDC power source without adversely affecting
sensor performance. PCB signal conditioners available are
Model 445B01, a single-channel, line powered signal condi-
tioner for the uniaxial 3711series DC accelerometers and
Model 478A05, a three-channel, line-powered signal condi-
tioner for the triaxial 3713 accelerometer. Consult PCB Appli-
cation Engineering for additional signal conditioning options.
The output from the signal conditioner is typically routed to
readout instrumentation such as oscilloscopes or various mod-
el data acquisition instruments.
5.0 Sensor Installation
When choosing an installation technique, be certain to care-
fully examine the different application characteristics that may
affect sensor performance. Characteristics such as mounting
location may limit the use of large mounting blocks or the
amplitude range may necessitate the use of a stud mount rather
than using adhesive. A summary of the recommended mount-
ing methods is provided below.

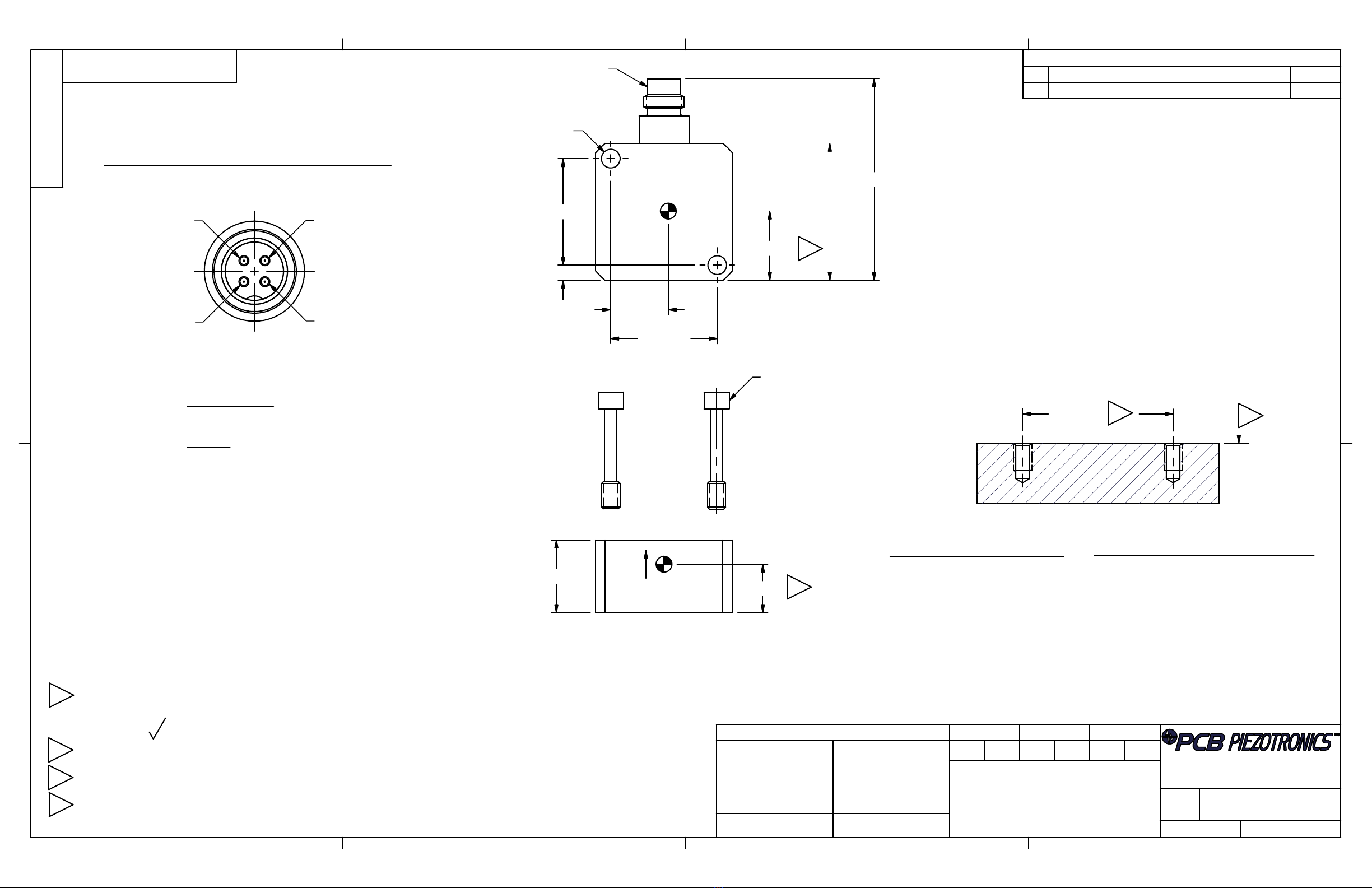

Stud Mount: Recommended for permanent mount applications
or in test situations that require a rugged or secure installation.
The necessary information, including surface finish, mounting
hole dimensions, and recommended mounting torque for in-
stalling the sensor is listed on the enclosed Sensor Installation
Drawing. It is recommended that an experienced technician or
machinist with good machining capabilities adequately pre-
pare the surface.
Adhesive Mount: Recommended for temporary mounting of
the sensor or when the test object surface cannot be properly
prepared for stud mounting. Wax works well for temporary
mount applications under conditions where the operating tem-
perature will not melt the wax or the acceleration levels will
not dislodge the sensor from the test object. Cyanoacrylate-
based, “quick-bonding” adhesives provide a quick mounting
method, while two-part epoxies can be used for a more secure
mount. To remove an adhesively mounted sensor, it is best to
place an open-ended wrench over the sensor and twist it to
shear the adhesive bond. Striking the sensor with a hammer or
other object may permanently damage the sensor.
Easy Mount Clip: Recommended when frequent installation
and removal of Series 3710 series accelerometers is desired.
The Easy-Mount Clip can either be stud mounted or adhesive-
ly mounted to the test structure. (If adhesively mounting the
clip, detach the sensor from the clip first, as excessive adhe-
sive may creep through the mounting holes and adhere to the
sensor. This will make separation and removal from the clip
difficult.) Once the Easy-Mount Clip has been attached to the
test structure, the sensor can be easily snapped into and out of
the clip. Over time, the Easy-Mount Clip must be replaced as
it will “wear-out” and eventually lose its ability to securely
hold the sensor.
6.0 Powering
The 3710 Series contains built-in microelectronics that will
operate from any PCB Series 445 or Series 478 Sensor Signal
Conditioner. These signal conditioners provide the necessary
voltage and current required for all of the powering options
available on the 3710 series.
The 3710 series may also be powered by other voltage sources
such as DC voltage laboratory supplies, automotive or marine
batteries, or low-voltage supplies designed for powering PC
Board components. If you decide to not use a Series 445 or
478 Series Signal Conditioner, insure that the source provides
power within the excitation voltage range listed on the specifi-
cation sheet for that model. It is important to note that since
the accelerometers contain a built-in voltage regulator, precise
calibration of the power source is generally not required.
7.0 Operation
After the sensor has been installed and the cable connected for
proper operation, there are a couple of measurement points to
take note of:
To take advantage of the DC response of the accelerome-
ter, the readout device must be in a DC coupled state.
Consult the appropriate manufacturer or product manual
for your readout device for details.
Because the 3710 series can measure static (constant)
accelerations, the DC offset voltage will be affected by
the positional alignment relative to the Earth’s gravity. In
other words, when the sensor is mounted perpendicular
with the Earth’s surface, the offset will equal that as spec-
ified on the calibration certificate for “zero-g offset volt-
age.” If the sensor is mounted parallel with the Earth’s
surface, the sensor will be experiencing 1 g of accelera-
tion and the offset voltage will increase by the sensitivity
of the accelerometer.

Manual Number: 32650
Manual Revision: D
ECR Number: 42629
3710 series DC Accelerometer Operating Guide
3
If the sensor is extended, in the case of an integral cable
sensor, or a cable length other than 10 ft is used, in the
case of sensor with an integral connector, the offset volt-
age will change. To determine the accelerometer’s offset,
rotate the unit 90° so that the sensor is on its side with the
sensing axis perpendicular to Earth’s gravity and record
the DC output. This value is the new “zero-g offset volt-
age.”

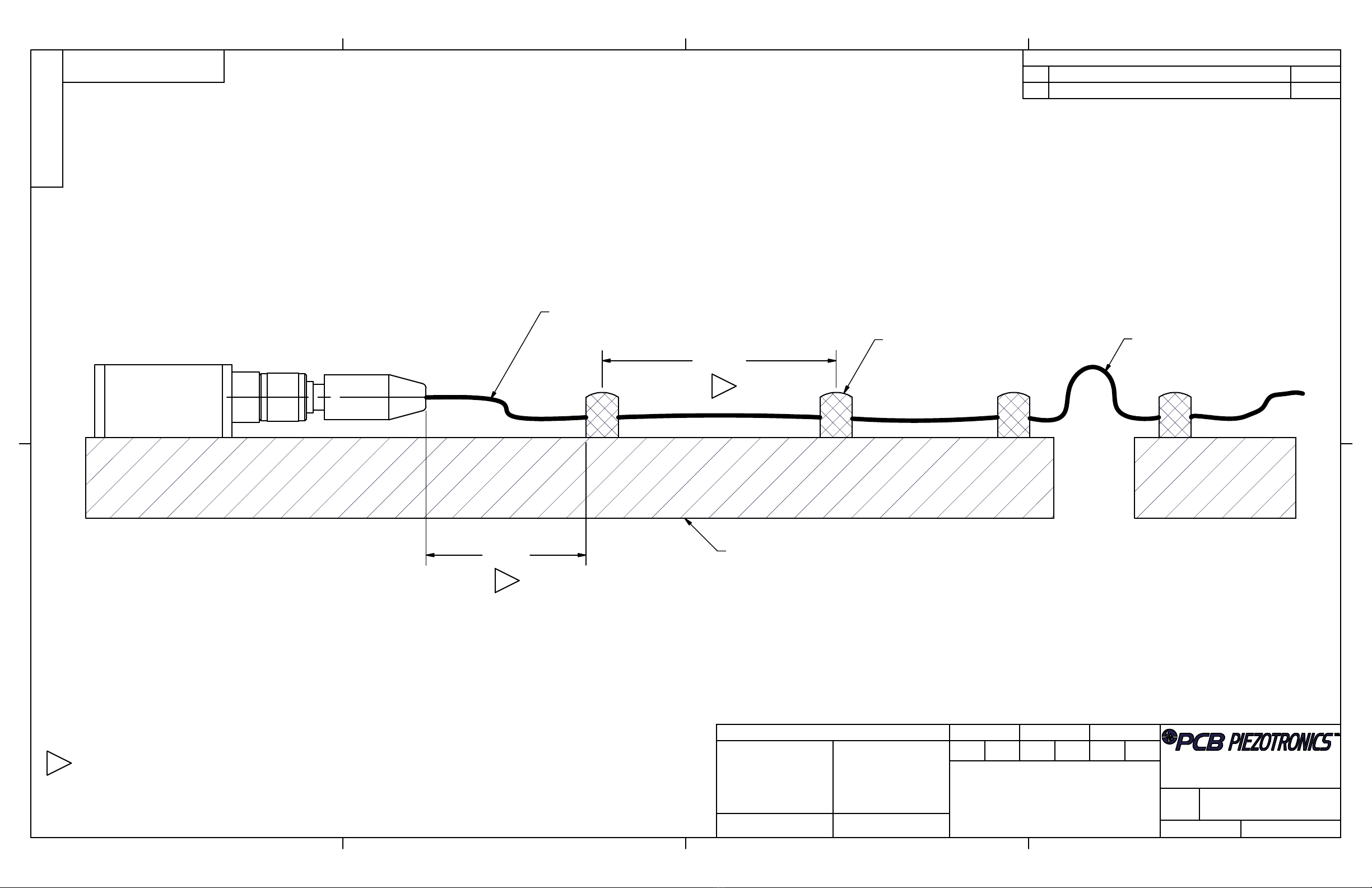

To insure that ground loops are not induced, the shield
should only be terminated at one end. Typically, the
shield of the cable is tied to the sensor housing. If the sen-
sor is mounted with an isolation pad (or other form of
electrical isolation) from the test structure, then the shield
should be tied to signal ground at the instrumentation end.
Otherwise, leave the cable shield floating or not connect-
ed at the instrumentation end.
8.0 Sensor Verification
If the sensor has been handled in a rough manner or before
using a sensor for a critical measurement application, it is a
good idea to verify that the sensor’s sensitivity is still within
specification. An accurate static calibration of the 3710 series
can be performed using the Earth’s Gravitational Field as a
reference. The sensor can simply be “flipped” (rotated 180°)
in the Earth’s Gravity to obtain the scaling factor (sensitivity)
and DC offset. First, place the accelerometer in a +1g orienta-
tion so that the base is resting on the table and the model num-
ber is facing up. The sensing axis will be parallel with the
Earth’s gravity with the sensor experiencing +1g acceleration.
Record the DC output by using a DVM. Then rotate the sensor
180° so that the sensor is inverted (the top of the sensor is rest-
ing on the table) and the sensor is experiencing –1g accelera-
tion. Record the DC output. To calculate the sensitivity of the
accelerometer, refer to equation 8.1.
Sensitivity = (+1g) –(-1g) Eq 8.1
2
9.0 Sensor Calibration
Due to ISO 9001, ISO Guide 25, or other contractual require-
ments, it may become necessary to send the accelerometer
back to PCB for recalibration. In this case, a complete back-
to-back frequency response test will be performed and the
“zero-g” offset voltage will be checked with NIST traceable
equipment.
10.0 Maintenance and Repair
Because of the sophisticated nature of PCB instrumentation,
field repair of the equipment is not recommended. Most PCB
sensors are of modular construction and are factory repairable.
A repair or replacement quotation is available at no charge.
Before returning equipment for repair, it is recommended that
the user confer with a factory application engineer (or inter-
national representative) to first troubleshoot the problem.
11.0 Return Procedure
To expedite the repair process, contact a factory Application
Engineer to obtain a Return Material Authorization (RMA)
number prior to sending equipment to the factory. Please have
information, such as model number, serial number and de-
scription of the problem, available.
Customers outside the U.S. should consult their local PCB
distributor for information on returning equipment. For excep-
tions to this guideline, please contact the International Sales
department to request shipping instructions and an RMA.
For further assistance, please call [phone] or fax us at
[phone]. You may also receive assistance via e-mail at
[email protected]m or visit our web site at www.pcb.com.
12.0 Customer Service / Warranty
The employees of PCB strive to provide superior, unmatched
customer service. Should you at any time find yourself dissat-
isfied with any PCB product for any reason, consult a factory
Application Engineer or local representative/distributor to
discuss repair, refund, or exchange procedures.
When unexpected measurement problems arise, call our 24-
hour SensorLineTM at [phone] to discuss your immedi-
ate dynamic instrumentation needs with a PCB Application
Engineer.

Model Number
3711E1110G DC RESPONSE ACCELEROMETER Revision: B
ECN #: 46334
[7]
Performanc
e
ENGLISH S
I
Sensitivity(± 5 %) 200 mV/g 20.4 mV/(m/s²)
Measurement Range ± 10 g ± 98.1 m/s² pk
Frequency Range(± 3 dB) 0 to 1000 Hz 0 to 1000 Hz [2]
Frequency Range(± 3 dB) 0 to 500 Hz 0 to 500 Hz [5]
Phase Response(100 Hz) <15 ° <15 °
Broadband Resolution(0.5 to 100 Hz) .2 mg rms .002 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [6]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit(Shock) ± 5000 g pk ± 49,050 m/s² pk
Temperature Range(Operating) -65 to +250 °F -54.0 to +121 °C
Temperature Range(Storage) -65 to +250 °F -54.0 to +121 °C
Temperature Coefficient of Sensitivity ± 3 % ± 3 % [3]
Zero g Offset Temperature Coefficient ± 2 % FSO ± 2 % FSO [3][4]
Base Strain Sensitivity(Measured at 250 µε) .0004 g/µε.004 (m/s²)/µε[2]
Magnetic Sensitivity 100 µg/gauss 9.8 (m/s²)/Tesla [2]
Electrica
l
Excitation Voltage 6 to 30 VDC 6 to 30 VDC
Current Consumption ≤10 mA ≤10 mA
Output Impedance ≤120 Ohm ≤120 Ohm
Offset Voltage(0 g) ± 80 mVDC ± 80 mVDC [1]
Spectral Noise(1 to 100 Hz) 45 µg/√Hz 441 (µm/sec2)/√Hz [2]
Electrical Isolation(Case) >108Ohm >108Ohm
Physica
l
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size (Height x Length x Width) 0.45 in x 0.85 in x 0.85 in 11.4 mm x 21.6 mm x 21.6 mm
Weight 0.58 oz 16.3 gm
Electrical Connector 4-Pin 4-Pin
Electrical Connection Position Side Side
Mounting Through Holes (2) Through Holes (2)
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without notice.
ICP®is a registered trademark of PCB Group, Inc.
OPTIONAL VERSIONS
Optional versions have identical specifications and accessories as listed for the standard model
except where noted below. More than one option may be used.
NOTES:
[
1
]
Offset tolerance is based on 10 ft of 010 test cable
.
[2] Typical.
[3] -65 to +250 °F, ref. 75 °F (-54 to +121 °C, ref. 24 °C)
[4] FSO = Full Scale Output over the Measurement Range (4VDC)
.
[5] Minimum, verified with Calibration data
.
[6] Least-squares, straight line method, % FSO.
[7] See PCB Declaration of Conformance PS027 for details.
SUPPLIED ACCESSORIES:
Model 080A152 Easy Mount Clip (1)
Model 081A113 Mounting screw assembly (2)
Model ACS-145 Phase and Amplitude Calibration from 2 Hz to ±3 dB of frequency range (1)
Model M081A113 Mounting screw assembly (2)
Entered: LK Engineer: JJD Sales: WD
C
Approved: NJF Spec Number:
Date: 12/29/2016 Date: 12/29/2016 Date: 12/29/2016 Date: 12/29/2016 60025
3425 Walden Avenue, Depew, NY 14043
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]

1
1
2
2
3
3
4
4
A A
B B
CODE
IDENT. NO.
52681
DWG. NO.
SCALE: SHEET
DRAWN CHECKED ENGINEER
TITLE
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN MILLIMETERS
[ IN BRACKETS ]
XX ±0.13
ANGLES 2 DEGREES
3425 WALDEN AVE. DEPEW, NY 14043
[phone] E-MAIL: [e-mail]
DIMENSIONS IN INCHES
DECIMALS XX ±.01
ANGLES 2 DEGREES
FILLETS AND RADII
.003 - .005
DECIMALS X ± 0.3
FILLETS AND RADII
0.07 - 0.13
INSTALLATION DRAWING
59773
1 OF 2
2X
MODEL 3711 SERIES
DC ACCELEROMETER
XXX ±.005
JDM 8/28/14 ECB 8/28/14 JJD 8/28/14
.30 [7.6]
OUTPUT SIGNAL:
REFERENCE TO GROUND.
POWER:
CONNECT TO DC VOLTAGE
POWER SUPPLY. SEE
SPECIFICATION SHEET FOR
PROPER EXCITATION
VOLTAGE.
FRONT VIEW OF CONNECTOR
SCALE 4:1
NOT USED
POWER
OUTPUT
POWER/SIGNAL
GROUND
MOUNTING HOLE PREPARATION:
.089 [2.26] .220 [5.59] MIN
4-40 UNC-2B .170 [4.32] MIN
METRIC MOUNTING HOLE PREPARATION:
.081 [2.05] .180 [4.57] MIN
M2.5 X .45-6H .130 [3.30] MIN
5.) SEE SHEET 2 OF 2 FOR CABLE STRAIN RELIEF
INFORMATION.
RECOMMENDED MOUNTING SURFACE SHOULD
BE FLAT TO WITHIN .003 [.08] TIR OVER Ø1.21 [30.5]
WITH A 32[.08] FINISH FOR BEST RESULTS.
CG-CENTER OF SEISMIC MEASUREMENT
DIAGONAL MOUNTING DIMENSION BETWEEN HOLES.
RECOMMENDED MOUNTING TORQUE ON MOUNTING STUD, 4-5 IN-LBS [45-55 N-CM].
3
3
4
3
2
1
.93 [23.70] 24
MOUNTING STUD
(SUPPLIED PER SPECIFICATION SHEET)
REVISIONS
REV DESCRIPTION DIN
NR RELEASED TO DRAFTING 43293
59773
PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
.45 [11.4]
.43 [10.9]
.85 [21.6]
1.25 [31.8]
.095 [2.41]
.66 [16.8]
.116 [2.95]2X THRU
.36 [9.1]
ELECTRICAL CONNECTOR
4 PIN, HERMETIC
1/4-28 UNF-2A THREAD
.66 [16.8]

1
1
2
2
3
3
4
4
A A
B B
CODE
IDENT. NO.
52681
DWG. NO.
SCALE: SHEET
DRAWN CHECKED ENGINEER
TITLE
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN MILLIMETERS
[ IN BRACKETS ]
XX ±0.13
ANGLES 2 DEGREES
3425 WALDEN AVE. DEPEW, NY 14043
[phone] E-MAIL: [e-mail]
DIMENSIONS IN INCHES
DECIMALS XX ±.01
ANGLES 2 DEGREES
FILLETS AND RADII
.003 - .005
DECIMALS X ± 0.3
FILLETS AND RADII
0.07 - 0.13
INSTALLATION DRAWING
59773
2 OF 2
2 X
MODEL 3711 SERIES
DC ACCELEROMETER
XXX ±.005
JDM 8/28/14 ECB 8/28/14 JJD 8/28/14
3 - 4
[76 - 101]
2 - 3
[51 - 76]
TAPE, PETRO WAX
OR EQUIVALENT
(TYPICAL)
"SERVICE LOOP"
TO ALLOW MOTION
WITHOUT PULLING
CABLE
DETACHABLE, 4-SOCKET PLUG TO
1/4-28, 4-SOCKET PLUG
TEST STRUCTURE
FASTEN CABLE TO TEST STRUCTURE TYPICALLY WITHIN 2-3" [51-76] OF SENSOR. THEN FASTEN AGAIN WITHIN 3-4" [76-101]
OF PREVIOUS ATTACHMENT. BETWEEN THE TEST STRUCTURE AND A FIXED STRUCTURE, ALLOW A SERVICE LOOP LARGE
ENOUGH TO PREVENT PULLING OF THE CABLE WHEN SHAKING. MORE ATTACHMENT POINTS WILL PROVIDE LESS NOISE
IN THE RESULTING DATA. LOOSE CABLES OR PARTS ELSEWHERE ON THE TEST STRUCTURE CAN ALSO GENERATE "NOISE"
ON THE SIGNAL RECEIVED FROM THE MODEL 3711 SERIES.
REVISIONS
REV DESCRIPTION DIN
- SEE SHEET ONE -
59773
1
1
1
PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
