PCB Piezotronics 682A01 User manual

Model 682A01
24 VDC DIN Rail Mount Power Supply
Installation and Operating Manual
For assistance with the operation of this product,
contact PCB Piezotronics, Inc.
Toll-free: 800-828-8840
24-hour SensorLine: 716-684-0001
Fax: [phone]
E-mail: [email protected]
Web: www.pcb.com

The information contained in this document supersedes all similar information that
may be found elsewhere in this manual.

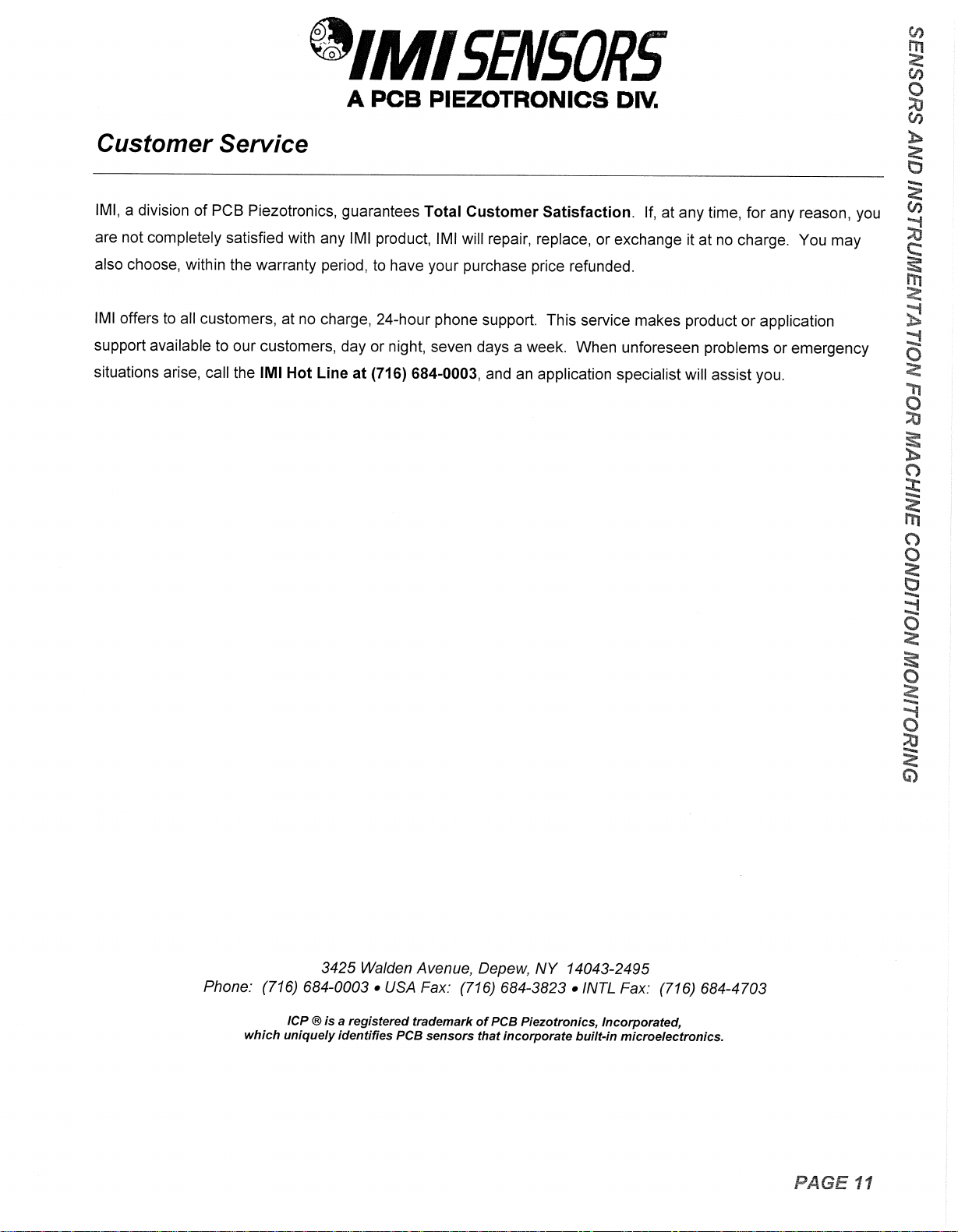

Total Customer Satisfaction – PCB
Piezotronics guarantees Total Customer
Satisfaction. If, at any time, for any
reason, you are not completely satisfied
with any PCB product, PCB will repair,
replace, or exchange it at no charge. You
may also choose to have your purchase
price refunded in lieu of the repair,
replacement, or exchange of the product.
Service – Due to the sophisticated nature
of the sensors and associated
instrumentation provided by PCB
Piezotronics, user servicing or repair is
not recommended and, if attempted, may
void the factory warranty. Routine
maintenance, such as the cleaning of
electrical connectors, housings, and
mounting surfaces with solutions and
techniques that will not harm the
physical material of construction, is
acceptable. Caution should be observed
to insure that liquids are not permitted to
migrate into devices that are not
hermetically sealed. Such devices should
only be wiped with a dampened cloth
and never submerged or have liquids
poured upon them.
Repair – In the event that equipment
becomes damaged or ceases to operate,
arrangements should be made to return
the equipment to PCB Piezotronics for
repair. User servicing or repair is not
recommended and, if attempted, may
void the factory warranty.
Calibration – Routine calibration of
sensors and associated instrumentation is
recommended as this helps build
confidence in measurement accuracy and
acquired data. Equipment calibration
cycles are typically established by the
users own quality regimen. When in
doubt about a calibration cycle, a good
“rule of thumb” is to recalibrate on an
annual basis. It is also good practice to
recalibrate after exposure to any severe
temperature extreme, shock, load, or
other environmental influence, or prior
to any critical test.
PCB Piezotronics maintains an ISO-
9001 certified metrology laboratory and
offers calibration services, which are
accredited by A2LA to ISO/IEC 17025,
with full traceablility to N.I.S.T. In
addition to the normally supplied
calibration, special testing is also
available, such as: sensitivity at elevated
or cryogenic temperatures, phase
response, extended high or low
frequency response, extended range, leak
testing, hydrostatic pressure testing, and
others. For information on standard
recalibration services or special testing,
contact your local PCB Piezotronics
distributor, sales representative, or
factory customer service representative.
Returning Equipment – Following
these procedures will insure that your
returned materials are handled in the
most expedient manner. Before returning
any equipment to PCB Piezotronics,
contact your local distributor, sales
representative, or factory customer
service representative to obtain a Return
Warranty, Service, Repair, and
Return Policies and Instructions

Materials Authorization (RMA)
Number. This RMA number should be
clearly marked on the outside of all
package(s) and on the packing list(s)
accompanying the shipment. A detailed
account of the nature of the problem(s)
being experienced with the equipment
should also be included inside the
package(s) containing any returned
materials.
A Purchase Order, included with the
returned materials, will expedite the
turn-around of serviced equipment. It is
recommended to include authorization
on the Purchase Order for PCB to
proceed with any repairs, as long as they
do not exceed 50% of the replacement
cost of the returned item(s). PCB will
provide a price quotation or replacement
recommendation for any item whose
repair costs would exceed 50% of
replacement cost, or any item that is not
economically feasible to repair. For
routine calibration services, the Purchase
Order should include authorization to
proceed and return at current pricing,
which can be obtained from a factory
customer service representative.

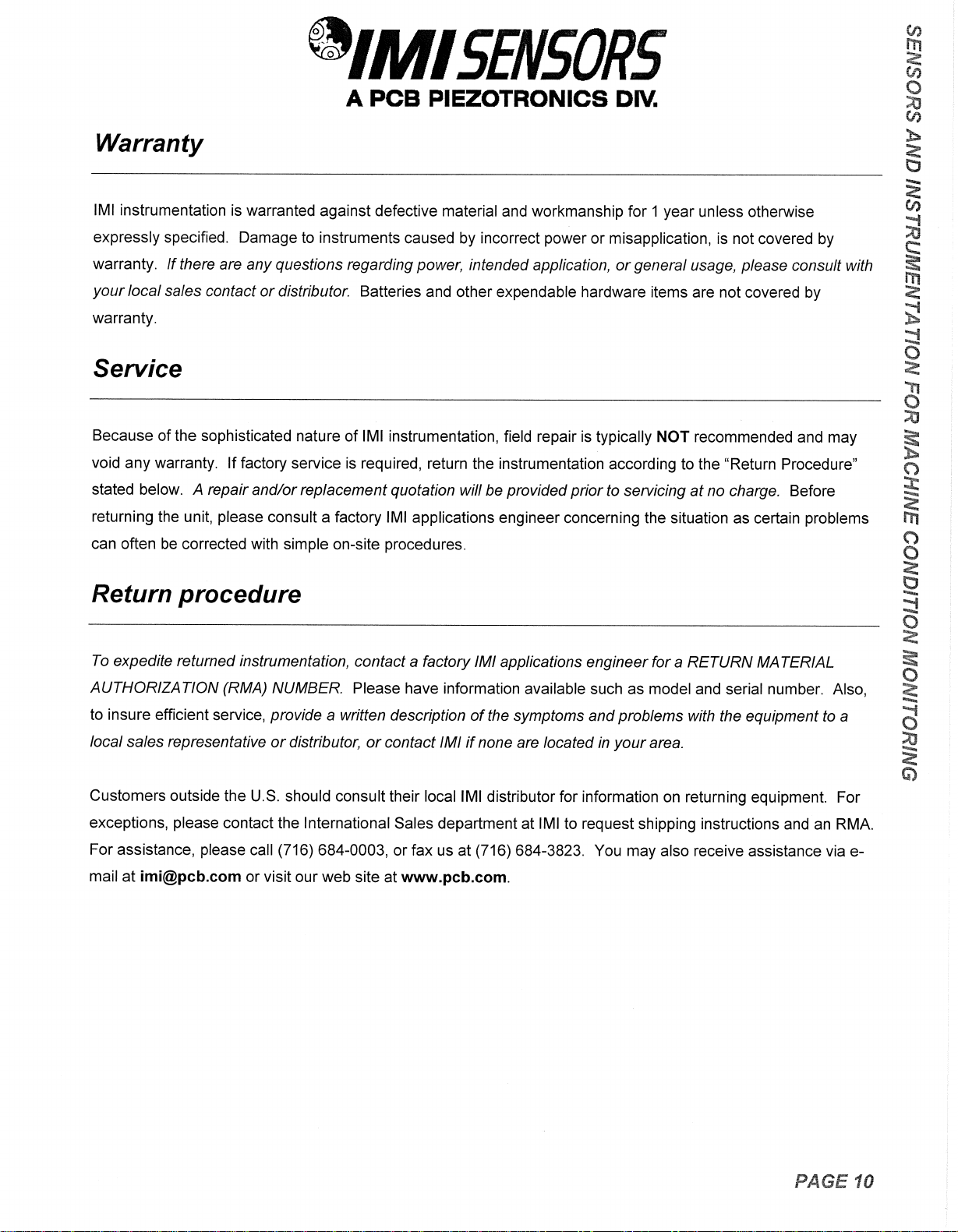

Warranty – All equipment and repair
services provided by PCB Piezotronics,
Inc. are covered by a limited warranty
against defective material and
workmanship for a period of one year
from date of original purchase. Contact
PCB for a complete statement of our
warranty. Expendable items, such as
batteries and mounting hardware, are not
covered by warranty. Mechanical
damage to equipment due to improper
use is not covered by warranty.

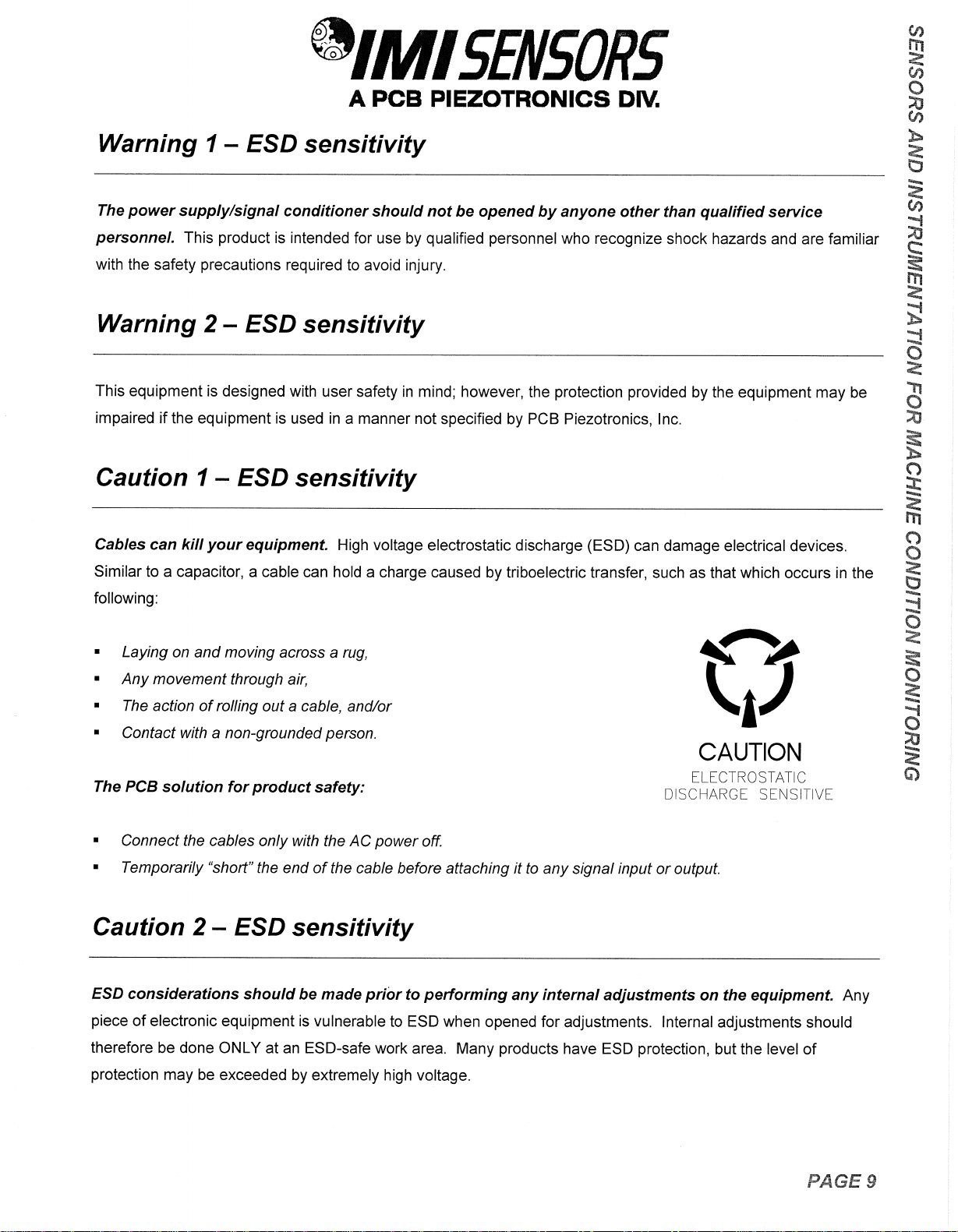

Electronic circuitry failure caused by the
introduction of unregulated or improper
excitation power or electrostatic
discharge is not covered by warranty.
Contact Information – International
customers should direct all inquiries to
their local distributor or sales office. A
complete list of distributors and offices
can be found at www.pcb.com.
Customers within the United States may
contact their local sales representative or
a factory customer service
representative. A complete list of sales
representatives can be found at
www.pcb.com. Toll-free telephone
numbers for a factory customer service
representative, in the division
responsible for this product, can be
found on the title page at the front of this
manual. Our ship to address and general
contact numbers are:
PCB Piezotronics, Inc.
3425 Walden Ave.
Depew, NY 14043 USA
Toll-free: [phone]
24-hour SensorLineSM: [phone]
Website: www.pcb.com
E-mail: [email protected]
DOCUMENT NUMBER: 21354
DOCUMENT REVISION: B
ECN: 17900

Model Number
682A01
24 VDC DIN RAIL MOUNT POWER SUPPLY Revision A
ECN #: 20456

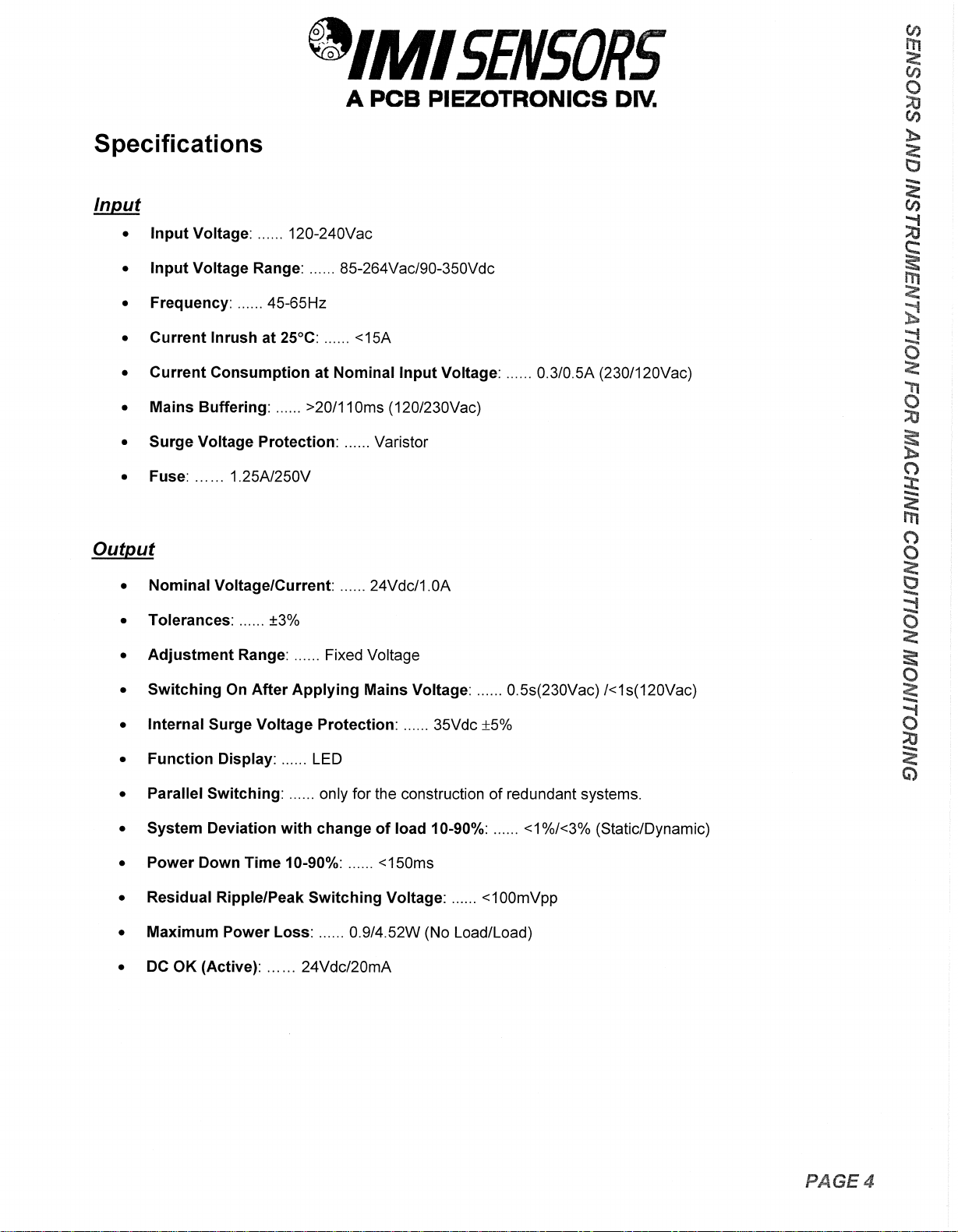

Performance ENGLISH SI
MTBF >500000h >500000h
Efficiency >80% >80%
Control Interface
Display LED LED

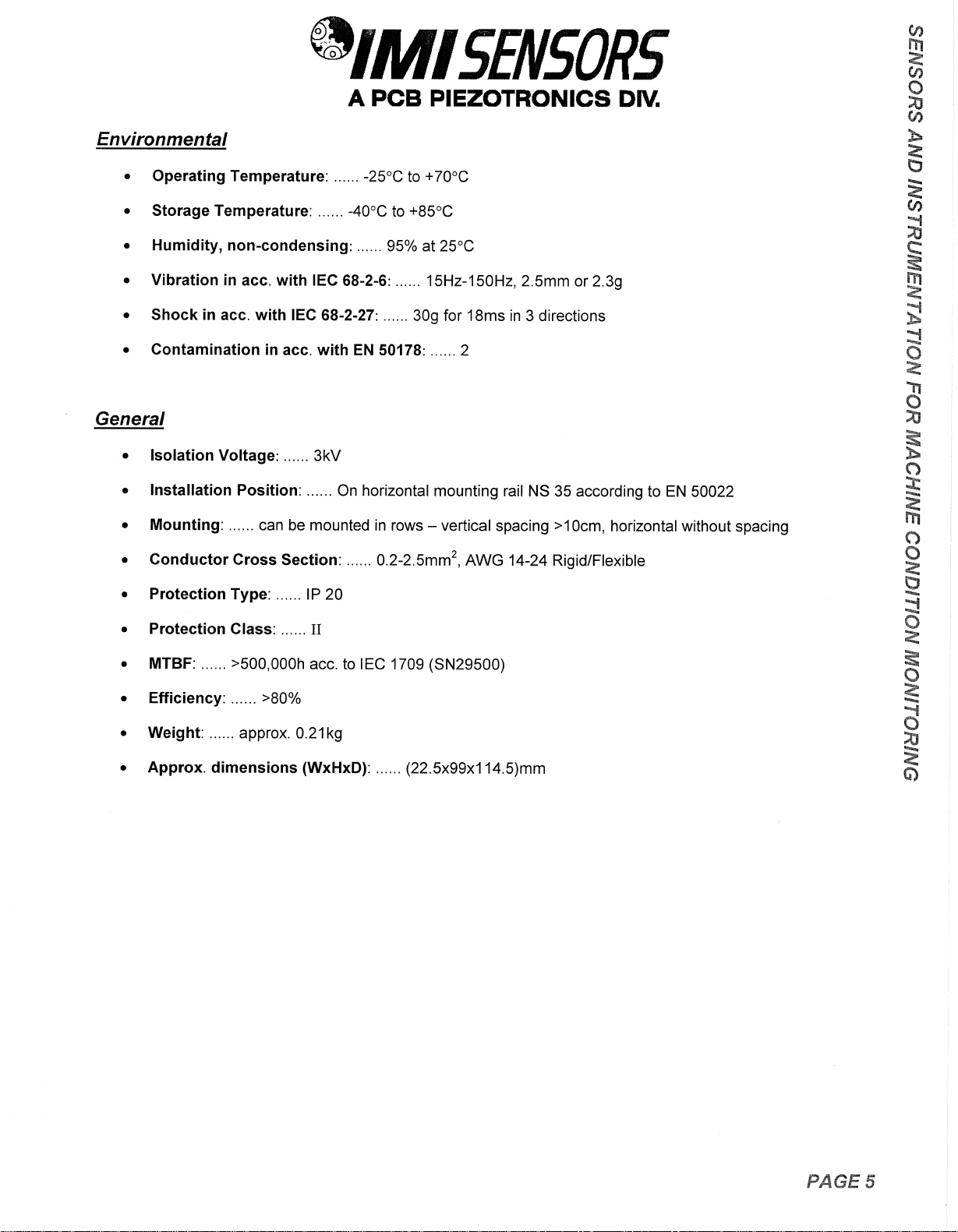

Environmental
Temperature Range (Operating) -13 to 158 °F -25 to 70 °C
Temperature Range (Storage) -40 to 185 °F -40 to 85 °C
Humidity Range (Non-Condensing) <95 % <95 %

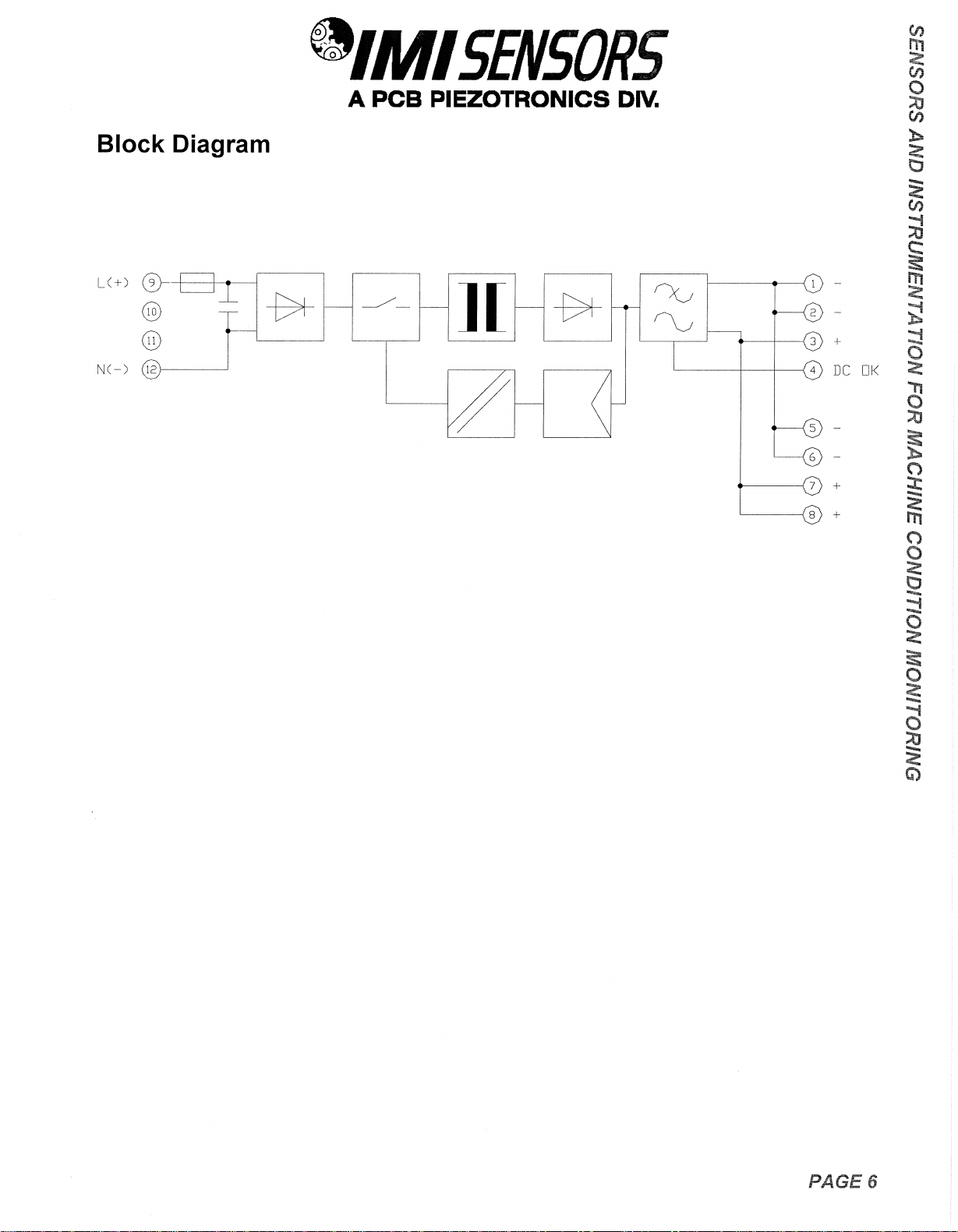

Electrical
Power Required 85-264 VAC / 95-
350 VDC 85-264 VAC / 95-350 VDC
Output Voltage 24 VDC 24 VDC
Output Current 1.0 amps 1.0 amps
Input Frequency 45 to 63 Hz 45 to 63 Hz
Inrush Current (@ 25 deg C) <15A <15A
Current Consumption (230/120 VAC) 0.3/0.5A 0.3/0.5A
Fuse 1.25A/250V 1.25A/250V
Mains Buffering >20/110ms
(120/230 VAC) >20/110ms (120/230 VAC)
Surge Voltage Protection Varistor Varistor
10-90% Load Tolerance +/- 3% +/- 3%
Turn On Delay <0.5/1s (230/120
VAC) <0.5/1s (230/120 VAC)
Turn Off Delay <150ms <150ms
Internal Surge Voltage Protection 35 VDC +/- 5% 35 VDC +/- 5%
Parallel Switching Redundant
Systems Only Redundant Systems Only
Ripple Voltage <100 mV pp <100 mV pp
Maximum Power Loss 0.9/4.5W (No
Load/Load) 0.9/4.5W (No Load/Load)
DC OK (Active) 24V / 20mA 24V / 20mA
Fuse 1.25A/250V 1.25A/250V
Insulation Voltage 3kV 3kV
Physical

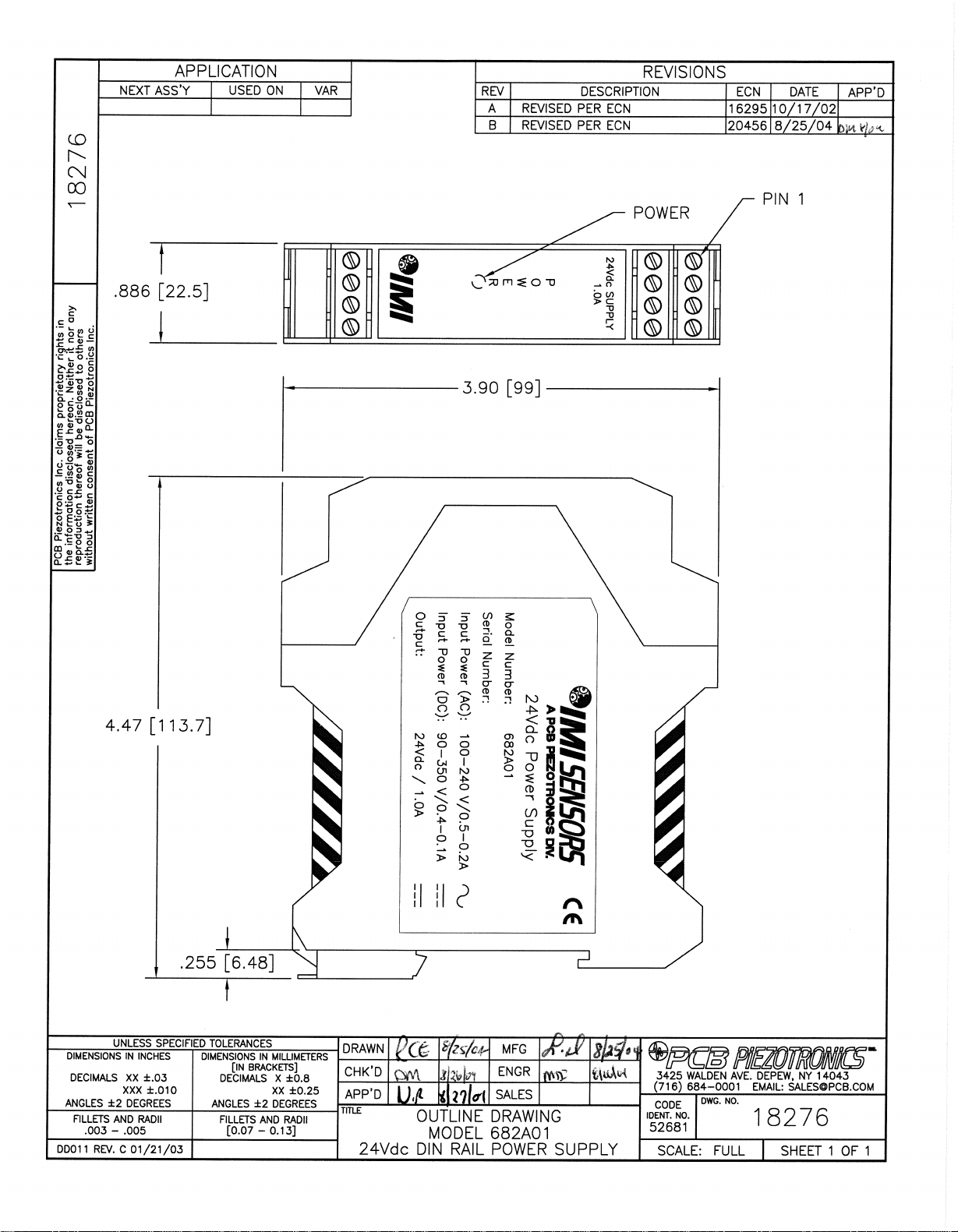

Size (Height x Width x Depth) 3.90 in x 0.89 in x
4.51 in 99 mm x 22.5 mm x 114.5 mm
Weight 7.4 oz 0.21 Kg

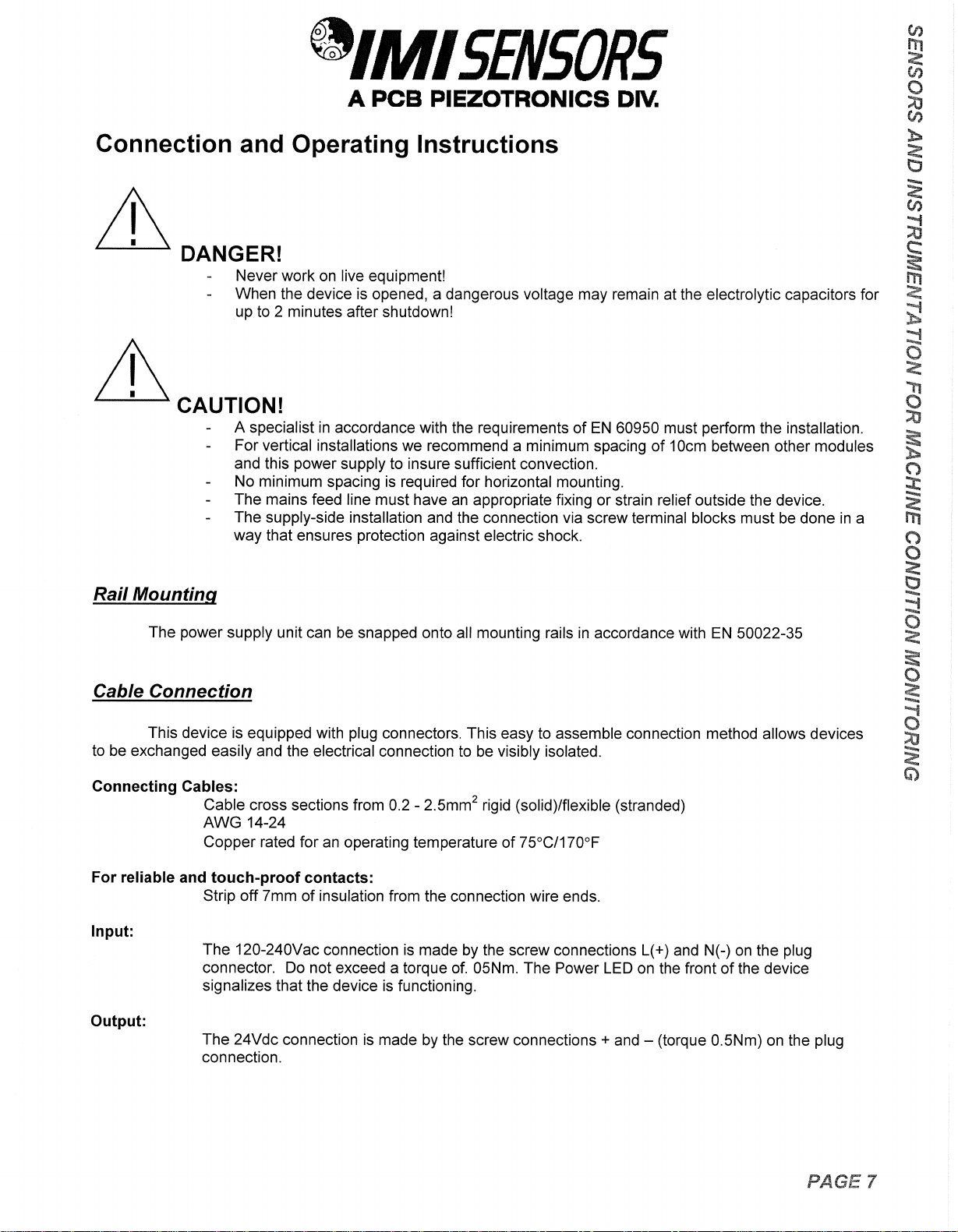

Conductor Cross Section AWG 14-24 0.2-2.5mm^2
Vibration (10Hz-150Hz) 2g 0.15mm
Shock (3 directions for 18 ms) 30g 30g
[4]
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without
notice.
Optional Versions (Optional versions have identical specifications and accessories as listed
for standard model except where noted below. More than one option maybe used.)
Notes
[1] This device is in compliance with the EMC guideline 89/336/EEC and the low
voltage guideline 73/23/EEC
[2] This device must be installed in accordance with the specifications of EN60950. It
must be possible to switch off the device using a suitable disconnecting device
outside the power supply. For example, primary side line protection could be used.
[3] In the case of DC applications it is necessary to connect in series an adequate
fuse
[4] See appropriate Declaration of Conformance for details
Entered: ECB Engineer: NJF Sales: MRS Approved: NJF Spec Number:
Date:
08/20/2004 Date: 09/01/2004 Date: 08/01/2004 Date: 09/01/2004 18194
