PCB Piezotronics IMI SENSORS SS691C42 User manual

Model SS691C42
Switch box with switched & continuous outputs, 10" x 8" x 4" NEMA 4X (IP66) stainless steel
enclosure, 12 channels, terminal strip input, vib & temp jack and two-pin MIL connector
outputs, no connection ports
Installation and Operating Manual
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 800-959-4464
24-hour SensorLine: 716-684-0001
Fax: [phone]
E-mail: [email protected]
Web: www.imi-sensors.com

Manual 21354 Rev E
ECN 50523
Repair and Maintenance
PCB guarantees Total Customer Satisfaction through its
“Lifetime Warranty Plus” on all Platinum Stock Products
sold by PCB and through its limited warranties on all other
PCB Stock, Standard and Special products. Due to the
sophisticated nature of our sensors and associated
instrumentation, field servicing and repair is not
recommended and, if attempted, will void the factory
warranty.
Beyond routine calibration and battery replacements
where applicable, our products require no user
maintenance. Clean electrical connectors, housings, and
mounting surfaces with solutions and techniques that will
not harm the material of construction. Observe caution
when using liquids near devices that are not hermetically
sealed. Such devices should only be wiped with a
dampened cloth—never saturated or submerged.
In the event that equipment becomes damaged or ceases
to operate, our Application Engineers are here to support
your troubleshooting efforts 24 hours a day, 7 days a
week. Call or email with model and serial number as well
as a brief description of the problem.
Calibration
Routine calibration of sensors and associated
instrumentation is necessary to maintain measurement
accuracy. We recommend calibrating on an annual basis,
after exposure to any extreme environmental influence,
or prior to any critical test.
PCB Piezotronics is an ISO-9001 certified company whose
calibration services are accredited by A2LA to ISO/IEC
17025, with full traceability to SI through N.I.S.T. In
addition to our standard calibration services, we also offer
specialized tests, including: sensitivity at elevated or
cryogenic temperatures, phase response, extended high
or low frequency response, extended range, leak testing,
hydrostatic pressure testing, and others. For more
information, contact your local PCB Piezotronics
distributor, sales representative, or factory customer
service representative.
Returning Equipment
If factory repair is required, our representatives will
provide you with a Return Material Authorization (RMA)
number, which we use to reference any information you
have already provided and expedite the repair process.
This number should be clearly marked on the outside of
all returned package(s) and on any packing list(s)
accompanying the shipment.
Contact Information
PCB Piezotronics, Inc.
3425 Walden Ave.
Depew, NY14043 USA
Toll-free: [phone]
24-hour SensorLine: [phone]
General inquiries: in[email protected]
Repair inquiries: [e-mail]
For a complete list of distributors, global offices and sales
representatives, visit our website, www.pcb.com.
Safety Considerations
This product is intended for use by qualified personnel
who recognize shock hazards and are familiar with the
precautions required to avoid injury. While our equipment
is designed with user safety in mind, the protection
provided by the equipment may be impaired if equipment
is used in a manner not specified by this manual.
Discontinue use and contact our 24-Hour Sensorline if:
Assistance is needed to safely operate equipment
Damage is visible or suspected
Equipment fails or malfunctions
For complete equipment ratings, refer to the enclosed
specification sheet for your product.
Definition of Terms and Symbols
The following symbols may be used in this manual:
DANGER
Indicates an immediate hazardous
situation, which, if not avoided, may
result in death or serious injury.

Manual 21354 Rev E
ECN 50523
CAUTION
Refers to hazards that could damage
the instrument.
NOTE
Indicates tips, recommendations and
important information. The notes
simplify processes and contain
additional information on particular
operating steps.
The following symbols may be found on the equipment
described in this manual:
This symbol on the unit indicates that
high voltage may be present. Use
standard safety precautions to avoid
personal contact with this voltage.
This symbol on the unit indicates that
the user should refer to the operating
instructions located in the manual.
This symbol indicates safety, earth
ground.

Manual 21354 Rev E
ECN 50523
PCB工业监视和测量设备 - 中国RoHS2公布表
PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table
部件名称
有害物质
铅(Pb)
汞
(Hg)
镉
(Cd)
六价铬(Cr(VI))
多溴联苯 (PBB)
多溴二苯醚(PBDE)
住房
O
O
O
O
O
O
PCB板
X
O
O
O
O
O
电气连接器
O
O
O
O
O
O
压电晶体
X
O
O
O
O
O
环氧
O
O
O
O
O
O
铁氟龙
O
O
O
O
O
O
电子
O
O
O
O
O
O
厚膜基板
O
O
X
O
O
O
电线
O
O
O
O
O
O
电缆
X
O
O
O
O
O
塑料
O
O
O
O
O
O
焊接
X
O
O
O
O
O
铜合金/黄铜
X
O
O
O
O
O
本表格依据 SJ/T 11364 的规定编制。
O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。
CHINA RoHS COMPLIANCE

Manual 21354 Rev E
ECN 50523
Component Name
Hazardous Substances
Lead (Pb)
Mercury (Hg)
Cadmium (Cd)
Chromium VI
Compounds
(Cr(VI))
Polybrominated
Biphenyls (PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
Housing
O
O
O
O
O
O
PCB Board
X
O
O
O
O
O
Electrical Connectors
O
O
O
O
O
O
Piezoelectric Crystals
X
O
O
O
O
O
Epoxy
O
O
O
O
O
O
Teflon
O
O
O
O
O
O
Electronics
O
O
O
O
O
O
Thick Film Substrate
O
O
X
O
O
O
Wires
O
O
O
O
O
O
Cables
X
O
O
O
O
O
Plastic
O
O
O
O
O
O
Solder
X
O
O
O
O
O
Copper Alloy/Brass
X
O
O
O
O
O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement of GB/T 26572.
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above the limit
requirement of GB/T 26572.
Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
Models (PS)(SS)691C41(T) & (PS)(SS)691C42(T)
Rotary Switch Boxes
Operating Guide with Enclosed Warranty Information
3425 Walden Avenue, Depew, New York 14043-2495
Phone [phone]
Fax [phone]
Toll Free Line 1-800-959-4IMI
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
MANUAL NUMBER: 65521
MANUAL REVISION: NR
ECO 47778

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE
2
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Table of Contents
Introduction...................................................................................................................... Page 3
Installation....................................................................................................................... Page 4
Grounding the Enclosure ................................................................................................. Page 4
Input Wiring..................................................................................................................... Page 5
Output Wiring .................................................................................................................. Page 6
Using the Enclosure........................................................................................................ Page 6
Calibrating the Enclosure ................................................................................................ Page 6
ESD Warning Information................................................................................................ Page 7
Warranty/Servicing
Warranty, Service & Return Procedure ........................................................................... Page 8
Customer Service............................................................................................................ Page 9

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE
3
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Introduction

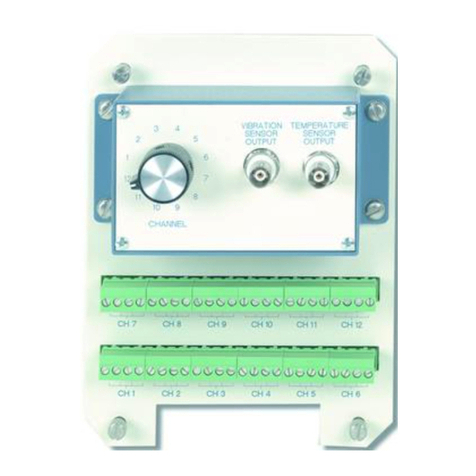

Models 691C41 and 691C42 are rotary switch boxes that provide terminal strip inputs for sensor cable termination
with the convenience of BNC & military connectors for switched outputs and terminal strips for continuous
outputs. They are typically used in conjunction with third-party data collectors and analyzers. The boxes provide
simultaneous vibration and temperature inputs on every channel so that they can be used in conjunction to
temperature output (TO) sensors (accelerometers with a built-in temperature sensor that provide simultaneous
vibration and temperature signals). Specifications and drawings are below for reference:
Model Number
691C41
691C42
Channel Count
6
12
Input Connector
4-socket screw terminal strip per channel
Continuous Output Connector
4-socket screw terminal strip per channel
Switched Output Connector Number
3
Switched Output Connector #1 Type
2-pin MIL connector
OR
3-pin MIL connector (T suffix)
Switched Output Connection #1 Output
Vibration (2-pin)
OR
Vibration & Temp (T suffix)
Switched Output Connector #2 Type
BNC Jack
Switched Output Connector #2 Output
Vibration
Switched Output Connector #3 Type
BNC Jack
Switched Output Connector #3 Output
Temperature
Enclosure Rating
NEMA 4X (IP66)
Housing Material
Fiberglass
Painted Steel (PS prefix)
Stainless steel (SS prefix)
Size (excluding latch & mounting access)
10”H x 8”W x 6”D
Model 691C41
Model 691C42

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE
4
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Installation
Establish an easily accessible location for
installation.
Fiberglass rotary switch boxes include four
polyester mounting brackets and four stainless
steel attachment screws that are shipped loose to
facilitate enclosure mounting. There are
positioning indents on the back of the box in each
corner. Once the mounting brackets are
positioned properly, they should then be fastened
to the box with the provided screws. Hardware for
fastening the mounting brackets to the installation surface are to be
provided in the field.
Painted steel and stainless steel boxes include two factory-installed
mounting brackets on the top and bottom of the box. Hardware for
fastening the mounting brackets to the installation surface are to be provided in the field.
Box may or may not have shipped from factory with factory-installed connection ports. If box did ship from factory
with factory-installed connection ports, ensure that box is mounted with connection ports facing down. The
factory-installed connection port options are listed in the table below.
(6)
PGME07
Cord
Grips
(12)
PGME07
Cord
Grips
(1)
PGME29
Cord
Grip
(2)
PGME29
Cord
Grips
(6)
PGME07
Cord
Grips &
(1)
PGME29
Cord
Grip
(6)
PGME07
Cord
Grips &
(1)
PGME29
Cord
Grip
(1) 1.5”
Conduit
Fitting
(2) 1.5”
Conduit
Fittings
/691010
/691020
/691011
/691071
/691004
/691000
/691013
/691026
(PS)(SS)691C41(T)
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
(PS)(SS)691C42(T)
No
Yes
Yes
Yes
No
Yes
Yes
Yes

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE
5
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
If the box did not ship from factory with factory-installed connections ports, drill/punch the necessary holes in the
bottom of box for the input and output cabling. Be very careful when drilling/punching holes in the box as to not
damage the internal metal, terminal strips and printed circuit boards. Also, take every possible precaution to
prevent water entrainment into the box.
Grounding the Enclosure
To ground the internal shielding system (ground planes on PC Board, mounting panel and switch enclosure), an
external earth ground wire must be connected. To do this, the bottom, right, inner-mounting hole has a double
nut included. Unscrew the nut and insert ground wire between the washers and screw nut tightly down again.
This will earth ground all the shields and the inner metal pieces. This will not ground the (-) input of the vibration
sensors, since they are isolated from the shield.
Input Wiring
Sensor cables should be routed through connection ports and then connected to their respective channel’s
terminal strip per the diagram below. If connection ports are cord grips, cord grips should then be tightened to
maintain the enclosure’s ingress protection rating.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE
6
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Output Wiring
Using the Enclosure
When collecting data from the enclosure using the BNC and/or MIL connectors and a data collector, connect the
data’s collector connector to its appropriate connector mate in the box and modulate the switch to the appropriate
channel. If the output terminals are not being used, then the data collector must provide power for the sensor in
order to for a signal to be obtained. If the output terminals are being used, then the sensor is already being
powered and the data collector does not need to provide power.
Calibrating the Enclosure
The models do not require calibration. If there are any questions concerning the products, please contact the
factory.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE
7
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Warning 1 –ESD Sensitivity
The power supply/signal conditioner should not be opened by anyone other than qualified service
personnel. This product is intended for use by qualified personnel who recognize shock hazards and are familiar
with the safety precautions required to avoid injury.
Warning 2 –ESD Sensitivity
This equipment is designed with user safety in mind; however, the protection provided by the equipment may be
impaired if the equipment is used in a manner not specified by PCB Piezotronics, Inc.
Caution 1 –ESD Sensitivity
Cables can kill your equipment. High voltage electrostatic discharge (ESD) can damage electrical devices.
Similar to a capacitor, a cable can hold a charge caused by triboelectric transfer, such as that which occurs in the
following:
Laying on and moving across a rug,
Any movement through air,
The action of rolling out a cable, and/or
Contact with a non-grounded person.
The PCB solution for product safety:
Connect the cables only with the AC power off.
Temporarily “short” the end of the cable before attaching it to any signal input or output.
Caution 2 –ESD Sensitivity
ESD considerations should be made prior to performing any internal adjustments on the equipment. Any
piece of electronic equipment is vulnerable to ESD when opened for adjustments. Internal adjustments should
therefore be done ONLY at an ESD-safe work area. Many products have ESD protection, but the level of
protection may be exceeded by extremely high voltage.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE
8
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Warranty
IMI instrumentation is warranted against defective material and workmanship for 1 year unless otherwise
expressly specified. Damage to instruments caused by incorrect power or misapplication, is not covered by
warranty. If there are any questions regarding power, intended application, or general usage, please consult with
your local sales contact or distributor. Batteries and other expendable hardware items are not covered by
warranty.
Service
Because of the sophisticated nature of IMI instrumentation, field repair is typically NOT recommended and may
void any warranty. If factory service is required, return the instrumentation according to the “Return Procedure”
stated below. A repair and/or replacement quotation will be provided prior to servicing at no charge. Before
returning the unit, please consult a factory IMI applications engineer concerning the situation as certain problems
can often be corrected with simple on-site procedures.
Return Procedure
To expedite returned instrumentation, contact a factory IMI applications engineer for a RETURN MATERIAL
AUTHORIZATION (RMA) NUMBER. Please have information available such as model and serial number. Also,
to insure efficient service, provide a written description of the symptoms and problems with the equipment to a
local sales representative or distributor, or contact IMI if none are located in your area.
Customers outside the U.S. should consult their local IMI distributor for information on returning equipment. For
exceptions, please contact the International Sales department at IMI to request shipping instructions and an RMA.
For assistance, please call [phone], or fax us at [phone]. You may also receive assistance via e-
mail at [e-mail] or visit our web site at www.pcb.com.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE
9
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Customer Service
IMI, a division of PCB Piezotronics, guarantees Total Customer Satisfaction. If, at any time, for any reason, you
are not completely satisfied with any IMI product, IMI will repair, replace, or exchange it at no charge. You may
also choose, within the warranty period, to have your purchase price refunded.
IMI offers to all customers, at no charge, 24-hour phone support. This service makes product or application
support available to our customers, day or night, seven days a week. When unforeseen problems or emergency
situations arise, call the IMI Hot Line at [phone], and an application specialist will assist you.
3425 Walden Avenue, Depew, NY 14043-2495
Phone: [phone]  USA Fax: [phone]  INTL Fax: [phone]
ICP ® is a registered trademark of PCB Piezotronics, Incorporated,
which uniquely identifies PCB sensors that incorporate built-in microelectronics.

Model Number
691C42 VIBRATION SWITCH BOX Revision: A
ECN #: 48403
[1]
Performanc
e
ENGLISH S
I
Channels 12 12
Environmenta
l
Enclosure Rating Nema 4X IP66
Physica
l
Electrical Connector(Output, Vibration) BNC Jack BNC Jack
Electrical Connector(Output, Temperature) BNC Jack BNC Jack
Electrical Connector(Output, Vibration) 2-Pin Mil 2-Pin Mil
Electrical Connector(Input) Terminal Block Terminal Block
Electrical Connector(Output, vibration, Temperature) Terminal Block Terminal Block
Housing Material Fiberglass Fiberglass
Size (Height x Width x Depth) 10 in x 8 in x 6 in 254 mm x 203 mm x 152 mm
Weight 5.2 lb 2.4 kg
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without notice.
OPTIONAL VERSIONS
Optional versions have identical specifications and accessories as listed for the standard model
except where noted below. More than one option may be used.
69100
0
- 12 Individual PGME07 Cord Grips, 1 Individual PGME29 Cord Grip
691011 - 1 Individual Cord Grip, PGME29
69101
3
- 1 Conduit Fitting, 1.5 Inch.
691020 - 12 Individual Cord Grips, PGME07
69102
6
- 2 Conduit Fittings, 1.5 Inch
691071 - 2 Individual Cord Grips, PGME29
PS - Painted Steel
Enclosure Rating IP65 Nema 12
Weight 7 lb 3.2 kg
Size - Height x Width x Depth 10 in x 8 in x 6 in 254 mm x 203 mm x 152 mm
SS - Stainless Steel Enclosure
Weight 8.8 lb 4.0 kg
Size - Height x Width x Depth 10 in x 8 in x 4 in 254 mm x 203 mm x 101 mm
NOTES
:
[1] See PCB Declaration of Conformance PS152 for details.
SUPPLIED ACCESSORIES:
Model 080A192 4-socket terminal block (1)
Entered: LK Engineer: RB Sales: M
C
Approved: BAM Spec Number:
Date: 7/3/2018 Date: 7/3/2018 Date: 7/3/201
8
Date: 7/3/2018 64792
3425 Walden Avenue, Depew, NY 14043
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]

1
1
2
2
3
3
4
4
A A
B B
CODE
IDENT. NO.
52681
DWG. NO.
SCALE: SHEET
DRAWN CHECKED ENGINEER
TITLE
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN MILLIMETERS
[ IN BRACKETS ]
ANGLES 2 DEGREES
3425 WALDEN AVE. DEPEW, NY 14043
[phone] E-MAIL: [e-mail]
DIMENSIONS IN INCHES
ANGLES 2 DEGREES
FILLETS AND RADII
.003 - .005
FILLETS AND RADII
0.07 - 0.13
OUTLINE DRAWING
69709
1 OF 1.375X
MODEL SS691C42
12 CHANNEL SWITCH BOX
DECIMALS XX ±.03
XXX ±.010
DECIMALS X ± 0.8
XX ± 0.25
JJF 11/30/22 JJF 11/30/22 BAM 11/30/22
CABLE TOLERANCES IN ENGLISH CABLE TOLERANCES IN METRIC
1"≤LENGTH < 1' = +1"/ - 0
1'≤LENGTH < 5' = +2"/ - 0
5'≤LENGTH < 100' = +6"/ - 0
100'≤LENGTH = +1'/ - 0
2.54cm ≤LENGTH < 30.5cm = +2.54cm/ - 0
30.5cm ≤LENGTH < 1.5m = +5.1cm/ - 0
1.5m ≤LENGTH < 30.5m = +15.2cm/ - 0
30.5m ≤LENGTH = +30.5cm/ - 0
69709
PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
REVISIONS
REV DESCRIPTION DIN
NR RELEASED TO DRAFTING 53428
4.10 [104.1]
STAINLESS STEEL ENCLOSURE
.55 [14.0]
TERMINAL STRIPS
10.00 [254.0]
8.00 [203.2]
12 CHANNEL SWITCH
2 PIN MIL
BNC JACKS
