PCchips M935 Series User manual

Mainboard User’s Manual
This publication, including all photographs, illustrations and
software, is protected under international copyright laws, with all
rights reserved. Neither this manual, nor any of the material
contained herein, may be reproduced without the express written
consent of the manufacturer.
The information in this document is subject to change without
notice. The manufacturer makes no representations or warranties
with respect to the contents hereof and specifically disclaims any
implied warranties of merchantability or fitness for any particular
purpose. Further, the manufacturer reserves the right to revise this
publication and to make changes from time to time in the content
hereof without obligation of the manufacturer to notify any person
of such revision or changes.
Trademarks
I M, VGA, and PS/2 are registered trademarks of International
usiness Machines.
Intel, Pentium/II/III, Pentium 4, Celeron and MMX are registered
trademarks of Intel Corporation.
Microsoft, MS-DOS and Windows NT/95/98/ME/2000/XP are
registered trademarks of Microsoft Corporation.
PC-cillin is a registered trademark of Trend Micro Inc.
AMI is a registered trademark of American Megatrends Inc.
A3D is a registered trademark of Aureal Inc.
MediaRing Talk is a registered trademark of MediaRing Inc.
3Deep is a registered trademark of E-Color Inc.
SiS is a trademark of Silicon Integrated System Corporation.
Other names used in this publication may be trademarks and are
acknowledged.
Copyright © 2001
All Rights Reserved
M935 Series, V5.0A
S650/M rch 2002

Mainboard User’s Manual
Notice:
Owing to Microsoft’s certifying schedule is various to every
supplier, we might have some drivers not certified yet by
Microsoft. Therefore, it might happen under Windows XP that a
dialogue box (shown as below) pop out warning you this
software has not passed Windows Logo testing to verify its
compatibility with Windows XP. Please rest assured that our RD
department has already tested and verified these drivers. Just
click the “Continue Anyway” button and go ahead the
installation.
II

Mainboard User’s Manual
Table of Contents
Chapter 1: Introduction...................................................................1
Key Features...........................................................................2
Package Contents....................................................................6
Static Electricity Precautions..................................................7
Pre-Installation Inspection......................................................7
Chapter 2: Mainboard Installation..................................................9
Mainboard Components........................................................10
I/O Ports................................................................................11
Install A CPU........................................................................10
Installing Memory Modules..................................................13
Setting Jumper Switches.......................................................14
Install the Mainboard............................................................15
Install the Extension rackets...............................................16
Optional Extension rackets.................................................18
Install Other Devices............................................................19
Expansion Slots ...................................................................21
Chapter 3: IOS Setup Utility......................................................23
Introduction..........................................................................23
Running the Setup Utility...........…………………………...24
Standard CMOS Setup Page.................................................25
Advanced Setup Page...........................................................26
Power Management Setup Page............................................28
PCI/Plug and Play Setup Page.............................................30
Load Optimal Settings..........................................................31
Load est Performance Settings...........................................31
Features Setup Page..............................................................32
CPU PnP Setup Page............................................................34
Hardware Monitor Page........................................................35
Change Password..................................................................36
Exit.......................................................................................36
Chapter 4: Software & Applications.............................................37
Introduction..........................................................................37
Installing Support Software..................................................38
undled Software Insatllation...............................................40
III

Mainboard User’s Manual
IV

1: Introduction
Chapter 1
Introduction
This mainboard has a Socket-478 processor socket for Intel
Pentium 4 type of processors supporting front side bus (FS )
speeds up to 400 MHz.
This mainboard integrates the SiS650/650GL/651 Northbridge
along with SiS961/962 Southbridge chipsets that supports built-in
AC97 Codec , 2 DDR + 2 SDR modules up to 2G system
memory, and provides Ultr DMA 33/66/100 function. These
chipsets’ function is detailed as the Chipset description in next
section. This mainboard integrates a 256-bit 3D/2D Gr phics
Engine, Video Accelerator and Advanced Hardware Acceleration
MPEGI/MPEGII Video Decoder for the Intel Pentium 4 series
based PC systems. It has the external AGP slot with AGP 4X
266MHz (except when SiS650GL NB is inst lled) capability, one
AMR (Audio Modem Riser) slot to support Audio and Modem
application, and built-in 10B seT/100B seTX Network Interf ce.
In addition, this mainboard has a full set of I/O ports including two
PS/2 ports for mouse and keyboard, two serial ports, one parallel
port, one MIDI/game port and four US ports--two backpanel
ports, onboard US header JUS 1 providing two extra ports(they
will support US 2.0 if SiS962 S installed on the mainboard). y
means of the Extended US Module connected to the mainboard,
you can make two extra US ports.
This mainboard is Micro ATX size and has power connectors for
an ATX power supply and measures 244 x 244mm.
1

Mainboard User’s Manual
Key Features
The key features of this mainboard include:
Socket-478 Processor
The PGA Socket 478
Supports Intel Pentium 4 series CPUs
Supports up to 400/533 MHz Front-Side us
(only SiS651 NB supports 533MHz)
Chipset
There are SiS650/650GL/651 Northbridge and SiS961/962
Southbridge in this chipset in accordance with an innovative and
scalable architecture with proven reliability and performance. Here
is a list of the chipset arrangement and their respective features:
Northbridge Southbridge Function
SiS650 SiS961 CPU FS : 400MHz; Ultra DMA
ATA100; DDR266
SiS650GL SiS961 CPU FS : 400MHz; Ultra DMA
ATA100; DDR266, without
AGP 4x slot
SiS651 SiS962 CPU FS : 533MHz; Ultr
DMA ATA133; DDR333,
and US 2.0
Me ory Support
Two 168-pin DIMM slots for SDRAM memory modules
Two 184-pin DIMM slots for DDR memory modules
Support SDRAM up to 133 MHz /DDR up to 333MHz (for
SiS962 SB only) memory bus
Maximum installed memory is 2G
Notice: You can NOT use SDRAM and DDR simultaneously.
Expansion Slots
One AMR slot for a special audio/modem riser card
One 2x/4xAGP slot for AGP 2.0-compliant interface
(except when SiS650GL NB is inst lled)
Two 32-bit PCI slots for PCI 2.2-compliant bus interface
2

1: Introduction
Onboard IDE channels
Primary and Secondary PCI IDE channels
Support for PIO (programmable input/output) modes
Support for Multiword DMA modes
Support for us Mastering and Ultra DMA ATA 100/133
modes
Power Supply and Power Manage ent
ATX power supply connector
Meets ACPI 1.0b and APM 1.2 requirements, keyboard
power on/off
Supports RTC Alarm, Wake On Modem, AC97 Wake-Up
and US Wake-Up
Onboard VGA
Supports AGP V2.0 Compliant
Supports AGP 4X/2X interface and Fast Write Transaction
(except when SiS650GL NB is inst lled)
Supports high performance & high quality 3D Accelerator
—A built-in 256-bit 3D engine, up to 143 MHz 3D engine
clock speed
Supports high performance 128-bit 2D Accelerator—Ultra-
AGPIITM 2G /s data read for all 2D engine functions
Maximum Share Memory size is 64M
AC97 Audio Codec: CMI9738
Compliant with AC’97 2.2 specification
Full-duplex Codec with independent and variable sampling
rate
Earphone uffer uilt-In, SNR up to 90db
4Ch DAC, support 4-channel speak-out
Advanced power management support
3

Mainboard User’s Manual
Built-in Ethernet LAN
uilt-in 10B seT/100B seTX Ethernet LAN
SiS961 Embedded Fast Ethernet MAC and onboard Realtek
RTL8201 LAN PHY compliant with IEEE802.3u
100 ASE-TX, 10 ASE-T and ANSI X3.263 TP-PMD
standards
Compliant with ACPI 1.0 and the Network Device Class
Power Management 1.0
High Performance provided by 100Mbps clock generator
and data recovery circuit for 100Mbps receiver
Onboard I/O Ports
The mainboard has a full set of I/O ports and connectors:
Two PS/2 ports for mouse and keyboard
Two serial ports
One parallel port
One MIDI/game port
Four US ports (two backpanel ports, onboard US
header providing two extra ports)
Audio jacks for microphone, line-in and line-out
Hardware Monitoring
uilt-in hardware monitoring for CPU & System
temperatures, fan speeds and mainboard voltages.
Onboard Flash ROM
Supports Plug and Play configuration of peripheral devices
and expansion cards
USB 2.0 (for SiS962 SB only)
Compliant with Universal Serial us Specification
Revision 2.0
Compliant with Intel’s Enhanced Host Controller
Interface Specification Revision 0.95
Compliant with Universal Host Controller Interface
Specification Revision 1.1
4

1: Introduction
PCI multi-function device consists of two UHCI Host
Controller cores for full-/low-speed signaling and one
EHCI Host Controller core for high-speed signaling
Root hub consists 4 downstream facing ports with
integrated physical layer transceivers shared by UHCI and
EHCI Host Controller
Support PCI- us Power Management Interface
Specification release 1.1
Legacy support for all downstream facing ports
Bundled Software
PC-Cillin2000 provides automatic virus protection under
Windows 98/ME/NT/2000/XP
Medi Ring T lk provides PC to PC or PC to Phone
internet phone communication
3Deep delivers the precise imagery and displays accurate
color in your monitor
Recovery Genius 21st V5.0 provides the function to
recover, reserve and transfer hard disk data.
CD Ghost is the software stimulating a real CD-ROM to
perform equivalent function.
L ngu ge Genius 21st is the software to provides learning
tools of language and singing.
PC DJ is a dual-MP3 player that enables users to actually
mix music right on their own personal computers.
Adobe Acrob t Re der V5.0 is the software to help users
read .PDF files.
Di ensions
Micro ATX form factor 244 x 244mm
5

Mainboard User’s Manual
Package Contents
Attention: This mainboard serial has four models,
M935DAULR(DIP, SiS651 N +SiS962 S ,US 2.0,LAN Ready),
M935DELR(DIP, SiS650L N +SiS961 S , without AGP 4x slot,
LAN Ready), M935DLR(DIP, SiS650 N + SiS961 S , LAN
Ready)and M935D(without LAN). Please contact your local
supplier for more information about your purchased model. Each
model will support different specification listed as below:
Model Specification
M935DAULR Onboard LAN PHY chip (U5), RJ-45
LAN connector, and supports US 2.0
when SiS651 N +SiS962 S are
installed
M935DELR Onboard LAN PHY chip (U5), RJ-45
LAN connector, supports US 1.1, but
without AGP 4x slot when SiS650GL
N + SiS961 S are installed
M935DLR Onboard LAN PHY chip (U5), RJ-45
LAN connector, and supports US 1.1
M935D US connector for US 1.1
Your mainboard package contains the following items:
The mainboard
The User’s Manual
One diskette drive ribbon cable
One IDE drive ribbon cable
Software support CD
One VGA extension bracket
Optional Accessories
You can purchase the following optional accessories for this
mainboard.
Extended US module
AMR v.90 56K Fax/Modem card
6

1: Introduction
Static Electricity Precautions
Components on this mainboard can be damaged by static
electricity. Take the following precautions when unpacking the
mainboard and installing it in a system.
1. Keep the mainboard and other components in their original
static-proof packaging until you are ready to install them.
2. During installation, wear a grounded wrist strap if possible. If
you don’t have a wrist strap, discharge static electricity by
touching the bare metal of the system chassis.
3. Handle the mainboard carefully by the edges. Avoid touching
the components unless it is absolutely necessary. During
installation put the mainboard on top of the static-protection
packaging it came in with the component side facing up.
Pre-Installation Inspection
1. Inspect the mainboard for damage to the components and
connectors on the board.
2. If you suspect that the mainboard has been damaged, do not
connect power to the system. Contact your mainboard vendor
and report the damage.
7

Mainboard User’s Manual
8

2: Mainboard Installation
Chapter 2
Mainboard Installation
To install this mainboard in a system, please follow the instructions
in this chapter:
Identify the mainboard components
Install a CPU
Install one or more system memory modules
Verify that all jumpers or switches are set correctly
Install the mainboard in a system chassis (case)
Connect any extension brackets or cables to connecting
headers on the mainboard
Install other devices and make the appropriate connections to
the mainboard connecting headers.
Note:
1. efore installing this mainboard, make sure jumper JP3 is
under Normal setting. See this chapter for information about
locating JP3 and the setting options.
2. Never connect power to the system during installation;
otherwise, it may damage the mainboard.
9

Mainboard User’s Manual
Mainboard Components

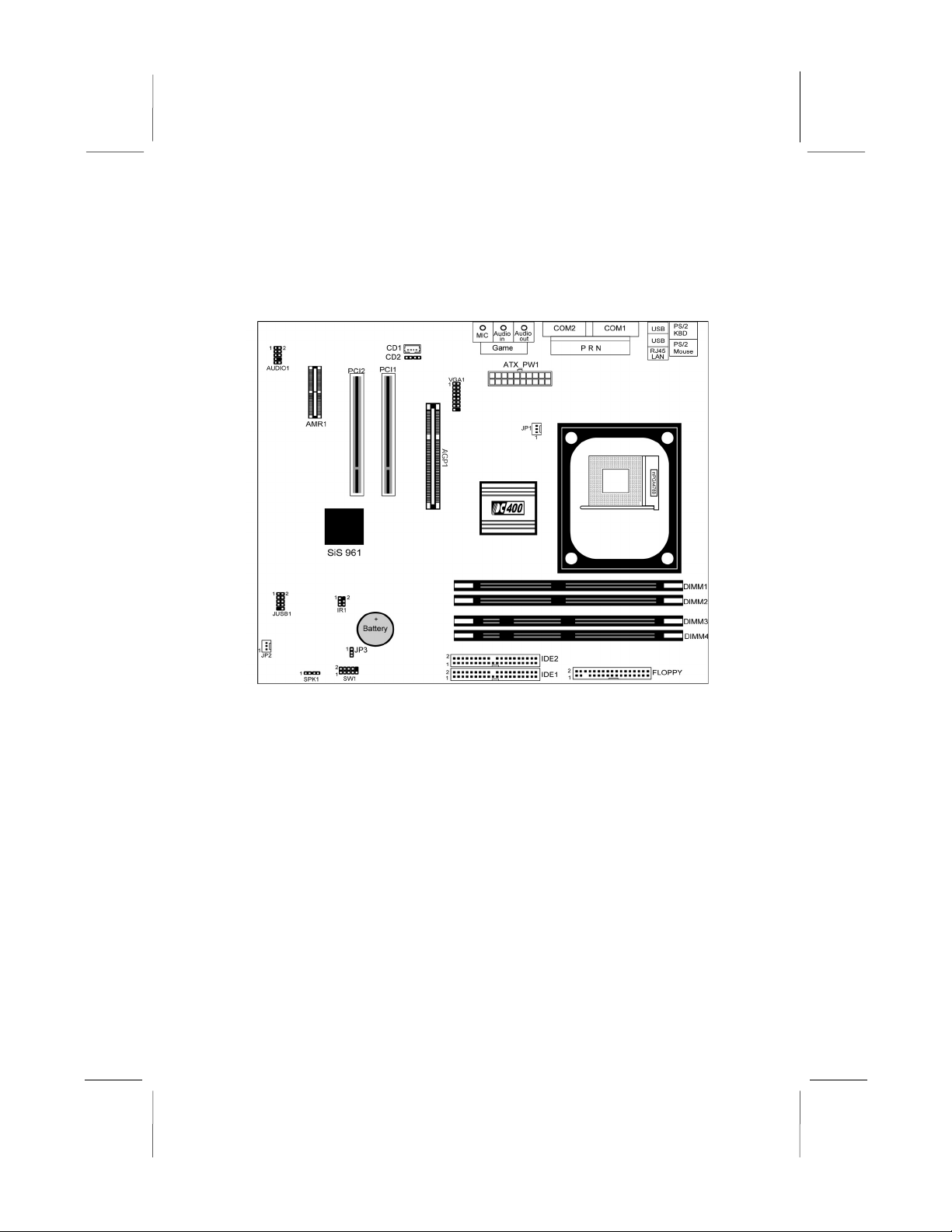

Use the diagram below to identify the major components on the
mainboard.
Note: Any jumpers on your mainboard that do not appear in
the illustration above are for testing only.
10

2: Mainboard Installation
I/O Ports

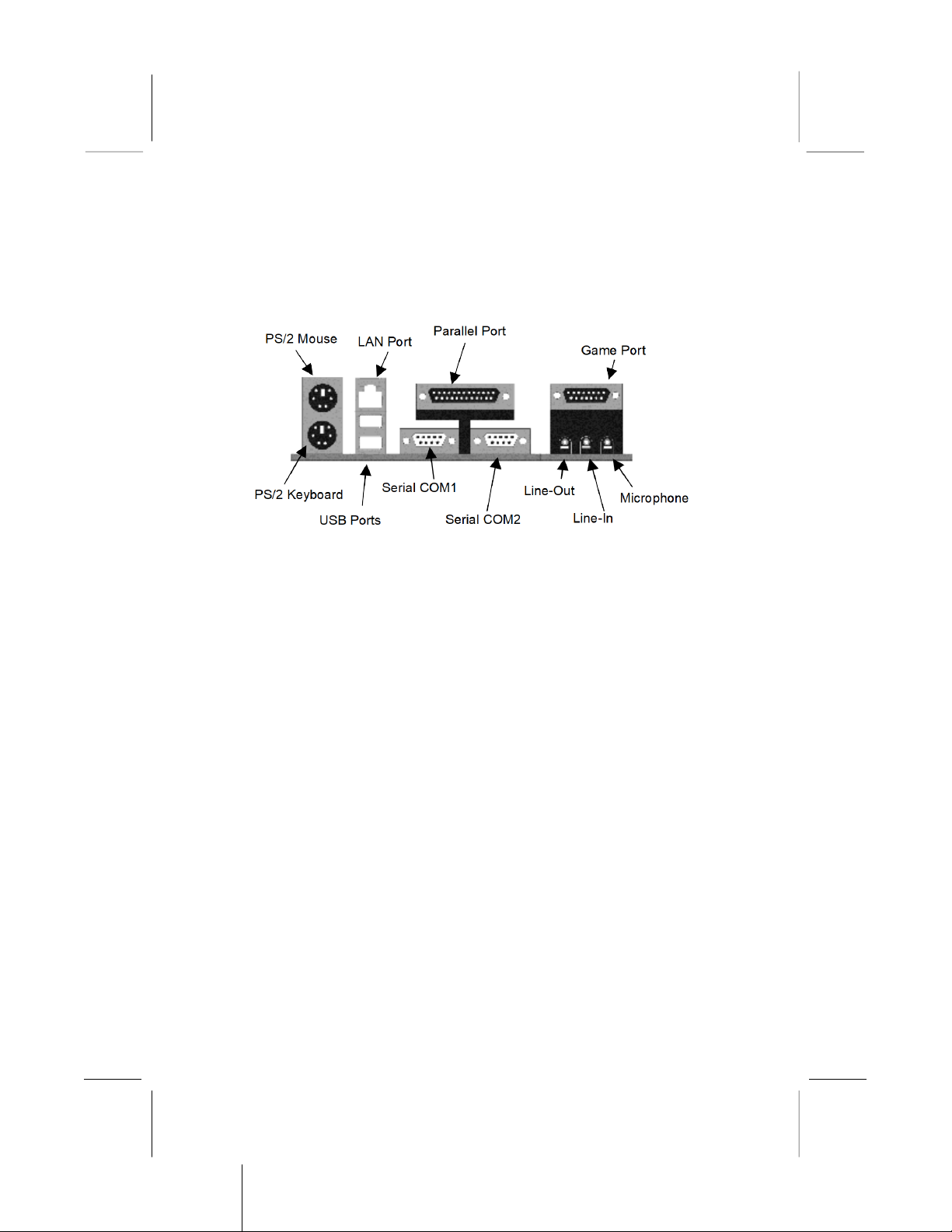

The illustration below shows a side view of the built-in I/O ports
on the mainboard.
1. Upper PS/2 port connects a PS/2 pointing device.
2. Lower PS/2 port connects a PS/2 keyboard.
3. US ports connect US devices.
4. LPT1 connects printers or other parallel
communications devices.
5. COM ports connect serial devices such as mice or
fax/modems. COM1 is identified by the system as
COM1/3. COM2 is identified by the system as
COM2/4.
6. Game port connects a joystick or a MIDI device.
7. Three audio ports connect audio devices. The left
side jack is for a stereo line-out signal. The middle
jack is for a stereo line-in signal. The right side jack
is for a microphone.
8. LAN port connects to the network.
11

Mainboard User’s Manual
Install CPU
This mainboard has a Socket-478 which supports Intel Pentium 4
series processors.
To ensure reli bility, ensure th t your processor h s
he tsink/cooling f n ssembly.
Do neither try to install a Socket 370 processor nor a Socket423 in
the Socket-478. A Socket 370 processor such as the Pentium III, or
Celeron , does not fit in the Socket 478.
The following processor is currently supported by this mainboard.
Intel P4 478: 1.4GHz ~ 2.2GHz, FS : 400MHz
Installing a Socket-478 Processor
A processor installs into the ZIF (Zero Insertion Force) Socket-478
on the mainboard.

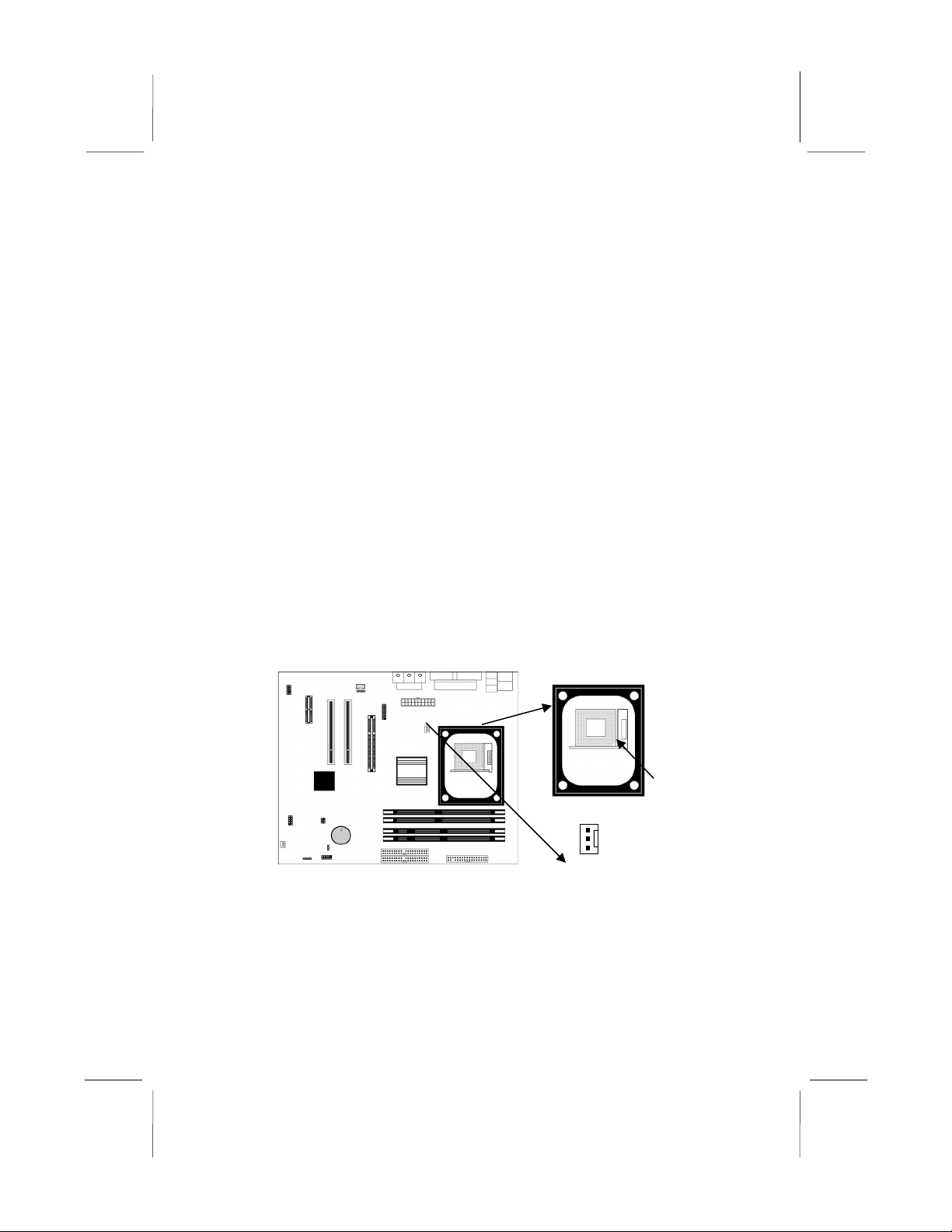

1. Locate the Socket-478 and CPU FAN JP1. Pull the locking
lever out slightly from the socket and raise it to the upright
position.
2. On the processor, identify the Pin-1 corner by its beveled edge.
3. On the Socket-478, identify the Pin-1 corner. The Pin-1 corner
is at the top of the locking lever when it locked.
4. Match the Pin-1 corners and insert the processor into the
socket. No force is required and the processor should drop into
place freely.
12
JP1
Socket-478
Pin-1 Corner

2: Mainboard Installation
5. Swing the locking lever down and hook it under the catch on
the side of the socket. This secures the CPU in the socket.
6. All processors should be installed with a combination heatsink/
cooling fan, connect the cable from the fan to the CPU fan
power connector JP1.
Installing Memory Modules
This mainboard accommodates 168-pin 3.3V/184-pin 2.5V
unbuffered SDRAM memory modules. The memory chips must be
standard or registered SDRAM (Synchronous Dynamic Random
Access Memory).
The CPU supports 100MHz system bus. The SDRAM DIMMs
and DDRs can synchronously work with 100 MHz or operates over
a 266 MHz system bus.
You must install at least one memory module in order to work out
the mainboard, either SDRAM or DDR SDRAM, but you c n
not use them simult neously.
SDRAM provides 800 M /s or 1 G /s data transfer rate
corresponding with the bus 100 MHz or 133 MHz. It doubles the
rate to 1.6 G /s and 2.1 G /s by transferring data on both the
rising and falling edges of the clock. DDR SDRAM uses additional
power and ground lines and requires 184-pin 2.5V unbuffered
DIMM module rather than the 168-pin 3.3V unbuffered DIMMs
used by SDRAM.
13
DIMM1
DIMM2
DIMM3
DIMM4

Mainboard User’s Manual
Installation Procedure
The mainboard accommodates two memory modules. You must
install at least one module in any of the three slots. Each module
can be installed with up to 2G system memory.
Refer to the following to install the memory modules.

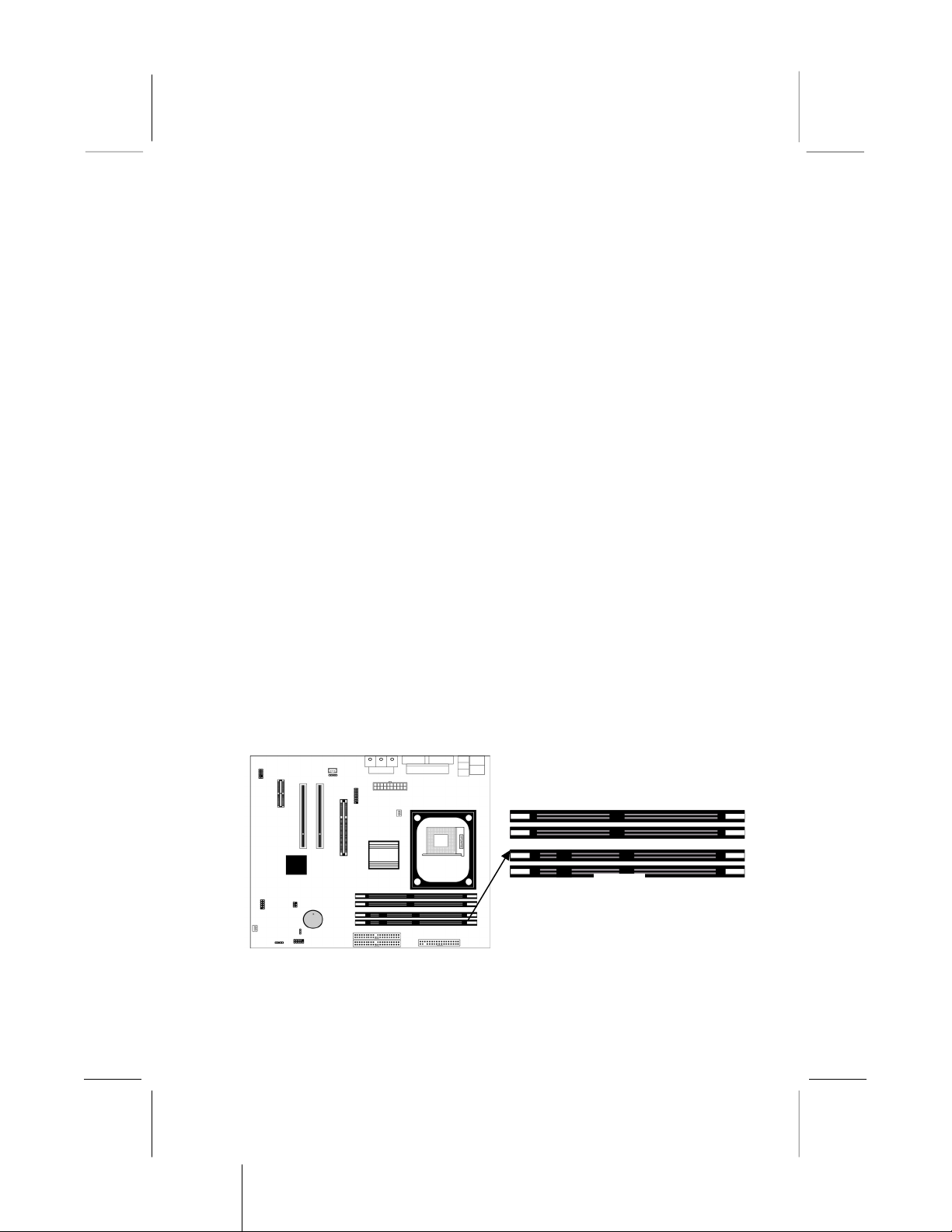

1. Push the latches on each side of the DIMM slot
down.
2. Align the memory module with the slot. The
DIMM slots are keyed with notches and the
DIMMs are keyed with cutouts so that they can
only be installed correctly.
3. Check that the cutouts on the DIMM module edge
connector match the notches in the DIMM slot.
4. Install the DIMM module into the slot and press it
firmly down until it seats correctly. The slot latches
are levered upwards and latch on to the edges of the
DIMM.
5. Install any remaining DIMM modules.
Setting Jumper Switches
Jumpers are sets of pins that can be connected together with
jumper caps. The jumper caps change the way the mainboard
operates by changing the electronic circuits on the mainboard. If a
jumper cap connects two pins, we say the pins are SHORT. If a
jumper cap is removed from two pins, the pins are OPEN.
14

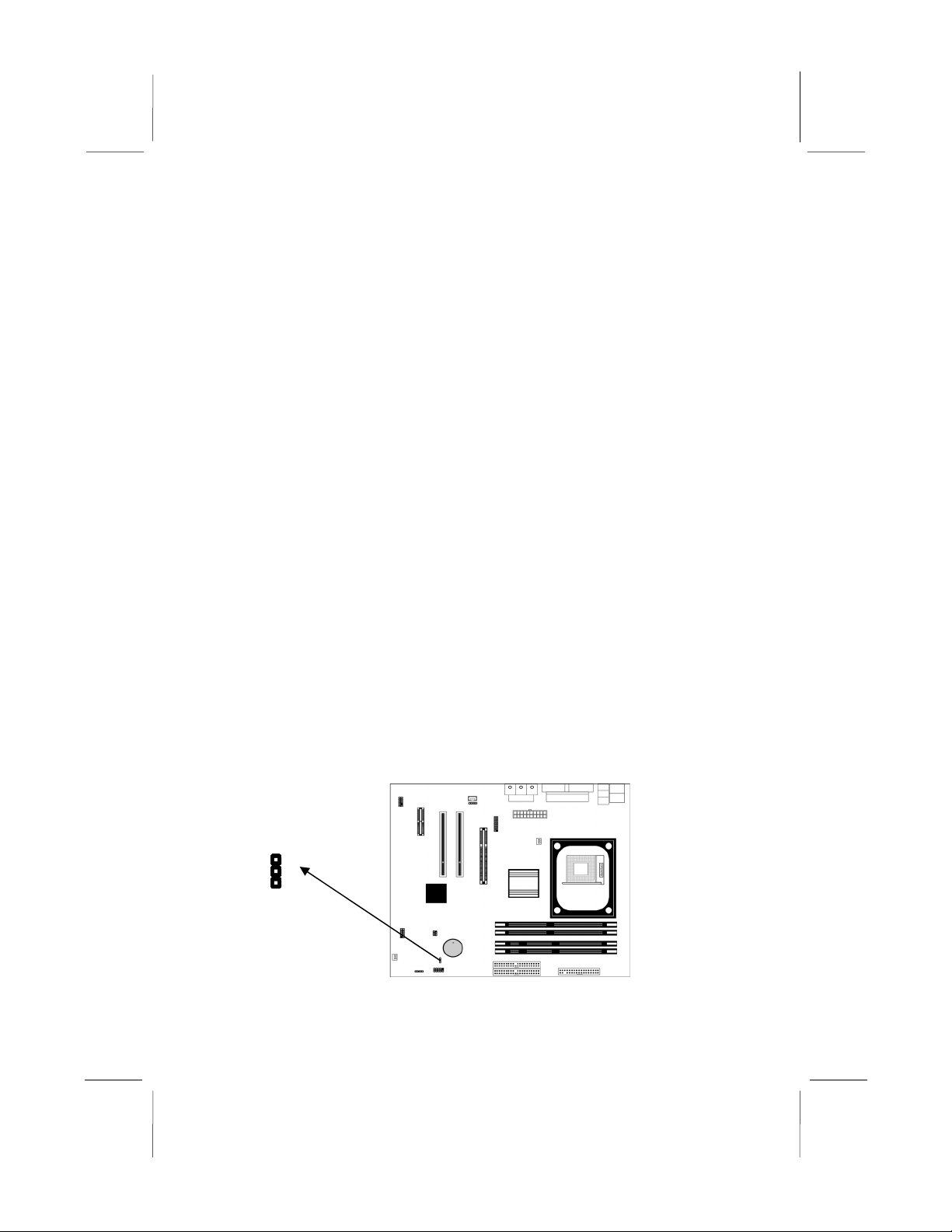

JP3
1

2: Mainboard Installation
Ju per JP3: Clear CMOS Me ory
This jumper can clear the contents of the CMOS memory. You may
need to clear the CMOS memory if the settings in the Setup Utility
are incorrect and prevent your main oard from operating. To clear
the CMOS memory, disconnect all the power ca les from the
main oard and then move the jumper cap into the CLEAR setting
for a few seconds.
Function Ju per Setting
Clear CMOS Short Pins 1-2
Normal Mode Short Pins 2-3
Install the Mainboard
Install the mainboard in a system chassis (case). The board is an
ATX size mainboard with a twin-tier of I/O ports. You can install
this mainboard in an ATX case. Ensure that your case has an I/O
cover plate that matches the ports on this mainboard.
Install the mainboard in a case. Follow the instructions provided by
the case manufacturer using the hardware and internal mounting
points on the chassis.
Connect the power connector from the power supply to the
ATX_PW1 connector on the mainboard.
If there is a cooling fan installed in the system chassis, connect the
cable from the cooling fan to the JP2 fan power connector on the
mainboard.
Connect the cable from the PC speaker to the SPK1 header on the
mainboard. Here is a list of SPK1 header’s pin assignments.
15
AUDIO1
SPK1
1
1
ATX_PW1
1
SW1
JP2

Mainboard User’s Manual
Pin Signal Pin Signal
1 SPKR 2 NC
3 GND 4 +5V
Connect the case switches and indicator LEDs to the SW1 header.
Here is a list of SW1 header’s pin assignments.
Pin Signal Pin Signal
1 HDDLED_P 2 FP ACPI LED
3 HDDLED_N 4 FP ACPI LED
5 RST_SW_N 6 PW_ T_P
7 RST_SW_P 8 PW_ T_N
9 RSVD_DNU 10 KEY
If there are a headphone jack or/and a microphone jack on the front
panel, connect the cables to the AUDIO1 header on the mainboard.
Here is a list of AUDIO1 header’s pin assignments.
Pin Signal Pin Signal
1 AUD_MIC 2 AUD_GND
3 AUD_MIC_ 4 AUD_VCC
5 AUD_FPOUT_ 6 AUD_RET_R
7 NC 8 KEY
9 AUD_FPOUT_ 10 AUD_RET_L
Install the Extension Brackets
The extension brackets connect features on the mainboard to
external connectors that can be attached to the system chassis.
Follow these steps below to install the extension brackets.
Note: All the ribbon cables used on the extension brackets have a
red stri e on the Pin-1 side of the cable.
16
