PDMOVIE LIVE PRO User manual

②For the controller PDL-TC-PFZ : Press and hold the ZOOM
button or button for 3 seconds for calibrate. Then two of the
motors’ will work at the same time when it calibrating.
LIVE PRO Product Manual
PDL-TC-PFZ dual-channel handle
Setting button for
FOCUS/IRIS channel
Setting button for
ZOOM channel
Wheel(FOCUS/IRIS)
Rocker(ZOOM)
Indicator light for
ZOOM channel
Indicator light for
FOCUS/IRIS channel
Wheel(FOCUS)
Setting button
for FOCUS channel
Indicator light
for FOCUS channel
PDL-TC-PF single-channel handle
Lemo Cable Lemo Cable
D-Tap
FOCUS
IRIS
Facebook: PDMOVIE
1. Installation Of Controller
Please install the controller (PDL-TC-PF or PDL-TC-PFZ) to the
(15mm-30mm) catheter with the adaptor.
2. Installation Of Motor
Please install the motor to the catheter (15mm-30mm) then
match in the lens gear.
3. Connection Of Controller With Motor
①.For using the controller ( PDL-TC-PF) : Please let the motor
and handle control connect with Lemo cable .Then let the D-TAP
cable connect the motor with the D-tap output on the V-Mount
Battery .
②.For using the controller (PDL-TC-PFZ) ,please follow the steps
below : FIRST let Lemo cable connect the motor(PD-MX1&2) ,
SECOND let the other lemo cable connect the handle control and
the motor(PD-MX1). THEN let the D-tap cable to connect the motor
(PD-MX2)and the socket (REMOTE 7-20V). LAST let the D-Tap
cable connect the motor with the D-tap output on the V-Mount
Battery.
4.Motor start up
The motor do not need to turn on and off, cause it will turn on
automatically when it have power supply and it will turn it off when
power outage.( To know more detail please check with the instruction
No.7 & 8.)
5. Calibrate Lens Stroke
The controller PDL-TC-PF and PDL-TC-PFZ do not have ON/OFF
button and it will turn on automatically when power supply.
① For the controller PDL-TC-PF : Press the CHANNEL button for 3
seconds for calibrate.
6. Operation For Controller
Switch the controller hand wheel or Rocker to control the
FOCUS/ZOOM/IRIS
①When using the PDL-TC-PF please be sure the indicator light
on the controller and motor are in the same color. (Recommend both
on red.)
②When using the PDL-TC-PFZ please be sure that the indicator
light (Left side) on the controller and motor (PD-MX1) are in the
same color. (Recommend both on red.); please be sure that the
indicator light (Right side) on the controller and motor (PD-MX2) are
in the same color. (Recommend both on green.)
③When using the PDL-TC-PF and PDL-TC-PFZ please be sure
that the indicator lights on the PDL-TC-PF and motor (PD-MX1) are
in the same color. (Recommend both on red.); the indicator light
(Left side) on the PDL-TC-PFZ and motor (PD-MX2) are in the same
color. (Recommend both on blue.); And the indicator light (Right
side) on the PDL-TC-PFZ and motor (PD-MX3) are in the same
color. (Recommend both on green.)
R1 FOCUS
G2 GREEN ZOOM
B3 BLUE IRIS
Y4 YELLOW
C5 CYAN
P6 PRUPLE
Controller/
Motor Channels
The Color of
Motors’
Indicator Lights
Corresponding
Channels
Not enabled
Not enabled
Not enabled
RED
The SPEED Button
On The Controller
And Motor
9. Controller And Motor Switching
Channel Table
PDL-TC-PFZ PD-MX1 PD-MX2
7.Instruction of controller
Press 7 times, the direction that the
motor run will turn opposite. (Also
change the direction of the lens)
REMOTE
7-20V
Functions Instruction
Press and hold the button for 3 second
Set
Cancel
Switch Channel
Press the button(ZOOM) on the controller
(PDL-TC-PFZ) five times for adjust the
speed of motor. Press the button on the
motor for adjust the speed. (Instruction
8.2 to see more details)
Switching
the rotation
direction of
the motor
Button &
Socket
Automatically
Calibrate
Stroke
Manual
Setting (AB
Point)
Switch Rotation
Speed of Motor
Setting: Please turn the lens to the A
point and press the button
(FOCUE/ZOOM/IRIS) on the controller
for setting A point. Then turn the lens
to the B point and press the button
again for setting B point.
Cancel : After “setting”, press the
button (FOCUE/ZOOM/IRIS) on the
controller for cancel the AB point.
The socket on the controller and motor support signal transmission,
power supply and 7-20 voltage.
Double click the button
(FOCUS/ZOOM/IRIS) for changing
channels which mean switch the indicator
light color.
ZOOM
CHANNEL
FOCUS
IRIS
REMOTE
7-20V
8.Instruction Of The Motors
①.Motor Button Instruction
Functions
②.Switching Motor Rotation Speed
The rotation
speed of motors
The flashing
frequency of
the corresponding
indicator lights
Fast (Hard torsion) Fast Flash
Normal FlashNormal (Normal torsion)
Slow FlashSlow (Light torsion)
The Button
Interface /
Motor Button
Motor rotation speed and channel switching (refer to
channel switching and motor speed switching table)
Control signal transmission, universal 6-Pin socket for
power supply, support 7-20 voltage supply. The 7-20V
controller and the motor have the socket.
Quickly press the
SPEED button on the
motor
CHANNEL
SPEED

LIVE PRO
©2019 PDMOVIE All rights reserved.
PDMOVIE Technology Co., Ltd.
Web：www.pdmovie.com
E-mail: [email protected]
Facebook: www.facebook.com/pdmovie.com.cn

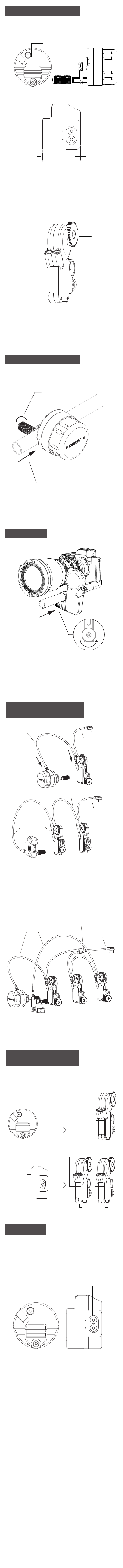

LIVE PRO Quick Start Guide
REMOTE 7-20V
CHANNEL Button
Gear
U-Clamp
Indicator
light of motor
Wheel(FOCUS)
Setting button for FOCUS channel
Indicator light for FOCUS channel
PDL-TC-PF Single-Channel Controller
REMOTE 7-20V
PDL-TC-PFZ Dual-Channel Controller
Setting button
for FOCUS/IRIS
channel
Rocker(ZOOM)
Wheel(FOCUS/IRIS)
Indicator light
for ZOOM
channel
Indicator light
for FOCUS
channel
Setting button
for ZOOM channel
REMOTE 7-20V
Controller
Motor
1. Installation Of Controller
1.Please install the motor to the
catheter (15mm-30mm) then
match in the lens gear.
2.After the adjustment , screws
tight the stopping nut.
2.Installation
1.Loosing the
U-Clamp for install
the motor on the
catheters.
2.Motor gear
matching with
the lens gear.
3.Firming the U-Clamp.
Attention
①The motor is used in lenses for a wide range of application ; But need the
follow focus gear-ring when using the SLR camera.
②Motor can be install on the catheters with the diameter(15mm or 19mm )
with the adapter ring.
4.Start Up The Power And
Set Up Channels
Double click
quickly
Double click
quickly
Double click
quickly
Double click
quickly
Indicator light
on red
Indicator light
on red
Indicator light
on red
Indicator light
on red
Indicator light
on red
Indicator light
on red
3.Connection of handle and
motor
Lemo Cable (1m)
Lemo Cable (1m)
Lemo Cable (1m)
Lemo Cable (0.4m)
Lemo Cable (0.4m)
D-Tap
D-Tap（1m）
D-Tap（1m）
Connection Mode For Dual-channel
Connection Mode For Three-Channel
Controller PDL-TC-PF
Controller PDL-TC-PFZ
Connection Mode For Single-Channel
5.Calibration
Long press the button on the controller for 3 seconds to calibrate
the lens stroke.
PD-MX（Slave Motor）
The motor do not need to turn on and off, cause it will turn on
automatically when it have power supply and it will turn it off
when power outage.
Attention: the color of the handles’ indicator
lights must be the same as those of motors.
Long press for 3
seconds.
Long press for 3
seconds.
PDL-TC-PF
PDL-TC-PF
PD-MX
PDL-TC-PFZ PD-MX1 PD-MX2
PDL-TC-PFZ
PD-MX1 PD-MX2 PD-MX3
PDL-TC-PF PDL-TC-PFZ
