Peak Scientific MS Bench Series User manual

MS Bench (All Models) User Manual Rev 6 RSID 3023 EN 31/03/20
MS Bench (All Models)
User Manual

Contents
Change History 3
How to use this Manual 3
Intended Use of Equipment 3
Warranties and Liabilities 4
Safety Notices 5
Symbols 5
Safety Notice to Users 5
Weight Loading & Stability 6
Declaration of Conformity 7
Environmental Declaration 8
Technical Specification 9
Technical Specification 10
Unpacking 11
Fittings Kit Contents 12
Installation 13
Generator Environment 13
Generator Overview 14
General Dimensions SCI 1, G SCI 1 and G SCI 2 14
General Dimensions SCI 2 14

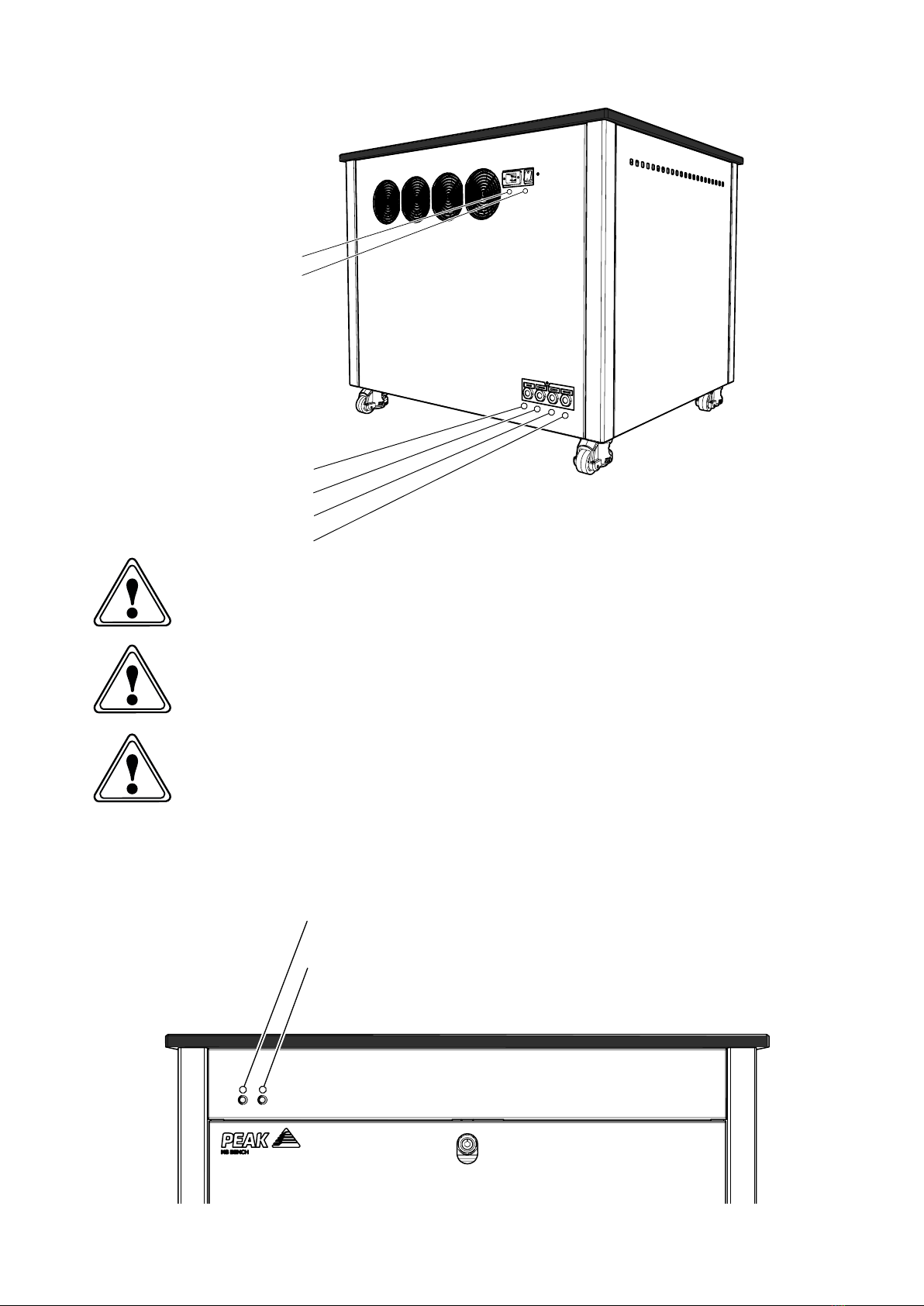

MS Bench G SCI 1 Rear Connections 15
MS Bench G SCI 1 Unit Controls 15

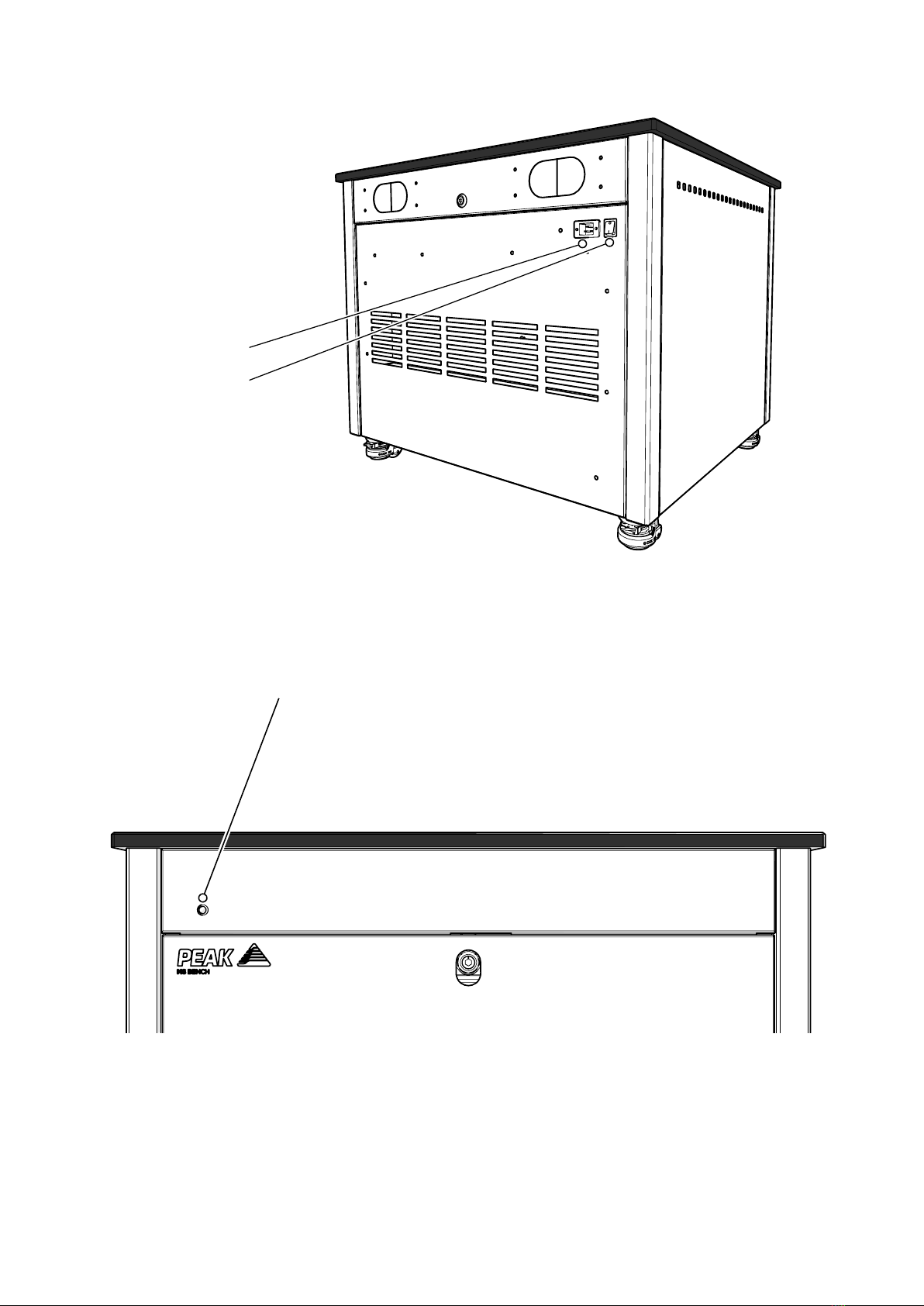

MS Bench SCI 1 Rear Connections 16
MS Bench SCI 1 Unit Controls 16
MS Bench G SCI 2 Rear Connections 17
MS Bench G SCI 2 Unit Controls 17
MS Bench SCI 2 Rear Connections 18
MS Bench SCI 2 Unit Controls 18
Drain Connection (MS Bench G SCI 1 & G SCI 2 Only) 19
Electrical Connection 20
Start-Up Sequence (MS Bench G SCI 1 & G SCI 2 Only) 21
Connecting to the application (MS Bench G SCI 1 & G SCI 2 Only) 22
Tubing Lengths 22
Normal Operation (MS Bench G SCI 1 & G SCI 2 Only) 23
On Demand Gas (MS Bench G SCI 1 & G SCI 2 Only) 23
Generator Cycling (MS Bench G SCI 1 & G SCI 2 Only) 23
Unusual Operation (MS Bench G SCI 1 & G SCI 2 Only) 23
Fan Power LED (MS Bench SCI 1 & SCI 2 Only) 24
Safe Operation of Pump Tray (MS Bench SCI 1 Only) 25
Safe Operation of Pump Tray (MS Bench SCI 2 Only) 26
Service Requirements (MS Bench G SCI 1) 27
Service Schedule 27
Service Requirements (MS Bench G SCI 2) 27
Service Schedule 27
Service Indication (MS Bench G SCI 1 & G SCI 2) 28
Stage 1 28
Stage 2 28
Service Indication Reset 28
Peak Protected 29
Cleaning 30
Troubleshooting (MS Bench G SCI 1 & G SCI 2) 31
Page 2

Page 3
Change History
Rev Comment Name Date
1 Initial Release L. Couttie 06/06/2019
2 CSA Feedback Updates L. Couttie 20/06/2019
3 Weight Loading Update L. Couttie 26/06/2019
4 MS Bench G SCI 22 & SCI 2 models added L. Couttie 28/10/2019
5 CSA Feedback Updates L. Couttie 02/12/2019
6 SCIEX Feedback Updates L. Couttie 31/03/2020
How to use this Manual
This manual is intended for end users and has been written as a reference document
where you can skip to the relevant information.
Users can refer to the contents page to find the relevant information.
Please review each of the following sections carefully.
Thank you for selecting Peak Scientific to meet your gas generation needs, and should
you require any further assistance or support please do not hesitate to contact Peak
Scientific or the Peak Partner from which you purchased your generator.
Intended Use of Equipment
MS Bench SCI 1, is a support cabinet with in-built cooling provided by fans, its top
surface and slide out tray are available for use by the customer as required for their
planned application.
MS Bench G SCI 1 is a support cabinet with an in-built Nitrogen generator. Its top
surface and internal storage space are available for use by the customer as required.
The inbuilt generator provides an output of both compressed air and nitrogen for
supply to customer application on demand via its compressors.
MS Bench SCI 2 is a support cabinet with two internal compartments, one containing
inbuilt cooling provided by fans and a slide out tray, the other open for a larger
roughing pump. The top surface is available for the customer to use for their planned
application.
MS Bench G SCI 2 is a support cabinet with an in-built nitrogen generator, with higher
gas flows than the G SCI 1. The top surface is available for the customer to use for their
planned application.

Page 4
Warranties and Liabilities
1. The Company warrants that it has title to the Goods.
2. Subject to the provisions of this clause the Company warrants that the Goods
shall comply in all material respects with any specification referred to in the Order
Confirmation (as the same may be amended) and shall, subject thereto, be free
from defects in material and workmanship for the lesser of a period of twelve
months from the date of delivery or thirteen months from the date of dispatch
from the factory.
3. Save as provided in this clause and except where the Goods are sold to a person
dealing as a consumer (within the meaning of the Unfair Contract Terms Act
1977) all warranties, conditions or other terms implied by statute or common
law are hereby expressly excluded save to the extent they may not be lawfully
excluded. When the Goods are sold to a consumer within the meaning of the Unfair
Contract Terms Act 1977 their statutory rights are not aected by the provisions of
this clause.
4. In the event of the Customer making a claim in respect of any defect in terms of
clause 2 hereof the Customer must.
1. Reasonably satisfy the Company that the Goods have been properly installed,
commissioned, stored, serviced and used and without prejudice to the generality
of the foregoing that any defect is not the direct or indirect result of lack of repair
and/or servicing, incorrect repair and/or servicing, use of wrong materials and/or
incorrect spare parts
2. Allow the company to inspect the Goods and/or any installation and any relevant
packaging as and when reasonably required by the Company.
5. Subject to the Company being notified of any defect as is referred to in sub-
clause 2 hereof within a reasonable time of it becoming apparent and subject always
to the terms of sub-clause 4 hereof, the Company shall, in its option, replace or
repair the defective Goods or refund a proportionate part of the Price. The Company
shall have no further liability to the Customer (save as mentioned in sub-clause 6
hereof).
6. The Company shall be liable to indemnify the Customer in respect of any claim
for death or personal injury to any person in so far as such is attributable to the
negligence or breach of duty of the Company or any failure by the Company to
comply with the provisions of sub-clause 2 hereof.
7. Save as provided in sub-clause 2 hereof the Company shall not be liable in respect
of any claim by the Customer for costs, damages, loss or expenses (whether direct,
indirect, consequential or otherwise) or indemnity in any respect howsoever arising
including, but not by way of limitation, liability arising in negligence (other than
pursuant to clause 6 above) that may be suered by the Customer or any third
party.

WARNING
CAUTION
Page 5
WARNING
WARNING
WARNING
Safety Notices
Peak Scientific Instruments cannot anticipate every possible circumstance which may
represent a potential hazard. The warnings detailed within this manual refer to the most
likely potential hazards, but by definition cannot be all inclusive. If the user employs
an operating procedure, item of equipment or a method of working which is not
specifically recommended by Peak Scientific, the user must ensure that the equipment
will not be damaged or become hazardous to persons or property.
Symbols
This manual uses the following symbols to highlight specific areas important to the safe
and proper use of the generator.
A WARNING notice denotes a hazard. It calls attention to an operating procedure,
process or similar, which if not correctly performed or adhered to, could cause
personal injury or in the worst case death. Do not proceed beyond a WARNING
notice until the indicated conditions are fully understood or met.
A CAUTION notice denotes a hazard. It calls attention to an operating procedure,
process or similar, which if not correctly performed or adhered to, could cause
damage to the generator or the application. Do not proceed beyond a CAUTION
notice until the indicated conditions are fully understood or met.
Caution, risk of electric shock. Ensure power to the generator has been removed
before proceeding.
Safety Notice to Users
These instructions must be read thoroughly and understood before
installation and operation of your Peak Generator. Use of the generator
in a manner not specified by Peak Scientific MAY impair the SAFETY
provided by the equipment.
When handling, operating or carrying out any maintenance, personnel
must employ safe engineering practices and observe all relevant local
health and safety requirements and regulations. The attention of UK
users is drawn to the Health and Safety at Work Act 1974, and the
Institute of Electrical Engineers regulations.
If the equipment is used in a manner not specified by the manufacturer,
the protection provided by the equipment maybe impaired.

Page 6
CAUTION
Weight Loading & Stability
Additional weight added to product either on top surface or within cabinet must not
exceed the following maximum combined total:
MS Bench SCI 1 : 272 Kg
MS Bench G SCI 1: 215 Kg
MS Bench SCI 2 : 272 Kg
MS Bench G SCI 2: 206 Kg
Failure to adhere to these values could lead to injury and or damage to
the equipment.
Ensure placement of additional equipment / weight on top surface or with in cabinet
does not cause overall Bench to become unstable, either in use or when sliding tray is
extended and loaded on MS Bench SCI 1 and SCI 2.
Failure to ensure overall product is stable could lead to injury and or
damage to the equipment.
CAUTION

Page 7
Declaration of Conformity
We Peak Scientific Instruments Ltd.
Of Fountain Crescent, Inchinnan, Renfrewshire, PA4 9RE
Declare that:
Equipment: Bench and Nitrogen Generator Bench
Models: MS Bench SCI 1, MS Bench G SCI 1, MS Bench SCI 2 &
MS Bench G SCI 2
To which this declaration relates, is in conformity with the applicable EC directives,
harmonized standards, and other normative requirements.
• Low Voltage Directive 2014/35/EU
EN 61010-1: 2010 Safety Requirements for Electrical Equipment for Measurement,
Control and Laboratory Use.
• Electromagnetic Compatibility Directive 2014/30/EU
EN 61326-1: 2013 Electrical Equipment for Measurement, Control and Laboratory Use
- EMC Requirements.
• FCC47 CFR Part 15 Class B
Unintentional radiators; Conducted and Radiated emissions limits.
All evaluation, testing and certification issued by:
Nemko Canada Inc. Peak Scientific Instruments Ltd.
303 River Road Fountain Crescent, Inchinnan Business Park
Ottawa, Ontario Inchinnan, Renfrewshire, U.K.
Canada, K1V 1H2 PA4 9RE
Signed: Name: Chris Pugh
Date: 10/06/2019 Position: Engineering Director

Page 8
Environmental Declaration
We Peak Scientific Instruments Ltd.
Of Fountain Crescent, Inchinnan, Renfrewshire, PA4 9RE
Declare that:
Equipment: Bench and Nitrogen Generator Bench
Models: MS Bench SCI 1, MS Bench G SCI 1, MS Bench SCI 2 &
MS Bench G SCI 2
Is fully compliant with the following Directives.
• 2012/19/EU WEEE (Waste of Electrical and Electronic Equipment)
• 2011/65/EU & 2015/863 RoHS (Restriction of Hazardous Substance)
Peak Scientific Instruments Ltd fully complies with its obligations towards the European
WEEE (Waste of Electrical and Electronic Equipment) Directive 2012/19/EU. These
obligations are being met within the B2B compliance group.
Peak Scientific Instruments Ltd, herewith confirm that as a manufacturer of articles we
conform to the European Parliament and Council Directives, 2011/65/EU for the original
6 restricted substances listed in the Restriction of Hazardous Substances (RoHS)
Directive and Commision Delegated Directive (EU) 2015/863 to include 4 additional
restricted substances. Peak Scientific Instruments LTD have developed all reasonable
'due diligence' controls to ensure that our products comply with the principles and
requirements of the RoHS (Restriction of Hazardous Substances) Directives.
Where a specific certificate of compliance is required, this can be requested, on
a product serial number basis, directly from Peak Scientific Instruments Ltd, by
contacting us through our website at www.peakscientific.com
Signed: Name: Chris Pugh
Date: 10/06/2019 Position: Engineering Director

Page 9
Technical Specification
Environment
MS Bench SCI 1 MS Bench G SCI 1
Minimum Operating Ambient Temperature 5°C (41°F)
Maximum Operating Ambient Temperature 30°C (86°F)
Maximum Altitude 2000 m
Maximum Relative Humidity 80% Non-Condensing
Minimum Storage Temperature* -20°C (-4°F)
Maximum Storage Temperature* 60°C (140°F)
*NOTE – Storage below 5°C (41°F) for long periods is not recommended. When taken out of storage the Generator
should be allowed to acclimatize at room temperature for a minimum of 3 hours before operation.
Generator Outlets
Curtain Maximum Flow^
N/A
19 L/min @ 4.48 bar (0.670
cfm @ 65 psi)
Source Maximum Flow^ 26 L/min @ 6.89 bar (0.918
cfm @ 100 psi)
Exhaust Maximum Flow^ 25 L/min @ 4.13 bar (0.882
cfm @ 60 psi)
Particles <0.01µm
Phthalates NONE
Suspended Liquids NONE
Gas Outlets 3 x ¼” BSPP
Drain Outlet 1 x ¼” BSPP
^NOTE – These performance characteristics are valid only when paired with an approved Sciex application. Please refer
to current application matrix for a list of supported products.
Electrical Requirements
Voltage 100 - 240v ±10% 220 - 240v ±10%
Frequency 50/60 Hz
Current 2 Amps 6 Amps
Input Connection C20 Plug
Power Cord (Supplied) C19 socket to local connection (13A minimum)
Pollution Degree 2
Installation / Over Voltage Category II
General
Dimensions cm (inches) WxDxH 91.4 x 78.7 x 76.2 (36 x 31 x 30)
Generator Weight Kg (lbs) 103 (227.1) 160 (352.8)
Shipping Weight Kg (lbs) 118 (260.2) 175 (385.9)

Page 10
Technical Specification
Environment
MS Bench SCI 2 MS Bench G SCI 2
Minimum Operating Ambient Temperature 5°C (41°F)
Maximum Operating Ambient Temperature 30°C (86°F)
Maximum Altitude 2000 m
Maximum Relative Humidity 80% Non-Condensing
Minimum Storage Temperature* -20°C (-4°F)
Maximum Storage Temperature* 60°C (140°F)
*NOTE – Storage below 5°C (41°F) for long periods is not recommended. When taken out of storage the Generator
should be allowed to acclimatize at room temperature for a minimum of 3 hours before operation.
Generator Outlets
Curtain Maximum Flow^
N/A
25 L/min @ 4.48 bar (0.882
cfm @ 65 psi)
Source Maximum Flow^ 26 L/min @ 6.89 bar (0.918
cfm @ 100 psi)
Exhaust Maximum Flow^ 25 L/min @ 4.13 bar (0.882
cfm @ 60 psi)
Particles <0.01µm
Phthalates NONE
Suspended Liquids NONE
Gas Outlets 3 x 5/16” BSPP
Drain Outlet 1 x ¼” BSPP
^NOTE – These performance characteristics are valid only when paired with an approved Sciex application. Please refer
to current application matrix for a list of supported products.
Electrical Requirements
Voltage 100 - 240v ±10% 220 - 240v ±10%
Frequency 50/60 Hz
Current 2 Amps 9 Amps
Input Connection C20 Plug
Power Cord (Supplied) C19 socket to local connection (13A minimum)
Pollution Degree 2
Installation / Over Voltage Category II
General
Dimensions cm (inches) WxDxH 104 x 78.7 x 76.2 (41 x 31 x 30) 91.4 x 78.7 x 76.2 (36 x 31 x 30)
Generator Weight Kg (lbs) 103 (227.1) 169 (372.5)
Shipping Weight Kg (lbs) 118 (260.2) 184 (405.6)

Page 11
Unpacking
Although Peak Scientific takes every precaution with safe transit and packaging, it is
advisable to fully inspect the unit for any sign of transit damage.
Check ‘SHOCKWATCH’ and ‘TIP-N-TELL’ labels for signs of rough handling prior to
unpacking.
Any damage should be reported immediately to the carrier and Peak Scientific or the
Peak Partner from where the unit was purchased.
Follow the unpacking instructions posted on the side of the crate. It will require two
people to remove the unit from the shipping crate and to manoeuvre the generator to
the desired location.
Please save the product packaging for storage or future shipment of the generator.
Note: Included with the generator is a “Fittings Kit” containing mains power leads for
UK, EU & US and also all the required fittings and warranty registration card. Be careful
not to discard these with the packaging.
Page 11

Page 12
Fittings Kit Contents
Supplied in the Fittings Kit are all the fittings required to connect the generator to the
application. The contents of the Fittings Kit are as follows:
1. 1/4” Teflon Tubing x 3m* x 2
2. 5/16" Teflon Tubing x 3m* x 1
3. 6mm PE Tubing x 3m* x 1
4. 1/4” Compression Fitting* x 2
5. 5/16” Compression Fitting* x 1
6. 6mm Push-Fit Fitting* x 1
7. Flow Control Silencer* x 3
8. UK Mains Power Cable 230v x 1
9. EU Mains Power Cable 230v x 1
10. US Mains Power Cable 230v x 1
* MS Bench G SCI 1 & G SCI 2 only
All of the generators output ports are located on the output panel at the rear of the
unit.

Page 13
Installation
Generator Environment
The generator is designed for indoor use only. It should be installed adjacent to the
application it is supplying. If this is not convenient then the unit can be sited elsewhere,
however, consideration should be made of the lengths of pipe runs as pressure drops
can result from extended runs of pipe.
Performance of the generator is aected by ambient conditions. Note should also be
taken to the proximity of Air Conditioning outlets. These can sometimes give rise to
“pockets” of air with high relative humidity. Operation of the unit within such a pocket
could adversely aect its performance. Consideration should also be given to the air
flow around the unit. It is recommended that an air gap of 100mm (3.9”) should be
maintained down both sides and at the rear of the unit. Please refer to the drawing on
the following page for the general dimensions of the unit.
Please ensure Generator is situated in a well vetilated environment and is positioned to
allow easy disconnection from the mains supply if required
Minimum Operating Ambient Temperature: 5 °C (41 °F)
Maximum Operating Ambient Temperature: 30 °C (86 °F)

Page 14
Generator Overview
General Dimensions SCI 1, G SCI 1 and G SCI 2
General Dimensions SCI 2
The generator must always be placed on a flat, level surface. Failure to
do so will aect the performance of the generator.
WARNING
914 mm / 36” 787 mm / 31”
762 mm / 30"
1040 mm / 41” 787 mm / 31”
762 mm / 30"

Page 15
MS Bench G SCI 1 Rear Connections
Ensure all inlets and outlets are connected to correct sources and applications
All Connections should only be carried out by trained personnel
Generator must be switched o and unplugged prior to any cleaning
or maintenance operations
MS Bench G SCI 1 Unit Controls
IEC Power Inlet
Power Switch
Curtain Outlet
Source Outlet
Exhaust Outlet
Drain Outlet
Service/High Duty LED (Yellow)
Power LED (Green)
WARNING
WARNING
WARNING

Page 16
MS Bench SCI 1 Rear Connections
MS Bench SCI 1 Unit Controls
IEC Power Inlet
Power Switch
Fan Power LED

Page 17
MS Bench G SCI 2 Rear Connections
Ensure all inlets and outlets are connected to correct sources and applications
All Connections should only be carried out by trained personnel
Generator must be switched o and unplugged prior to any cleaning
or maintenance operations
MS Bench G SCI 1 Unit Controls
IEC Power Inlet
Power Switch
Curtain Outlet
Source Outlet
Exhaust Outlet
Drain Outlet
Service/High Duty LED (Yellow)
Power LED (Green)
WARNING
WARNING
WARNING

Page 18
MS Bench SCI 2 Rear Connections
MS Bench SCI 2 Unit Controls
IEC Power Inlet
Power Switch
Fan Power LED

Page 19
Drain Connection (MS Bench G SCI 1 & G SCI 2 Only)
Fit the 6mm push fit fitting to the drain port located on the output panel. Tighten
using a 16mm or 5/8” spanner. Use the 6mm tubing to connect this to a suitable drain
connection or container. It should be noted that the Generator can expel a considerable
amount of water from this (dependant on ambient humidity).
If a container is used it should be emptied at regular intervals. The
container must NOT have an air tight seal as water and air are expelled
at pressure.
CAUTION

Page 20
WARNING
Electrical Connection
Connect the generator to an appropriate single-phase supply, refer to the generator
serial plate for input specification and ensure your supply matches the requirements.
If an appropriate mains power cords is not supplied or a substitute one is used then
ensure that all components of it the plug, cord and connector have adequate ratings
for the generator and appropriate approvals for the country of use. Failure to do so
could cause damage to the generator or risk overloading of the power cord
This unit is classified as SAFETY CLASS 1. THIS UNIT MUST BE
EARTHED. Before connecting the unit to the mains supply, please
check the information on the serial plate. The mains supply must be of
the stated AC voltage and frequency.
EARTH/GROUND (E):- Green & Yellow or Green
LIVE (L):- Brown or Black
Neutral (N):- Blue or White
Electrical requirements are 220 - 240v ±10% (MS Bench G SCI 1& G SCI 2) & 100 - 240v
±10% (MS Bench SCI 1 & SCI 2). Running at voltages outwith this is not recommended.
Extended periods at extremes can have a detrimental eect on the operation and life of
the generator.
If the equipment is used in a manner not specified by the manufacturer,
the protection provided by the equipment maybe impaired.
WARNING
