Peak Scientific Genius XE Series User manual

Genius XE (All Models)
User Manual
Copyright © Peak Scientific Instruments Ltd 2020 — GeniusXE User Manual Rev 9 RSID 2299 EN —18/02/2020

Page 2



Register Product to Operate
To begin operation you will need to register your generator. You can do so by
visiting www.peakscientific.com/activate or by downloading the Peak Genius
App.
Registering will activate your 2 year warranty* - covering every single
component in your generator.
Important!
You must register your generator before nitrogen generation can commence. In
order to be eligible for warranty your generator must be registered to the end
user (not a reseller or distributor) and must have a paid annual preventative
maintenance arranged within 12 months of the installation date & carried out by
a Peak approved Field Service Engineer. Once registered the warranty will be
honoured for a period of 24 months.**
* 2nd year warranty subject to completion of preventative maintenance visit arranged within 12 months of installtion.
For terms and conditions please visit www.peakscientific.com/warranty-statement/
** Call out and labour charges may apply where generator was not purchased directly from Peak

Contents
Change History 4
How to use this Manual 4
Warranties and Liabilities 5
Safety Notices 7
Declaration of Conformity 8
Environmental Declaration 9
Unpacking 11
Fittings Kit Contents 12
Installation 13
Operation in High Ambient Temperatures 13

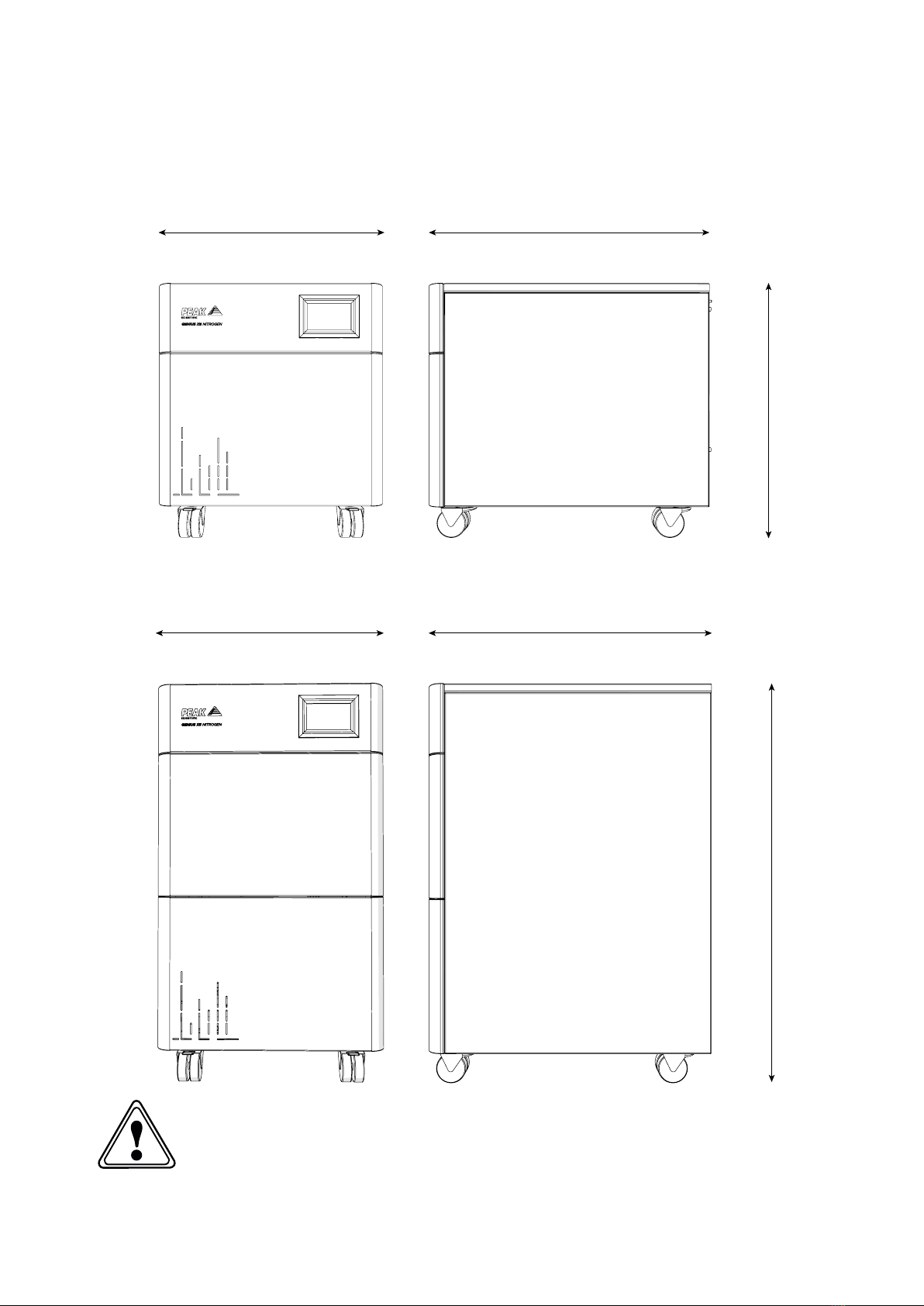

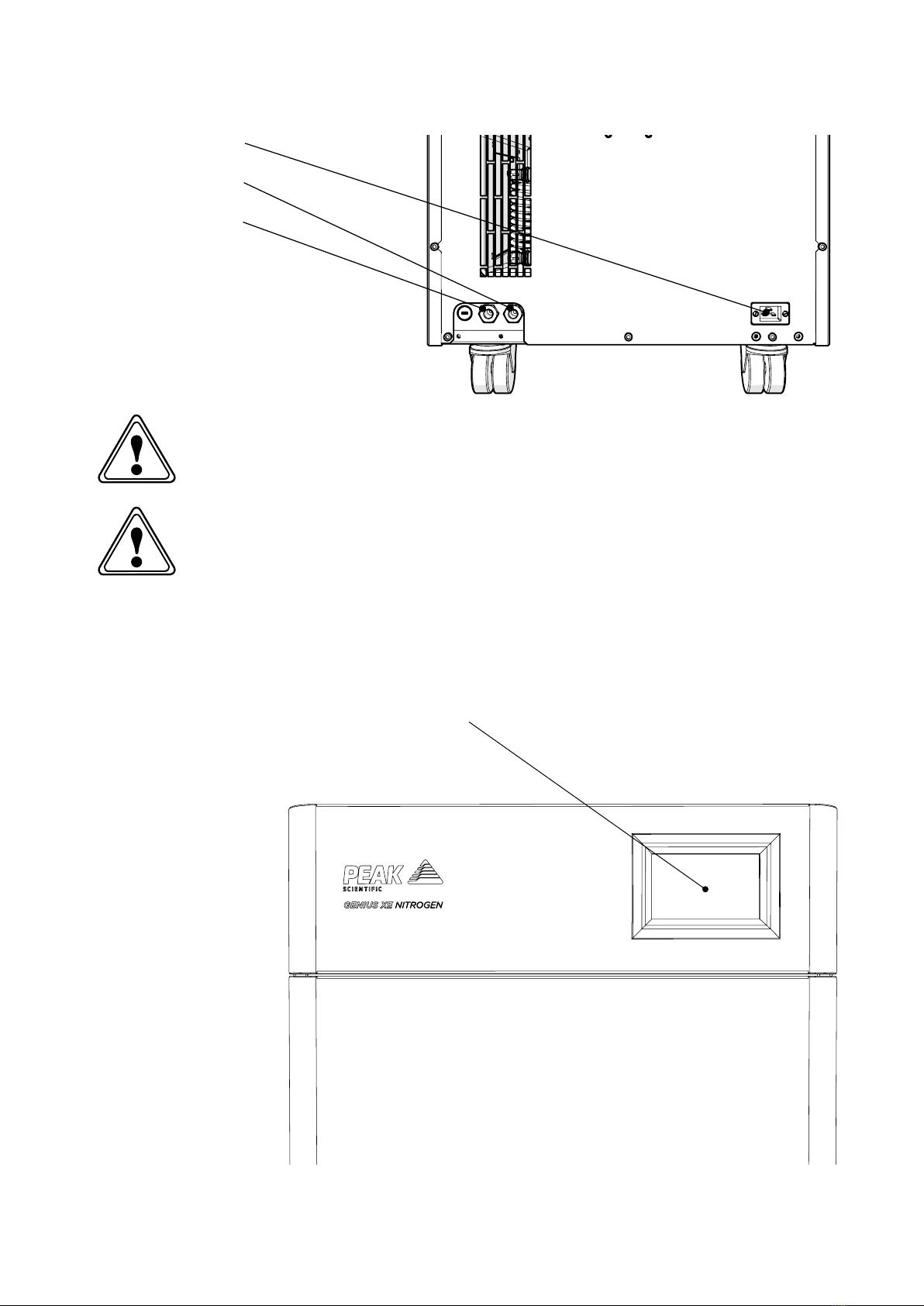

Generator Overview 14
Drain Connection 16
Electrical Connection 17

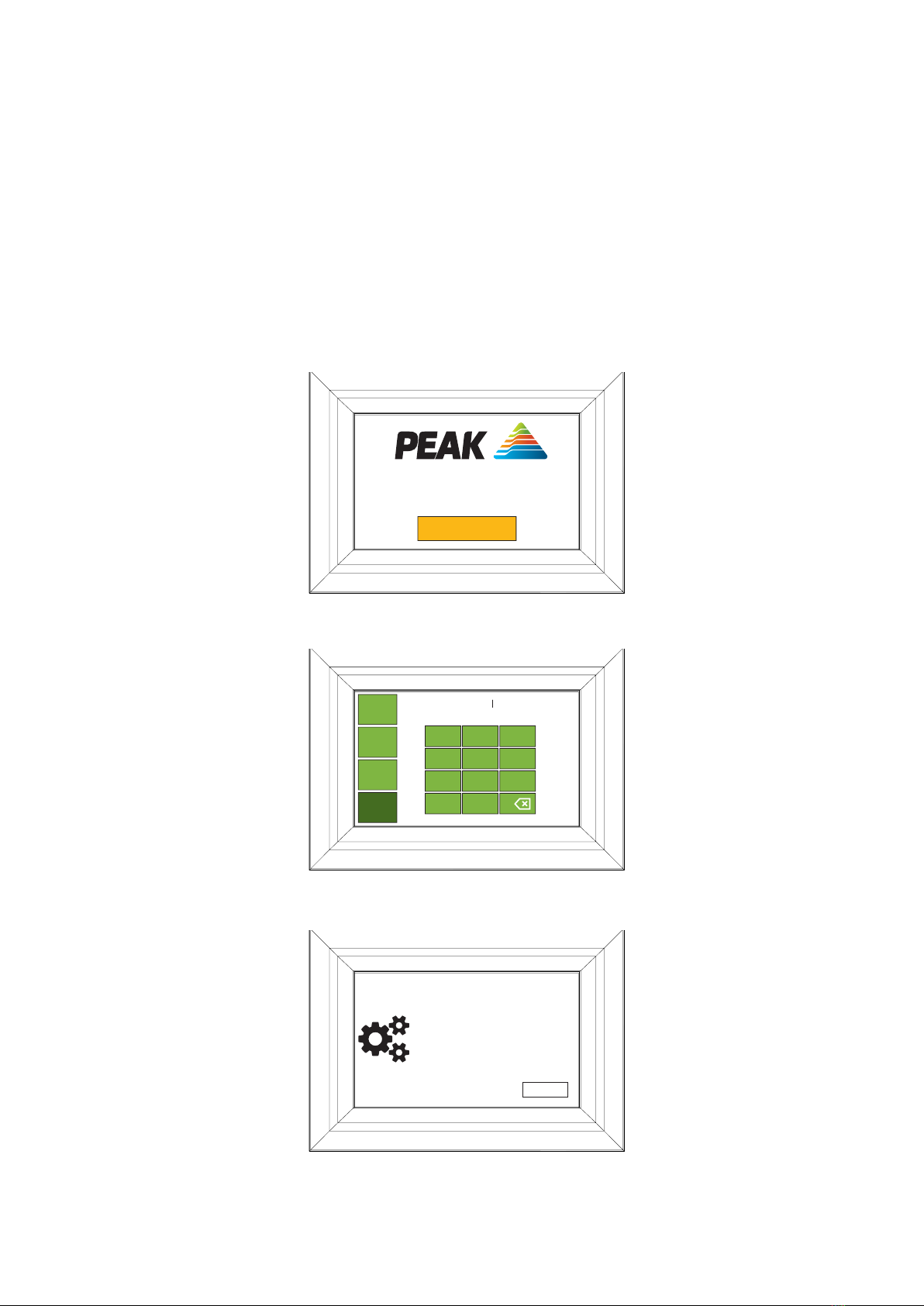

Start-Up Sequence 18
Product Registration 19
Connecting to the application 21
Normal Operation 23
Eco Mode 23
Service Screens 24
Error Screens 25
Information Screens 26
Settings Screens 27
Service Log-in Sceen 27
Unusual Operation 27
Service Requirements 28
Service Schedule 28
Service Indication 29
Peak Protected 30
Cleaning 31
Alarm Messages 32
Troubleshooting 33
Page 3

Page 4
Change History
Rev Comment Name Date
1 Initial Release Liam Couttie 25/04/2018
2 Fittings Kit Update Liam Couttie 18/07/2018
3 Technical Specification Update Liam Couttie 07/01/2019
4 Env. Declarations Update Liam Couttie 24/06/2019
5 Power Cord Update Liam Couttie 15/10/2019
6 Accreditations Update Liam Couttie 18/10/2019
7Warranty Info Update Liam Couttie 20/11/2019
8Technical Specification Update Liam Couttie 16/12/2019
9Technical Specification Update Liam Couttie 18/02/2020
How to use this Manual
This manual is intended for end users and has been written as a reference document
where you can skip to the relevant information.
Users can refer to the contents page to find the relevant information.
Please review each of the following sections carefully.
Thank you for selecting Peak Scientific to meet your gas generation needs, should
you require any further assistance or support please do not hesitate to contact Peak
Scientific or the Peak Partner from which you purchased your generator.

Page 5
Warranties and Liabilities
Warranty & Liability Coverage
1. Peak warrants that, subject to the provisions in this statement, purchased Peak generators, whether
purchased directly from Peak or indirectly via an approved, certified and trained distributor or partner
(referred to hereafter as a “Peak Partner”) will comply in all material respects with any specifications
referred to in your customer order confirmation and, subject to installation and operational guidelines
being followed as described in applicable product manuals, shall be free from any defects in quality
of materials or workmanship for a period of one year from the date of installation, provided this takes
place within 3 months of factory dispatch.
2. Where the purchased generator is from the Precision Hydrogen series, Peak further warrants that,
subject to installation and operational guidelines being followed as described in applicable product
manuals, the hydrogen cell shall be free from any defects in quality of materials or workmanship for a
total period of three years (inclusive of warranty period specified in clause 1) from date of installation,
provided this takes place within 3 months of factory dispatch.
3. Where the purchased generator is from the i-Flow 6000 series, Peak further warrants that, subject
to installation and operational guidelines being followed as described in applicable product manuals,
the generator shall be free from any defects in quality of materials or workmanship for a total period
of two years (inclusive of warranty period specified in clause 1) from the date of installation, provided
this takes place within 3 months of factory dispatch and the following provisions have also been met:
a. you must purchase a service plan, ensuring the generator is serviced by Peak or a Peak Partner on
or before the end of the first 12 months of your ownership, and serviced at least once during each
subsequent 12 month period thereafter;
b. the generator (and any associated equipment) must have been commissioned by Peak or a Peak
Partner;
c. the feed air or inlet air supply to the generator must comply with ISO 8573-1:2010 Class 1.2.1 at all
times;
d. your air compressor, dryer, filtration and oil removal systems must be deemed suitable for use by
Peak or a Peak Partner, and must be changed and serviced regularly, in line with the equipment man-
ufacturer’s recommended guidelines; and
e. any generator failure or fault that is deemed to have been caused by the failure of any upstream
equipment, component, part or system (such as air compressor, air treatment or filtration) will be
excluded from the warranty described herein.
4. Where the purchased generator is from the Genius XE range, Peak further warrants that, subject to
installation and operational guidelines being followed as described in applicable product manuals, the
generator shall be free from any defects in quality of materials or workmanship for a total period of
two years (inclusive of warranty period specified in clause 1) from the date of registration, provided
the following provisions have also been met:
a. The product must be registered within 12 months of the build date, to the end user (registrations to
3rd party resellers or other channel partners will not qualify for the warranty extension).
b. You must purchase a service plan, ensuring the generator is serviced by Peak or a Peak Partner on
or before the end of the first 13 months of your ownership
c. The product is required to be serviced in accordance with manufacturer requirements, preventative
maintenance visit must be arranged within 13 months of installation, and the generator must be ser-
viced by Peak, or a Peak Partner within 13 months of installation.
d. Products purchased via Peak Partners may be subject to call-out and labor charges, which is at the
discretion of the Peak Partner.
5. Peak also warrants that any replacement parts whether purchased (directly from Peak, or via a Peak
Partner) or supplied as part of any remedial action undertaken in line with the provisions of clauses 13
and 14, shall be free from any defects in quality of materials or workmanship for a period of 180 days
from the date of factory dispatch, provided its installation is performed by Peak or a Peak Partner.
6. This warranty does not exclude Peak’s liability in respect of any claim for death or personal injury to

Page 6
any person, in so far as such can be attributed to negligence or breach of duty of care directly resulting
from failure of Peak to comply with the provisions in clauses 1, 2, 3, 4 & 5.
Exclusions & Limitations
7. This warranty does not cover:
a. damage, deterioration or malfunction resulting from an alteration or modification to a generator
which has not been carried out by Peak or a Peak Partner;
b. damage, deterioration or malfunction resulting from what Peak reasonably believes to be abuse, or
misuse of a generator by you or any third party;
c. liability for accident or neglect (other than pursuant to clause 6);
d. maintenance or repairs which have not been carried out by Peak or a Peak Partner;
e. operation of a generator or exposure of a generator to environmental conditions that fall out-with
operational guidelines as specified in the applicable product user manual; and
f. lightning, power surges or any other acts of God or nature.
8. This warranty is non-transferrable. Only the original owner of the generator may benefit from the
terms within this statement.
9. Peak shall not be liable in respect of any claim made for costs, damages, losses or expenses (wheth-
er consequential, direct, indirect or otherwise) or in any respect howsoever arising including, but not
limited to, liability from accident or negligence (other than pursuant to clause 6) that may be suered
by you or any third party.
10. No person or entity is authorised to change the terms and conditions outlined in this warranty state-
ment in any respect, or to create any additional obligations or liabilities for any party involved.
11. This warranty statement supersedes any and all prior warranty agreements between the parties and
constitutes the complete, final and exclusive understanding of the parties with respect to the subject
matter. All prior negotiations, representations, or promises, whether oral or written, of either party
shall be deemed to have been merged herein.
12. If any part of this warranty statement is invalidated, for whatever reason, such part will be deleted
and the rest shall remain unaected, continuing to be in full force and eect.
Delivery of Warranty Service
13. Subject to clause 14, and:
a. Peak being notified by you, within the duration of the applicable warranty period, of any defect
that you think is subject to any warranty valid under clauses 1, 2, 3, 4 or 5; and
b. Peak being permitted to inspect the generators, parts and their installation (along with any relevant
packaging)
Peak shall at its option repair or replace defective generators or parts (including, if necessary, any
moving parts and irrespective of runtime). No additional charges will apply, for parts or delivery and,
where applicable, labour or travel. Peak will endeavour to deliver this service within 3 working days of
your notification.
14. Where, in Peak’s reasonable opinion, a defect is subject to an exclusion described in clause 7, Peak
reserves the right to charge for parts or delivery and, where applicable, you may also be charged by
Peak for call out, labour or travel in respect of any repair or replacement which you authorize Peak to
carry out.

WARNING
WARNING
WARNING
WARNING
CAUTION
Page 7
Safety Notices
Peak Scientific Instruments cannot anticipate every possible circumstance which may
represent a potential hazard. The warnings detailed within this manual refer to the most
likely potential hazards, but by definition cannot be all inclusive. If the user employs an
operating procedure, item of equipment or a method of working which is not specifical-
ly recommended by Peak Scientific, the user must ensure that the equipment will not
be damaged or become hazardous to persons or property.
Symbols
This manual uses the following symbols to highlight specific areas important to the safe
and proper use of the generator.
A WARNING notice denotes a hazard. It calls attention to an operating procedure,
process or similar, which if not correctly performed or adhered to, could cause
personal injury or in the worst case death. Do not proceed beyond a WARNING
notice until the indicated conditions are fully understood or met.
A CAUTION notice denotes a hazard. It calls attention to an operating procedure,
process or similar, which if not correctly performed or adhered to, could cause
damage to the generator or the application. Do not proceed beyond a CAUTION
notice until the indicated conditions are fully understood or met.
Caution, risk of electric shock. Ensure power to the generator has been removed
before proceeding.
Safety Notice to Users
These instructions must be read thoroughly and understood before
installation and operation of your Peak Generator. Use of the generator
in a manner not specified by Peak Scientific MAY impair the SAFETY
provided by the equipment.
When handling, operating or carrying out any maintenance, personnel
must employ safe engineering practices and observe all relevant local
health and safety requirements and regulations. The attention of UK
users is drawn to the Health and Safety at Work Act 1974, and the
Institute of Electrical Engineers regulations.
If the equipment is used in a manner not specified by the manufacturer,
the protection provided by the equipment maybe impaired.

Page 8
Declaration of Conformity
We Peak Scientific Instruments Ltd.
Of Fountain Crescent, Inchinnan, Renfrewshire, PA4 9RE
Declare that:
Equipment: Nitrogen Generator
Models: Genius XE 35 & 70
To which this declaration relates, is in conformity with the applicable EC directives,
harmonized standards, and other normative requirements.
• Low Voltage Directive 2014/35/EU
EN 61010-1: 2010 Electrical Equipment for measurement, control and laboratory use.
• Electromagnetic Compatibility Directive 2014/30/EU
EN 61326-1: 2013 Electrical Equipment for measurement, control and laboratory use.
• FCC47 CFR Part 15 Class B
Unintentional radiators; Conducted and Radiated emissions limits.
Year CE mark first applied: 2017
All evaluation, testing and certification issued by:
Nemko Canada York EMC Services
303 River Road, Ottawa, Unit 1, Grangemouth Technology Park,
Ontario, Canada, Earls Road, Grangemouth, Scotland,
K1V 1H2 FK3 8UZ
Signed: Name: Chris Pugh
Date: 2/11/2017 Position: Chief Technology Ocer
R-R-1PN-GeniusXE70

Page 9
Environmental Declaration
We Peak Scientific Instruments Ltd.
Of Fountain Crescent, Inchinnan, Renfrewshire, PA4 9RE
Declare that:
Equipment: Nitrogen Generator
Models: Genius XE 35 & 70
Is fully compliant with the following Directives
• 2012/19/EU WEEE (Waste of Electrical and Electronic Equipment)
• 2011/65/EU & 2015/863 RoHS (Restriction of Hazardous Substance)
Peak Scientific Instruments Ltd fully complies with its obligations towards the European
WEEE (Waste of Electrical and Electronic Equipment) Directive 2012/19/EU. These
obligations are being met within the B2B compliance group.
Peak Scientific Instruments Ltd, herewith confirm that as a manufacturer of articles we
conform to the European Parliament and Council Directives, 2011/65/EU for the original
6 restricted substances listed in the Restriction of Hazardous Substances (RoHS)
Directive and Commision Delegated Directive (EU) 2015/863 to include 4 additional
restricted substances. Peak Scientific Instruments LTD have developed all reasonable
'due diligence' controls to ensure that our products comply with the principles and
requirements of the RoHS (Restriction of Hazardous Substances) Directives.
Where a specific certificate of compliance is required, this can be requested, on
a product serial number basis, directly from Peak Scientific Instruments Ltd, by
contacting us through our website at www.peakscientific.com
Signed: Name: Chris Pugh
Date: 30/04/2019 Position: Engineering Director

Page 10
Technical Specification
Environment
XE 35 CXE 70
Minimum Operating Ambient Temperature 5°C / 41°F
Maximum Operating Ambient Temperature 35°C / 95°F
Maximum Altitude 3000m
Maximum Relative Humidity 80% @ 35°C
Minimum Storage Temperature* -20°C / -4°F
Maximum Storage Temperature* 60°C / 140°F
Generator Outlets
Max Gas Outlet Pressure 116 psi / 8 bar
Max Gas Outlet Flow Rate†35 L/min 70 L/min
Purity Up to 99.5%
Particles <0.01ɥm
Phthalates Phthalate & BHT Free
Suspended Liquids None
Hydrocarbon Removal <1ppm NMHC
Gas Outlets 1 x 1/4" BSPP
Drain Outlet 1 x ¼" BSPP
Pressure Gauges/Displays 2
Start-Up Time 30 mins
Electrical Requirements
Voltage 120V±5% / 230V±10% 230V±10%
Frequency 120V 60Hz / 230V 50/60Hz 230V 50/60Hz
Current 12A @ 120V / 8A @ 230V 12A @ 230V
Input Connection C20 Plug
Power Cord C19 Socket
Circuit Breakers 230V 6A MCB, 2A MCB
120V 10A MCB, 2A MCB
Pollution Degree 2
Insulation Category Class 1
Transient Over Voltages Over Voltage Category II
General
Dimensions cm (inches) H x W x D 650 x 570 x 710 mm
(25.6 x 22.5 x 28'')
1000 x 570 x 710 mm
(39.4 x 22.4 x 28.0'')
Generator Weight Kg (lbs) 92 Kg (202.9 lbs) 147 Kg (324.1 lbs)
Shipping Weight Kg (lbs) 129 Kg (284.4 lbs) 182.5 Kg (402.4 lbs)
Noise Level‡55.5 dBA 59.3 dBA
* Note: Please ensure Generator is situated in a well ventilated environment.
† Note: Flows in LPM are expressed as normalised volumes at 101.3 kPa, 20°C
‡Note: Noise level expressed as SPL (Sound Pressure Level) measured at 1m from source in a reverberant chamber in accordance
with ISO 3741:2010.

Page 11
Unpacking
Although Peak Scientific takes every precaution with safe transit and packaging, it is
advisable to fully inspect the unit for any sign of transit damage.
Check ‘SHOCKWATCH’ and ‘TIP-N-TELL’ labels for signs of rough handling prior to un-
packing.
Any damage should be reported immediately to the carrier and Peak Scientific or the
Peak Partner from where the unit was purchased.
Follow the unpacking instruction supplied with the generator. It will require two people
to remove the unit from the shipping crate and to manoeuvre the generator to the
desired location.
Please save the product packaging for storage or future shipment of the generator.
Note: Included with the generator is a “Fittings Kit” containing mains power leads for
UK, EU & US and also all the required fittings and warranty registration card. Be careful
not to discard these with the packaging.
Page 11

Page 12
Fittings Kit Contents
Supplied in the Fittings Kit are all the fittings required to connect the generator to the
application. The contents of the Fittings Kit are as follows:
Genius XE 35 (120V)
1. 1/4" x 1/4" Compression Fitting x 1
2. 1/4” x 6mm Push-Fit Fitting x 2
3. Flow Control Silencer x 1
4. 1/4” PTFE Tubing x 3m
5. 6mm PTFE Tubing x 3m
6. 6mm Polyethylene Tubing x 3m
7. 4mm Hex Key x 1
8. US 120V Mains Power Cable x 1
9. Genius XE Installation Guide x 1
Genius XE 35 & XE 70 (230V)
1. 1/4" x 1/4" Compression Fitting* x 1
2. 1/4” x 6mm Push-Fit Fitting** x 2
3. Flow Control Silencer x 1
4. 1/4” PTFE Tubing* x 3m
5. 6mm PTFE Tubing* x 3m
6. 6mm Polyethylene Tubing x 3m
7. 4mm Hex Key x 1
8. UK Mains Power Cable x 1
9. EU Mains Power Cable x 1
10. US 230V Mains Power Cable x 1
11. Genius XE Installation Guide x 1
12. 1/4" Tee Fitting*** x 1
* x2 in XE 70 Fittings Kit
** x3 in XE 70 Fittings Kit
*** XE 70 Fittings Kit Only
All generator output ports are located on the output panel at the rear of the unit.

Page 13
Installation
Generator Environment
The generator is designed for indoor use only. It should be installed adjacent to
the application(s) it is supplying. If this is not convenient then the unit can be sited
elsewhere. Consideration should be made of the lengths of pipe runs as pressure drops
can result from extended runs of pipe. See page 21 for guidance on tubing lengths
greater than 3m.
Performance of the generator is aected by ambient conditions. Note should also be
taken to the proximity of Air Conditioning outlets. These can sometimes give rise to
“pockets” of air with high relative humidity. Operation of the unit within such a pocket
could adversely aect its performance. Consideration should also be given to the air
flow around the unit. An air gap of 75mm (3”) should be maintained down both sides
and 100mm (4") at the rear of the unit. Please refer to the drawing opposite for the
general dimensions of the unit.
Please ensure generator is situated in a well ventilated environment and is positioned to
permit easy diconnection if required.
Minimum Operating Ambient Temperature: 5 °C (41 °F)
Maximum Operating Ambient Temperature: 35 °C (95 °F)
Operation in High Ambient Temperatures
Genius XE generators are designed to supply the rated flow, purity, and pressure in
most laboratory environments, however high ambient temperatures can aect the
performance of the generator. Output flow capabilities may be restricted in high
ambient temperatures, or areas with insucient air circulation.

Page 14
Generator Overview
General Dimensions
Genius XE 35
Genius XE 70
The generator must always be placed on a flat, level surface. Failure to
do so will aect the performance of the generator.
WARNING
570 mm / 22.4” 710 mm / 27.9”
650 mm / 25.6"
570 mm / 22.4” 710 mm / 27.9”
1000 mm / 39.3"

Page 15
Rear Connections
Ensure outlets are connected to correct applications.
Connections should only be carried out by trained personnel
Unit Controls
Touch Screen
Nitrogen Port
Drain Port
Power Socket
WARNING
WARNING

Page 16
Drain Connection
Fit the 6mm push fit fitting to the drain port at the rear of the unit.
Tighten using a 16mm or 5/8” spanner. Use the 6mm tubing to connect this to a suitable
drain connection or container. It should be noted that the generator can expel a
considerable amount of water (dependant on ambient humidity).
If a container is used it should be emptied at regular intervals. The
container must NOT have an air tight seal as water and air are expelled
at pressure. Fix the drain ending of the tube firmly to prevent it from
vibrating during draining.
CAUTION

Page 17
Electrical Connection
Connect the generator to an appropriate 120 or 230 volt single-phase supply, refer to
the generator serial plate for input specification and ensure your supply matches the
requirements.
If the appropriate power cord is not supplied; a new plug, appropriately rated, can be
fitted by a qualified electrician.
If a substitute mains supply cord is used, ensure that it has adequate rating. Failure to
do so could cause a fire risk.
This unit is classified as SAFETY CLASS 1. THIS UNIT MUST BE
EARTHED. Before connecting the unit to the mains supply, please
check the information on the serial plate. The mains supply must be of
the stated AC voltage and frequency.
EARTH/GROUND (E):- Green & Yellow or Green
LIVE (L):- Brown or Black
Neutral (N):- Blue or White
Electrical requirements are 120VAC nominal +/- 5% or 230VAC nominal +/- 10%
depending on chosen model. Extended periods at extremes can have a detrimental
eect on the operation and life of the generator.
If the equipment is used in a manner not specified by the manufacturer,
the protection provided by the equipment maybe impaired.
The supply voltage will be displayed on the touch screen when the generator is
switched on. If the reading is 219V or less, then we would highly recommend fitting
a Dual Tap Transformer 06-3200 (XE 35) or 06-3210 (XE 70). These can be ordered
directly from Peak Scientific.
For Genius XE 35 (120V) voltage should not be less than 114V.
WARNING
WARNING

Page 18
Start-Up Sequence
Before the generator is connected to the application, the generator
should be operated in isolation (i.e. not connected to the application)
for thirty minutes. This is to ensure any impurities present are purged
from the system. Failure to do this may harm the application.
Before connecting the generator to the mains and switching it on for the purge run, it is
necessary to fit the silencer to the nitrogen output port
Once this is done, the generator can be connected to the mains and switched on.
The Genius XE will then go through Product Registration. This is detailed on the next
page.
Continue to operate the generator for a further 30 minutes to allow all the internal pipe-
work and storage tanks will have been purged with Nitrogen.
The generator is now purged, the silencers can be removed and the tubes can be
connected at the rear of the unit.
CAUTION

Page 19
Product Registration
Before the generator will start-up for the first time the user must enter a unique 4-digit
PIN code.
To receive your generator’s unique PIN code, please register on the Peak website www.
peakscientific.com/activate or download the Peak mobile app from the Google Play
Store or Apple App Store. A PIN code may also be requested by phoning the Peak
helpdesk.
This code is only required on the initial start-up of the unit.
1. Press the 'I've got my pin' button on the screen on the front of the generator.
2. Enter your PIN.
3. The unit will then go through initialisation.
REGISTER YOU GENERATOR WITH OUR APP
OR VISIT WWW.PEAKSCIENTIFIC.COM/ACTIVATE
SERIAL: [ XXXXXXXXXXXX ]
I’ve got my pin





[Passcode: XXXX]
1
4
7
Cancel
2
5
8
0
3
6
9
Serial: 999999999 UTC: 24:24
[Initialisation...]
Model : GENIUS XE 35
Software : v0.00
Voltage : 230V RMS
Initialisation Time : 00:00 Continue...

Page 20
4. Upon completion of the initialisation phase, the screen will display the below, home
screen.





GENIUS XE 35
S/N: XXXXXXXXXXXX
Nitrogen:
XXXX psi
