Peco 5920E User manual

OPERATOR’S MANUAL
COLLECTION SYSTEM
& UTILITY TRAILER
P
PP
PECO
PECOPECO
PECO
PECOPECO
P
PP
P
PP
P
P
PECO
PECO
RRR
MANUAL PART#: Q0598 Initial Release - August 2023
ASSEMBLY OPERATION MAINTENANCE
Model# 5920E, 5920EB, 7930E, 7930EB
7930E
7930EB
5920E
5920EB

GRASS COLLECTION SYSTEM
TABLE OF CONTENTS
SECTION PAGE
Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-3
Safety Alert Symbols- - - - - - - - - - - - - - - - - - - - - - 3
I INTRODUCTION AND DESCRIPTION - - - - - - - - - - - - 4
Introduction- - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Description - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Parts List - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-8
II OPERATING INSTRUCTIONS - - - - - - - - - - - - - - - - - - 9
General Safety - - - - - - - - - - - - - - - - - - - - - - - - - 9
Operation & Tips On Mowing - - - - - - - - - - - - - - - - 9
Disengagement Of The E-Drive Assembly - - - - - - - - 9
Unloading The Collection System - - - - - - - - - - - - - 9
III MAINTENANCE - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
Maintenance Checklist - - - - - - - - - - - - - - - - - - - - 10
IV PARTS AND SERVICE- - - - - - - - - - - - - - - - - - - - - - - 10
Parts And Service Information- - - - - - - - - - - - - - - - 10
Torque Specifications - - - - - - - - - - - - - - - - - - - - - 11
V INSTALLATION FOR USE - - - - - - - - - - - - - - - - - - - - - 12
Preparation of Parts - - - - - - - - - - - - - - - - - - - - - - 13
Removing Trailer Pan - - - - - - - - - - - - - - - - - - - - - 14
Wooden Support Removal - - - - - - - - - - - - - - - - - 14
Removing Trailer from Pallet - - - - - - - - - - - - - - - - 15
Attaching Trailer to Trailer Pan - - - - - - - - - - - - - - - 15
SECTION PAGE
Dump Handle Installation - - - - - - - - - - - - - - - - - - - 15
Wheel Installation - - - - - - - - - - - - - - - - - - - - - 16-17
Trailer Top Installation - - - - - - - - - - - - - - - - - - - - 17
E-Drive/Blower/Blade Assembly Installation - - - - - - 18
Blower Cone Installation - - - - - - - - - - - - - - - - - - - 18
Inlet Ring Installation - - - - - - - - - - - - - - - - - - - - - 18
Upper Hose Installation - - - - - - - - - - - - - - - - - - - 19
Attaching Trailer to Tractor - - - - - - - - - - - - - - - - - 19
Drive Stay Assembly Installation - - - - - - - - - - - - - - 20
Drive Stay Adjustments - - - - - - - - - - - - - - - - - - 21-24
Universal Boot Installation - - - - - - - - - - - - - - - - 25-27
Lower Hose Installation - - - - - - - - - - - - - - - - - - - 27
- - - - - - - - - - - - - 28Universal Mount Base Installation
E-Drive Installation - - - - - - - - - - - - - - - - - - - - - - 29
Impeller Blade Removal/Replacement - - - - - - - - - - 30
E-Drive Battery Removal/Replacement- - - - - - - - - - - 31
Wire Harness Installation- - - - - - - - - - - - - - - - - - - - - 32
Jack Stand Assembly Installation- - - - - - - - - - - - 33-34
Exploded Views - - - - - - - - - - - - - - - - - - - - - - 35-55
Safety Decals - - - - - - - - - - - - - - - - - - - - - - - - - - 56
Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - 57
Warranty - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 58
SAFETY
1. Read the operator’s manual carefully and familiarize yourself with the proper use of your attachment. Do not allow
anyone who is not acquainted with the Safety Instructions to use your attachment.
2. Know the controls and how to stop them quickly. READ THE OPERATOR’S MANUAL!
3. Do not allow children to operate the machine. Do not allow adults to operate it without proper instruction.
4. Be especially watchful of children and pets entering into the area while operating.
5. Keep your eyes and mind on your machine while mowing or operating your attachment. Don’t let others distract
you.
6. Do not attempt to operate your machine when not in the driver’s seat.
7. Always shut off blades and engine when emptying the container.
8. Stop machine, shut off deck attachment, set parking brake, shut off engine and remove ignition key before
removing clogs, removing or replacing hose, boot, blower cone, or performing any maintenance.
9. Mow across the face of slopes (not more than 10 degrees); never up and down the face.
10. It is recommended that the container be emptied when half full while operating on slopes. Start mowing on slopes
when the container is empty.
11. Inspect your lawn and remove any foreign objects before mowing. Never deliberately run the mower across any
foreign object.
12. Wear hearing protection.
13. Wear eye protection to prevent debris from getting into your eyes. 2017 (v1.0)

SAFETY
WARNING! NEVER operate the mower unless the discharge guard and either the deflector assembly or
the vacuum collector adapter are fastened securely in place.
WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower
blades and the blower impeller have stopped rotating.
WARNING! To avoid serious injury, perform maintenance on the vacuum collector; ONLY AFTER
STOPPING THE MOWER’S ENGINE AND WAITING FOR ALL MOVING PARTS TO COME TO A
COMPLETE STOP. Set the parking brake. Always remove the ignition key before beginning maintenance.
WARNING! For your own personal safety, ALWAYS mow ACROSS the face of slopes and
NEVER UP and DOWN the face. NEVER attempt to mow excessively steep slopes, and use
caution when turning on any slope.
Safety Alert Symbol
This Safety Alert Symbol means: “ATTENTION! BECOME
ALERT! YOUR SAFETY IS INVOLVED!”
This symbol is used to call attention to safety precautions that
Should be followed by the operator to avoid accidents. When
you see this symbol, carefully read the message that follows
and heed its advice. Failure to comply with safety precautions
could result in death or serious bodily injury.
Safety Signs
The signal words DANGER, WARNING, and CAUTION are used on the equipment safety signs. These words
are intended to alert the viewer to the existence and the degree of hazard seriousness.
DANGER
!
CAUTION
This signal word indicates a potentially hazardous situation which, if not
avoided, will result in death or serious injury.
This signal word indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
It may also be used to alert against unsafe practices.
This signal word indicates a potentially hazardous situation which, if not
avoided, will result in minor or moderate injury.
It may also be used to alert against unsafe practices.
White letters on RED
Black letters on ORANGE
Black letters on YELLOW
WARNING
!
!
!
2017 (v1.0)

Introduction
We are pleased to have you as a PECO customer. Your
collection system has been designed to give you a low
maintenance, simple, and effective way to collect the
grass clippings from your mower. This manual is
provided to give you the necessary instructions to
properly mount, operate and maintain the collection
system on your mower. Please read this manual
thoroughly. Understand what each control is for and how
to use it. Observe all safety decal precautions on the
machine and noted throughout the manual.
NOTE: All references made to right, left, front, rear, top
or bottom are as viewed from the normal operator’s
position on the mower.
Description
The grass collection system is designed for turf
maintenance where there is a need to collect the grass
clippings as the mower cuts the turf. It is also used for
picking up leaves in pre-season and post-season clean-
up. The engine/blower/blade assembly, is mounted on
the right side of the unit. The blower draws grass
clippings from the discharge area up and back to the
container mounted to the rear of the mower. The
operator can engage the engine/blower/blade assembly
by starting the engine. Once the container is full of
clippings, the operator can remove the rear door and
then easily pull and lift the handle to dump.
Section I - INTRODUCTION AND DESCRIPTION

P
PP
PECO
PECOPECO
PECO
PECOPECO
P
PP
P
PP
P
PPP
PECO
PECOPECO
R

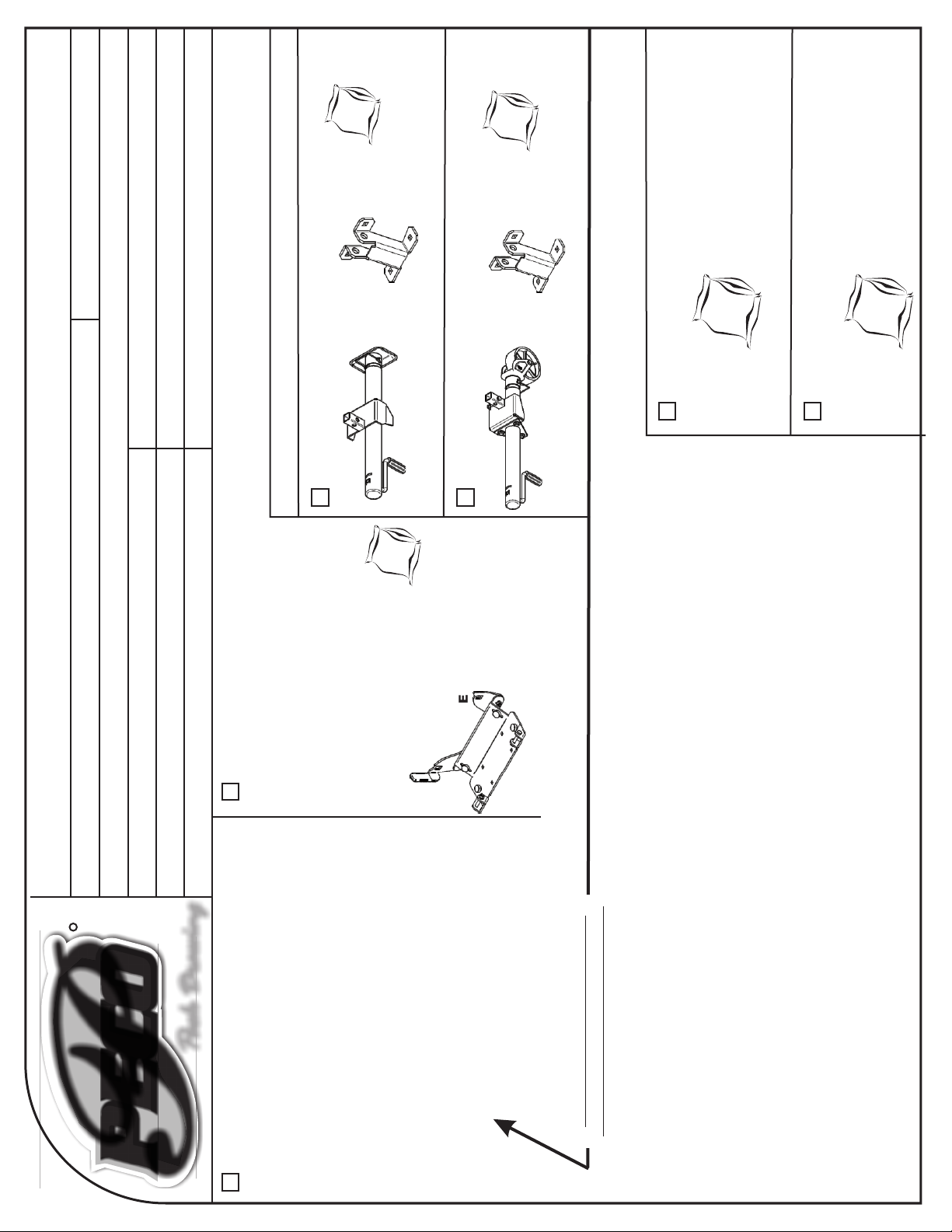

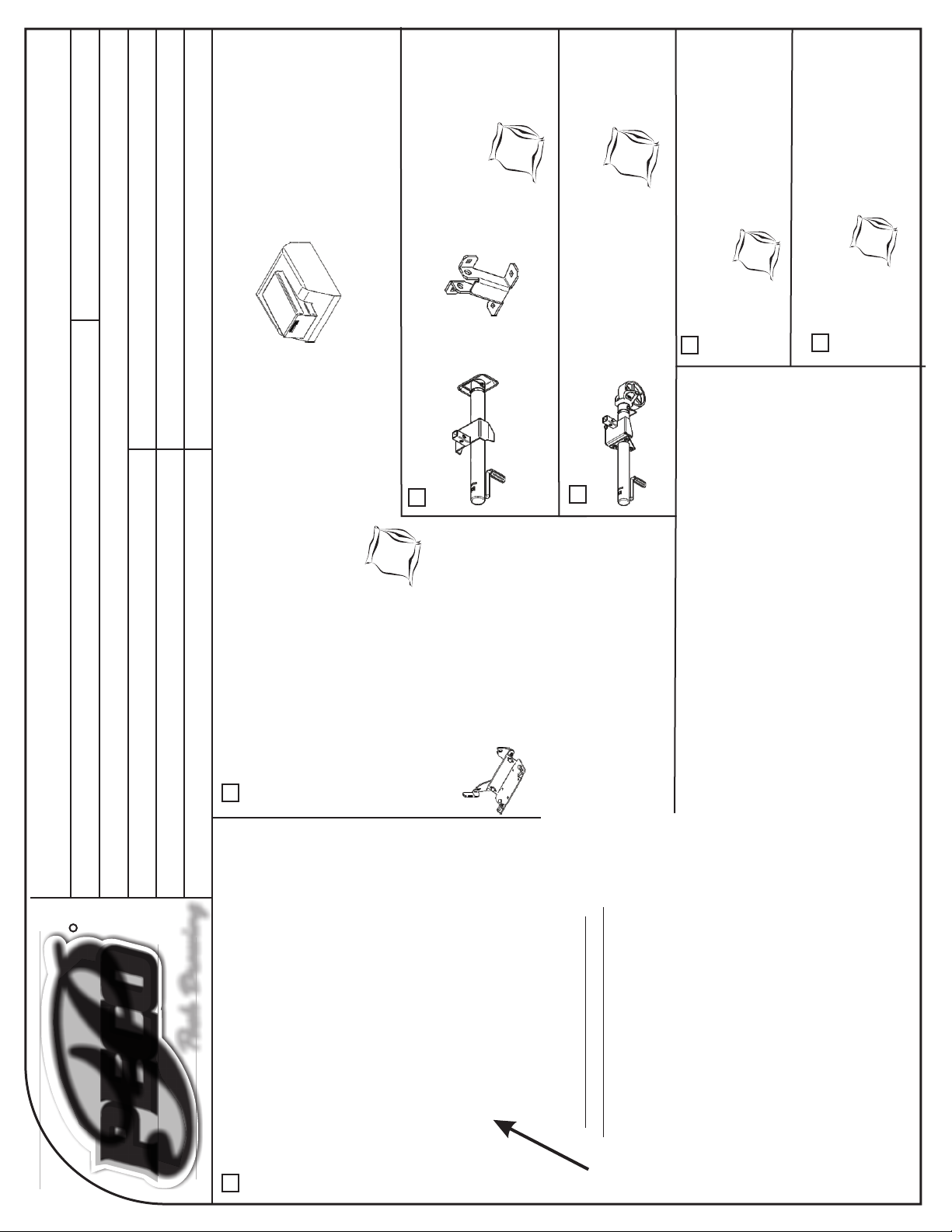

Unit Model #:
Mower: Mower Type: Deck Type: Deck Size:
Drive Type:
Vac Type:
Revision #: Fits Year(s):
Pack DrawingPack DrawingPack Drawing
5920E
Owner’s Manual:
Crate Contents
(2)
J0060
6” Hose
Clamps
Components Box Contents
PECO
(1)
HB0883
X20_X30 Trailer
Hardware Bag
(2)
J0070
7” Hose
Clamps
(2)
H5001
Wheel & Tire
(1)
Components
Box
The contents below are placed
inside of the X20 Trailer Sub-Assy
(1)
A1115
X20 Trailer
Sub-Assy
(1)
A0262
Tail Gate
Assy
(1)
B3492
Dump
Handle
(1)
E6004
7” Blower
Cone
A0121 Small Universal Boot Kit
(1)
V1018
Universal
Boot / Small
A0137 Large Universal Boot Kit
(1)
V1049
Universal
Boot / Large
PECO
PECO
(1)
A0849
Boot Kit
HW Bag
(1)
A0856
Boot Kit
HW Bag
(1)
F0060-60
6” x 60”
Upper Hose
(1)
F0070-66
7” x 66”
Lower Hose
(1) A2433
EDrive Assy
(1) A2380
Universal Mnt
Base Assy
Q0598
E Drive
X20 Trailer Vac

P
PP
PECO
PECOPECO
PECO
PECOPECO
P
PP
P
PP
P
PPP
PECO
PECOPECO
R
Unit Model #:
Mower: Mower Type: Deck Type: Deck Size:
Drive Type:
Vac Type:
Revision #: Fits Year(s):
Pack DrawingPack DrawingPack Drawing
5920EB
Owner’s Manual:
Crate Contents
(2)
J0060
6” Hose
Clamps
Components Box Contents
PECO
(1)
HB0883
X20_X30 Trailer
Hardware Bag
(2)
J0070
7” Hose
Clamps
(2)
H5001
Wheel & Tire
(1)
Components
Box
The contents below are placed
inside of the X20 Trailer Sub-Assy
(1)
A1115
X20 Trailer
Sub-Assy
(1)
A0262
Tail Gate
Assy
(1)
B3492
Dump
Handle
(1)
E6004
7” Blower
Cone
A0121 Small Universal Boot Kit
(1)
V1018
Universal
Boot / Small
A0137 Large Universal Boot Kit
(1)
V1049
Universal
Boot / Large
PECO
PECO
(1)
A0849
Boot Kit
HW Bag
(1)
A0856
Boot Kit
HW Bag
(1)
F0060-60
6” x 60”
Upper Hose
(1)
F0070-66
7” x 66”
Lower Hose
(1) A2433
Edrive Assy
(1) A2380
Universal Mnt
Base Assy
(1) A2434 E-
Drive Battery
& Charger Kit
Q0598
X20 Trailer Vac
E Drive

P
PP
PECO
PECOPECO
PECO
PECOPECO
P
PP
P
PP
P
PPP
PECO
PECOPECO
R
Unit Model #:
Mower: Mower Type: Deck Type: Deck Size:
Drive Type:
Vac Type:
Revision #: Fits Year(s):
Pack DrawingPack DrawingPack Drawing
7930E
Owner’s Manual:
Crate Contents
(2)
J0060
6” Hose
Clamps
Components Box Contents
PECO
(1)
HB0883
X20_X30 Trailer
Hardware Bag
(2)
H5001
Wheel & Tire
(1)
Components
Box
The contents below are placed
inside of the X30 Trailer Sub-Assy
(1)
B3492
Dump
Handle
A0121 Small Universal Boot Kit
(1)
V1018
Universal
Boot / Small
A0137 Large Universal Boot Kit
(1)
V1049
Universal
Boot / Large
PECO
PECO
(1)
A0849
Boot Kit
HW Bag
(1)
A0856
Boot Kit
HW Bag
(1)
A0263
Tail Gate
Assy
(1)
F0060-60
6” x 60”
Upper Hose
(1)
F0070-66
7” x 66”
Lower Hose
(2)
J0070
7” Hose
Clamps
(1)
E6004
7” Blower
Cone A2214 Jack Stand Assy w/ Jack Foot Kit
A2215 Jack Stand Assy w/ Caster Wheel Kit
(1)
A1116
X30 Trailer
Sub-Assy
(1)
A2200
Jack Stand
Assy
PECO
(1)
B1089
Jack Stand
Mount /
Gusset
(1)
HB0819
Jack Stand
HW Bag
(1)
A2201
Jack Stand
Assy
PECO
(1)
B1089
Jack Stand
Mount /
Gusset
(1)
HB0819
Jack Stand
HW Bag
Optional Accessories
(1) A2433
E-Drive Assy
(1) A2380
Base Assy
X30 Trailer Vac
E Drive
Q0598

P
PP
PECO
PECOPECO
PECO
PECOPECO
P
PP
P
PP
P
PPP
PECO
PECOPECO
R
Unit Model #:
Mower: Mower Type: Deck Type: Deck Size:
Drive Type:
Vac Type:
Revision #: Fits Year(s):
Pack DrawingPack DrawingPack Drawing
7930EB
Owner’s Manual:
Crate Contents
(2)
J0060
6” Hose
Clamps
Components Box Contents
PECO
(1)
Hb0883
X20_X30 Trailer
Hardware Bag
(2)
H5001
Wheel & Tire
(1)
Components
Box
The contents below are placed
inside of the X30 Trailer Sub-Assy
(1)
B3492
Dump
Handle
A0121 Small Universal Boot Kit
(1)
V1018
Universal
Boot / Small
A0137 Large Universal Boot Kit
(1)
V1049
Universal
Boot / Large
PECO
PECO
(1)
A0849
Boot Kit
HW Bag
(1)
A0856
Boot Kit
HW Bag
(1)
A0263
Tail Gate
Assy
(1)
F0060-60
6” x 60”
Upper Hose
(1)
F0070-66
7” x 66”
Lower Hose
(2)
J0070
7” Hose
Clamps
(1)
E6004
7” Blower
Cone
A2214 Jack Stand Assy w/ Jack Foot Kit
A2215 Jack Stand Assy w/ Caster Wheel Kit
(1)
A1116
X30 Trailer
Sub-Assy
(1)
A2200
Jack Stand
Assy
PECO
(1)
B1089
Jack Stand
Mount /
Gusset
(1)
HB0819
Jack Stand
HW Bag
(1)
A2201
Jack Stand
Assy
PECO
(1)
B1089
Jack Stand
Mount /
Gusset
(1)
HB0819
Jack Stand
HW Bag
Optional Accessories
(1) A2433
E-Drive Assy
(1) A2380
Base Assy
(1) A2434 E-
Drive Battery
& Charger Kit
Q0598
X30 Trailer Vac
E Drive

SECTION II
OPERATING INSTRUCTIONS
General Safety
Only qualified people familiar with this operator’s manual
and the mower’s operator’s manual should operate this
machine.
Operation And Tips On Mowing
A. Perform BEFORE EACH USE the maintenance list
referenced in Section IV.
B. Start the mower.
C. Start the EDrive Assembly.
D. With the mower turned on, engage the mower deck.
E. Proceed to operate the control levers of the mower.
NOTE: If the collection system does not appear to be
collecting the grass clippings, disengage the deck and
EDrive assembly, then, engage the parking brake and
turn the mower off. Check upper and lower hoses for any
clogs.
To obtain the maximum effectiveness from your
collection system, the tips listed below should be
followed:
* Watch your speed- Normal conditions will allow a
speed of up to approximately 4 mph, but thick, heavy
damp conditions will require reduced ground speed.
* Mow with sharp blades- A sharp blade cuts cleaner.
* Wet grass and leaves will decrease effectiveness and
will increase horsepower requirements.
* Mow at higher cutting heights- Remove and mulch no
more than 2” of grass length with each mowing.
(Experts recommend not cutting off more than 1/3 of
the grass blade length at any given time.)
* Mow twice, at different height settings, (high, then low),
if grass is extra tall.
* Remember that horsepower requirements will vary with
the mowing conditions such as type and height of turf
grass, moisture content, amount of leaves, whether the
terrain is flat or hilly, etc.
.
Disengagement Of The EDrive Assy
A. To disengage the EDrive assembly, move the
Rocker Switch to the off position.
WARNING: DO NOT TOUCH the EDrive Assembly
until after the tractor is turned off.
Unloading The Collection System
NOTE: Collection system blower will have an audible
change in tone when the collection system is full.
A. Stop the forward movement of the mower.
B. Engage the parking brake.
C. Disengage the mower deck and EDrive assembly
D. Once the parking brake has been engaged, then and
only then, walk back and turn off the collection
system blower.
E. Detach the upper hose from the inlet mount.
F. Remove the trailer door.
G. Unlock and lift the handle to pivot the container
towards the ground. The container will then release
its contents.
H. Once the contents of the container have fallen out,
the container is ready to move back into its normal
operating position. Pull the handle downward and
return the handle into the locked position. Then re-
attach the trailer door and the upper hose.
NOTE: Do not allow the container to become over-filled
as potential damage may occur to your equipment.
Also, be sure to clean the hood screen as needed.

Unit Model Number:_______________________________________________
Unit Engine Size:__________________________________________________
Unit Serial Number:________________________________________________
Date of purchase:________/________/_________
Dealer/Distributor Name:__________________________________________
Address: _________________________________ State:_______ Zip:_______
Phone Number: ____________________________________________________
DOCUMENT THE FOLLOWING INFORMATION FOR FUTURE REFERENCE
SECTION IV
PARTS & SERVICE
Parts And Service Information
Collection system owners should record the name and
telephone number of their Service Center. Your Service
Center will be happy to supply replacement parts,
accessories, and do any service or repairs to your
collection system. If for any reason your Service Center
is unable to service your collection system or supply
replacement parts, contact New PECO, Inc. and include
the following information on the chart below.
New PECO, Inc.
10 Walden Dr | Arden, North Carolina 28704
Phone: [phone] | 828-684-1234
Fax: [phone]
Email: [email protected]
Website: www.lawnvac.com
SECTION III
MAINTENANCE
Maintenance Checklist
Before each use:
1. Check blades and spindles to be sure that no foreign
objects, such as wire or steel strapping bands, are
wrapped around them.
2. Inspect blades for wear. Replace if necessary. If it is
necessary to sharpen the blades, remove the blades
from the spindles before sharpening. DO NOT
sharpen blades while still attached to the mower.
3. Make sure all shields are in place and in good
condition. Repair or replace any missing or damaged
shields.
4. Listen for abnormal sounds, which might indicate
loose parts, damaged bearings, or other damage.
Correct any deficiency before continuing operation.
5. Check for wear or deterioration of the upper or lower
hoses. If there are any portions of the hose that have
been torn or worn through, replace immediately.
After Each Use:
1. Clean all debris from machine especially from the
container, and safety decals. Replace any missing or
illegible decals.
2. Inspect the unit for worn or damaged components.
Repair or replace before the next use. Any
replacement component installed during repair shall
include the component’s current safety decal specified
by the manufacturers to be affixed to the component.

PECO

Section V - INSTALLATION FOR USE
Recommended Tools & Equipment
For the installation of this Collection System & Utility Trailer, It is recommended to always use Personal Protective
Equipment, such as safety goggles & hearing protection, while using any tool or power equipment during the
installation of your Grass Collection Unit.
A basic set of standard wrenches, sockets, and ratchets will be perfectly suitable for most operations outlined in this
manual.
12

Preparation Of Parts
PECO Trailer Vacs are shipped as shown in Figure A.
Note: The following instructions are used in the
installation of both the X20 Trailer Vac & X30 Trailer Vac.
Section V - INSTALLATION FOR USE
Remove the shrink wrap as shown in Figure B.
Remove the door as shown in Figure C. Rotate the red
reflectors to release the door. Then lift up and out.
Shipping Crate
Cut and Remove
Shrink Wrap
Rotate
Reflectors
Figure A
Figure B
Figure C
Remove the hoses as shown in Figure D.
Release the (2) rubber straps (PER SIDE) as shown in
Figure E.
Remove the lightweight top as shown in Figure F.
Release
Rubber Straps
Figure D
Figure E
Figure F

Remove (2)
Shipping Screws
Cut (2)
Retaining Wire
Figure G
Figure A
Figure B
Set Trailer Pan
Upside Down
In Preparation
Loosen
Support Leg
Figure D
Figure A
Loosen
Support Top
Figure B
Lift the trailer pan off of the chassis and set the trailer
pan upside down as shown in Figure D.
Wooden Support Removal
Using a hammer or pry bar, carefully remove the wooden
supports from the shipping crate. The support consists of
(3) pieces. (2) support legs and (1) top support. Refer to
Figure A.
Using a hammer or pry bar, carefully loosen the top
support and remaining support leg. Refer to Figure B.
Remove all parts from trailer pan as shown in Figure G.
Removing Trailer Pan
Remove the (2) shipping screws from the front trailer
pan as shown in Figure A.
Cut and remove the (2) retaining wires from the trailer
pan. Refer to Figure B.

Cut and Remove
Shipping Wire
Remove Trailer
Figure A
Figure B
Remove Cardboard
Place Trailer On
The Trailer Pan
Secure Using
(2) Clevis Pins and
(2) Hair Pin Clips
Figure C
Figure A
Figure B
Pivot Bolt
3/8”-16
Nut
Figure A
Attaching Trailer to Trailer Pan
Flip the trailer over and place on the trailer pan as shown
in Figure A.
Attach the trailer to the trailer pan using (2) clevis pins
P#(K0127) and (2) hair pin clip P#(K0086). Refer to
Figure B.
Dump Handle Installation
Remove the existing 3/8” nut from the pivot bolt as
shown in Figure A.
Removing Trailer From Pallet
Cut and remove the remaining retaining wires as shown
in Figure A. Then lift and remove the trailer from the
shipping crate as shown in Figure B.
With the trailer upright on the ground, remove the
cardboard from the trailer as shown in Figure C.
NOTE: Do not remove the engine mount arm zip tie.

Wheel Installation
Remove the tape from both axles. Refer to Figure A and
Figure B for reference.
Insert the wheels onto the wheel axle as shown in Figure
C. Secure each wheel using (1) 3/4” flat washer
P#(K0061) and (1) 1/8”-1/2” cotter pin P#(K0085). Refer
to Figure C below and Figure D on the next page.
Insert the dump handle through the slot in the trailer pan
and through the handle spring P#(J0310) as shown in
Figure B.
Note: The Dump Handle contains 2 holes that are
specific to the type of Trailer Vac it is being installed on.
The First hole is for the X30 Trailer Vac and the Second
hole is for the X20 Trailer Vac.
Insert the pivot bolt through the hole corresponding with
your Trailer Vac in the dump handle. Secure the handle
to the pivot bolt using the 3/8”-16 Nut that was removed.
Attach the hook end of the spring to the hole in the trailer
pan. Refer to Figure C.
Insert the Handle Grip P#(J0522) onto the end of the
dump handle as shown in Figure D.
Remove Tape
From Axle
Tape Removed
From Axle
Insert Wheel
Onto Axle
Figure A
Figure B
Figure C
Dump Handle
Handle
Spring
Figure B
Attach Spring To
Trailer Pan
3/8”-16 Nut
Handle Grip
Figure C
Figure D

(1) Flat Washer
(1) Cotter Pin
PER WHEEL
Figure D
Figure E
Trailer Top Installation
Lift the trailer top and place onto the trailer pan as shown
in Figure A.
Secure the trailer top to the trailer pan with the (4) rubber
straps. Refer to Figure B.
Attach the trailer door to the assembly. Secure the door
by rotating the (2) red reflectors on the trailer top. Refer
to Figure C.
Flip the trailer over onto the wheels in preparation for the
trailer top installation. Refer to Figure E.
NOTE: It is recommended that someone assist you
during this step.
Place Trailer Top
Onto The Trailer Pan
Rubber Straps
Rotate
Reflectors
Figure A
Figure B
Figure C

E-Drive/Blower/Blade Assembly
Installation
Remove the E-Drive assembly from the box. Place the
E-Drive on top of the mount arm as shown in Figure A.
Secure the E-Drive assembly to the engine mount arm
with (4) 5/16”-18 x 1” carriage bolts P#(K1144) and (4)
5/16”-18 locknuts P#(K2516). Refer to Figure B.
(4) 5/16”-18 x 1”
Carriage Bolts &
(4) 5/16”-18 Locknuts
Mount Arm
Housing Opening
Should Face Mower
Deck Discharge
Figure A
Figure B
Inlet Ring Installation
Pull the Locking Pin P#(K0095) up from the Inlet Ring P#(V1052). Position the 6” Inlet P#(E8010) into the Inlet Ring
and secure the 6” Inlet by pressing the Locking Pin back down. Refer to Figure A.
Figure A
6” Inlet
Locking Pin
Inlet Ring
Blower Cone Installation
Insert the blower cone as shown in Figure A and secure
with (2) 5/16”-18 x 2-1/2” Hex Bolts P#(K0125) and (2)
5/16”-18 Jam Nuts P#(K0120).
Blower
Cone
Figure A
(2) 5/16”-18 x 2-1/2” Hex
Bolts P#(K0125) & (2)
5/16”-18 Jam Nuts
P#(K0120)
E-Drive
Assembly

Attaching Trailer To Tractor
Back the tractor up to the trailer tongue. Lift the trailer
tongue and slide onto the tractor hitch as shown in
Figure A.
Secure the trailer tongue to the hitch with (1) hitch pin
assembly P#(A0312). Refer to Figure B.
Secure the hitch pin using (1) hair pin clip P#(K0086).
Refer to Figure C.
Upper Hose Installation
Before attaching the Upper Hose, place a Hose Clamp
P#(J0060) relatively loose on both ends of the Upper
Hose. Then insert one end of the 6” upper hose onto the
blower outlet as shown in Figure A.
Attach the other end of the 6” upper hose to the inlet on
the trailer top as shown in Figure B.
Secure the upper hose by tightening both hose clamps.
Refer to Figure C.
Blower Outlet
6” Upper
Hose
Inlet
Upper Hose
Hose Clamp
Lift Trailer Tongue
And Slide Onto Hitch
Hitch Pin
Hair Pin
Clip
Figure A
Figure B
Figure C
Figure A
Figure B
Figure C

Adjusting
Rod
Ball Clevis
Clamp Assy
Ball
Clevis
Ball
Clevis
Clamp
Hair Pin
Clip
and Washer
Nyloc
Nut
Hex
Bolt
Adjusting
Rod
Figure D
Figure E
Drive Stay Assembly Installation
Note: Depending on the manufacturer and style of your
tractor, the drive stay assembly mounting procedure may
vary slightly from the instructions listed below.
Cut the zip tie that secures the mount arm to the trailer.
Refer to Figure A.
Rotate the E-Drive towards the deck opening of the
tractor as shown in Figure B. (See Drive Stay
Adjustments, pg. 21 through 24).
Attach the ball clevis P#(B0132) to the rear left of the
tractor. There should be an existing hole in the tractor
frame for this ball clevis to mount to. Secure the ball
clevis using (1) 3/8”-16 x 1” hex bolt P#(K1191) and (1)
3/8” lock washer P#(K0048).
NOTE: If there is not an existing hole, position the ball
clevis as shown in Figure C, then mark the position. Drill
a hole in the tractor frame using a 3/8” drill bit.
Attach the ball clevis clamp assembly P#(A0336) to the
ball clevis using (1) 5/16”-18 x 2” hex bolt P#(K1159) and
(1) 5/16”-18 locknut P#(K1180). Thread the adjusting rod
P#(B4311) into the ball clevis clamp assembly as shown
in Figure D. Insert the adjusting rod into the mounting
hole on the engine mount arm. Secure the adjusting rod
with (1) hair pin clip P#(K0099) and (1) 1/2” flat washer
P#(K0055). Refer to Figure D and E for reference.
Mount Arm
Cut Zip
Tie
Rotate
Towards
Deck
Opening
Figure A
Figure B
Ball Clevis
Rear Frame
Of Tractor
Figure C
