Pegasus CCTV PDVCD-4G User manual

PDVCD-4G
USER MANUAL
VER.: 1.0, P/N: R040143/2

1
CONTENTS
1. SAFETY PRECAUTIONS..............................................................................................................................2
2. INTRODUCTION ...........................................................................................................................................3
3. FEATURES .....................................................................................................................................................4
4. ACCESSORIES...............................................................................................................................................5
5. INSTALLATION.............................................................................................................................................6
6. NAME and FUNCTION of EACH PART .......................................................................................................7
6.1 Front Pannel ..............................................................................................................................................7
6.2 Monitoring Mode.......................................................................................................................................9
6.3 Record Mode ...........................................................................................................................................10
6.4 Playback Mode ........................................................................................................................................ 11
7. SYSTEM SETUP ..........................................................................................................................................13
7.1 Main Menu ..............................................................................................................................................13
7.2 Date/ Time Setup .....................................................................................................................................13
7.3 Motion Detection Setup...........................................................................................................................14
7.4 Manual Record and Schedule Record Setup............................................................................................14
7.5 SD Card Options .....................................................................................................................................15
7.6 System Status...........................................................................................................................................15
7.7 Factory Default........................................................................................................................................16
8. TROUBLE SHOOTING................................................................................................................................17
9. SPECIFICATIONS........................................................................................................................................18
The author assumes no responsibility for any errors or omissions that may appear in this
document nor does he make a commitment to update the information herein.

2
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN!
CAUTION :
TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT OPEN COVERS (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
1. SAFETY PRECAUTIONS
WARNING: This symbol is intended to alert the user to the presence of un-insulated “dangerous voltage”.
CAUTION: This symbol is intended to alert the user to presence of important operating and
maintenance (Servicing) instructions in the literature accompanying the appliance.
Disposal of Old Electri cal & Electronic Equipment (Applicable in the European
Union and other European countries with separate collection systems).
This symbol on the product or on its packaging indicates that this product shall not be treated as
household waste. Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. The recycling of materials will
help to conserve natural resources. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or the shop where you
purchased the product.
The power cord is the main power connection. Therefore, constantly plug and
unplug of the power cord might result in malfunction of the product.
Do not install the product in an environment where the humidity is high.
Unless the product is waterproof or weatherproof, otherwise it can cause the image
quality to be poor.
Do not drop the product or subject them to physical shocks.
Except for vandal-proof or shockproof product, otherwise it will result malfunctions to
occur.
Never keep the product to direct strong light.
It can damage the product.
Do not spill liquid of any kind on the product.
If it gets wet, wipe it dry immediately. Alcohol or beverage can contain minerals that
corrode the electronic components.
It is advised to read the Safety Precaution Guide through carefully before operating the product,
prevent any possible danger.

3
2. INTRODUCTION
This product is a professional, personal proof collector and a movable device.
Built-in high quality pinhole camera, which enables 3 types of schedule record mode:
Manual, Continuous, and Motion Detection. Enables picture storage to built-in Flash
Memory. Furnished with fixed bracket that makes it perfect for simple installation under
many different occasions:
zApplications using the bracket, such as front door, room door, garage door and
so on.
zApplications without using bracket, such as a glass cabinet, on the table, inside
the car and so on.
Power supported by 4 AA batteries or plug-in power adaptor (DC12V). It is suggested to
use the plug-in adaptor for usage under long extended period of time or use 4 AA
batteries under short period of time, and when there is no power socket. The LED
indicator allows the user to easily distinguish the current battery status (LED indicator lit,
indicates that the power is sufficient and when the LED indicator unlit, indicates that
there are insufficient power).
Simple user-friendly interface enables easy recording setups (Record Mode, Record
Frames per Second, Motion Detection Sensitivity, and etc.). For more details, please refer
to the section on “Operation Description” and “Function Setup Description”.

4
3. FEATURES
zThe device is extremely portable with built-in Hi-resolution camera.
zSimultaneous monitoring and recording.
zAutomatic image control functions.
zFunctions supported: Auto Electronic shutter (AES), Auto White Balance (AWB),
and Auto Gain Control (AGC).
zVideo capture device record images in built-in Flash memory (capacity differs
depending model type).
zVideo capture device records images in built-in flash memory (capacity differs
depending on model type). Recording auto resumes after power loss and back.
zSupports three recording modes: Manual, Schedule Continuous, and Schedule
Motion Detection.
zSupports both NTSC and PAL system.
zTwo types of resolution (selectable): 320x240 and 640x480.
zSelectable compression image qualities and frame rate.
zMotion detection with adjustable sensitivity level.
zSupports flexible playback mode: Normal Playback, Rewind, Fast Forward, and
Step Playback.
zSupports DC12V or 4xAA batteries (use anywhere, camera can be powered by
battery, so power outlet is unnecessary).

5

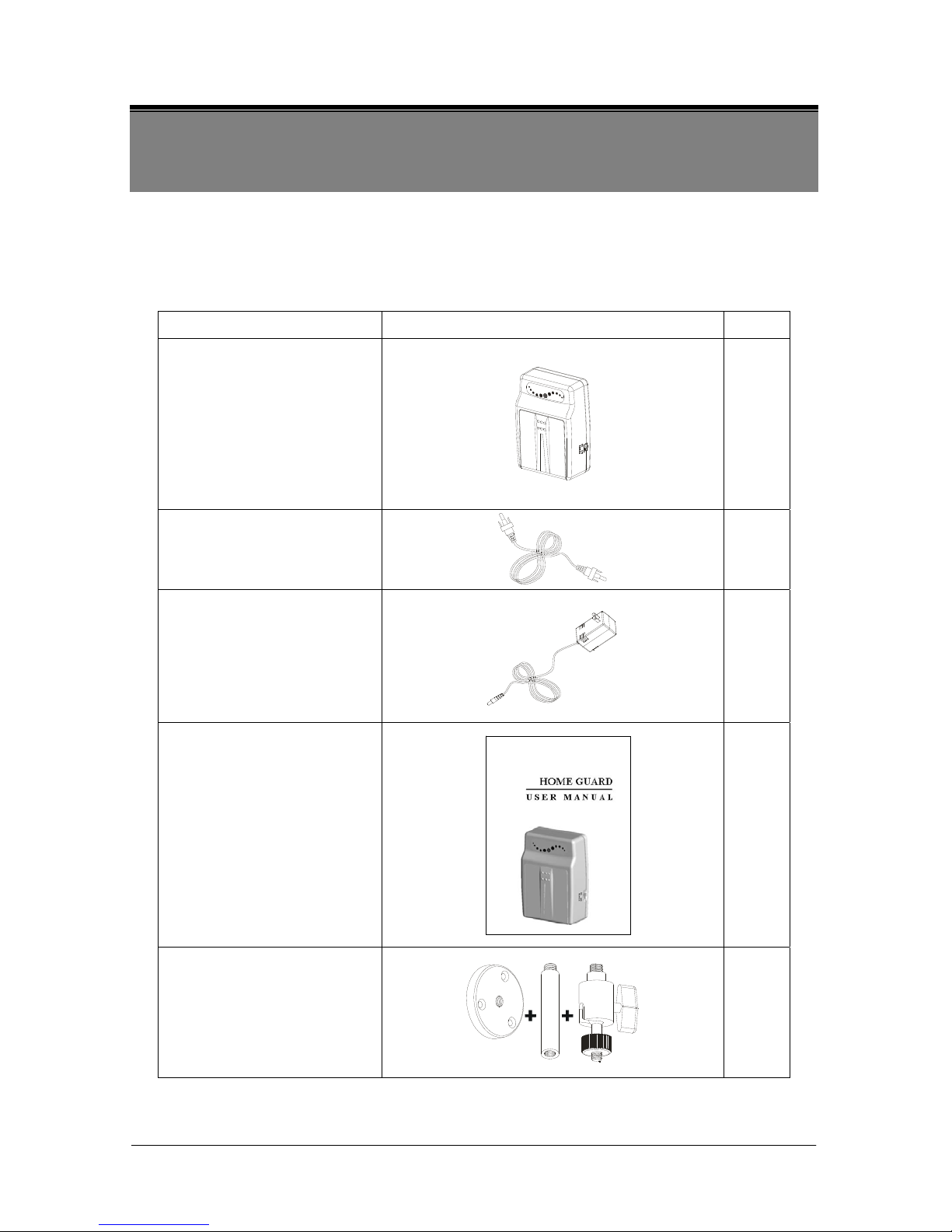

4. ACCESSORIES
Unpack the product and inspect to make sure that nothing noticeable is wrong or that all
accessories are included inside the product package. If you have any questions, please
contact your local dealer.
Item Description Item Picture Qty.
Camera 1
Video Line 2
Power Adaptor
1
Manual 1
Bracket 1

6
5. INSTALLATION
Please refer to the instructions below for camera mounting and bracket installation:
zBracket Installation Guide:
zCamera Mounting Installation Guide:
zVideo Output and Power Adaptor Connection Guide:

7
6. NAME and FUNCTION of EACH PART
6.1 Front Pannel
(1) Function Switch
zNTSC<->PAL
The two most common video standards used are NTSC and PAL. NTSC is
the video system or standard commonly used in North America, Taiwan,
Japan, Korea, and South America. PAL is the predominant video system or
standard mostly used in China, Hong Kong, Europe, and India.
Please select and switch to the system that best suits your location. Take
note that this setup is only effective when it is setup before power-on.
zFull Stop<->Overwrite
Select whether to overwrite the recorded memories or to stop recording
when memory is full. One may select “Overwrite”, the memory will be
overwritten starting with the oldest data first.
Selecting “Full Stop”, when the memory system is full, it switches from
record mode to stop mode, and the LED indicator on the front panel will
start flashing. Take note that this setup is only effective when it is setup
before power-on.
(2) Video Output Jack
To enable monitoring functions, connect one terminal to the video out jack and
the other terminal to the monitor (TV).
(3) Po wer Switch
Select “On” to switch on the device, and “Off” to switch off the device.

8
When power-loss occurs during recording, error may occur. To switch off the
power correctly, please refer to “6.3 Record Mode”.
(4) Power Source Jack.
(5) LED Operation Mode Indicators
LED light easily allows the user to distinguish the current system status. For
example REC LED: The LED indicator lit indicates recording, and when unlit
indicates no recording (REC LED flashes when the power supply is
insufficient).
(6) Button
Buttons commonly used: Rec/ . But all other 5 buttons are applied during
setups. Every button under each mode has different definition. For more details,
please refer to the section on “Function Description Table”.
(7) LED Power Indicator
The LED indicator lit indicates that the device is powered up and when unlit
indicates that the power is insufficient or switched off.

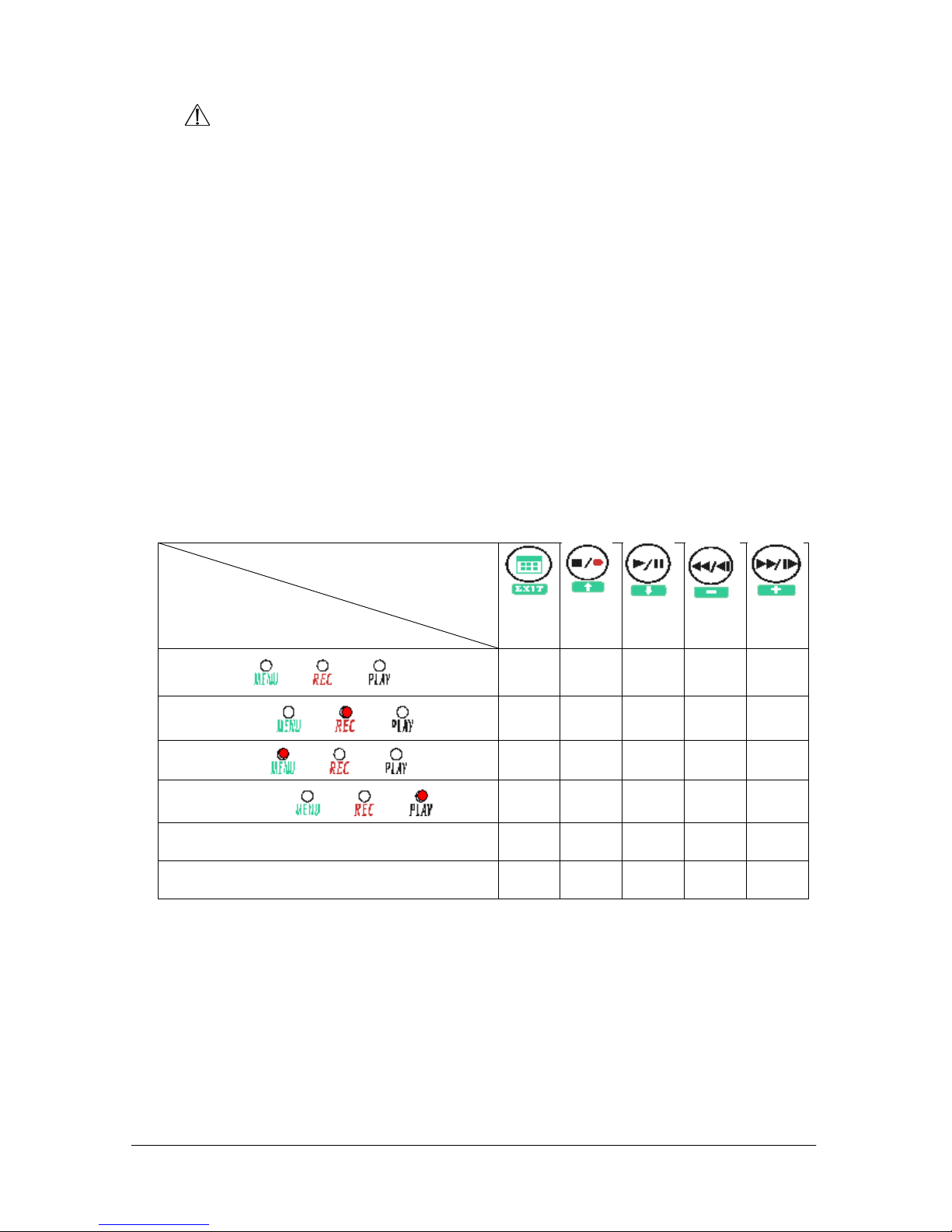

Function Description Table
BUTTON
MODE
STOP MODE
Switch to Menu
Setup Mode
Switch to
Record Mode
Switch to
Playback Mode
RECORD MODE Switch to
Stop Mode
MENU MODE
Refer to Setup
Description
Refer to Setup
Description
Refer to Setup
Description Refer to Setup
Description Refer to Setup Description
PLAYBACK MODE
FREEZE MODE Switch to
Stop Mode
Continuous
Playback Step Rewind Step Forward
CONTINUOUS MODE Switch to
Stop Mode
Pause
Playback Fast Rewind Fast Forward
Please read the “Function Description Table” carefully before operation, to enable quick
understanding of the relations between the button and mode.
The LED indictor (on the front panel) represents the current mode or screen display status.
Under different mode each function has different meanings. The Function Description
Tabl e clearly lists the LED light as it appears during different mode and its corresponding
relations with the function buttons. The system is mainly divided into stop mode, record
mode, playback mode, setup menu mode, and etc. These modes will be discussed on the
later section.

9
Power On
1. The power switch is situated on the right side of the device.
NOTE: Each time after power-on, the system auto-detects its peripherals. When the REC LED
flashes indicate that the system memory is proceeding testing (complete boot time is several
seconds). When an image file error has been detected, the system will initiate auto repair.
2. After power on, the system auto enters live monitoring. When the system is
currently under schedule recording, it auto enters record mode.
3. “” icon shown on the status line, indicates that the system memory is operating
normally.
4. When problem occurs to the system memory. Press record or playback, the
corresponding LED indicator will not lit. Play, Menu, and Rec indicator will flash
quickly. Please re-format before proceeding.
5. When system memory is writing data during recording, record indicator will flash
slowly.
6. After power-loss the system auto returns to the previous recording mode.
6.2 Monitoring Mode
1 The monitoring mode is displayed according to the pre-setup (system setup after
power-on), and the user may view live monitoring.
cTime Display: System Date and Time.
dRecord Status Display: Manual Record Parameter.
：Record Resolution, please refer to【7.4 Record Setup】for VIDEO SIZE setup.
：Record Quality, please refer to【7.4 Record Setup】for VIDEO QUALITY setup.
3 System Memory Status:
：Malfunction.
：Proceeding file testing.
：Functioning normally.
C：Continuous record.
1
2
3
2004 /02 /01 08:10:0 3

10
6.3 Record Mode
1. Start Record: 3 Types of recording mode.
(1) Manual Record: Suitable to record at anytime. Press《Rec/ 》button, to
enter manual recording status (start recording). For more information, please
refer to【7.4 Record Setup】.
(2) Motion Detection Reco rd: Suitable to record, when there are severe image
changes. Motion detection triggers schedule recording, but it will only start
recording when the variation exceeds the alarm limitation value. For more
information, please refer to【7.3 Record setup】and【7.4 Record Setup】.
(3) Continuous Record: Suitable on few constant frame recording or on
long-term continuous recording. For more information, please refer to【7.4
Record Setup】. Please refer to the
2. Stop Record:
Press《Rec/ 》button, stops manual recording only. Enter《Play》or《Menu》
schedule recording (Motion Detection and Continuous Record), all kinds of
recordings will be stopped. To continue recording, please follow the methods below
to restart recording.
Manual Record Repress《Rec/ 》button.
Schedule Record
Motion Detection Record
Each time after exiting the menu or playback mode,
system will auto recheck the record schedule setup.
3. Record Display:
:Indicates recording is in progress.
：Manual Record ：Schedule Record ：Motion Record
4. The event status is determined by the system recording, according to the order of
priority. The order of priority: Manual Record, Motion Detection and then Schedule
Record.
5. Different recording modes may have different kinds of setups. Basic setup: video
size, recording frames, video quality, and audio recording. When different recording
modes are triggered, the system starts recording according to the different setup.
This kind of design provides flexibility to ensure efficient recording time and
quality. Example: Work hour from 8:00am to 6:00pm, setup「Schedule Record」to
low video quality with less recording frames to extend the recording time. And off
work hour, setup「Motion Detection Record」to enable high video quality with the
highest recording frames, when an event occurs.

11
6. Video may be recorded to the system memory. When the video has been stored, the
REC LED flashes indicate that the system is currently loading the file to the system
memory.
7. No matter which record mode is used, please enter the main menu (Refer to 7.1
Main Menu) and then switch off the power.
Power loss during recording results incomplete videos or errors.
Video loss during recording, the system stops recording, backups the files, and
when the videos are normal again, the system will continue recording.
6.4 Playback Mode
1Selectable Playback format: Continuous Playback and Searching Playback.
(1) Normal Playback: Press《PlayII》button to playback according to the system
memory file order.
：Normal speed playback. Press《PlayII》again to pause playback.
 ：During normal playback, press《 》or《 》
b
utton to fast
forward or rewind (Speed: x2/ x4/ x8/ x16/ x32). Press《PlayII》
button to return to normal playback.
：During playback, press《PlayII》
b
utton to pause playback and press
again to return to playback status.
 ：During pause, press《 》or《 》button to step forward one frame
and step rewind I-frame. Press《PlayII》
b
utton to return to normal speed
playback.
Press《Rec/ 》button to stop playback function and to return to live status.

12
(2) Search and Playback: Enter MENU and select【SEARCH AND PLAY】item.
SEARCH AND PLAY ■■
DATE F I LES
Z
2003/12/25 5
2003/12/26 15
2003/12/27 2
2003/12/28 3
2003/12/29 7
DATE PAGE : 1 / 3
FILE:038
TIME:09:18:09
1
2
35
4
cFile directory shows dates and the amount of contents under the directory.
The user may press《©》《ª》button to move the cursor up or down.
2Current location page.
3Each color distinguishing different recording events, the user may press
《-》《+》button to move the cursor left or right and immediately shows
the first image of the highlighted event on the screen display background.
4Displays the time highlighted by the event bar.
5Blue: Manual Record / Red: Motion Detection Record / White: Schedule Record .
NOTE: Select the desired playback starting time, press《MENU》and《-》《+》, select《PLAY》,
and then press《MENU》again to start playback.
NOTE: Press《Rec/ 》button to stop playback and the system will return to【SEARCH and
PLAY】selection and enables the user to select the prefered input source.
NOTE: Press《-》《+》, select《EXIT》and then press《MENU》again to return to main menu.

13
7. SYSTEM SETUP
7.1 Main Menu
MA I N MENU ■
Z
SEARCH AND PLAY >
SET DATE / T IME >
SET MOT ION DETECT >
MANUAL RECORD >
SCHEDULE RECORD >
SD CARD OPT IONS >
SYSTEM STATUS >
FACTORY DEFAULT >
1
2
3
1 MAIN MENU: Item subject.
2 Menu Layer Indication: The device consists of three menu layers.
3MENU Content: Basic Menu Operations.
Press《▲》or《▼》button, to move the highlight-bar and the cursor (Z).
Press《+》button, to enter the sub menu (＞).
Press《MENU/ EXIT》button:
zUnder second or third menu layer, the system will return to the previous
menu layer (second layer to first layer or third layer to second layer).
zUnder main menu (first menu layer), the system will enter live mode.
Press《》or《》button, to increase or decrease the setting values that has
been highlighted.
7.2 Date/ Time Setup
DATE / T I ME ■■
Z
DATE FORMAT : Y / M/ D
SET DATE:2004/01/01
SET TIME: 00:00:00
1
2
■: First Menu Laye
r
(Main Menu)
■■ : Second Menu Layer
■■■ : Third Menu La
y
e
r
1 Date Format: Y / M / D M / D / Y D / M / Y
2 ate/ Time Adjustment: Year settings are from 2000 to 2099.

14
7.3 Motion Detection Setup
1. Motion detection sensitivity rate setup:
Changing the threshold value setup may affect the recording sensitivity of the
Motion Detection.
1 Sensitivity Bar ：
Color black indicates image variable value and color red
indicates the MD threshold.
2 MD Energy ： Current image variation value.
3 MD Threshold ：
Press《-》《+》button, to change the motion detection threshold
value.
7.4 Manual Record and Schedule Record Setup
Selectable manual or schedule recording, basic setups are shown below:
1. MANUAL RECORD: Press (Rec/ ) button to start recording.
Video Size/ Frame Rate:
Resolution 320x240 640x480
Frame Rate (Max.) 30 fps 12 fps
Image Quality:
High Quality ：HQ Using high recording quality (More memory storage
capacity will be required).
Medium Quality ：MQ Using medium recording quality.
Low Quality ：LQ Using low recording quality (Less memory storage
capacity will be required).

15
2. SCHEDULE RECORD (Continuous/ Motion Detection ): Schedule Record:
Records only within the setup time range.
RECORD ：Enable or disable schedule recording (ON/ OFF).
SCHEDULE ：Hh:Mm –Hh:Mm =24 hour recording and 00:00–00:01 = Record
of one minute image from 00: 00 to 00:01.
Motion Detection Recording - DURATION TIME Setup:
DURATION ：Duration time when motion detection has been triggered (5SEC / 10SEC /
15SEC/ 20SEC / 30SEC).
7.5 SD Card Options
NOTE: Proceeding continuous recording, old videos can be deleted and overwritten. Please confirm before setup.
NOTE: Recording time depend on the SD card capacity, different recording modes, and degree of video
variation.
7.6 System Status
Press any button to return to the Main Menu.
1Format S
y
stem Memor
y
：It will delete all data stored in the s
y
stem memor
y
.
SD CARD OPTIONS■■
TOTALSPACE:12 8 M B
REMAINSPACE:5 0 M B
FORMAT>
1

16
7.7 Factory Default
Press《+》button, returns all settings to the factory default value.
Press《Stop/ Exit》button, exit this screen display and return to the Main Menu.
NOTE: Return to factory default will erase all configuration values and return to the Factory Default
values（except Date and Time setup）. Therefore, confirm before you proceed.
FACTORY DEFAULT ■■
RECALL DEFAULT NOW?
NO: EXI T YES: ENTER
+

17
8. TROUBLE SHOOTING
Q1. Does the product support SDHC 32G?
A1. Suggested tested brands are as shown below:
Brand Capacity Specification
A-DATA 32G Class 6
Transcend 32G Class6
Silicon-Power 32G Class6
Apacer 32G Class4
Kingston 32G Class4

18
9. SPECIFICATIONS
Sensor 1/4” Color CMOS Sensor
Lens Cone Lens f3.7mm / F2.0
Effective Picture Elements VGA (H/V: 640x480)
S/ N Ratio 46 dB
Electronic Shutter Auto
Gain Control Auto
Auto White Balance RCA (1 Vp-p. / 75 Ohms)
Synchronous System NTSC / PAL (adjustable)
Video Output Port VGA (640x480)/ QVGA (320x240)
Video Output Format High/ Medium/ Low
Recording Mode Manual/ Continuous/ Motion Detection
Recording Resolution 320x240: 1~30FPS, 640x480: 1~12FPS
Storage Capacity Built-in Flash Memory (capacity differs depending on model type).
Memory Full Stop/ Overwrite (selectable)
FrameRate
@Resolution
Quality
30 fps@352x240 12 fps@640x480
Low 550minutes 400minutes
Medium 270 minutes 240minutes
Record Time (512MB)
High 220minutes 125minutes
Playback Mode Forward/ Rewind: x1 /x2 /x4 /x8 /x16 /x32, Pause and Step.
Search Playback Date & Time
Motion Detection Full Screen/ Adjustable Detection Sensitivity Rate.
On Screen Display Mode/ Date/ Time/ Status
Power Supply DC 12V±10% / 180mA or 4AA Batteries.
Battery Life
NiMH 2100mA Continuous Application: 4hours and 45minutes

19
MEMO
