Pelgrim MAG624RVS User manual

MAG624RVS
MAG624MAT
Instructions for use
Microwave

EN Instructions for use EN 3 - EN 29
Pictograms used
Important information
Tip

EN 3
CONTENTS
Your microwave
Introduction 4
Control panel 5
Description 6
Guide rails/Telescopic guide rails 6
Accessories 7
Door switches 7
Cooling fan 7
Controls 8
First use
First use 10
Use
Using the microwave 12
‘Auto’ and ‘Quick recipes’ mode 12
Microwave mode 14
Microwave use 16
Multiphase cooking (cooking step by step) 17
Start the program 18
End the program 18
My mode (favourite recipes) 19
Extra (selection of additional functions) 19
Settings (general settings) 20
Cleaning
Cleaning the appliance 23
The cleaning function 23
Removing and cleaning the wire guides 24
Replacing the oven light bulb 25
Troubleshooting
General 26
Your oven and the environment
Disposing of the appliance and the packaging 28
Cooking test
Food tested in compliance with the EN 60705-2 standard 29

EN 4
Introduction
Congratulations on your choice of this Pelgrim microwave. This product
was designed with simple operation and optimum comfort in mind.
With the extensive setting options, you can always select the right
method of preparation.
This manual describes the best way to work with this microwave. In
addition to information on operation, you will also find background
information that may come in handy when using the appliance.
Read the separate safety instructions before
using the device!
Read this user manual before using the appliance and keep it in a
safe place for future use.
The installation instructions are included separate.
YOUR MICROWAVE
Register your appliance for warranty purposes
We are convinced of the quality of our products. This is why we offer
a warranty period of up to 8 years*. All you need to do is register your
appliance on pelgrim.nl (when purchased in the Netherlands) and
pelgrim.be (when purchased in Belgium).
*Visit www.pelgrim.nl or www.pelgrim.be for full warranty terms and conditions.

EN 5
Auto 12:07
YOUR MICROWAVE

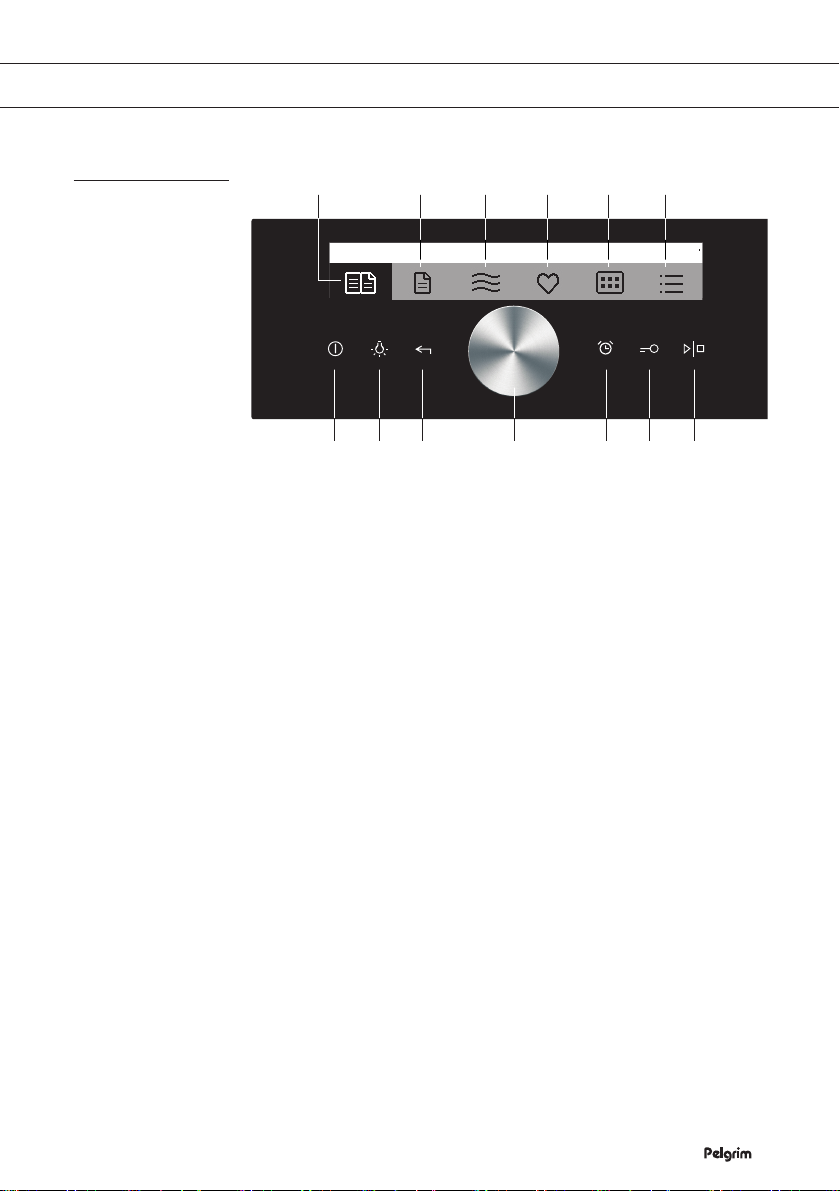

Control panel
1. On/Off key
2. Lighting on/off
3. ‘Back’ key
- Brief touch: return to previous menu level
- Long touch: return to starting menu
4. Multi function selector
- Setting is selected by turning the button
- By pressing the button the setting is confirmed
5. Minute minder
6. Child lock
7. Start / stop
- Touch: START
- Touch during operation: STOP
8. ‘Auto’ mode
9. ‘Quick recipes’ mode
10. Microwave mode
11. ‘My’ mode
12. ‘Extra’ mode
13. Settings
07
060504030201
08 09 10 11 12 13

EN 6
YOUR MICROWAVE

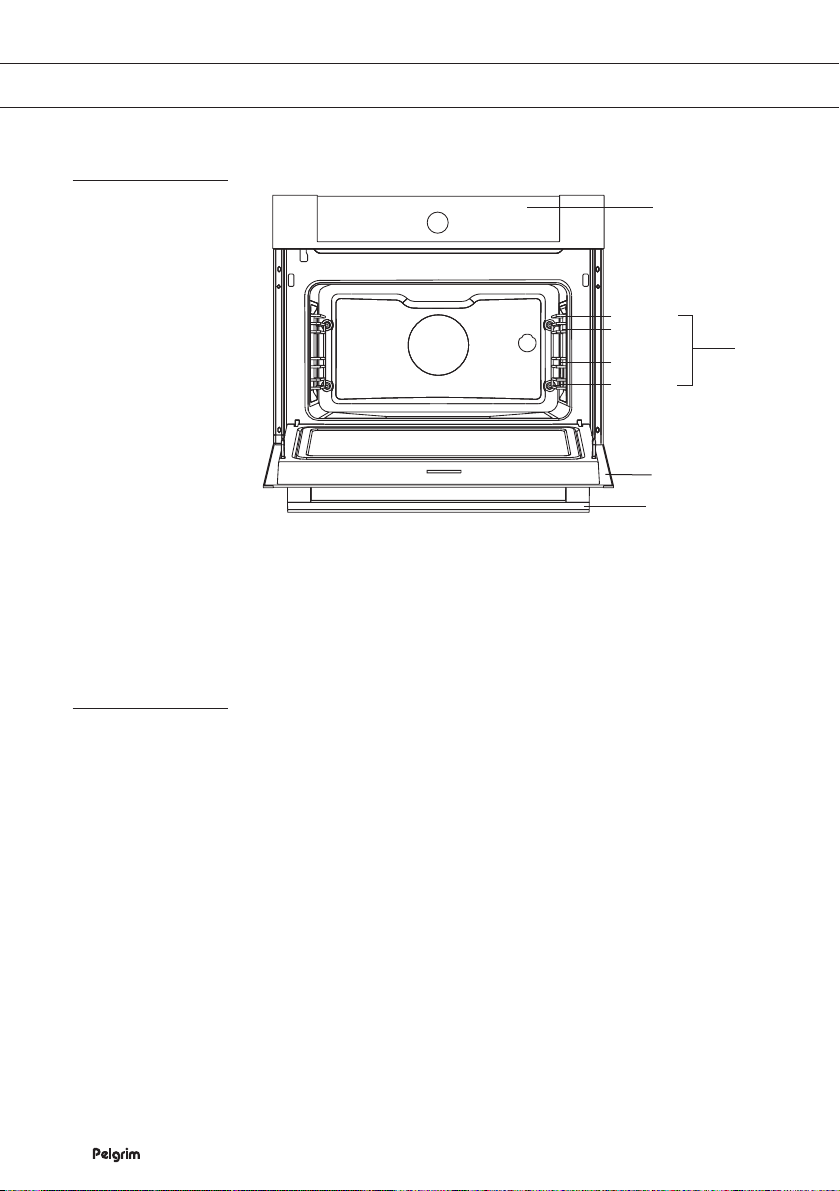

Description
1. Control panel
2. Guide levels
3. Door
4. Door handle
Guide rails/Telescopic guide rails
• The oven has four or five guide rails (Level 1 to 4/5), depending on
the model. Level 1 is mainly used in combination with bottom heat.
The two upper levels are mainly used for the grill function.
• Place the oven rack, baking tray or steam dish in the gap between
the guide rail sliders.
• A number of shelf levels can have fully-retractable telescopic guide
rails, depending on the model.
▷Pull the telescopic guide rails out of the oven cavity completely
and place the oven rack / baking tray / steam dish on them.
Then slide the oven rack / baking tray / steam dish on the
telescopic guide rails, back into the oven cavity.
▷Only close the oven door when the telescopic guide rails have
been returned completely back into the oven cavity.
1
3
Level 1
Level 2
Level 3
Level 4
2
4

EN 7
Accessories
Your appliance is accompanied by a range of accessories, depending
on the model. Only use original accessories; they are specially suited
to your appliance. Be sure that all the accessories that are being used
are able to withstand the temperature settings of the chosen oven
function.
Note: not all accessories are suitable/available for every appliance
(it may also differ by country). When purchasing, always provide the
exact identification number of your appliance. Please see the sales
brochures or check online for more details about optional accessories.
Accessories that can be supplied with your appliance (depending on the model)
Glass baking tray; for microwave and oven use.
• NOT suitable for pyrolysis cleaning.
Door switches
The door switches interrupt the operation of the oven when the door
is opened during use. The oven continues operating when the door is
closed.
Cooling fan
The appliance is equipped with a cooling fan that cools the casing and
control panel.

EN 8
Controls
On/off key (01)
• To turn on and off the appliance.
Illumination key (02)
• The illumination is turned on automatically when you open the
door or when you switch on the appliance. The light switches off
automatically after approximately 1 minute.
• You can manually switch the light on or off by touching the
‘Illumination’ key.
• Change the light status in Settings / Cooking settings.
Back key (03)
• Touch briefly to return to previous menu.
• Touch and hold to return to main menu.
Multi-function selector (04) (selection and confirmation knob)
• Select the setting by rotating the knob.
• Confirm your selection by pressing the knob.
▷To now adjust the selected function, once again press the knob
to activate the current setting.
▷You can now adjust the setting by turning the knob and confirm
the setting by pressing the knob.
• Some settings have to be confirmed by selecting a ‘check mark’
with the Multi-function selector.
• Settings can be cancelled by selecting the ‘cross mark’.
YOUR MICROWAVE
07060504030201

EN 9
Minute minder key (05)
• The minute minder can be used independently of the appliance
operation. The longest possible setting is 10 hours. After the set
time expires an acoustic signal will be heard which you may turn off
by pressing any key or wait to be switched off automatically after
approximately 3 minutes.
Child lock key (06)
Press the ‘Child lock’ key for minimal 3 seconds to activate the child
lock function. Display reads: “Child lock activated”.
• ‘Child lock’ is deactivated by pressing minimal 3 seconds the same
key once again.
• If you activate the ‘Child Lock’ function when no other time function
is active (except for the time of day display) the appliance will not
operate.
• On the other hand, if you activate the ‘Child Lock’ function after
selecting any of the time functions, the appliance will operate
normally, but you will not be able to modify settings.
• During the period ‘Child Lock’ is active you can not change baking/
roasting systems or additional functions (Extras).
• You can only switch off the cooking process by pressing the ‘On/
off’ key.
Note: The ‘Child Lock’ function remains active even after the appliance
is switched off. If you wish to select a new cooking system, you will
have to disengage the ‘Child Lock’ function.
Start/stop key (07)
To start or stop the program.
For the best response, touch the keys with the main part of your
fingertip. Every time you touch a key during use, a short tone will sound
(unless this is adjusted in the settings).
YOUR MICROWAVE

EN 10
FIRST USE
First use
• Remove all equipment, accessories, and utensils from the cavity
and clean them with warm water and regular detergent. Do not use
any abrasive cleaners.
• When the appliance heats up for the first time, the characteristic
smell of a new appliance will be emitted. Ventilate the room
thoroughly during the first use.
After first connecting your appliance or after connection when the
appliance was disconnected from the power mains for longer period of
time you have to set the ‘World clock’and ‘Language’.
• Default setting is ‘English’.
World clock setting
Wereld tijd instellen
World clock setting 12:00

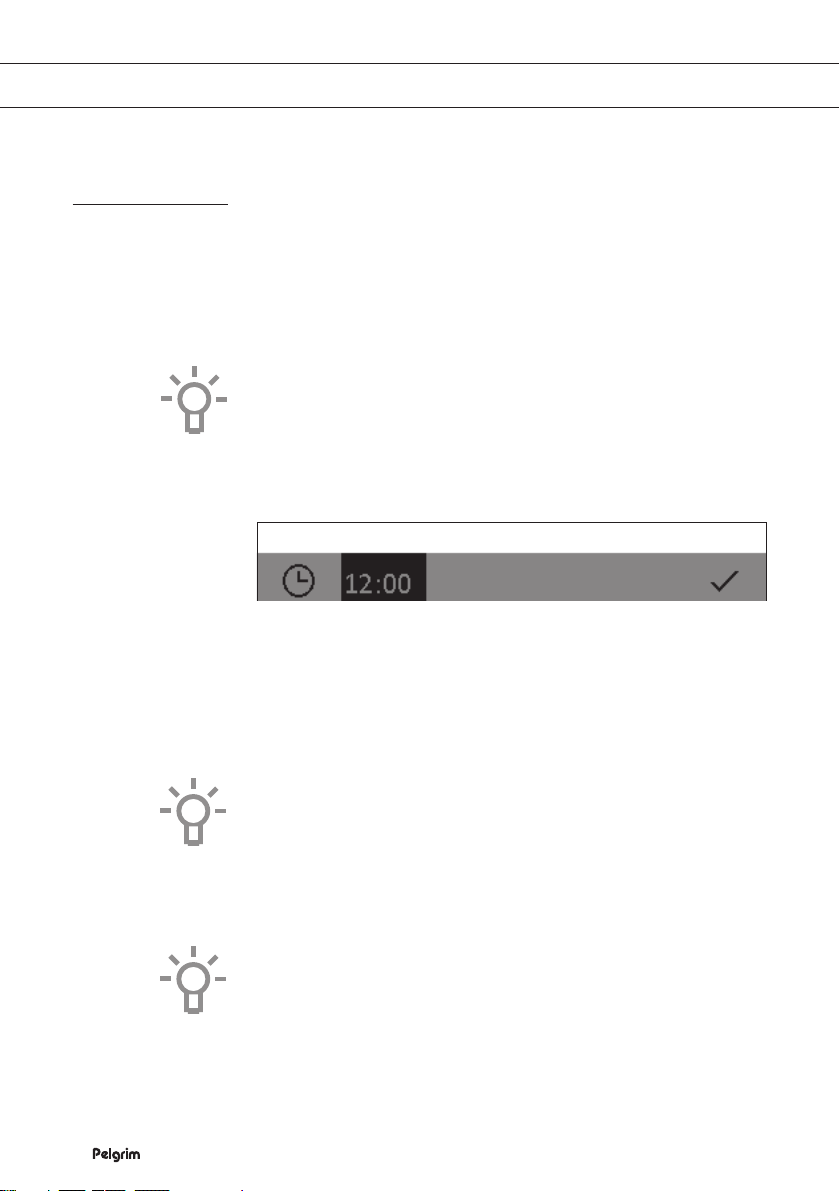

1. Press the ‘Multi-function selector’ to select the time.
2. Turn the ‘Multi-function selector’ to set the time of day.
3. Confirm by pressing the ‘Multi-function selector’.
4. Select the ‘check mark’ with the ‘Multi-function selector’ and
confirm by pressing the ‘Multi-function selector’.
The time of day can be set at any time by selecting the ‘Settings’
function. Confirm by pressing the ‘Multi-function selector’. Select
‘Time’ with the ‘Multi-function selector’. Confirm by pressing the
‘Multi-function selector’. Select ‘World Time Setting’ and confirm
by pressing the selection dial. Then turn the ‘Multi-function
selector’ to set the current time.
You can also choose whether to display the time in a digital or in
the traditional manner. Select ‘Clock display’ in the ‘Time’ menu
and confirm by pressing the selection dial. You can then use the
selection dial to select your preference: digital or analogue.

EN 11
FIRST USE
Setting the Language
Language 12:07
English
Ceski
In case you are not comfortable with the language in which text is
displayed, you may select another language.
• Default setting is ‘English’.
1. Turn the ‘Multi-function selector’ and select your preferred language
from the displayed list.
2. Confirm the setting by pressing the ‘Multi-function selector’.

EN 12
USE
Using the microwave
You may control your baking/roasting in several different modes.
Rotate the ‘Multi-function selector’ and select the symbol. The symbol
turns white. The name of the selected menu appears at the top.
Confirm the setting by pressing the ‘Multi-function selector’.
‘Auto’ mode
• In this mode, first select the type of food. This is followed by
automatic setting of the quantity, level of doneness, and cooking
end time.
‘Quick recipes’ mode
• This method is suitable for simple preparation of food by automatic
setting of quantity of ingredients, degree of roasting/baking and
preset end of operation. The program offers a choice of 10 most
frequently prepared dishes.
‘Microwave’ mode
• This mode is suitable for cooking, roasting and defrosting food.
‘Auto’ and ‘Quick recipes’ mode
Baking/roasting by selecting the appropriate type of food.
1. Place the dish in the microwave.
2. Turn on the oven by pressing the ‘On/off key’.
3. Turn the ‘Multi-function selector’ to select ‘Auto’ or ‘Quick recipes’
mode.
Auto 12:07
Quick recipes 12:07
4. Confirm by pressing the ‘Multi-function selector’.
Auto 12:07
Meat
Fish and clam

EN 13
5. Select the type of food followed by selecting the appropriate dish
with the ‘Multi-function selector’.
6. Confirm by pressing the ‘Multi-function selector’.
Preset options appear on the display.
7. You may change them by turning the ‘Multi-function selector’, and
confirming your selection by pressing the ‘Multi-function selector’.
Auto l Meat l Pork l Pork chops 21:17
Please note; not all settings can be adjusted for every type of food.
The weight cannot be changed for some types of food.

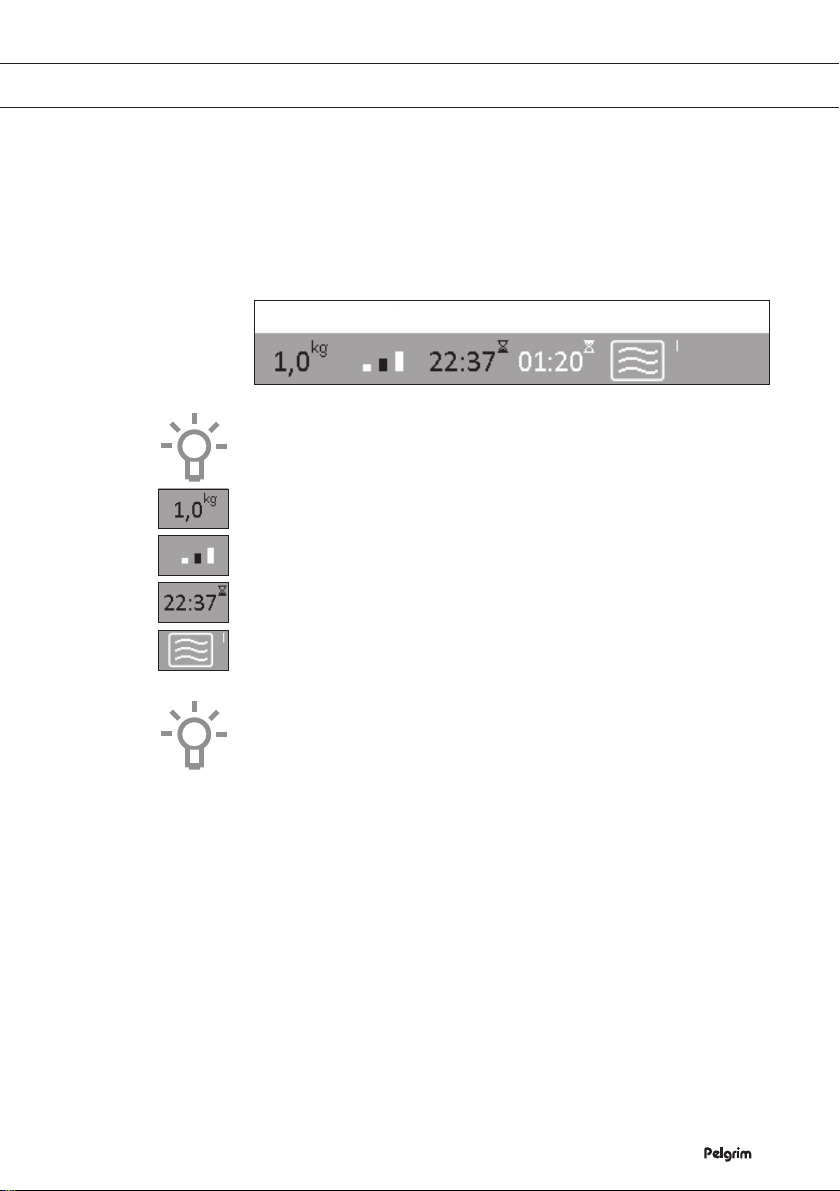

Preset options:
• Quantity (weight).
• Browning level;
▷low: short bar.
▷medium: middle bar.
▷high: long bar.
• Stop at ...
• Microwave (which function is used) and level of the glass tray.
If you select the cooking time or the symbol ‘Microwave’ in the ‘Auto’
function, the programme will switch to the ‘Microwave’ mode (see
‘Microwave’ mode). The display reads: Switch to professional mode.
8. Press the ‘Start/stop’ key.
The display indicates all selected settings.
USE

EN 14
Microwave mode
Microwaves are high - frequency electromagnetic waves; the energy
released enables food to be cooked or reheated without changing
either the form or the colour.
Cooking Principle
1. The microwaves generated by the microwave are distributed
uniformly by using a stirrer distribution system. The food is thus
cooked evenly.
2. The microwaves are absorbed by the food up to a depth of about
1 inch (2.5 cm). Cooking then continues as the heat is dissipated
within the food.
3. Cooking times vary according to the container used and the
properties of the food:
▷Quantity and density
▷Water content
▷Initial temperature (refrigerated or not)
Important
As the centre of the food is cooked by heat dissipation, cooking
continues even when you have taken the food out of the microwave.
Standing times specified in recipes and in this booklet must therefore
be respected to ensure:
• Even cooking of the food right to the centre.
• The same temperature throughout the food.
Microwave cookware guide
Cookware used for ‘Microwave Mode’ must allow microwaves to pass
through and penetrate food. Metals such as stainless steel, aluminum
and copper reflect microwaves. Therefore, do not use cookware made
of metallic materials. Cookware marked ‘microwave - safe’ is always
safe for use. For additional information on appropriate cookware refer
to the following guide and always use the glass tray on shelf level 1
when using microwave mode.
USE

EN 15
Cookware Microwave
safe Remarks
Aluminium foil 37 Can be used in small quantities to prevent certain parts of
the food from overcooking. Arcing can occur if the foil is
too close to the oven wall or if too much foil is used.
Porcelain and earthenware 3Porcelain, earthenware, glazed earthenware and ivory
porcelain are usually suitable, unless they have
a metal edge.
Disposable crockery made
from polyester or cardboard
3Frozen meals are sometimes packaged in disposable
tableware.
Fast food packaging
• Polystyrene cups
• Paper bags or newspaper
• Recycled paper or metal
edges
3
7
7
Can be used to warm up food.
Polystyrene can melt if it overheats.
Can catch fire.
Can cause arcing.
Glassware
• Oven dishes
• Fine glassware
• Glass jars
3 Can be used, unless it has a metal edge.
Can be used to warm up food or liquids. Thin glass can
break or shatter with sudden heating.
The lid must be removed. Only suitable for warming.
Metal 7Can cause arcing or fire.
Paper
• Plates, cups, kitchen
paper
• Recycled paper
3
7
For short cooking times and warming. For absorbing
excess moisture.
Can cause arcing.
Plastic 3Especially heat-resistant thermoplastic material.
Other types of plastic can warp or discolour at high
temperatures. Do not use melamine plastic.
Can be used to hold moisture. May not touch the food. Be
careful when you remove the film; hot steam can escape.
Only if boil-proof or ovenproof. Must not be airtight. If
necessary, prick it with a fork.
Note
Sparks in the microwave are also called arcing.
3: Recommended
37 : Careful
7: Unsafe
USE

EN 16
Microwave use
Do not use metal cookware or utensils. See ‘Microwave cookware
guide’.
1. Place the dish in the microwave.
2. Turn the ‘Multi-function selector’ to select ‘Microwave’ mode’.

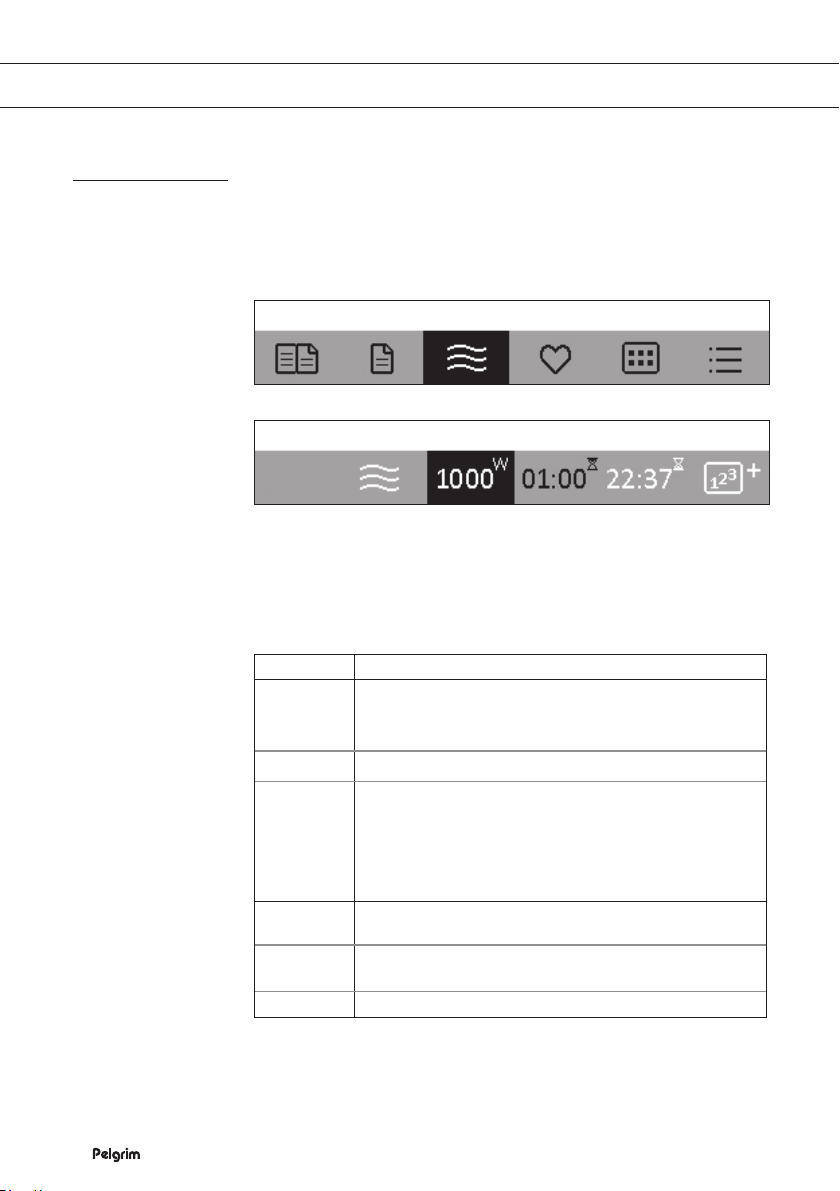

Microwave 12:07
3. Confirm by pressing the ‘Multi-function selector’.
Microwave 22:36
▷All power settings have a default time: 1 minute.
▷The end of the cooking time is shown in the display. This end
time cannot be changed.
4. Press the ‘Multi-function selector’ to select the microwave power.
5. Turn the ‘Multi-function selector’ to set the microwave power.
Power Use
1000 W • For quick heating of drinks, water and dishes
containing a lot of moisture.
• For cooking fresh or frozen vegetables.
750 W • For prepairing and heating of drinks and dishes.
600 W • For melting chocolate.
• For cooking fish and seafood.
• For heating on two levels.
• For cooking dried beans at low temperatures.
• For heating or cooking delicate dishes with eggs.
360 W • For cooking dairy products or jam at low temperatures.
180 W • For fast defrosting of dishes.
• For softening butter or ice cream.
90 W • For defrosting cakes containing cream.
6. Confirm every setting by pressing the ‘Multi-function selector’.
USE

EN 17
USE
7. Turn the ‘Multi-function selector’ to choose the cooking time.
Microwave 22:36
8. Press the ‘Multi-function selector’ to select the cooking time.
9. Turn the ‘Multi-function selector’ to set the cooking time.
10.Confirm the setting by pressing the ‘Multi-function selector’.
End of operation indicated on the display is calculated according to
your setting.
11.Touch the ‘Start/stop’ key.
The display indicates all selected settings.
Multiphase cooking (cooking step by step)
• This mode allows you to combine three different settings
successively in a single cooking process.
• Choose different settings to cook your food just the way you want it.
1. In the basic ‘Microwave’ mode select the option ‘Multiphase
cooking’.
Microwave l Microwave 12:01
2. Confirm by pressing the ‘Multi-function selector’.
In the display appears “You are entering STEP cooking mode”.
3. Confirm by selecting the ‘Check mark’ with the ‘Multi-function
selector’.
4. Select the first step with the ‘Multi-function selector’ and confirm by
pressing the ‘Multi-function selector’.
▷It is possible that the first step has already been set; you had
previously selected a function and set a time before selecting
multiphase cooking.
▷If you haven’t set a time yet, the display will indicate the text:
“Please set program duration.”
Multiphase cooking 12:01

EN 18
USE
5. Set the different steps according to your wishes and confirm by
selecting the ‘Check mark’ with the ‘Multi-function selector’.
The display shows the the total cooking time and the end time.
6. Press the ‘Start/stop’ key.
The appliance starts to operate according to Step 1 (this step is
flashing in the display). When the preset time elapses, next step is
activated, i.e. step 2, and later step 3, if you had selected it.
▷If you wish to delete a step during operation, turn the ‘Multi-
function selector’, choose the step and cancel it by confirming
the X mark. This can only be done with steps that have not yet
started.
Start the program
Before starting the program, the ‘Start/stop’ key is blinking.
• By pressing the ‘Start/stop’ key, the program will start. If you wish
to change the current settings during the cooking, turn the ‘Multi-
function selector’.
End the program
1. Press the ‘Start/stop’ key.
The display indicates “Program paused. Would you like to stop?”.
2. Confirm by selecting the ‘Check mark’ with the ‘Multi-function
selector’.
A B C
Finish 12:07
Finish (A)
• Select the relevant icon and finish the program. The display returns
to the basic menu.
Extend time (B)
• By selecting this icon you may extend the cooking time.
Add to my mode (C)
• By selecting this option you can store the selected settings in the
appliance’s memory for later use (see the relevant Chapter).

EN 19
USE
My mode (favourite recipes)
Saving selected settings
1. Select ‘Add to my mode’ at the end of the cooking process with the
‘Multi-function selector’.
2. Confirm by pressing the ‘Multi-function selector’.
Add to my mode 12:07
3. Select a number with the ‘Multi-function selector’ and confirm by
pressing the ‘Multi-function selector’.
4. Give the recipe a name by selecting the appropriate letters with the
‘Multi-function selector’.
▷If you make a mistake, you can delete a character with the
arrow.
5. Confirm the name by selecting the ‘Check mark’ with the ‘Multi-
function selector’.

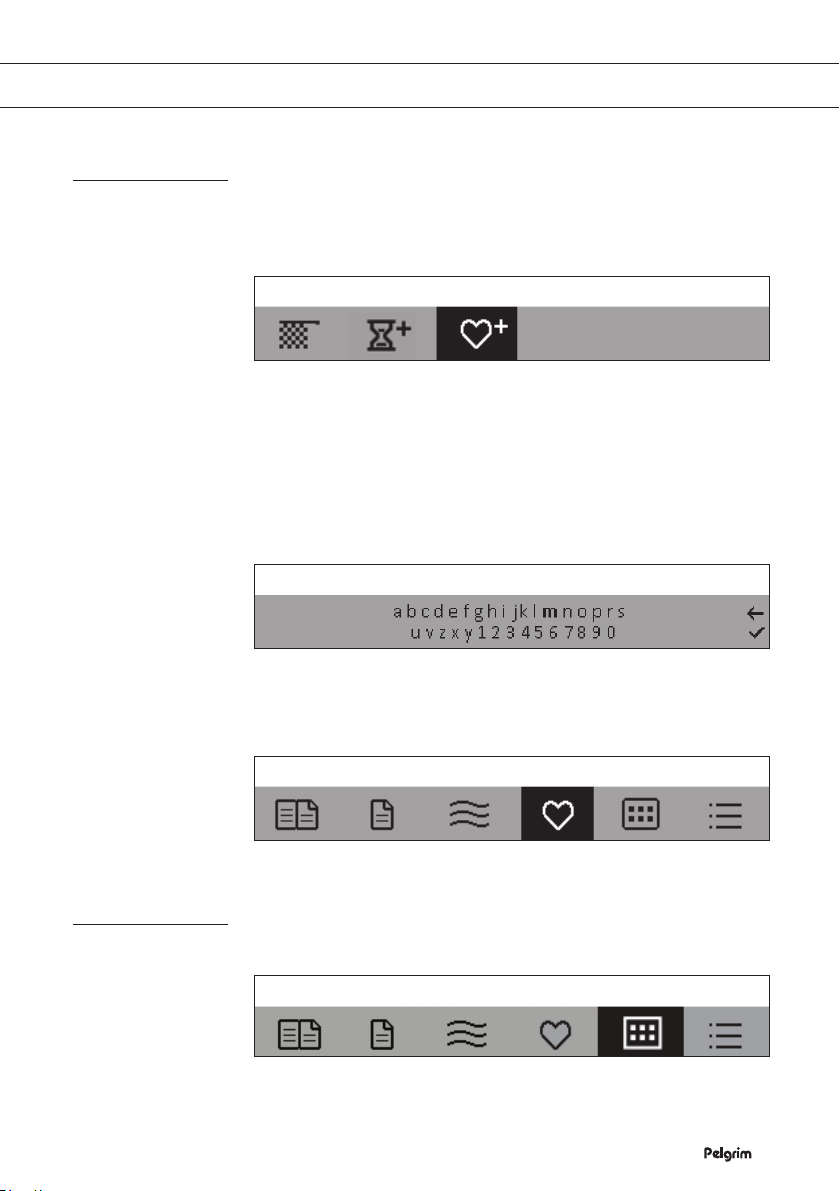

My mode 12:07
Recall stored recipes
You may recall your favourite recipes stored in the memory at any time
by selecting the option ‘My mode’ (in the basic menu).
My mode 12:07
Extra (selection of additional functions)
Select the option ‘Extra’, and the display indicates the choice of
additional functions.
Extra 12:07

EN 20
USE
Cleaning
With the cleaning function and a damp cloth, you can easily remove
grease and dirt from the oven walls (see chapter ‘Cleaning’).
Extra l Cleaning 12:07
Defrost
This function uses microwaves. Dishes are defrosted quickly and
efficiently. Use this function for slow defrosting of frozen dishes (cakes,
biscuits, cookies, bread, bread rolls and frozen fruit).
• Turn the food over after half the defrost time has elapsed; stir the
food or break up large pieces if these are frozen together.
Extra l Defrost 12:07
Settings (general settings)
Select ‘Settings’ with the ‘Multi-function selector’ and confirm by
pressing the ‘Multi-function selector’.
Settings 12:07
This menu offers the choice of selecting:
• Language
• Time
• Sound
• Display
• Cooking settings
• Other settings
