Pelican Water Technologies EZ Connect PSE-500 User manual

1. Unpackage and account for all items before starting installation.
2. Determine location and water ow direction for system.
3. Install covers onto bracket orientating the INLET and OUTLET
correctly. Use 4 bolts and washers in each cover to attach.
Assembly
A. (12) Machine Bolts & Washers
B. (3) Lag Bolts & Washers
C. (1) Spanner Wrench
D. (3) 20” Housings w/Covers
E. (1) Sediment Cartridge
F. (1) Chloramine Cartridge
G. (1) NaturSoft Cartridge
H. (1) Mounting Bracket
I. (3) Decals
J. (1) Silicone Grease
Items Included:
MODEL: PSE-500
Specications:
Rated Service Flow 5 gpm
Minimum Working
Pressure 25 psi
Maximum Working
Pressure 80 psi
Operating
Temperatures 36°F - 120°F
PH Range 6 - 11

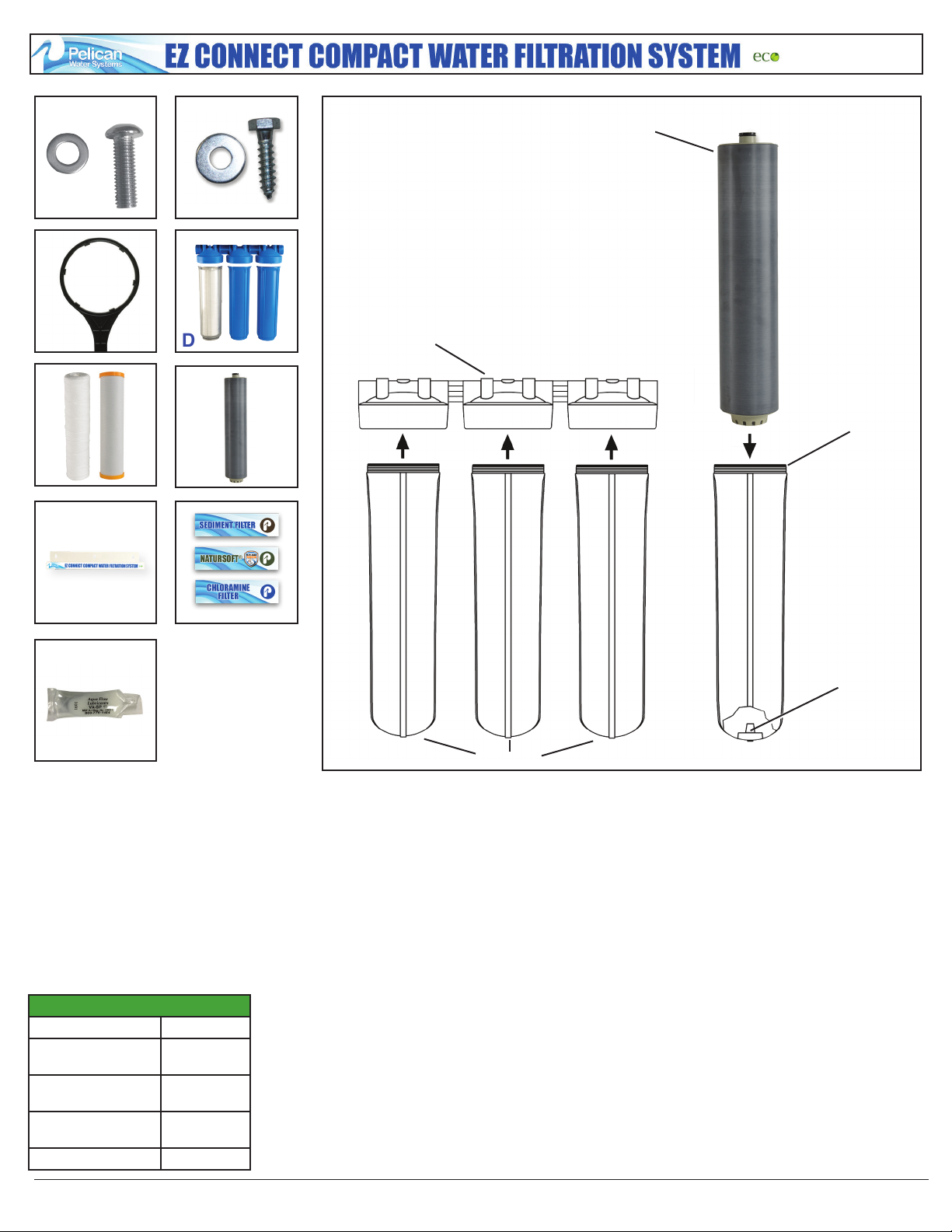

NaturSoft Cartridge
(Install as Shown)
Housing Cover
Housings
Stand Pipe
O-Ring
© Pelican Water Systems 3060 Performance Circle • Deland, FL • 32724 877-842-1635 www.pelicanwater.com
A
E F
B
CD
G
H I
J
Fig. A
EZC_2019-3_Rev_C

1. Install bracket to wall using appropriate fasteners (3 qty, 5/16” x 2” stainless lag bolts included).
2. Once the bracket is mounted you can now attach your plumbing to the INLET and OUTLET with 1” male threaded adaptions
(not included). (Plumbing a shut off valve prior and a bypass around the unit is recommended).
3. Apply corresponding decals to each of the covers as shown. (Sediment on Inlet side, NaturSoft®in middle, Chloramine on
Outlet side).
4. Unwrap cartridges and insert into each of the housings centering on the stand pipe. (Install NS Cartridge as shown in Fig. A)
5. Thread housings onto the corresponding covers counter clockwise. Snug housings (Do Not Overtighten).
6. Slowly turn on water main to ll housings.
7. Open the nearest faucet and run water for 10 minutes to expel any
carbon nes.
8. After 10 minutes turn off faucet.
9. Your system is now ready for use.
Installation

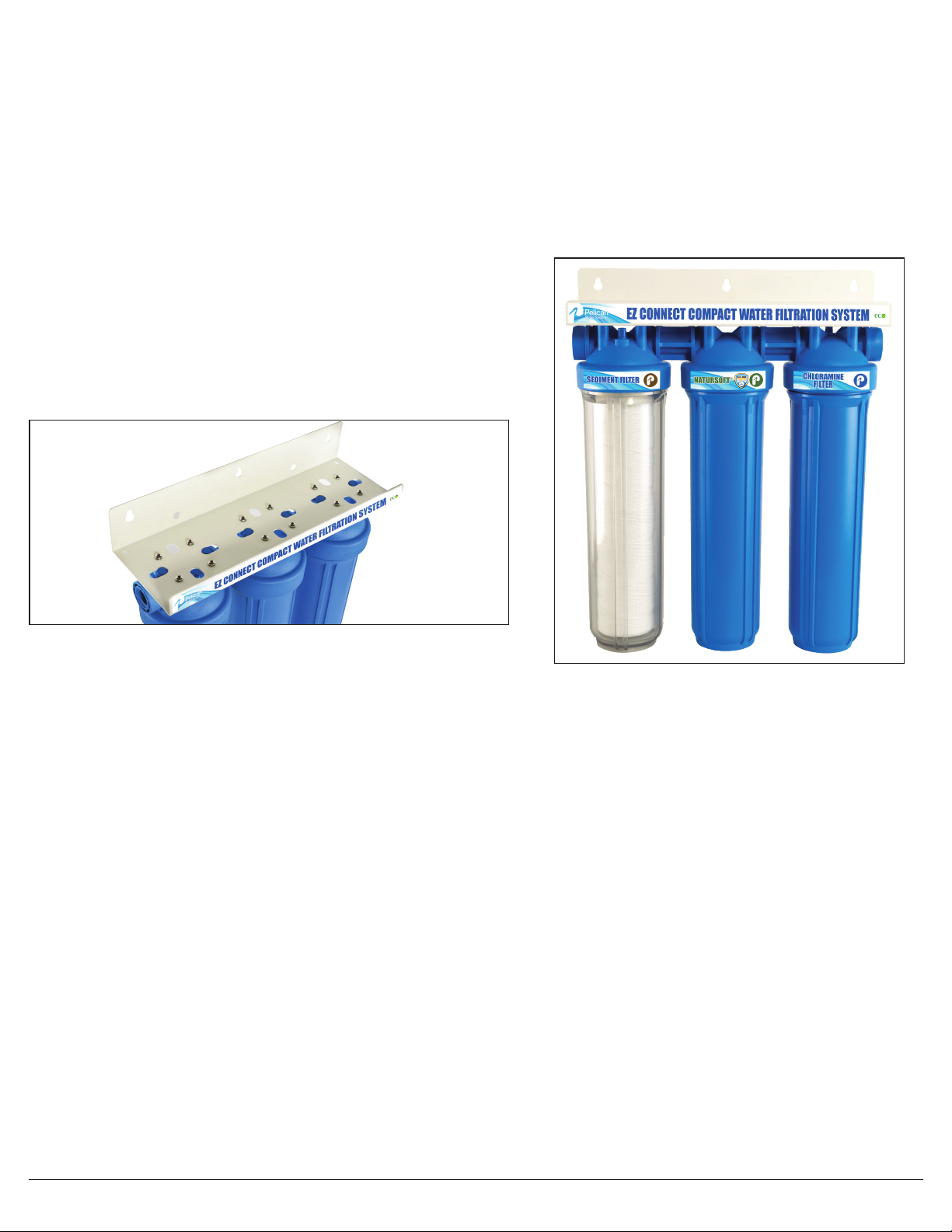

Top of Pelican EZ Connect PSE-500
Front of Pelican EZ Connect PSE-500
WARNING:
If this or any other system is installed in a metal (conductive) plumbing system, i.e. copper or galvanized metal, the plastic
components of the system will interrupt the continuity of the plumbing system. As a result any errant electricity from improperly
grounded appliances downstream or potential galvanic activity in the plumbing system can no longer ground through
contiguous metal plumbing. Some homes may have been built in accordance with building codes, which actually encouraged
the grounding of electrical appliances through the plumbing system. Consequently, the installation of a bypass consisting of the
same material as the existing plumbing, or a grounded “jumper wire” bridging the equipment and reestablishing the contiguous
conductive nature of the plumbing system must be installed prior to your systems use.
Cartridge Replacement
1. Turn off main water supply
2. Open the nearest faucet (leave open)
3. Apply wrench to housing & turn clockwise to loosen (to the left)
4. Remove and discard old O-ring and cartridge
5. Unwrap and install a new cartridge centering on stand pipe
6. Install a new O-ring lubricated with food grade silicone grease
7. Re-install housing and tighten
(Do not over tighten)
8. Turn main water supply on slowly to allow the
system to ll, the air will expel through the open
faucet
* When replacing the chloramine cartridge, you will need to run
water at the nearest faucet for 10 minutes to expel any carbon
 nes.
9. Close faucet and check for leaks
Maintenance:
- The Sediment and Chloramine cartridges will need to be replaced every 6 months.
- The NaturSoft cartridge will need to be replaced every 5 years.
EZC_2019-3_Rev_C
© Pelican Water Systems 3060 Performance Circle • Deland, FL • 32724 877-842-1635 www.pelicanwater.com

3060 Performance Circle • Deland, FL • 32724 877-842-1635
PSE500-RevB-0119
PelicanWater.com
Pelicans Limited Lifetime Warranty
Pelican Water ("Pelican") warrants to the end user ("customer") that its tanks (13" and smaller), valves, in/out non-electric
heads, bypass's, fittings and housings for POE systems ("Covered Items") will be free from defects in material and workmanship
under normal use and service for a limited lifetime of twelve (12) years from the date of original purchase**.
Limitations and Responsibilities
Pelican's obligation to the customer under these warranties shall be limited, at Pelican's option, to replacement or repair of
Covered Items by these warranties, labor is not covered. These warranties do not cover replacement filter cartridges, elements
or lamps. Prior to return or repair of Covered Items, the customer must obtain a return goods authorization number from Pelican
by/at and at Pelicans option, return the Covered Items freight prepaid. Any Covered Item repaired or replaced under these
warranties will be returned prepaid standard freight to the original point of shipment. Expedited freight options are available at
customer expense.
No warranty is made, and is explicitly excluded, with respect to defects or damages due to neglect, misuse, alterations, accident,
misapplication, physical damage, or damaged caused by fire, acts of God, or freezing. These warranties apply only to the
original registered owner so long as the owner owns/lives in the home in which the unit was originally installed. Customer must
register their system with Pelican within 90 days of purchase* in order to obtain a warranty. Warranty will discontinue after the
unit is removed from the location where it was originally installed. Warranty begins on the date of delivery of product to the
customer. Improper maintenance of system (ie not replacing filters or media, for example) on time will be considered "neglect"
and explicitly excluded from the warranty. Installation of any system on water conditions outside of or beyond the recommended
specs of any system voids any warranty.
Pelican gives this warranty to the original owner/customer in lieu of all other warranties, express or implied, including without
limitation any implied warranties of merchantability or fitness for a particular purpose or treatment of certain water and hereby
expressly disclaims all other such warranties. THE WARRANTIES PELICAN GIVES IN THE ABOVE PARAGRAPHS ARE
EXCLUSIVE, PELICAN DISCLAIMS ALL OTHER WARRANTIES, EXPRESS, IMPLIED OR STATUTORY AND SPECIFICALLY
DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR IMPLIED
WARRANTY OF WORKMANLIKE PERFORMANCE. Pelican's liability hereunder shall not exceed the cost of the product.
Under no circumstances will Pelican be liable for any incidental or consequential damages or for any other loss, damage or
expense of any kind, including loss of use, arising in connection with the installation or use or inability to use the Covered Items
or any water treatment system the Covered Items are incorporated into. These warranties are governed by the laws of the state
of Florida and may change at any time without notice..
*Failure by California and Quebec residents to complete the product registration form does not diminish their warranty rights.
**For all orders placed on or after June 3rd, 2011.
Warranty
MODEL: PSE-500
