pellenc CONVERTOR User manual

CONVERTOR
CONVERTOR 12V/43V
Operating instructions 77726
09/2020
ENG
Translation of orig-
inal user guide
READ THE USER GUIDE CAREFULLY BEFORE USE
.

CONVERTOR CONVERTOR 12V/43V
77726
TABLE OF CONTENTS
1. INTRODUCTION ..................................................................................................................... 4
2. SAFETY ................................................................................................................................... 5
2.1. SAFETY MEASURES ASSOCIATED WITH THE USE OF THE CONVERTOR ............................ 5
2.2. SAFETY MEASURES ASSOCIATED WITH THE USE OF THE TOOL ......................................... 5
2.3. SAFETY SIGNAGE .......................................................................................................................... 5
3. DESCRIPTION AND TECHNICAL CHARACTERISTICS ...................................................... 7
3.1. DESCRIPTION .................................................................................................................................. 7
3.2. TECHNICAL CHARACTERISTICS .................................................................................................. 7
4. COMMISSIONING ................................................................................................................... 8
5. USING THE TOOL .................................................................................................................. 9
5.1. START UP IN “PULSE” MODE (OLIVIUM ONLY) ......................................................................... 9
5.2. START-UP IN “CONTINUOUS” MODE .......................................................................................... 9
5.2.1. OLIVIUM ............................................................................................................................................ 9
5.2.2. OLIVION .......................................................................................................................................... 10
5.3. INDICATOR LIGHT ........................................................................................................................ 10
6. WARRANTIES ...................................................................................................................... 11
6.1. GENERAL WARRANTIES ............................................................................................................. 11
6.1.1. STATUTORY WARRANTY ............................................................................................................... 11
6.1.2. COMMERCIAL WARRANTYPELLENC .............................................................................................. 11
6.1.3. PAID AFTER-SALES SERVICE ........................................................................................................ 12
7. COMPLIANCE STATEMENTS ............................................................................................. 14
7.1. "EC" DECLARATION OF CONFORMITY: CONVERTOR 12V/43V ............................................. 14
3

CONVERTOR CONVERTOR 12V/43V
77726
1. INTRODUCTION
Dear Customer,
Thank you for purchasing your Convertor Convertor 12V/43V . Correctly used and maintained, this tool will give a
satisfactory performance for many years.
Warning
Your device contains numerous recoverable or recyclable materials. Return it to your
dealer or, failing this, to an approved servicing centre to be treated.
Comply with the regulations in force in your country as concerns environmental protection associated with your
activity.
Warning
It is imperative that you read through the ENTIRE user’s manual before using or servicing the
tool. Always comply with the instructions and illustrations in the manual.
All through this user guide you will find advisory notes and information entitled: NOTE, IMPORTANT, ATTENTION
and WARNING.
The points marked “NOTE” indicate additional information.
The points marked “IMPORTANT” warn the user of a potential risk to the equipment.
The points marked “ATTENTION” warn the user of a potentially hazardous situation which if not avoided leads to
minor injuries.
The points marked “WARNING” warn the user of a potentially hazardous situation which if not avoided leads to
serious injury or death.
The warning indicates that damage resulting from failure to comply with the procedures and instructions is not
covered by the warranty and the owner will be liable for any repair costs.
Safety indications are also given on the tool; they remind you of the safety precautions to be taken. Identify and
read these indications before using the tool. Immediately replace any indications that may become partially illegible
or deteriorated.
Refer to Section 2.3, “Safety signage” for the location diagram of the safety stickers affixed to the tool.
No part of this manual may be reproduced without the written permission of the company PELLENC. The illustrations
given in this manual are for information purposes and are in no way contractual. The PELLENC company reserves
the right to make any modification or improvement to its products as deemed necessary without informing customers
already in possession of a similar model. This manual forms an integral part of the tool and must accompany the
tool if it changes hands.
4

CONVERTOR CONVERTOR 12V/43V
77726
2. SAFETY
• The Convertor Convertor 12V/43V is a professional tool whose use is reserved exclusively for working with Olivium
or Olivion PELLENC.
• The PELLENC company accepts no responsibility for any damage caused by improper or unspecified use different
from its original intention.
• The PELLENC company accepts no responsibility for any damage caused by the use of non-original parts or
accessories.
2.1. SAFETY MEASURES ASSOCIATED WITH THE USE OF THE CONVERTOR
1. When in operation, the convertor’s temperature can reach 60°C. No flammable material must be within 1.5
metres of the convertor and battery.
2. Do not introduce any metal objects into the convertor such as paper clips, coins, keys, nails, screws or other
small metal objects likely to short circuit its components.
3. Place the equipment out of children’s reach and onto a non-combustible support.
4. Do not interfere with its cooling cycle.
5. Do not use or leave the convertor near a heat source (> 45°C).
6. Do not leave the convertor in direct, strong sunlight.
7. Do not expose the convertor to microwaves or high pressure.
8. Do not immerse the convertor in water.
9. The convertor must be protected against shock and must be positioned and secured during transport phases.
10. In the event of suspicious fumes, place the convertor outside the premises or vehicle as far from any combustible
material as possible.
11. If the output cord is torn or damaged, bring the entire convertor back to the authorised distributor it was pur-
chased from.
12. Do not use the convertor for any application other than that for which it was initially intended (exclusive use
of the Pellenc Olivium or Olivion).
13. At the end of its life, the convertor must be returned to the authorised distributor it was purchased from to be
recycled in compliance with waste regulations.
14. Do not use in the rain.
15. Fragile plastic case.
16. Always attach the convertor to the top of the 12V battery using its strap.
17. Always hold the alligator clips by their insulating parts to prevent the risk of burning.
18. Risk of short circuit, observe the correct polarity during the connection.
2.2. SAFETY MEASURES ASSOCIATED WITH THE USE OF THE TOOL
Please refer to the instructions of the tool concerned.
2.3. SAFETY SIGNAGE
Do not expose to rain.
Read the user guide.
5

CONVERTOR CONVERTOR 12V/43V
77726

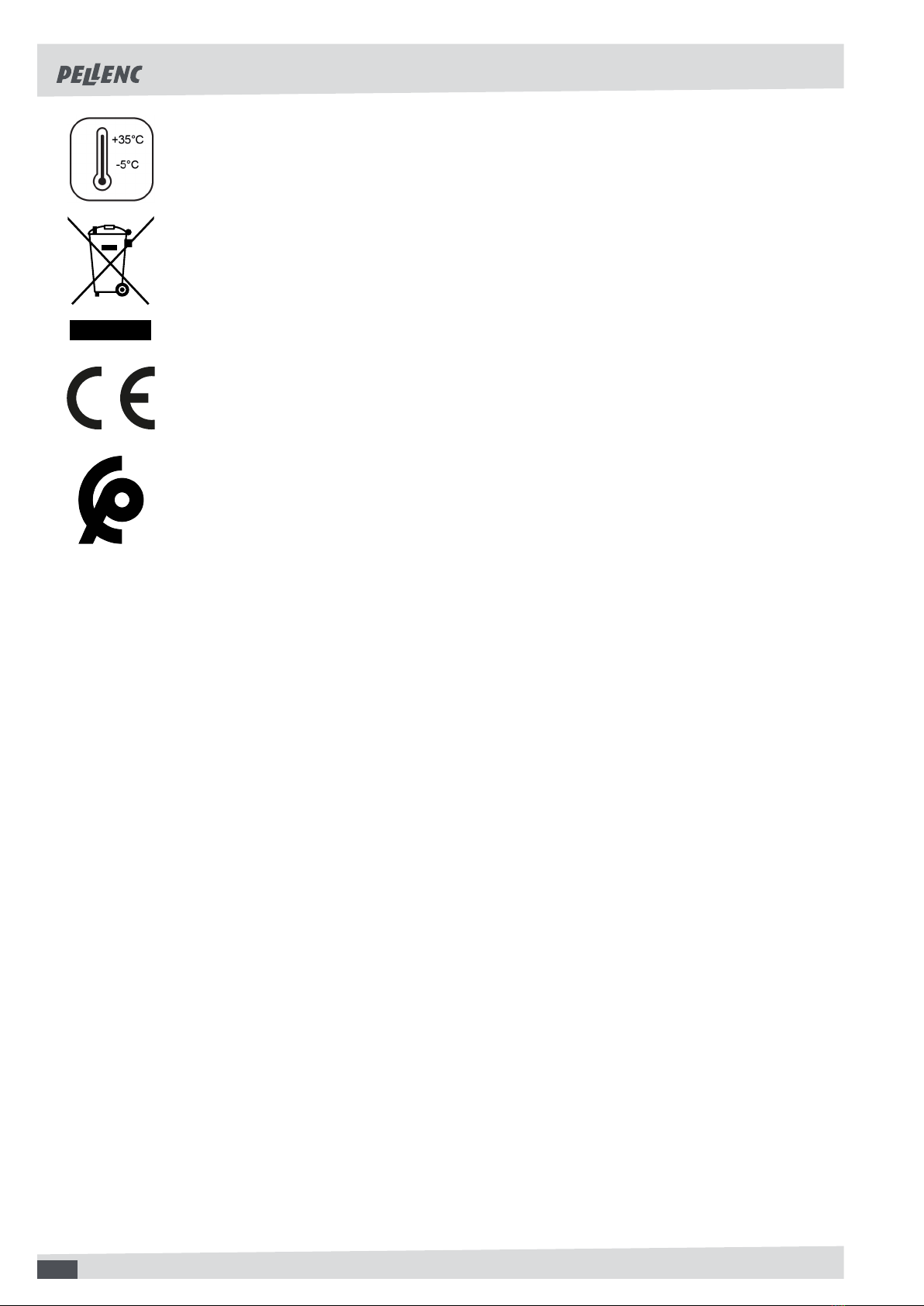

This equipment must be used at a temperature of between -5° and +35°C.
At the end of its life, the convertor must be returned to the authorised distributor it was purchased
from to be recycled in compliance with waste regulations.
Equipment compliant with EC standards.
Equipment compliant with Moroccan standards.
6

CONVERTOR CONVERTOR 12V/43V
77726

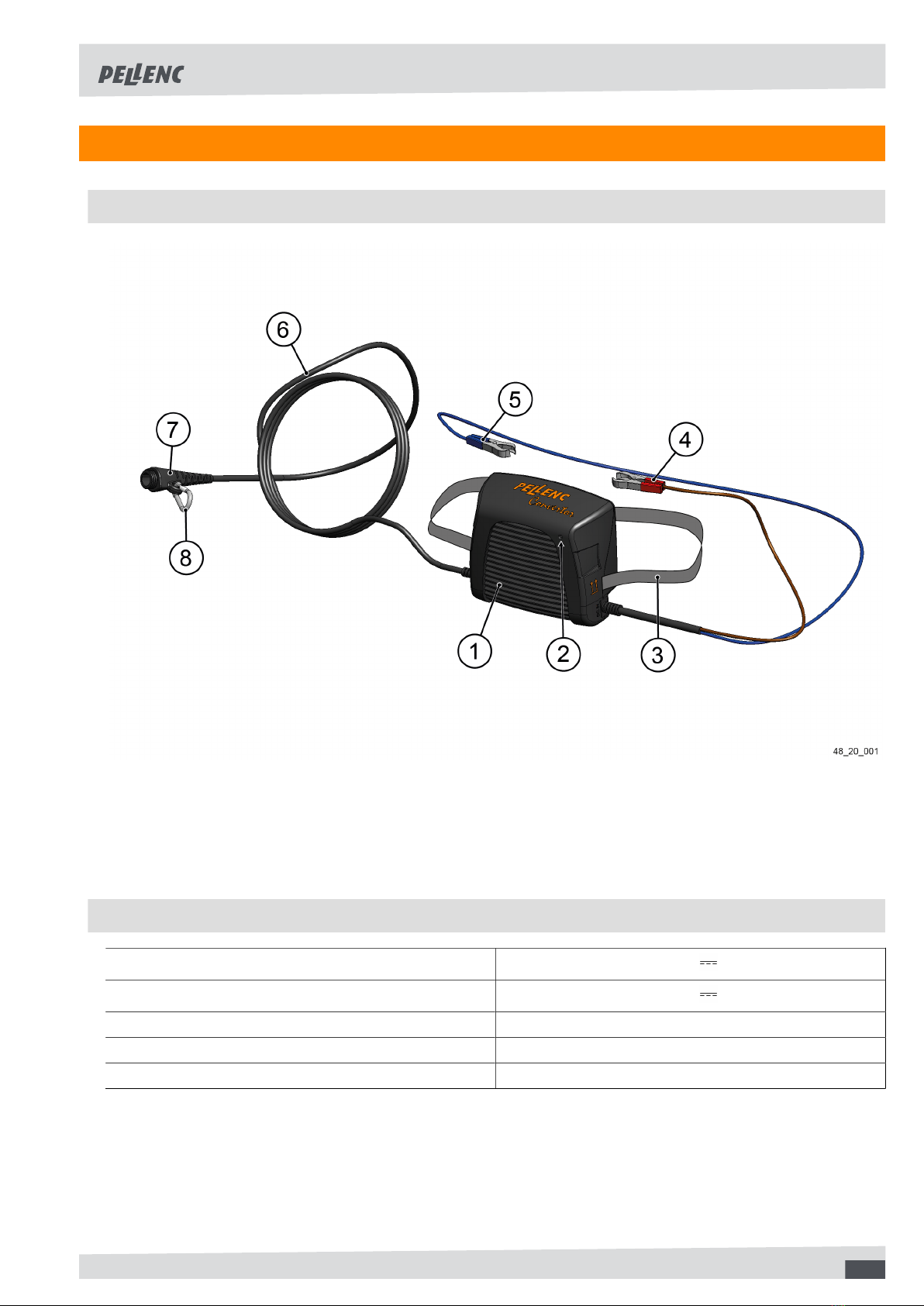

3. DESCRIPTION AND TECHNICAL CHARACTERISTICS
3.1. DESCRIPTION
1. Convertor
2. Indicator light
3. Strap
4. Red alligator clip (+)
5. Black alligator clip (-)
6. Cord
7. Tool connector plug
8. Snap hook
3.2. TECHNICAL CHARACTERISTICS
Rated battery voltage 12 V
Output voltage 43 V
Output current 4.5 A
Weight of the convertor unit 2.5 kg
Minimum battery capacity 60 Ah
7

CONVERTOR CONVERTOR 12V/43V
77726
4. COMMISSIONING
1. Remove the case from the packaging.
2. Fix the case vertically to the 12V battery using the
strap provided. The arrows (mark A) must always
point upwards.
48_20_002
3. Connect the tool’s power cord to the connector plug
of the casing(mark B).
4. Attach the cord’s snap hook clasp (mark C) to your
waist.
48_20_003
8

CONVERTOR CONVERTOR 12V/43V
77726
5. USING THE TOOL
5.1. START UP IN “PULSE” MODE (OLIVIUM ONLY)
"Pulse" mode: The tool operates only when the trigger is
pressed. It stops operating when the trigger is released.
1. Put the tool in start-up position (please refer to the
instructions of the tool concerned).
2. Connect the black alligator clip (mark D) to the neg-
ative (-) terminal of the battery.
3. Connect the red alligator clip (mark E) to the positive
(+) terminal of the battery.
The tool is now powered up and ready to operate in ON/
OFF mode.
48_20_005
5.2. START-UP IN “CONTINUOUS” MODE
5.2.1. OLIVIUM
"Continuous" mode: the tool starts with a single press
of the trigger and does not stop unless the trigger is
pressed again.
1. Connect the black alligator clip (mark D) to the neg-
ative (-) terminal of the battery.
2. Put the tool in start-up position (please refer to the
instructions of the tool concerned).
3. Press the trigger of the tool (mark F) and with the
other hand connect the red alligator clip (mark E) to
the positive (+) terminal of the battery while keeping
the trigger pressed.
The tool is now powered up and ready to operate in “Con-
tinuous” mode.
48_20_004
9

CONVERTOR CONVERTOR 12V/43V
77726
5.2.2. OLIVION
1. Put the tool in start-up position (please refer to the
instructions of the tool concerned).
2. Connect the black alligator clip (mark D) to the neg-
ative (-) terminal of the battery.
3. Connect the red alligator clip (mark E) to the positive
(+) terminal of the battery.
The tool is now powered up and ready to operate in
“Continuous” mode.
4. Turn the tool’s switch to “I” to start the tool (mark G)
Warning
Never operate the tool with the rake
posed on the ground. 48_20_006
5.3. INDICATOR LIGHT
STATUS MEANING
GREEN Normal operation
RED Battery voltage < 10V (discharged battery…)
Battery voltage > 18V (poor battery, 24V…)
SWITCHED OFF Alligator clips wrongly positioned
Inverted polarities
10

CONVERTOR CONVERTOR 12V/43V
77726
6. WARRANTIES
6.1. GENERAL WARRANTIES
6.1.1. STATUTORY WARRANTY
- 6.1.1.1. LATENT DEFECTS WARRANTY
Apart from the commercial warranty provided for under Article II, Article 1641 of the Civil Code provides that "the
seller is bound to a warranty on account of latent defects of the object sold which render it unfit for the use for which
it was intended, or which would impair said use to the extent that the buyer would not have acquired it, or would
only have given a lesser price for it, had he known of them".
Article 1648 of the Civil Code "The action resulting from latent defects must be brought by the purchaser within two
years after the discovery of the defect. "
- 6.1.1.2. LEGAL WARRANTY OF CONFORMITY
Article L.217-4 of the Consumer Code "The seller delivers goods in conformity with the contract and is liable for
defects of conformity existing upon delivery.
The seller is also liable for any lack of compliance resulting from the packaging, assembly or installation instructions
whenever its contractual liability is engaged in this regard or the latter are carried out under its responsibility
Article L.217-5 of the French Consumer Code “Goods are compliant with the contract”:
1. Where they are fit for the purpose normally expected of similar goods and, where applicable:
• If it matches the description given by the seller and possesses the qualities that were presented to the pur-
chaser in the form of a sample or model;
• If it possesses the qualities that a purchaser can reasonably expect given the public statements made by the
seller, the producer or its representative, especially in advertising or labelling;
2. Or, if it has the characteristics defined by mutual agreement of the parties or is fit for any particular purpose
that the buyer made known to the seller and that the latter accepted.
Article L.217-12 of the Consumer Code "legal action resulting from lack of conformity lapses two years after delivery
of the goods".
6.1.2. COMMERCIAL WARRANTYPELLENC
- 6.1.2.1. CONTENT
6.1.2.1.1. GENERAL INFORMATION
In addition to legal warranties, client users benefit from the commercial warranty on products PELLENCcovering the
exchange and replacement of parts recognised as being out of order, due to machining defects, assembly defects
or material defects, whatever the cause.
The warranty is fully integral to the product sold by PELLENC.
6.1.2.1.2. SPARE PARTS
The commercial warranty also covers original PELLENCspare parts, excluding labour and to the exclusion of certain
parts of each product provided at delivery.
11

CONVERTOR CONVERTOR 12V/43V
77726
- 6.1.2.2. DURATION OF THE WARRANTY
6.1.2.2.1. GENERAL INFORMATION
PELLENC Products are guaranteed under the commercial warranty as from delivery to the customer for a period
of two (2) years for products connected to a PELLENC battery, and for a period of one (1) year for other PELLENC
products.
6.1.2.2.2. SPARE PARTS
PELLENC Replacement parts replaced under the product warranty are guaranteed under the commercial warranty
as from delivery of the PELLENCproduct to the customer user for a period of two (2) years for products connected
to a PELLENCbattery, and for a period of one (1) year for other PELLENCproducts.
In the case of products connected to a PELLENCbattery, parts that are replaced under the product warranty after
the 12th month of use, are covered for a period of one (1) year.
6.1.2.2.3. WARRANTY EXCLUSIONS
Excluded from the commercial warranty are products that have been subject to abnormal use, or were used under
conditions and for purposes other than those for which they were manufactured, especially in the case of non-
compliance with conditions stipulated in this user manual.
It does not apply in case of shock, fall, neglect, lack of supervision or maintenance or in case of transformation
of the product. Also excluded from the warranty are products that have been subject to tampering, alteration or
modification by the client user.
Wear parts and/or consumables cannot be covered by the warranty.
- 6.1.2.3. IMPLEMENTATION OF THE COMMERCIAL WARRANTY
6.1.2.3.1. PRODUCT COMMISSIONING AND COMMISSIONING DECLARATION
The DISTRIBUTOR undertakes to complete the computer commissioning declaration form, no later than eight days
after the delivery of the property to the user customer, in order to activate the latter on the www.pellenc.com website
under "warranties and training" in the "extranet" menu, using the identifier previously provided to them by PELLENC.
Failing that, commissioning declaration will not be effective and implementation of the commercial warranty PEL-
LENC will not occur. As a consequence thereof, the DISTRIBUTOR must ensure the financial burden of its inter-
vention under the warranty without being able to pass on the cost to the client user.
The DISTRIBUTOR shall also undertake to complete the warranty card or the certificate of warranty and commis-
sioning for self-propelled equipment provided with the product after having the client user sign and date it.
6.1.3. PAID AFTER-SALES SERVICE
- 6.1.3.1. GENERAL INFORMATION
Malfunctions, breakdowns, breakages resulting from misuse, neglect or improper maintenance by the client user
as well as malfunctions resulting from normal wear of the product are subject to the payment of after-sales service,
even during the period of the legal and commercial warranty. After-sales service repairs that fall outside of the legal
and commercial warranty also include maintenance, adjustments, diagnostics of all types, and cleaning without the
present list being exhaustive.
12

CONVERTOR CONVERTOR 12V/43V
77726
- 6.1.3.2. WEAR PARTS AND CONSUMABLES
Wear parts and consumables also fall within the after-sales service.
- 6.1.3.3. SPARE PARTS
Paid after-sales service also covers original PELLENC spare parts, excluding labour and outside the legal and
commercial warranty period.
In case of replacement of original PELLENC spare parts in the context of after-sales service, said latter are covered
by a warranty of one year as from the installation date.
13

CONVERTOR CONVERTOR 12V/43V
77726
7. COMPLIANCE STATEMENTS
7.1. "EC" DECLARATION OF CONFORMITY: CONVERTOR 12V/43V
MANUFACTURER PELLENC
ADDRESS Quartier Notre-Dame - 84120 Pertuis
(France)
ENTITY AUTHORIZED TO COMPILE THE TECHNICAL FILE PELLENC
ADDRESS Quartier Notre-Dame - 84120 Pertuis
(France)
We hereby declare that the machine referred to below as:
GENERIC DENOMINATION 12VDC / 45VDC convertor
FUNCTION Provide a 43 VDC power supply from a 12 VDC battery
COMMERCIAL NAME CONVERTOR
TYPE 12V/43V CONVERTOR
MODEL 12V/43V CONVERTOR
SERIAL No. 48U00001 - 48U49999
48V00001 - 48V49999
48W00001 - 48W49999
Is in conformity with the following other directives and/or relevant provisions:
• 2014/30/EU EMC Directive
• 2011/65/EU ROHS Directive
• 1907/2006 REACH Regulation
• 2012/19/EU WEEE Directive
The following harmonised european standards were used:
• EN 55014-1: 2017
• EN 55014-2: 2015
SIGNED IN PERTUIS, DATED 30/09/2020
JEAN-MARC GIALIS
CEO
14

PELLENC
Quartier Notre Dame - 84120 Pertuis (France)
