pellenc Vinion User manual

PRUNING SHEARS AND 150 BATTERY
VINION & PRUNION
Operating instructions 26_116772-H
03/2019
ENG
Translation of the
original user guide
READ THE USER GUIDE CAREFULLY BEFORE USE
.

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
TABLE OF CONTENTS
INTRODUCTION .......................................................................................................................... 5
SAFETY ....................................................................................................................................... 5
GENERAL SAFETY INSTRUCTIONS FOR THE ELECTRICAL TOOL ................................................ 5
WORK AREA SAFETY ................................................................................................................................ 6
ELECTRICAL SAFETY ................................................................................................................................ 6
PERSONAL SAFETY .................................................................................................................................. 6
POWER TOOL USE AND CARE ................................................................................................................. 7
BATTERY TOOL USE AND CARE. .............................................................................................................. 7
SERVICE .................................................................................................................................................... 7
TOOL’S END OF LIFE MANAGEMENT ........................................................................................................ 8
SAFETY WARNINGS FOR BATTERY-POWERED SHEARS ............................................................... 8
SAFETY MEASURES ASSOCIATED WITH BATTERY USE ................................................................ 8
SAFETY MEASURES WHEN USING THE "PELLENC" CHARGER .................................................... 9

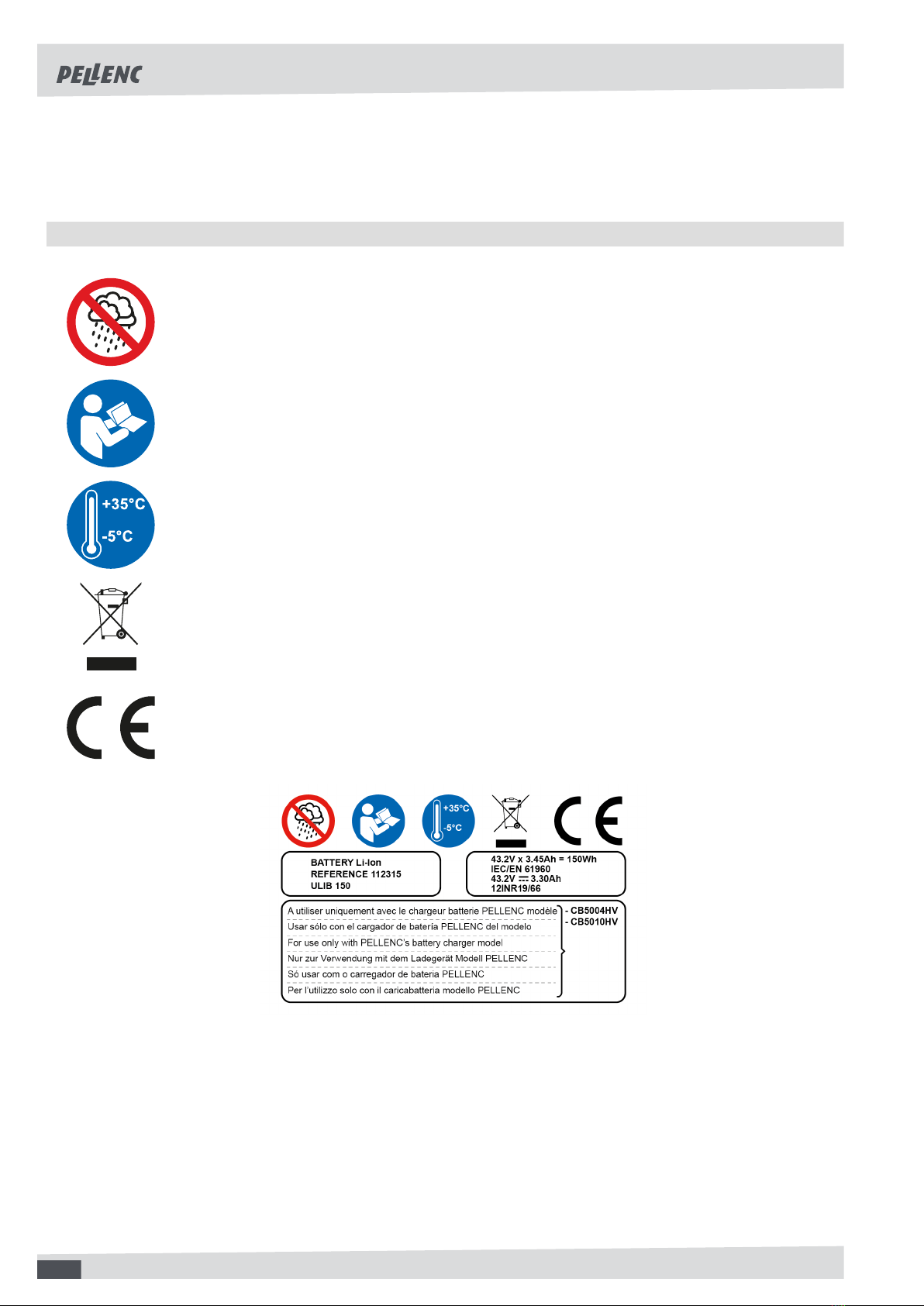

SAFETY SIGNAGE ............................................................................................................................... 10
PERSONAL PROTECTION EQUIPMENT ............................................................................................ 11
DESCRIPTION AND TECHNICAL CHARACTERISTICS ........................................................ 12
DESCRIPTION OF PRUNER + BATTERY + CHARGER COMBINATION .......................................... 12
DESCRIPTION OF CUTTING HEAD .................................................................................................... 13
TECHNICAL SPECIFICATIONS OF THE PRUNERS .......................................................................... 13
VINION ...................................................................................................................................................... 13
PRUNION .................................................................................................................................................. 14
BATTERY TECHNICAL CHARACTERISTICS ..................................................................................... 14
150 AND 150P BATTERY CHARGING TIME BASED ON THE CHARGER USED ............................ 14
START UP ................................................................................................................................. 15
PUTTING THE PRUNING HOLSTER ON THE BELT .......................................................................... 15
PUTTING THE PRUNING HOLSTER AROUND THE THIGH ............................................................. 16
PUTTING THE LEAD AND WRIST STRAP IN PLACE ....................................................................... 18
USE ............................................................................................................................................ 18
USAGE TIPS ......................................................................................................................................... 18
USAGE MODES .................................................................................................................................... 19
OPTICAL TRIGGER .............................................................................................................................. 20
CHANGING MODE ................................................................................................................................ 21
U1 / U2 / U3 / U4 MODES ......................................................................................................................... 21
"FUNCTIONAL" SETTING MODES ............................................................................................................ 21
PARAMETER SETTING MODES ............................................................................................................... 23
THE BATTERY ...................................................................................................................................... 24
CHARGING ............................................................................................................................................... 24
SERVICE ................................................................................................................................... 26
3

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
SHARPENING ........................................................................................................................................ 27
CHECK THE TIGHTNESS OF THE BLADE ........................................................................................ 27
CHANGING BLADE OR SHAFT .......................................................................................................... 27
BATTERY REPLACEMENT .................................................................................................................. 30
CHARGER MAINTENANCE ................................................................................................................. 30
OTHER MAINTENANCE ....................................................................................................................... 30
INCIDENTS AND TROUBLESHOOTING ................................................................................. 30
RECAP OF BATTERY DISPLAY MESSAGES AND AUDIBLE SIGNALS ......................................... 30
TRANSPORT / STORAGE ........................................................................................................ 31
STORAGE .............................................................................................................................................. 31
ACCESSORIES AND CONSUMABLES .................................................................................. 31
WARRANTIES ........................................................................................................................... 32
GENERAL WARRANTIES .................................................................................................................... 32
STATUTORY WARRANTY ......................................................................................................................... 32
COMMERCIAL WARRANTYPELLENC ....................................................................................................... 32
PAID AFTER-SALES SERVICE .................................................................................................................. 33
SPECIFIC WARRANTIES ..................................................................................................................... 34
COMPLIANCE STATEMENTS ................................................................................................. 35
"EC" DECLARATION OF CONFORMITY: VINION ............................................................................. 35
"EC" DECLARATION OF CONFORMITY: PRUNION ......................................................................... 36
"EC" DECLARATION OF CONFORMITY: 150 BATTERY ................................................................. 37
"EC" DECLARATION OF CONFORMITY: 150P BATTERY ............................................................... 38
"EU" DECLARATION OF CONFORMITY: CB5010HV CHARGER .................................................... 39
"EU" DECLARATION OF CONFORMITY: CB5004 CHARGER ......................................................... 40
4

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
1. INTRODUCTION
Dear Customer,
Thank you for purchasing your Pruning shears and 150 battery Vinion & Prunion. Correctly used and maintained,
this tool will give a satisfactory performance for many years.
Warning
Your device contains numerous recoverable or recyclable materials. Return it to your
dealer or, failing this, to an approved servicing centre to be treated.
Comply with the regulations in force in your country as concerns environmental protection associated with your
activity.
Warning
It is imperative that you read through the ENTIRE user’s manual before using or servicing the
tool. Always comply with the instructions and illustrations in the manual.
All through this user guide you will find advisory notes and information entitled: REMARK, CAUTION / WARNING.
A REMARK provides additional information, clarifies a point or explains a step to be followed in detail.
WARNINGS or CAUTIONS call attention to a procedure which, if not performed or incorrectly performed, could
cause physical damage and/or serious injury.
This advisory: G indicates that if the procedures or instructions are not complied with, any damage will not be
covered by the warranty and the owner will be responsible for the repair costs.
Safety indications are also given on the tool; they remind you of the safety precautions to be taken. Identify and
read these indications before using the tool. Immediately replace any indications that may become partially illegible
or deteriorated.
Refer to the "SAFETY SIGNS" section, which shows where the signs are on the tool.
No part of this manual may be reproduced without the written permission of the company PELLENC. The illustra-
tions provided in this manual are for information purposes and are in no way contractual. The PELLENC company
reserves the right to make any modification or improvement to its products as deemed necessary without inform-
ing customers already in possession of a similar model. This manual forms an integral part of the tool and must
accompany the tool if it changes hands.
2. SAFETY
2.1. GENERAL SAFETY INSTRUCTIONS FOR THE ELECTRICAL TOOL
Warning
Read all the safety measures, instructions, illustrations and specifications provided with
this electric power tool. Failure to comply with the following instructions risks causing electric
shock, fire and/or serious injury.
5

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
Note
Retain all the safety measures and instructions for later reading.
The term "power tool" in the safety warnings refers to your mains-powered electric tool (with power cord) or your
battery-powered electric tool (without power cord).
2.1.1. WORK AREA SAFETY
1. Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks, which may ignite the dust or fumes.
3. Keep children and bystanders away while operating the power tool. Distractions can cause you to lose
control.
2.1.2. ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigera-
tors. There is an increased risk of electric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of
electric shock.
4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of
electric shock.
5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) pro-
tected supply. Use of an RCD reduces the risk of electric shock.
Note
The term “residual current device (RCD)” can be replaced by the term “ground fault circuit interrupter (GFCI)”
or “earth leakage circuit breaker (ELCB)”.
2.1.3. PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use
a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
2. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal
injuries.
3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch on invites accidents.
4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving
parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can reduce dust-related hazards.
6

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
8. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool
safety principles. A careless action can cause severe injury within a fraction of a second.
2.1.4. POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will
do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the
power tool before making any adjustments, changing accessories, or storing power tools. Such preven-
tive safety measures reduce the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained
users.
5. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely
to bind and are easier to control.
7. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
8. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasp-
ing surfaces do not allow for safe handling and control of the tool in unexpected situations.
2.1.5. BATTERY TOOL USE AND CARE.
1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with another battery pack.
2. Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and fire.
3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
5. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion or risk of injury.
6. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature
above 130 °C may cause explosion.
Note
Temperature “130°C” can be replaced with temperature “265°F”
7. Follow all charging instructions and do not charge the battery pack or tool outside the temperature
range specified in the instructions. Charging improperly or at temperatures outside the specified range may
damage the battery and increase the risk of fire.
2.1.6. SERVICE
1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
2. Never service damaged battery packs. Service of battery packs should only be performed by the manufac-
turer or authorized service providers.
7

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
2.1.7. TOOL’S END OF LIFE MANAGEMENT
1. When the tool reaches the end of its life, PELLENCkeeps the end of life sheet of the equipment at
disposal. The end-of-life sheet provides instructions for safely removing components.
2.2. SAFETY WARNINGS FOR BATTERY-POWERED SHEARS
1. Never modify the connector in any way whatsoever.
2. This tool may cause severe injuries. Read the instructions carefully about the proper handling, operation, main-
tenance, start-up and stopping of the tool. Familiarize yourself with all its controls and proper use.
3. Always switch off the battery when the machine is not in use (both LEDs must be off).
4. Make sure that the blade is not in contact with any object before starting the tool.
5. Never use the tool if it is damaged, incorrectly set or incompletely assembled.
6. Never remove or disable a safety device. Have the safety device repaired if is faulty.
7. Never disconnect the power cord of the tool without having checked that the red and green LEDs on the left
and right of the battery display are off.
8. Never carry the pruning shears suspended from the power cord.
9. Do not disassemble the pruning shears.
10. Do not try to cut pieces of wood that are too large or other materials than wood.
11. Please test the machine before use to check that it is working properly.
Battery off (2 LEDs off)
The battery is on (red LED and green LED lit)
2.3. SAFETY MEASURES ASSOCIATED WITH BATTERY USE
1. If not using the battery unit, store it away from other metal objects such as paper clips, coins, keys, nails, screws
or other such small metal items that might form a connection between the two terminals. Creating a short-circuit
between the battery terminals can lead to burns or cause a fire.
8

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
2. Keep the battery out of the reach of children and place it on a non-combustible support.
3. Do not interfere with its cooling cycle.
4. Do not use or leave the battery near a heat source (> 60°C).
5. Do not leave the battery in direct, strong sunlight.
6. Do not expose the battery to microwaves or high pressure.
7. Do not immerse the battery in water.
8. The batteries must be charged in a dry, ventilated room at a temperature between 10°C and 25°C maximum,
away from any moisture.
9. If the battery is not used for 10 days, the battery will automatically discharge until it reaches its storage charge
rate, and then goes to sleep. It will heat up during this phase.
10. Over time, the capacity of your battery reduces. When it reaches half of its original autonomous operating time,
it should be replaced.
11. The battery may lose 1 to 4 % of its capacity when exposed to a temperature higher than or equal to 55 °C
for one week.
12. The charging location must be equipped with a class D fire extinguisher (for metal fire) in good working order.
13. The standards in effect must be complied with when either shipping a complete tool or a battery.
• A complete tool with a battery is a product that is classified as class 9, UN3481.
• A battery alone is a product that is classified as class 9, UN3480.
14. Use of a battery other than that provided by Pellenc SA is dangerous (risk of serious injury). If a different battery
is used, Pellenc SA cannot be held responsible for any consequences.
15. The battery must be protected from any impact and must be positioned and secured appropriately during trans-
portation.
16. In the case of suspicious smoke, place the battery outside the charging area or transportation vehicle as far
away as possible from any inflammable material.
17. Never store a battery when its capacity is below 50 %. Recharge the battery before storage if the value is
below 50%.
18. In inappropriate conditions, a liquid can flow batteries; avoid contact with it. In the event of accidental contact,
rinse with water. In the event of contact with eyes, seek professional medical help. The liquid leaking from the
batteries can cause irritations or burns.
19. Pellenc power tools must only be used with the battery units designed for the purpose. Use of other battery
units can present a risk of injury and fire.
20. Only recharge using the charger indicated by the manufacturer. A charger adapted to one type of battery unit
may present a fire risk if used with a different battery unit.
21. Do not use the battery for any purpose other than that initially envisaged (exclusively for use with Pellenc tools).
22. At the end of its life, the battery must be returned to the authorized distributor from whom it was purchased to
be recycled in accordance with waste regulations.
23. Fragile case, contains an electronic board and lithium.
2.4. SAFETY MEASURES WHEN USING THE "PELLENC" CHARGER
1. When in operation, the charger’s temperature can reach 60°C. No flammable material must be within 1.5 metres
of the charger and battery.
2. Place the charger out of children’s reach and onto a non-combustible support.
3. Do not interfere with its cooling cycle.
4. The charger supplied with the battery is designed to recharge the battery. Do not charge non-rechargeable
batteries.
5. The charging location must be equipped with a class D fire extinguisher (for metal fire) in good working order.
6. If the output cord is cut or damaged, bring the entire charger back to the authorised distributor where the tool
was purchased.
7. Only recharge using the "PELLENC" charger indicated by the manufacturer. A charger adapted to one type of
battery unit may present a fire risk if used with a different battery unit.
8. This charger is designed to charge the batteries of Pellenc's lithium tools.
9. Do not use it for any other purposes.
10. Children must be supervised to ensure they do not play with the charger.
11. Verify that the cable cannot be folded and does not touch hot surfaces or sharp edges.
12. Ensure good ventilation during the charge.
13. Never cover the charger. This charger must not be used outdoors.
14. Make sure the power connector is not exposed to water.
15. Never charge a damaged battery.
9

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
16. Grid connection must comply with national electrical regulations (EN60204-1).
17. Check the cable of the charger before using it. Never use the charger if the cable is damaged
18. When the battery is charging, place the charger on a non-flammable support, more than 1.5 m away from any
flammable object.
2.5. SAFETY SIGNAGE
Do not expose to rain.
Read the user guide.
This equipment must be used at a temperature of between -5° and +35°C.
Lithium-ion battery.
At the end of its life, the battery must be returned to the authorized distributor from whom it was
purchased to be recycled in accordance with waste regulations.
Equipment compliant with EC standards.
10

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
2.6. PERSONAL PROTECTION EQUIPMENT
Equipment Wear
1 Safety helmet --
2 Protective visor Recommended
3 Resistant gloves Recommended
4 Safety footwear Mandatory
5 Ear protection --
6 Protective goggles mandatory
7 Resistant jacket or over-sleeves Recommended
1
2
3
8
4
6
7
5
8 Work trousers Recommended
11

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
3. DESCRIPTION AND TECHNICAL CHARACTERISTICS
3.1. DESCRIPTION OF PRUNER + BATTERY + CHARGER COMBINATION
1. Pruner lead
2. Pruner connector plug
3. Pruning shears
4. Trigger
5. Elastic wrist strap
6. Wrist strap clip
7. Adjustable belt
8. Holster
9. Belt clip
10. 150 battery
11. Mode change button
12. ON/OFF button
13. Battery level display
14. ON/OFF LED
15. Grinding stone
16. Grinding stone holder
12

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
3.2. DESCRIPTION OF CUTTING HEAD
1. Trigger
2. Blade shaft
3. Blade
4. Hook
5. Knurled adjustment washer
6. Locking blade
7. CHC M6 screw
8. Lock washer
9. Clamping wheel
10. Guard
11. Rod clevis
1. Trigger
2. Optical sensor
3. Tool indicator
3.3. TECHNICAL SPECIFICATIONS OF THE PRUNERS
3.3.1. VINION
Cutting capacity up to 35 mm, depending on type of wood
Pruning shears power supply voltage 43.2 V
Average power 180 W
Battery autonomy Depending on the use and type of battery
Weight of pruning shears 680 g
Total vibration values (triax vector sum) determined in accor-
dance with EN 62841-1 (uncertainty of K=1.5 m/s²)
ah = 2.5 m/s²
Noise value measured according to standard EN 62841-1
Acoustic power level measured (uncertainty of K=3 dB) LWA=80 dB MAX
Level of acoustic pressure measured at the work station
(uncertainty of K=3 dB)
LpA=70 dB MAX
13

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
3.3.2. PRUNION
Cutting capacity up to 45 mm, depending on type of wood
Pruning shears power supply voltage 43.2 V
Average power 250 W
Battery autonomy Depending on the use and type of battery
Weight of pruning shears 860 g
Total vibration values (triax vector sum) determined in accor-
dance with EN 62841-1 (uncertainty of K=1.5 m/s²)
ah = 0.92 m/s²
Noise value measured according to standard EN 62841-1
Acoustic power level measured (uncertainty of K=3 dB) LWA = 81.1 dB
Level of acoustic pressure measured at the work station
(uncertainty of K=3 dB)
LpA = 70.1 dB
3.4. BATTERY TECHNICAL CHARACTERISTICS
Name Ulib 150
Rated battery voltage 43.2 V
Type of battery 12 cells in 1 pack
Battery capacity 3.45 Ah
Battery power 864 W
Battery energy 150 Wh
Battery autonomy Depending on the tool
Weight of the battery unit 845 grams (without cord)
Name Ulib 150P
Rated battery voltage 43.2 V
Type of battery 12 cells in 1 pack
Battery capacity 3 Ah
Battery power 1,728 W
Battery energy 130 Wh
Battery autonomy Depending on the tool
Weight of the battery unit 845 grams (without cord)
3.5. 150 AND 150P BATTERY CHARGING TIME BASED ON THE CHARGER USED
Battery 150 150P
% charge 70% 100% 70% 100%
CB5004 Charger (0.4A) 6 h 09:30 05:15 08:30
Charger CB5010 (1A) 2 hr 30 min 4.5 hrs 2 hrs 4 hrs
14

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
Important
The adapter, ref 132371, ensures compatibility between the CB5010 charger and 150/150P batteries.
4. START UP
1. Remove pruning shears, battery and belt from the packaging.
2. Check that the battery is actually turned off
Before using the battery for the first time, it must be fully charged (99% steady). (See ???)
Note
Considering the machining accuracy of the pruning shear components, to achieve optimal performance, a
breaking-in period of 2 to 3 days is useful and will allow you to appreciate the reduction in consumption and
noise.
4.1. PUTTING THE PRUNING HOLSTER ON THE BELT
15

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
4.2. PUTTING THE PRUNING HOLSTER AROUND THE THIGH
16

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
17

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
4.3. PUTTING THE LEAD AND WRIST STRAP IN PLACE
5. USE
5.1. USAGE TIPS
• You must take all necessary care to prevent catching the lead of the pruning shears in the branches. To do this,
attach the lead to your arm using the wrist strap provided. (see page 15 or 17)
• The operating time and service life of the pruning shears mainly depend keeping the blade properly sharpened
and adjusted.
• It is essential to remove the burrs (wire edge) from the cutting edge of the blade, and to file it off within the first
15 minutes of use.
• We recommend that you do not disconnect the lead of the pruning shears from the battery unit after use each
day, but wind it around the "battery" unit and replace them both in their carry-case.
There are various usage modes available to best meet your working practices and to save battery power. The
battery is supplied in the most efficient mode.
• These modes are shown on the display.
• The factory setting for the pruning shears is "performance" mode (U1).
18

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
5.2. USAGE MODES
description of operating types available
Mode U1: PERFORMANCE
• Gradual, fast operation, with half-opening
• The pruning shears LED is green when operating.
• The pruning shears LED flashes green on standby.
Mode U2: ECONOMY AND COMFORT
• Gradual, smooth operation, with half-opening.
• The pruning shears LED flashes alternately green and
red in operation.
• The pruning shears LED flashes alternately green and
red faster when on standby.
Mode U3: ALL OR NOTHING
• Fast, "on or off" operation, with half-opening.
• The pruning shears LED is red when operating.
• The pruning shears LED flashes red on standby.
19

PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H
Mode U4: RAMP-UP (factory mode)
• Gradual, fast operation, with half-opening.
• The pruning shears LED is orange when operating.
• The pruning shears LED flashes orange on standby.
Note
Removing your finger from the trigger opens the blades wide, no matter which function is chosen.
5.3. OPTICAL TRIGGER
The blade stays half-open as long as the optical system (1) detects your finger on the trigger. When your finger
releases the trigger, the optical system tells the blade to open fully.
This option helps when cutting small wood, thus saving energy. After a few minutes' use, this optical system becomes
an essential feature of your daily work.
Note
The kind of gloves worn can have an effect on the way the optical trigger works. We recommend not wearing
black gloves.
Important
If the optical trigger stops working properly, check that there is nothing obstructing the slot in the trigger or
clean the window of the optical sensor with rubbing alcohol.
20
