pellenc CULTIVION ALPHA User manual

SOIL CULTIVATOR
CULTIVION ALPHA
Operating instructions 58_163161-A
02/2022
ENG
Translation of the original op-
erating instructions manual
READ THE USER GUIDE CAREFULLY BEFORE USE
.

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
TABLE OF CONTENTS
1. INTRODUCTION ..................................................................................................................... 5
2. SAFETY ................................................................................................................................... 6
2.1. INTENDED USAGE .......................................................................................................................... 6
2.2. GENERAL POWER TOOL SAFETY WARNINGS .......................................................................... 6
2.2.1. WORK AREA SAFETY ...................................................................................................................... 6
2.2.2. ELECTRICAL SAFETY ....................................................................................................................... 6
2.2.3. PERSONAL SAFETY ......................................................................................................................... 7
2.2.4. POWER TOOL USE AND CARE ........................................................................................................ 7
2.2.5. BATTERY TOOL USE AND CARE ..................................................................................................... 7
2.2.6. SERVICING ....................................................................................................................................... 8
2.2.7. MANAGEMENT OF THE RECYCLING AND RECOVERY OF WASTE FROM YOUR TOOL ................... 8
2.3. SAFETY INSTRUCTIONS FOR THE SOIL CULTIVATOR CULTIVION ALPHA ............................ 8
2.4. SAFETY MEASURES ASSOCIATED WITH PELLENC CHARGER AND BATTERY USE ............ 8

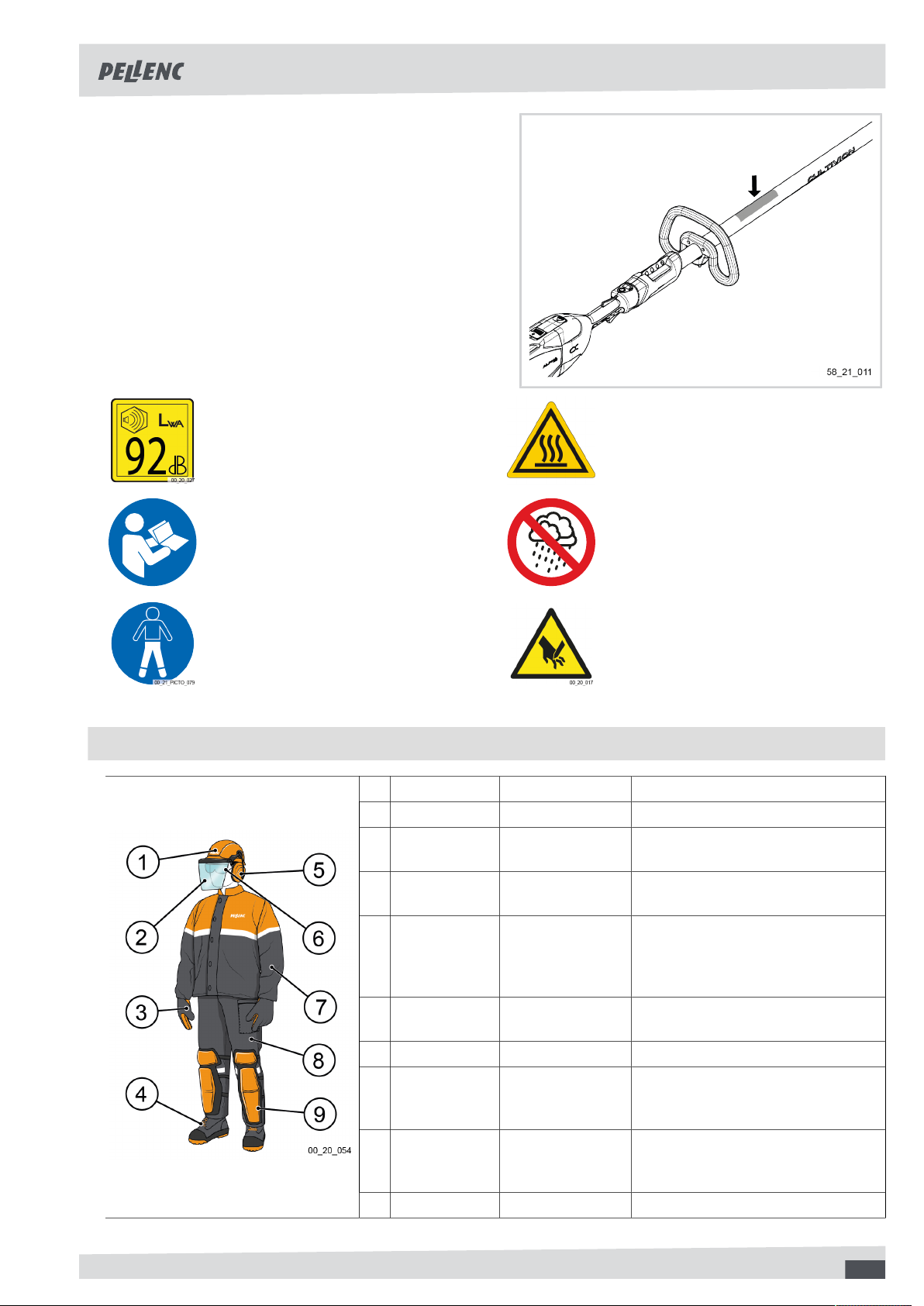

2.5. SAFETY SIGNAGE .......................................................................................................................... 8
2.6. PERSONAL PROTECTION EQUIPMENT ....................................................................................... 9
3. DESCRIPTION AND TECHNICAL FEATURES ................................................................... 10
3.1. DESCRIPTION OF THE CULTIVION ALPHA ............................................................................... 10
3.2. CULTIVION ALPHA BOX CONTENTS ......................................................................................... 11
3.3. TECHNICAL FEATURES ............................................................................................................... 11
3.3.1. GENERAL CHARACTERISTICS OF THE TOOL ............................................................................... 11
3.3.2. BATTERY COMPATIBILITY AND BATTERY LIFE ............................................................................. 12
3.3.3. VIBRATION EMISSION VALUES AND SOUND PRESSURE LEVELS ................................................ 12
4. COMMISSIONING ................................................................................................................. 14

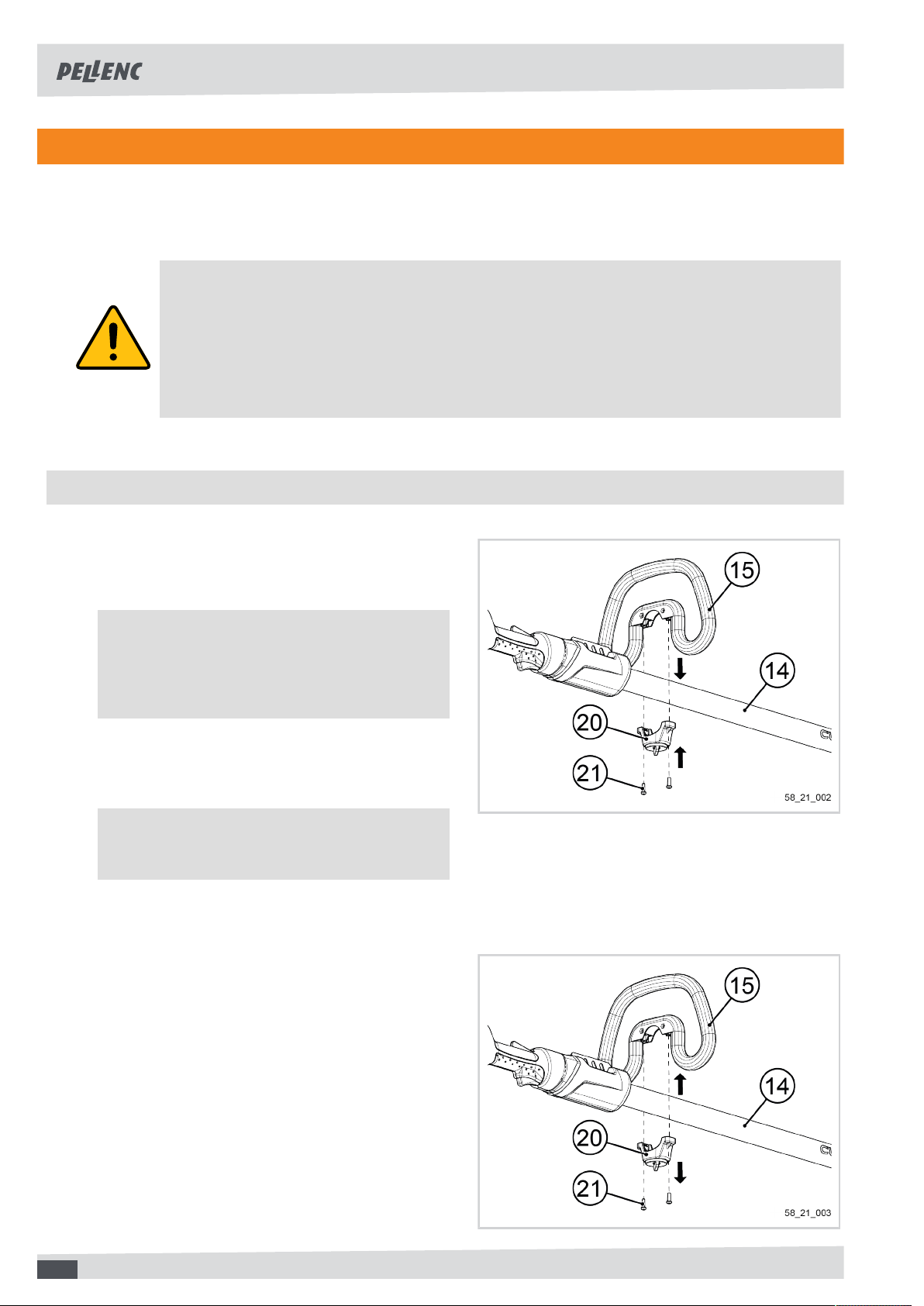

4.1. ASSEMBLING / DISMANTLING THE FRONT HANDLE .............................................................. 14
4.2. MOUNTING THE WORK TOOL ON THE HEAD OF THE CULTIVION ALPHA ........................... 15
4.2.1. FITTING THE BLADE MOUNTING ASSEMBLY ................................................................................ 15
4.2.2. FITTING THE BLADE MOUNTING ASSEMBLY ONTO THE TOOL .................................................... 16

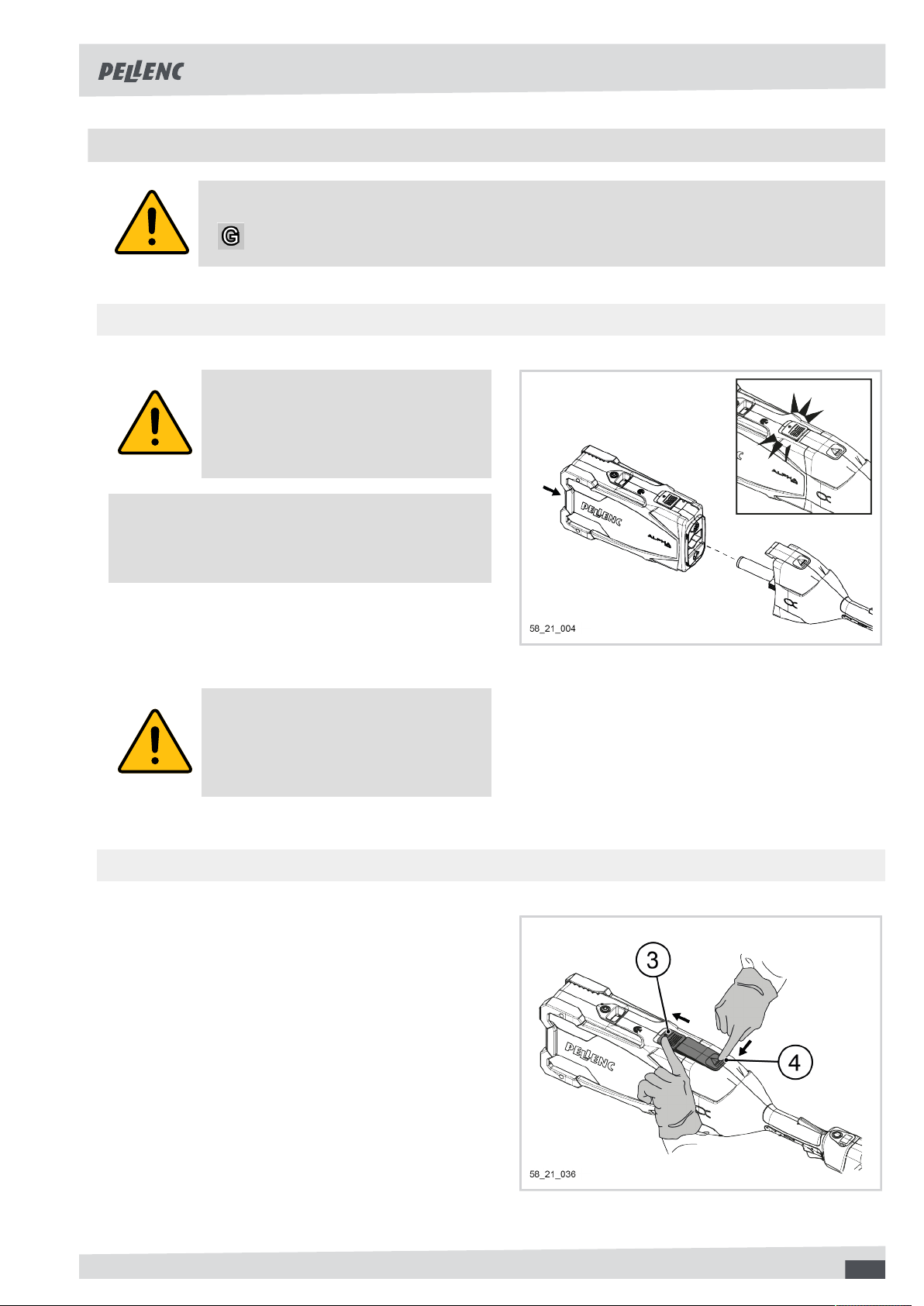

4.3. CONNECTING AND DISCONNECTING THE PELLENC ALPHA 260 OR 520 BATTERY .......... 17
4.3.1. BATTERY CONNECTION ................................................................................................................ 17

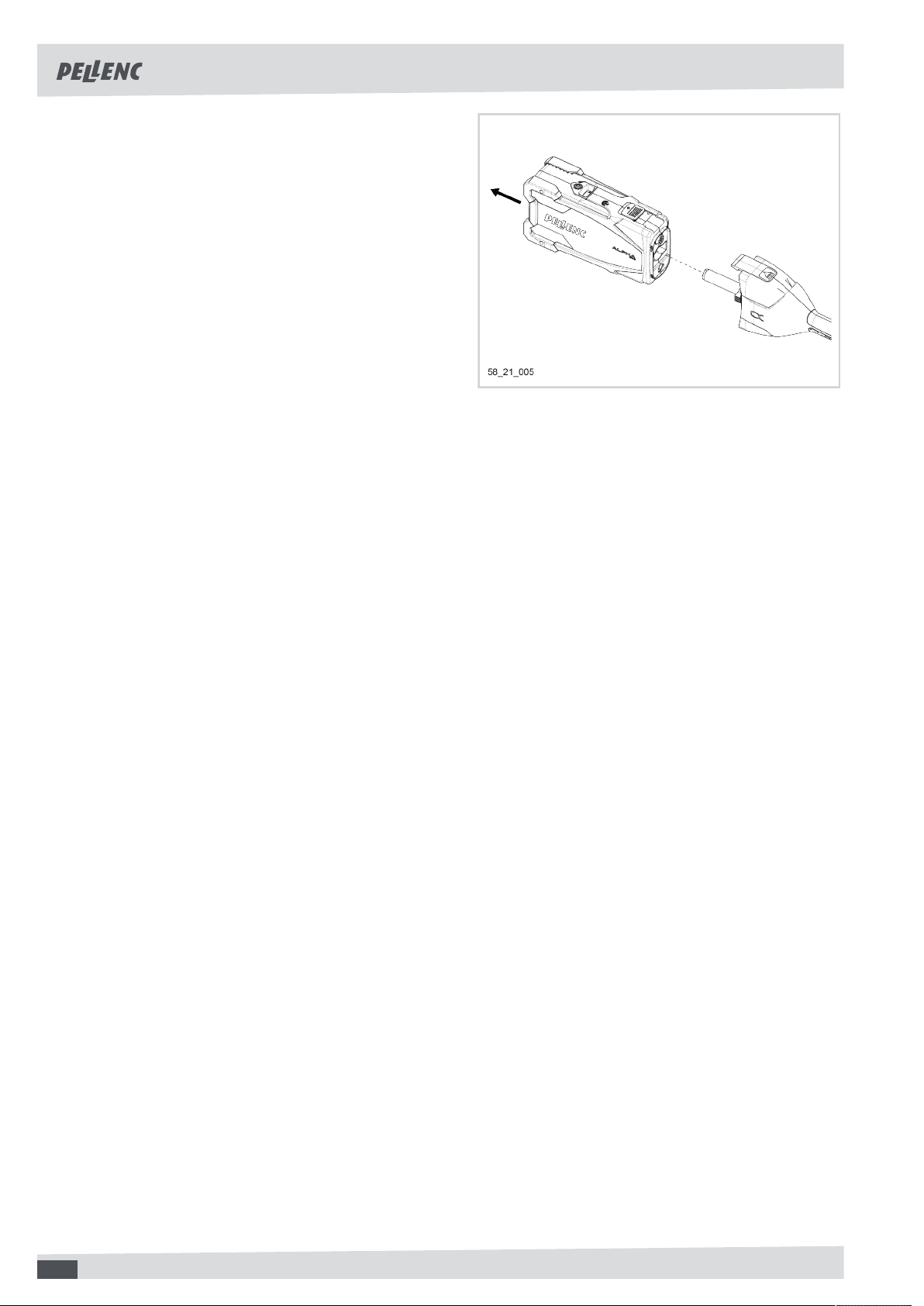

4.3.2. DISCONNECTING THE BATTERY ................................................................................................... 17
5. USAGE .................................................................................................................................. 19

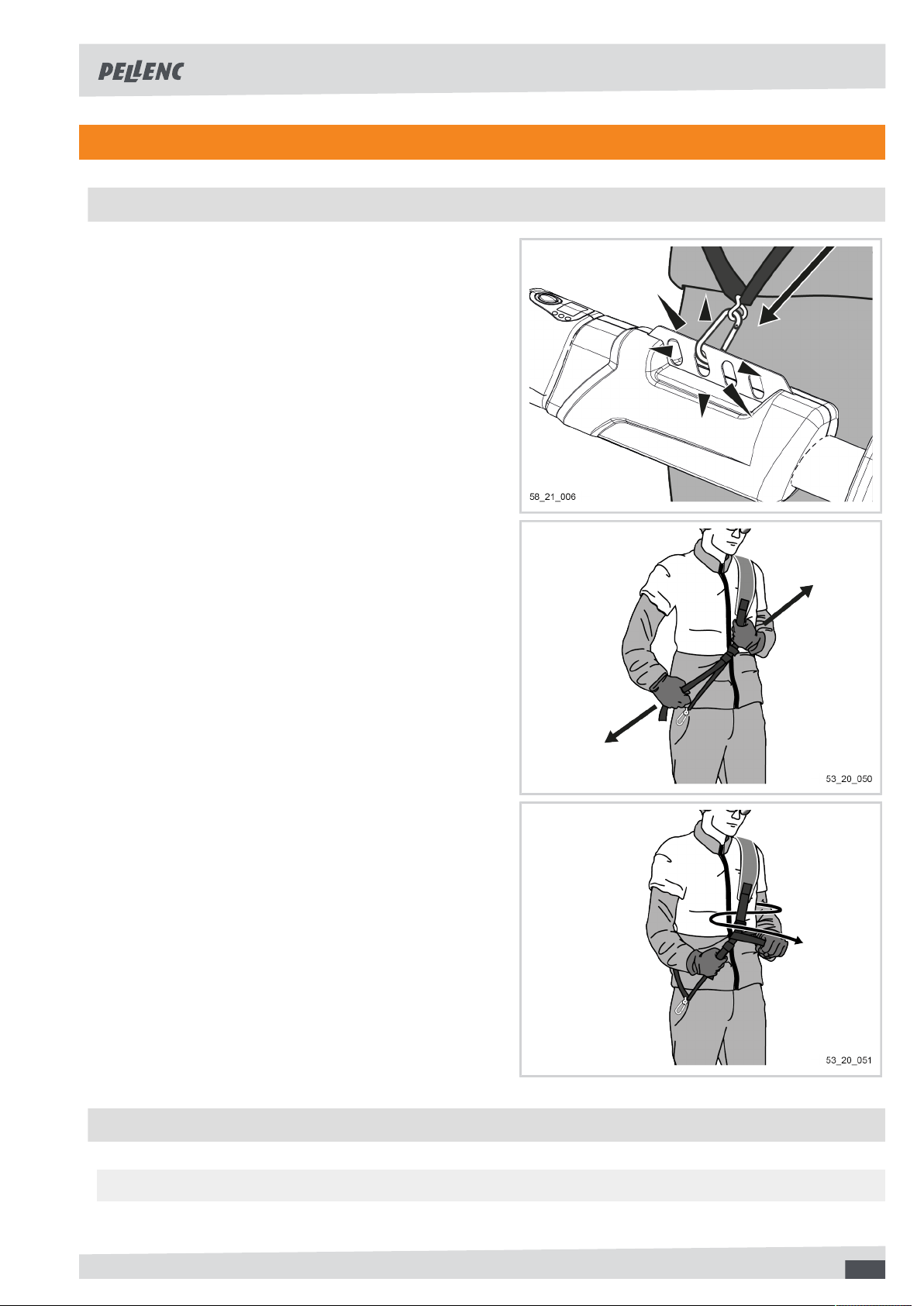

5.1. ADJUSTMENT OF THE CARRYING STRAP AND BALANCING OF THE TOOL ....................... 19
5.2. POWER ON OR OFF ..................................................................................................................... 19
5.2.1. POWERING ON ............................................................................................................................... 19
5.2.2. POWERING OFF ............................................................................................................................. 20
5.3. HOLDING THE TOOL .................................................................................................................... 21
5.4. START-UP IN NORMAL MODE .................................................................................................... 21
5.5. START-UP IN CONTINUOUS MODE ............................................................................................ 23
5.6. SPEED SELECTION ...................................................................................................................... 26
5.7. ADJUSTING THE TOOL HEAD TILTING POSITIONS ................................................................. 26
3

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
5.8. VARIOUS USES ............................................................................................................................. 28
6. MAINTENANCE .................................................................................................................... 30
6.1. MAINTENANCE TABLE ................................................................................................................ 30
6.2. MAINTENANCE ADVICE ............................................................................................................... 30
6.3. CLEANING THE TOOL .................................................................................................................. 30
6.4. CHECKING OF SAFETY DEVICE FUNCTIONS ........................................................................... 31
6.5. CHECKING THE WORK TOOL TIGHTENING ............................................................................. 31
6.6. SHARPENING THE WORK TOOL ................................................................................................ 32
6.7. CHANGING THE WORK TOOL ATTACHMENT .......................................................................... 32
7. INCIDENTS AND TROUBLESHOOTING ............................................................................. 34
7.1. TABLE OF INCIDENTS AND BREAKDOWNS - TROUBLESHOOTING ..................................... 34
8. STORAGE AND TRANSPORT ............................................................................................ 37
8.1. STORAGE ...................................................................................................................................... 37
8.2. TRANSPORT .................................................................................................................................. 37
9. ACCESSORIES ..................................................................................................................... 38
9.1. ACCESSORIES INCLUDED .......................................................................................................... 38
9.2. OPTIONAL ACCESSORIES .......................................................................................................... 38
9.3. CONSUMABLES ............................................................................................................................ 39
10. WARRANTIES .................................................................................................................... 40
10.1. GENERAL WARRANTIES ........................................................................................................... 40
10.1.1. STATUTORY WARRANTY ............................................................................................................. 40
10.1.2. COMMERCIAL WARRANTYPELLENC ............................................................................................ 40
10.1.3. PAID AFTER-SALES SERVICE ...................................................................................................... 41
11. COMPLIANCE STATEMENTS ........................................................................................... 43
11.1. STATEMENT OF COMPLIANCE: CULTIVION ALPHA ...................................................... 43
12. STATEMENT OF COMPLIANCE: CULTIVION ALPHA ............................................... 44
4

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
1. INTRODUCTION
Dear Customer,
Thank you for purchasing your Soil Cultivator Cultivion Alpha. Properly used and maintained, this equipment will
give you years of satisfaction.
Warning
Your machine contains numerous recoverable or recyclable materials. Return it to
your dealer or, failing this, to an approved servicing centre to be treated.
Comply with the regulations in force in your country as concerns environmental protection associated with your
activity.
Warning
It is imperative that you read through the ENTIRE user’s manual guide before using or servicing
the tool. Always comply with the instructions and illustrations provided in the user’s manual.
Throughout the user’s manual guide you will find advisory notes and information entitled: NOTE, IMPORTANT,
ATTENTION and WARNING.
Points marked “NOTE” indicate additional information.
Points marked "IMPORTANT" warn the user of a potential risk for the equipment.
Points marked “ATTENTION” warn the user of a potentially hazardous situations which if not avoided may result
in minor injuries.
Points marked “WARNING” warn the user of a potentially hazardous situation which if not avoided may result in
serious injury or death.
The warning indicates that damage resulting from failure to comply with the procedures and instructions is not
covered by the warranty and the owner will be liable for any repair costs.
Safety indications are also given on the tool; they remind you of the safety precautions to be taken. Identify and
read these indications before using the tool. Immediately replace any indications that may become partially illegible
or deteriorated.
Refer to Section 2.5, “Safety signage” for the location diagram of the safety stickers affixed to the tool.
No part of this manual may be reproduced without the written permission of the company PELLENC. The illustrations
provided in this manual are for information purposes only and are in no way contractual. The PELLENC company
reserves the right to make any modification or improvement to its products as deemed necessary without inform-
ing customers already in possession of a similar model. This manual forms an integral part of the tool and must
accompany the tool if it changes hands.
5

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
2. SAFETY
2.1. INTENDED USAGE
• The Cultivion Alpha is a tool for working in soil only. It is used for weeding, aerating, cultivating and mixing fertiliser
with the soil.
• The Cultivion Alpha can also be used to dig furrows using the appropriate work tool attachment (ref. 83849).
• In addition the Cultivion Alpha can be used to clean walkways thanks to the sharp side faces of its blade.
• The PELLENC company accepts no responsibility for any damage caused by improper or unspecified use different
from its original intention.
• The company PELLENC is also not responsible for any damage caused by the use of parts or accessories not
listed in this guide.
2.2. GENERAL POWER TOOL SAFETY WARNINGS
Warning
Read all safety warnings, instructions, illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below may result in electric shock, fire and/
or serious injury.
Note
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cord-
less) power tool.
2.2.1. WORK AREA SAFETY
1. Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks, which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control of the tool.
2.2.2. ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed surfaces or grounded surfaces such as pipes, radiators, ranges, and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of
electric shock.
4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of
electric shock.
5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) pro-
tected supply. Use of an RCD reduces the risk of electric shock.
6

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
2.2.3. PERSONAL SAFETY
1. Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use
a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
2. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal
injuries.
3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the
switch or plugging in power tools with the switch in the on position can cause accidents.
4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving
parts. Loose clothes, jewelry or long hair can be caught in moving parts.
7. If devices are provided for connection of dust extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool
safety principles. A careless action can cause severe injury within a fraction of a second.
2.2.4. POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will
do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or remove the battery pack, if detachable, if from the
power tool before making any adjustment, changing accessories, or storing power tools. Such preven-
tive safety measures reduce the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained
users.
5. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely
to bind and are easier to control.
7. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
8. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasp-
ing surfaces do not allow for safe handling and control of the tool in unexpected situations.
2.2.5. BATTERY TOOL USE AND CARE
1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with another battery pack.
2. Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and fire.
3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
7

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
5. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion or risk of injury.
6. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature
above 130 °C (or 265°F) may cause explosion.
7. Follow all charging instructions and do not charge the battery pack or tool outside the temperature
range specified in the instructions. Charging improperly or at temperatures outside the specified range may
damage the battery and increase the risk of fire.
2.2.6. SERVICING
1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
2. Never service damaged battery packs. Service of battery packs should only be performed by the manufac-
turer or authorized service providers.
2.2.7. MANAGEMENT OF THE RECYCLING AND RECOVERY OF WASTE FROM YOUR TOOL
1. When the tool reaches the end of its life, PELLENC keeps the end of life sheet of the equipment at
disposal. The end of life sheet provides instructions for safely removing components.
2.3. SAFETY INSTRUCTIONS FOR THE SOIL CULTIVATOR CULTIVION ALPHA
1. Clear your work area before starting work.
2. Make sure that the Cultivion Alpha does not come into contact with anything other than soil and plants.
3. Do not use the Cultivion Alpha to dig very hard, stony soil or near thick roots.
4. Position yourself correctly to prevent accidents.
5. Keep people away from the machine when starting and operating the machine.
6. Never modify the connector in any way whatsoever.
7. The aluminium of the pole conducts electricity. Always keep the tool away from electrical lines, telephone lines,
and other sources of electricity. Manipulate the tool by holding the safety handles.
8. THIS TOOL MAY CAUSE SEVERE INJURIES. Read the operating instructions manual carefully to learn about
the proper handling, operation, maintenance, start-up and stopping of the tool. Familiarize yourself with all its
controls and the proper use of the tool.
9. Use personal safety equipment. Always wear safety footwear.
10. Make sure the tool head attachment is not in contact with any object before starting the motor.
11. When in use, the electric motor of the tool may heat up (risk of burns). Avoid contact with skin, clothing or any
flammable products (risk of explosion) during and after use.
12. No one other than the operator is authorized within a 3 metre radius.
2.4. SAFETY MEASURES ASSOCIATED WITH PELLENC CHARGER AND BATTERY USE
Please refer to the PELLENC Alpha tool battery manual.
2.5. SAFETY SIGNAGE
California State Proposition 65:
Caution
This product contains or emits a chemical recognized by the State of California to cause cancer,
birth defects or other reproductive harm.
8

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
The sticker is located on the pole below the front handle.
LwA sound power level guaranteed. Risk of burns
Read the user guide. Do not expose to any source of water
(rain, flooded fields, water jet, etc.)
Wearing of safety pants and safety
shoes is mandatory
Sharp cutting tool: Keep your hands
away from the hedge-trimmer blade.
2.6. PERSONAL PROTECTION EQUIPMENT
Equipment Wearing of Description
1 Safety helmet / /
2Protec-
tive visor / /
3Protec-
tive gloves Recommended Wear hand protection especially when working on the cutting tool.
4
Robust, non-
slip safe-
ty shoes
Mandatory
When operating the machine, al-
ways wear non-slip safety shoes.
Do not operate the machine in bare
feet or with sandals.
5 Ear protection Recommended Wear approved ear protectors with
sufficient noise attenuating effect.
6 Safety goggles Recommended Wear approved eye protection.
7
Safety jack-
et or over-
sleeves
/ /
8 Work trousers Mandatory
Always wear clothing that covers
the operator's legs when the ma-
chine is in operation.
9 Shin pads / /
9

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
3. DESCRIPTION AND TECHNICAL FEATURES
3.1. DESCRIPTION OF THE CULTIVION ALPHA
1. Battery on/off button: turns the battery and the tool
on or off.
2. Digital battery display: displays information related
to the battery.
3. Battery safety lock.
4. Battery locking clip.
5. Safety throttle: prevents inadvertent actuation of the
control trigger.
6. Tool handle on/off button: turns the tool on or off and
selects the speed.
7. Tool handle digital display: displays battery and tool
information (charge rate, errors, etc.).
8. LEDs: display the selected speed.
9. Ergonomic carrying strap.
10. Head
11. Soil working blade.
12. Clip joint
13. Blade mounting part.
14. Pole
15. Front handle
16. Carrying eyelet: allows the ergonomic carrying strap
to be attached.
17. Trigger control: Allows you to gradually increase the
speed of the blade.
18. Rear handle
19. Battery alpha 260 / alpha 520 (supplied separately).
10

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
3.2. CULTIVION ALPHA BOX CONTENTS
Check that the box contains the following items:
Name reference
The Cultivion Alpha soil cultivator 163148
An ergonomic carrying strap 162970
A 16cm blade + clip-on seals 81251
A front handle assembly 163159
A blade mounting part 113568
A bag of screws and bolts 116693
An operating instructions manual 163161
A marketing flyer 117927
Warranty card 48642
3.3. TECHNICAL FEATURES
3.3.1. GENERAL CHARACTERISTICS OF THE TOOL
Model CULTIVION ALPHA
Power 380 W
Tool voltage 43.2V
Weight with blade (without battery) 4.1 kg
Dimensions (l x w x h) 1900 x 400 x 300 mm
Width of work tool depending on the model
Oscillation speed of the work tool 8 to 15 Hz
Recommendation for the use of tool speeds
Speed 1 (500 strokes/min) Speed 2 (765 strokes/min) Speed 3 (887 strokes/min)
Precision work
Example: Vegetable growing
Standard work
Example: Vineyards
and green spaces
Intensive work
Example: Vineyards, green
spaces and difficult soils
11

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
3.3.2. BATTERY COMPATIBILITY AND BATTERY LIFE
Battery Alpha 260 Alpha 520
Rated battery voltage 43.2 V
Type of battery 12 times 2 elements
included in 1 pack
12 times 4 elements
included in 1 pack
Battery capacity 6 Ah 12 Ah
Battery power 259 Wh 518 Wh
Battery life*** 2 hrs. 4 hrs.
Battery weight 2.5 kg 3.6 kg
Operating frequency band 13.56 Mhz , Receiver
* Non-contractual values (estimate made with a 16cm blade for soil aeration work). The battery life may vary de-
pending on the blades used and the type of work.
3.3.3. VIBRATION EMISSION VALUES AND SOUND PRESSURE LEVELS
The determination of noise levels and vibration rates is based on operating conditions at maximum rated speed.
Values defined according to acoustic measurement standards NF EN ISO 11201 and NF EN ISO 3744.
Maximum speed
Maximum A-weighted sound pressure level at
the user's position (uncertainty of K=2.5 dB(A)) Lpa = 76.5 dB (A)
Symbol Value Unit Reference Remark
Lwam 91 dB(A) 1 pW Measured sound
power level
Lwag 92 dB(A) 1 pW Guaranteed
sound power level
The measurement of the measured sound power level and the guaranteed sound power level were carried out in
accordance with the procedure laid down in Directive 2000/14/EC Annex V*.
CULTIVION ALPHA soil cultivator with 16 cm V-blade Speed 3 (887 strokes/min)
Front handle, 15.5 m/s²
Rear handle, 9 m/s²
Measurement uncertainty, K 1.5
Vibration emission value according to EN ISO 62841-1.
Note
Equipped with the 16 cm blade, at speed 1 and no load, the vibration values of the tool are 3.5 m/s², which
offers more comfortable working.
The measured sound power level and the guaranteed sound power level were measured without load.
Warning
Vibrations and noise emissions during actual use of the machine may differ from the total de-
clared value, depending on how the machine is used.
12

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
It is necessary to identify safety measures to protect the operator. The tool, due to its operation,
emits significant vibrations. The user must therefore adapt the frequency and time of daily use
of the tool accordingly.
13

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
4. COMMISSIONING
For information about mandatory PPE when handling your tool, refer to Section 2.6, “Personal protection equipment”
Remove the tool from its packaging and check its contents, refer to Section 3, “Description and technical features”.
Caution
Before any maintenance intervention on the tool:
1. Check that the battery is switched off, via the push button on the battery.
2. Disconnect the battery.
For more information, refer to the instruction manual supplied with the battery.
4.1. ASSEMBLING / DISMANTLING THE FRONT HANDLE
Mounting
1. Fit the front handle (15) onto the pole (14).
Note
To obtain a comfortable position for the user, it
is necessary to adjust the position of the front
handle (15) on the pole (14).
2. Ensure that the adjustment knob (20) is loose.
3. Fit the adjustment knob (20) onto the pole (14).
4. Screw in the 2 screws (21) using a Torx 25 screw-
driver.
Important
Tightening torque: 3 N.m.
5. Lock the adjustment knob (20) to block the position
of the front handle (15) on the tool.
Disassembly
1. Unscrew the adjustment knob (20) of the front han-
dle (15).
2. Remove the 2 screws (21) a Torx 25 screwdriver.
3. Remove the front handle (15) of the tool.
4. Remove the adjustment knob (20).
14

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
4.2. MOUNTING THE WORK TOOL ON THE HEAD OF THE CULTIVION ALPHA
Caution
Always wear protective gloves when handling the tool.
4.2.1. FITTING THE BLADE MOUNTING ASSEMBLY
1. Insert the two nuts (22) in the spaces provided in the
blade mounting part (23).
Important
Check the mounting direction of the nuts, the
domed part must face outwards.
2. Position the blade (11) on the blade mounting part
(23).
3. Fit the clamping screws (24).
4. Tighten the clamping screws (24) using a 5 mm hex
socket and a torque wrench.
Important
Tightening torque: 12 N.m.
Important
Never work with the clamping screws (24) not
tightened.
Note
The procedure is identical for all blade models.
15

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
4.2.2. FITTING THE BLADE MOUNTING ASSEMBLY ONTO THE TOOL
1. Once fitted together, position the blade mounting as-
sembly (13) on the output shaft (25), aligning the
mark on the blade mounting part (23) with the "0"
mark on the protective casing (26).
Note
The head of the machine has a graduated rotating
shaft from -4 to +4, passing through a 0 position.
For further information on how to adjust the work
tool position, see pages Section 5.7, “Adjusting the
tool head tilting positions”.
2. Place the nut (27) in the recess position provided on
the blade mounting part (23).
Important
Check the mounting direction of the nuts, the
domed part must face outwards.
3. Fit the washer (28) and screw (29).
4. Tighten the screw (29) using a 5 mm hex socket and
a torque wrench.
Important
Tightening torque: 12 N.m.
Important
Do not forget the nut (27) and the washer (28) during assembly.
Important
Never work with the clamping screws (24) not tightened.
16

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
4.3. CONNECTING AND DISCONNECTING THE PELLENC ALPHA 260 OR 520 BATTERY
Caution
Use only PELLENC ALPHA 260 or PELLENC ALPHA 520 batteries to power the tool.
4.3.1. BATTERY CONNECTION
Warning
Be sure to keep your fingers out of the
connection area between the tool and
the battery.
Important
Check that there is no foreign matter in the connec-
tion area between the tool and the battery.
1. Position the battery with the digital display of the bat-
tery facing up.
2. Push in the battery until the locking clip engages and
the safety lock is closed.
Warning
The lock prevents unintentional dis-
connection. Do not start the tool with-
out checking that the clip is locked.
4.3.2. DISCONNECTING THE BATTERY
1. Pull the safety lock (3) to open it.
2. Press the locking clip (4) while keeping the safety
lock open.
17

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
3. Remove the battery.
18

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
5. USAGE
5.1. ADJUSTMENT OF THE CARRYING STRAP AND BALANCING OF THE TOOL
1. Put on the carrying strap.
2. Put the harness hook on one of the 4 attachment
positions available on the tool. Use the point of at-
tachment that gives you the best balance of the tool
to limit effort.
3. Adjust the length.
4. Pass the self-attaching fastener end of the strap un-
der the main carrying strap.
5. Fold the self-attaching fastener over the main strap.
5.2. POWER ON OR OFF
5.2.1. POWERING ON
Check that the charge level is shown on the battery display:
19

SOIL CULTIVATOR CULTIVION ALPHA
58_163161-A
The charge level is not displayed on the
battery display:
• Press the battery On/Off button.
The battery should emit a beep.
The charge level is shown on the battery display.
The charge level is displayed on the
battery display:
Powering up can be done in 2 ways:
• Press the battery On/Off button.
The 3 "speed" LEDs should light up on the tool handle.
The charge level is shown on the handle display.
The current speed LEDs light up.
or
• Press the On / Off button on the tool handle for 1 sec-
ond.
The battery should emit a beep.
The 3 "speed" LEDs should light up on the tool handle.
Then the charge level is displayed on the handle dis-
play.
The current speed LEDs light up.
5.2.2. POWERING OFF
Powering off can be done in 2 ways:
• Press and hold the On / Off button on the tool handle
for 3 seconds.
• "BY" is briefly displayed on the handle display.
20
