pellenc HELION 2 COMPACT User manual

ELECTRIC HEDGE-TRIMMER
HELION 2 COMPACT
Operating instructions 54_117575-H
05/2020
ENG
Translation of the
original user guide
READ THE USER GUIDE CAREFULLY BEFORE USE
.

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H
TABLE OF CONTENTS
1. INTRODUCTION ..................................................................................................................... 5
2. SAFETY ................................................................................................................................... 6
2.1. GENERAL SAFETY WARNINGS FOR THE TOOL ........................................................................ 6
2.1.1. WORK AREA SAFETY ...................................................................................................................... 6
2.1.2. ELECTRICAL SAFETY ....................................................................................................................... 6
2.1.3. PERSONAL SAFETY ......................................................................................................................... 7
2.1.4. USE AND CARE OF THE POWER TOOL .......................................................................................... 7
2.1.5. USE OF BATTERY OPERATED TOOLS AND PRECAUTIONS FOR USE ............................................ 7
2.1.6. UPKEEP ............................................................................................................................................ 8
2.1.7. TOOL’S END OF LIFE MANAGEMENT .............................................................................................. 8
2.2. SAFETY WARNING FOR THE HEDGE-TRIMMER ........................................................................ 8
2.3. SAFETY SIGNAGE .......................................................................................................................... 8
2.4. PERSONAL PROTECTION EQUIPMENT ....................................................................................... 9
3. DESCRIPTION AND TECHNICAL CHARACTERISTICS .................................................... 10
3.1. DESCRIPTION ................................................................................................................................ 10
3.2. TECHNICAL CHARACTERISTICS ................................................................................................ 11
4. COMMISSIONING ................................................................................................................. 12
4.1. MOUNTING THE HANDLE ............................................................................................................ 12
4.2. MOUNTING THE BLADE .............................................................................................................. 13
4.3. MOUNTING THE DEFLECTOR ON THE L.63 BLADE ................................................................ 14
4.4. POSITION OF THE HANDLE ........................................................................................................ 14
4.5. CONNECTING PELLENC BATTERIES TO THE TOOL ............................................................... 15
4.5.1. 750 / 1200 / 1500 ULIB BATTERIES ................................................................................................. 15
4.5.2. 260 / 520 ALPHA BATTERY ............................................................................................................. 16
5. USING THE TOOL ................................................................................................................ 17
5.1. FITTING THE POWER CORD AND ARM STRAP ....................................................................... 17
5.2. STARTING THE HELION 2 HEDGE-TRIMMER ............................................................................ 17
5.3. HEDGE-TRIMMING SPEED MANAGEMENT ............................................................................... 19
5.4. TIPS FOR USING THE ADAPTABLE BLADES ........................................................................... 20
5.5. WORKING TECHNIQUES ............................................................................................................. 20
5.6. END OF TRIMMING JOB .............................................................................................................. 21
5.6.1. DISCONNECTION OF THE FAST CONNECTOR .............................................................................. 21
5.6.2. PROTECTION OF THE BLADE ........................................................................................................ 21
6. SERVICE ............................................................................................................................... 23
6.1. ANNUAL OVERHAUL ................................................................................................................... 23
6.2. MAINTENANCE ADVICE ............................................................................................................... 23
6.3. TOOL MAINTENANCE TABLE ..................................................................................................... 24
6.4. TIGHTENING BLADES .................................................................................................................. 24
3

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H
6.5. CLEANING THE BLADES ............................................................................................................. 25
6.6. HEDGE-TRIMMER BLADE LUBRICATION .................................................................................. 26
6.7. SHARPENING THE BLADES ........................................................................................................ 27
7. INCIDENTS AND TROUBLESHOOTING ............................................................................. 28
7.1. SYMPTOMS OF THE HELION 2 HEDGE-TRIMMER ................................................................... 28
8. STORAGE AND TRANSPORT ............................................................................................ 29
8.1. STORAGE ...................................................................................................................................... 29
8.2. OFF-SEASON STORAGE ............................................................................................................. 29
9. ACCESSORIES AND CONSUMABLES .............................................................................. 30
9.1. PRESENTATION OF BLADE TYPES ........................................................................................... 30
9.1.1. ACCESSORIES PROVIDED WITH EACH BLADE ............................................................................. 30
9.2. ACCESSORIES .............................................................................................................................. 30
9.3. CONSUMABLES ............................................................................................................................ 30
10. WARRANTIES .................................................................................................................... 31
10.1. GENERAL WARRANTIES ........................................................................................................... 31
10.1.1. STATUTORY WARRANTY ............................................................................................................. 31
10.1.2. COMMERCIAL WARRANTYPELLENC ............................................................................................ 31
10.1.3. PAID AFTER-SALES SERVICE ...................................................................................................... 32
11. COMPLIANCE STATEMENTS ........................................................................................... 34
11.1. EC DECLARATION OF CONFORMITY: HELION 2 ................................................................... 34
4

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H
1. INTRODUCTION
Dear Customer,
Thank you for purchasing your Electric hedge-trimmer Helion 2 Compact . Correctly used and maintained, this tool
will give a satisfactory performance for many years.
Warning
Your device contains numerous recoverable or recyclable materials. Return it to your
dealer or, failing this, to an approved servicing centre to be treated.
Comply with the regulations in force in your country as concerns environmental protection associated with your
activity.
Warning
It is imperative that you read through the ENTIRE user’s manual before using or servicing the
tool. Always comply with the instructions and illustrations in the manual.
All through this user guide you will find advisory notes and information entitled: NOTE, IMPORTANT, ATTENTION
and WARNING.
The points marked “NOTE” indicate additional information.
The points marked “IMPORTANT” warn the user of a potential risk to the equipment.
The points marked “ATTENTION” warn the user of a potentially hazardous situation which if not avoided leads to
minor injuries.
The points marked “WARNING” warn the user of a potentially hazardous situation which if not avoided leads to
serious injury or death.
The warning indicates that damage resulting from failure to comply with the procedures and instructions is not
covered by the warranty and the owner will be liable for any repair costs.
Safety indications are also given on the tool; they remind you of the safety precautions to be taken. Identify and
read these indications before using the tool. Immediately replace any indications that may become partially illegible
or deteriorated.
Refer to Section 2.3, “Safety signage” for the location diagram of the safety stickers affixed to the tool.
No part of this manual may be reproduced without the written permission of the company PELLENC. The illustrations
given in this manual are for information purposes and are in no way contractual. The PELLENC company reserves
the right to make any modification or improvement to its products as deemed necessary without informing customers
already in possession of a similar model. This manual forms an integral part of the tool and must accompany the
tool if it changes hands.
5

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H
2. SAFETY
• The HELION 2 COMPACT hedge-trimmer is a professional tool whose use is reserved exclusively for trimming
vegetation.
• The PELLENC company accepts no responsibility for any damage caused by improper or unspecified use different
from its original intention.
• The PELLENC company accepts no responsibility for any damage caused by the use of non-original parts or
accessories.
2.1. GENERAL SAFETY WARNINGS FOR THE TOOL
Warning
Read all the safety measures and all the instructions. Failure to comply with the following
instructions risks causing electric shock, fire and/or serious injury.
Note
Retain all the safety measures and instructions for later reference.
The term "power tool" in the safety warnings refers to your battery-powered electric tool (without power cord).
2.1.1. WORK AREA SAFETY
1. Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
2. Do not operate power tools in an explosive atmosphere, for example in the presence of flammable
liquids, gases or dust. Power tools create sparks, which may ignite the dust or fumes.
3. Keep children and bystanders away while operating the power tool. Distractions can cause you to lose
control of the tool.
2.1.2. ELECTRICAL SAFETY
1. The power tool connector must be adapted to the socket. Never modify the connector in any way what-
soever. Do not use adapter plugs with earthed (grounded) power tools. Unmodified plugs and suitable
sockets reduce the risk of electric shock.
2. Avoid contact with earthed surfaces such as pipes, radiators, cookers, and refrigerators. There is an
increased risk of electric shock if your body is in direct contact with the ground.
3. Do not expose power tools to rain or damp conditions. The entry of water into a power tool increases the
risk of electric shock.
4. Do not mishandle the power cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase
the risk of electric shock.
5. Use an extension cord suitable for outdoor use when operating power tools outdoors. Use a cord suitable
for outdoors to reduce the risk of electric shock.
6. Use a power supply protected by a residual current device (RCD) when the power tool is operated in a
damp location. Use of an RCD reduces the risk of electric shock.
Note
The term “Residual Current Device” (RCD) can be replaced by “Ground Fault Circuit Interrupter” (GFCI) or
“Earth Leakage Circuit Breaker” (ELCB).
6

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H
2.1.3. PERSONAL SAFETY
1. Stay alert, watch what you are doing, and use common sense when operating the power tool. Do not
use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment
of inattention when using a power tool can result in serious personal injury.
2. Use personal protective equipment. Always wear eye protection. Safety equipment such as dust masks,
non-slip safety shoes, helmets, or ear protection used at the appropriate times reduces injuries.
3. Avoid accidental starting of the tool. Make sure the switch is in the off position before you connect the
tool to the power source and/or battery pack, pick it up, or carry it. Carrying a power tool with your finger
on the switch or connecting a power tool with the switch in the ‘on’ position can cause accidents.
4. Remove any adjusting wrench before switching the electric tool on. A wrench left attached to a rotating
part can cause injury.
5. Do not rush. Keep proper footing and balance at all times. This provides better control of the power tool
in unexpected situations.
6. Dress appropriately. Do not wear loose clothing or jewellery. Keep hair and clothing away from moving
parts. Loose clothes, jewellery or long hair can get caught in moving parts.
7. If devices are provided for connecting dust extraction and collection equipment, ensure that these are
connected and properly used. Use dust collectors to reduce the risk caused by dust.
2.1.4. USE AND CARE OF THE POWER TOOL
1. Do not force the power tool. Use the power tool suited for the job. The adapted power tool does the work
better and more safely at the speed it was built to operate at.
2. Do not use the power tool if the switch does not allow it to be switched on and off. Power tools that
cannot be controlled by a switch are dangerous and must be repaired.
3. Unplug the tool from the socket or remove the battery (if possible) before any adjustment, change of
accessory or storage. These preventive safety measures reduce the risk of accidentally starting the power
tool.
4. When not in use, keep power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate it. Power tools are dangerous when operated by inex-
perienced users.
5. Maintenance of the power tool and its accessories is mandatory. Check that the moving parts are not
out of alignment or jammed, that there are no broken parts or that there is no other condition which
could affect the operation of the power tool. If damaged, repair the power tool before using it. Many
accidents are due to poorly maintained power tools.
6. Keep the cutting elements sharp and clean. Properly maintained cutting tools with sharp cutting elements
are less likely to jam and are easier to control.
7. Use the power tool, accessories, blades, etc. in accordance with these instructions, taking into account
the working conditions and the work to be done. Using the power tool for operations other than those
specified can result in hazardous situations.
2.1.5. USE OF BATTERY OPERATED TOOLS AND PRECAUTIONS FOR USE
1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with another battery pack.
2. Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and fire.
3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally
occurs, wash away with water. If liquid contacts eyes, seek additional medical help. Liquid ejected from
the battery may cause irritation or burns.
7

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H
2.1.6. UPKEEP
1. Have the power tool serviced by a qualified technician using only identical spare parts. This ensures
the continued safety of the power tool.
2.1.7. TOOL’S END OF LIFE MANAGEMENT
1. When the tool reaches the end of its life, PELLENC keeps the end of life sheet of the equipment at
disposal. The end of life sheet provides instructions for safely removing components.
2.2. SAFETY WARNING FOR THE HEDGE-TRIMMER
1. Keep all parts of the body away from the cutting blade. Do not clear away cut materials or hold elements
when blades are moving. The cutting blades continue to move after powering off. A moment of inattention
while operating a hedge-trimmer may result in serious personal injury.
2. Carry the hedge-trimmer by the handle with the cutter bar stopped and being careful not to press the On/
Off switch. Proper transportation of the hedge-trimmer reduces the risk of inadvertent starting of the machine
and bodily injuries from the blades.
3. When transporting or storing the hedge-trimmer, always install the blade protector sheath. Correct use
of the hedge-trimmer reduces the risk of bodily injury from the blades.
4. When clearing jams or repairing the machine, make sure all power switches are off and the power cable
is removed or disconnected. Unintentional activation of the hedge-trimmer when clearing jams or undertaking
repairs can result in serious injury.
5. Hold the hedge-trimmer with both hands on the insulated gripping surfaces only, as the blade may come
into contact with hidden electrical wires. Blades that come in contact with an "active" wire may "electrify"
the exposed metal parts of the hedge-trimmer and expose the operator to electrical shock.
6. Keep all power cords and cables away from the cutting area. Power cords and cables may be hidden in
hedges or bushes and can be accidentally cut by the blade.
7. Do not use the hedge-trimmer in adverse weather conditions, especially if there is a risk of lightning.
This decreases the risk of being struck by lightning.
2.3. SAFETY SIGNAGE

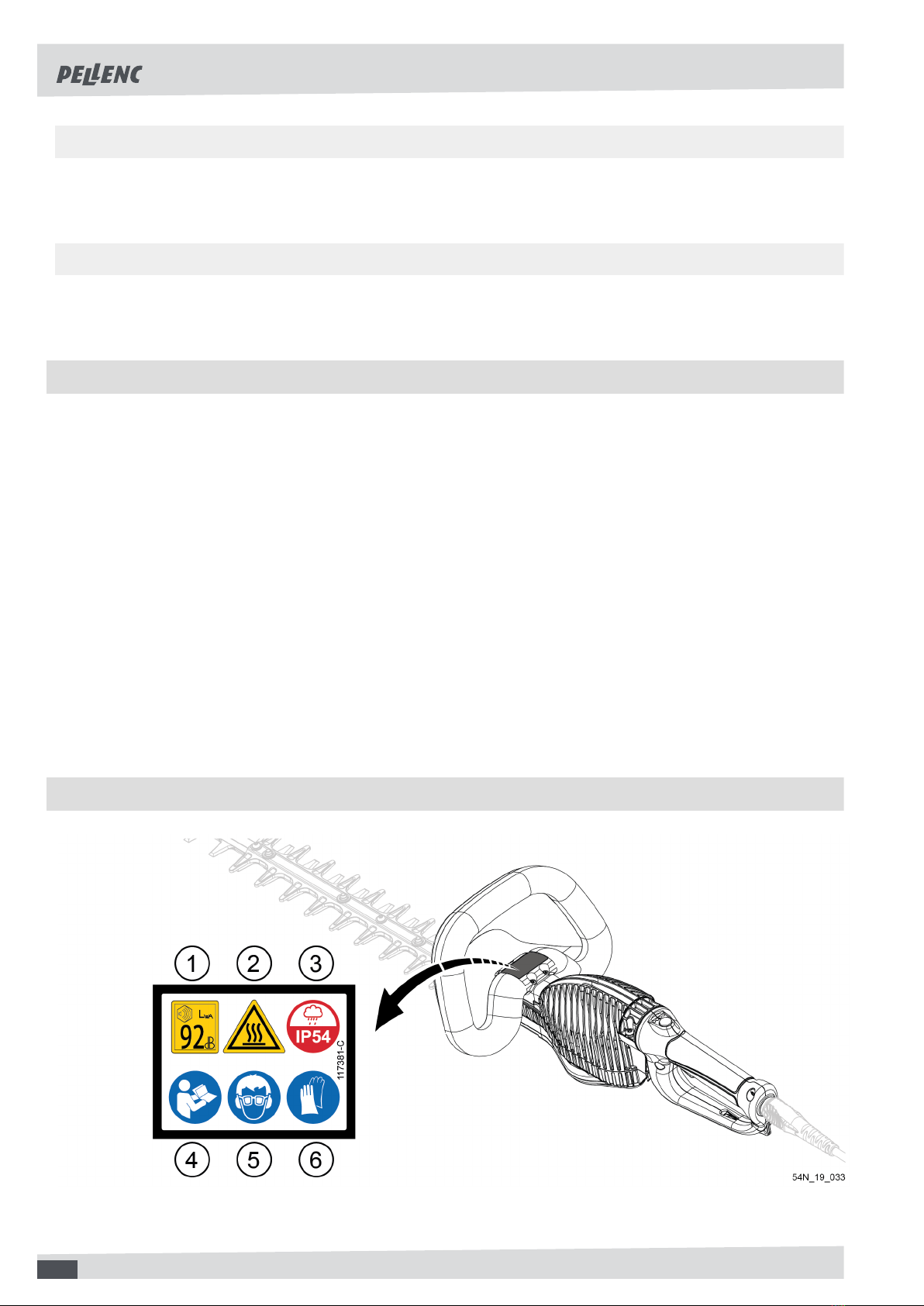

1. LwA sound power level guaranteed.
2. Risk of burns (motor)
8

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H
3. Tool protection rating IP54· (Allover protection
against dust and water spray).
4. Read the user guide.
5. Wearing of protective glasses and hearing protec-
tion is required.
6. Wearing of gloves is mandatory.

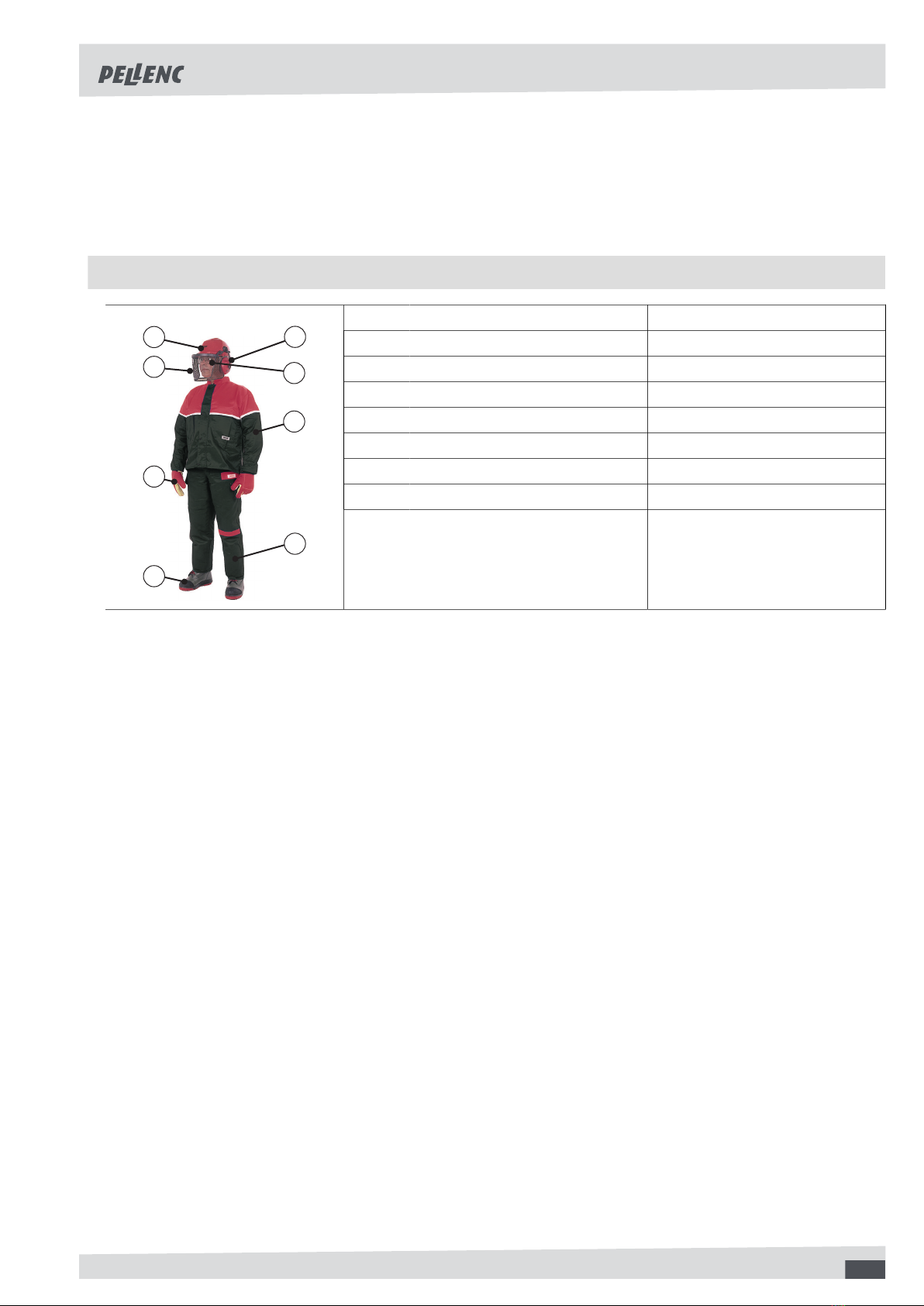

2.4. PERSONAL PROTECTION EQUIPMENT
Equipment Wear
1 Safety helmet Recommended
2 Protective visor Recommended
3 Resistant work gloves Required
4 Safety footwear Recommended
5 Ear protection Required
6 Protective goggles Required
7 Jacket or over-sleeves Recommended
1
2
3
8
4
6
7
5
8 Work trousers Recommended
9

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H
3. DESCRIPTION AND TECHNICAL CHARACTERISTICS
3.1. DESCRIPTION
1. Rear handle
2. Operating trigger
3. Speed selector
4. LED power and speed indicator
5. Front handle
6. Engine housing
Content:
• A hedge trimmer without blade
• A power cord for the battery
• A Torx screwdriver
• A user guide
• 1 armband
• 3 bolts for the cutter head
• The warranty card
7. Hand guard
8. Front handle safety trigger
9. Handle rotation button
10. Blade (not included)
10

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H
3.2. TECHNICAL CHARACTERISTICS
HELION 2 COMPACT
Power 1200 W
Tool voltage 43.2V
Hedge-trimmer blade L27 L51 L63 L63D L75
Blade weight 1.0 kg 1.4 kg 1.5 kg 1.7 kg 1.6 kg
Tool + blade weight 3.0 kg 3.4 kg 3.5 kg 3.7 kg 3.6 kg
Dimensions (l x w x h) in mm 745x232x181 985x232x181 1105x232x181 1225x232x181
Effective cutting length/blade 270 mm 510 mm 630 mm 750 mm
Space between teeth 27 mm 33 mm
Teeth height 23 mm
Blade speed 3200 to 3800 cuts/min
Battery-life Depends on use and battery type
Protection rating IP54
Determining the sound levels and vibration rates is based on the operating conditions at the maximum nominal
rating with a 750 mm blade.
Vibratory emission values at the handle determined in accordance with EN
60745-2-15: 2009 (uncertainty of K = 1.5 m / s²)
ah = 3.4 m/s²
Maximum weighted sound pressure level A (ref. 20 µPa) at the user's posi-
tion (uncertainty of K = 1.5 dB)
LpA = 80 dB(A)
Weighted peak sound pressure level C (ref. 20 µPa) at the user's position LpC < 130 dB(C)
*Values determined according to acoustic measurement standards NF EN ISO 11203 and NF EN ISO 3744
Measured sound power level (Reference 1 pW) LWAm = 91 dB(A)
Guaranteed sound power level (Reference 1 pW) LWAg = 92 dB
The measured noise level and the guaranteed noise level were measured according to a procedure in accordance
with Directive 2000/14 / EC Annex V.
11

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H
4. COMMISSIONING
4.1. MOUNTING THE HANDLE
12

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H

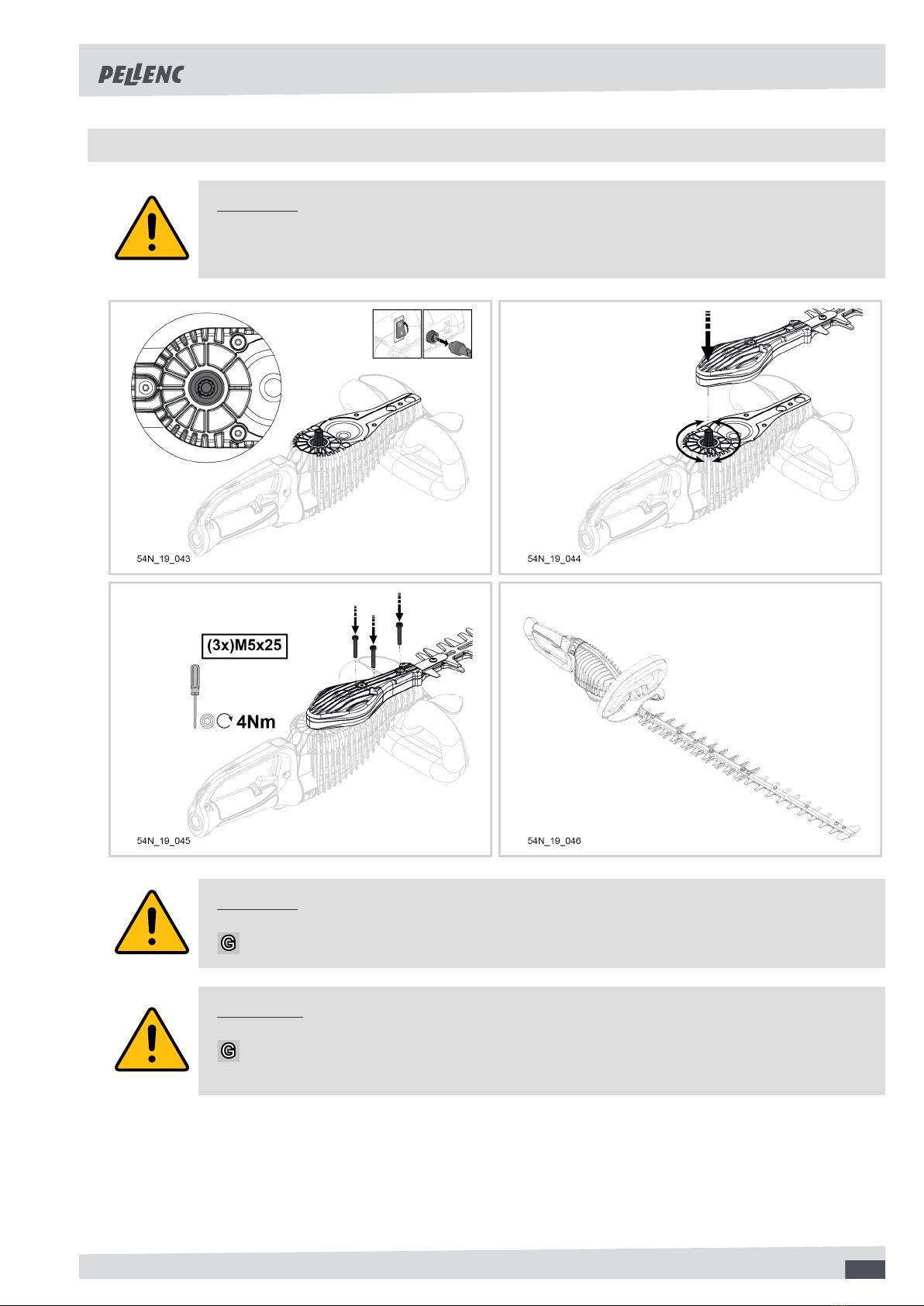

4.2. MOUNTING THE BLADE
Caution
Before working on the tool, check that the battery On / Off switch is in the off position «0» and
disconnect the battery power cable.
Caution
Only ever use blades supplied by PELLENC to avoid the risk of injury.
Warning
Running-in of the blade must be done for 1 minute at each change of the blade in a dry run.
Check the tightness of the blade after running-in.
13

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H

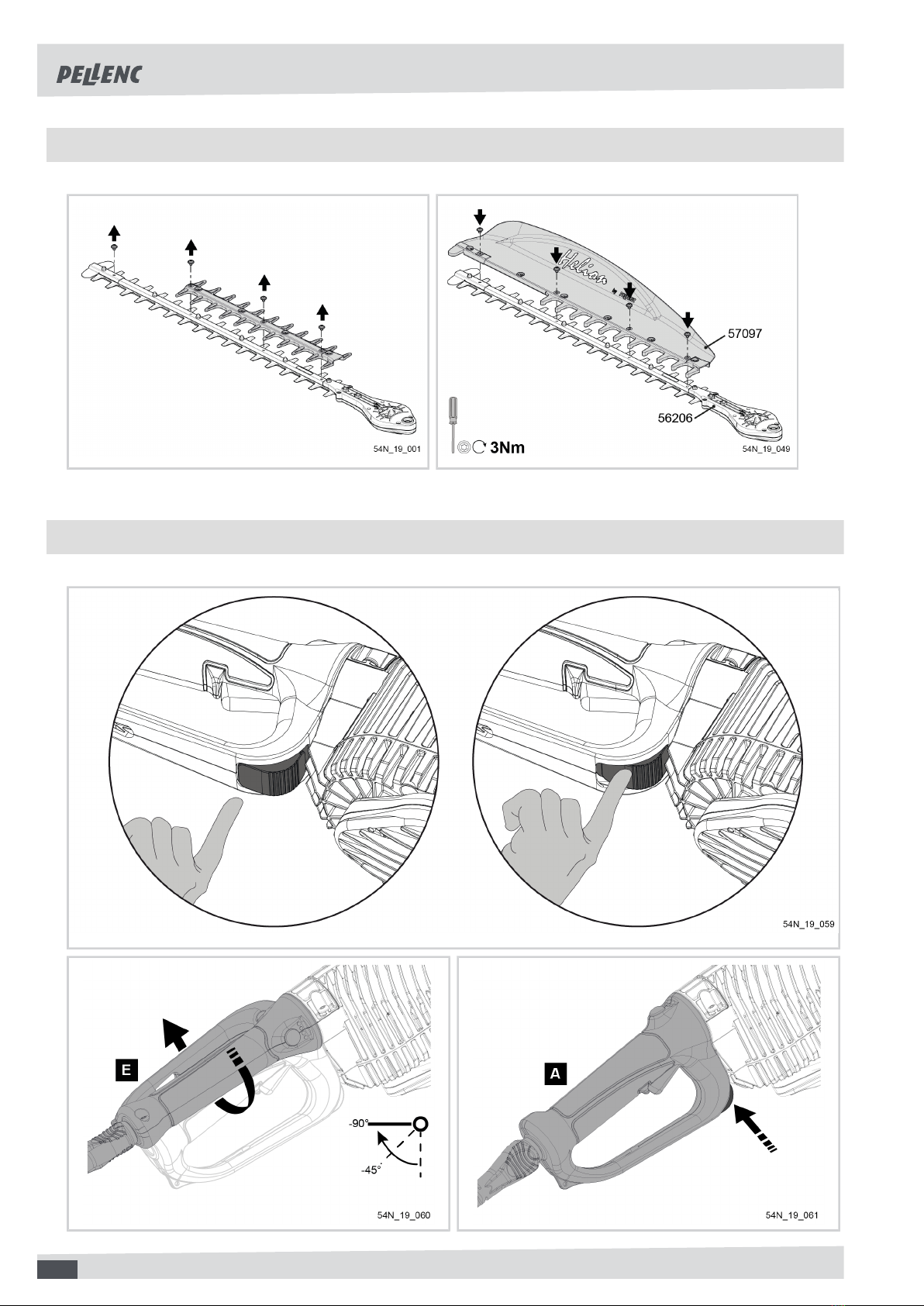

4.3. MOUNTING THE DEFLECTOR ON THE L.63 BLADE
4.4. POSITION OF THE HANDLE
14

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H
Note

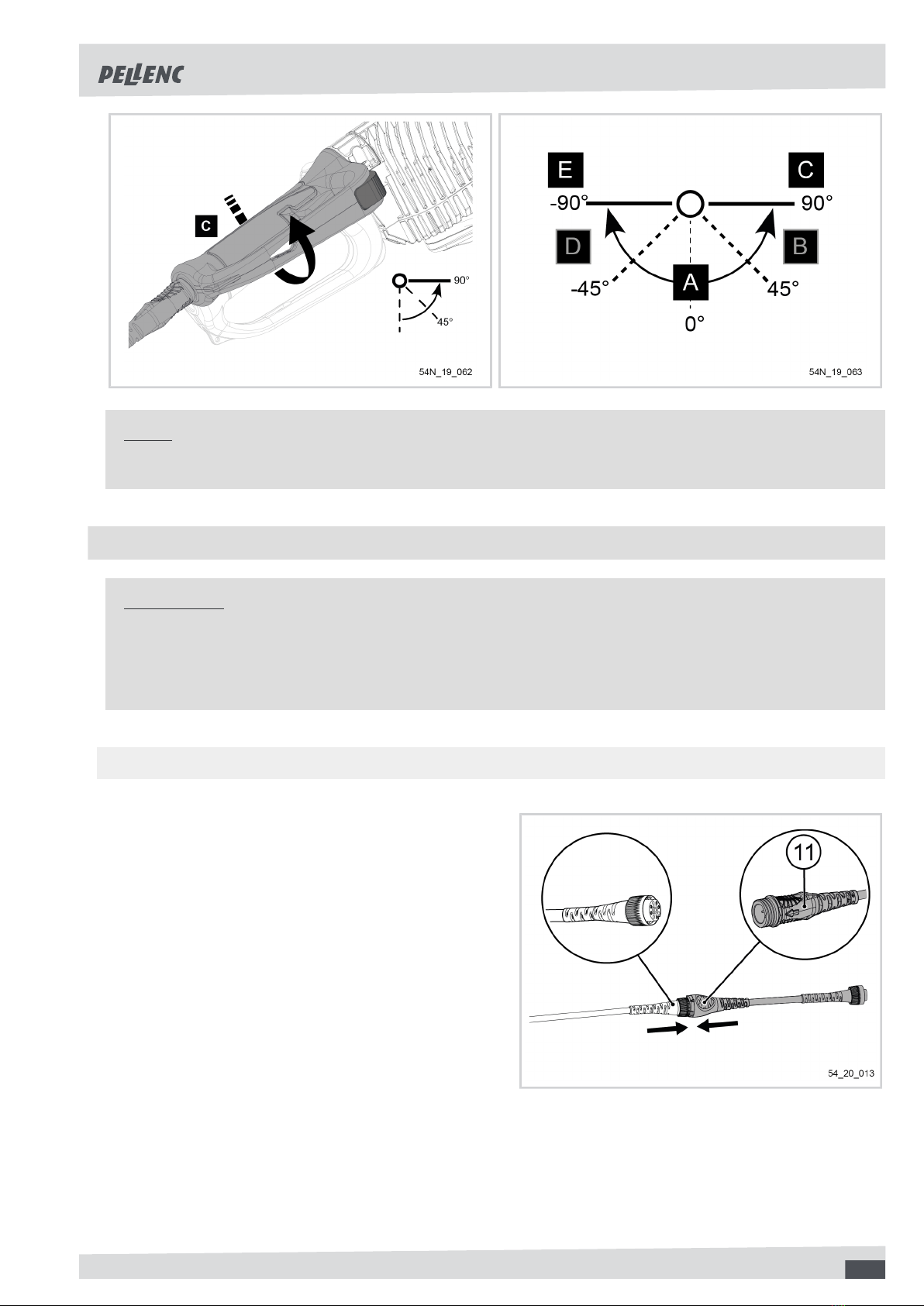

The handle must be placed in one of the 5 lock positions in order to work.
4.5. CONNECTING PELLENC BATTERIES TO THE TOOL
Important
Always check the remaining battery-life before use. If necessary, recharge the battery using the charger.
To prolong the life of the connectors, it is advisable to protect them when they are disconnected. Avoid leaving
the connectors in contact with abrasive or dirty surfaces, or subjecting them to major impacts (falls).
4.5.1. 750 / 1200 / 1500 ULIB BATTERIES
1. Connect the power cord (11) of the Electric hedge-
trimmer to the red connector of the adaptor cord (11)
(ref. 57239).
1. Screw it in all the way.
15

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H
3. Connect the adaptor cord (11) to the connector on
the battery.
4. Screw it in all the way.
5. Check that the power cord is properly connected.
4.5.2. 260 / 520 ALPHA BATTERY
1. Connect the battery on the harness, making sure it
is the right way round.
3. Slide the battery into the base guide, until the clip
locks.
3. Connect the power cord (11) of the Electric hedge-
trimmer to the red connector of the adaptor cord (11)
(ref. 57239).
4. Screw it in all the way.
16

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H
5. Fit the connector to the adaptor (11).
6. Screw it in all the way.
5. USING THE TOOL

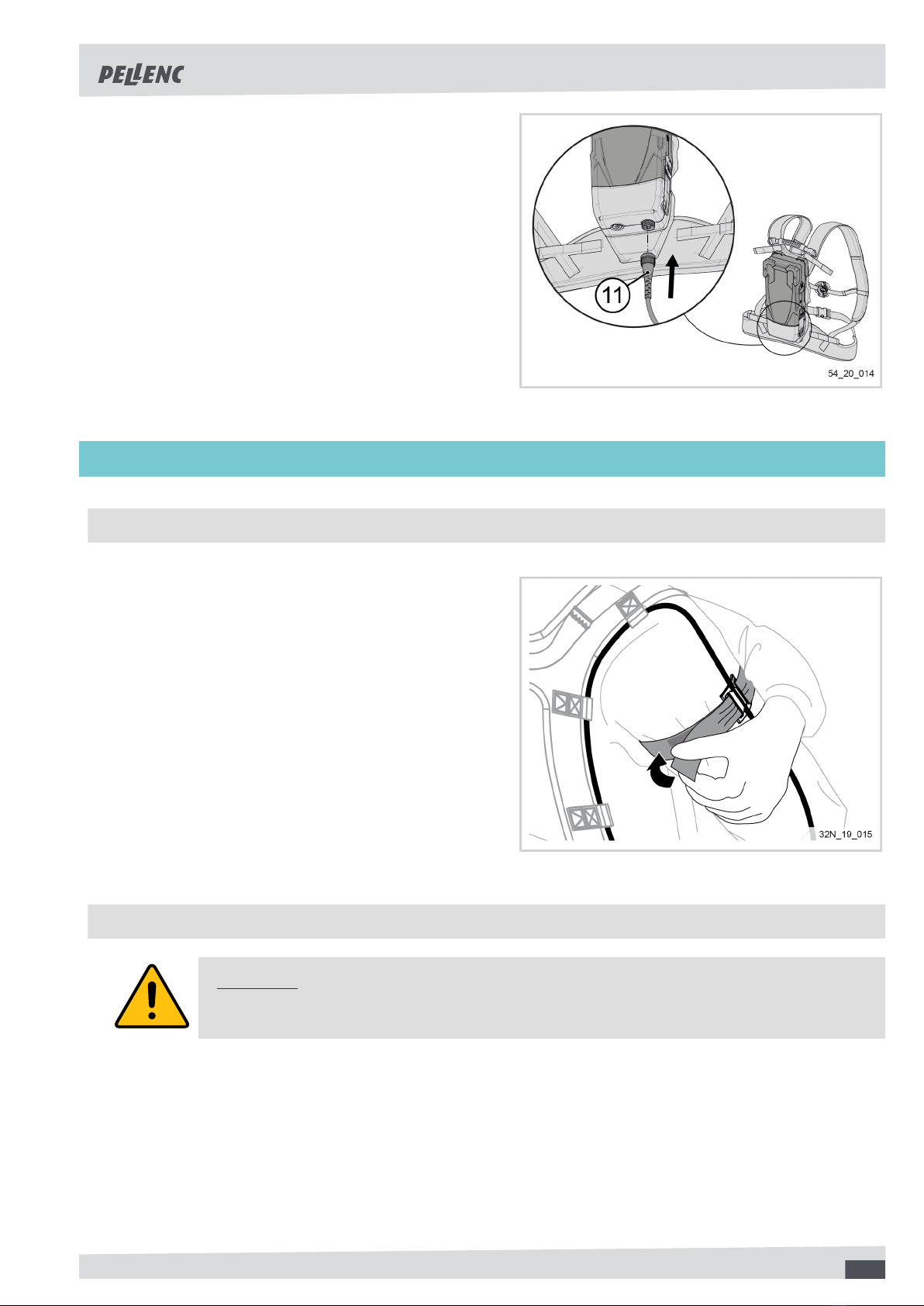

5.1. FITTING THE POWER CORD AND ARM STRAP
Fit the power cord on the harness and the arm strap to
prevent contact with the blade.
5.2. STARTING THE HELION 2 HEDGE-TRIMMER
Caution
Check that the safety devices are running properly before starting work.
17

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H
1. Check the working area (fences, posts, etc.)
2. Turn the rear handle to the correct position.
3. Connect the tool’s Fast connector
4. Turn on the battery by pressing the On/Off button.
Note
If at least 1 indicator light on the handle is on, the
tool is powered up.
To start the Helion Alpha hedge-trimmer:
•Hold the front handle and pull the trigger twice to
start the tool.
•Keep hold the front handle and trigger while cut-
ting.
Note
If the control trigger is remains released for more than 5 minutes, repeat the above process to restart the tool.
The Helion 2 hedge-trimmer allows quick connector connection / disconnection if the battery is compatible *.
To activate the function, the battery must remain on (switch on I)
* Ulib 1200 / 1500 / Alpha 260 / Alpha 520 / Olivion
Important
Always start the motor before bringing the cutter bar into contact with the wood
18

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H
5.3. HEDGE-TRIMMING SPEED MANAGEMENT
Speed setting
Your tool is equipped with a speed selection system. This
speed change optimizes the desired quality of work using
the selector on the handle. Four indicator LEDs on the
handle indicate the selected speed level.
Caution
These indicator LEDs may flash
when the tool approaches the tem-
perature safety threshold.
Note
Reduce the speed to a minimum for greater autonomy or when the lights flash (close to thermal safety stop)
Speed 1 = 1 LED on (3200 cuts / min)
Speed 2 = 2 LEDs on (3400 cuts /
min)
Speed 3 = 3 LEDs on (3600 cuts /
min)
Speed 4 = 4 LEDs on (3800 cuts /
min)
19

ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT
54_117575-H

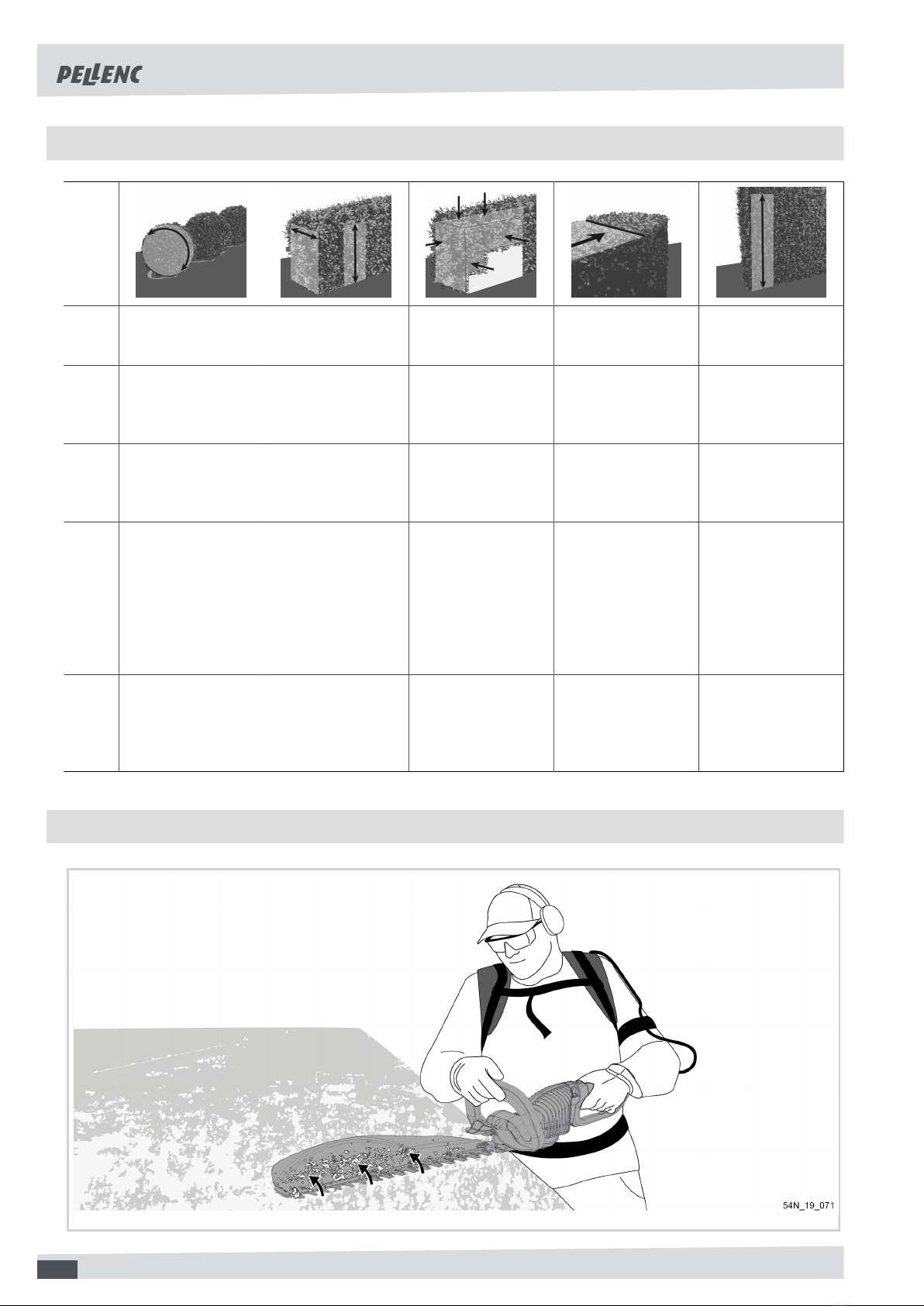

5.4. TIPS FOR USING THE ADAPTABLE BLADES
L27
“OPTIMAL USE”
Shrubs and shaping
L51 “POSSIBLE USE”
“OPTIMAL USE”
Pruning work over
large sections
“POSSIBLE USE” “POSSIBLE USE”
L63
“OPTIMAL USE”
Dense vegetation
in small sections
“POSSIBLE USE” “POSSIBLE USE” “POSSIBLE USE”
L63D “POSSIBLE USE” “POSSIBLE USE”
“OPTIMAL USE”
Top of the hedge.
Objective: to have
a beautiful finish,
prevent the cut-
tings from falling
inside the hedge.
“POSSIBLE USE”
L75
“OPTIMAL USE”
Gain working
depth on the top
of the hedge
“POSSIBLE USE” “POSSIBLE USE”
“OPTIMAL USE”
Not very dense -
efficiency required.
5.5. WORKING TECHNIQUES
20
