pellenc HELION 2 COMPACT User manual

54_14_16B
54_117575_F - 07/2017
USER GUIDE
ENG
Translation of the original
user guide
CONTENTS:
READ THE USER GUIDE CAREFULLY BEFORE USING THE TOOL
• A hedge trimmer without blade
• A power cord for the battery
• A torx screwdriver
• A user guide
• 1 armband
• 3 bolts for the cutting head
• The warranty card


3
SAFETY INSTRUCTIONS .....................................................................4
GENERAL SAFETY INSTRUCTIONS FOR THE TOOL..................................................................5
SAFETY WARNING FOR THE HEDGE TRIMMER .....................................................................6
SAFETY MEASURES FOR THE CHARGER AND THE BATTERY .........................................................6
SAFETY INDICATIONS .......................................................................7
SAFETY EQUIPMENT ...........................................................................................7
SAFETY INDICATIONS ..........................................................................................7
DESCRIPTION AND TECHNICAL CHARACTERISTICS .............................................8
TECHNICAL CHARACTERISTICS..................................................................................8
PRESENTATION OF THE CUTTER BARS ...........................................................................9
ACCESSORIES PROVIDED WITH EACH CUTTER BAR ...............................................................9
PUTTING THE TOOL INTO SERVICE ...........................................................10
ASSEMBLY / DISASSEMBLY OF THE HANDLE ......................................................................10
ASSEMBLY / DISASSEMBLY OF THE CUTTER BAR..................................................................11

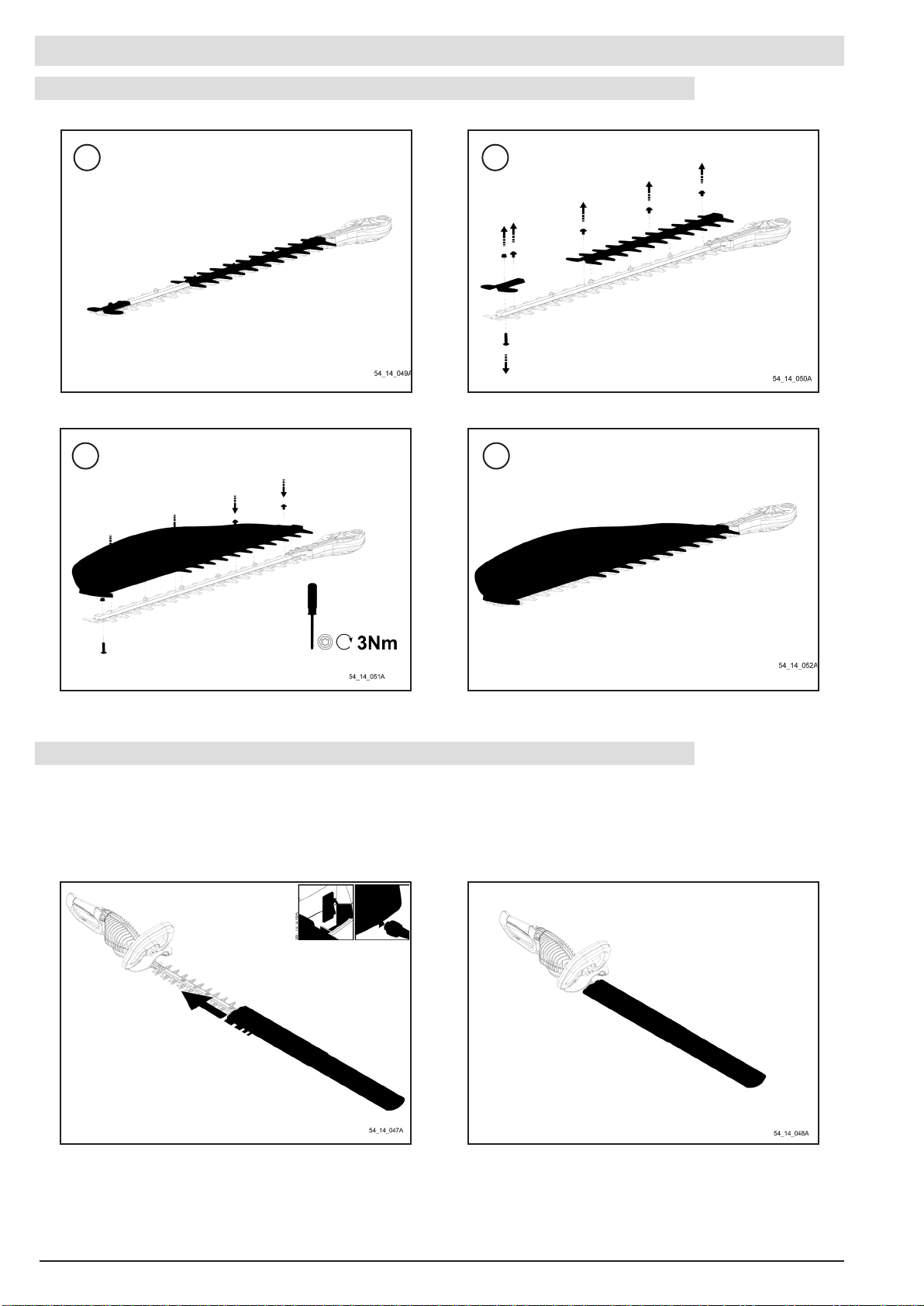

INSTALLATION OF THE DEFLECTOR ON THE CUTTER BAR L63.......................................................12
TRIMMER BLADE PROTECTION .................................................................................12
USE OF THE FAST CONNECTOR.................................................................................13
USE OF THE FAST CONNECTOR.................................................................................14
ORIENTATION OF THE HANDLE..................................................................................15
STARTING AND USE ........................................................................16
USING THE TRIGGER CONTROL AND FRONT HANDLE..............................................................16
STARTING ...................................................................................................17
SPEED SELECTOR ............................................................................................17
TIPS FOR USING THE ADAPTABLE CUTTER BAR ...................................................................18
WORKING TECHNIQUES .......................................................................................18
SERVICING................................................................................19
SERVICING SCHEDULE ........................................................................................19
PELLENC TOOL MAINTENANCE RECOMMENDATIONS ..............................................................20
TIGHTENING THE BLADES (DIFFICULTY 1) ........................................................................20
CLEANING ...................................................................................................20
LUBRICATION OF THE CUTTER BAR GEARS (DIFFICULTY 1) .........................................................21
SHARPENING THE BLADES (DIFFICULTY 2) .......................................................................21
STORAGE....................................................................................................22
STORAGE OUT OF SEASON ....................................................................................22
CUTTING TOOLS..............................................................................................23
ACCESSORIES ...............................................................................................23
CONSUMABLE................................................................................................23
TROUBLESHOOTING AND TOOL PROTECTION .................................................24
POSSIBLE DEFECTS AND DIAGNOSTICS * ........................................................................24
PELLENC S.A. WARRANTY AND AFTER SALES SERVICE.........................................25
"EC" DECLARATION OF CONFORMITY ........................................................26
Table of contents

4
All through this user guide you will nd advisory notes and information entitled: REMARK, CAUTION /
WARNING.
A REMARK provides additional information, claries a point or explains a step to be followed in detail.
The CAUTION and WARNING advisories are used to dene a procedure which, if neglected or incorrectly
performed, may lead to serious damage to the equipment and/or personal injury.
This advisory:
G
indicates that if the procedures or instructions are not complied with, any damage will not
be covered by the warranty and the owner will be responsible for the repair costs.
Safety indications are also given on the tool; they remind you of the safety precautions to be taken. Identify
and read these indications before using the tool. Immediately replace any indications that may become
partially illegible or deteriorated.
Refer to the «SAFETY INDICATIONS» heading in order to identify the location of the safety
indications on the tool.
No part of this manual may be reproduced without the written consent of PELLENC. The illustrations
given in this manual are for information purposes and are in no way contractual. PELLENC reserves the
right to make any modication or improvement to its products as deemed necessary without informing
customers already in possession of a similar model. This manual forms an integral part of the tool and must
accompany the tool if it changes hands.
SAFETY INSTRUCTIONS
You must read THE WHOLE of this user guide before using the tool or before carrying out
servicing operations.
Comply scrupulously with the instructions and illustrations given in this document.
PLEASE SAVE THESE INSTRUCTIONS
This manual contains important information and operating instructions for the following
tool: HELION 2 COMPACT.

5
SAFETY INSTRUCTIONS
GENERAL SAFETY INSTRUCTIONS FOR THE TOOL
CAUTION Read all the safety measures and all the instructions.
Retain all the safety measures and instructions for later reading.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or preliminary instructions by a person responsible for their safety.
KEEP THESE INSTRUCTIONS
Work area safety
a. Keep the work area clean and well lit.
b. Do not use electric tools in an explosive atmosphere, for example in the presence of ammable
liquids, gases or dust.
c. Keep children and persons present away when using the tool.
Electrical safety
a. The plugs of the electric tool must be adapted to the base. Never modify the plug in any way
whatsoever. Do not use adaptors with grounded tools.
b. Avoid any body contact with grounded surfaces such as pipes, radiators, cookers and refrigerators.
c. Do not misuse the power cord. Never use the power cord to carry, pull or disconnect the tool. Keep
the power lead away from heat, lubricant, sharp edges or moving parts.
Personal safety
a. Remain vigilant, watch what you are doing and use common sense when using the tool. Do not use a
tool if you are tired or under the inuence of drugs, alcohol or medication.
b. Wear safety equipment. Always wear eye protection.
c. Avoid any untimely starting of the device. Make sure the switch is in the off position before connecting
the tool to the mains and/or battery pack, picking it up or carrying it.
d. Remove any adjustment key before starting the tool.
e. Do not rush. Adopt a suitable position and remain balanced at all times.
f. Wear appropriate clothing. Do not wear loose clothing or jewellery.
g. Keep hair, clothing and gloves away from moving parts.
h. If systems are provided to connect dust extraction and recovery equipment, make sure these
systems are connected and properly used.
• The HELION 2 COMPACT hedge trimmer is a professional tool whose use is reserved exclusively for
trimming vegetation.
• PELLENC SA accepts no liability for any damage caused by improper use or use other than that for
which it is intended.
• PELLENC SA accepts no liability for any damage caused by the use of non-original parts or accessories.

6
56_10_016A
SAFETY MEASURES FOR THE CHARGER AND THE BATTERY
Refer to the Pellenc tools battery manual.
SAFETY INSTRUCTIONS
WARNING:
Before working on the tool, check that the On / Off switch is in the off
position «0» and disconnect the battery power lead.
Tool usage and maintenance
a. Do not force the tool. Use a tool suited to your application.
b. Do not use the tool if the switch does not allow it to be switched on and off.
c. Disconnect the plug of the power supply source and/or battery pack from the tool prior to any
adjustment, change of accessories or before putting the tool away.
d. When not in use, keep tools out of reach of children, and do not allow persons to use the tool if they
do not know how to use it and if they have not read these instructions.
e. Comply with tool servicing instructions. Check that the moving parts are not misaligned or jammed,
that there are no broken parts or that there is no other condition which could affect the operation of
the tool. In the event of damage, have the tool repaired before using it.
f. Keep the cutting components sharp and clean.
g. Use the tool, accessories, blades etc., in accordance with these instructions, taking into account the
working conditions and the work to be performed.
Use of battery-operated tools and usage precautions.
a. Only recharge using the charger specied by the manufacturer.
b. Only use the tools with specically designated battery packs.
c. When a battery pack is not used, store it away from other metal objects such as paper clips, coins,
keys, nails, screws or other small items which can form a connection from one terminal to another.
d. In poor conditions, liquid can be ejected from the battery; avoid any contact. In the event of accidental
contact, clean with water. If the liquid gets into your eyes, seek medical help.
Maintenance and upkeep
a. Have the tool serviced by a qualied repairer using only identical spare parts.
SAFETY WARNING FOR THE HEDGE TRIMMER
1–Keep the cutting blade away from all parts of your body. Do not remove the cut material or hold the
material to be cut when the blades are moving. Make sure that the switch is closed when removing the
stuck material.
2–Carry the hedge trimmer by the handles with the cutting blades off. Always t the protective sheath on
the cutting device during transport or storage of the hedge trimmer.
3–Hold the tool by the isolated gripping areas only because the cutting blades can get in contact with the
hidden wiring or the own hedge trimmer power cord.
4–It is advised that you check for the presence of foreign bodies in the hedge, such as
wire fences son of iron and metal stakes.

7
1 5
2 6
37
48
1
4
2
5
3
6
SAFETY INDICATIONS
SAFETY EQUIPMENT
Protective equipment Wearing is
1 Helmet Recommended
2 Visor Recommended
3 Hard-wearing gloves Mandatory
4 Safety footwear Recommended
5 Ear protection Mandatory
6 Safety goggles Mandatory
7 Safety jacket or over-sleeves Recommended
8 Work trousers Recommended
SAFETY INDICATIONS
1–LwA sound power level guaranteed.
2–Risk of burns (motor)
3–IP54
4–Read the user guide.
5–Wearing glasses and hearing protection is required.
6–Wearing gloves is mandatory.
The IP54 protection concerns only the tool, not the battery. This means that it is protected against
dust and against water spray from all directions.

8
1 3 4 6 5 7 8
10
92

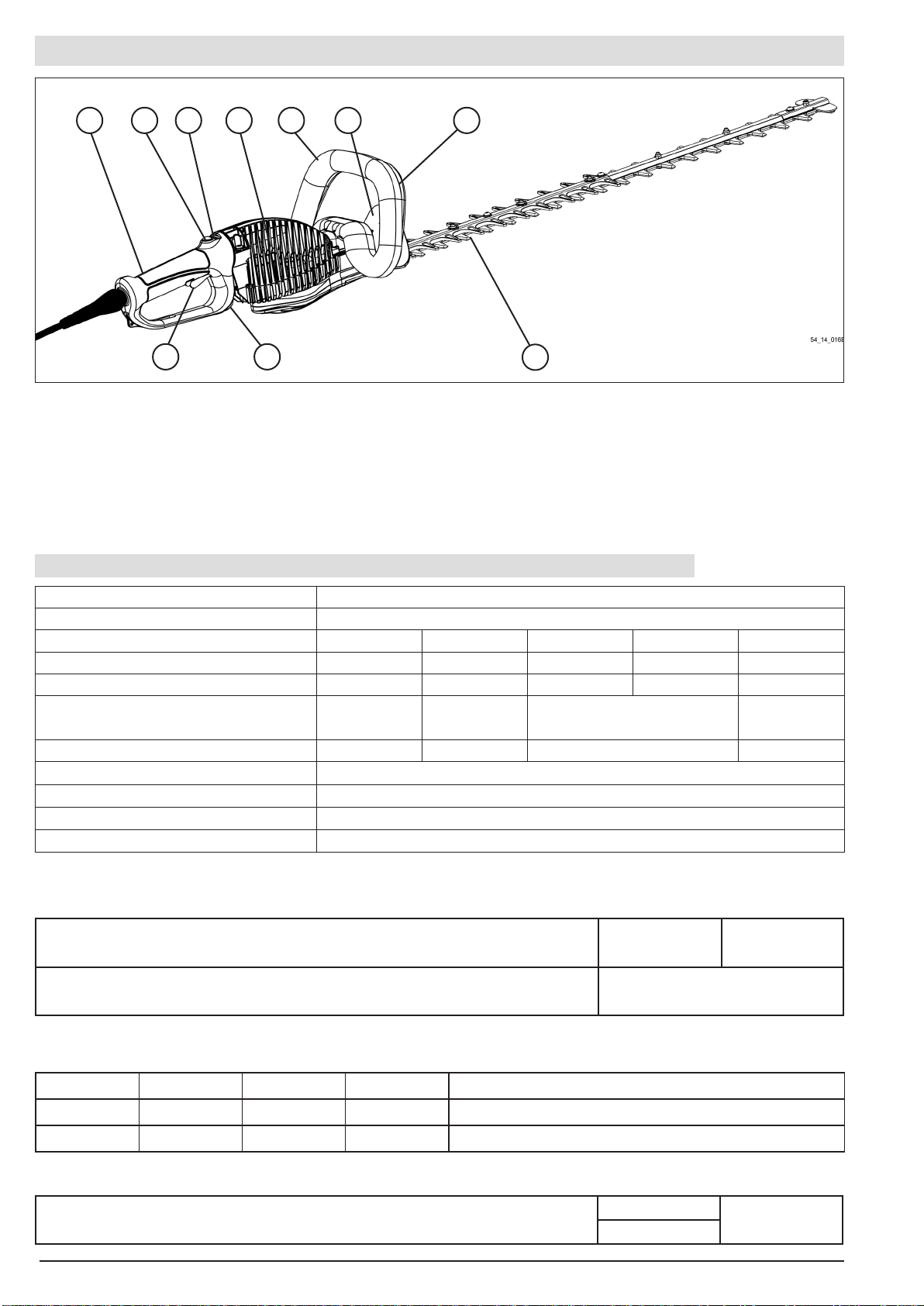

DESCRIPTION AND TECHNICAL CHARACTERISTICS
TECHNICAL CHARACTERISTICS
Values dened as per sound measurement standards NF EN ISO 11203 and NF EN ISO 3744.
Symbol Value Unit Reference Comment
LWAm 91 dB(A) 1 pW Measured sound power level
LWAg 92 dB(A) 1 pW Guaranteed sound power level
The recording of the measured sound power level and of the guaranteed sound power level has been performed according to a
procedure in accordance with directive 2000/14/CE appendix V.
1–Rear handle
2–Operating trigger
3–Speed selector
4–LED power and speed indicator
5–Front handle
6–Crankcase
7–Hand guard
8–Front handle safety trigger
9–Handle rotation button
10–Blade
HELION 2 COMPACT
Power 1200 Watts
Blade L27 L51 L63 L63D L75
Cutter bar weight 1.0 1.4 1.5 1.7 1.6
Tool + cutter bar weight 3.0 Kg 3.4 Kg 3.5 Kg 3.7 Kg 3.6 Kg
Dimensions (l x w x h) in mm 745
*232*181 985
*232*181 1105
*232*181 1225
*232*181
Effective cutting length/Cutter bar 270 mm 510 mm 630 mm 750 mm
Distance between teeth 33 mm
Tooth height 24 mm
Blade speed 3200 to 3800 strokes/mn
Battery life Depending on the use and type of battery
Vibration emission value as per EN 60745-2-15 :2009 Handle uncertainty
Kd = 1.5 m/s²
ah = 3.4m/s²
Maximum weighted acoustic pressure level (ref. 20 µPa) at the user's position LpA = 80 dB(A) K = 1.5 dB(A)
C-weighted peak sound pressure level (ref. 20 µPa) at the user's position LpC < 130 dB(C)
Determining the sound levels and vibration rates is based on the operating conditions at the maximum nominal rating with a 75mm
cutter bar.

9
réf = 57096
réf = 56205
réf = 56206
réf = 56206 + réf = 57097
réf = 56207
DESCRIPTION AND TECHNICAL CHARACTERISTICS
- Protective sheath
- Assembly instructions
- The blade's certicate of conformity
PRESENTATION OF THE CUTTER BARS
ACCESSORIES PROVIDED WITH EACH CUTTER BAR
L27
L51
L63
alone
Deector Kit
D
L75

10
12
34
(2x)M5x25
PUTTING THE TOOL INTO SERVICE
ASSEMBLY / DISASSEMBLY OF THE HANDLE

11
G
1
2
3 4
G
(3x)M5x25
PUTTING THE TOOL INTO SERVICE
WARNING:
Before working on the tool, check that the ON/OFF switch is set to the OFF position «0» and
disconnect the power supply lead from the battery.
WARNING:
Never use a trimmer blade other than the one specied by PELLENC. Failure to do so will
result in a risk of personal injury.
ASSEMBLY / DISASSEMBLY OF THE CUTTER BAR
WARNING:
Running-in of the cutter bar must be done for 1 minute at each change of the cutter bar in a dry run.
Check the tightness of the cutter bar after running-in.

12
1 2
3 4
TRIMMER BLADE PROTECTION
PUTTING THE TOOL INTO SERVICE
INSTALLATION OF THE DEFLECTOR ON THE CUTTER BAR L63
Cover the cutter bar with the sheath in all of the following
cases: transport, adjustment, handling and storage of the
tool.

13
A
ED
B
F
H
F2
F1G
PUTTING THE TOOL INTO SERVICE
USE OF THE FAST CONNECTOR

14
JI
PUTTING THE TOOL INTO SERVICE
USE OF THE FAST CONNECTOR
Do not manipulate the retractable connector ring. If the ring is damaged, replace the cable.
To prolong the life of the connector, it is advisable to protect it when in the unplugged:
• rstly, on the tool by systematically repositioning the connector plug to protect the connection
area and prevent the entry of foreign bodies.
• secondly, on the cord by avoiding contact of the connector with abrasive or dirty surfaces,
or subjecting it to important shocks (falls).

15
1
2 3
45
AE
AC
E C
BD A
PUTTING THE TOOL INTO SERVICE
ORIENTATION OF THE HANDLE
The handle must be in one of the 5 locking
positions in order to operate.

16
X2
54_14_018A
C = "ON"
X2
54_14_018A
C = "ON"
G
G
2
1
10
3
7 9
56_10_017A
X1
C = "ON"
54_14_041A
X1
C = "ON"
54_14_041A
4
8
6
5
C
C
C
C C
C
< =
5mn > / / =
5mn
56_10_017A
WARNING: Never disable the tool safety devices.
WARNING:
Check that the safety devices operate correctly before starting work.
STARTING AND USE
USING THE TRIGGER CONTROL AND FRONT HANDLE

17
STARTING
Always start the motor before bringing the trimmer blade into contact with the wood.
If at least 1 light on the handle is lit, the tool is
suppied with electrical power
SPEED SELECTOR
Your tool is equipped with a speed selector system. The speed selector is located on the handle and allows
you to optimize the desired quality of work.
Four lights located on the handle indicate the selected speed level..
These lights may ash when the temperature
of the tool approaches the safe temperature
limit
Speed 1 (3200 strokes / mn)
Speed 2 (3400 strokes / mn)
Speed 3 (3600 strokes / mn)
Speed 4 (3800 strokes / mn)
STARTING AND USE
A. Check the site (fence, posts, etc.)
B. Put the tool in its start-up position. Remove the cover of the
cutter bar.
C. Attach the power cord to the arm using the armband
supplied.
D. Place the rear handle in the correct position.
E. Flip the ON/OFF switch of the Pellenc power tool battery to
"ON"
F. Press the safety of the front handle.
G. Press the trigger on the rear handle (double click or single
click)
The blades of the cutter bar function when the safety trigger of
the front handle and the control trigger of the rear handle are
held down.
Reduce speed to a minimum for greater
autonomy or when at least two lights are
ashing.
Speed
Leaf size

18
WARNING! Never cut anything other than vegetation.
STARTING AND USE
WORKING TECHNIQUES
TIPS FOR USING THE ADAPTABLE CUTTER BAR
L27 Shrubs and shaping
L51 Pruning work over
large areas
L63 Dense vegetation in
small sections
L63D The top of the hedge.
Objective: to have a beautiful
nish, prevent the cuttings from
falling inside the hedge.
L75 Gain depth of work on
the top of the hedge Little density -
requires efciency.
possible use optimal use

19
SERVICING
SERVICING SCHEDULE
Difculty level:
1 = Can be performed by the user
2 = Can be performed by approved distributor
Elements concerned Operations
Frequency
Difculty Notes
Prior to each
use After each
use Every 50
hours When
necessary
General appearance
Visual inspection of the
safeties X X 1
Cleaning X 1
Handles / Triggers Operation X 1
Hardware (excluding
blade) Tightening X 1
Blade
Cleaning X 1 Very important Directly affects consumption
(autonomy).
Use PELLENC spray ref.: 121633
Lubrication X X 1
Hardware X 1 Blade screws: 3.0 N.m
3 xing screws: 4.0 N.m
Sharpening X 2 45°
Adjustment X 2 Height of the posts
Greasing of the reducer X 1 20g max. of PELLENC grease ref. 74588 or
ref: 115174
Battery Please refer to the battery operating instructions

20
G
A
A
SERVICING
CLEANING
CAUTION:
Never use solvents (Trichlorethylene, White-Spirit, gasoline, etc) to clean the tool.
PELLENC TOOL MAINTENANCE RECOMMENDATIONS
• Use products recommended by PELLENC.
• Ask you approved PELLENC distributor in case of any problems.
WARNING! Always disconnect the hedge trimmer from the battery before working on the blades.
0.2< <0.4mm
2X/day
TIGHTENING THE BLADES (DIFFICULTY 1)
Other manuals for HELION 2 COMPACT
1
Table of contents
Other pellenc Trimmer manuals

pellenc
pellenc HELION POLE TELESCOPIC User manual

pellenc
pellenc HELION 3 User manual

pellenc
pellenc Excelion 1200 User manual

pellenc
pellenc HELION 2 COMPACT User manual

pellenc
pellenc EXCELION ALPHA User manual

pellenc
pellenc EXCELION ALPHA User manual

pellenc
pellenc EXCELION ALPHA User manual

pellenc
pellenc HELION ALPHA User manual
