EXCELION ALPHA
Translation of the original
user guide
USER GUIDE
ENG
GRASS CUTTER
READ THE USER GUIDE CAREFULLY BEFORE USE
• EXCELION 1200 grass cutter
• TAPCUT ALPHA cutter head
• Carrying strap
• TORX wrench
• A user guide
*Non-contractual image, battery not included
Parts supplied:

3
USER GUIDE Grass cutterv Excelion alpha
53_144013-A
TABLE OF CONTENTS
SAFETY INSTRUCTION 5
GENERAL SAFETY INSTRUCTIONS FOR THE TOOL.................................................6
WORK AREA SAFETY..................................................................................... 6
ELECTRICAL SAFETY..................................................................................... 6
PERSONAL SAFETY...................................................................................... 7
USE AND CARE OF THE POWER TOOL ....................................................................... 7
USING BATTERY-OPERATED TOOLS AND SAFETY PRECAUTIONS. .................................................. 8
MAINTENANCE AND UPKEEP.............................................................................. 8
SAFETY WARNINGS FOR THE EXCELION ALPHA GRASS TRIMMER ...................................9
TRANSPORTING EXCELION ALPHA GRASS CUTTER ............................................................. 9
STORAGE OF THE EXCELION ALPHA GRASS CUTTER ............................................................ 9
SAFETY MEASURES ASSOCIATED WITH CHARGER AND BATTERY USE ................................9
SAFETY EQUIPMENT...................................................................... 10
SAFETY SIGNALS ........................................................................ 10
DESCRIPTION AND TECHNICAL CHARACTERISTICS 11
TECHNICAL PROPERTIES.................................................................. 12
THE SOUND LEVELS AND VIBRATION RATES ARE DETERMINED BASED ON THE OPERATING CONDITIONS AT THE MAXIMUM
NOMINAL SPEED.......................................................................................12
PUTTING THE MACHINE INTO SERVICE 13
ASSEMBLY / DISASSEMBLY OF THE HANDLE .................................................. 13
ADJUSTING THE WORKING POSITION ....................................................... 14
ADJUSTING THE HANDLE................................................................................14
FIT AND ADJUST THE LENGTH OF THE HARNESS..............................................................15
BALANCING THE MACHINE ..............................................................................16
CONNECTING / DISCONNECTING THE BATTERY (OR COUNTERWEIGHT) ............................ 16
CONNECTION.........................................................................................16
DISCONNECTION ......................................................................................16
POWER ON OR OFF ...................................................................... 17
ACTIVATE THE BATTERY .................................................................................17
POWER UP THE EXCELION ALPHA GRASS CUTTER ............................................................17
POWER OFF THE EXCELION ALPHA GRASS CUTTER ...........................................................17

4
USER GUIDE Grass cutter Excelion alpha
53_144013-A
USAGE 18
STARTING THE EXCELION ALPHA GRASS CUTTER .............................................. 18
MANAGING CUTTER HEAD ROTATION SPEED .................................................. 19
THE CUTTING HEAD: TAP CUT ALPHA ........................................................ 20
TAP CUT ALPHA FITTING ................................................................................21
FITTING CUTTER WIRE TO ALPHA TAP-CUT ..................................................................21
ADJUSTMENT OF THE CUTTING WIRE'S POSITION:............................................................22
THE DIFFERENT WORK TECHNIQUES......................................................... 22
SIMPLE MOWING......................................................................................23
SIMPLE MOWING ON SLOPES ............................................................................23
MOWING ALONG WALLS, FENCES, AROUND TREES AND FLOWER BEDS ............................................23
MAINTENANCE 24
REFERENCES ........................................................................... 24
CUTTING HEAD: TAP CUT ALPHA ..........................................................................24
CONSUMABLES .......................................................................................25
ACCESSORIES: ........................................................................................25
INCIDENTS 26
PELLENC. WARRANTY AND AFTER SALES SERVICE 29
"EC" STATEMENT OF COMPLIANCE 30

5
USER GUIDE Grass cutterv Excelion alpha
53_144013-A
All through this user guide you will nd advisory notes and information entitled: REMARK, CAUTION / WARNING.
A REMARK provides additional information, claries a point or explains a step to be followed in detail.
TheCAUTION andWARNING advisories are used to dene a procedure which, if neglected or incorrectly performed,
may lead to serious damage to the equipment and/or personal injury.
This advisory:
G
indicates that if the procedures or instructions are not complied with, any damage will not be covered
by the warranty and the owner will be responsible for the repair costs.
Safety indications are also given on the tool; they remind you of the safety precautions to be taken. Identify and read
these indications before using the tool. Immediately replace any indications that may become partially illegible or
deteriorated.
Refer to the «SAFETY INDICATIONS» heading in order to identify the location of the safety indications
on the tool.
No part of this manual may be reproduced without the written consent of PELLENC. The illustrations given in this manual
are for information purposes and are in no way contractual. PELLENC reserves the right to make any modication
or improvement to its products as deemed necessary without informing customers already in possession of a similar
model. This manual forms an integral part of the tool and must accompany the tool if it changes hands.
TAKE CARE: PLEASE KEEP THESE INSTRUCTIONS
This manual contains important information and operating instructions for the follow-
ing tool: Excelion Alpha grass cutter
TAKE CARE:
It is IMPERATIVE that you read through the ENTIRE USER'S MANUAL before using or
servicing the tool.
Always comply with the instructions and illustrations in the manual.
■ SAFETY INSTRUCTION

6
USER GUIDE Grass cutter Excelion alpha
53_144013-A
• The Excelion alpha grass cutter is a professional tool whose use is reserved exclusively for cleaning of green
areas (grass, dense grasses, woody weeds and brambles).
• The PELLENC company accepts no responsibility for any damage caused by improper or unspecied use
different from its original intention.
• The PELLENC company accepts no responsibility for any damage caused by the use of non-original parts or
accessories.
■ SAFETY INSTRUCTIONS
This device is not intended for use by individuals (including children) with reduced physical,
sensory or mental capabilities, nor by anyone lacking in experience or knowledge, except if they
are supervised or have received prior instructions from a person responsible for their safety.
ʚGENERAL SAFETY INSTRUCTIONS FOR THE TOOL
WORK AREA SAFETY
a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in an explosive atmosphere, for example in the presence of ammable liquids, gases,
or dust. Power tools create sparks, which can ignite dust or fumes.
c) Keep children and bystanders away while operating the power tool. Distractions can cause you to lose control of
the tool.
ELECTRICAL SAFETY
a) The power tool connector must be adapted to the socket. Never modify the connector in any way whatsoever. Do
not use adapter plugs with earthed (grounded) power tools. Unmodied plugs and suitable sockets reduce the
risk of electric shock.
b) Avoid contact with earthed surfaces such as pipes, radiators, cookers, and refrigerators. There is an increased
risk of electric shock if your body is in direct contact with the ground.
c) Do not expose power tools to rain or damp conditions. The entry of water into a power tool increases the risk of
electric shock.
d) Do not mishandle the power cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges, and moving parts. Damaged or entangled cords increase the risk of
electric shock.
e) Use an extension cord suitable for outdoor use when operating power tools outdoors. Use a cord suitable for
outdoor to reduce the risk of electric shock.
f) Use a power supply protected by a residual current device (RCD) when the power tool
is operated in a damp location. Use of a RCD reduces the risk of electric shock.
NOTE: The term “Residual Current Device” (RCD) can be replaced by “Ground Fault Circuit Interrupter” (GFCI)
or “Earth Leakage Circuit Breaker” (ELCB).

7
USER GUIDE Grass cutterv Excelion alpha
53_144013-A
■ SAFETY INSTRUCTIONS
PERSONAL SAFETY
a) Stayalert,watchwhatyouaredoing,andusecommonsensewhenoperatingthepowertool.Donotuseapower
tool when you are tired or under the inuence of drugs, alcohol, or medication. A moment of inattention when
using a power tool can result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Safety equipment such as dust masks, non-slip
safety shoes, helmets, or ear protection used at the appropriate times reduces injuries.
c) Avoid accidental starting of the tool. Make sure the switch is in the off position before you connect the tool to the
power source and/or battery pack, pick it up, or carry it. Carrying a power tool with your nger on the switch or
connecting a power tool with the switch in the ‘on’ position can cause accidents.
d) Remove any adjusting wrench before switching the electric tool on. A wrench left attached to a rotating part can
cause injury.
e) Do not rush. Keep proper footing and balance at all times. This provides better control of the power tool in
unexpected situations.
f) Dress appropriately. Do not wear loose clothing or jewellery. Keep hair and clothing away from moving parts. Loose
clothing, jewellery or long hair can get caught in moving parts.
g) If devices are provided for connecting dust extraction and collection equipment, ensure that these are connected
and properly used. Use dust collectors to reduce the risk caused by dust.
h) Be vigilant and do not neglect the safety principles of the tool under the pretext that you are used to using it. A
split second of inattention can lead to serious injury.
USE AND CARE OF THE POWER TOOL
a) Do not force the power tool. Use the power tool suited for the job. The adapted power tool does the work better
and more safely at the speed it was built to operate at.
b) Do not use the power tool if the switch does not allow it to be switched on and off. Power tools that cannot be
controlled by a switch are dangerous and must be repaired.
c) Unplug the tool from the socket or remove the battery (if possible) before any adjustment, change of accessory or
storage. These preventive safety measures reduce the risk of accidentally starting the power tool.
d) When not in use, keep power tools out of the reach of children and do not allow persons unfamiliar with the power
tool or these instructions to operate it. Power tools are dangerous when operated by inexperienced users.
e) Maintenance of the power tool and its accessories is mandatory. Check that the moving parts are not out of
alignment or jammed, that there are no broken parts or that there is no other condition which could affect the
operation of the power tool. If damaged, repair the power tool before using it. Many accidents are due to poorly
maintained power tools.
f) Keepthecuttingelementssharpandclean. Properlymaintainedcuttingtoolswithsharpcuttingelementsareless
likely to jam and are easier to control.
g) Use the power tool, accessories, blades, etc. in accordance with these instructions, taking into account the working
conditions and the work to be done. Using the power tool for operations other than those specied can result

8
USER GUIDE Grass cutter Excelion alpha
53_144013-A
■ SAFETY INSTRUCTIONS
MAINTENANCE AND UPKEEP
a) Have the power tool serviced by a qualied technician, using only identical spare parts. This ensures the continued
safety of the power tool.
b) Never carry out maintenance work on damaged battery packs. Batteries should only be serviced by the
manufacturer or authorised service providers.
USING BATTERY-OPERATED TOOLS AND SAFETY PRECAUTIONS.
a) Recharge only with the charger specied by the manufacturer. A charger suitable for a specic battery pack may
create a re hazard when used with another type of battery pack.
b) Only use the tools with specically designated battery packs. Use of any other battery pack may create a risk of
injury and re.
c) When a battery pack is not being used, store it away from metal objects such as paper clips, coins, keys, nails,
screws and other small items that can create a connection between the terminals. Ashort-circuit between the
battery terminals may cause burns or re.
d) If in bad condition, a liquid may be ejected from the battery; avoid all contact. In the event of accidental contact,
clean with water. If the liquid gets into your eyes, seek medical help. The liquid ejected from the batteries can
cause irritation and burns.
e) Do not use a battery pack or battery-operated tool that is damaged or modied. Damaged or modied batteries
can have unpredictable behaviour causing re, explosion or risk of injury.
f) Do not expose a battery pack or battery-operated tool to re or excessive temperatures. Exposure to re or a
temperature above 130° C (265° F) may cause an explosion.
g) Follow all charging instructions and do not charge the battery pack or battery-powered tool outside the temperature
range specied in the instructions. Incorrect charging or charging at temperatures outside the specied
temperature range may damage the battery and increase the risk of re.
in hazardous situations.
h) Keep the handles and gripping surfaces must dry, clean and free of oil and grease. Slippery handles and gripping
surfaces make it impossible to safely handle and control the tool in unexpected situations.

9
USER GUIDE Grass cutterv Excelion alpha
53_144013-A
ʚSAFETY MEASURES ASSOCIATED WITH CHARGER AND BATTERY USE
a) Keep the original packaging in the possible event of shipping the Excelion alpha grass cutter for overhaul or repair.
b) Always release the control trigger to stop the electric motor and ensure the cutting tool is no longer moving before
putting the machine on the ground.
c) Put the battery back in its original packaging.
d) Secure the packed machine and battery in the transport vehicle.
a) Keep the original packaging for storing the machine
b) Store the machine in a dry place out of children's reach.
CAUTION:
Please refer to the battery instructions of the Pellenc tools.
TRANSPORTING EXCELION ALPHA GRASS CUTTER
■ SAFETY INSTRUCTIONS
STORAGE OF THE EXCELION ALPHA GRASS CUTTER
ʚSAFETY WARNINGS FOR THE EXCELION ALPHA GRASS TRIMMER
a) Do not use metal cutting tools with the Excelion alpha grass cutter
b) Clear the work zone of all obstacles (glass, stone, metal, waste, and other solid objects) as they can be projected
when working with the cutting tool.
c) Never use the Excelion grass cutter with one hand only.
d) Always use the machine with the cutting head parallel to the ground. The safety guard no longer provides sufcient
protection if the angle of the cutting head is excessive, which is likely to increase the risk of injury.
e) Stop the Excelion grass cutter immediately if the cutting tool starts responding differently (different noise, increased
vibrations). Check that the cutting tool is properly attached and verify its condition (no distortion). Replace any
damaged cutting tool as it can explode and cause serious, even fatal injuries.
f) CAUTION! The cutting tool continues rotating for a few seconds after the control trigger has been released.
Always keep your hands and feet clear of the rotating cutting tool.
g) Cutting wire
• Never remove the blade installed in the safety guard as it trims the wire to the appropriate length.
• Never use metal wire or any other material instead of the Pellenc cutting wire. Metal wire is likely to break
and be projected, causing serious injuries.
• Only use nylon cutting wire recommended by Pellenc with a max. diameter of 2.4 mm.

1
2
3
8
4
6
7
5
10
USER GUIDE Grass cutter Excelion alpha
53_144013-A

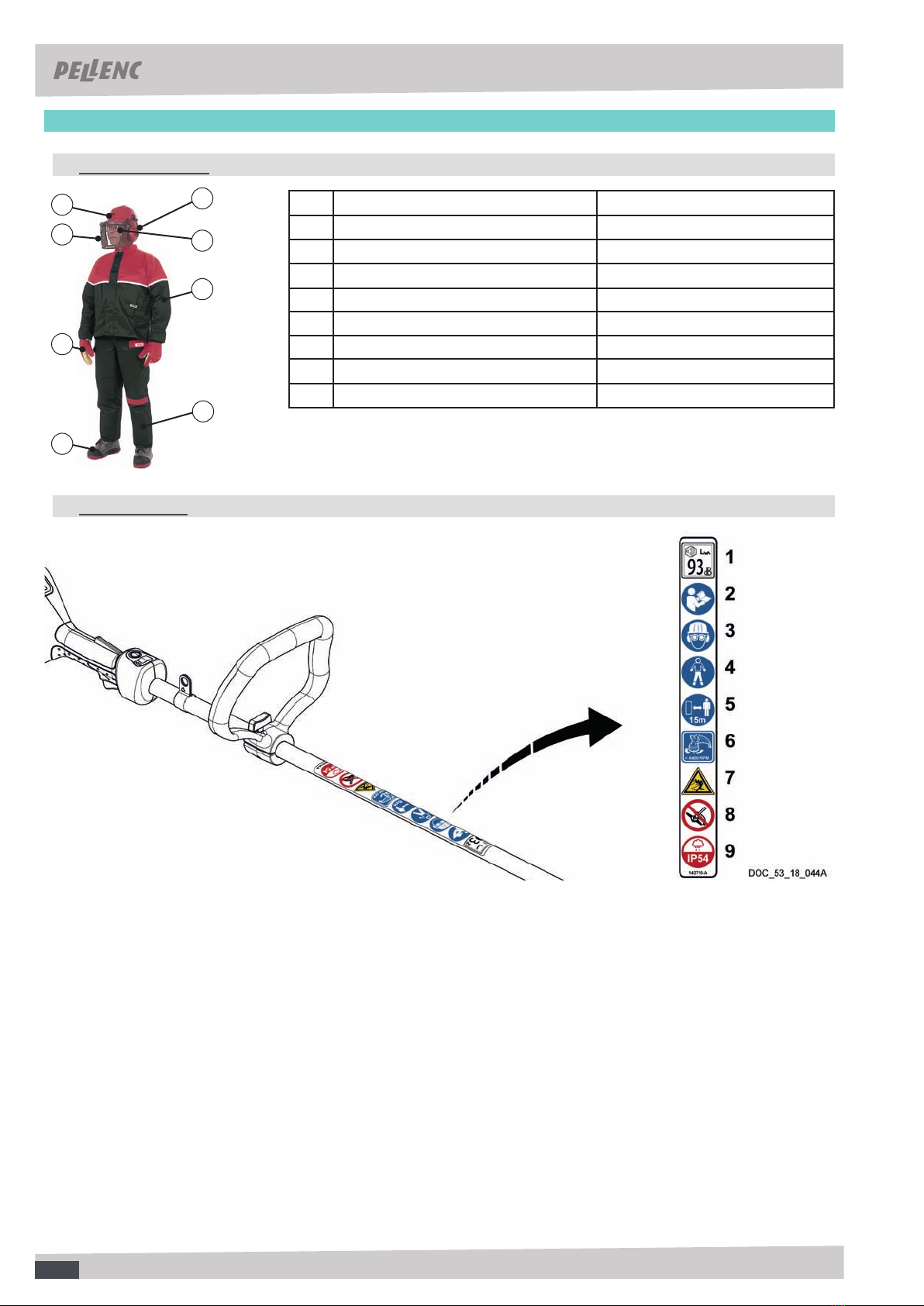

Protective equipment Wearing
1 Hat Mandatory
2 Visor Mandatory
3Hard-wearing gloves Mandatory
4Safety footwear Mandatory
5 Ear protection Mandatory
6 Safety goggles Mandatory
7Safety jacket or over-sleeves Recommended/advised
8Work trousers Mandatory
ʚSAFETY EQUIPMENT
■ SAFETY INSTRUCTIONS
ʚSAFETY SIGNALS
1–Sound power level: Lwag (page 12)
2–Read the instruction manual
3–It is mandatory to wear safety goggles: Pellenc recommends wearing a protective visor for the face and
an approved safety helmet.
4–Gloves, safety pants and safety shoes must be worn
5–Maintaining an adequate safety distance: Be sure to maintain an adequate safety distance of 15 m and
ensure that there are no people (especially children) or animal in the working area of the machine. Stop the machine
immediately if a person or animal approaches.
6–Direction of rotation and maximum speed: Pay attention to the direction of rotation of the Excelion alpha
grass cutter. This is indicated on the safety guard.
7–Pay attention to projections
8–Do not use metal cutting tools
9–The IP54 protection concerns only the tool, not the battery. This means that it is protected against dust
and against water spray from all directions.
