PELLET PRO 2300 User manual

Pellet Pro® Vertical Pellet Smoker
Installation Manual
1) Remove all parts from the inside of the smoker and remove all cellophane.
2) Flip the smoker on its back side and attach the four casters to the bottom
corners of the smoker using the smaller bolts provided. It is optional to
attach the swiveling casters on the left or right side.
3) Once the casters are attached to the bottom of the smoker, flip the
smoker upright.

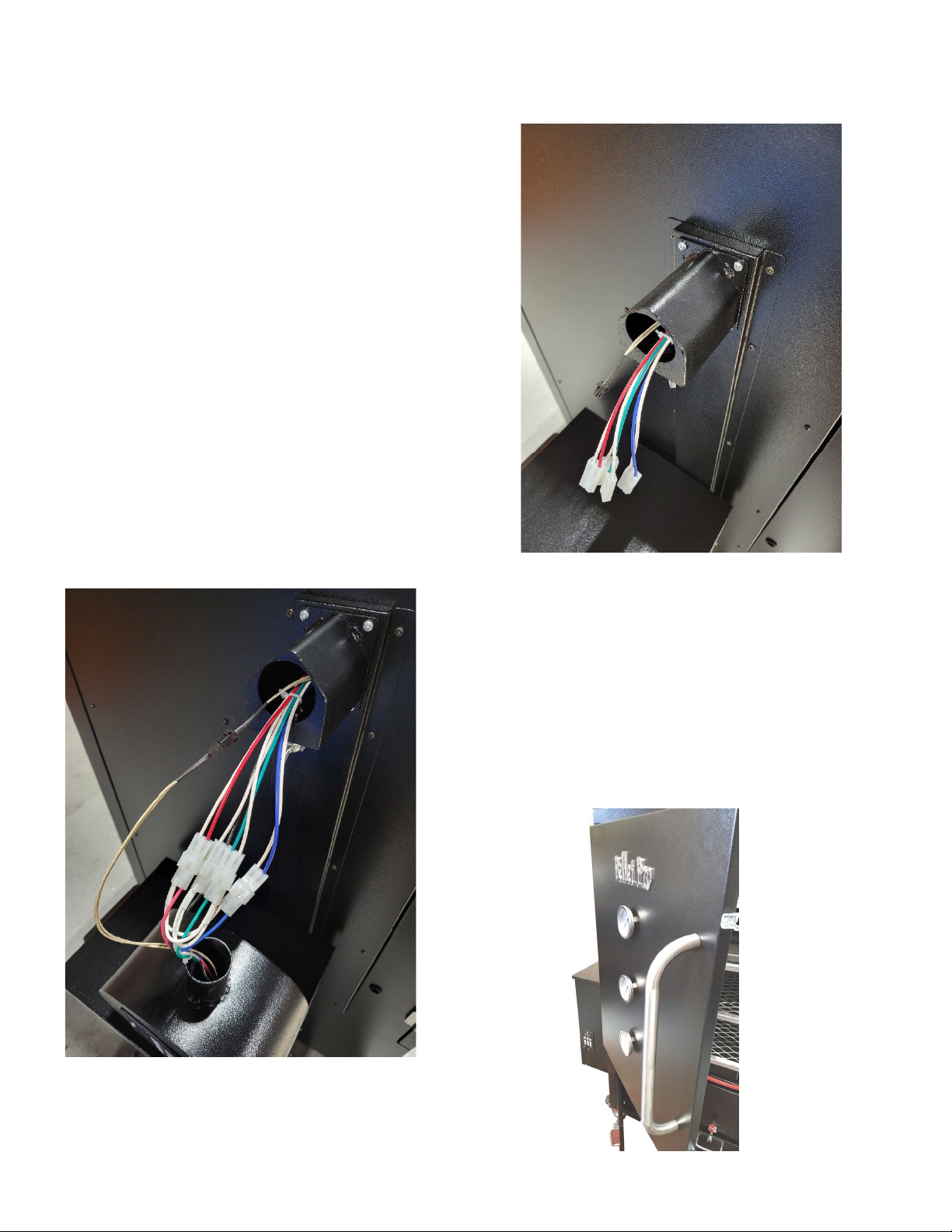

4) Insert the hopper assembly to the side of the cabinet and connect the
(4) corresponding color-coded Molex connectors. Then, connect the
ground wire to the bottom of the cabinet. See pictures below.

5. Using the (4) Large M6 Bolts and Washers provided, secure the
hopper assembly to the cabinet from the inside of the cabinet.
(This is easiest with two people.)
6. Locate the PID Controller Housing and remove the mounting
piece by loosening the large set screw.
7. Attach the mounting piece to the cabinet using the screws that
are affixed to the cabinet. See picture to the right.
8. Connect the corresponding color-coded Molex Connectors and
RTD probe wires. Hide any extra wiring inside of the controller
housing. Please see picture to the left.
9. Attach the three temperature gauges to the door. Be sure to
tighten only finger tight.

10. Remove the bolts and washers that are attached to the door handle and side handle. Using the separate longer bolts
and washers provided, attach the door handle and side handle to the cabinet.
11. Install the Heat Diffuser, Drip Pan, and Hopper Safety Guard as shown below.
12) Attach the side vent and dampener as shown using the (6) bolts that are already
threaded into the side wall.
13) Install all four stainless steel racks
14) Wipe down the racks and inside of the smoker with vegetable oil to season it.
**The Caution sticker on the hopper assembly can be removed if desired.**

Circulation Fan
When mounting the circulation fan, remove the fan housing and
attach the fan to the top corner of the cabinet using the four
screws provided. Once mounted, re-attach the housing.
Install fan onto the end of the shaft and secure with the REVERSE
THREAD nut.
*Recommendation*
We recommend using a disposable aluminum pan on the bottom shelf to catch any
grease or drippings. This will prevent an abundance of grease falling onto the drip pan
which may result in a grease fire.
Not only will this prevent a grease fire, but it will also increase the humidity which will
help keep your meat moist.
