Pelton & Crane Centennial 2 FS Series User manual

Centennial 2
Installation Instructions
FS Series
RD Series
OS Series

TABLE OF CONTENTS
Technical Support
Technical assistance is available Monday through Friday,
8:00 am to 8:00 pm (Eastern Standard Time).
Tech Support : 800-659-5922
Fax : [phone]
Customer Service : 800-659-6560
Website : www.pelton.net
DEFINITION OF SYMBOLS............................................................................................................................................................................................. 3
SAFETY............................................................................................................................................................................................................................ 3
OVERVIEW OF CONFIGURATIONS............................................................................................................................................................................... 4
FLEXIBLE SUPPORT CENTER DIMENSIONS............................................................................................................................................................... 5
REAR DELIVERY CENTER DIMENSIONS ..................................................................................................................................................................... 8
OPERATORY SUPPORT CENTER DIMENSIONS........................................................................................................................................................10
TEMPLATES .................................................................................................................................................................................................................. 12

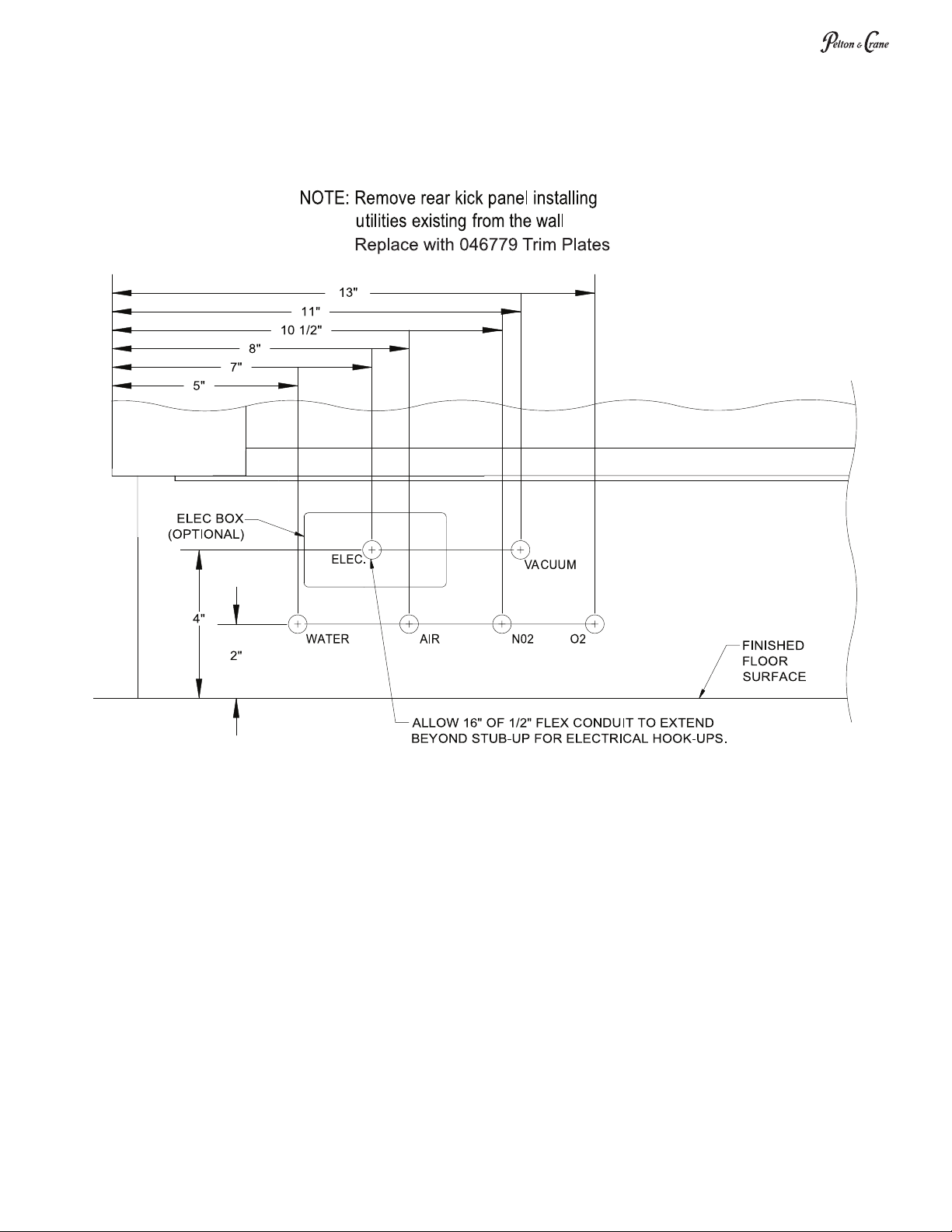

PREPARING THE SITE.................................................................................................................................................................................................. 18
SPECIFICATIONS ................................................................................................................................................................................................. 18

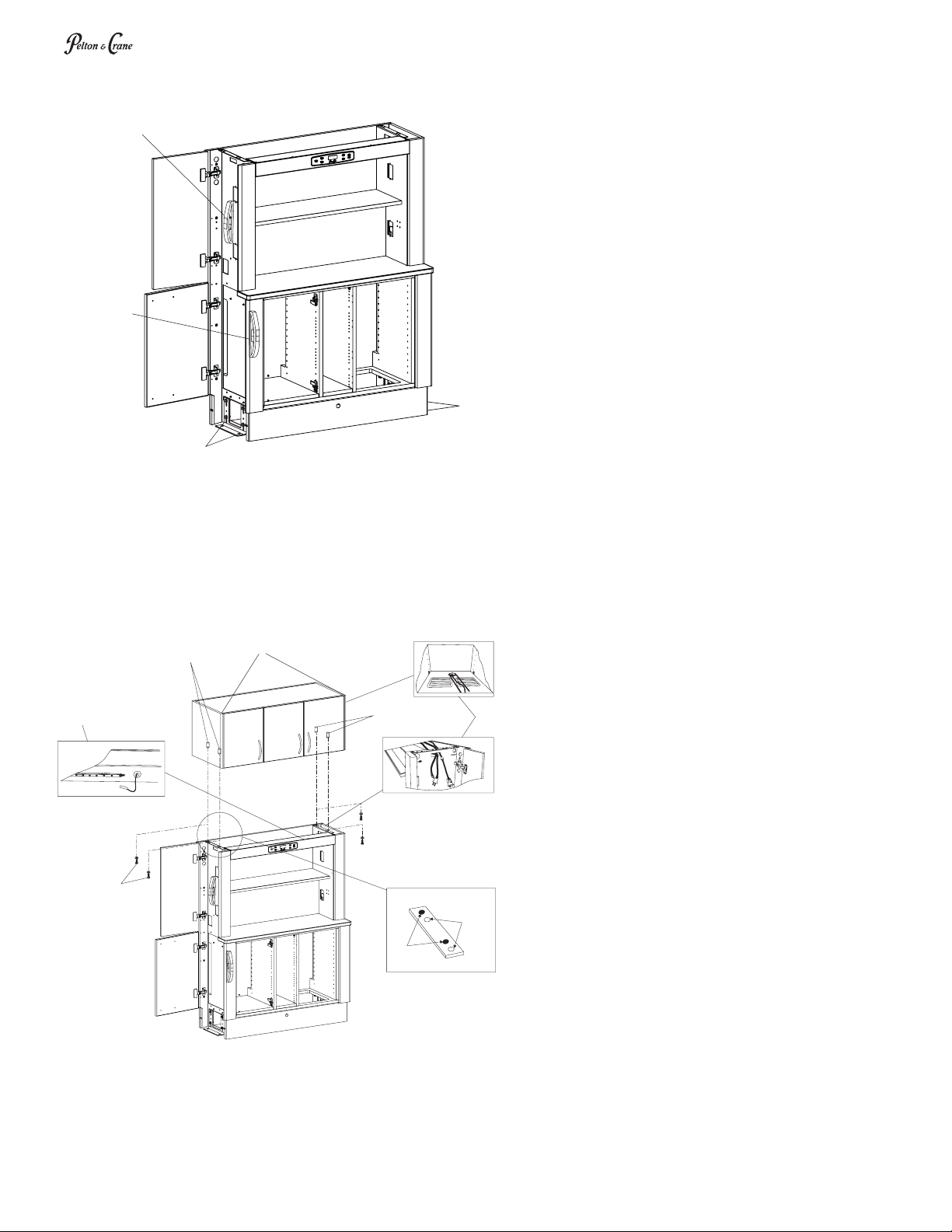

CABINET INSTALLATION .............................................................................................................................................................................................. 19
INSTALLATION ASSISTANT’S COUNTERTOP..................................................................................................................................................... 21
ELECTRICAL CHECKLIST ............................................................................................................................................................................................ 22
INSTALLATION AND SERVICING CHECKLIST ............................................................................................................................................................ 24

3064380 R00
As manufacturers of electro-medical products we can assume responsibility for safety-related performance of the
equipment only if maintenance, repair and modications are carried out only by Pelton & Crane or agencies we have
authorized for this purpose, and if components affecting safe operation of the unit that may be needed are replaced
with original parts.
We suggest that you request a certicate showing the nature and extent of the work performed, from those who carry
out such work, and specify that the certicate show any changes in rated parameters or working ranges, as well as the
date, the name of the rm and a signature.
Review all safety warnings and instructions before using the device to avoid injury and to prevent damage to the
equipment. The manufacturer’s liability is applicable only if the device is used in compliance with the directions and
safety warnings provided in this manual.
WARNING: Only properly trained and
authorized service technicians should install
and/or attempt to service this equipment.
Use of other than authorized technicians will
void the warranty.
WARNING: No unauthorized modication of
this equipment is allowed.
WARNING: Power cords and their associated
parts cannot be substituted without increased
risk of electric shock or re. We recommend
the use of authorized replacement parts only.
Power cords must be installed by qualied
personnel. Make sure all service loops, strain
reliefs, and cord guards are in place and that
line, neutral and ground wires are properly
secured.
WARNING: To avoid risk of electric shock,
this equipment must be connected only to
supply mains with protective earth.
WARNING: Use a licensed electrician
for all wiring. All electrical wiring to be in
accordance with local codes.
Refer to the Installation Instructions, Use &
Care manual and accessory manufacturer’s
literature to install and operate safely.
DEFINITION OF SYMBOLS
The following symbols and terms may be used throughout
this manual and your equipment:
SAFETY
WARNING: Failure to carefully follow the
described procedure may result in damage
to the equipment and/or injury to the patient/
operator.
Risk of electrical shock present.
Make sure power is disconnected before
attempting this procedure.
See operating instructions.
(AC) Alternating current.
Protective earth (Ground)
Manufacturing Date
Waste Electrical and Electronic Equipment.
Type B Applied part.
Indicates conformity to General Requirements for
Safety is certied by Intertek Testing Services.
General mandatory action required, important to
follow instruction. Not a caution.
Warning, strong magnetic eld.
Off
On
Light Switch

4064380 R00

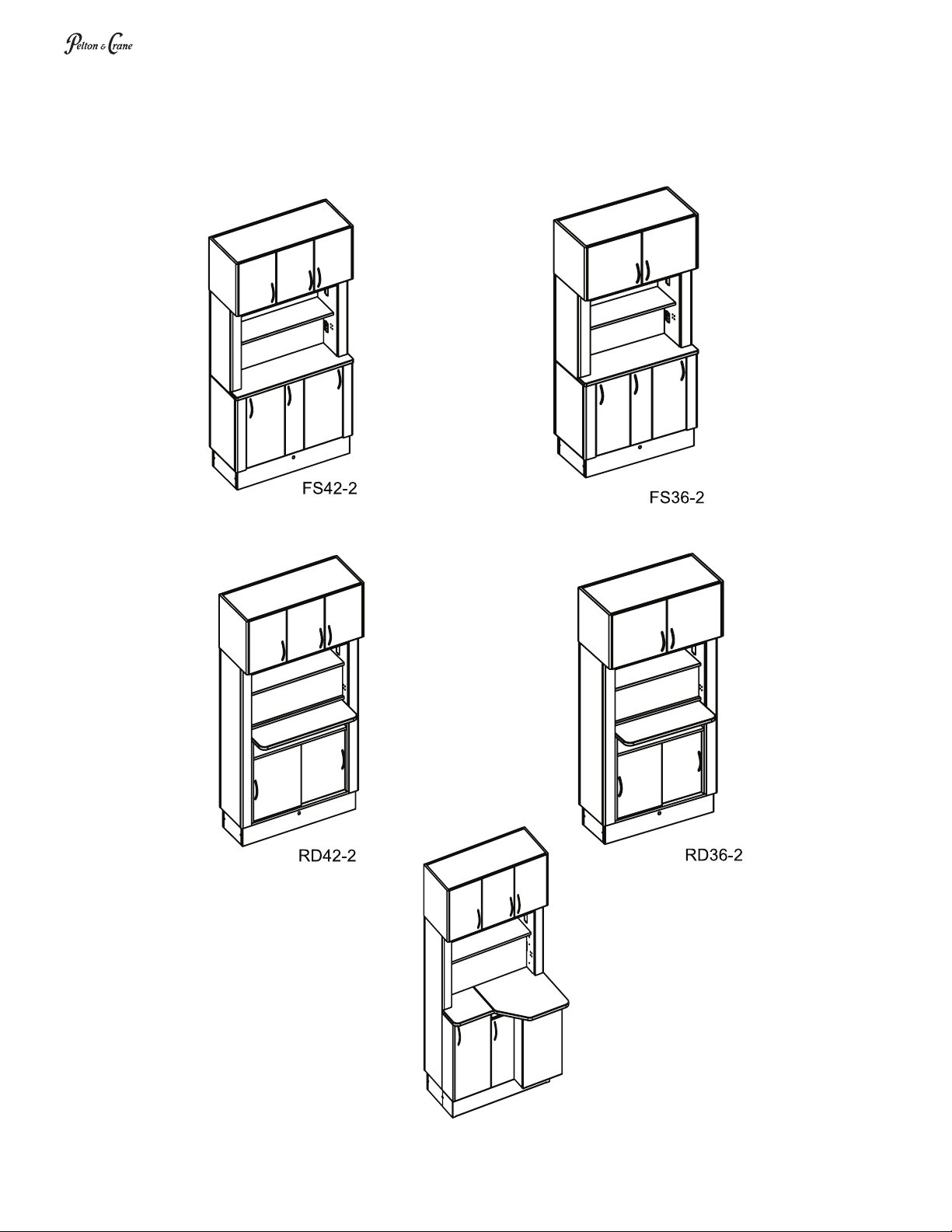

OVERVIEW OF CONFIGURATION
OS42-2
(SHOWN WITHOUT OPTIONAL DELIVERY UNIT ATTACHMENTS)

5064380 R00

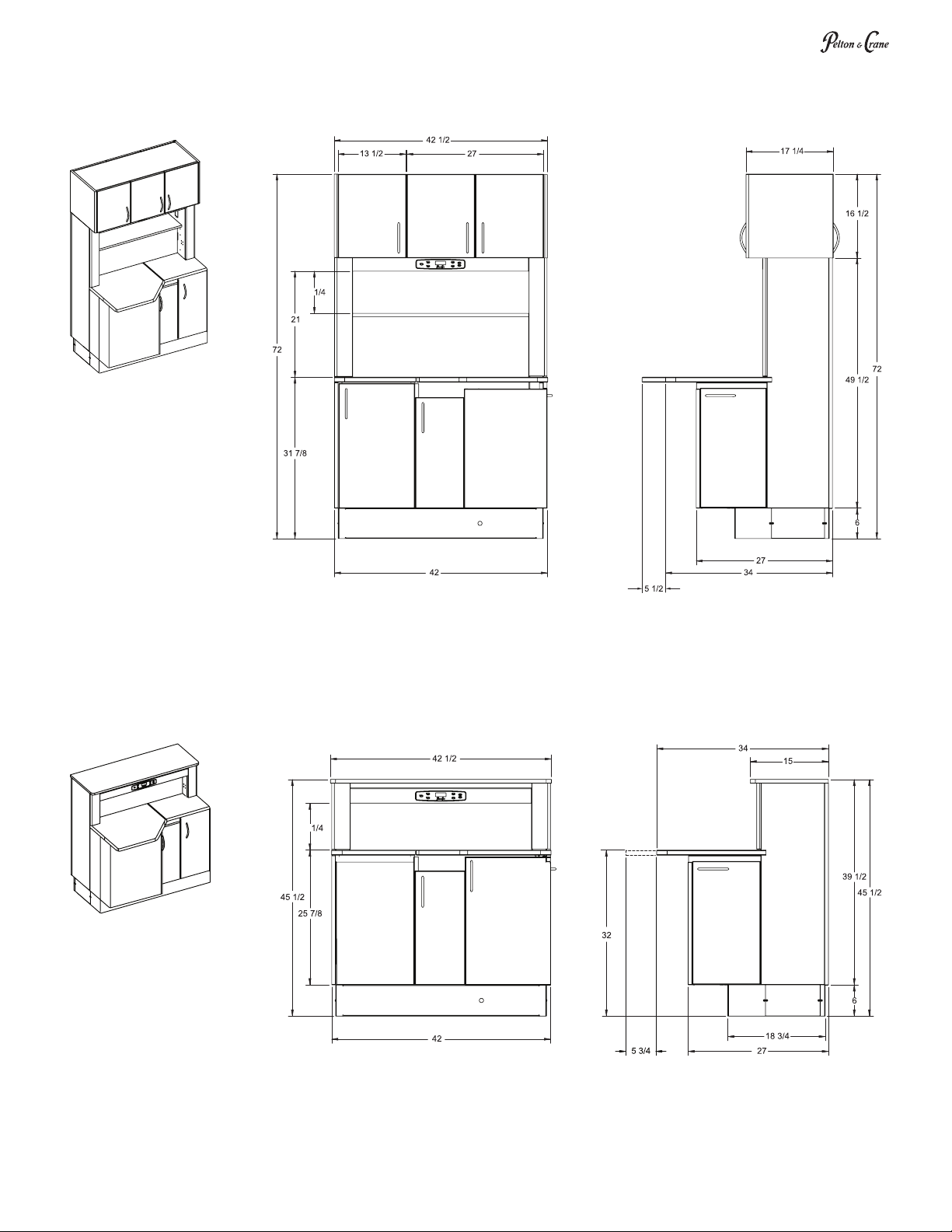

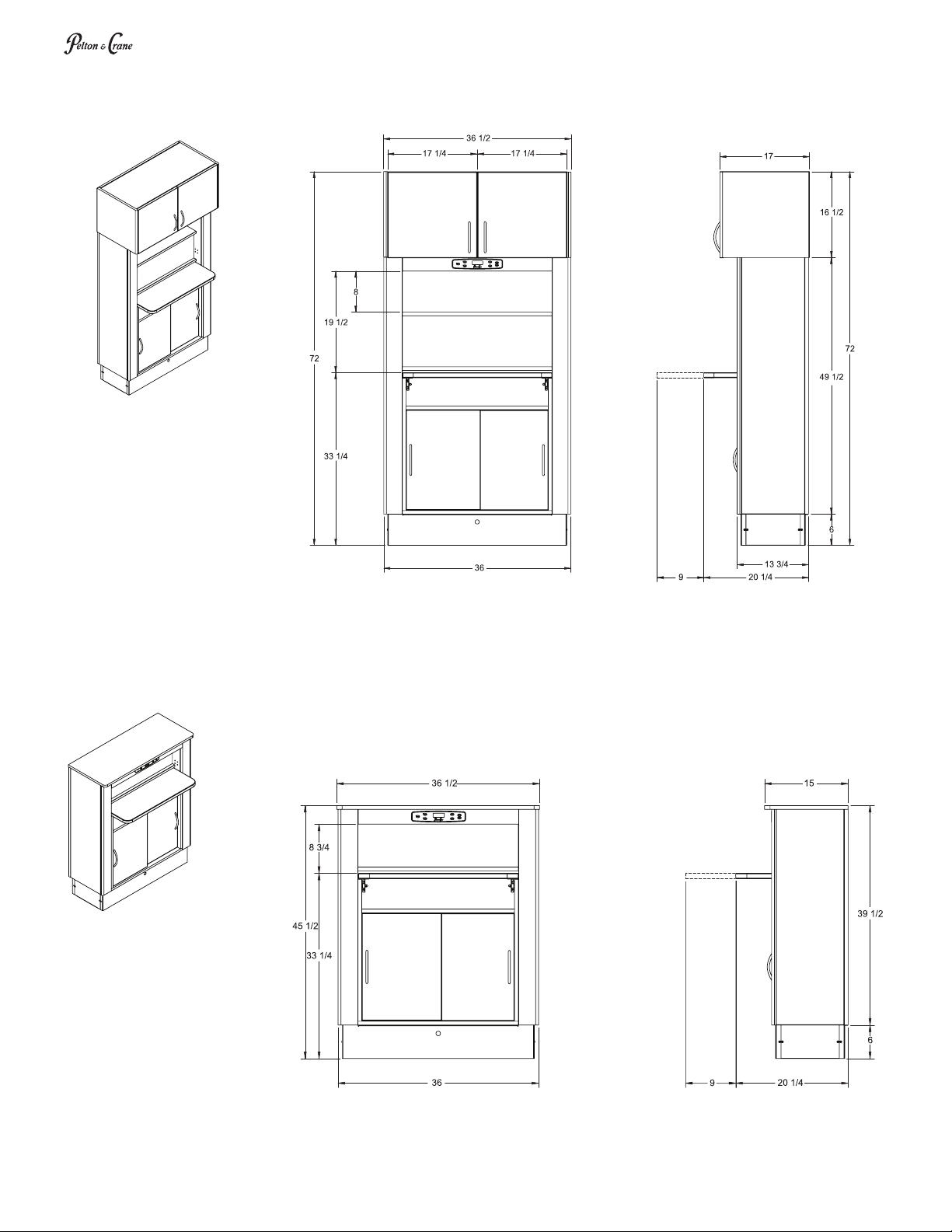

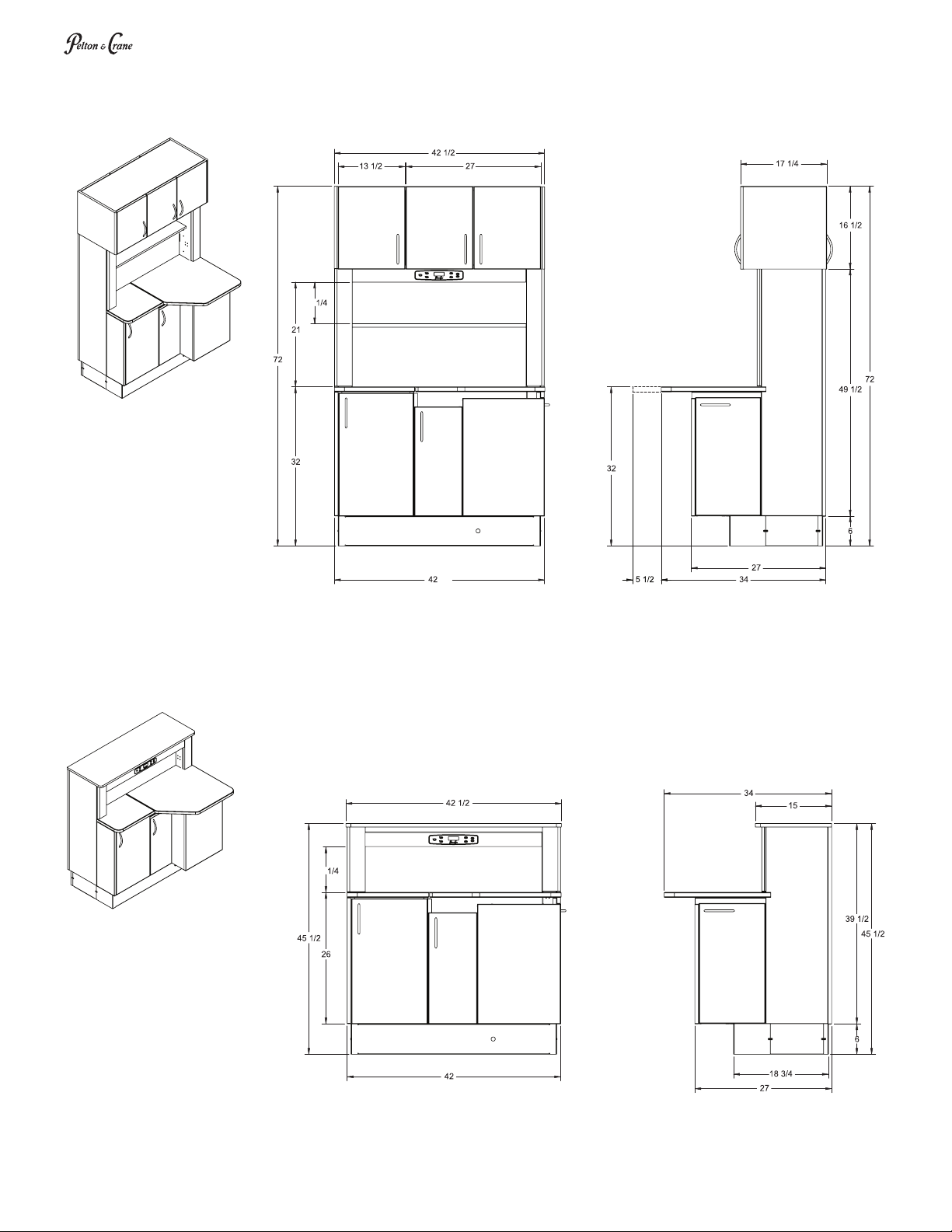

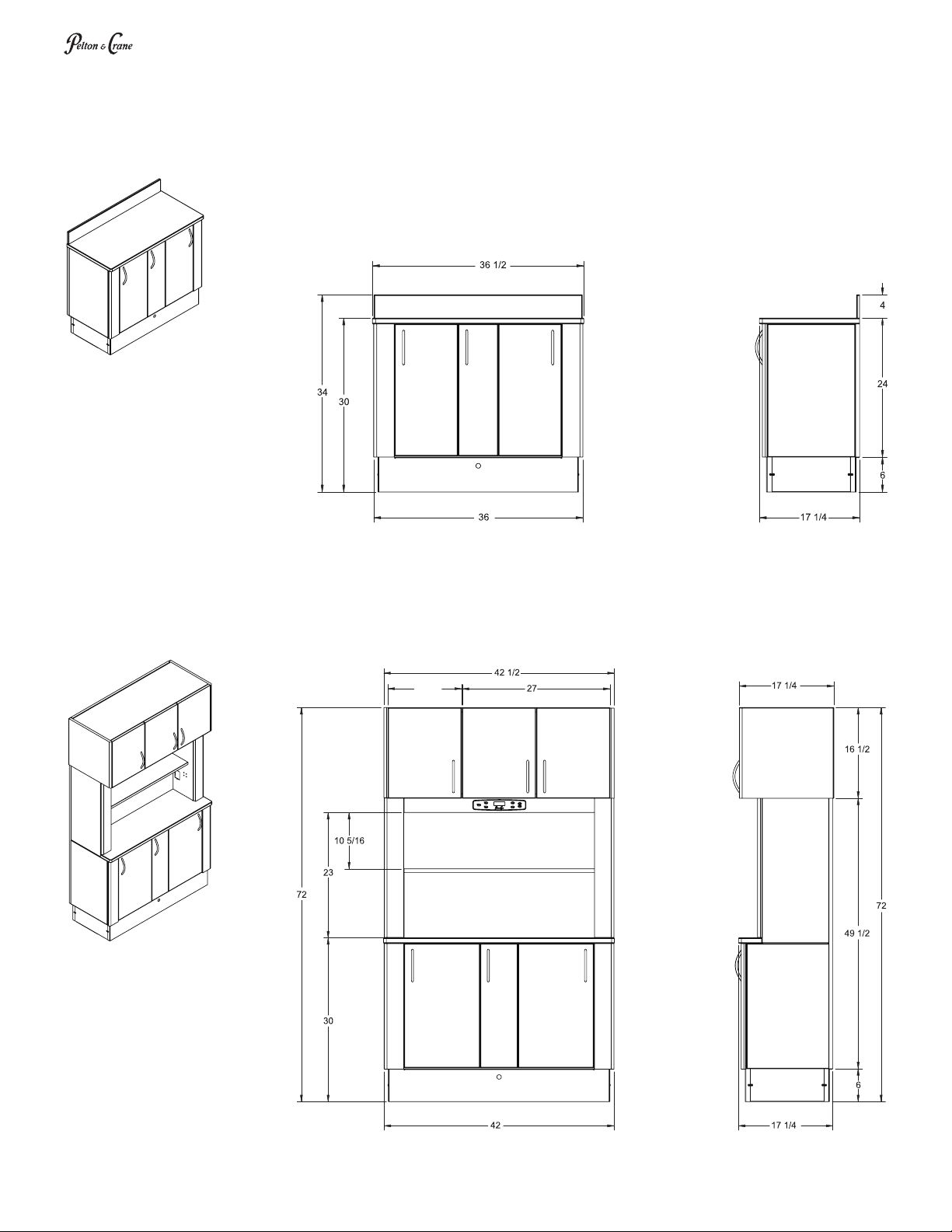

FLEXIBLE SUPPORT CENTER DIMENSIONS
FS36-2
(Shown with Standard Upper Cabinet)
FS36B-2
(Shown without Upper Cabinet)

6064380 R00
FLEXIBLE SUPPORT CENTER DIMENSIONS
13 1/2
FS36M-2
FS42-2
(Shown with Standard
Upper Cabinet)

7064380 R00
FLEXIBLE SUPPORT CENTER DIMENSIONS
FS42B-2
FS42M-2
(Shown without Upper Cabinet)

8064380 R00

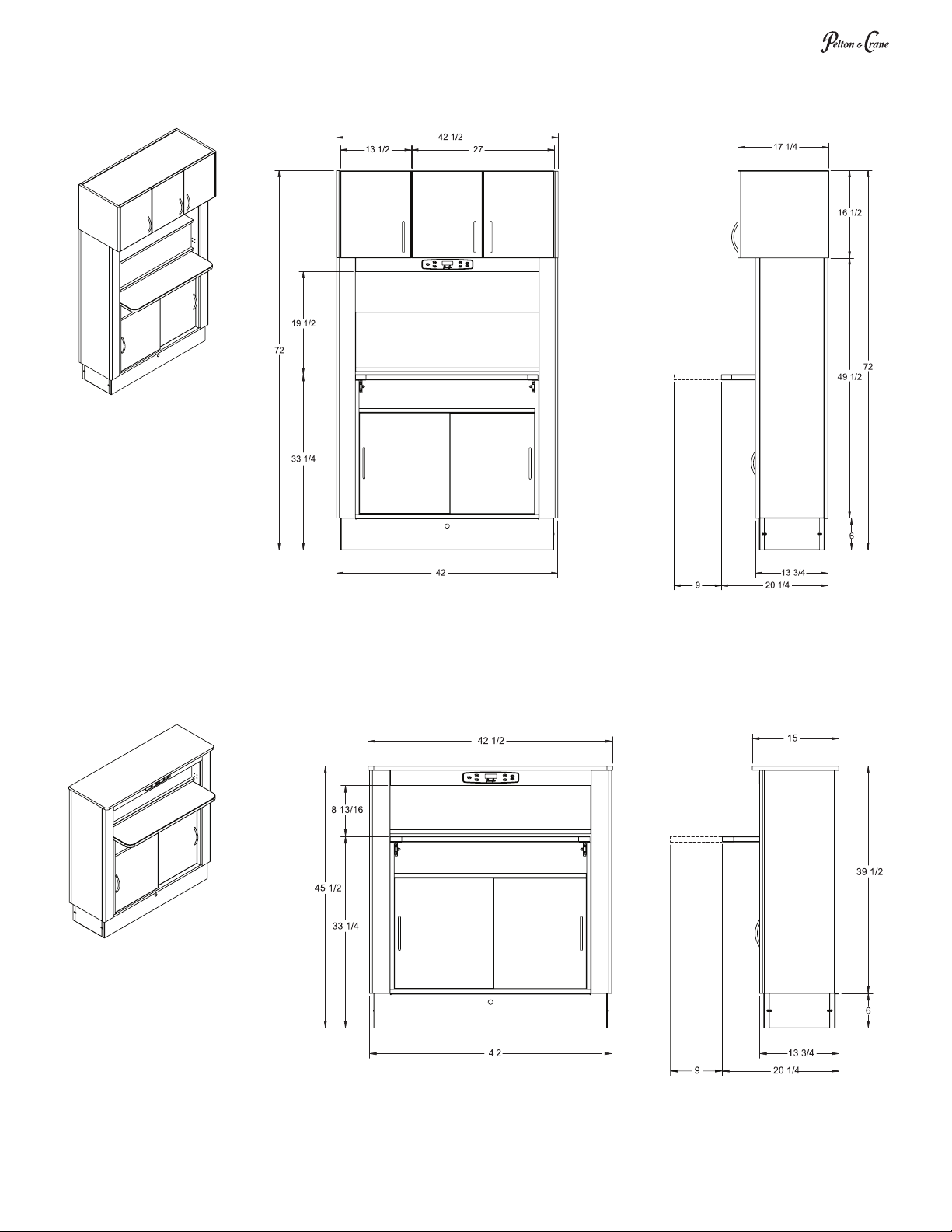

REAR DELIVERY CENTER DIMENSIONS
RD36-2
RD36B-2
(Shown without Upper Cabinet)
(Shown with Standard
Upper Cabinet)

9064380 R00
REAR DELIVERY CENTER DIMENSIONS
RD42-2
RD42B-2
(Shown without Upper Cabinet)
(Shown with Standard
Upper Cabinet)

10 064380 R00

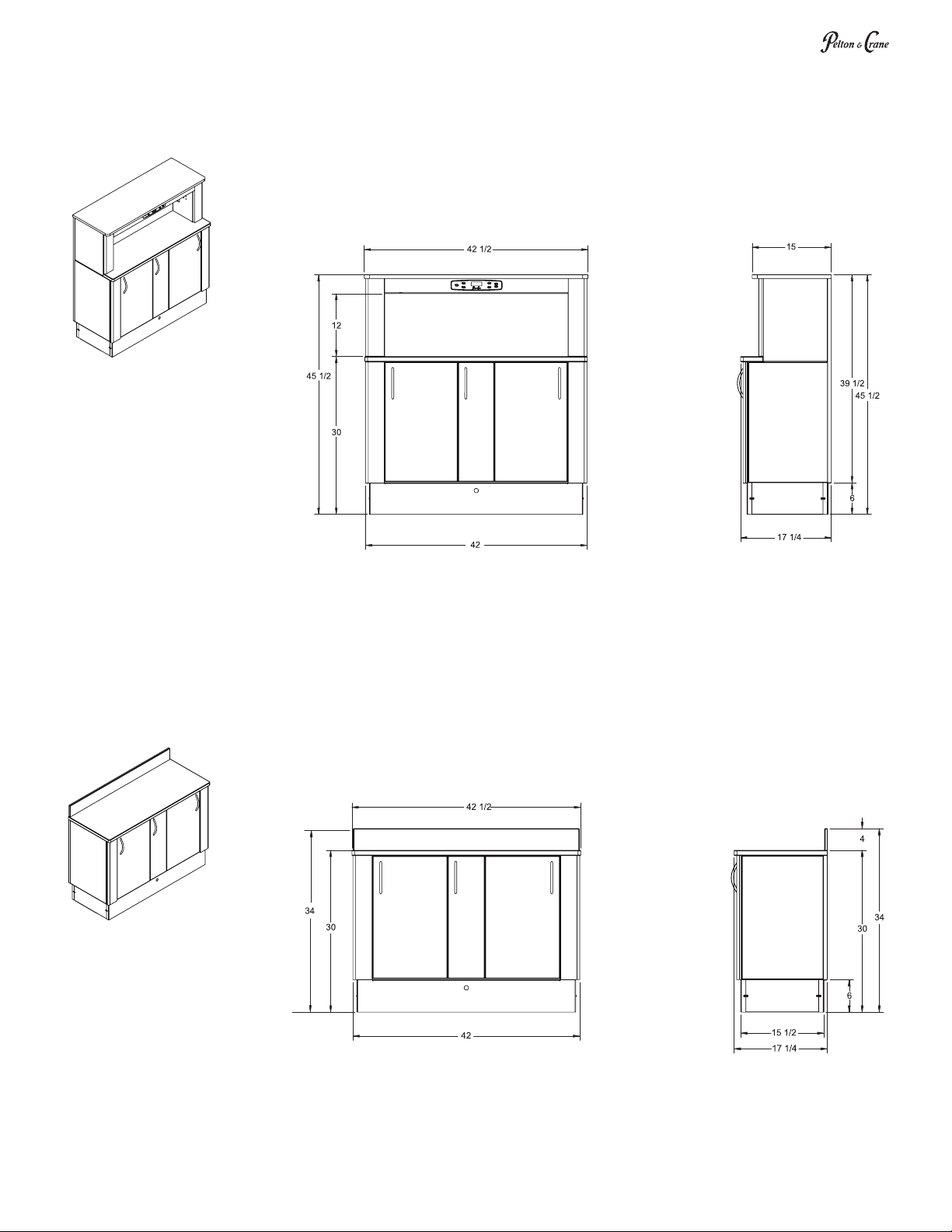

OPERATORY SUPPORT CENTER DIMENSIONS
10
10
OS42-2
OS42B-2
(Shown without Upper Cabinet)
(Shown with Standard
Upper Cabinet)

11064380 R00
OPERATORY SUPPORT CENTER DIMENSIONS
10
10
OS42-L-2
OS42B-L-2
(Shown without Upper Cabinet)
(Shown with Standard
Upper Cabinet)

12 064380 R00

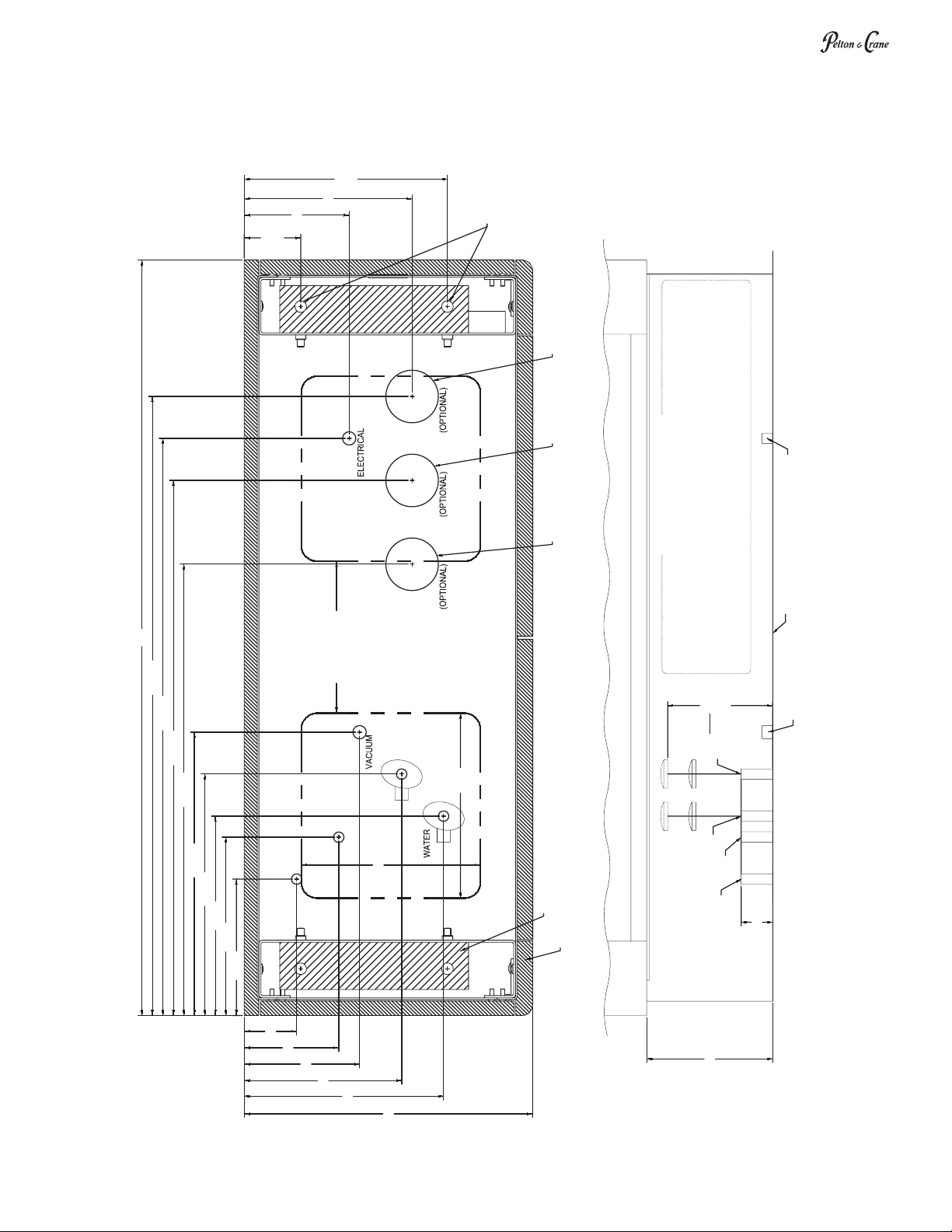

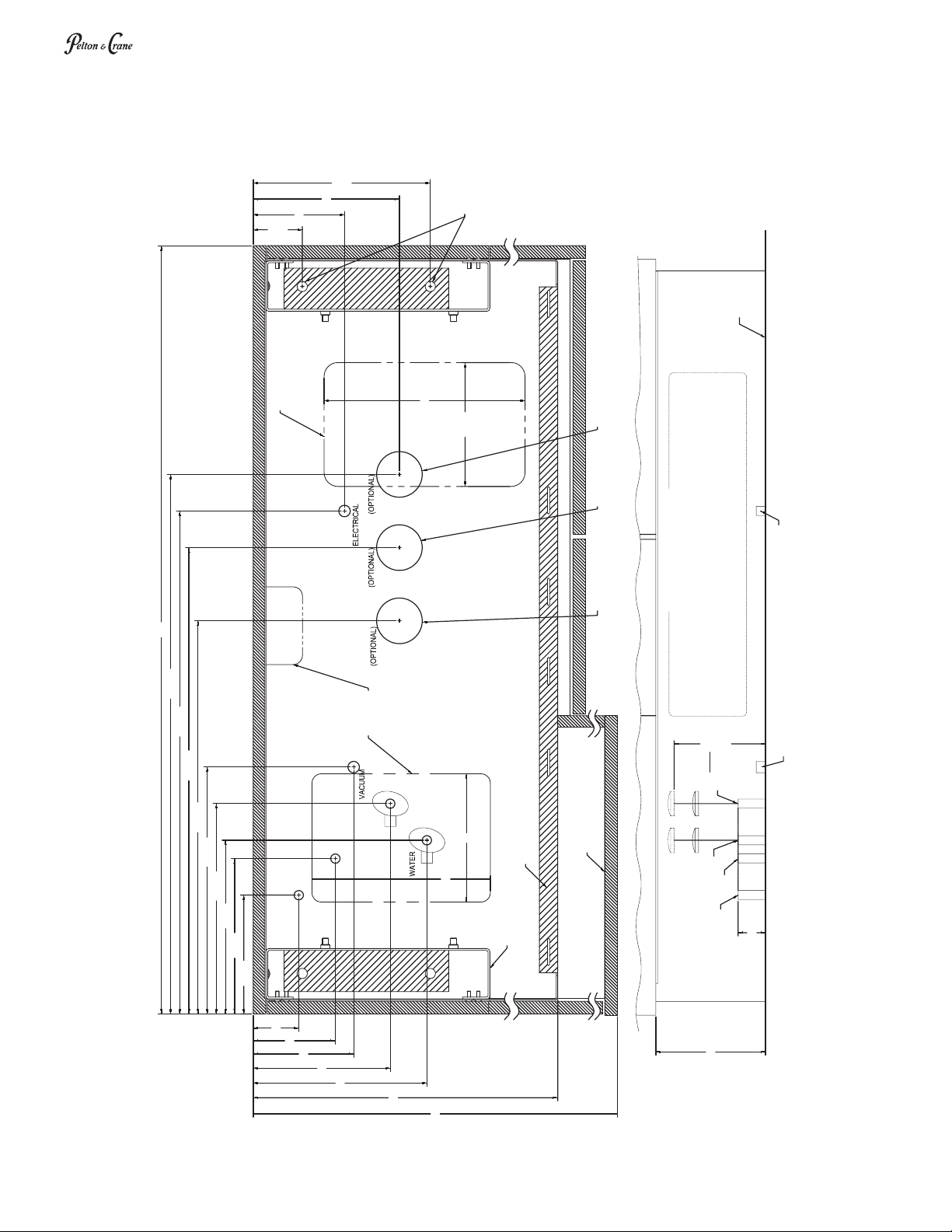

FS42-2 FLOOR TEMPLATE
TEMPLATES
AIR
N20
O2
6 1/2"
8 1/2"
9 1/2"
11 1/2"
13 1/2"
21 1/2"
25 1/2"
27 1/2"
29 1/2"
42"
2 1/2"
4 1/2"
5 1/2"
7 1/2"
9 1/2"
5"
3X 8"
UTILITIES FOR THE LEFT SIDE OF
THE ROOM
UTILITIES CHASE FOR CHAIR
UTILITIES FOR THE RIGHT SIDE OF
THE ROOM
CABINET
MOUNTING POINTS
2X
2 5/8"
2X
9 5/8"
TOP VIEW
11 7/8"
10 7/8"
WOOD
METAL
COLUMN
ACCESS
CUTOUTS
HARDWARE: (FOR CONCRETE FLOORS)
3/8" X 2-3/4" ANCHOR BOLT, WASHER,
LOCK WASHER & NUT (X4 for CABINET)
(X8 FOR FLEX WORKSTATION)
PRE-DRILL: Ø3/8" X 2-5/8" DEEP HOLES BELOW FINISHED FLOOR SURFACE.
FLOOR ELEVATION
HARDWARE: (FOR WOODEN FLOORS)
3/8" X 3-1/2" LAG SCREW, WASHER AND
LOCK WASHER (X4 for CABINET) (X8 FOR FOR FLEX WORKSTATION) PRE-DRILL: Ø1/4" X 2-3/4" DEEP HOLES BELOW FINISHED FLOOR SURFACE.
ALLOW 16" OF 1/2" FLEX CONDUIT TO EXTEND
BEYOND STUB-UP FOR ELECTRICAL HOOK-UPS.
AIR
4X 1 1/2"
NO2
O²
VACUUM
WATER
*NOTE: BOTH MOUNTING POINTS IN THE REAR* BRACKET FOR FLEX WORKSTATION INSTALLATION MUST BE
SECURED TO THE JOISTS IN THE FLOOR. IF JOISTS ARE NOT AVAILABLE, USE BOLTS AND A BACKING PLATE
BELOW THE FLOOR IN BOTH REAR MOUNTING POINTS FOR STABILITY IN MOUNTING THE CABINET TO THE FLOOR.
MOUNTING HARDWARE NOTES
ELECTRICAL
STUB-UP
MAX HEIGHT
OF OPENED
VALVE 5"
6"
*SEE MOUNTING HARDWARE NOTES BELOW FOR
NECESSARY REQUIREMENTS WHEN INSTALLING FLEX WORKSTATION UNIT.
IMPORTANT:
FLEX WORKSTATION REAR*
MOUNTING BRACKET
FLEX WORKSTATION
MOUNTING POINTS
FINISHED FLOOR
SURFACE
FRONT AND REAR BRACKETS ARE
REQUIRED ON CABINETS WHERE
FLEX WORKSTATION UNITS
ARE TO BE INSTALLED
NOTE
FLEX WORKSTATION
FRONT* MOUNTING BRACKET
16 3/4"

13064380 R00
TEMPLATES
FS36-2 FLOOR TEMPLATE
HARDWARE: (FOR CONCRETE FLOORS)
3/8" X 2-3/4" ANCHOR BOLT, WASHER,
LOCK WASHER & NUT (X4 for CABINET)
(X8 FOR FLEX WORKSTATION)
PRE-DRILL: Ø3/8" X 2-5/8" DEEP HOLES BELOW FINISHED FLOOR SURFACE.
FLOOR ELEVATION
AIR
N20
O2
6 1/2"
8 1/2"
9 1/2"
11 1/2"
13 1/2"
21 1/2"
25 1/2"
27 1/2"
29 1/2"
36"
2 1/2"
4 1/2"
5 1/2"
7 1/2"
9 1/2"
5"
3X 8"
UTILITIES FOR THE
LEFT SIDE OF THE
ROOM
UTILITIES CHASE FOR CHAIR
UTILITIES FOR THE RIGHT SIDE OF THE ROOM
CABINET
MOUNTING POINTS
2X
2 5/8"
2X
9 5/8"
HARDWARE: (FOR WOODEN FLOORS)
3/8" X 3-1/2" LAG SCREW, WASHER AND
LOCK WASHER (X4 for CABINET)
(X8 FOR FOR FLEX WORKSTATION)
PRE-DRILL: Ø1/4" X 2-3/4" DEEP HOLES BELOW FINISHED FLOOR SURFACE.
ALLOW 16" OF 1/2" FLEX CONDUIT TO
EXTEND BEYOND STUB-UP FOR ELECTRICAL HOOK-UPS.
AIR
4X 1 1/2"
NO2
O²
VACUUM
WATER
*NOTE: BOTH MOUNTING POINTS IN THE REAR* BRACKET FOR FLEX WORKSTATION INSTALLATION MUST
BE SECURED TO THE JOISTS IN THE FLOOR. IF JOISTS ARE NOT AVAILABLE, USE BOLTS AND A BACKING PLATE BELOW THE FLOOR IN BOTH REAR MOUNTING POINTS FOR STABILITY IN MOUNTING THE CABINET
TO THE FLOOR.
MOUNTING HARDWARE NOTE
ELECTRICAL
STUB-UP
MAX HEIGHT
OF OPENED
VALVE 5"
TOP VIEW
ACCESS
CUTOUTS
6"
11 7/8"
7 7/8"
WOOD
METAL
COLUMN
FWS BRACKETS ARE ON
FS MODELS ONLY
NOTE
*SEE MOUNTING HARDWARE NOTES BELOW FOR
NECESSARY REQUIREMENTS WHEN INSTALLING FLEX WORKSTATION UNIT.
IMPORTANT:
FLEX WORKSTATION REAR*
MOUNTING BRACKET
FLEX WORKSTATION MOUNTING POINTS
FRONT AND REAR BRACKETS ARE
REQUIRED ON CABINETS WHERE
FLEX WORKSTATION UNITS
ARE TO BE INSTALLED
NOTE
FLEX WORKSTATION
FRONT* MOUNTING BRACKET
FINISHED FLOOR
SURFACE
16 3/4"

14 064380 R00
RD42-2 FLOOR TEMPLATE
TEMPLATES
HARDWARE: (FOR CONCRETE FLOORS)
3/8" X 2-3/4" ANCHOR BOLT, WASHER, LOCK
WASHER & NUT (X4 for CABINET)
PRE-DRILL; Ø3/8" X 2-5/8" DEEP HOLES BELOW FINISHED FLOOR SURFACE.
FLOOR ELEVATION
AIR
N20
O²
12 3/8"
8 1/2"
6 1/2"
8 1/2"
9 1/2"
11 1/2"
13 1/2"
21 1/2"
25 1/2"
27 1/2"
29 1/2"
42"
2 1/2"
4 1/2"
5 1/2"
7 1/2"
9 1/2"
13 3/4"
5"
3X 8"
UTILITIES FOR THE LEFT
SIDE OF THE ROOM
UTILITIES CHASE FOR CHAIR
UTILITIES FOR THE RIGHT
SIDE OF THE ROOM
CABINET
MOUNTING POINTS
2X
2 5/8"
2X
9 5/8"
HARDWARE: (FOR WOODEN FLOORS)
3/8" X 3-1/2" LAG SCREW, WASHER & LOCK
WASHER (X4 for CABINET)
PRE-DRILL; Ø1/4" X 2-3/4" DEEP HOLES BELOW FINISHED FLOOR SURFACE.
ALLOW 16" OF 1/2" FLEX CONDUIT TO EXTEND
BEYOND STUB-UP FOR ELECTRICAL HOOK-UPS.
AIR
4X 1 1/2"
NO2
O²
VACUUM
WATER
NOTE: BOTH MOUNTING POINTS IN THE BRACKET INSTALLATION MUST BE SECURED TO THE JOISTS IN THE FLOOR. IF JOISTS ARE NOT AVAILABLE, USE BOLTS AND A BACKING PLATE BELOW THE FLOOR IN BOTH MOUNTING POINTS FOR STABILITY IN MOUNTING THE CABINET TO THE FLOOR.
MOUNTING HARDWARE NOTE
ELECTRICAL
STUB-UP
MAX HEIGHT
OF OPENED
VALVE 5"
TOP VIEW
CUTOUTS
6"
METAL COLUMN WOOD

15064380 R00
RD36-2 FLOOR TEMPLATE
TEMPLATES
HARDWARE: (FOR CONCRETE FLOORS)
3/8" X 2-3/4" ANCHOR BOLT, WASHER, LOCK
WASHER & NUT (X4 for CABINET)
PRE-DRILL; Ø3/8" X 2-5/8" DEEP HOLES BELOW FINISHED FLOOR SURFACE.
FLOOR ELEVATION
AIR
N20
O2
8 7/8
8 1/2
6 1/2"
8 1/2"
9 1/2"
11 1/2"
13 1/2"
21 1/2"
25 1/2"
27 1/2"
29 1/2"
36"
2 1/2"
4 1/2"
5 1/2"
7 1/2"
9 1/2"
13 3/4"
5"
3X 8
UTILITIES FOR THE LEFT SIDE OF
THE ROOM
UTILITIES CHASE
FOR CHAIR
UTILITIES FOR THE RIGHT SIDE OF
THE ROOM
CABINET
MOUNTING POINTS
2X
2 5/8"
2X
9 5/8"
HARDWARE: (FOR WOODEN FLOORS)
3/8" X 3-1/2" LAG SCREW, WASHER & LOCK
WASHER (X4 for CABINET)
PRE-DRILL; Ø1/4" X 2-3/4" DEEP HOLES BELOW FINISHED FLOOR SURFACE.
ALLOW 16" OF 1/2" FLEX CONDUIT TO EXTEND
BEYOND STUB-UP FOR ELECTRICAL
HOOK-UPS.
AIR
4X 1 1/2"
NO2
O²
VACUUM
WATER
NOTE: BOTH MOUNTING POINTS IN THE BRACKET INSTALLATION MUST BE SECURED TO THE JOISTS IN THE
FLOOR. IF JOISTS ARE NOT AVAILABLE, USE BOLTS AND A BACKING PLATE BELOW THE FLOOR IN BOTH
MOUNTING POINTS FOR STABILITY IN MOUNTING THE CABINET TO THE FLOOR.
MOUNTING HARDWARE NOTES
ELECTRICAL
STUB-UP
MAX HEIGHT
OF OPENED
VALVE 5"
TOP VIEW
CUTOUTS
6"
METAL COLUMN
WOOD PANELS
FINISHED FLOOR
SURFACE

16 064380 R00
TEMPLATES
OS42-2 FLOOR TEMPLATE
HARDWARE: (FOR CONCRETE FLOORS)
3/8" X 2-3/4" ANCHOR BOLT, WASHER, LOCK
WASHER & NUT (X4 for CABINET)
PRE-DRILL; Ø3/8" X 2-5/8" DEEP HOLES BELOW FINISHED FLOOR SURFACE.
FLOOR ELEVATION
HARDWARE: (FOR WOODEN FLOORS)
3/8" X 3-1/2" LAG SCREW, WASHER & LOCK
WASHER (X4 for CABINET)
PRE-DRILL; Ø1/4" X 2-3/4" DEEP HOLES BELOW FINISHED FLOOR SURFACE.
ALLOW 16" OF 1/2" FLEX CONDUIT TO EXTEND
BEYOND STUB-UP FOR ELECTRICAL HOOK-UPS.
AIR
4X 1 1/2"
NO2
O²
VACUUM
WATER
NOTE: BOTH MOUNTING POINTS IN THE BRACKET INSTALLATION MUST BE SECURED TO THE JOISTS IN THE
FLOOR. IF JOISTS ARE NOT AVAILABLE, USE BOLTS AND A BACKING PLATE BELOW THE FLOOR IN BOTH
MOUNTING POINTS FOR STABILITY IN MOUNTING THE CABINET TO THE FLOOR.
MOUNTING HARDWARE NOTES
ELECTRICAL
STUB-UP
MAX HEIGHT
OF OPENED
VALVE 5"
6"
AIR
N20
O2
6 1/2"
8 1/2"
9 1/2"
11 1/2"
13 1/2"
21 1/2"
25 1/2"
27 1/2"
29 1/2"
42"
2 1/2"
4 1/2"
5 1/2"
7 1/2"
9 1/2"
5"
3X 8"
UTILITIES FOR THE LEFT
SIDE OF THE ROOM
UTILITIES CHASE
FOR CHAIR
UTILITIES FOR THE RIGHT
SIDE OF THE ROOM
CABINET
MOUNTING POINTS
2X
2 3/4"
2X
9 5/8"
WOOD
SUBBASE
ACCESS
CUTOUT
TOP VIEW
27"
19 1/4"
FINISHED FLOOR
SURFACE
METAL COLUMN
ACCESS
CUTOUT
6 3/4"
11"
7"
9 3/4"
ACCESS
CUTOUT

17064380 R00
TEMPLATES
WALL UTILITY TEMPLATE (ALL MODELS)

18 064380 R00
WARNING: Always lift cabinets by bottom edge
(not by the doors or drawers), being careful to lift
with your legs and not your back.
WARNING: Turn main power OFF at the
installation site.
WARNING: Make all required, air, water, and
drain attachments from the utilities to the
incoming stub up connections before the delivery
system installation occurs. Doing so prevents
damage to the utility lines from heat associated
with some plumbing connection methods.
WARNING: To ensure proper operation of units
and water ow devices, ush all air and water
lines before connecting equipment.
PREPARING THE SITE
SITE PREPARATION STEPS
Select the location for the cabinet that will best meet
the operator’s arm reach and storage requirements.
Refer to the corresponding technical specications and
dimensional drawings for your model and conguration
when considering the location of air, water, electrical and
all other connections.
Because of varying city plumbing and electrical codes,
the installer is responsible for ensuring all equipment
is installed according to all applicable local codes and
requirements. Pelton & Crane cannot be responsible
for an installation which does not meet local plumbing,
electrical or any other codes. This equipment does
not have GFCI protection. If ground fault protection is
required we recommend using a GFCI breaker in the
electrical panel servicing the equipment.
NOTE: Use the corresponding full-size oor template for
your model (available from the manufacturer)
to properly locate utilities in relationship to the
cabinet.
Full-Size Floor
Template Part Number
RD36 Series 065539
RD42 Series 065540
FS36 Series 065541
FS42 Series 065542
OS42 Series 065543
TO PREPARE THE SITE:
1. Lay the full-size installation template over the utility
stub-ups and check the distance from the cabinet to the
walls to ensure proper operatory layout.
2. If the cabinet will have a delivery unit attached to it,
refer to the utility locations and specications on the
full-size installation template and the delivery unit’s
installation instructions for additional requirements and
steps to correctly install and connect air, water and any
other utilities.
OTE:N The shut-off valves for air and water must be
installed above the finished surface 5” max.
(height) when valves are in the fully opened
position.
OTE:N A 3/8” compression fitting is required for the
output connection on the cutoff valves.
SPECIFICATIONS
Electrical: Connect to a 120 VAC, 15 AMP circuit. 1/2”
conduit and quad box needed to connect conduit from
cabinet (supplied by the contractor). Wire box per code
with top of box height within template specications.
See corresponding oor template for specications for
installation.

19064380 R00
1. Prepare cabinet for installation by removing all
corrugated packing materials from cabinet.
2. Remove shipping hardware that secures cabinet to
pallet.
3. Carefully place cabinet into position over utility
stub-ups. Using a 1/2” socket wrench, loosen the four
5/16” adjusting bolts (securing the mounting brackets)
a half-turn on each side of cabinet.
4. Secure cabinet to oor using the appropriate method
and fasteners:
Determine the type of oor material (concrete or wood)
and properly mark and drill the (4) cabinet mounting
holes to match the oor holes on each bracket.
OTE:N Use caution to ensure no drilling into any floor
utilities.
OTE:N If flooring is carpeted, cut carpet away from
the cabinet mounting points to ensure stability
of the cabinet when secured to the floor.
OTE:N All mounting points in the bracket installation
must be secured to the joists in the floor.
If joists are not available, use bolts and a
backing plate below the floor in all mounting
points for stability in mounting the cabinet to
the floor.
Concrete Floors: Drill four 3/8” dia. X 2 5/8” deep
holes below furnished oor surface. Using the four
3/8” anchor bolts, lock washers, at washers and nuts
(located in hardware packaging), securely tighten
anchor bolts to oor on both sides of the cabinet. Do
not securely tighten down mounting brackets until the
cabinet is leveled.
Wood Floors: Drill four 1/4” dia. X 2 3/4” deep holes
below furnished oor surface. Using the four 3/8” lag
bolts, washers, lock washers and nuts (located in
hardware packaging), securely tighten lag bolts to oor
on both sides of the cabinet. Do not securely tighten
down mounting brackets until the cabinet is leveled.
OTE:N These installation instructions describe the
procedures with the technician facing the front of the
unit.
SECURING THE CABINET TO THE FLOOR
CABINET INSTALLATION
WARNING: The cabinet should be appropriately
secured to oor before any unit or anything else
is installed.
WARNING: Be sure the main power is turned off
at the installation site.
3
3
3
Mounting
Bracket
Flat
Washer
Lock Washer
Nut
Bolt

20 064380 R00
5. Front to Back: Place level vertically on outside
front of cabinet. Using the shims located in
hardware packaging, place shims (as required)
on the inside of cabinet underneath the side
frame of cabinet base (where shims won’t be
seen).
6. Side to Side: Place level vertically on the side of
cabinet. Place shims (as required) underneath
the side frame of cabinet base (where shims
won’t be seen).
7. Level cabinet by adjusting shims while observing
the level until cabinet is vertical side to side and
front to back.
Once cabinet is leveled, tighten down all
mounting bracket bolts on both sides of the
cabinet securely (and remove excess wedge
material).
OTE:N Ensure cabinet is permanently and
securely fastened to the floor and all
mounting bracket bolts are securely
tightened.
8. Before securing upper cabinet, route any upper
equipment cables through upper cable routing
area and through side frame as shown.
9. For Cabinets with Full Midsection Optional
Modules Only – Verify that the LED light is
unplugged as shown.
10. Remove the upper cabinet four 1/4-20 screws
and washers from packaging. Open the two
side panel doors and locate the upper cabinet
mounting points (four on each side). If installing
a non-pass-thru upper cabinet follow step A. If
installing a pass-thru cabinet follow step B.
A) Non-pass-thru upper: Facing the front of the
cabinet, use the set of front mounting holes in
the cabinet frame. (see 10.A in illustration)
B) Pass-thru upper: Facing the front of the
cabinet, use the set of back mounting holes in
the cabinet frame. (see 10.B in illustration)
11. Align upper cabinet mounting holes to the
appropriate mounting points in frame. (orient
upper cabinet radius to front side).
12. Using an hex wrench, secure upper cabinet to
cabinet frame with the four 1/4-20 screws and
washers. Tighten securely.
13. If any handles are facing inward (to protect
from shipping damage) reinstall handles facing
outside at this time.
UPPER CABINET INSTALLATION
LEVELING THE CABINET
6. Side to
Side Level
5. Front to
Back
Level
Radius to Front
11
9
12
11
10.B
10.A
8
5, 6
5, 6
