MAGICFLAME™
FIRE AND WATER BOWL
INSTALLATION AND USER’S GUIDE
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
FOR YOUR SAFETY - READ BEFORE OPERATING!
If the information in this manual is not followed exactly, a re or explosion may
result causing property damage, personal injury, or loss of life. For additional free copies of this
manual; call [phone].
RISK OF FIRE OR EXPLOSION! Improper installation and/or servicing can
result in ammable gas leaks, which could result in death, serious injury, or
major property damage.
FIRE OR EXPLOSION HAZARD!
IF YOU SMELL GAS:
• Shut o󰀨 gas to the appliance.
• Extinguish any open ame.
• If odor continues, leave the area immediately.
• After leaving the area, call your gas supplier or re department.
Failure to follow these instructions could result in re or explosion, which could cause
property damage, personal injury, or death.
FOR OUTDOOR USE ONLY! Installation and service must be performed by a
qualied installer, service agency, or the gas supplier.
Do not store or use gasoline, or other ammable vapors and liquids, in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CARBON MONOXIDE HAZARD! This appliance can produce carbon monoxide
which has no odor.
Using this appliance in an enclosed space can kill you. Never use this appliance in an enclosed
space such as a camper, tent, car, or home.

MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
IMPORTANT SAFETY INSTRUCTIONS
1
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This is the safety alert symbol. When you see this symbol in
this guide or on the product itself, look for one of the following
signal words and be aware of the potential for personal injury.
Warns of hazards that may cause death, serious
personal injury, or major property damage if ignored.
Warns of hazards that may cause serious personal
injury or major property damage if ignored.
Warns of hazards that may or can cause minor
personal injury or property damage if ignored.
Carefully read and follow all instructions in this guide or displayed on the
equipment. Ensure all product labels are kept in good condition and replace
missing or damaged labels immediately.
This guide provides important installation, operation and maintenance
instructions related to this equipment. Consult Pentair or a qualied
pool professional with any questions.
Attention Installer: This guide contains important information that helps
ensure proper and safe installation, operation and maintenance of this
equipment. Ensure this guide is given to the pool owner and/or operator of
this equipment after installation.
Attention User: This guide contains important information that helps ensure
proper and safe operation and maintenance of this equipment. Retain this
guide for future reference.
Call [phone] for additional free copies of these instructions or product
labels. Refer to www.pentair.com for more information.
INSTALLERS, POOL OPERATORS, AND OWNERS
MUST READ ALL WARNINGS AND INSTRUCTIONS
IN THIS GUIDE BEFORE USING THIS EQUIPMENT. FAILURE TO
CAREFULLY READ AND FOLLOW ALL INSTRUCTIONS CAN RESULT
IN SERIOUS BODILY INJURY OR DEATH.
THIS PRODUCT MUST BE INSTALLED AND
SERVICED BY A QUALIFIED SERVICE
PROFESSIONAL OR GAS SUPPLIER. Improper installation, adjustment,
alteration, or maintenance can cause property damage, personal injury or
death. Some jurisdictions require that installers be licensed. Check with your
local building authority about licensing requirements.
Most states and local codes regulate the construction,
installation, and operation of public pools and spas, and
the construction of residential pools and spas. It is important to comply with
these codes, many of which directly regulate the installation and use of this
product. Consult your local building and health codes for more information.
Ensure installer follows all applicable national and local
codes and the appliance is serviced annually by a
professional gas technician certied in the United States by the National
Fireplace Institute (NFI).
FIRE OR EXPLOSION HAZARD! Failure to follow
these instructions could result in a re or explosion,
causing property damage, personal injury, or loss of life.
IF YOU SMELL GAS:
• Shut off gas to the appliance.
• Extinguish any open ame.
• If odor continues, leave the area immediately.
• After leaving the area, call your gas supplier or re department.
RISK OF FIRE OR EXPLOSION FROM INCORRECT
FUEL USE OR FAULTY FUEL CONVERSION! DO NOT
ATTEMPT TO OPERATE A FIRE FEATURE SET UP FOR NATURAL GAS
ON PROPANE OR VICE VERSA. SERIOUS MALFUNCTION OF THE
BURNER CAN OCCUR WHICH MAY RESULT IN DEATH.
Only a qualied service professional or gas supplier should attempt to convert
from one fuel to the other. If fuel conversion is necessary, consult your Pentair
dealer.
Verication of fuel type can be done by checking the label on the bottom side
of the control box.
RISK OF CARBON MONOXIDE POISONING OR
ASPHYXIATION! This product can produce carbon
monoxide, a tasteless and odor-less toxic gas. Failure to follow these
instructions can result in death, permanent brain damage, or other serious
injury.
CARBON MONOXIDE IS DEADLY! Exhaust from this
re feature contains toxic levels of carbon monoxide, as
dangerous, poisonous gas you cannot see or smell. Improper installation and/
or operation could create carbon monoxide gas which could cause serious
injury or death.
Symptoms of carbon monoxide exposure or poisoning include: Dizziness,
headache, nausea, weakness, tiredness, muscle twitching, vomiting, and/or the
inability to think clearly. IF YOU EXPERIENCE ANY OF THESE SYMPTOMS,
IMMEDIATELY TURN OFF THE GAS SUPPLY, LEAVE THE AREA AND
FIND FRESH AIR IMMEDIATELY. THE PRODUCT MUST BE THOROUGHLY
TESTED BY A QUALIFIED SERVICE PROFESSIONAL OR GAS SUPPLIER
BEFORE RESUMING OPERATION.
The U.S. Consumer Product Safety Commission warns
that carbon monoxide is an “invisible killer”. Carbon
monoxide is a colorless and odorless gas.
1. Carbon monoxide is produced by burning fuel, including natural gas
and propane.
2. Proper installation, operation and maintenance of fuel-burning
appliances in the home is the most important factor in reducing carbon
monoxide poisoning.
3. Be sure that fuel burning appliances such as re bowls are installed
by professionals according to manufacturer’s instructions and codes.
4. Always follow the manufacturer’s directions for safe operation.
5. Have the re bowls (including vents) inspected and serviced annually
by a trained service technician.
6. Examine vents regularly for blockage.
7. Install battery-operated carbon monoxide alarms. The alarms should
be certied to the requirements of the most recent UL, IAS, CSA and
IAPMO standard for carbon monoxide alarms. Test carbon monoxide
alarms regularly and replace dead batteries.
THIS PRODUCT IS INTENDED FOR OUTDOOR USE
ONLY! Never install or operate this product in an
enclosed space where carbon monoxide may accumulate.
NEVER store gasoline, cleaning uids, varnishes, paints,
or other volatile ammable liquids near heater.
NEVER place unopened containers into the re feature.
Heating such containers will cause pressure to build-up
and may cause the container to burst, causing personal injury or property damage.
This product is NOT intended for cooking. Do not place
anything on or in the re.

MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
2
IMPORTANT SAFETY INSTRUCTIONS
If burner goes out, turn gas to off position and wait several
minutes. Once gas has dissipated, light following the
manufacturer’s recommendations.
DO NOT USE SOLID FUELS. THE FIRE FEATURE IS
INTENDED FOR USE WITH NATURAL GAS OR
PROPANE ONLY! NEVER USE ALTERNATIVE FUELS!
This re feature is equipped with an unconventional
gas control valve that is factory set and not
adjustable. DO NOT attempt to adjust gas ow using this valve. Improper
installation, adjustment, alteration, service or maintenance can cause property
damage, personal injury or loss of life. Installation or service must be performed
by a qualied installer, service agency or the gas supplier. If this control is
replaced, it must be replaced with an identical control.
NEVER allow loose tting garments to come in contact
with hot surfaces or open ames. Garments may ignite
and result in serious personal injury.
Clothing or other ammable materials should not be
hung from, or placed on or near, the re feature.
If overheating occurs, or the gas supply fails to shut off,
close the main gas supply valve to the re feature.
Be aware of the risks of high surface temperatures and
should stay at a safe distance to avoid burns or clothing
ignition.
DO NOT allow children to play on or around the re
feature or any associated equipment.
ALWAYS closely supervise young children when around
this product or pool.
DO NOT use this re feature if any part or component
has been submerged in water. Immediately call a
qualied service professional.
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION!
ALWAYS disconnect power at the circuit breaker before
servicing this product. Failure to do so could result in
death or serious injury.
The electrical supply must be installed by a licensed or
certied electrician or other qualied professional in
accordance with the National Electrical Code (NEC) and all applicable local
codes and ordinances.
FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN PROPERTY DAMAGE,
PERSONAL INJURY, OR DEATH.
For countries in compliance with International
Electrotechnical Commission (IEC) regulatory standards:
The re feature must be installed by a licensed or certied electrician or other
qualied professional, in accordance with IEC 364-7-702 and all applicable
local codes and ordinance. Improper installation will create an electrical hazard,
which could result in death or serious injury to pool user, installer or other due
to electrical shock and may also cause damage to the property.
Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous
operation, as well as damage electrical components.
This re feature is a 12 VAC system. Connect the re
feature to 12 VAC power only.
When using a Junction Box, connect 12 VAC to junction box terminals. Never
connect the re feature directly to high voltage lines.
Ensure the pool or spa meets the requirements of the current National
Electrical Code (NEC) Article 680-22 and all local codes and ordinances.
A licensed or certied electrician must install the electrical system to meet
or exceed those requirements before the re bowl is installed. Some of the
requirements of the National Electrical Code which the pool electrical
system must meet:
• The circuit has a Ground Fault Circuit Interrupter (GFCI) for 120 VAC
line voltage models, and has an appropriately rated circuit breaker.
The conductors on the load side of the GFCI circuit shall not occupy
conduit, boxes, or enclosures containing other conductors unless the
additional conductors are also protected by a GFCI. Refer to local codes
for complete details.
• The Junction Box and the low voltage transformer is located at least 4
in (10.2 cm) above ground level or 8 in (20.3 cm) above maximum water
level in the bowl, whichever is higher. The Junction Box must be at least
2 ft (1.2 m) from the edge of the pool.
• To be certain that the pool or spa electrical system meets all applicable
requirements, the electrician should also consult the local building
department.

MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
3
CUSTOMER SERVICE / TECHNICAL SUPPORT
TABLE OF CONTENTS
Hours: 9:00AM to 7:00PM EST (6:00AM - 4:00PM PST)
Call: [phone]
Visit: www.pentair.com
Fax: [phone]
IMPORTANT SAFETY INSTRUCTIONS ..............
INSTALLATION ......................................................
Feature Overview
Installation Guidelines
Bowl Dimensions
Gas Requirements
Natural Gas Requirements
Propane Gas Requirements
Pipe Sizing Charts
Gas Line Installation
Electrical Installation
Plumbing/Water Installation
Bowl Installation
Installing the Burner Assembly
Adding Fire Media
OPERATION ...........................................................
Operation Guidelines
Operating the Fire Feature
Lighting the Fire Feature
1
4
4
4
6
7
7
7
8
9
10
10
11
13
14
15
15
15
15
MAINTENANCE ....................................................
General Maintenance
Annual Maintenance
Winterizing the Fire Feature
Replacing the Pilot Orice
Replacing the Igniter
Replacing the Pilot/Igniter Assembly
Replacing the Burner Orice
Replacing the Pilot Sensor
TROUBLESHOOTING ..........................................
REPLACEMENT PARTS ......................................
16
16
16
16
17
17
18
19
21
22
23

4
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
RISK OF FIRE OR EXPLOSION! Improper installation can result in ammable gas leaks, which could result in death, serious
injury, or major property damage. Installation must be performed by a qualied service professional or gas supplier.
RISK OF CARBON MONOXIDE POISONING OR ASPHYXIATION! This product can produce carbon monoxide, a tasteless
and odorless toxic gas. Improper installation may lead to a buildup of carbon monoxide, which can result in death, permanent
brain damage, or other serious injury. Installation must be performed by a qualied service professional or gas supplier.
NEVER install or operate this product in an enclosed space where carbon monoxide can accumulate.
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION! Improper installation could result in serious injury. This product is
only available for 12 VAC power. For supply connections, use only an isolating low voltage power supply with ungrounded
output, evaluated and listed by a Nationally Recognized Testing Laboratory (NRTL).
Follow the instructions given in this manual to ensure proper installation, operation and maintenance of your
MagicFlame™ Fire and Water Bowl. Failure to follow these instructions may void the product warranty.
For additional information, or if you have questions regarding these instructions, contact Pentair Technical Service at
[phone].
FEATURE OVERVIEW
• Water fountain bowl and/or electronic ignition gas burner.
• 12 VAC low voltage power supply.
• Durable UV-resistant glass ber reinforced concrete bowl.
• 85,000 BTU rating.
• Low voltage (60 W maximum) and minimal water ow requirements.
• Capable of use with natural gas or propane.
• (*) Burner assemblies are certied to ANSI Z21.97-2017/ CSA 2.41-2017
- Outdoor Decorative Gas Appliances.
INSTALLATION GUIDELINES
IMPORTANT! The re feature is shipped from the manufacturer for use natural gas at the manufacturer. If conversion
to propane is required, it must be performed by a qualied service professional or gas supplier using Pentair
specied and approved parts.
For conversion instructions refer to REPLACING THE PILOT ORIFICE, page 17 and REPLACING THE BURNER
ORIFICE, page 19.
• Installation must be in accordance with all local codes and/or the latest edition of the National Fuel Gas Code,
ANSI Z223.1 and the latest edition of the National Electrical Code, NFPA 70 (US).
Note: In Canada, installation must be in accordance with the latest CAN/CGA-B149.1 or .2 and CSA C22.1
Canadian Electric Code, part 1.
• Provide a minimum of 6 ft [1.8 m] clearance above the burner.
• Provide a minimum of 4 ft [1.2 m] horizontal clearance between the re feature and any combustible surfaces or
objects.
• Ensure install location provides proper drainage.
• Properly anchor to a solid mounting surface.
• Ensure all openings at base and burner area are unobstructed.
• Mounting surface must be level in all directions.
• Electrical power, gas and water outlets should be located in the center of the bowl.
- Continue to next page -
INSTALLATION
Certied to ANSI Z21.97-2017/
CSA 2.41-2017 - Outdoor
Decorative Gas Appliances*

5
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
INSTALLATION GUIDELINES (continued)
• Minimum 15 GPM [56.8 LPM] ow for water features.
• If the pool has multiple lights, water features, etc., it is recommended that the re/water features be run
independent of each other, using a separate transformer for each group or type of water feature.
Otherwise all water features connected to the same transformer will operate together.
• 3/4” hose adapter needed to connect re/water bowl to water line.
• 1-1/2” water supply line recommended.
• Install a check valve in the water supply line to prevent bowl from draining when not in use.
• Install an adjustable control valve in the water supply line to allow water ow adjustments.
• Install the bowl so that the water is owing into the pool, spa, or fountain.
• Spillover scupper must be no less than 3 inches [7.6 cm] over nished edge of pool, spa coping or fountain
pedestal.
• Separate bond wire required for each bowl.
• Ensure the re feature has a way to drain water. Providing proper drainage is critical.
• If installing the re feature on a column, ensure the bowl is anchored properly.
• Ensure the electrical and gas line hole is sealed to prevent water cannot penetrating the coping surface under the
bowl.

6
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
BOWL DIMENSIONS
15” [38.1]
15”
[38.1]
0.75”
[1.9]
32”
[81.3]
11”
[27.9]
14” [35.6]
15”
[38.1]
35” [88.9]
14”
[35.6]
3”
[7.6]
19” [48.3]
1”
[2.5]
15” [38.1]
15”
[38.1]
35” [88.9]
14”
[35.6]
3”
[7.6]
19” [48.3]
1”
[2.5]
0.75”
[1.9]
FIRE BOWL - ROUND
Bronze 580165
Pewter 580166
Natural 580167
White 580168
Black 580169
WATER BOWL - ROUND
Bronze 580175
Pewter 580176
Natural 580177
White 580178
Black 580179
FIRE/WATER BOWL - ROUND
Bronze 580170
Pewter 580171
Natural 580172
White 580173
Black 580174
32” [81.3]
11”
[27.9]
15”
[38.1]
35” [88.9]
14”
[35.6]
3”
[7.6]
16” [40.6]
19” [48.3]
1”
[2.5]
15”
[38.1]
0.75”
[1.9]
17” [43.2]
15”
[38.1]
36” [91.4]
14”
[35.6]
4”
[10.2]
17” [43.2]
20” [50.8]
1”
[2.5]
0.75”
[1.9]
FIRE BOWL - SQUARE
Bronze 580180
Pewter 580181
Natural 580182
White 580183
Black 580184
WATER BOWL - SQUARE
Bronze 580190
Pewter 580191
Natural 580192
White 580193
Black 580194
FIRE/WATER BOWL - SQUARE
Bronze 580185
Pewter 580186
Natural 580187
White 580188
Black 580189

7
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
Natural Gas (NG) Requirements
Ensure that the service supplying the re feature is tted
with a positioned shut o󰀨 valve that is easily accessible.
Always check the rating plate to make sure the gas
supply you are connecting to is the gas intended for your
re feature. The installation of this appliance to a xed
piping system must conform with local codes or, in the
absence of local codes, to the National Fuel Gas Code,
ANSI 2223.1, NFPA 54; National Fuel Gas Code; Natural
Gas and Propane Installation Code, CSA 8149.1 as
applicable.
Natural gas connection must be performed by a licensed
contractor or local gas company representative.
Supply Pressure
Minimum: 6.3” W.C.
Normal: 7.0” W.C.
Maximum: 7.7” W.C. (1/2 psi)
Pressure Testings
If the re feature is installed with a xed fuel piping
system and equipped with an appliance gas pressure
regulator, the re feature and its individual shut-o󰀨
valve must be disconnected from the gas supply piping
system during any pressure testing of the system at test
pressure in excess of 1/2 psi (3.5 kPa).
The re feature must be isolated from the gas supply
piping system by closing its individual manual shut o󰀨
valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than 1/2
psi (3.5 kPa).
Refer to the table below and Natural Gas (NG) Pipe
Sizing, page 8 for natural gas line requirements.
GAS REQUIREMENTS
To verify the fuel type (either propane or natural gas) the re feature is designed to use, refer to the label on the bottom
of the control box.
SIZE OF PIPE (IN.)
1/2ʺ 3/4ʺ 1ʺ 1-1/4ʺ 1-1/2ʺ 2ʺ
NG LP NG LP NG LP NG LP NG LP NG LP
1 BOWL 10’
[3.1 m]
80’
[24.4 m]
50’
[15.2 m]
300’
[91.4 m]
175’
[53.3 m]
450’
[137.2 m]
400’
[121.9 m] - - - - -
2 BOWLS -20’
[6.1 m]
10’
[3.1 m]
80’
[24.4 m]
40’
[12.2 m]
250’
[76.2 m]
200’
[61 m] -400’ [121.9 m] - - -
3 BOWLS -10’
[3.1 m] -30’ [9.1 m]
20’
[6.1 m]
125’
[38.1 m]
70’
[21.3 m]
450’
[137.2 m]
200’
[61 m] -450’ [137.2 m] -
4 BOWLS ---20’
[6.1 m]
10’
[3.1 m]
60’
[18.3 m]
50’
[15.2 m]
250’
[76.2 m]
125’
[38.1 m]
500’
[152.4 m]
400’
[121.9 m] -
5 BOWLS ---10’
[3.1 m] -40' [12.2 m]
30’
[9.1 m]
150’
[45.7 m]
70’
[21.3 m]
400’
[121.9 m]
200’
[61 m] -
6 BOWLS ---10’
[3.1 m] -30’ [9.1 m]
20’
[6.1 m]
125’
[38.1 m]
50’
[15.2 m]
250’
[76.2 m]
175’
[53.3 m] -
• NG = Natural Gas / LP = Liquid Propane
• 2” - 3” WC maximum pressure drop
Propane Gas (LP) Requirements
RISK OF EXPLOSION IF UNIT IS INSTALLED
NEAR PROPANE GAS STORAGE! Locate the
re bowl away from propane gas storage and lling equipment as
specied by the Standard for the Storage and Handling of Liqueed
Petroleum Gases, CAN/CSA B149.2 (latest edition) or ANSI/NFPA 58
(latest edition).
A propane tank is not included with the re feature and
will need to be provided.
Always check the rating plate to make sure the gas
supply you are connecting to is the gas intended for your
re feature. The installation of this appliance to a xed
piping system must conform with local codes or, in the
absence of local codes, to the National Fuel Gas Code,
ANSI 2223.1, NFPA 54; National Fuel Gas Code; Natural
Gas and Propane Installation Code, CSA 8149.1, or
Propane Storage and Handling Code, CSA 8146.2 as
applicable.
Manifold Pressure
For plumbed-in Propane Gas installation, use a properly
sized regulator according to supply pressure.
Supply Pressure
Minimum: 9.9” W.C.
Normal: 11.0” W.C.
Maximum: 12.1” W.C. (½ psi)
Refer to the table below and Liquid Propane (LP)
Gas Pipe Sizing, page 8 for propane gas line
requirements.

8
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
PIPE SIZING CHARTS
The sizing charts below list the specic pipe sizes required for the amount of BTUs for new gas line installations. If
you are using an existing gas line you must consider existing gas line capacities to ensure proper pressure. Consult a
qualied service professional or gas supplier for more details.
Natural Gas (NG) Pipe Sizing
LENGTH OF
PIPE (FT.)
SIZE OF PIPE (IN.)
1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
10’ 108 230 387 793 1237 2259 3640 6434 -
20’ 75 160 280 569 877 1610 2613 5236 9521
30’ 61 129 224 471 719 1335 2165 4107 7859
40’ 52 110 196 401 635 1143 1867 3258 6795
50’ 46 98 177 364 560 1041 1680 2936 6142
60’ 42 89 159 336 513 957 1559 2684 5647
70’ 38 82 149 317 476 896 1447 2492 5250
80’ 36 76 140 239 443 840 1353 2315 4900
90’ 33 71 133 275 420 793 1288 2203 4667
100’ 32 68 126 266 411 775 1246 2128 4518
125’ 28 60 117 243 369 700 1143 1904 4065
150’ 25 54 105 215 327 625 1008 1689 3645
175’ 23 50 93 196 303 583 993 1554 3370
200’ 22 47 84 182 280 541 877 1437 3160
300’ 17 37 70 145 224 439 686 1139 2539
• Natural Gas ow shown in thousands of BTU. One cubic foot of natural gas = 1000 BTU.
• Nominal pressure at the burner is 3.5 inches of water column (Typical machine supply 5 to 7 inches).
• Pipe length must include additional length for all ttings. Add approximately 5 ft [1.5 m] of pipe per tting.
• Example: A burner that requires 440,000 BTU would need 20 ft [6.1 m] of 1-1/4 inch pipe.
LENGTH OF
PIPE (FT.)
SIZE OF PIPE (IN.)
1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4ʺ
10’ 275 567 1071 2205 3307 6221 10140 17990 35710
20’ 189 393 732 1496 2299 4331 7046 12510 25520
30’ 152 315 590 1212 1858 3465 5695 10110 20620
40’ 129 267 504 1039 1559 2992 4778 8481 17300
50’ 114 237 448 913 1417 2646 4343 7708 15730
60’ 103 217 409 834 1275 2394 3908 6936 14150
80’ 89 185 346 724 1086 2047 3329 5908 12050
100’ 78 162 307 630 976 1811 2991 5309 10830
125’ 69 146 275 567 866 1606 2654 4711 9613
150’ 63 132 252 511 787 1496 2412 4281 8736
200’ 54 112 209 439 665 1282 2083 3618 7382
250’ 48 100 185 390 590 1138 1808 3210 6549
300’ 43 90 168 353 534 1030 1637 2905 5927
350’ 40 83 155 325 491 947 1505 2671 5450
400’ 37 77 144 303 458 887 1404 2492 5084
• Liquid Propane (LP) gas ow shown in thousands of BTU. One cubic foot of propane gas = 2516 BTU.
• This chart refers to low pressure LP, after regulation. Standard nominal pressure at the burner is 11 inches
of water column.
• Pipe length must include additional length for all ttings. Add approximately 5 ft [1.5 m] of pipe per tting.
• Example: A burner that requires 440,000 BTU would need 20 ft [6.1 m] of 1-inch pipe.
Liquid Propane (LP) Gas Pipe Sizing

9
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
GAS LINE INSTALLATION
Keep pipe length and elbows to a minimum to eliminate unnecessary pressure drops. Corrugated ex gas lines should
not be used.
1. Determine the proper gas line size based on fuel input requirements (BTU/HR), gas pressure and the distance
from the gas pressure regulator to the re/water bowl.
2. Route gas lines underground to each bowl.
3. The stubbed-out end should be tted with a 1/2-inch NPT ball valve shuto󰀨 (rated for gas usage) and a are
tting sized for the same size gas hose that is attached to the control box.
4. Piping must be reduced to 1/2-inch NPT pipe size at each bowl.
5. At each bowl, install a 90-degree gas pipe elbow on the gas line to simplify installation of the gas hose.
Note: Do not kink or make a tight radius bend on the gas hose.
Note: Gas, electrical, and water connections must be located at the center of each bowl.
6. Install a ball valve after the elbow.
7. Install a 1/2-inch are tting onto ball valve.
8. Install a 1/2-inch ex hose to the are tting at the ball valve.
9. Secure the other end of ex line to the control box.
10. Tighten all ttings with a wrench, do not hand tighten!
11. Test the gas lines for leaks and loss of pressure over a 24-hour period. When you are nished testing and have
found no leaks, cover the pipes, level the ground and nish setting the foundation.
Note: Your gas supplier can verify the gas ows and pressures available for your installation.

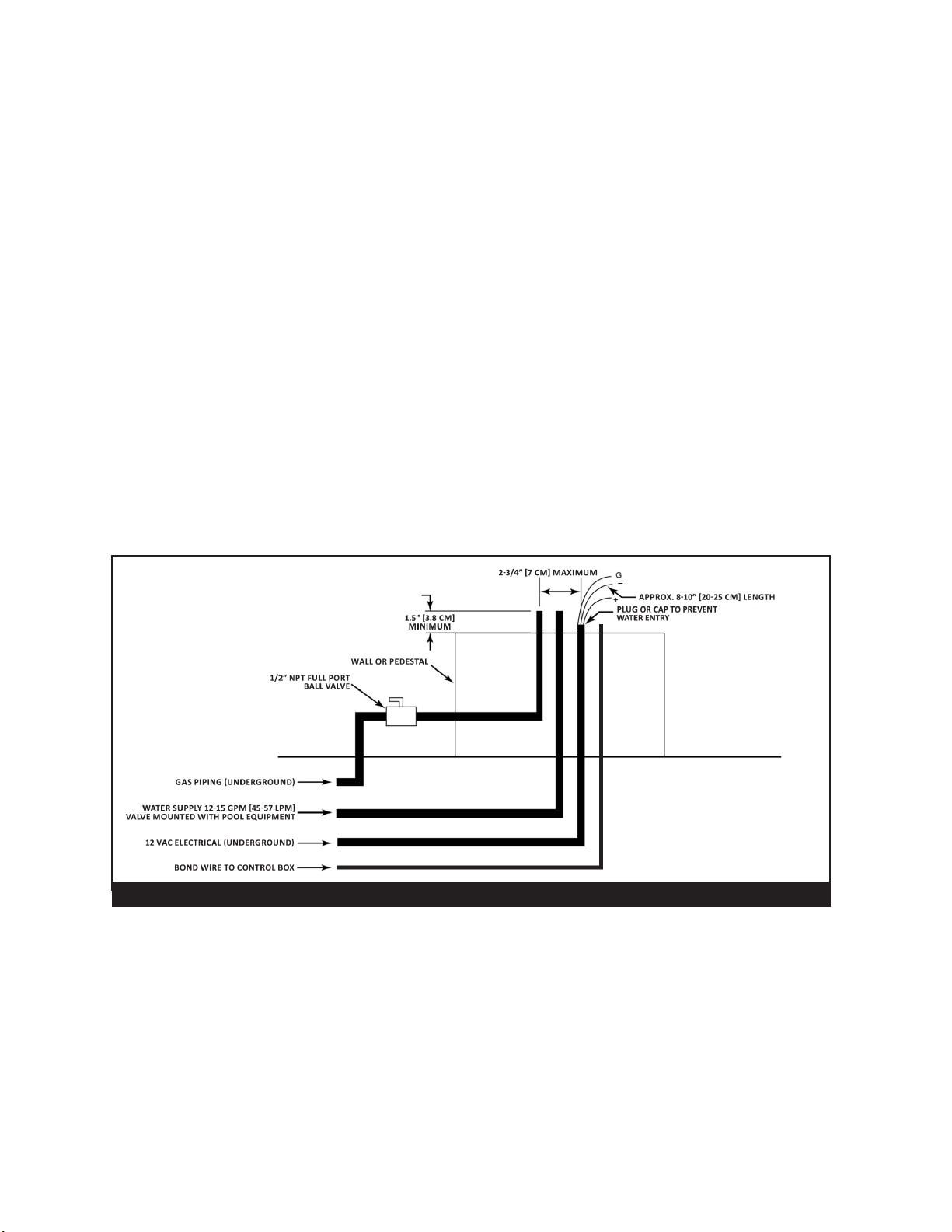

FIGURE 1

10
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
ELECTRICAL INSTALLATION
When using multiple re features, the total allowable wattage is 300 Watts. A transformer should only be loaded to
80% of its capability.
For example: A 300 watt transformer should have no more than 240 watts attached to it. A single MagicFlame is 60
Watts maximum. No more than four MagicFlame features can be connected to a 300 watt transformer.
1. Disconnect all power to the circuit at the circuit breaker.
2. Install 1” electrical conduit and glue an elbow on top to prevent water lling the conduit.
3. Feed cord through the niche and conduit to the Junction Box or 12 VAC Transformer.
Note: Leave atleast 3 ft [0.9 m] of cable in the niche to allow for adjustments.
4. At the 12 VAC transformer or junction box.
Note: Leave atleast 6 inches [15.2 cm] of cord in the Junction Box or transformer to ease light installation or
niche inspection.
5. Cut o󰀨 excess cord.
6. Carefully strip the outer cord jacket back 3 inches [7.6 cm], ensuring the
insulation on the inner conductors is not damaged.
7. Carefully strip both conductors 1/2-inch [1.3 cm], ensuring the copper wires
are not damaged.
8. Connect both conductors, and the ground wire, to the corresponding wires in
the junction box or 12 VAC transformer. See FIGURE 2.
• BLACK to POWER (RED)
• WHITE to COMMON (WHITE)
• GREEN to GROUND (BONDING LUG)
9. Route bond wire up from pedestal into the bowl.
10. Close and secure the junction box cover.
11. Prepare the end of the re feature power cable and connect to the 12 VAC output wires of an approved transformer.
Note: If the re feature is receiving insu󰀩cient power, a 14 VAC tap on your transformer is recommended.
12. Connect a bonding wire to the bonding lug on the side of the control box.
PLUMBING/WATER INSTALLATION
1. Route 1-1/2 inch PVC pipe to the bowl.
2. Reduce 1-1/2 inch plumbing to female 3/4-inch NPT.
3. Install the provided 3/4-inch barb tting into the reducer bushing.
4. Attach the water line to the barb tting and secure it with a band clamp.
5. Test the water connections for leaks.

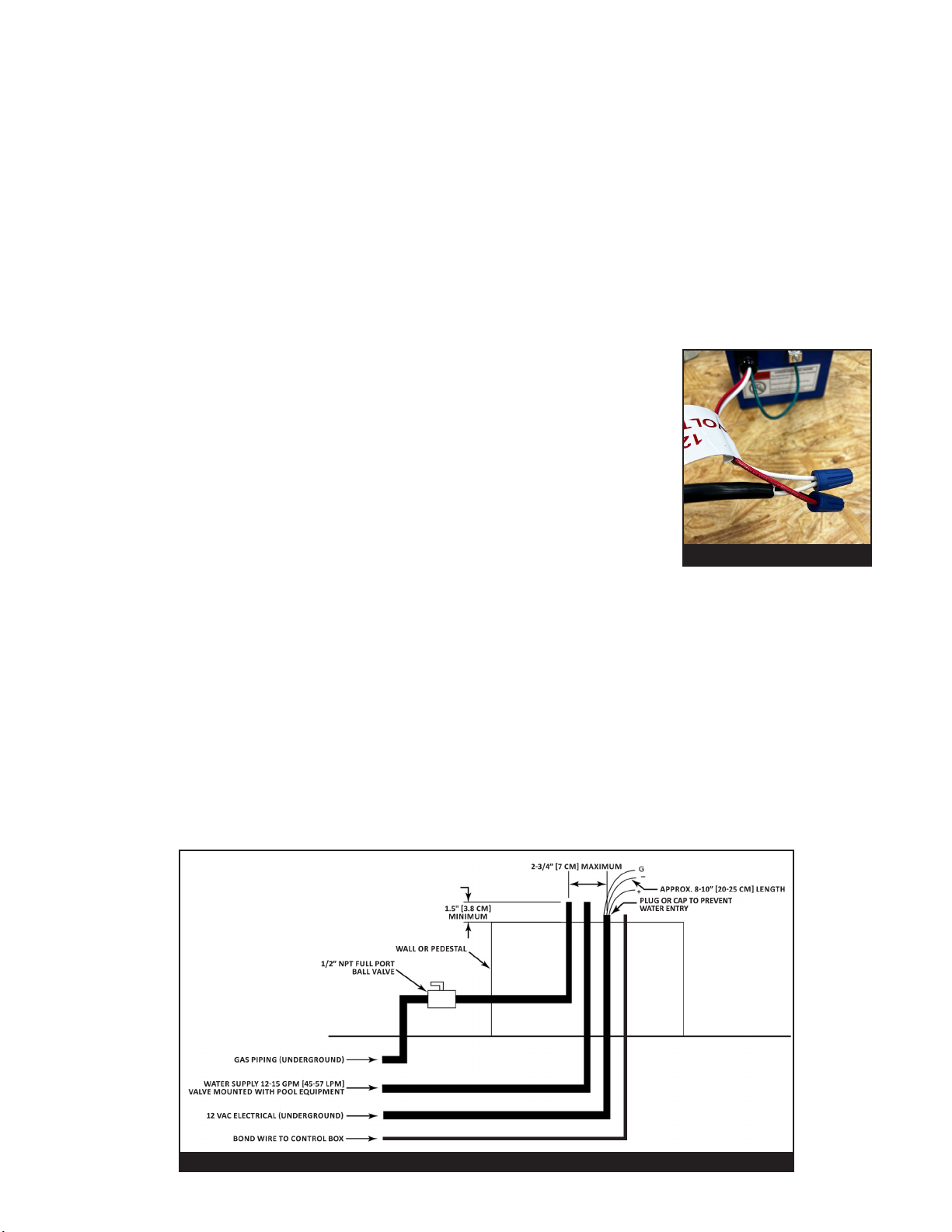

FIGURE 2
FIGURE 3

11
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
BOWL INSTALLATION
Water Bowls:
Water bowls must be leveled, centered or placed in the
desired position and secured to the mounting surface.
Once this is complete, the center hole must be sealed
and lled in such a way that water will not leak through
the water inlet pipe and onto the mounting surface.
Water bowls typically are permanently adhered to its
mounting surface. Water bowls must be secured and
sealed to the mounting surface using a sealing adhesive
and not the mounting method described below.
Fire and Fire/Water Bowls:
Stub-outs should be centered so that the bowl can be
permanently installed in the desired position.
Although there is a center hole in the bowl bottom, any
o󰀨 centered stub-outs may require cutting the bottom
of the bowl in order to t properly onto the mounting
surface.
To install the bowl:
1. Ensure the desired mounting surface is level and
allows for recommended vertical and horizontal
clearances.
Note: Minimum vertical clearance of 6 ft [1.8
m] above the burner. Minimum side to side
clearance of 4 ft [1.2 m].
2. Place the bowl over the electrical, gas, bonding
wire and water stub-outs.
3. Ensure the bowl is centered and the front edge of
the bowl scupper extends into the pool or body of
water by 3 inches [7.6 cm].
4. Looking down into the bowl, mark four points for
feature support feet. See FIGURE 4.
FIGURE 4
5. Using a 3/8-inch concrete drill, drill down a
minimum of 4 inches [10.2 cm] at all four marked
locations. See FIGURE 5.
FIGURE 5
6. Install a single anchor bolt until ush with the bowl.
Note: Do not over-tighten or strip the anchor
bolts.
7. Gently ensure the bowl is tightly secured to
the mounting surface and can not be rocked or
lifted.
Any o󰀨set will cause the bowl to crack when the
next three anchors are being secured.
8. Repeat the anchoring process for each mounting
location.
9. Ensure the bowl is rmly secured to the surface.
The bowl should not tip, rock or otherwise move in
any way.
FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN PROPERTY DAMAGE,
PERSONAL INJURY, OR DEATH.
Be aware of the risk of high surface temperatures
and stay at a safe distance to avoid burns or
clothing ignition.
DO NOT allow children to play on or around the
re feature or any associated equipment.
ALWAYS closely supervise young children when
around this product or pool.
DO NOT stand, sit, or hang on the re bowl.

12
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide

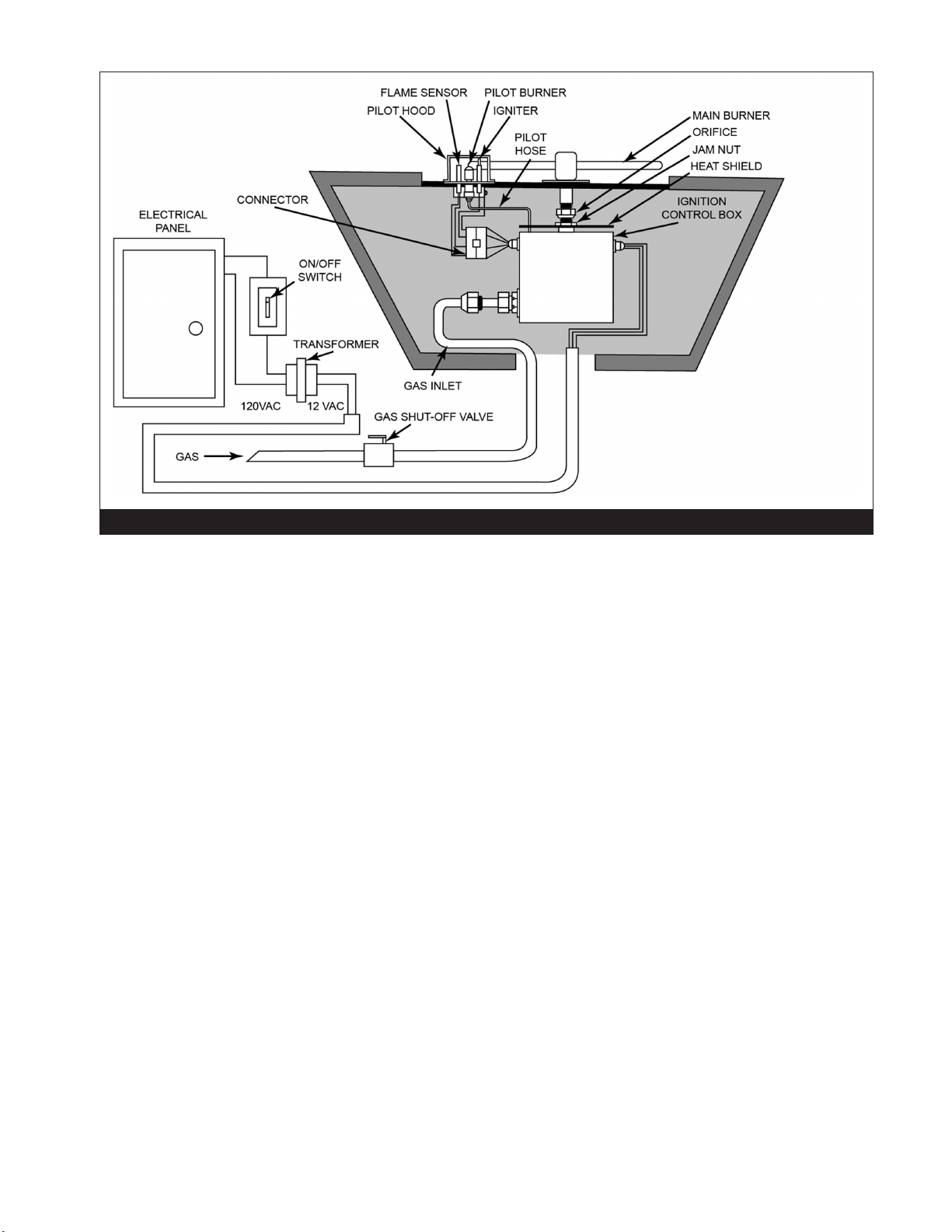

FIGURE 6

13
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
INSTALLING THE BURNER ASSEMBLY
The re feature includes a burner assembly and control box. The burner and control box will need to be connected to
the gas and electrical supply lines.
1. Before installing the burner assembly, ensure the correct pilot and burner orices are installed.
a. If feature will be fueled by propane gas: Both the factory installed natural gas pilot and natural gas burner
orices must be replaced with the provided propane orices by a qualied service professional or gas
supplier.
b. If feature will be installed above 4,000 ft [1,219 m] altitude: Both the pilot and burner orice must be
replaced with the appropriate orice.
For instructions for replacing each orice, refer to REPLACING THE PILOT ORIFICE, page 17 and
REPLACING THE BURNER ORIFICE, page 19.

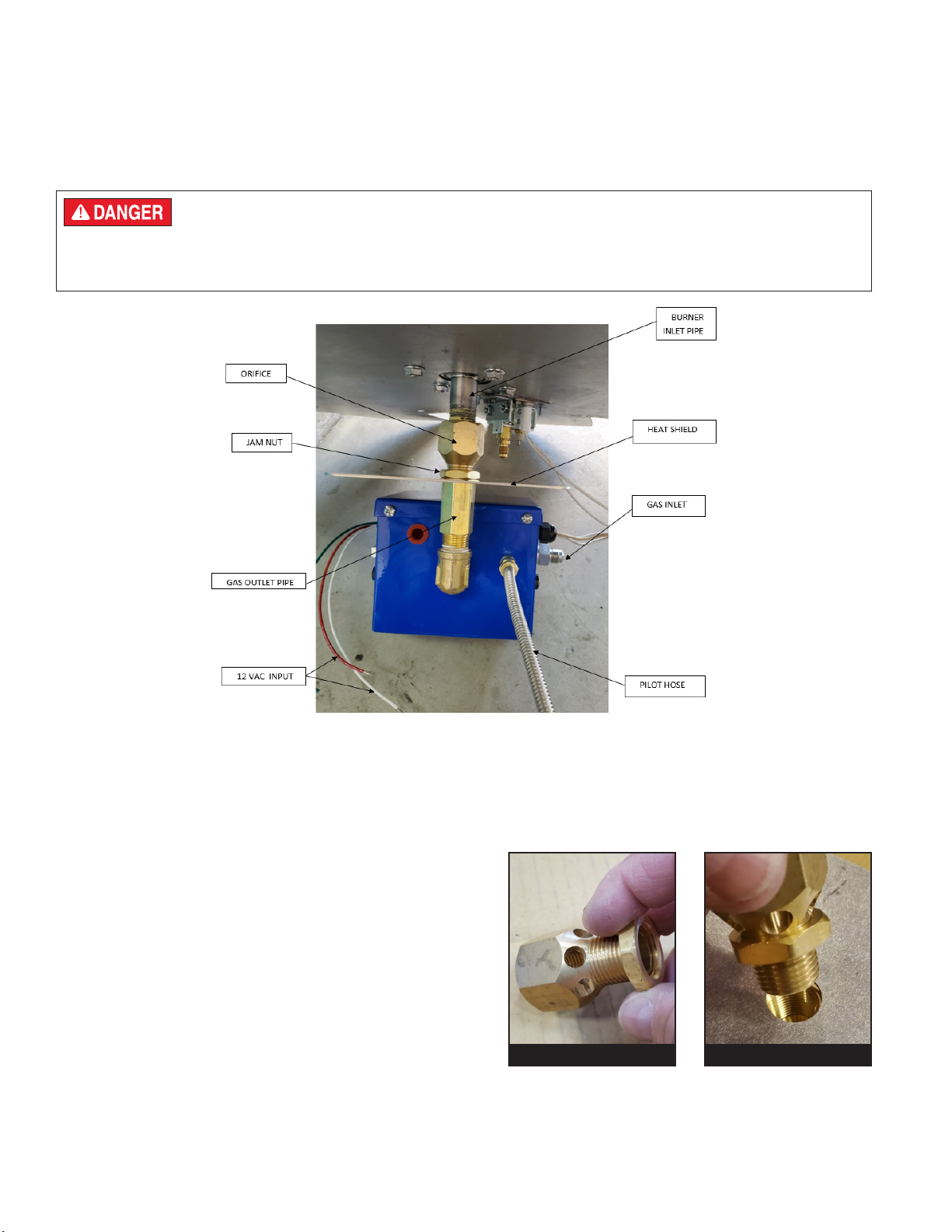

2. Lift the burner assembly from the bowl. See FIGURE 7.
FIGURE 7 FIGURE 8

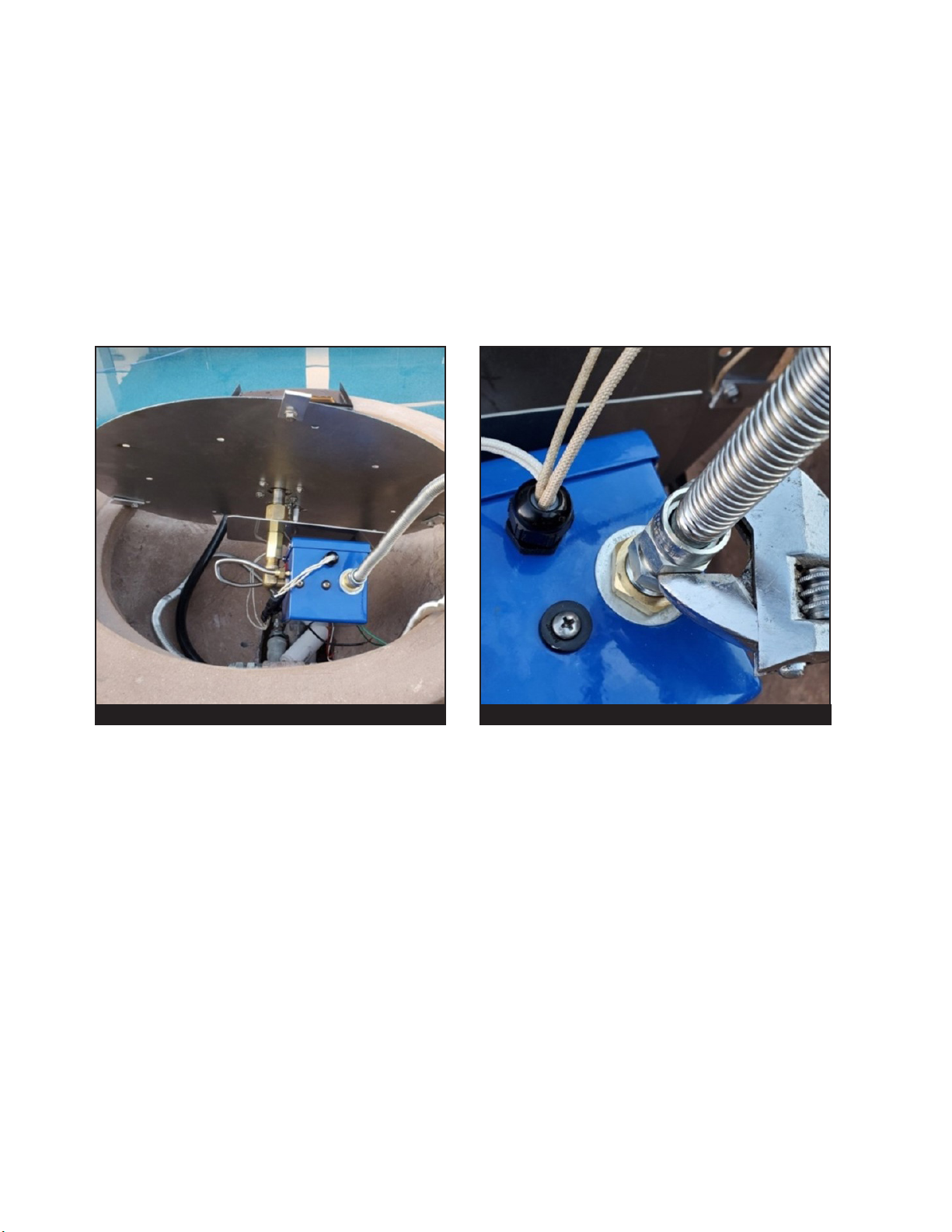

3. Connect the exible gas hose to the inlet are tting from the gas supply to are tting on the inlet of the control
box.
4. Use an adjustable wrench to tighten the hose to the ttings. Ensure they are tight and do not leak gas. See
FIGURE 8.
Note: If this tting is not tightened correctly it will leak and potentially ignite and can be hazardous.
5. Connect the 12 VAC and ground wires from the control box, to the 12 VAC and ground wires routed through the
conduit.
Note: These wires are coming from the supply voltage transformer. Use wire nuts to connect each wire to the
control in the re feature.
6. Connect the copper bonding wire to the bonding lug on the side of the control box.
7. Turn on gas to the unit.
8. Using a gas-approved leak detection uid or device, test for leaks at the gas tting.
9. Lower the burner assembly into the bowl. The support plate will sit on the inner ledge of the bowl.
10. Reestablish power to the re feature at the circuit breaker.

14
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
ADDING FIRE MEDIA
ONLY use approved re media, correctly distributed, to ensure safety and proper combustion. Never use non-porous material,
or any material that holds moisture, such as gravel, pebbles, river rock, etc.
When heated, non-porous material will not allow steam to properly vent which can result in the material fracturing and causing personal injury or
property damage. When heated, materials that hold moisture can boil and fracture unexpectedly and cause personal injury or property damage.
1. Place re media onto the support plate.
Note: Do not overll the support plate.
2. Spread the media evenly over the support plate and
burner. Depth of media should be approximately 3
inches.
Note: Ensure the burner is covered, but not buried.
If using re glass, cover the burner with a 1/4-inch to
1/2-inch of glass. See FIGURE 9.
Note: Do not cover the top of the pilot hood. The pilot
needs air to operate properly. See FIGURE 9.
3. Turn the system on and ensure it lights and ames come
through the re media.
4. If re media must be adjusted or redistributed, turn o󰀨
the ignition system and wait for the media to cool.
Fire media may still be hot after the re feature is shut off. To prevent personal injury, ALWAYS allow the re media to
cool before redistributing. Depending on the size of the bowl, cooling may take up to an hour.
FIGURE 9

15
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
This section contains instructions for operating the re feature. Follow these instructions to ensure safe and proper operation.
Failure to follow these instructions may result in personal injury or property damage due to burns or accumulation of fuel gas.
OPERATION GUIDELINES
• Do not operate the re feature in rainy conditions or when re media is wet. Doing so may cause re media to crack
and burst.
• Never use the re feature in windy conditions.
• Do not reach/jump across or touch hot surfaces or open ames.
• Inspect the re feature before every use.
• Before operating or testing the re feature, ensure there are no obstructions, debris or combustible materials
contacting or within proximity of it.
• Never leave the re feature unattended when in use. Always turn o󰀨 the re feature after use.
• Never attempt to adjust the gas ow by adjusting the pressure regulator.
• It is recommended to cover the re feature with a designated cover if it will not be operated for long periods of time.
Always allow the re media, burner and bowl to completely cool before covering it. Failure to follow these instructions
could result in property damage, personal injury, or death.
OPERATING THE FIRE FEATURE
MagicFlame can be controlled via a standard wall-mount light switch. Multiple re features can be connected, through
a junction box, to a single switch so that all re bowls can be switched on and o󰀨 together.
The re feature can also be controlled via most Pentair automation systems. For more information refer to your
specic automation system’s manual.
LIGHTING THE FIRE FEATURE
1. Ensure all gas supply valve(s) are open before attempting to light the re feature.
2. Turn on the power switch to the re feature.
3. After 3 seconds, the igniter will begin to glow red.
Shortly after this (roughly 5 seconds), the burner will ignite.
3. The igniter will remain lit 6 to 8 seconds to prove a ame is produced and will then ignite the burner.
The igniter will shut o󰀨 and the ame will continue as long as the ame is present and can be sensed by the pilot
sensor.
4. If burner fails to light, it will attempt to light three additional times.
If the burner still fails to ignite after these three attempts, it will lock out and will need to be reset by cycling the
power o󰀨 then on.
Note: Windy conditions or gusts may push or pull the ame away from the pilot sensor, causing the system to shut
down for 7 seconds and then re-start the ignition sequence. This will continue for 5 minutes, if it cannot maintain a
ame after 5 minutes the system will lock out and will need to be reset by cycling the power o󰀨 then on.
Note: When lighting the burner for the rst time there will be air in the gas lines that will need to be purged. This
may require multiple system resets.
IMPORTANT! ALWAYS WAIT 5 MINUTES BEFORE ATTEMPTING TO RELIGHT AFTER A RESET!
4. Once the burner successfully lights and operates for at least 3 minutes, the control box will begin to monitor the
ame.
OPERATION

16
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
MAINTENANCE
RISK OF FIRE OR EXPLOSION! Improper installation and/or servicing can result in ammable gas leaks, which could result
in death, serious injury, or major property damage. Installation and servicing must be performed by a qualied service
professional or gas supplier.
RISK OF CARBON MONOXIDE POISONING OR ASPHYXIATION! This product can produce carbon monoxide, a tasteless
and odor-less toxic gas. Improper installation and/or servicing may lead to a build-up of carbon monoxide, which can result
in death, permanent brain damage, or other serious injury. Installation and servicing must be performed by a qualied service professional or
gas supplier.
NEVER install or operate this product in an enclosed space where carbon monoxide can accumulate.
GENERAL MAINTENANCE
• Inspect the re feature before every use.
• Ensure there are no obstructions or combustible materials on or near unit before.
• It is recommended to cover the re feature with a designated cover if it will not be operated for long periods of time.
Always allow the re media, burner and bowl to completely cool before covering it. Failure to follow these instructions
could result in property damage, personal injury, or death.
• Before operating or testing the re feature, ensure there are no obstructions, debris or combustible materials
contacting or within proximity of it.
• Ensure all connections and ttings are tight and free of damage (cracks, abrasions, leaks, etc.) annually.
• Inspect main burner for clogged burner ports or cracks annually.
• Ensure the pilot and surrounding area are free or debris or excess soot. After cleaning, turn on the unit and ensure
proper ignition.
• Remove any foreign debris from the re media when necessary.
• If servicing electrical controls, label all wires before disconnecting conductors.
• Do not alter any component or design of this unit, as it may alter operation.
• The re feature control box is a non-serviceable item. If the control box is damaged or fails, the entire assembly
must be replaced.
ANNUAL MAINTENANCE
• The re feature should be serviced annually by a professional gas technician certied in the United States by the
National Fireplace Institute (NFI). Any parts that require replacement should be replaced only by a qualied service
professional using parts recommended by the original manufacturer.
• Remove and clean re media.
• Inspect burner for clogged burner ports or cracks. If the burner is damaged it must be replaced with an identical
burner supplied by the original manufacturer.
• Remove and inspect pilot to ensure no debris is caught in the pilot, the pilot sensor is not corroded and the igniter is
operating properly.
• Inspect and clean components all components under the support plate.
• Inspect wiring for damage or corrosion and ensure tight connections.
• Check for gas leaks.
WINTERIZING THE FIRE FEATURE
• Turn o󰀨 water, electrical and gas supplies.
• Remove all water from the water supply lines.
• Cover the re feature with a designated cover.
Always allow the re media, burner and bowl to completely cool before
covering it. Failure to follow these instructions could result in property
damage, personal injury, or death.

17
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide

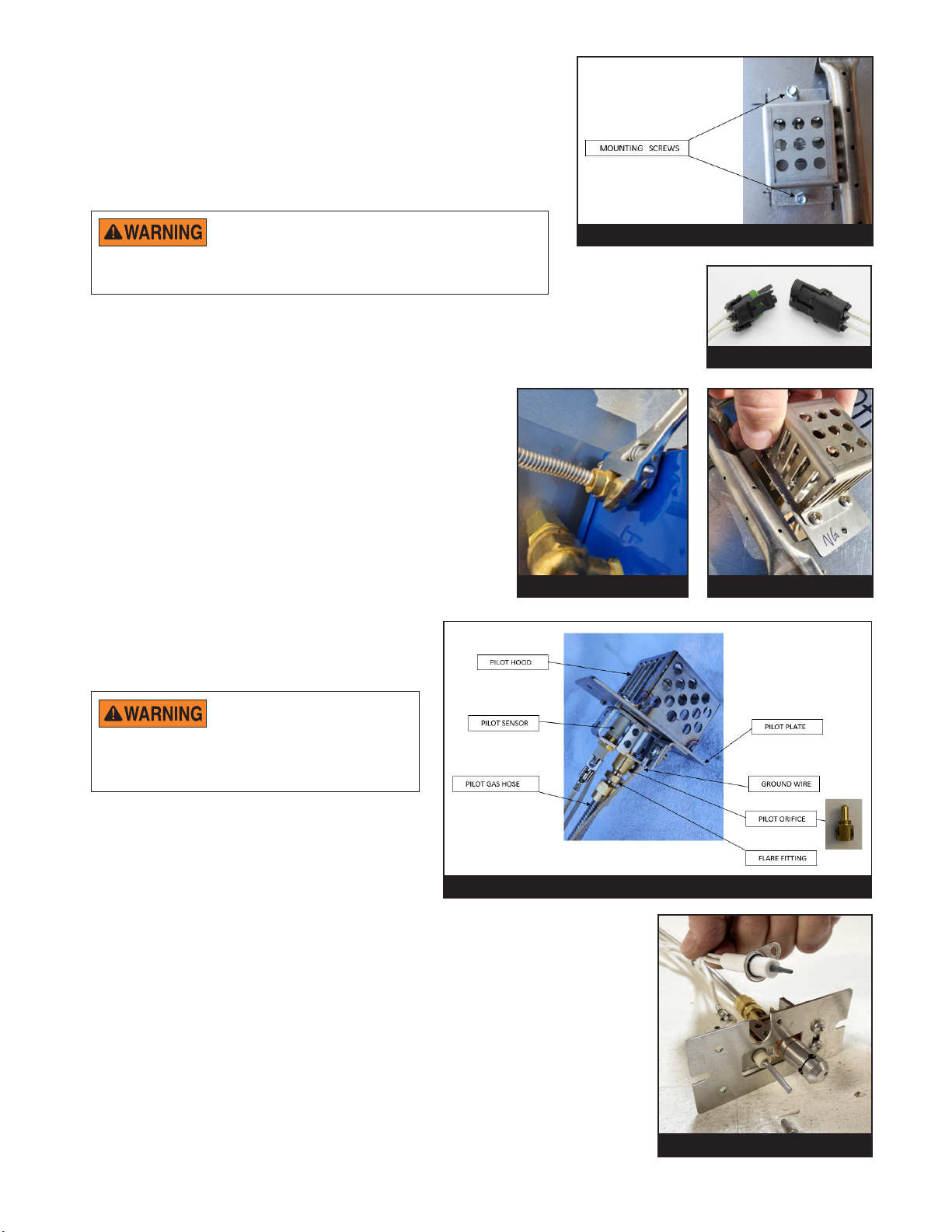

REPLACING THE PILOT ORIFICE
The pilot orice is located at the base of the pilot/igniter assembly and
the burner orice is located at the end of the main burner pipe.
Each orice is specic for either Natural Gas or Propane.
1. Turn o󰀨 the electrical and gas supply to the re feature.
2. Remove re media from the bowl.
Fire media may still be hot after the re feature is shut off.
To prevent personal injury, ALWAYS allow the re media to
cool before redistributing. Depending on the size of the bowl, cooling may take
up to an hour.
3. Remove the two mounting screws securing the pilot/igniter assembly to the support
plate. See FIGURE 10.
4. Lift the burner assembly from the bowl and turn it over to access the underside
components.
5. Unplug the connector from the control box. See FIGURE 11.
6. Disconnect the exible pilot gas hose from the control box.
See FIGURE 12.
7. From the top of the burner support plate, pull up and
remove the pilot/igniter assembly. See FIGURE 13.
8. Remove the Flare Fitting from the Pilot Orice and remove
the Pilot Orice from the support bracket. See FIGURE 14.
9. Install the new Pilot Orice in reverse order.
REPLACING THE IGNITER
1. Turn o󰀨 the electrical and gas supply to the re
feature.
2. Remove re media from the bowl.
Fire media may still be hot after the
re feature is shut off. To prevent
personal injury, ALWAYS allow the re media to cool
before redistributing. Depending on the size of the bowl,
cooling may take up to an hour.
3. Remove the two mounting screws securing the
pilot/igniter assembly to the support plate. See
FIGURE 10.
4. Lift the pilot/igniter assembly and expose the
connector.
5. Unplug the connector from the control box. See
FIGURE 11.
6. Remove the pilot hood. See FIGURE 14.
7. Remove the mounting screw securing the Igniter and remove the damaged
igniter. See FIGURE 15.
8. Mount the new igniter assembly to the support plate, ensuring the slotted side
of the pilot hood is facing the burner. See FIGURE 13.
FIGURE 13
FIGURE 10
FIGURE 11
FIGURE 12
FIGURE 14
FIGURE 15

18
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide

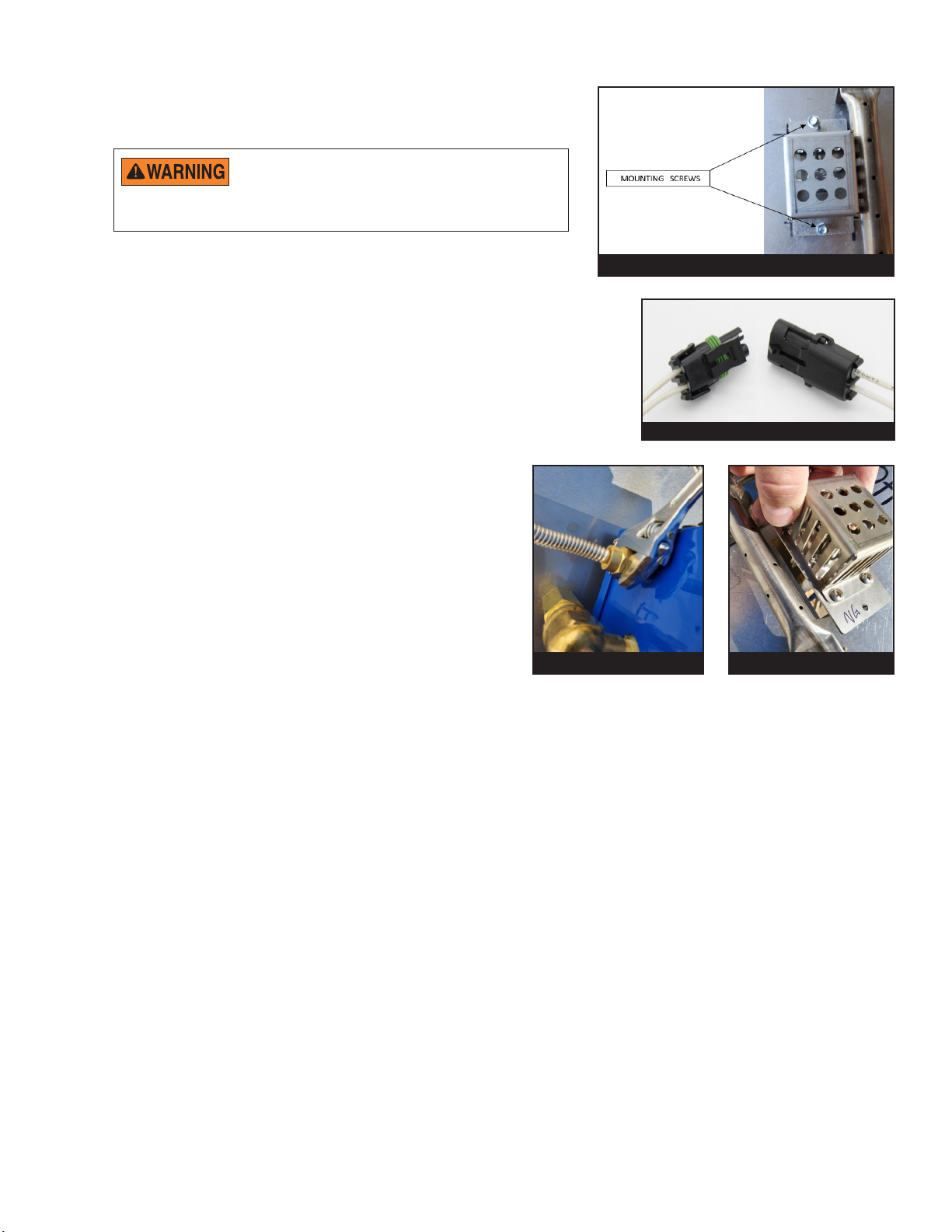

REPLACING THE PILOT/IGNITER ASSEMBLY
1. Turn o󰀨 the electrical and gas supply to the re feature.
2. Remove re media from the bowl.
Fire media may still be hot after the re feature is shut off.
To prevent personal injury, ALWAYS allow the re media to
cool before redistributing. Depending on the size of the bowl, cooling may take
up to an hour.
3. Remove the two mounting screws securing the pilot/igniter
assembly to the support plate. See FIGURE 16.
4. Lift the burner assembly from the bowl and turn it over to access
the underside components.
5. Unplug the connector from the control box. See FIGURE 17.
6. Disconnect the exible pilot gas hose from the control box. See
FIGURE 18.
7. From the top of the support plate, pull up and remove the old pilot/
igniter assembly. See FIGURE 19.
8. Insert the new pilot/igniter assembly through the top of
the support plate, ensuring the slotted side of the pilot
hood is facing the burner. See FIGURE 19.
9. Align the pilot hood and support plate mounting points
and secure the pilot/igniter assembly to the support
plate with the two mounting screws. See FIGURE 16.
10. Flip the support plate to access the underside
components.
11. Connect the pilot/igniter assembly connector to the
control box connector. See FIGURE 17.
Note: To ensure a watertight connection, ensure the
connector snaps together.
12. Take the exible stainless steel pilot hose and connect it to the control box tting. Secure with wrench but be
careful not to over-tighten as it may damage the brass thread. See FIGURE 18.
13. Place the burner assembly back into the bowl.
14. Turn on gas to the unit.
15. Ignite the re feature and test to make sure the system lights.
16. If test is successful, turn o󰀨 re feature and wait for it to cool.
FIGURE 19
FIGURE 16
FIGURE 17
FIGURE 18

19
MAGICFLAME™ Fire and Water Bowl Installation and User’s Guide
REPLACING THE BURNER ORIFICE
If your re feature will be fueled by propane, the factory-installed burner orice must be removed and the provided
propane orice must be installed.
After installing the propane orice, the label on the bottom of the control box must be updated to indicate the re
feature has been set up to use propane gas.
RISK OF FIRE OR EXPLOSION FROM INCORRECT FUEL USE OR FAULTY FUEL CONVERSION! DO NOT ATTEMPT
TO OPERATE A FIRE FEATURE SET UP FOR NATURAL GAS ON PROPANE OR VICE VERSA. SERIOUS MALFUNCTION
OF THE BURNER CAN OCCUR WHICH MAY RESULT IN DEATH.
Only a qualied service professional or gas supplier should attempt to convert from one fuel to the other. If it is necessary to convert to a different
type of gas, consult your Pentair dealer.
1. Secure the support plate.
2. Ensure the pilot/igniter assembly has been disconnected and removed. Refer to REPLACING THE PILOT/
IGNITER ASSEMBLY, page 18 for instructions.
3. Place an adjustable wrench on the burner orice and rotate the control box counter-clockwise until the control box
separates from the burner inlet pipe.
4. Place the control box on a at surface and hold it in
position.
5. Using and adjustable wrench, loosen the jam nut.
6. Remove the burner orice from the gas outlet pipe.
Note: Once the burner orice is removed, the heat
shield is no longer secured to the control box.
7. Remove the jam nut from the old orice. See FIGURE 20.
8. Thread the jam nut onto the new orice until it can no
longer be turned. See FIGURE 21.
9. Apply thread sealant to the new orice threads ensuring
the last three threads are covered well.
10. Place the heat shield over the gas outlet pipe and begin threading the orice into place.
11. Tighten the orice until secure. See FIGURE 21.
FIGURE 20 FIGURE 21
- CONTINUE TO NEXT PAGE -
