Pentair BERKELEY B4ZRKS User manual

B4ZRKS
B3TRKS B2XRKS
B2ZRKL
IMPORTANT
For best possible performance and continuous, satisfactory operation,
read these instructions before installing your new pump.
Should service be required, this manual can be a valuable guide.
It should be kept near the installation for ready reference.
Record nameplate data from pump on blank nameplate inside this
manual for future reference.
OWNER’S MANUAL
Self Prime Frame Mounted
Centrifugal Pump
Direct Coupling Drive/
Belt Driven/Hydraulic Drive
© 2014 Pentair Ltd. All Rights Reserved. F00633 (03/27/14)
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.bERkELEyPumPS.COm
PH: 888-782-7483

Page 2 F00633
General Information
Safety First
Pump Location
READ AND FOLLOW
SAFETY INSTRUCTIONS!
This is the safety alert symbol. When you see
this symbol on your pump or in this manual, look
for one of the following signal words and be alert to the
potential for personal injury:
warns about hazards that will cause
serious personal injury, death or major
property damage if ignored.
warns about hazards that will or can
cause serious personal injury, death or
major property damage if ignored.
warns about hazards that will or can
cause minor personal injury or property
damage if ignored.
The label NOTICE indicates special instructions which
are important but not related to hazards.
Carefully read and follow all safety instructions in
this manual and on pump.
Keep safety labels in good condition.
Replace missing or damaged safety labels.
LOCATION:
Locate the pump as near to the water source as
practical. Make the suction pipe run short and straight
with as few pipe fittings as possible to keep total friction
loss to a minimum.
Install pump in a clean, dry and well drained location
if possible and protect against moisture and adverse
weather conditions. Pump should be located on a level,
hard surface to prevent shifting or tipping. Locate to be
readily accessible for inspection and maintenance.
Careful attention should be taken to assure that Net
Positive Suction Head Available (NPSHA) exceeds Net
Positive Suction Head Required (NPSHR) by the pump
or reduced performance and severe pump damage may
result.

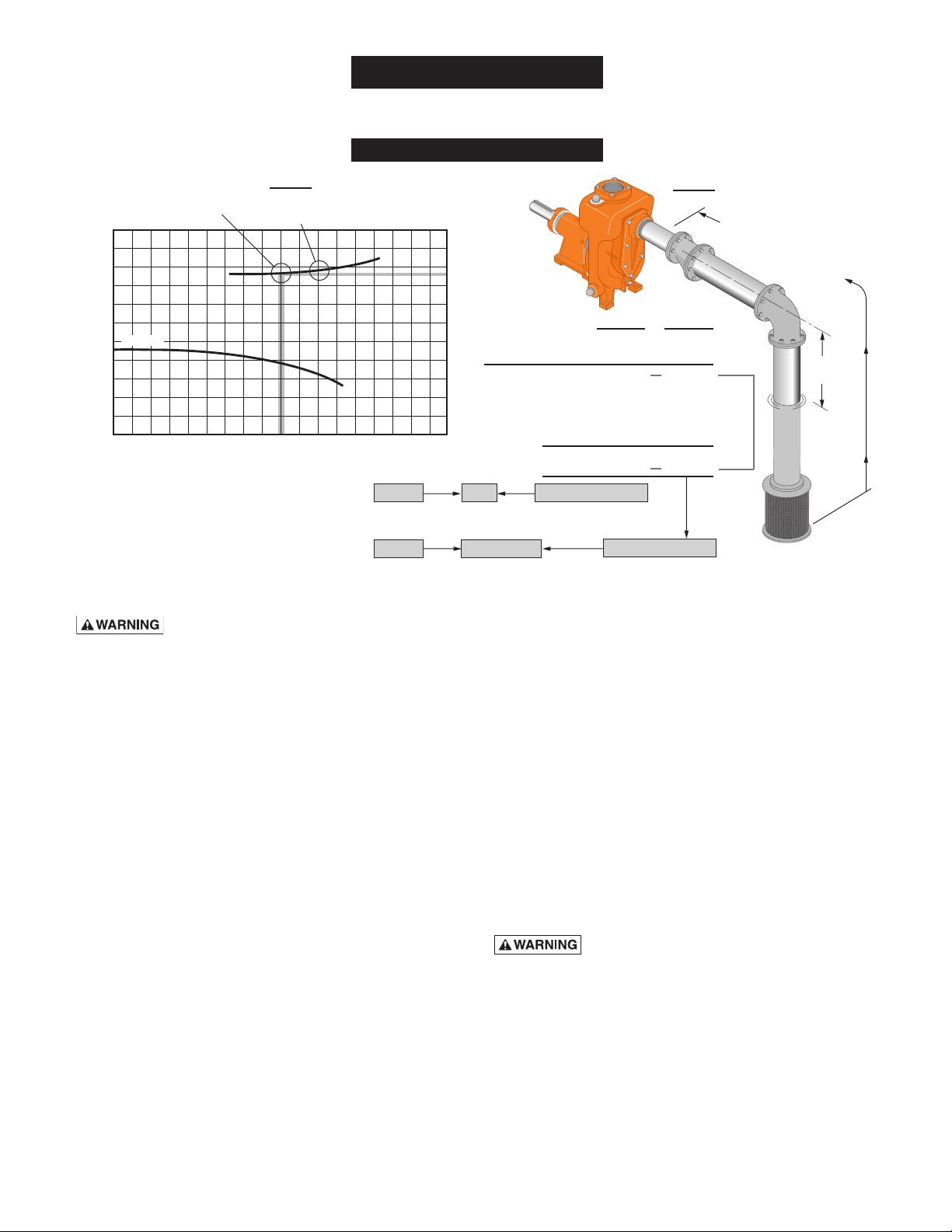

Figure 1, Page 3, illustrates where these terms (NPSHA
/ NPSHR) originate, and how to determine if the
pumping conditions at which you want to operate meet
the proper criteria. When in doubt, consult your nearest
Berkeley Professional Dealer.
NOTE: If pump site is 1000 feet above sea level,
sub-tract 1.2 feet from the NPSHA equation and an
additional 1.2 feet for each additional 1000 feet of
elevation.
General Safety
Do not allow pump, piping, or any other system
component containing water to freeze. Freezing may
damage system, leading to injury or flooding. Allowing
pump or system components to freeze will void
warranty.
Pump approved liquids only with this pump.
Periodically inspect pump and system components.
Wear safety glasses at all times when working on
pumps.
Keep work area clean, uncluttered and properly lighted;
store properly all unused tools and equipment.
Keep visitors at a safe distance from the work areas.
WARNING
Rotating parts. Can catch
hands, feet, or clothing.
Stay clear of equipment and
keep shields in place while
pump is running.
Stop motor or engine before
servicing pump.
Read owner’s manual before
using equipment.
Electrical Safety
WARNING Wire motor for correct
voltage. See “Electrical”
section of this manual
and motor nameplate.
Ground motor before
connecting to power
supply.
Meet National Electrical
Code and local codes
for all wiring.
Follow wiring
instructions in
this manual when
connecting motor to
power lines.
Hazardous voltage.
Can shock, burn, or
cause death.
Ground pump before
connecting to power
supply.

F00633 Page 3
General Information
Installation
FOUNDATION: Refer to illustration on Page 4.
Heavy weights; risk of bodily harm due
to crushing. Use care and proper lifting equipment
when handling pump for installation. Size and weight of
some units will require hoists for safe handling.

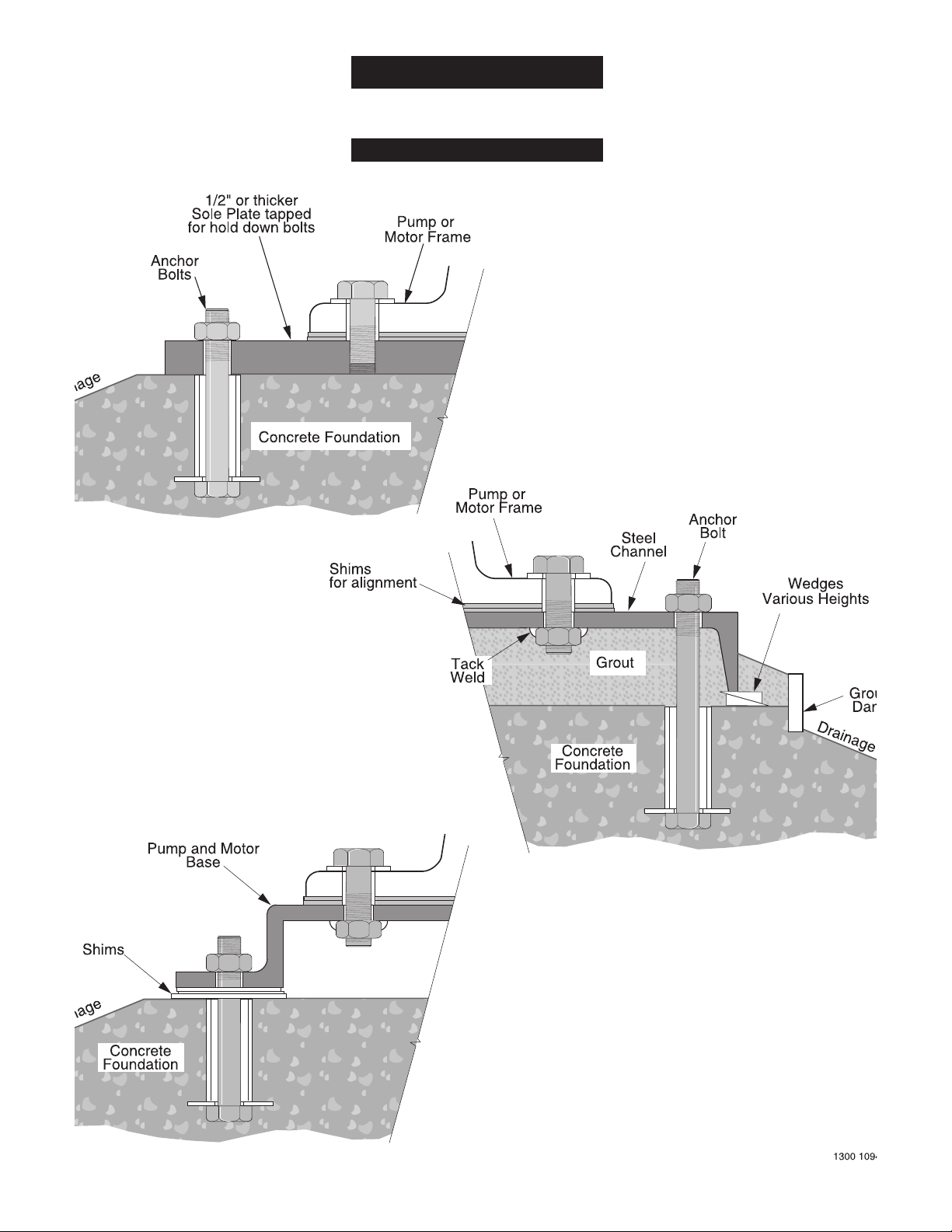

Pump should be set on a concrete foundation which is
sufficiently substantial to absorb vibration and which
provides a permanent and rigid support.
When properly positioned, the unit will be level, and
the suction and discharge openings of the pump will be
aligned with system piping.
PIPING:
System piping should be at least one commercial pipe
size larger than pump connections and flow velocity
should not exceed eight (8) feet per second. Suction
and discharge pipes must be naturally aligned with
pump connections.
NOTICE: Misalignment of piping with pump case or
excessive pipe strain can cause distortion of pump
components resulting in rubbing, breakage and reduced
pump life.
Insure that piping is supported in a manner that prevents
the exertion of force on pump connections. This can be
checked by the following procedure. With the pump shut
down, remove pipe flange bolts. If the mating flanges
come apart or shift, misalignment is present and causing
pressure on the connections. Adjust pipe supports until
flanges mate without any force. This procedure can be
done throughout piping system.
SUCTION PIPING:

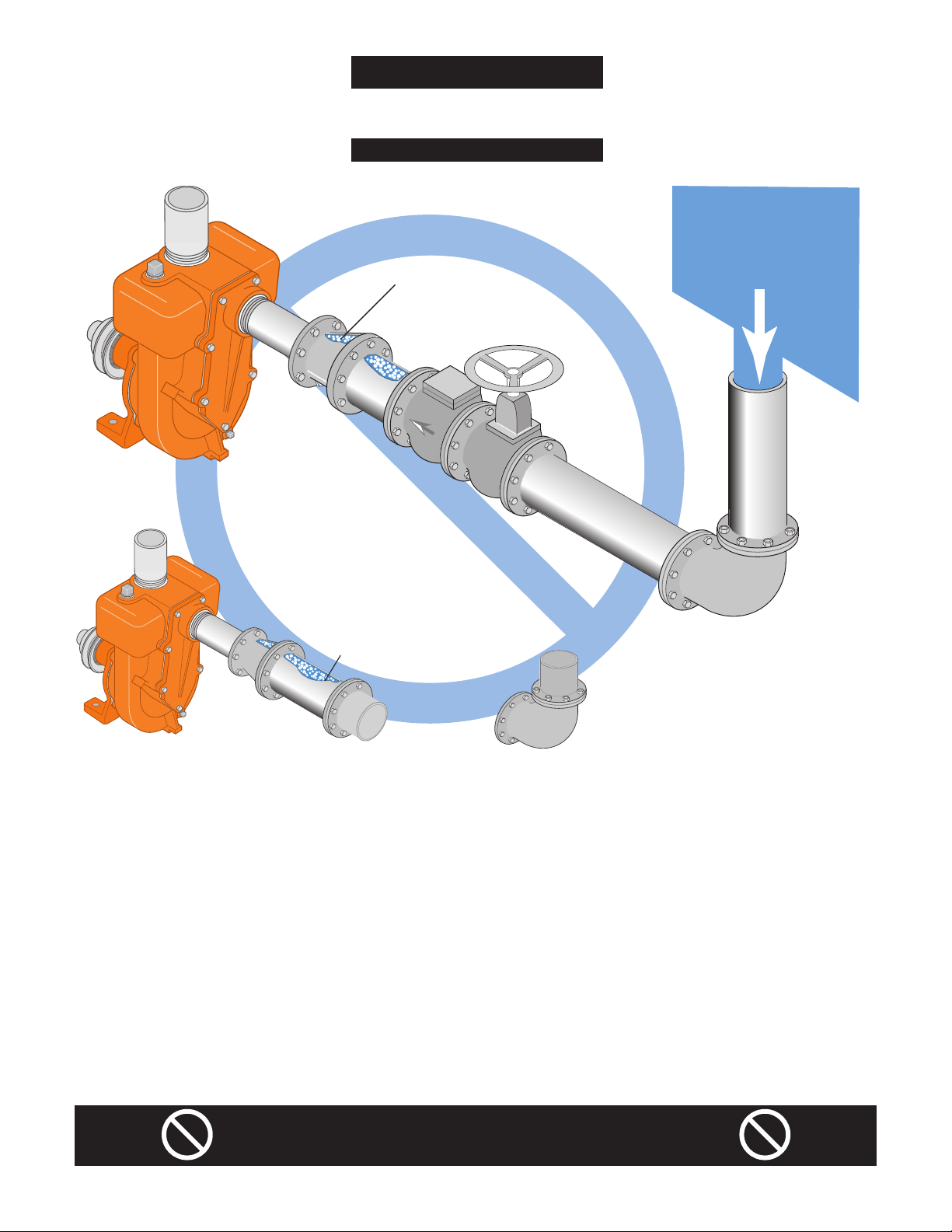

Refer to illustrations on Page 8 through Page 11 for
recommended and not recommended practices in
suction connections.

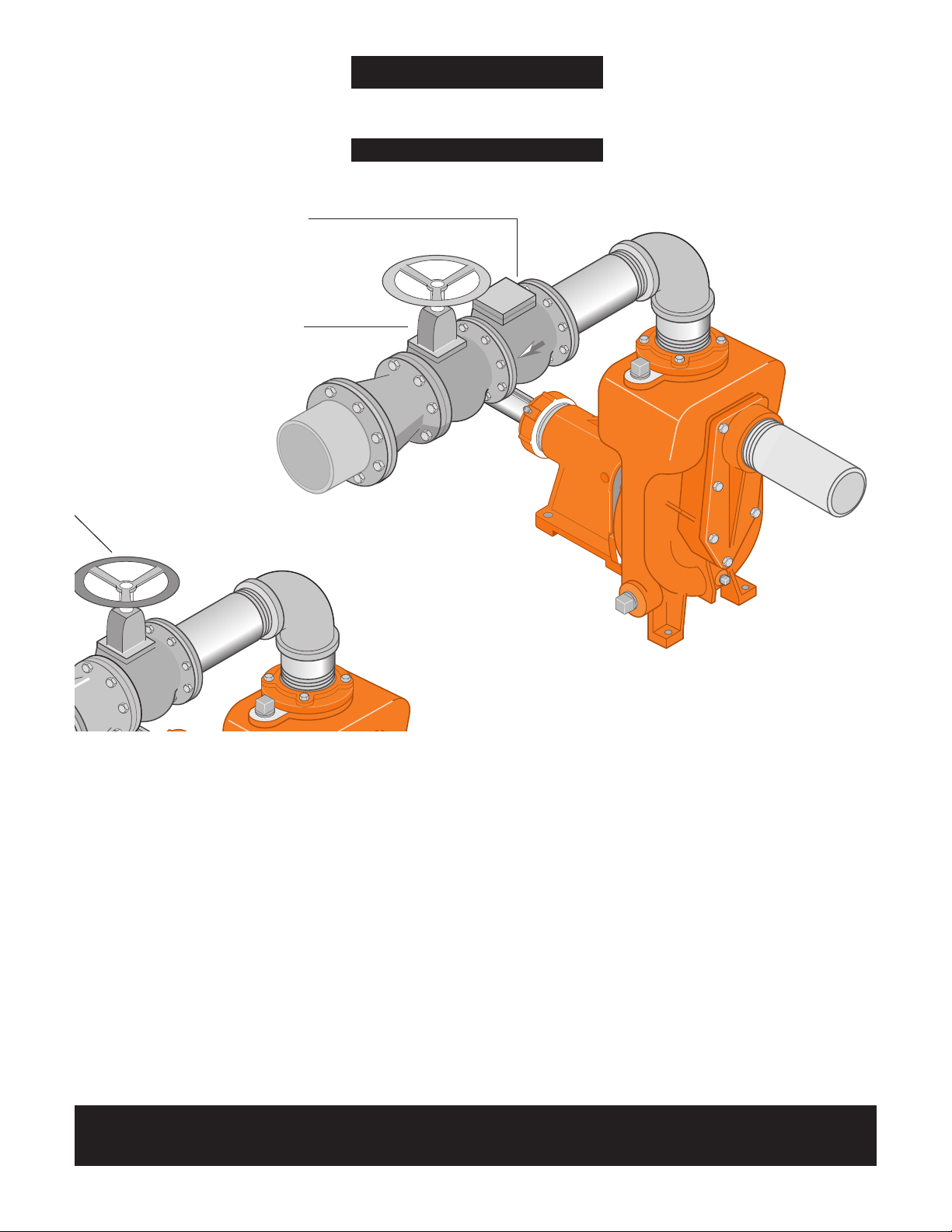

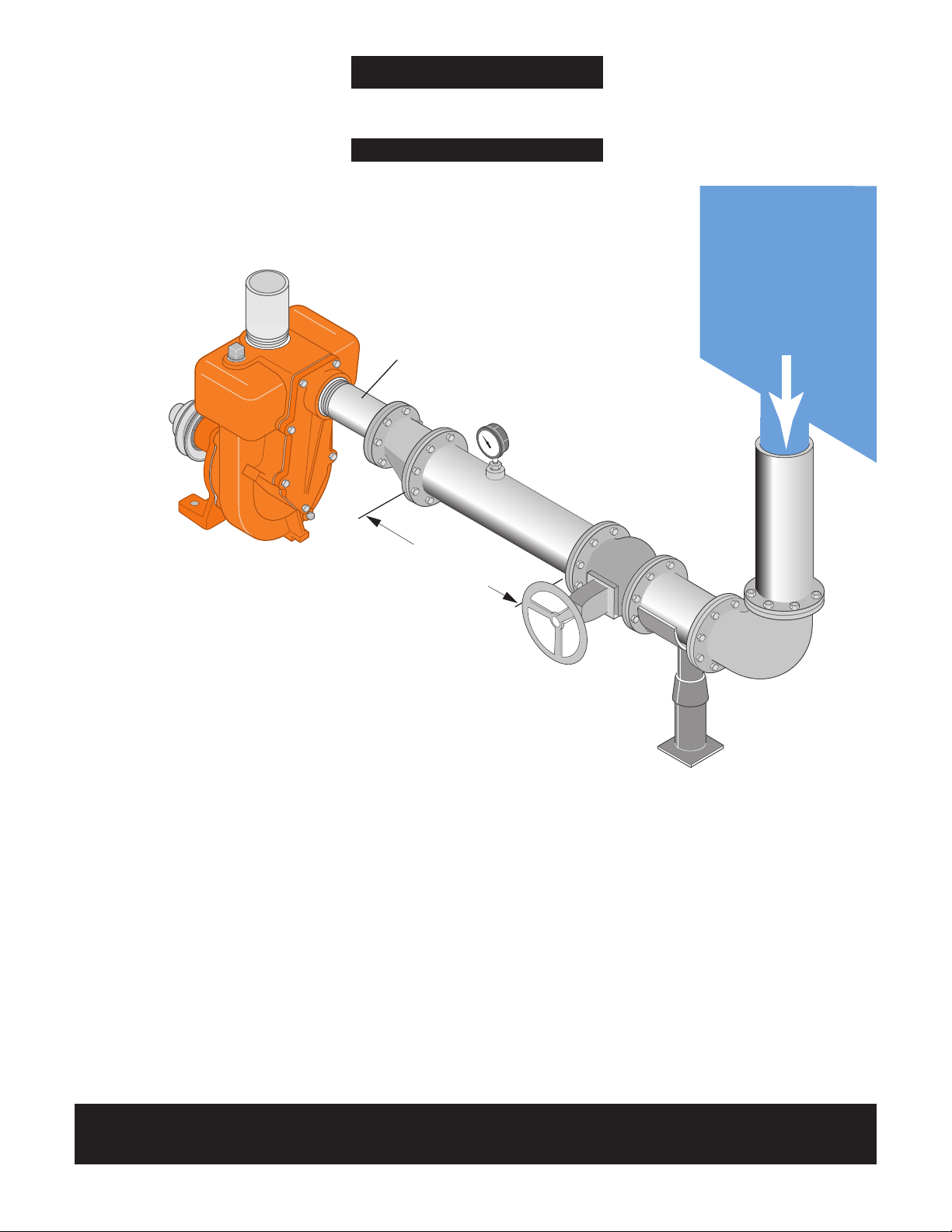

DISCHARGE PIPING:
Refer to illustrations on Pages 12 through 13 for
recommended and not recommended practices in
discharge connections.
ELECTRICAL CONNECTION:
If electric motor is used.
NOTE: All wiring should be done by a qualified
electrician.
Hazardous voltage. Can shock, burn, or
cause death. Disconnect power to pump
before servicing.
Check voltage and phase stamped on pump motor
nameplate before making wiring connections to
electrical system. Be sure they agree with your electric
current supply. They MUST be the same. If in doubt,
check with your local power company.

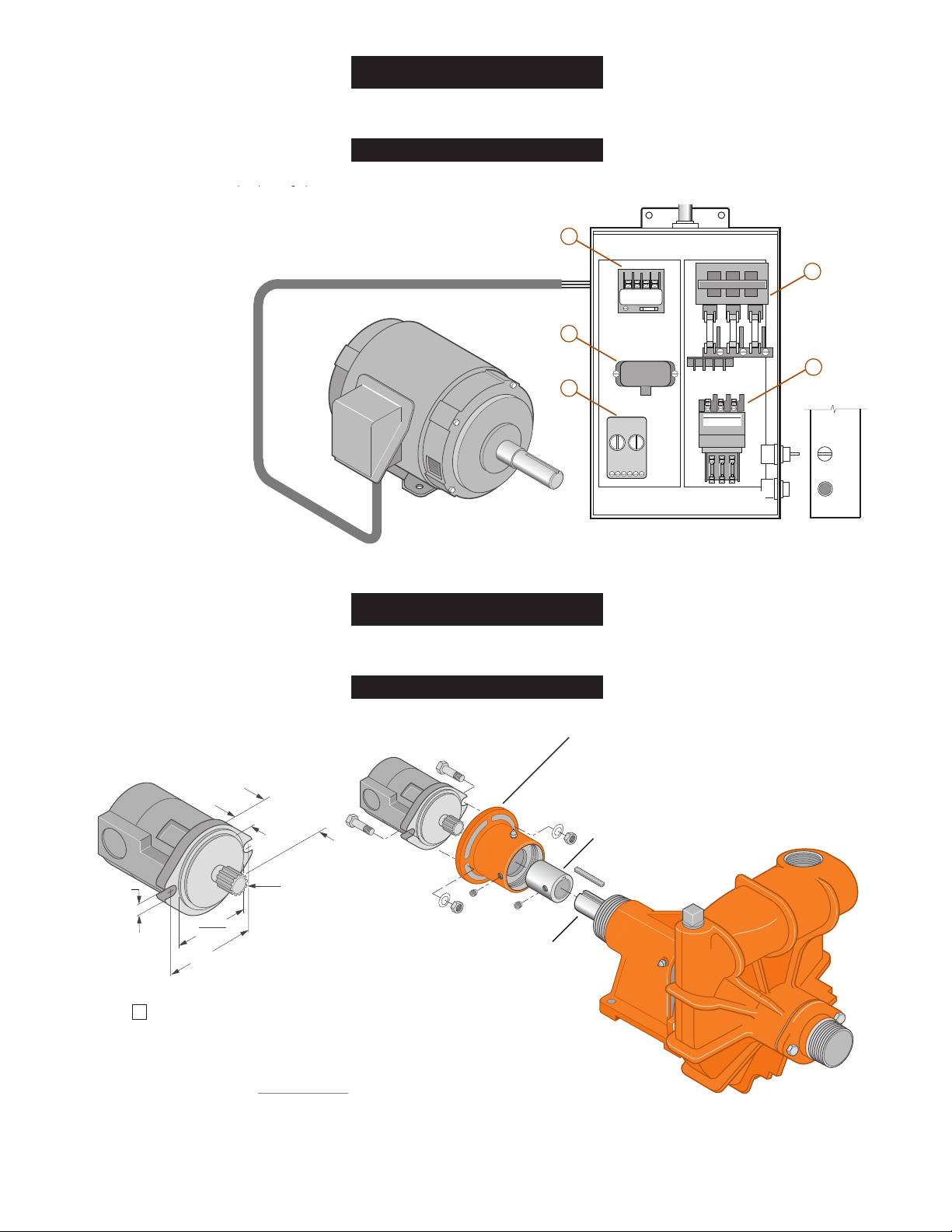

Refer to illustration on Page 7 for minimum recom-
mended pumping panel components that help
safeguard your pump during operation.
EXAMPLE
ONLY
NPSHR
A Model B4ZRKS operating at 450 GPM
with 95 Feet of Head has a NPSHR of.......... 8 Feet
at that point on the performance curve.
A Model B4ZRKS operating at 550 GPM
with 85 Feet of Head has a NPSHR of.......... 9 Feet
at that point on the performance curve.
NPSHA = 9.5 Feet
OK
NPSHA = 8.5 Feet
CAVITATION
Static Lift = 9.0 Feet 9.0 Feet
10.5 Feet
19.5 Feet
19.5 Feet
Theoretical static
lift of centrifugal
pump at sea level =
Total = 18.5 Feet
Total Friction Loss = 9.5 Feet
Safety Factor - 6.0 Feet
Minus 18.5 Feet
Practical Limit = 28.0 Feet 28.0 Feet
34.0 Feet
450 GPM 550 GPM
2111 1095
9 Feet
Static Lift
9.5 Feet total friction loss
@ 450 Gallons per minute.
10.5 Feet total friction loss
@ 550 Gallons per minute.
0100 200 300 400 500 600 700
0
50
100
150
TDH
Gallons Per Minute
0
10
20
30
NPSH in Feet
B4ZRKS
NPSHR at this point
= 8 Feet
NPSHR at this point
= 9 Feet
NPSHA
2000 RPM
FIGURE 1

Page 4 F00633
Pump Foundation
Installation
Typical Installations
       
foundation installations in use. Those pictured above
are typical.
 
to provide a good bonding surface.
 
liquid from pooling.

F00633 Page 5
Rotating shaft can catch and trap
clothing or body. Coupling guard must
ALWAYS be in place when pump is running. Coupling
guard shown in phantom for pictorial clarity.
ALIGNMENT OF PUMP AND MOTOR SHAFT
        
shaft) will not compensate for misalignment. After
the pump unit is fastened on the foundation, it is nec-
essary to see that the shafts of the pump and motor
are properly aligned.
         
avoid shifting or soft foot.
COURSE ALIGNMENT
 
openings of the pump into alignment with the system
piping. Install piping at this time. Pipes should align
naturally with the pump (see Installation Section).
        
alignment by shifting or shimming the motor. Use a
straight edge to check alignment of the shafts.
         
the distance between coupling halves. The distance
between halves should be equal at 90 degree
intervals around the coupling, and the shafts should
be concentric when checked with a straight edge.
FINE ALIGNMENT
       
may be corrected simultaneously. Maintain a sep-
aration between coupling halves, per manufacturer’s
specifications, to avoid preloading of pump and motor
bearings. Clamp dial indicators to the pump and
motor shaft as shown above.
        
parallel alignment.
 
Note the total indicated runout shown on indicator
“A”. The maximum allowable angular misalignment is
1 degree. Limits of reading on indicator “A” at various
distances from shaft centerline are shown in Table I.
     
runout shown on indicator “B”. The maximum allow-
able total indicated runout is .005 inches. Should
either angular or parallel misalignment exceed
the value shown, shift or shim the motor until mis-
alignment is within the allowable limits shown. Do
not move pump unless absolutely necessary. When
shimming, be sure that all feet on the pump and
motor are equally supported to avoid strains on the
castings when the hold down bolts are tightened.
Direct Coupling Drive
Installation
Shaft Alignment
Centerline
2112 1095
Caliper
Straight Edge
"B"
Parallel
"A"
Angular
Table I
Distance from Centerline Maximum Allowable T.I.R.
4.00 inches
3.00 inches
2.00 inches
1.00 inch 0.035 inches
0.070 inches
0.105 inches
0.140 inches
Fine Alignment
Course Alignment

Page 6 F00633
ALIGNMENT
Drive belt can catch and trap clothing or
body. Belt guard must ALWAYS be in
place when pump is running. Belt guard is not shown for
pictorial clarity.

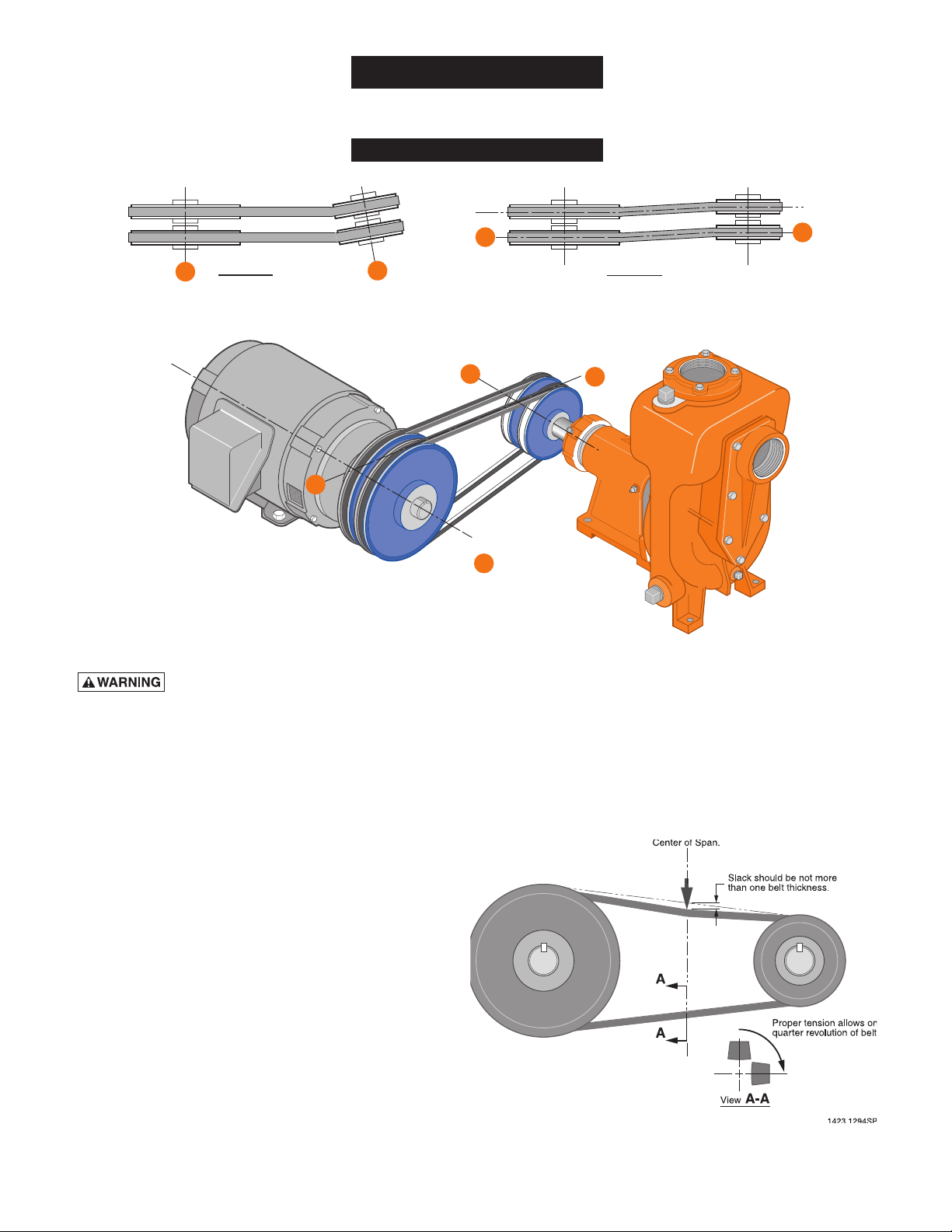

 (A) must be parallel
as shown. Belt centerlines (B) must be straight as
shown.
        
pump to allow belts to be placed on pulley. Then,
move the driver away from pump to obtain proper belt
tension as described below.
TENSION
 
Proper belt tension varies with the size of belt being
used, however a general rule is:
Belts are properly tensioned when one belt can be
depressed one belt thickness at the center of the
span when pressing with thumb.
Another method is that a properly tensioned belt can
be rotated (twisted) one-quarter revolution at the
center of span.
NOTICE: Belts must be tight enough to prevent slip-
ping during operation. Loose belts result in early belt
failure and reduced performance. However, excessive
tightness of belts will result in overheating of the belts
and excessive bearing load in the pump and driver.
       
installation. After a short period of operation,
re-check belt tension and adjust as necessary.
Belt Drive
Installation
Alignment/Proper Belt Tension
A
A
B
B
B
B
A
A
Centerline
Centerline
Incorrect
Centerline - A of each shaft and pulley must
be parallel for proper alignment.
Incorrect
Centerline - B represents center of belt and
pulley.This centerline must be straight for
proper alignment.
2113 1095

F00633 Page 7

Installation
Mounting Hydraulic Motor and Adapter
Installation
2237 0196
Precision machined to fit SAE standard Hydraulic
Motor Shaft Spline.Coupling is installed on shaft and
locked in place with drive key and set screw.
Coupling
Mounting Bracket
Hydraulic Motor
Motor Detail
Length and diameter factory
machined for precision fit
to coupling.
(See Motor Detail for fit requirements) Fits on bearing bracket in place of outer bearing
cap. Supports Hydraulic Motor and maintains exact
shaft alignment.
Hydraulic Motor must have an SAE Standard (SAE J744C) mounting flange and
shaft size B , with 30 degree involute spline, 13T, 16/32 pitch.
Hydraulic Motor selected must match with the flow and pressure capability of the hydraulic
power source system. The operating speed of the centrifugal pump will be controlled by the
valves in the hydraulic power source system.
Hydraulic Motor must produce the Torque required to drive the centrifugal pump
at the desired operating speed. For centrifugal pump GPM and TDH, read the
required RPM and BHP from pump performance curve, and calculate required torque
in Lbs-Ft, as follows:
Pump Shaft
.38
Shoulder
.875 O.D.
1.625
Flange Face to
end of shaft
3.998
4.000
5.750
.56
Bolt
Clearance
Torque = (5252) x (BHP)
(RPM)
2116 1195
AMP TIME
Incoming Power
L1 L2 L3
AUTO
OFF
HAND
START
NEMA 3R Enclosure
4
5
3
2
1
Protect Your Investment
Minimum recommended components to protect your
pump during operation. Check all local electrical codes
prior to installation.
1. Contactor
2. Lightning Arrestor
3. Loss of Prime Protection
4. Fuseable Disconnect
5. Starter
Minimum recommended components to protect your pump during
operation. Check all local electrical codes prior to installation.
1. Contactor
2. Lightning
3. Arrestor
4. Loss of Prime
5. Protection
6. Fuseable
7. Disconnect
8. Starter


Page 8 F00633
Suction Connection
Installation
Suction Lift
Short length of straight pipe after reducer.
( 2 times pipe diameter minimum )
Suction
Gauge
Straight run, short as possible but
at least 6 times pipe diameter ("D")
after elbow to stabilize flow.
As close
as possible
Pipe diameter ("D")
4 x "D"
minimum
1 x "D" minimum
from bottom
Strainer / Foot Valve
To keep debris from entering
pump suction and to maintain
pump prime after shut-off.
Eccentric Reducer
flat side up.
See foundation
section.
Pump driven by remote
power source, direct coupling
or pulley/belt connection.
Support pipe
as required
NOTICE: All connections
must be air tight.
Standard or long
radius elbow.
Slope upward
to pump.
2114 1095
Recommended
 
connection. Hose must have sufficient strength to
resist collapse under the pressure differential that
occurs while pump is running.
 
pipe size larger than opening of pump inlet. Flow
velocity should not exceed 8 ft./sec.
 
pump impeller.
         
suction pipe area.
      
must exceed Net Positive Suction Head Required
(NPSHR) by the pump or reduced performance and
severe pump damage may result.
         
pump suction inlet. A 1/4 inch per foot minimum
slope is recommended.

F00633 Page 9
Suction Connection
Installation
Suction Lift
Do not use
Concentric
Reducer.
Concentric Reducer causes high spots
along the suction line resulting in air pockets.
Do not install valves
in suction line.
Long run
not recommended
Unsupported
pipe causes
excessive stress
on pump and fittings.
Excess use of pipe fittings
means potential air leaks.
No support or
uneven mounting
not recommended.
Pipe diameter
("D") undersized
reduces performance High suction
lift should
be avoided.
Less than
4 x "D"
Vortex caused by
insufficient submergence
may cause pump to
lose prime.
No strainer
may cause
pump to
clog. Insufficient bottom
clearance
Elbow immediately in
front of pump intake
not recommended.
 
air which will reduce performance and may cause
pump to lose prime.
        
friction losses that may cause cavitation and a
reduction in pump performance.
         
trapped air, reduced performance, and high friction
losses which may cause cavitation.
Not Recommended

Page 10 F00633
Suction Connection
Installation

Recommended
See foundation
section.
Pump driven by remote
power source, direct
coupling or pulley/belt
connection.
2214 0196
Water under
pressure
Support pipe
as required
Short run of straight pipe after
reducer (2 times pipe diameter).
Eccentric Reducer
flat side up.
Isolation Valve
full open when
pumping.
Standard or
long radius
elbow.
Suction
Gauge
Straight run, short as possible but
at least 6 times pipe diameter after
pipe fitting to stabilize flow.
Slope upward to pump.
Maintain minumum
liquid level to prevent
vortexing.
 
connection. Hose must have sufficient strength to
resist collapse under the atmospheric pressure
differential that may occur while pump is running.
 
that proper pipe fittings are used so water is delivered
to impeller eye with a smooth flow and consistent
velocity.
  
pipe size larger than opening of pipe inlet. Flow
velocity should not exceed 8 ft./sec.
         
pipe to permit servicing pump.
 
aligned and independently supported to reduce strain
on pump case.
          
protect the pump.

F00633 Page 11
Suction Connection
Installation

Not Recommended
2215 0196
Water under
pressure
Inverted Eccentric Reducer
may result in air pocket.
Do not leave
valve partially
closed.
Check Valve
in suction pipe
not needed.
Unsupported pipe causes
excessive stress on pump
and fittings.
Concentric Reducer may
cause air pockets.
Valve in upward
position may trap
air.
Do not make elbow
connection directly
to pump suction.
Miter elbow or short
radius elbow not
recommended.
        
friction losses that may cause cavitation and a
reduction in pump performance.
         
trapped air, reduced performance, and high friction
losses which may cause cavitation.
         
locate on the discharge side of pump.

Page 12 F00633
Discharge Connection
Installation
Use Concentric Reducer
to mimimize friction losses.
Isolation
Valve
Support piping
as required
Non-Slam or
spring loaded
check valve.
Isolation valve to
permit servicing of
check valve or pump.
Align piping to
minimize flange
stress.
Pressure
Gauge
Discharge pipe diameter
at least one nominal pipe
size larger than discharge
opening in pump.
2118 1195
Recommended
         
charge connection. Material selected must have
sufficient strength for operating pressures.
         
is below 8 feet per second.
  ONLY non-slamming check valves to prevent
hydraulic shock (water hammer).
         
should be full open during operation.
      
system, using as few elbows and tees as possible to
keep friction loss to a minimum.
        
check operating pressure or shut-off head.

F00633 Page 13
Discharge Connection
Installation
Do not use Gate Valve
to throttle flow.
Avoid abrupt change
in pipe size.
Avoid undersized
pipe diameter.
Do not force alignment
that can cause flange
stresses.
Do not leave
pipe unsupported.
Avoid check valves
that may cause
hydraulic shock.
2119 1195
Not Recommended
       
fittings, insufficient pipe diameter, and sharp turns in
pipe run.
        
reverse velocity before closing causing hydraulic
shock or “water hammer.”

Page 14 F00633
CHECK ROTATION:
Before pump is put into operation, rotational direction
must be checked to assure proper performance of
pump. Refer to illustration below to varify proper
rotational direction for each model covered in this
manual.
Hazardous voltage. Can shock, burn, or
cause death. Disconnect power to pump
before servicing.
Do not attempt any wiring changes without first
disconnecting power to pump.
PRIMING:
Pump priming is the displacement of air with water
in the pump and suction piping. Pump MUST BE
completely filled with water when operating.
A self-priming pump only needs to be manually
primed at the first start-up. Once primed, under normal
conditions pump will reprime automatically at each
subsequent start-up.
To prime, remove plug from top of pump case and fill
case with water. Replace plug and start pump. Unit
is equipped with a flapper type check valve which will
open at start-up and allow pump to evacuate air from
the suction line. After several minutes of operation,
pump will be fully primed and pumping water. Priming
time will vary, depending on length and diameter of
suction line.
STARTING (Electric Motor):
NOTICE: Never run pump dry. Running pump without
water will overheat pump and damage internal parts.
Always make sure pump is primed prior to start-up.
NOTICE: Refer to maintenance section if pump has
packing for adjustment prior to start-up.
Prime pump by the above method. Turn on power to
pump. Slowly open discharge valve until desired flow
rate is achieved. Place the “Hand-Off-Auto” selector
switch in the “Auto” position. The pump will start
automatically when the pilot device signals the motor
starter.
STOPPING (Electric Motor):
Pump will stop automatically when the pilot device
de-energizes the motor starter. Turn the “Hand-Off-
Auto” selector switch to “Off” position if you want to stop
the pump while it is running.
General Information
Start-up
Viewed from
this direction
As viewed As viewed
2238 0196
12
6
39
12
6
39
Engage start switch momentarily
(bump driver) to observe rotational
direction.
Clockwise Rotation
B2XRKS
Counter-Clockwise Rotation
B2ZRKL
B3TRKS
B4ZRKS
ELECTRIC MOTORS:
Single Phase: Refer to wiring information on the
motor plate to obtain proper rotation.
Three Phase: If pump runs backwards, reverse any
two leads coming of incoming power (L1, L2, L3) until
proper rotation is obtained. Reverse L1 and L2, L2
and L3, or L1 and L3.
Pump running backwards - Centrifugal pumps will
still pump liquids, however, GPM and head will be a
fraction of the published performance.
ENGINE DRIVEN:
If engine is used for pump driver, check with
engine instruction and operation manual or engine
manufacturer to determine how rotation is defined,
then use above illustration for proper connection.

F00633 Page 15
LUBRICATION:
     no lubrication. Wear
rings, packing rings, and models using a mechanical
shaft seal, are lubricated by the liquid being pumped. Do
not run dry!
  - add approximately 2 ounces of a
lithium-based NGLI No. 2 extra pressure ball bearing
grease to each bearing during quarterly inspection.
NOTE:
The following are factory approved brands of grease
        
       

    
operating manual for complete instruction.
    
operating manual for complete instruction.
PERFORMANCE CHECK:
Periodically check the output of the pump. If perform-
ance is noticeably reduced, refer to Troubleshooting
Chart.
OBSERVATIONAL MAINTENANCE:
When the pump and system operation have been
stabilized, verify that pump unit is operating properly.
Observe the following:
 All rotating machines can be expected to
produce some vibration, however, excessive vibration
can reduce the life of the unit. If the vibration seems
excessive, discontinue operation, determine cause of
the excessive vibration, and correct.
 When the unit is operating under load, listen
closely for unusual sounds that might indicate that the
unit is in distress. Determine the cause and correct.
 During operation, heat
is dissipated from the pump and the driver. After a
short period of time, the surface of the pump bracket
will be quite warm (as high as 150°F), which is normal.
If the surface temperature of the pump bracket or
driver is excessive, discontinue operation, determine
cause of the excessive temperature rise, and correct.
Bearings will run hotter for a brief run-in period after
packing which is normal. However, worn bearings
will cause excessive temperatures and need to be
replaced. The pump unit is cooled by the water flowing
through it, and will normally be at the temperature of
the water being pumped.
STUFFING BOX: After a short period of operation,
verify that the stuffing box area and gland are not
hot. If heating is detected, loosen the gland nuts
evenly until water is just running out of stuffing box
in a DROPLET form (approximately 40-60 drops per
minute). Water must not be streaming or spraying
      
nuts EVENLY as necessary for lubrication and cooling
of the packing. If packing has been tightened to the
limit of the packing gland travel, additional packing is
necessary.
PUMPS WITH PACKING: Starting new pump.
Before starting pump for the first time, loosen gland
nuts and retighten finger tight. Proceed with pump start-
up procedure. Allow packing to leak liberally for a few
moments. Then tighten gland nuts one complete turn
each until leakage is reduced to 40 to 60 drops per
minute.
REPACKING:
Refer to illustration on Page 16.
PUMPS WITH MECHANICAL SEAL:
Adjustment or maintenance is normally not required.
The seal is enclosed within the pump and is self
adjusting. Seal is cooled and lubricated by the liquid
being pumped. Consult factory for proper replacement
procedure.
SHAFT:
Bearing frame shaft assemblies should be periodically
torn down for inspection of worn parts, cleaning and
re-greasing. Most importantly, to check shaft sleeve
and bearings for pitting. Replace worn components as
necessary.
General Information
Maintenance

Page 16 F00633
Packing Ring Replacement
Maintenance
Removal
Packing
Hooks
Packing
Ring
Shaft
2239 0196
Packing
Gland
1
2 x Scale 2
       
and slide back on shaft to expose packing rings.
        
commercially available Packing Hooks as shown.
         
remaining rings, including metallic. Remove them in
the same manner.
 
 
         
over shaft sleeve and pushing them in as far as they
will go.
 
as shown.
        
evenly tighten nuts to force rings into place and seat
(do not overtighten). Loosen nuts again to hand tight.
 
        
leakage is reduced to 40 to 60 drops per minute.
Installing New Rings
1 2
Shaft
Metallic Ring
Stagger ring joints
90 degrees apart
Lantern Ring
Packing
Rings
2240 0196

ROUTINE MAINTENANCE
A well maintained pumping system will extend the life of
the unit and will require fewer repairs. This means less
down time which can be very critical when a constant
delivery of water is required.
A routine maintenance and inspection schedule should
be set up on a weekly, quarterly, and annual basis with
records kept of these actions. For weekly checks see
observational maintenance on Page 15. For quarterly
and annual maintenance, refer to check list on Page 22.
Copy page as necessary for continual usage.
RECOMMENDED SPARE PARTS
It is recommended that the following spare parts be kept
on-site as a minimum back-up to service your pump and
reduce down-time. Check your model/style against parts
breakdown drawing on Pages 18 and 19 when selecting
spares.
 
 
 
 
 
 
If having a pump non-operational has severe con-
sequences, a back-up pump should be considered.
Otherwise, a back-up impeller, volute case, bearings
and shaft, would be prudent.
PUMP PROTECTION-COLD WEATHER/
WET WEATHER INSTALLATIONS:
      
system, including pump case, to prevent freezing
damage.

from weather. Allow adequate space around pump unit
for service. When effectively sheltered, a small amount
of heat will keep temperature above freezing. Provide
adequate ventilation for unit when running. For severe
weather problems, where other shelter is not practical, a
totally enclosed fan-cooled enclosure can be considered
for electric motors.

is below dew point and the surrounding air is moist,
water will condense on the metal surfaces and can
cause corrosion damage. In severe situations, a space
heater can be considered to warm the unit.
WINTERIZING
If pump is to be out of service for an extended period of
time, such as the winter months, the following storage
procedures should be followed.
        
        
oxidation, prime and repaint if necessary. If this is not
possible, coat with grease or heavy oil.
 
this time and replace any worn gaskets.
 
and suction and discharge lines.
 
         
period to guard against corrosion.
          
as insects, rodents, dust and dirt.
 
internal components.
 
 
gap while rotating by hand.
SPRING START-UP
        
old grease.
 
         
and inspect.
F00633 Page 17
General Pump Care
Maintenance

Page 18 F00633
General Information
Pump Nomenclature
ORDERING REPLACEMENT PARTS:
Locate the Berkeley nameplate on the pump, plate
is normally on the bearing bracket. Information found
on this plate is shown below. To be sure of receiving
correct parts, provide all nameplate data when ordering.
The BM (Bill of Material) number is most important.
Write your nameplate information on the blank
nameplate below for future reference as nameplates can
become worn or lost.
The following illustrations show typical components
used in the assembly of self priming bearing frame
mounted centrifugal pumps. Refer to these drawing
when ordering any replacement parts.
Belt
Drive Coupling
Drive
2137N 1195
Mechanical
Seal
Case
Gasket
Bearing
Frame
Sheave
Impeller
Water
Slinger
Shaft / Bearing
Assembly
Pump Case
(Volute)
Clack
Weight Rubber Clack
(Check Valve)
Clack
Washer
Suction
Cover
B2XRKS/B3TRKS
SAMPLE ONLY
B2ZRKL
9.00”
G021196
B52346

F00633 Page 19
Parts Breakdown
Self Prime Bearing Frame
Pump Nomenclature
2135N 1195
Bearing
Frame Shaft
Case Gasket
Pump Case
(Volute)
Impeller
Impeller
Washer
Impeller
Screw
Suction Flange
(Check Valve)
Suction Flange
Gasket
Clamp
Washer
Rubber
Clack
Lantern Ring
Shaft
Sleeve
Packing Ring
Assembly
Packing Gland
Inner
Bearing Cap
Inboard
Bearing
Outboard
Bearing
Outer Bearing
Cap
Bearing
Spacer
Slinger
Bearing Lock
Nut
Bearing
Lock-
washer
Weight
Clack Assembly
(Check Valve)
T
r
u
a
r
c
2106N 1095
Mechanical
Seal
Outboard
Bearing
Inboard
Bearing
Bearing
Lock Nut
Oil Seal
Bearing
Lock-
washer
Slinger
Shaft
Sleeve
Clack
Weight
Rubber Clack
(Check Valve)
Clack
Washer Suction
Cover
Retaining
Ring
Inner
Bearing Cap
Bearing
Spacer
Bearing
Frame
Pump Case
(Volute)
Shaft
Outer Bearing
Cap
Impeller
Case Gasket
Impeller
Lock Nut
B4ZRKS
B2ZRKL

Page 20 F00633
Troubleshooting
Maintenance

CAUSE CORRECTIVE ACTION
I. ELECTRICAL
A. No voltage in power system Check phase-to-phase on line side of starter contactor.
Check circuit breaker or fuses.
B. No voltage on one phase Check phase voltage on line side of starter contactor. Isolate open circuit
(Three Phase Units) (circuit breaker, fuse, broken connections, etc.)
C. Low voltage at motor Running voltage across each leg of motor must be ±10% of nominal
voltage shown on nameplate.
D. Motor leads improperly grouped Refer to lead grouping diagram on motor nameplate.
for voltage
  
for malfunction.
F. Thermal overload switch open Check phase-to-phase on line side of starter contactor.
G. Installation failure Check motor or windings to ground with megohmmeter.
H. Open windings Check leg-to-leg with ohmmeter.
I. Frequency variation Check frequency of power system. Must be less than 5% variation from
motor nameplate rating.
II. MECHANICAL
A. Flow through pump completely or Locate and remove obstruction. Refer to Repair Instructions
partially obstructed for disassembly.
B. Wrong direction of rotation Reverse rotation of three phase motor by interchanging any two leads.
See manufacturer’s Instructions for reversing single phase motor.
C. Pump not primed Reprime. Inspect suction system for air leaks.
D. Internal leakage Check impeller for wear of controlled clearances (See Repair Instructions).
  
F. Stuffing box not properly adjusted Adjust gland.
III. SYSTEM
A. Pressure required by system at design Compare pump pressure and flow rate against pump characteristic curve.
flow rate exceeds pressure rating of pump Check for closed or partially closed valve in discharge piping system.
Reduce system pressure requirement. Increase pressure capability of pump.
B. Obstruction in suction piping Locate and remove obstruction.
C. Pressure rating of pump exceeds pressure Compare pump pressure and flow rate against pump characteristic curve.
requirement of system at design flow rate Inspect discharge piping system for breaks, leaks, open by-pass valves, etc.
If necessary, reduce flow rate by partially closing discharge valve.
PROBABLE CAUSE
SYMPTOM GROUP I GROUP II GROUP III
ELECTRICAL MECHANICAL SYSTEM
A B C D E F G H I A B C D E F A B C
Pump runs, but no water delivered X X X X
Not enough water delivered X X X X X X X X
Not enough pressure X X X X X X X X
                   
Abnormal noise X X X X X X X
Pump stops X X X X X X X X
Overheating X X X X X X X X X
