Pentair MNG4SD(X) User manual

pentair.com
23833A734 / MY12716 (07-15-22)
©2022 Pentair. All Rights Reserved.
SUBMERSIBLE SOLIDS HANDLING PUMP
MNG4SD(X) MNG4HD (X) MNG6MD(X)
INSTALLATION & OPERATION MANUAL

TABLE OF CONTENTS
SAFETY INSTRUCTIONS ...................................................................................................4
SPECIFICATIONS .........................................................................................................6
INSTALLATION ...........................................................................................................8
OPERATION / MAINTENANCE ..............................................................................................9
TROUBLESHOOTING ......................................................................................................11

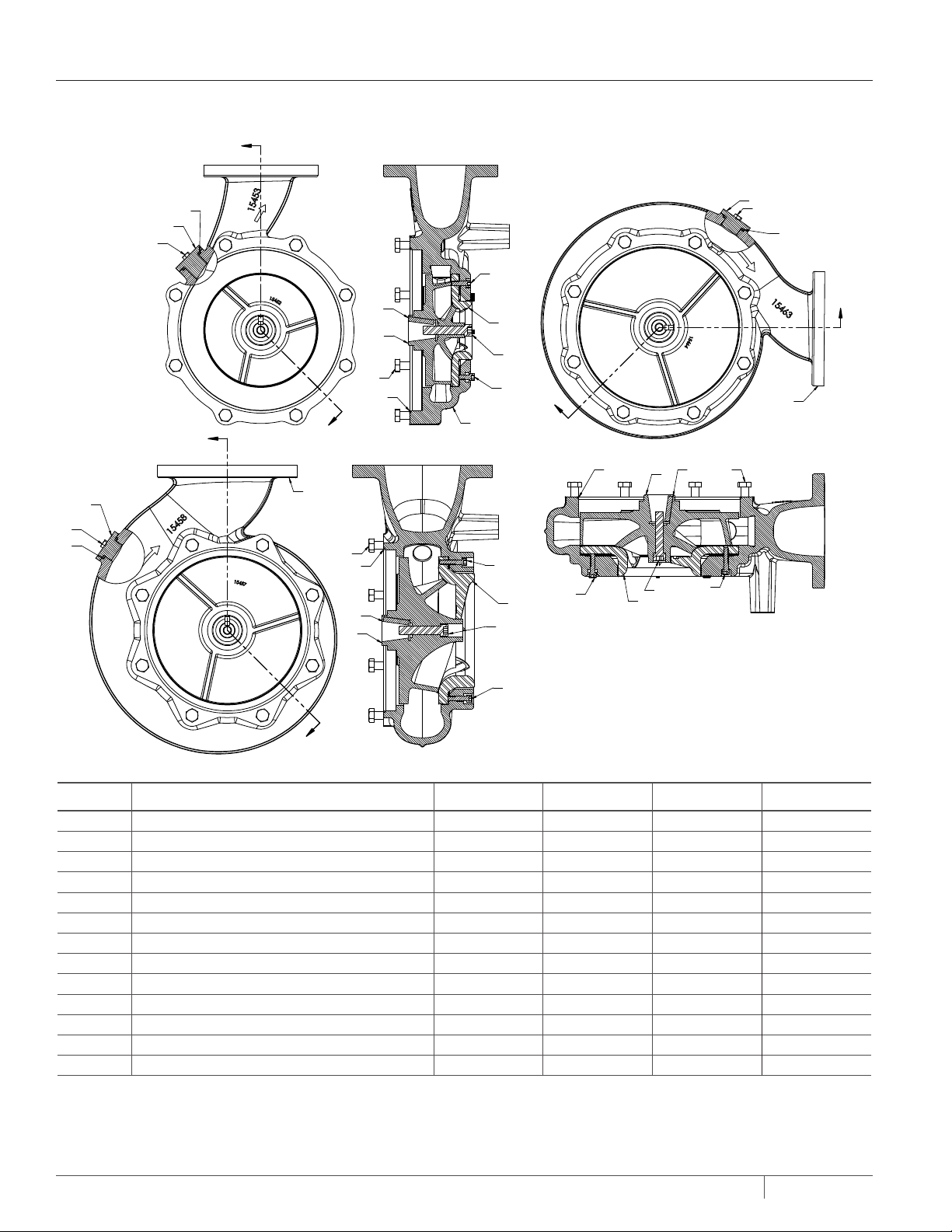

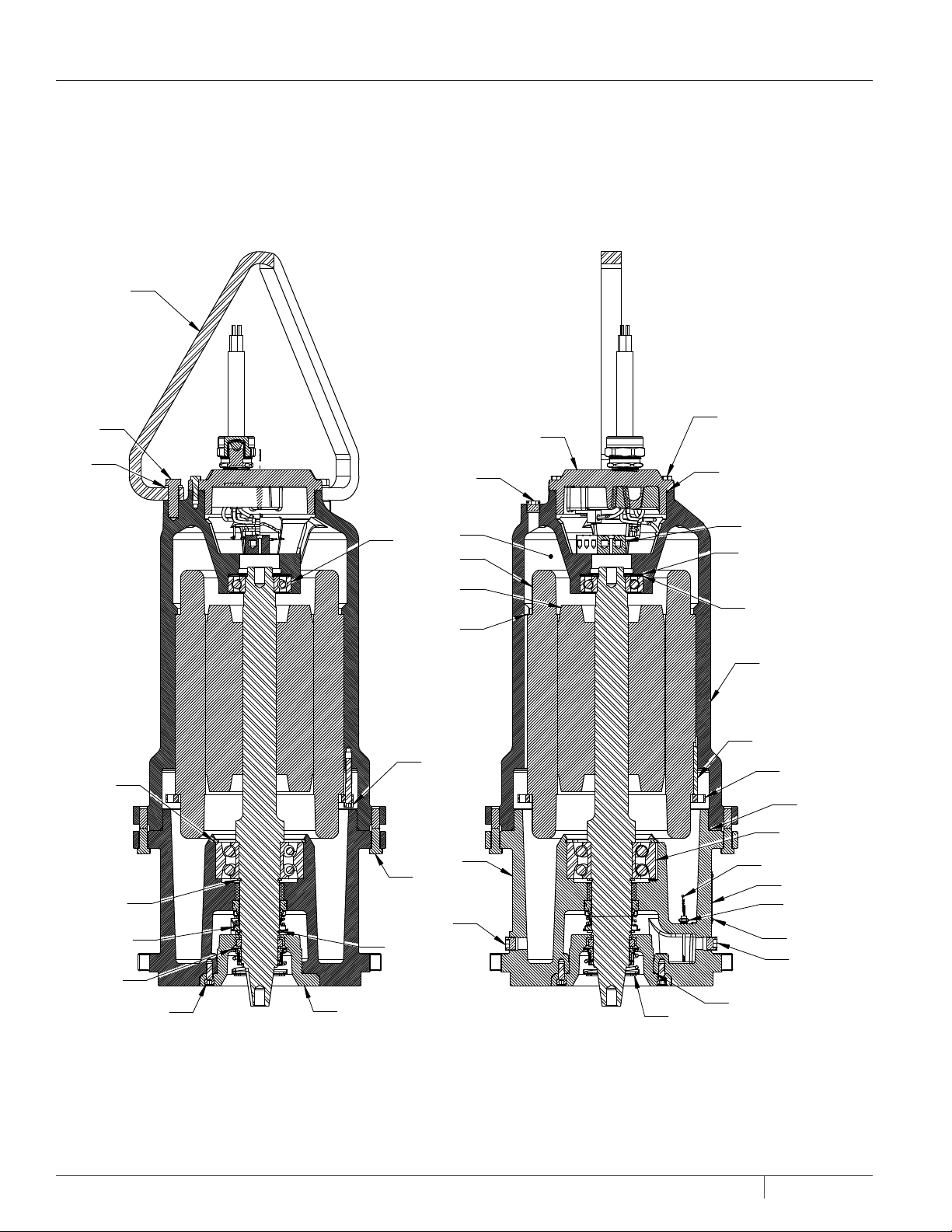

PARTS LIST .............................................................................................................12
WIRING DIAGRAMS ....................................................................................................... 17
WARRANTY .............................................................................................................19

3
MY12716 (07-15-22)
PAGE INTENTIONALLY LEFT BLANK

4MY12716 (07-15-22)
SAFETY SYMBOLS
This is the safety alert symbol. When you see this symbol on
your pump or in this manual, look for one of the following signal
words and be alert to the potential for personal injury:
warns about hazards that will cause serious
personal injury, death or major property damage if ignored.
warns about hazards that can cause serious
personal injury, death or major property damage if ignored.
warns about hazards that will or can cause minor
personal injury or property damage if ignored.
The word NOTICE indicates special instructions that are
important but not related to hazards.
CALIFORNIA PROPOSITION 65 WARNING
This product and related accessories contain
chemicals known to the State of California to cause cancer,
birth defects or other reproductive harm.
BEFORE INSTALLATION:
This manual contains important safety information regarding
the use of this product. This product should only be installed
and serviced by a qualified professional. Carefully read and
follow all safety instructions in this manual and on the unit itself
before installing or operating pump. Keep this manual for future
reference.
Follow all state and local codes regarding the installation and
use of this pump.
GENERAL SAFETY
 Do not touch a pump while in operation as
they can operate at high temperatures. To avoid burns when
servicing the pump, shut off, allow it to cool for 30 minutes
after shutdown before handling.
 Follow all applicable local and state codes and regulations.
 Keep safety labels in good condition, replacing any missing
or damaged labels.
 Submersible pumps are not approved for and should not be
used in swimming pools, recreational water installations,
decorative fountains or any installation where human
contact with the pump fluid is common. Pump is designed
for municipal and commercial wastewater applications.
 DO NOT run the pump dry. Dry running can overheat the
pump, (causing burns to anyone handling it) and will void the
warranty.
 The pump is permanently lubricated. No oiling or greasing is
required in normal operation.
 Periodically inspect pump and system components.
 Wear safety glasses at all times when working on pumps.
 Keep work area clean, uncluttered and properly lighted.
Store all unused tools and equipment.
 DO NOT use to pump flammable liquids.
SAFETY INFORMATION

5
MY12716 (07-15-22)
ELECTRICAL SAFETY
H . C , ,
 . When installing, operating, or servicing this pump,
carefully follow the safety instructions listed herein.
 ELECTROCUTION HAZARD: Must be installed
by a qualified professional. Disconnect all electrical power
before installation or servicing the pump.
 DO NOT modify the cord. When wiring to a system control,
connect ground lead to the system ground.
 DO NOT splice the electrical power cord.
 DO NOT allow the power leads on the end of the electrical
cords to be submerged.
 DO NOT handle or service the pump while it is connected to
the power supply.
A water test is recommended before installation
of any water treatment equipment. The water quality can
significantly influence the life of your system. You should
test for corrosive elements, acidity, total solids and other
relevant contaminants, including chlorine and treat your water
appropriately to ensure satisfactory performance and prevent
premature failure.
OTHER DANGERS
 RISK OF FIRE OR EXPLOSION. Can
cause severe personal injury, property damage or death.
Do not smoke or use open flames in or around this system.
Do not pump flammable liquids.
 CUTTING RISK. Risk of serious cutting or
amputation exists. Use caution as liner plate is extremely
sharp. Always keep fingers and hands away from cutting
profiles. Disconnect all power sources prior to servicing
pump. Pump may start without warning.
 RISK OF ASPHYXIATION. Installer(s) and/
or service personnel must use proper Personal Protective
Equipment and follow OSHA 29 CFR 1910.146 or OSHA 29
CFR 1926. Pump may be installed in a location classified as
a confined space.
 BIOHAZARD RISK. Once wastewater source
has been connected to system, Biohazard Risk exists.
Installer(s) and/or service personnel must use proper
personal Protective Equipment and follow handling
procedures per OSHA 29 CFR 1910.1030 when handling
equipment after wastewater source has been connected
to system.
 NOTICE FM rated models are only to be used in 60hz
applications.
SAFETY INFORMATION

6MY12716 (07-15-22)
This manual contains important information for the safe use of
this product. Read completely and do not throw away.
Reasonable care and safe methods should be practiced. Check
local codes and requirements before installation.
UNPACKING PUMP
LIFTING HAZARD. Unassisted lifting of pump can
cause injury. Mechanical assistance required.
DO NOT lift pump by power cord.
When unpacking unit, check for damage. Claims for damage must
be made at the receiving end through the delivery carrier. Damage
cannot be processed from the factory.
RISK OF FIRE OR EXPLOSION. Do not smoke or
use sparkable electrical devices or flames in a septic (gaseous)
or possible septic sump. Do not pump flammable liquids with
this pump.
PUMPS IN STORAGE OR NOT OPERATING
Pumps with silicon/carbide seals must have impellers manually
rotated (6 revolutions) after setting non-operational for 3 months
or longer and prior to electrical start-up.
Pumps with tungsten carbide seals must have impellers
manually rotated (6 revolutions) after setting non-operational
for 3 weeks or longer and prior to electrical start-up.
SEAL FAILURE PROBES
HAZARDOUS DUTY RATED PUMPS:
All submersible pumps have two factory installed moisture
detectors (seal failure probes). They should have a resistance
of around 330K ohms for the series circuit in the seal chamber.
Under normal operating conditions, the circuit remains around
330K ohms. If the circuit shows open, the circuit is not complete
indicating a broken wire, corroded wire, or loose connection.
If the lower seal leaks and moisture enters this chamber, the
moisture will settle to the bottom of the chamber and will
complete (significantly less than 330K ohms) the circuit between
the moisture detectors.
NON-HAZARDOUS DUTY RATED PUMPS:
For all non-hazardous duty rated pumps the resistance(ohm)
readings between the seal probe wires should be open in
normal operating conditions. A lower resistance indicates water
intrusion.
This circuit must be connected to a sensing unit and signaling
device. This is supplied in a manufacturer built control panel.
Failure to install such a device negates all warranties.
HEAT SENSORS
All motors in this family have heat sensors on or embedded in the
motor winding to detect excessive heat. This prevents damage to
the motor. If sensor trips due to excessive winding temperature,
the starter in the panel interrupts power to the pump. The
sensors are set to trip at 130°C.
Failure to install such circuitry would negate FM approvals and all
warranties.
POWER CORDS
DO NOT modify the cord. When wiring to a system
control, connect the pump ground lead to the system ground.
The power cord and heat sensor seal failure cord are potted into
the cord cap. The cords must not be spliced.
Each cable has a green lead. This is the ground wire and must be
grounded properly per NEC and/or local codes. Cords should be
inspected for abnormal wear and replaced accordingly.
GENERAL INFORMATION

7
MY12716 (07-15-22)
GENERAL INFORMATION
OVERLOAD HEATERS
If the electrical panel is not used, starters with 3 leg overload
relay must be supplied on 3 phase pumps. Each leg is to have an
identical heater sized in accordance with the nameplate amps on
the motor housing. The amp draw on these submersible motors is
slightly higher than a corresponding horsepower surface motor,
so heaters must be sized by the nameplate rating.
INSTALLING SUMP LEVEL CONTROLS FLOAT CONTROLS
In all systems, the lower or turn-off control is to be set to
maintain a minimum level in the sump. This level shall be no
more than 3-1/4" from the top of the motor housing down to the
surface of the sewage.
The second or turn-on control is set above the lower turn-off
control. The exact distance between the two floats must be a
compromise between a frequent pumping cycle (15 starts per hour
max.) to control septicity, solids and a slower cycle for energy
economy. This distance should be determined by the engineer or
consulting engineer, depending on the conditions of
the application.
INSTALLING PUMP IN SUMP
HAZARDOUS VOLTAGE. Can shock, burn, or kill.
When installing, operating, or servicing this pump, carefully
follow the safety instructions listed herein.
RISK OF FIRE OR EXPLOSION. Do not smoke or
use open flames in or around this system. Only the FM listed
products are to be used in a hazardous location applications per
NFPA 70 National Electric Code. Do not pump flammable liquids.
Do not use non-hazardous pumps in explosive environments.
Before installing the pump in the sump, lay it on its side and rotate
impeller. Impeller may be slightly stuck due to factory test water.
The impeller should turn freely. DO NOT connect the power until
after this test.
Clean all debris from sump and connect pump to piping. A check
valve must be installed on each pump and a gate or plug valve
in each pump discharge is highly recommended. This valve
should be installed on the discharge side of the check valve so
if it becomes necessary to service the check valve, the line
pressure can be cut off. Single pump systems are sometimes
installed without a check valve where it is desirable to self-drain
the discharge line to prevent freezing. This can be done only with
short discharge lines; otherwise water will return to the sump and
cause short cycling of the pump.

8MY12716 (07-15-22)
MAKING ELECTRICAL CONNECTIONS
EECTROCUTION HAZARD: Must be
installed by a qualified professional. Disconnect all electrical
power before installation or servicing the pump.
All electrical wiring must be in accordance with local codes,
and only competent electricians should make the installations.
Complete wiring diagrams are adhered to the inside cover of the
panel. It is VERY IMPORTANT to check all wires for grounds with
an ohmmeter or Megger meter after the connections are made
as one grounded wire can cause considerable trouble.
NOTICE FM rated models are only to be used in
60hz applications.
NOTICE If equipment is not properly wired and protected as
recommended, the warranty is void.
The 230 volt 3 phase pump has a dual marked
nameplate. For ordinary location pumps, voltage may be rewired
by qualified personnel. For hazardous location pumps, voltage
may be rewired by the manufacturer or a Class I, Div I equipment
qualified electrician. Once the voltage is changed, the factory
cord tag indicating 230 volt 3 phase must be removed.
For record keeping purposes, we suggest the pump be marked
externally with the new voltage and qualified personnel that
performed the change. Pumps shipped from the factory as 460
volt 3 phase cannot be rewired to any other voltage.
TO RE-WIRE THE PUMP FROM 230V TO 460V 3 PHASE
Only a 230V pump from the factory is considered dual voltage, a
cord label clearly states the factory wound voltage.
1. Remove all six (#7) cap screws then raise the cord cap
assembly enough to slip a prying instrument on opposite
sides between the cord cap casting and the motor housing.
Take care to not damage the o-ring or the machined
surfaces of the castings. Doing so could void FM agency
certifications.
2. While prying evenly on both sides; separate the cord cap
casting from the motor housing, the assembly is airtight
and will have a vacuum effect when disassembling.
3. Once separated, the cord cap can be inverted and rotated
to the outside of the pump assembly, and a bolt can be
re-used to secure the upside down cord cap to the motor
housing for ease of rewiring.
Refer to the wiring diagram within this manual for wiring
details. Once all electrical connections are finished and secure
(a crimped electrical connector is best to prevent issues due
to vibration if required), the cord cap should be re-attached
reversing the steps above. Ensure the o-ring is in place and
perform a hi-pot test for safety once everything is complete.
HEAT SENSORS AND SEAL FAILURE CONNECTIONS
Be sure heat sensor wires are connected in series with the starter
coil. Connections are provided on the terminal strip.
DUAL VOLTAGE
3 PHASE MOTOR WIRING
230V 3ø 460V 3ø
GREEN GREEN
R
(L3)
W
(L2)
BL
(L1)
R
(L3)
W
(L2)
BL
(L1)
12 3
78 9
45 6
123
789
45 6
INSTALLATION
SYSTEM TYPE NUMBER OF
CONTROL WIRES
NUMBER OF
POWER LINES
NUMBER OF
GROUND WIRES #8
HEAT SENSOR & SEAL FAILURE
NUMBER OF SENSOR
WIRES
NUMBER OF GROUND
WIRES
Simplex 4 3 1 3 1
Simplex with Alarm 6 3 1 3 1
Duplex 6 6 2 6 2
Duplex with Alarm 8 6 2 6 2
NUMBER OF CONDUCTORS REQUIRED BETWEEN CONTROL PANEL AND NEMA 4 JUNCTION BOX
Power lines and control wires can be carried in conduit or can be underground buried cable
HEAT SENSORS
IN MOTOR WINDINGS
BLACK WHITE
MOTOR HEAT SENSORS
ELECTRODE ELECTRODE
RED ORANGE
330KΩ
HAZARDOUS RATED ONLY
SEAL FAILURE
ELECTRODE ELECTRODE
RED ORANGE
NON-HAZARDOUS RATED ONLY
SEAL FAILURE
HEAT SENSORS AND SEAL FAILURE CONNECTIONS
FOR ANY VOLTAGE MOTOR

9
MY12716 (07-15-22)
RISK OF FIRE OR EXPLOSION. Do not smoke or
use open flames in or around this system. Only the FM listed
products are to be used in a hazardous location applications per
NFPA 70 National Electric Code. Do not pump flammable liquids.
Do not use non-hazardous pumps in explosive environments.
CUTTING RISK. Risk of serious cutting or
amputation exists. Always keep fingers and hands away from
cutting profiles. Disconnect all power sources prior to servicing
pump. Pump may start without warning. Use caution as liner
plate is extremely sharp.
PUMP OPERATIONS STARTING SYSTEM
1. Double check all wire connections.
2. Turn pumps to Off position on H-O-A switches.
3. Turn on breakers.
4. Connect amprobe to pump power cord and turn pump on. The
pump will show high amp draw momentarily, then as pump
approaches normal running speed, amps will drop to normal
nameplate amps.
5. When using three phase pumps (208/230/460/575), turn
the H-O-A switch to Hand position on one pump and notice
operation. If pump is noisy and vibrates, rotation is wrong.
To change rotation, interchange any two line leads to pump.
Do not interchange main incoming lines. Check rotation of
all pumps in this same manner.
6. Now set both H-O-A switches to Auto position and allow
water to rise in sump until one pump starts. Allow pump to
operate until the level drops to turn-off point.
7. Allow sump level to rise to start other pump(s). Notice run
lights in panel. Pumps should alternate on each successive
cycle of operation.
8. Turn both H-O-A switches to Off position and allow sump to
fill to the override control level(s).
9. Turn switches to Auto position, and pumps should start and
operate together until level drops to turn-off point.
10. Repeat this operation and cycle several times before
leaving the job.
11. Check voltage when pumps are operating and check
the amp draw of each pump. Check amps on each pump
conductor as sometimes a high leg will exist. For excessive
voltage on one leg, the electric utility company should be
consulted.
PUMP MAINTENANCE
As the motors are oil filled, no lubrication or other maintenance is
required.
If the heat sensor and seal failure are hooked up properly, no
attention is necessary as long as the seal failure indicator light
does not come on. To ensure continuity of the seal sensor leads
on hazardous duty rated pumps only, a test light is provided on
intrinsically safe panels as standard equipment.
Before handling these pumps and controls,always
disconnect the power first. Do not smoke, use flames or devices
that can produce electrical discharge or sparks in a septic
(gaseous) or possible septic sump.
FIELD SERVICE ON ORDINARY LOCATION PUMPS
Ordinary location submersible motors that are out of warranty
can be serviced in the field by any reliable motor service shop.
Any pump that is in warranty must be returned to the factory for
service or repaired at an authorized service center. Charges will
not be allowed if (in warranty) pump is not taken to an authorized
service center. When field service is performed on a pump,
these instructions should be carefully followed.
FIELD SERVICE ON HAZARDOUS LOCATION PUMPS
Hazardous location pumps must be returned to the factory for
electrical and motor service. Any repair not at an authorized
service center will void the Factory Mutual (FM) listing. This
will ensure the integrity of the hazardous location rating of the
pump and comply with our warranty requirements.
The cords, upper and lower seal, volute and impeller
components may be repaired or replaced by an authorized
service facility without compromising the hazardous location
rating to the pump.
For any repairs in which the oil is drained, the pump must be
re-filled with an approved oil. The motor chamber cannot be
disassembled, during repairs as this will result in loss of agency
rating.
Any time a seal is disturbed, it must be replaced.
Check the pump for proper rotation before returning to service.
OPERATIONS & MAINTENANCE

10 MY12716 (07-15-22)

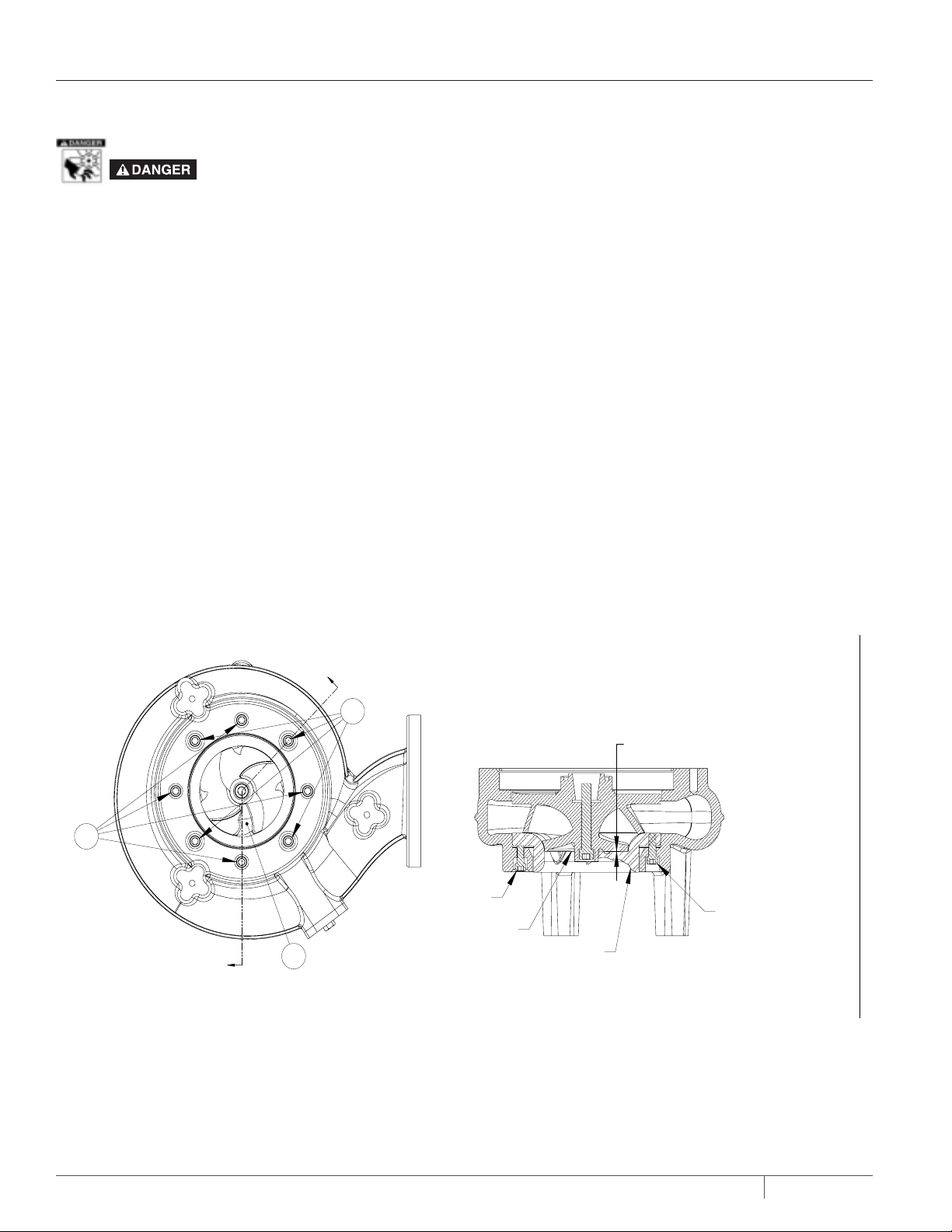

ADJUST CUTTER CLEARANCE ON CHOPPING MECHANISM
CUTTING RISK. Risk of serious cutting
or amputation exists. Use caution as liner plate is extremely
sharp. Always keep fingers and hands away from cutting
profiles. Disconnect all power sources prior to servicing pump.
Pump may start without warning.
1. First install the liner plate with chopper bar (Item A) into the
volute. It may be helpful to install 3/8-16 studs into the liner
plate to line up the holes with the corresponding volute
holes. You may have to tap the plate all the way down with a
rubber hammer.
2. Remove the studs and replace with 3/8-16 bolts (Item B) in
the large counterbored holes from beneath the volute, only
thread in enough to hold screws in place.
3. Install motor with impeller mounted, tighten motor housing
bolts to volute.
4. Tighten four 3/8-16 (Item C) socket head cap screws in the
chamfered counterbored holes until liner plate is sitting flat
against impeller, ensure (Item B) is still loose which allows
the liner plate to rest against the impeller.
5. Next back off the same 3/8-16 (Item C) screws away from
liner plate 1/8 - 1/4 turn for the recommended .008-.015
clearance.
6. Tighten the opposite four 3/8-16 (Item B) screws evenly
to 25-30 Ft-lbs. Ensure all screws have proper torque
to prevent backing out. A thread locking compound is
recommended to prevent vibrational loosening over time.
7. Measure the clearance with a feeler gauge it should be
between .008 to .015.
8. Spin impeller with a hex wrench in the impeller hub or use
a wooden pry bar to spin impeller to make sure there is no
rub.
9. If you hear or feel a rub, readjust the clearance by loosening
screws (Item C) evenly and retightening (Item B) screws.
OPERATIONS & MAINTENANCE
A
A
A
B
C
.008-.015 RECOMMENDED GAP
LINER
3/8-16 JACK BOLTS
3/8-16 LINER BOLTS
IMPELLER

All drawings and specications as well as processes,
materials, compounds and other similar criteria are to be
strictly adhered to. No modications allowed without
engineering approval.
CONFIDENTIAL contains trade secrets and
other proprietary information of Pentair
Water. Duplication, disclosure or use are
forbidden without the written consent of
Pentair Water.
ASHLAND, OH. USA

11
MY12716 (07-15-22)
PUMP TROUBLESHOOTING
Below is a list of common problems and the probable causes.
PUMP WILL NOT START
1. No power to the motor. Check for blown fuse or open circuit
breaker.
2. Selector switch may be in the Off position.
3. Control circuit transformer fuse may be blown.
4. Overload heater on starter may be tripped. Push to reset.
PUMP WILL NOT START AND OVERLOAD HEATERS TRIP
1. Turn off power and check motor leads with Megger or
ohmmeter for possible ground.
2. Check resistance of motor windings. All 3 phases should
exhibit the same reading.
3. If no grounds exist and the motor windings check OK,
remove pump from sump and check for clogged or blocked
impeller.
PUMP OPERATES WITH SELECTOR SWITCH IN HAND POSITION
BUT WILL NOT OPERATE IN AUTO POSITION
1. This indicates trouble in the float level control or the
alternator relay.
2. Check control panel for trouble.
PUMP RUNS BUT WILL NOT SHUT OFF
1. Pump may be air locked. Turn pump off and let set for
several minutes, then restart.
2. Lower float control may be hung-up in the closed position.
Check in sump to be sure control is free.
3. Selector switch may be in the Hand position.
PUMP DOES NOT DELIVER PROPER CAPACITY
1. Discharge gate valve may be partially closed or partially
clogged.
2. Check valve may be partially clogged. Raise level up and
down to clear.
3. Pump may be running in wrong direction. Low speed pumps
can operate in reverse direction without much noise or
vibration.
4. Discharge head may be too high. Check total head with
gauge when pump is operating. Total head is discharge
gauge pressure converted to feet plus vertical height from
water level in sump to center line of pressure gauge in
discharge line. Gauge should be installed on pump side of
all valves. Multiply gauge pressure in pounds by 2.31 to get
head in feet.
5. If pump has been in service for some time and capacity falls
off, remove pump and check for wear or clogged impeller.
MOTOR STOPS AND THEN RESTARTS AFTER SHORT PERIOD
BUT OVERLOAD HEATERS IN STARTER DO NOT TRIP
1. This indicates heat sensors in the motor are tripping due
to excessive heat. Impeller may be partially clogged giving
a sustained overload but not high enough to trip overload
heater switch.
2. Motor may be operating out of liquid due to a failed level
control.
3. Pump may be operating on a short cycle due to sump being
too small or from water returning to sump due to a leaking
check valve.
TROUBLESHOOTING
IF YOU HAVE ANY QUESTIONS REGARDING THE INSTALLATION, OPERATION, MAINTENANCE OR
TROUBLESHOOTING OF THE PUMP, PLEASE CALL PENTAIR AT 855-274-8947.

12 MY12716 (07-15-22)
MNG4SD(X), MNG4HD(X), MNG6MD(X)
PARTS LIST
A2
2
F10
E7
F28 F15
F2
A1
F7
A5
F14
F28 F15
F3 F4 F26
F15 F28
F9
F5
F6
F1
A7
F8
F11
E8 or E9
F16
C4
A3
E6
4 POLE
F13
F24
F12
F26 B13
F22
F23
E5
F19
F20
E3
E1
E2
A4 F27

13
MY12716 (07-15-22)
ITEM PART DESCRIPTION PART # 4SD / 4HD / 6MD
2 CORD CAP 10-4 35' 152880315 *
2 CORD CAP 8-4 35' 152880325 *
2 CORD CAP 6-4 35' 152880335 *
A1 STATOR SEE MOTOR PARTS GROUP 1
A2 ROTOR/SHAFT ASSEMBLY SEE MOTOR PARTS GROUP 1
A5 SPACER SEE MOTOR PARTS GROUP 1
A3 OIL-MINERAL 153620017
A4 BOLT-STATOR 06106A027 4
A6 ELECTRICAL CONNECTOR 460V ONLY 12672A001 1
A7 STATOR KEY 05818A012 1
B13 SCREW SOCKET HEAD SEAL PLATE TO BRG HSG 06106A028 4
C4 NAMEPLATE 134257601 1
E1 SEAL-SHAFT 2-1/2 TYPE2100 UPPER ** 27994A000 1
E2 SEAL-SHAFT 2.25 TYPE2 LOWER ** 080832251 1
E3 HOUSING-SEAL PLATE 250 FRAME 107550482 1
E5 RING - RETAINING EXTERNAL BRG ** 12588A036 1
E6 IMPELLER ADAPTER 107550491 1
F1 HOUSING-MOTOR 28011D000 1
F2 HOUSING-BEARING 27808D525 1
F3 TERMINAL BLOCK 27882A009 1
F4 SCREW-CAP SKT HD. TERMINAL BLK 06106A069 2
F5 SCREEN 110650043 1
F6 WASHER-SPRING (THRUST) 19331A009 1
F7 SCREW-CAP CORD CAP TO MTR HSG 19101A017 6
F8 RING-STATOR 026030003 1
F9 O-RING CORD CAP ** 001500191 1
F10 O-RING SEAL PLATE ** 05876A112 1
F11 O-RING MOTOR HOUSING ** 05876A178 1
F12 SCREW-CAP MTR HSG TO BRG HSG 19103A048 8
F13 BEARING-BALL UPPER ** 08565A026 1
F14 BEARING-BALL ANG. CONTACT DBL ROW ** 071670171 1
F15 PLUG-PIPE 1/2" SKT HD. 009240101 3
F16 SCREW-DRIVE #6 045800011 4
E7 PROBE-SEAL FAILURE ** 109010021 2
E8 SEAL-SENSOR ASS'Y WITH RESISTOR** 109000045 1
E9 SEAL SENSOR ASSY NO RESISTOR** 109005115 2
F19 RING-RETAINING EXTERNAL BRG ** 12558A036 1
F20 RING-RETAINING INTERNAL BRG ** 009740041 1
F22 LIFTING BAIL 25371B008 1
F23 LIFTING BAIL BOLTS 19105A038 2
F24 LIFTING BAIL LOCK WASHER 05454A027 2
F26 LOCTITE®242 - BLUE (ITEMS ARE NOT FOR SALE) NOT INCLUDED 1
F27 LOCTITE 277 - RED (ITEMS ARE NOT FOR SALE) NOT INCLUDED 1
F28 SEALANT - PIPE (ITEMS ARE NOT FOR SALE) NOT INCLUDED 1
REPAIR KIT 528692707
PARTS LIST
* Cord size is dependent upon model. All parts listed are saleable unless otherwise noted.
** Included with Repair Kit.

14 MY12716 (07-15-22)
ITEM DESCRIPTION PART # 4SD 4HD 6MD
B1 O-RING VOL COVER ** 05876A108 1 1 1
B2 SCREW-HEX HEAD VOL COVER 002380301 2 2 2
B3 SCREW-SOCKET HEAD CAP LINER BOLT 005560081  4 4
B4 SCREW-SOCKET HEAD LINER JACK BOLT 005560211  4 4
B5 KEY 3/8 X 3/8 SHAFT TO IMP ** 05818A010 1 1 1
B7 SCREW-SOCKET HEAD LINER BOLT 005560201 4  
B8 SCREW-HEX HEAD VOL TO BRG HSG 005700601 8 8 8
B9 O-RING VOL TO SEAL PLATE ** 05876A178 1 1 1
B11 SCREW-SOCKET HEAD IMP BOLT 029190141 1 1 1
B12 SCREW-SOCKET HEAD LINER JACK BOLT 005560191 4  
B14 VOLUTE CHARTED 154530002 154630002 154580002
B15 LINER CHOPPER CHARTED 154540002 154620002 154590002
B16 VOLUTE COVER CHARTED 154720002 154720012 154720012
PARTS LIST
HYDRAULIC ENDS PARTS LIST
1
B3 F26
B4
B9
B5
B8
B15
B11 F26
B8
B3 F26
1
B9
B4 B15
B5
B11 F26
B1
B16
B2
B14
B
B
B16
B2
B1
A
A
4SD
B2
B1
B16
B14
H
H
B14
B11 F26
B5
1
B8
B9
B12
B15
B7 F26
4HD
6MD
TYPICAL: GAP BETWEEN LINER(B15) AND
IMPELLER(1) TO BE .008-.015" FROM FACTORY.
** Included with Repair Kit.

15
MY12716 (07-15-22)
ITEM 2-POLE 3450 RPM 25HP 25HP 30/40HP 30/40HP
230/460/3/60 575/3/60 460/3/60 575/3/60
A1 STATOR 27906D003 27906D603 27907D003 27907D603
A2 ROTOR/SHAFT ASSEMBLY 27906D130 27906D130 27907D130 27907D130
A3 OIL-MINERAL 153620017 (4.8) 153620017 (4.8) 153620017 (4.25) 153620017 (4.25)
A4 BOLT-STATOR 06106A027 (4) 06106A027 (4) 06106A027 (4) 06106A027 (4)
A5 SPACER 076650041 076650041 076650011 076650011
A7 STATOR KEY 05818A012 05818A012 05818A012 05818A012
ITEM 4-POLE 1750 RPM 25HP 25HP 30HP 30HP 40HP 40HP
208-230/460/3/60 575/3/60 230/460/3/60 575/3/60 460/3/60 575/3/60
A1 STATOR 27902D003 27902D603 27903D003 27903D603 27904D003 27904D603
A2 ROTOR/SHAFT ASSEMBLY 27902D130 27902D130 27903D130 27903D130 27904D130 27904D130
A3 OIL-MINERAL 153620017 (5.25) 153620017 (5.25) 153620017 (4.7) 153620017 (4.7) 153620017 (4) 153620017 (4)
A4 BOLT-STATOR 06106A027 (4) 06106A027 (4) 06106A027 (4) 06106A027 (4) 06106A071 (4) 06106A071 (4)
A5 SPACER 076650041 076650041 076650011 076650011  
A7 STATOR KEY 05818A012 05818A012 05818A012 05818A012 "05818A005 "05818A005
IMPELLER PARTS LIST - MNG4SD(X) 3450 RPM
PARTS LIST
MOTOR PARTS LIST
CATALOG # PART # HP VOLTAGE/PH CORD TRIM IMPELLER #
MNG4SD025223 28254E001 25 230-460/3 4-4 7.38 154521112
MNG4SD025243 28254E002 25 460/3 8-4 7.38 154521112
MNG4SD025253 28254E003 25 575/3 8-4 7.38 154521112
MNG4SDX025223 28254E601 25 230-460/3 4-4 7.38 154521112
MNG4SDX025243 28254E602 25 460/3 8-4 7.38 154521112
MNG4SDX025253 28254E603 25 575/3 8-4 7.38 154521112
MNG4SD030243 28254E011 30 460/3 8-4 7.88 154521072
MNG4SD030253 28254E012 30 575/3 8-4 7.88 154521072
MNG4SDX030243 28254E611 30 460/3 8-4 7.88 154521072
MNG4SDX030253 28254E612 30 575/3 8-4 7.88 154521072
MNG4SD040243 28254E021 40 460/3 6-4 8.63 154521012
MNG4SD040253 28254E022 40 575/3 8-4 8.63 154521012
MNG4SDX040243 28254E621 40 460/3 6-4 8.63 154521012
MNG4SDX040253 28254E622 40 575/3 8-4 8.63 154521012

16 MY12716 (07-15-22)
PARTS LIST
IMPELLER PARTS LIST - MNG4HD(X) 1750 RPM
CATALOG # PART # HP VOLTAGE/PH CORD TRIM IMPELLER #
MNG6MD025403 28255E001 25 208/3 4-4 9.63 154571152
MNG6MD025423 28255E002 25 230-460/3 6-4 9.63 154571152
MNG6MD025443 28255E003 25 460/3 8-4 9.63 154571152
MNG6MD025453 28255E004 25 575/3 8-4 9.63 154571152
MNG6MDX025403 28255E601 25 208/3 4-4 9.63 154571152
MNG6MDX025423 28255E602 25 230-460/3 6-4 9.63 154571152
MNG6MDX025443 28255E603 25 460/3 8-4 9.63 154571152
MNG6MDX025453 28255E604 25 575/3 8-4 9.63 154571152
MNG6MD030423 28255E011 30 230-460/3 4-4 10.00 154571122
MNG6MD030443 28255E012 30 460/3 8-4 10.00 154571122
MNG6MD030453 28255E013 30 575/3 8-4 10.00 154571122
MNG6MDX030423 28255E611 30 230-460/3 4-4 10.00 154571122
MNG6MDX030443 28255E612 30 460/3 8-4 10.00 154571122
MNG6MDX030453 28255E613 30 575/3 8-4 10.00 154571122
MNG6MD040443 28255E021 40 460/3 6-4 11.25 154571022
MNG6MD040453 28255E022 40 575/3 8-4 11.25 154571022
MNG6MDX040443 28255E621 40 460/3 6-4 11.25 154571022
MNG6MDX040453 28255E622 40 575/3 8-4 11.25 154571022
CATALOG # PART # HP VOLTAGE/PH CORD TRIM IMPELLER #
MNG4HD025403 28256E001 25 208/3 4-4 10.75 154641142
MNG4HD025423 28256E002 25 230-460/3 6-4 10.75 154641142
MNG4HD025443 28256E003 25 460/3 8-4 10.75 154641142
MNG4HD025453 28256E004 25 575/3 8-4 10.75 154641142
MNG4HDX025403 28256E601 25 208/3 4-4 10.75 154641142
MNG4HDX025423 28256E602 25 230-460/3 6-4 10.75 154641142
MNG4HDX025443 28256E603 25 460/3 8-4 10.75 154641142
MNG4HDX025453 28256E604 25 575/3 8-4 10.75 154641142
MNG4HD030423 28256E011 30 230-460/3 4-4 11.5 154641082
MNG4HD030443 28256E012 30 460/3 8-4 11.5 154641082
MNG4HD030453 28256E013 30 575/3 8-4 11.5 154641082
MNG4HDX030423 28256E611 30 230-460/3 4-4 11.5 154641082
MNG4HDX030443 28256E612 30 460/3 8-4 11.5 154641082
MNG4HDX030453 28256E613 30 575/3 8-4 11.5 154641082
MNG4HD040443 28256E021 40 460/3 6-4 12.50 154641002
MNG4HD040453 28256E022 40 575/3 8-4 12.50 154641002
MNG4HDX040443 28256E621 40 460/3 6-4 12.50 154641002
MNG4HDX040453 28256E622 40 575/3 8-4 12.50 154641002
IMPELLER PARTS LIST - HPS6MD(X) 1750 RPM

17
MY12716 (07-15-22)
WIRING DIAGRAMS

18 MY12716 (07-15-22)
WIRING DIAGRAMS

19
MY12716 (07-15-22)
WARRANTY
STANDARD LIMITED WARRANTY
Pentair Myers
®
warrants its products against defects in material and workmanship for a period of 12 months from the
date of shipment from Pentair Myers or 18 months from the manufacturing date, whichever occurs first – provided
that such products are used in compliance with the requirements of the Pentair Myers catalog and technical manuals
for use in pumping raw sewage, municipal wastewater or similar, abrasive-free, noncorrosive liquids.
During the warranty period and subject to the conditions set forth, Pentair Myers, at its discretion, will repair or
replace to the original user, the parts that prove defective in materials and workmanship. Pentair Myers reserves the
right to change or improve its products or any portions thereof without being obligated to provide such a change or
improvement for prior sold and/or shipped units.
Start-up reports and electrical schematics may be required to support warranty claims. Submit at the time of start-
up through the Pentair Myers website: http://forms.pentairliterature.com/startupform/startupform.asp?type=m.
Warranty is effective only if Pentair Myers authorized control panels are used. All seal fail and heat sensing devices
must be hooked up, functional and monitored or this warranty will be void. Pentair Myers will cover only the lower
seal and labor thereof for all dual seal pumps. Under no circumstance will Pentair Myers be responsible for the cost
of field labor, travel expenses, rented equipment, removal/reinstallation costs or freight expenses to and from the
factory or an authorized Pentair Myers service facility.
This limited warranty will not apply: (a) to defects or malfunctions resulting from failure to properly install, operate or
maintain the unit in accordance with the printed instructions provided; (b) to failures resulting from abuse, accident
or negligence; (c) to normal maintenance services and parts used in connection with such service; (d) to units that
are not installed in accordance with applicable local codes, ordinances and good trade practices; (e) if the unit is
moved from its original installation location; (f) if unit is used for purposes other than for what it is designed and
manufactured; (g) to any unit that has been repaired or altered by anyone other than Pentair Myers or an authorized
Pentair Myers service provider; (h) to any unit that has been repaired using non factory specified/OEM parts.
Warranty Exclusions: PENTAIR MYERS MAKES NO EXPRESS OR IMPLIED WARRANTIES THAT EXTEND BEYOND
THE DESCRIPTION ON THE FACE HEREOF. PENTAIR MYERS SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE.
Liability Limitation: IN NO EVENT SHALL PENTAIR MYERS BE LIABLE OR RESPONSIBLE FOR CONSEQUENTIAL,
INCIDENTAL OR SPECIAL DAMAGES RESULTING FROM OR RELATED IN ANY MANNER TO ANY PENTAIR MYERS
PRODUCT OR PARTS THEREOF. PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY RESULT FROM IMPROPER
INSTALLATION. PENTAIR MYERS DISCLAIMS ALL LIABILITY, INCLUDING LIABILITY UNDER THIS WARRANTY, FOR
IMPROPER INSTALLATION. PENTAIR MYERS RECOMMENDS INSTALLATION BY PROFESSIONALS.
Some states do not permit some or all of the above warranty limitations or the exclusion or limitation of incidental or
consequential damages and therefore such limitations may not apply to you. No warranties or representations at any
time made by any representatives of Pentair Myers shall vary or expand the provision hereof.

All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners. Because we are
continuously improving our products and services, Pentair reserves the right to change specications without prior notice. Pentair is an equal opportunity employer.
Loctite® is a registered trademark of Henkel AG & Company KGaA.
©2022 Pentair. All Rights Reserved. MY12716 (07-15-22)
1101 Myers Parkway
Ashland, OH 4805
Ph: 855.274.8947
Fx: 800.426.9446
490 Pinebush Road, Unit 4
Cambridge, Ontario, Canada N1t 0a5
Ph: 800.363.7867
Fx: 888.606.5484
pentair.com
