Pentalift ULTRAHOOK UHR40 User manual

PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
PENTALIFT EQUIPMENT CORPORATION
OWNERS MANUAL
THIS MANUAL IS AN IMPORTANT DOCUMENT
IT SHALL BE KEPT WITH THE MACHINE OR
LOCATED WHERE READILY AVAILABLE TO
OPERATORS AND MAINTENANCE PERSONNEL FOR
REFERENCE PURPOSES. DO NOT INSTALL, OPERATE
OR SERVICE THIS PRODUCT UNLESS YOU HAVE READ
AND FULLY UNDERSTAND THE ENTIRE CONTENTS OF
THIS MANUAL. FAILURE TO DO SO MAY RESULT IN
PROPERTY DAMAGE, BODILY INJURY OR DEATH.
KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE
REFERENCE.
Individual Serial Number(s) must be fi lled out by the user for future reference.
SERIAL NUMBER : _______________________________
ULTRAHOOK UHR40
VEHICLE RESTRAINT
NOTE:
A very high level of fi eld issues with this type of equipment can be directly attributed to improper or incomplete
installation. The installation instructions and information provided for this equipment is thorough. A step by step
sequence for installation is provided. All steps must be followed and completed to provide a complete installation.
Incomplete or improper installations can lead to equipment malfunction and / or damage, create safety issues and
void warranties. Please follow all installation and set ups steps as indicated in the installation instructions and owner’s
manual. If you are unclear or uncertain regarding any of the steps contact your Pentalift representative for clarifi cation.
A copy of the completed steps listing with the sign off and photos of the installation as indicated at the conclusion of the
installation instructions will be required prior to any Pentalift factory trouble shooting assistance.

PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
Pentalift Equipment Corporation
21 Nicholas Beaver Rd
Puslinch, ON N0B 2J0
Phone: [phone]
Fax: [phone]
Parts Phone: [phone] Extension 625
Ask for Parts Department
Pentalift Equipment Corporation provides an owners manual when equipment is
shipped. Additional manuals are available at $25.00 each.
IMPORTANT: The owners manuals that are provided on Pentalift Equipment
Corporations website are generic in nature. They are provided for general
information only. For all purposes, only the owners manual that is specifi c to the
equipment should be referenced and relied on. In order to receive the specifi c
owners manual for specifi c Pentalift equipment, please contact your Pentalift
representative and supply the specifi c serial number(s) for the equipment the
manual is required for. Do not rely on the information in the generic owners
manuals provided through the website as it may not be appropriate for your
specifi c Pentalift equipment.

PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
THIS PAGE INTENTIONALLY LEFT BLANK

PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
i
PRODUCT REGISTRATION
PRODUCT REGISTRATION CARD
To validate warranty and to advise of product updates please complete
the following information and return to
Pentalift Equipment Corporation
To validate warranty on-line go to: www.pentallift.com
END USER INFORMATION
Please return to:
Pentalift Equipment Corporation
P.O. Box 1510,
Buff alo, NY 14240-1510
or
Pentalift Equipment Corporation
21 Nicholas Beaver Rd
Puslinch, Ontario
N0B 2J0
Attention: Service Department
Or Fax to [phone]

PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
ii
BEFORE DOING ANY ELECTRICAL WORK, BE CERTAIN THAT THE POWER IS
DISCONNECTED WITH A FUSED DISCONNECT, PROPERLY TAGGED AND LOCKED
OUT. FUSED DISCONNECT AND LOCKOUT DEVICE (SUPPLIED AND INSTALLED
BY OTHERS) MUST MEET WITH ALL APPLICABLE CODES AND REGULATIONS.
ALL ELECTRICAL WORK MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN IN
ACCORDANCE WITH ALL APPLICABLE CODES AND REGULATIONS.
BEFORE DOING ANY INSTALLATION, MAINTENANCE, INSPECTION OR TROUBLE
SHOOTING, BARRICADE ALL AREAS FROM TRAFFIC AROUND THE WORK AREA
INSIDE (AND OUTSIDE IF APPLICABLE) FOR SAFETY AND POST APPROPRIATE
WARNING SIGNS.
ARC FLASH AND SHOCK HAZARD PPE (PERSONAL PROTECTION EQUIPMENT)
REQUIRED. DE-ENERGIZE EQUIPMENT BEFORE WORKING ON OR INSIDE. DO
NOT OPEN COVER WITHOUT APPROPRIATE PPE. REFER TO NFPA 70E FOR PPE
REQUIREMENTS. THIS PANEL MAY CONTAIN MORE THAN ONE POWER SOURCE.
HAZARDOUS VOLTAGE WILL CAUSE SEVERE INJURY OR DEATH.
SAFETY INFORMATION AND WARNINGS
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death
or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION, used with the safety alert symbol, indicates a potentially hazardous situation which,
if not avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
READ THESE SAFETY PRACTICES BEFORE INSTALLING, OPERATING OR SERVICING
THE ULTRAHOOK VEHICLE RESTRAINT. FAILURE TO FOLLOW THESE SAFETY PRAC-
TICES MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY OR DEATH.
IT IS THE RESPONSIBILITY OF OTHERS TO ENSURE THE PROPER MOUNTING OF ANY
WALL MOUNTED EQUIPMENT SUCH AS REMOTE POWER UNITS, CONTROL PANELS
AND LIGHT PACKAGES AND TO ENSURE THAT THE MOUNTING SURFACE IS CAPABLE
OF FULLY SUPPORTING THE LOADS GENERATED BY THE EQUIPMENT.
THE OPERATION OF THIS EQUIPMENT IS SUBJECT TO CERTAIN HAZARDS THAT CAN BE PROTECTED
AGAINST ONLY BY THE EXERCISE OF CARE AND COMMON SENSE AND NOT BY MECHANICAL MEANS. IT IS,
THEREFORE, ESSENTIAL TO HAVE COMPETENT, QUALIFIED OPERATORS TRAINED IN THE SAFE OPERATION
AND CARE OF THIS TYPE OF EQUIPMENT. ALL PERSONNEL MUST COMPLETELY UNDERSTAND THIS SAFETY
INFORMATION BEFORE WORKING ON OR NEAR THIS EQUIPMENT.
STAY CLEAR OF THE EQUIPMENT’S OPERATING PATH AT ALL TIMES.
THE VEHICLE RESTRAINT IS AN IMPORTANT SAFETY DEVICE. NEVER DISCONNECT
POWER TO THE RESTRAINT SYSTEM WHILE THE DOCK IS IN USE. IN THE EVENT OF
A POWER FAILURE, BARRICADE THE WORK AREA TO PREVENT USE OF THE DOCK.
1. Do not load/unload any truck without confi rming that the vehicle restraint has securely engaged the truck’s rear
impact guard and the appropriate signal lights are illuminated as indicated by the operating instructions in the
Owners Manual and on the control panel. If the vehicle restraint fails to engage the truck’s rear impact guard for
any reason, be certain to restrain the truck with appropriate alternate means and to follow the override procedures
listed in this manual before proceeding with any loading/unloading.
2. NEVER attempt to load/unload the truck when the INSIDE RED light is illuminated.

PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
3. Do not operate, use, maintain or install this equipment if you are impaired in any manner.
4. When not in use, the equipment must always be in the stored position.
5. Regular inspection and maintenance must be performed to keep the equipment in proper operating condition in
accordance with the detailed instructions in this manual. (See MAINTENANCE AND LUBRICATION on page 22)
6. Never stand between the dock and a truck.
7. Ensure that the equipment is not used by anyone if you believe that any part of it might be in disrepair (e.g. loose
wires, leaking hoses, bent structural members, broken welds, etc.). See Warranty Section on page 35.
8. If you have any questions, contact your immediate supervisor or your authorized Pentalift representative for
assistance.
iii

PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
iv
OWNER RESPONSIBILITY
The Owner's Responsibilities include the following:
6.3.1 The owner should recognize inherent danger of the interface between dock and transport vehicle. The owner shall,
therefore, train and instruct loading dock operating personnel in the proper use of restraining devices in accordance with
information provided in Section 6.1.2.
6.3.2 Nameplates, cautions, instructions, posted warnings and communication lights shall not be obscured from the view of
loading dock operating personnel or maintenance personnel for whom such warnings are intended (also see 6.1.3 and 6.3.5).
6.3.3 Manufacturer’s recommended periodic maintenance and inspection procedures in eff ect at date of shipment shall be
followed, and written records of the performance of these procedures should be kept.
6.3.4 Restraining devices that are structurally damaged shall be removed from service, inspected by the manufacturer’s
authorized representative, and repaired as needed before being placed back in service.
6.3.5 The manufacturer shall supply replacement nameplates, communication lights, caution or instructional labels, and
operating and maintenance manuals upon request of the owner. The owner shall see that all nameplates, communication lights,
and caution and instruction markings or labels, are in place and legible and that the appropriate operating and maintenance
manuals are provided to users (see also 6.1.3 and 6.3.2).
6.3.6 Modifi cations or alterations of restraining devices shall be made only with written permission of the original manufacturer.
These changes shall be in conformance with all applicable provisions of this standard and shall be at least as safe as the
equipment was before modifi cation. These changes shall also satisfy all safety recommendations of the original equipment
manufacturer for the particular application of the restraint.
6.3.7 When industrial vehicles are driven on or off a transport vehicle during loading or unloading operation, the parking brakes
on the transport vehicle shall be applied and wheel chocks or another vehicle restraint that provides equal or better protection
shall be engaged. Also, whenever possible air-ride suspension systems should have the air exhausted prior to performing said
loading or unloading operations.
6.3.8 When a vehicle restraint is unable to properly engage a transport vehicle, the user shall activate the applicable
communication if so included, or provide an alternate method to address a “not restrained vehicle condition” to alert and or protect
the loading dock operating personnel.
6.3.9 When selecting a restraining device, it is important to consider not only present requirements but also future plans or
adverse environments.
6.3.10 The restraint should never be used in a manner not intended by its design. It must also be compatible with the loading
dock equipment and other conditions relating to the loading dock area.
NOTE: The MH30 Committee recognizes the devices intended to secure a transport vehicle to a loading dock by mechanical
means. The NHTSA Standard 49CFR ch.V 571.223 specifi es the strength of the rear impact guard and 49 CFR Ch.V 571.224
specifi es the size and locations of the rear impact guard. It is, therefore, recommended that users of such positive restraint
devices review:
• The means of attachment to the transport vehicle
• The strength of the overall connection
• The proper coordination of the actuation of devices with any signaling system used
• The need to use wheel chocks
Unless specifi cally agreed to in writing by Pentalift Equipment Corporation at the time the
equipment is ordered and prior to the equipment’s manufacture, this equipment is sold as
a complete package. It is not to be altered, changed or added to in any way or form, in its
confi guration and function, without the written permission of Pentalift Equipment Corporation.
If requested by a customer, Pentalift Equipment Corporation is not supplying all or some of the power unit and / or con-
trol components for the equipment’s application. The power unit and controls constitute important safety and functional
aspects of the equipment. It is the customer’s responsibility to address the operational and safety issues associated
with providing the required controls and power units to satisfy the operational and safety requirements of the equipment.
The customer’s decision to supply all or some of these components indicates that the customer is taking full responsibil-
ity for any and all possible operational, safety and liability issues associated to the product and its confi guration. The
customer also agrees to absolve Pentalift Equipment Corporation from any and all possible operation, safety and liability
issues.

1
PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
TABLE OF CONTENTS
PRODUCT REGISTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I
SAFETY INFORMATION AND WARNINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . II
OWNER RESPONSIBILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IV
TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
PRECAUTIONARY LABELING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PRECAUTIONARY LABELING (Cont.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
INSTALLATION INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ELECTRICAL INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
ELECTRICAL REFERENCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
ADJUSTMENTS AND TESTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
INSTALLATION STEPS CONTINUED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
OPERATION AND PERFORMANCE CHECK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
OPERATING INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
DOCK IS READY FOR TRUCK ARRIVAL OR DEPARTURE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
TRANSPORT VEHICLE IN POSITION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
WHAT TO DO IF THE VEHICLE ATTEMPTS TO DEPART WHEN RESTRAINED . . . . . . . . . . . . . . . . . . . . . . 21
“OVERRIDE MODE” WHEN THE REAR IMPACT GUARD CANNOT BE ENGAGED BY THE RESTRAINT . . 21
MAINTENANCE AND LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
TROUBLE SHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
ERROR CONDITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
MAINTENANCE MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
MECHANICAL REPLACEMENT PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
CONTROL PANEL REPLACEMENT PARTS LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
TRAFFIC LIGHT REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
REPLACEMENT SIGNS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
LIST OF ILLUSTRATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
PENTALIFT EQUIPMENT CORPORATION WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

2
PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
PRECAUTIONARY LABELING
Figure 1: Precautionary Labels

3
PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
PRECAUTIONARY LABELING (Cont.)
Be sure that all labeling is in place and intact when the unit is received. If any of the precautionary labels or decals
are missing or illegible, contact your Pentalift representative for immediate replacement.
NOTE: In some instances, product confi guration and / or product options may dictate that the product labels will
not be placed as indicated on the drawing (Figure 2). Diff erent label locations will be selected at the factory, when
required, to avoid an impaired view of the labels. Note the label locations as supplied on the product, when it is
received to accommodate future label replacement requirements.
NOTE: It is the owner’s responsibility to ensure that all precautionary labeling remains legible and in its
original position throughout the life of the product. It is also the owner’s responsibility to ensure that all
labels are and will continue to be readily visible to the operators and people working with or around the
equipment. If visibility of any of label is compromised for any reason then; either 1) Rectify the situation to
allow the label to be readily visible 2) Order replacement label(s) from Pentalift for installation in a location
that does facilitate complete visibility. If any of the precautionary labels are missing or illegible, contact your
Pentalift representative for immediate replacement. Inspection shall be done during regular maintenance and
lubrication (See MAINTENANCE AND LUBRICATION on page 22).

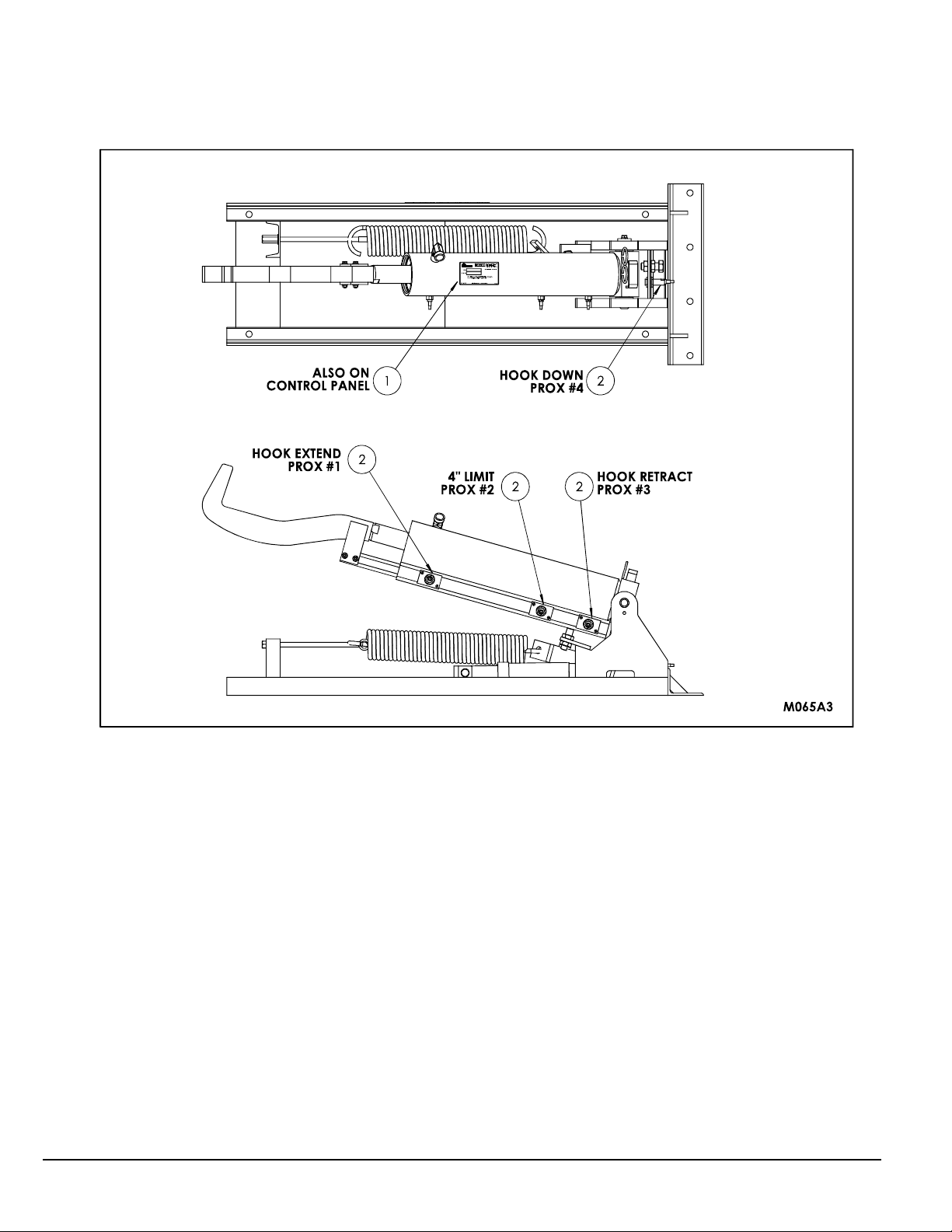

Figure 2: Label Locations

4
PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
To re-order labels, use the following part numbers:
Item Part No. Qty/Unit Description
1 250-2368 2 Specifi cation Plate
2 250-1908 4 Proximity Switch Indication Label
NOTE: State Model # and Serial # when ordering replacement parts.

5
PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
BEFORE DOING ANY INSTALLATION, MAINTENANCE, INSPECTION OR TROUBLE
SHOOTING, BARRICADE ALL AREAS FROM TRAFFIC AROUND THE WORK AREA
INSIDE (AND OUTSIDE IF APPLICABLE) FOR SAFETY AND POST APPROPRIATE
WARNING SIGNS.
ARC FLASH AND SHOCK HAZARD PPE (PERSONAL PROTECTION EQUIPMENT)
REQUIRED. DE-ENERGIZE EQUIPMENT BEFORE WORKING ON OR INSIDE. DO
NOT OPEN COVER WITHOUT APPROPRIATE PPE. REFER TO NFPA 70E FOR PPE
REQUIREMENTS. THIS PANEL MAY CONTAIN MORE THAN ONE POWER SOURCE.
HAZARDOUS VOLTAGE WILL CAUSE SEVERE INJURY OR DEATH.
BEFORE DOING ANY ELECTRICAL WORK, BE CERTAIN THAT THE POWER IS
DISCONNECTED WITH A FUSED DISCONNECT, PROPERLY TAGGED AND LOCKED
OUT. FUSED DISCONNECT AND LOCKOUT DEVICE (SUPPLIED AND INSTALLED
BY OTHERS) MUST MEET WITH ALL APPLICABLE CODES AND REGULATIONS.
ALL ELECTRICAL WORK MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN IN
ACCORDANCE WITH ALL APPLICABLE CODES AND REGULATIONS.
BE SURE ALL HYDRAULIC FITTINGS ARE RATED FOR HYDRAULIC SYSTEMS THAT
MAY PEAK OUT AT 4000PSI. HARDWARE STORE ITEMS CAN BURST AT 150PSI. ONLY
BUY REPLACEMENT PARTS FROM PENTALIFT.
INSTALLATION INSTRUCTIONS
DO NOT INSTALL, OPERATE OR SERVICE THIS PRODUCT UNLESS YOU HAVE READ
AND FULLY UNDERSTAND THE ENTIRE CONTENTS OF THIS MANUAL. FAILURE TO
DO SO MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY OR DEATH.
IMPORTANT
PREPARATION PRIOR TO INSTALLATION
Follow all installation instructions in the precise consecutive order that they are written. If the equipment
cannot be installed in the order as outlined below, contact Pentalift Equipment Corporation for written
instructions on how to proceed. Do not proceed with an alternate installation method unless written
confi rmation has been provided by Pentalift Equipment Corporation.To accommodate a complete
installation there is a blank space provided beside each numbered step in the installation instructions.
Please check off the steps sequentially as they are completed. This will assist in confi rming a complete
installation.
MAKE SURE LIFTING AND SLINGING DEVICES ARE OF SUFFICIENT CAPACITY,
USED IN THE CORRECT MANNER AND ARE IN GOOD WORKING ORDER. ALL LIFT-
ING, POSITIONING AND INSTALLATION, AS WELL AS THE BREAK-IN AND PERFOR-
MANCE CHECK MUST BE DONE BY QUALIFIED PERSONNEL TRAINED AND EXPE-
RIENCED IN NECESSARY SAFETY PROCEDURES.
NOTE:
A very high level of fi eld issues with this type of equipment can be directly attributed to improper or incomplete
installation. The installation instructions and information provided for this equipment is thorough. A step by step
sequence for installation is provided. All steps must be followed and completed to provide a complete installation.
Incomplete or improper installations can lead to equipment malfunction and / or damage, create safety issues and
void warranties. Please follow all installation and set ups steps as indicated in the installation instructions and owner’s
manual. If you are unclear or uncertain regarding any of the steps contact your Pentalift representative for clarifi cation.
A copy of the completed steps listing with the sign off and photos of the installation as indicated at the conclusion of the
installation instructions will be required prior to any Pentalift factory trouble shooting assistance.
IT IS THE RESPONSIBILITY OF OTHERS TO ENSURE THE PROPER MOUNTING OF ANY
WALL MOUNTED EQUIPMENT SUCH AS REMOTE POWER UNITS, CONTROL PANELS
AND LIGHT PACKAGES AND TO ENSURE THAT THE MOUNTING SURFACE IS CAPABLE
OF FULLY SUPPORTING THE LOADS GENERATED BY THE EQUIPMENT.

6
PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
THE DOCK LEVELER, WHEN INSTALLED OVER THE ULTRAHOOK, MUST HAVE THE
LIFT CYLINDER THRUST BEAM SUPPORTED. A CYLINDER THRUST BEAM SUPPORT
IS PROVIDED ON DOCK LEVELERS TO BE INSTALLED WITH A ULTRAHOOK. PRIOR TO
INSTALLATION CONFIRM THE DOCK LEVELER IS EQUIPPED WITH THIS OPTION.
Never weld on the Ultrahook Vehicle Restraint or dock leveler after sensing switches
are wired into the control box and the power to the box is on. Electrical current
from the welder can “feedback” through the circuit and damage the motor and other
components.
NOTICE

7
PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
INSTALLATION INSTRUCTIONS
1. _ Ensure pit construction has suffi cient strength to meet the draw pull forces which will be applied. (See Figure
6: Concrete Loading Diagram for Lagged in Models on page 10.) Further, ensure the dock leveler pit, as well
as the restraint pit, meet the pit diagram dimensions as provided by the manufacturer, complete with appropriate
conduit(s).
2. _ Ensure you have all necessary components as shipped with the unit.
• Ultrahook
• Brush Weather Seal Assemblies
-brush weather seal carrier x 36” long - 2 pieces
-face plates 12 Ga x 15-5/8” x 36” long - 2 pieces
• Sign Package – 4 pieces
• Electrical Control Panel (common control panel may be shipped with the dock leveler)
• Power Unit
• Outside signal lights (may be shipped with the dock leveler)
3. _ Clean pit of all debris.
4. _ Mark the center line of the pit fl oor from front to back (see Figure 4: Position the Ultrahook on page 8).
5. _ Mark the center line of the Ultrahook frame at the front and back (see Figure 4: Position the Ultrahook on
page 8).
6. _Hoist the Ultrahook by slinging through the lifting point at the cylinder pivot and the hook(See Figure 3: Slinging
Unit on page 8.)
7. _ Position the Ultrahook into the pit, keeping the front of the frame fl ush with the outside surface of the
foundation wall. Align centerlines (front and rear) of the Ultrahook with centerlines of the pit (see Figure 4: Position
the Ultrahook on page 8).
8. _ Lag the frame to the pit fl oor using 3/4” lag bolts with a minimum shear value of 10,000 lb and minimum
tension value of 10,000 lb. (see Figure 6: Concrete Loading Diagram for Lagged in Models on page 10)
9. _ Install the dock leveler following the manufacturer’s installation instructions. Raise the dock leveler and
secure it in place using the manufacturers maintenance procedure (see the dock leveler Owners Manual). Then
disconnect all power supply.
10. _ Mount power unit and the signal junction box (by others) in the pit (See Figure 8: Power Unit and Junction
Box). Ensure that these components are mounted in a location which ensures they will not make contact with the
dock leveler but are close enough to the vehicle restraint to allow the pre-wired proximity and pressure switches to
reach the junction box. It is recommended to locate the components toward the rear of the dock leveler pit. This
accommodates the fact that the dock leveler deck assembly will move below fl oor level during operation. Note:
The control panel and the power unit are to be located in an area that is clean, dry, and free from exposure to
liquids and excessive debris and external weather.
11. _ Mount the outside light approximately 90” from the center of the light to fi nished driveway level (See Figure 7:
Mount Outside Light and Signs on page 11).
12. _ Mount the mirror image caution sign above the outside light; the normal vision caution sign below the outside
light and the “Warning Stand Clear...” sign centered vertically directly to the right of the Ultrahook (See Figure 7:
Mount Outside Light and Signs on page 11).
13. _ Install the control panel in a location that ensures an unobstructed view at all times. The installation location
must ensure the complete legibility of the operating instructions during the operation of all loading dock equipment,
including the fork lifts.
14. _ Connect all required electrical connections as per appropriate wiring diagram located inside the electrical control
panel (See ELECTRICAL INSTALLATION INSTRUCTIONS on page 12).

8
PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT

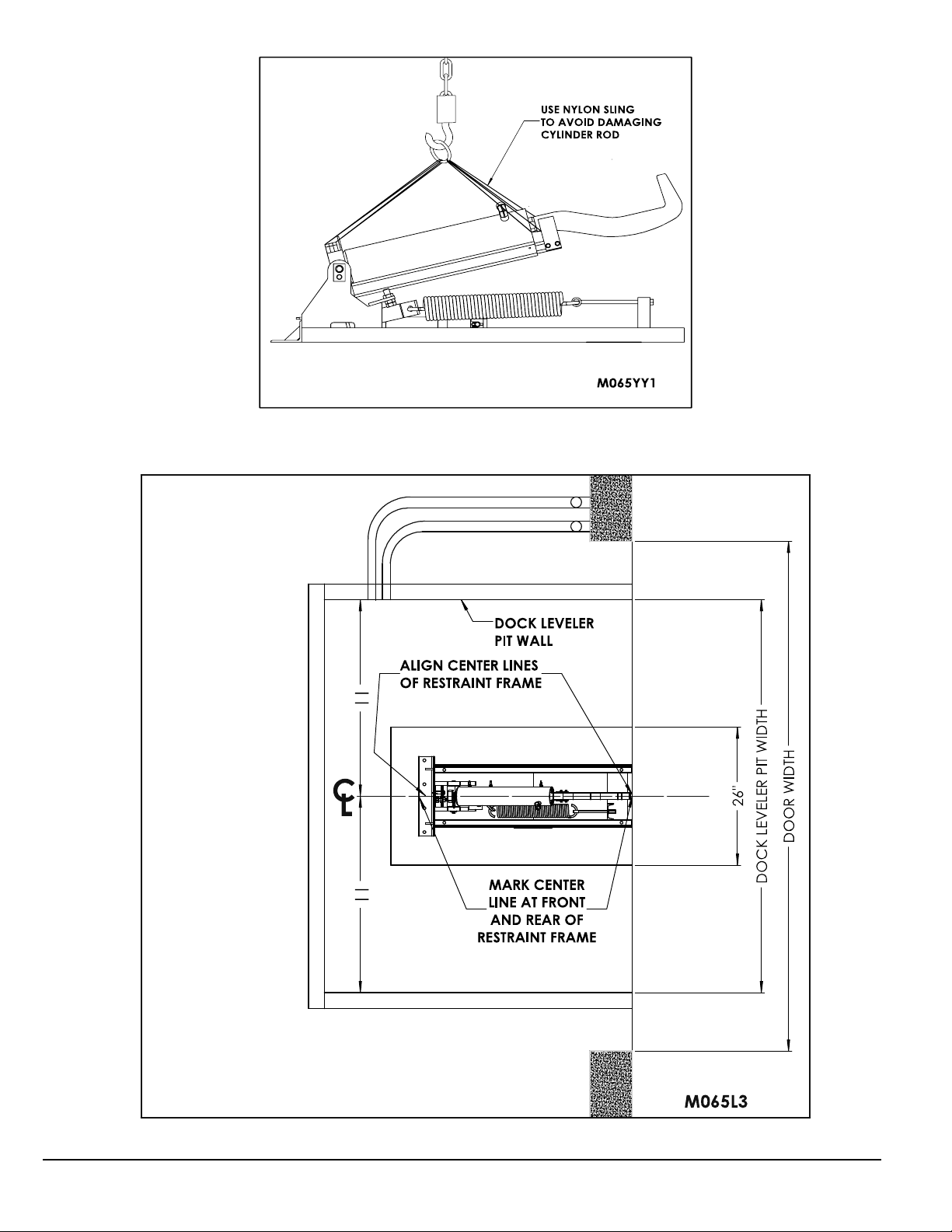

Figure 4: Position the Ultrahook
Figure 3: Slinging Unit

9
PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
Figure 5: Mounting the Brush Weather Seal

10
PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
Figure 6: Concrete Loading Diagram for Lagged in Models

11
PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
Figure 7: Mount Outside Light and Signs
Figure 8: Power Unit and Junction Box

12
PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
ARC FLASH AND SHOCK HAZARD PPE (PERSONAL PROTECTION EQUIPMENT)
REQUIRED. DE-ENERGIZE EQUIPMENT BEFORE WORKING ON OR INSIDE. DO
NOT OPEN COVER WITHOUT APPROPRIATE PPE. REFER TO NFPA 70E FOR PPE
REQUIREMENTS. THIS PANEL MAY CONTAIN MORE THAN ONE POWER SOURCE.
HAZARDOUS VOLTAGE WILL CAUSE SEVERE INJURY OR DEATH.
BEFORE DOING ANY ELECTRICAL WORK, BE CERTAIN THAT THE POWER IS
DISCONNECTED WITH A FUSED DISCONNECT, PROPERLY TAGGED AND LOCKED
OUT. FUSED DISCONNECT AND LOCKOUT DEVICE (SUPPLIED AND INSTALLED
BY OTHERS) MUST MEET WITH ALL APPLICABLE CODES AND REGULATIONS.
ALL ELECTRICAL WORK MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN IN
ACCORDANCE WITH ALL APPLICABLE CODES AND REGULATIONS.
ELECTRICAL INSTALLATION INSTRUCTIONS
Pentalift Hydraulic Truck Restraint packages are supplied in four separate components requiring electrical connection,
consisting of the power unit, control panel, outside signal lights, and the restraint device. Each item is internally wired at
the factory. They must all be connected to each other.
The following instructions apply to standard units:
1. _ Carefully examine the restraint components and review the instructions and wiring diagram to determine the tools
and supplies that are required for proper installation.
2. _ For new construction, conduits must be placed as per the appropriate Pentalift pit drawing. Confi rm the conduit
locations with the appropriate Pentalift pit drawing.
3. _ Run the required wires from the control panel to the signal junction box (by others), restraint power unit junction
box, restraint power unit motor, and outside signal lights. Attach these wires to the appropriate terminal strips in the
control panel and in the various junction boxes.
4. _ Ensure that the motor starter thermal overload is set to match the full load current as shown on the motor name
plate. Consult all applicable electrical codes.
5. _ Connect the AC power supply line to the control panel.
NOTE: Power unit requires full voltage at motor. Wire size should be suffi ciently sized to prevent line voltage drop
when the motor is under load.
6. _ With power to the control panel, turn the AUTO RETURN and SHELTER switches (if equipped) to OFF and
turn the ULTRAHOOK switch to DISENGAGE. Check the indicator lights located on the front face of the PLC. The
following indicators must be lit:
- PWR(Red LED) - 0C “Hook Fully Retracted”(Green LED)
- RUN(Green LED) - 0F “Maintenance Mode”(Green LED)
- 08 “Hook Fully Extended”(Green LED) - 47 “Outside Green Light”(Green LED)
- 09 “4” from Dock Face”(Green LED) - 41 “Inside Red Light)(Green LED)
7. _ If these indicators are not lit as per step (6), check all connections before proceeding to ADJUSTMENTS AND
TESTING on page 14.
8. _ Once the electrical connections are completed and the dock leveler is installed, cycle the restraint several times
to ensure there is suffi cient clearance, the unit is positioned properly and that all proximity switches, the tilt spring and
hard stops are adjusted correctly.

13
PENTALIFT EQUIPMENT CORPORATION
M065R27 August 30, 2021 1:39 PM
ULTRAHOOK UHR40 VEHICLE RESTRAINT
ELECTRICAL REFERENCE CHART
ELECTRICAL REFERENCE - 1.5 HP
Length of branch
circuit which will have
a 2% voltage drop
at full load current
(copper wire) ft/m.
The values given
are intended to be a
rough wiring guide
only.
Be sure to check all
local electrical codes
before wiring.
AWG 115/1/60 230/1/60 230/3/60 380/3/50 460/3/60 575/3/60
14 60.3 ft/
18.4m
168.7 ft/
51.4m
406.7 ft/
124m
704 ft/
214m
1035.1 ft/
315.5m
12 38.1 ft/
11.6m
152.5 ft/
46.5m
268.2 ft/
81.8m
646.7 ft/
197.1m
10 60.6 ft/
18.5m
242.6 ft/
73.9m
426.8 ft/
130.1m
Note: Calculations are based on 30
degrees C Ambient
896.4 ft/
29.4m
385 ft/
117.5m
678.2 ft/
206.7m
6153.2 ft/
46.7m
612.9 ft/
186.8m
Approximate Motor Current
(full load) TENV Unit 19 A 9.5 A 5.4 A 3.7 A 2.7 A 2.2 A
9. _ Trim the height of the brush weather seal assemblies so that they overlap the 2” step at the bottom front of the
restraint by 1” and the dock leveler front angle by approximately 1”. Ensure that the two halves of the brush weather
seal assemblies meet at the center of the pit opening. Fasten brush weather seal assemblies to the dock face using
1/4 concrete screws of the type that are removable and re-useable (see Figure 5: Mounting the Brush Weather Seal
on page 9). Note: If the trimming operation removes some bolt holes and fasteners, then the cover plate and
brush weather seal carrier may need to be re-drilled. This will depend on how much material is removed from the
brush weather seal assemblies to suit restraint vertical opening and dock height.
10. _ Confi rm that all steps of the installation instructions have been completed. Fill out the following information.
Installer Name (Print) Installer Signature
Date Installation Completed
