Universal Temperature Converter KCD2-UT2-(Ex)1

Universal Temperature Converter KCD2-UT2-(Ex)1
Contents
813968 2013-10
EN - 1
EN
1 Symbols used in this document . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.1 Application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.2 Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4 Explosion protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5 Mounting and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5.1 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5.2 Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5.3 Controls and indicators of the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Configuration tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.1 Installation and connection with the device . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.2 Communication driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.3 Measured value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.4 Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6.5 Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.6 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7 Editing device data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.1 Menu Information and Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.2 Menu Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7.3 Menu Outpu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.4 Behaviour of the current output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

813968 2013-10
2 - EN
Universal Temperature Converter KCD2-UT2-(Ex)1
Symbols used in this document
EN
1 Symbols used in this document
2Overview
2.1 Application
The devices of the K-System from Pepperl+Fuchs are used to transmit signals between field
devices and the process control system or control.
Devices with the "Ex" code in their type identifiers are suitable for connection to field devices in
the hazardous area. The field current circuits of these devices are intrinsically safe and are
galvanically isolated from the not intrinsically safe circuits. The devices thus represent an
electrical isolation between the hazardous area and the safe area within a system.
Devices without an "Ex" code can be used for signal transmission between field devices in the
safe area and the process control system or the control.
This symbol indicates a warning about a possible danger.
Failure to observe this warning may result in personal injury or death, or property
damage or destruction.
This symbol warns of a possible fault.
If the instruction given in this warning is not heeded, the device and any systems or
plants connected to it could develop a fault or even fail completely.
This symbol brings important information to your attention.
Warning
Attention
Note

Universal Temperature Converter KCD2-UT2-(Ex)1
Overview
813968 2013-10
EN - 3
EN
The temperature converters KCD2-
UT2-(Ex)1 of the K-System (referred to
as UT2) are used for temperature
measurement.
Resistance temperature detectors,
thermocouples, potentiometers or
voltage sources can be connected to
the inputs of the converter.
The device converts the input signals
into proportional current signals or
voltage signals.
The output signals can, forexample, be
forwarded to displays or analog inputs
of the process control system.
Further information (e. g. certificates, the data sheets for the UT2 devices and the operating
instructions for the K-System) can be found on our Internet page www.pepperl-fuchs.com/pa
(under product search, enter *UT2*).
2.2 Versions
The following versions of the temperature transmitter are available:
1 = 1 input, 1 output
Ex = for connection of field devices in areas exposed to
danger of explosion
without identifier letters = for connection of field devices in
the safe area
KCD2-UT2- ** *

813968 2013-10
4 - EN
Universal Temperature Converter KCD2-UT2-(Ex)1
Safety instructions
EN
3 Safety instructions
The devices may only be operated by trained personnel in a manner corresponding
to this operating manual.
Protection of operating personnel and the plant is only guaranteed if the devices
are used according to their specifications. Any use other than that described in the
manual endangers the safety and functionality of the devices and the connected
systems.
The devices may only be mounted, connected and adjusted by electrical
professionals outside the explosion hazardous area.
If malfunctions cannot be eliminated, place the devices out of service and protect
them from accidental use. The devices may only be repaired directly by the
manufacturer Pepperl+Fuchs. Any opening or change in the units are dangerous
and are therefore not to be performed. They void any warranty.
Responsibility for adhering to local safety regulations and directives is held by the
operator.
Warning
Warning
Warning
Warning
Note

Universal Temperature Converter KCD2-UT2-(Ex)1
Explosion protection
813968 2013-10
EN - 5
EN
4 Explosion protection
For primary explosion protection, that is, measures to avoid or
restrict the production of a dangerous, explosive atmosphere,
please consult the directive 1999/92/EC (ATEX 137) or the
corresponding national provisions.
For secondary explosion protection, that is, measures to avoid the
ignition of a surrounding explosive atmosphere by electrical
equipment, Pepperl+Fuchs will gladly provide you with a copy of the
"Ex-protection manual" for a nominal fee.
Please pay particular attention to EN 60079-0, EN 60079-11 and
EN 60079-15 or the corresponding national provisions.
Pepperl+Fuchs also provides a seminar on the topic of explosion
protection.
5 Mounting and connection
5.1 Mounting
The devices of the K-Systems from Pepperl+Fuchs and thus also the
temperature transmitters KCD2-UT2-(Ex)1 can be mounted on a 35 mm
DIN mounting rail corresponding to EN 60715. The devices must be
snapped onto the rail vertically, and never slanted or tipped to the side.
Further mounting alternatives, e. g. using the Power Rail, can be found in
the operating instructions for the K-System on our Internet page
www.pepperl-fuchs.com/pa (under product search, enter *UT2*).
The devices are constructed in protection class IP20 and must therefore be
protected from undesirable environmental conditions (water, dust, small foreign
objects).
PPPCPPP PP PPP PPION
MANUAL
EXPLOSI ON PROTECTION
Intr insi c Safet y
Explosion Protection
Attention

813968 2013-10
6 - EN
Universal Temperature Converter KCD2-UT2-(Ex)1
Mounting and connection
EN
Dimensions of the
KCD2-UT2-(Ex)1 in mm
5.2 Connection
The KC series' slip-off terminals significantly simplify connection and construction of switching
cabinets. They allow quick and error-free exchange of the unit when service is needed.
The terminals can be screwed on, are self-opening, and have generous connection room for a
wire diameter of up to 2.5 mm² and coded plugs, so that leads cannot be confused.
The Intrinsically safe field circuit is connected to the blue terminals 1 to 4 of the KCD2-UT2-Ex-1.
These may be conducted using DIN EN 60079-14 compliant leads into the hazardous area.
The non-intrinsically safe field circuit is connected to the green terminals 1 to 4 of the
KCD2-UT2-1.
The non-intrinsically safe circuit is connected to the green terminals 5 to 10 of the
KCD2-UT2-(Ex)1.
12,7 mm
(0.5")
114 mm (4.49'')
46 mm (1.82'')58 mm (2.28'')
119 mm (4.7'')
104 mm (4.1'')

Universal Temperature Converter KCD2-UT2-(Ex)1
Mounting and connection
813968 2013-10
EN - 7
EN

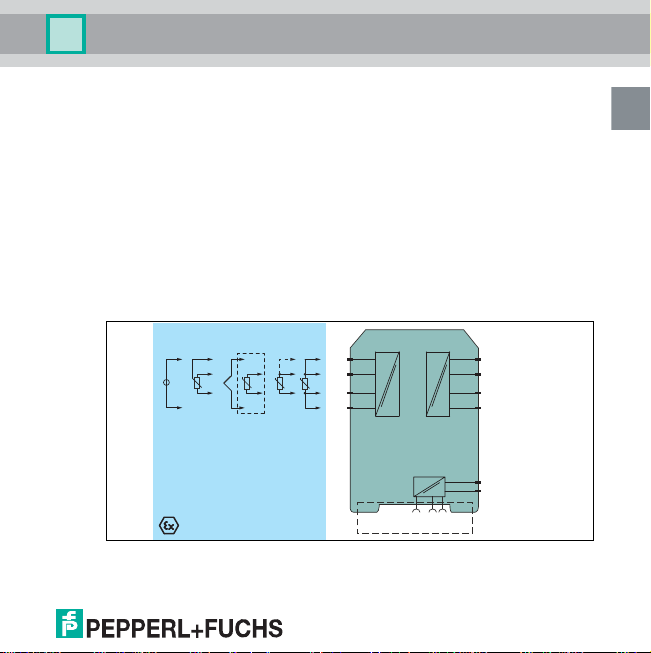

Input connection (field circuit)
You can connect the following sensors:
• Resistance temperature sensors
Pt10, Pt50, Pt100, Pt500, Pt1000 according to EN 60751: 1995 or GOST 6651-94
Ni 100 according to DIN 43760
Cu10, Cu50, Cu100 according to GOST P50353-92
in 2-wire, 3-wire or 4-wire technique
•Thermocouples
Type B, E, J, K, N, R, S, T according to IEC 584-1: 1995
Type L according to DIN 43710
Type TXA, TXK, TXKH according to GOST P8.585-2001
For a cold junction compensation, you require the K-CJC-** terminal block as an accessory;
for information on entering the external reference temperature see section 7.2.
• Potentiometers (0 to 20 k) in 2-wire technique
• Sources for voltage signals between -100 mV and +100 mV
Zone 2
Div. 2
Zone 0, 1, 2
Div. 1, 2
KCD2-UT2-Ex1
4
3
2
+
-
TT
+
-T
1
24 V DC
9+
10-
Power Rail
24 V DCERR
5-
6+
7-
8+ V
V
KC-CJC-**

813968 2013-10
8 - EN
Universal Temperature Converter KCD2-UT2-(Ex)1
Mounting and connection
EN

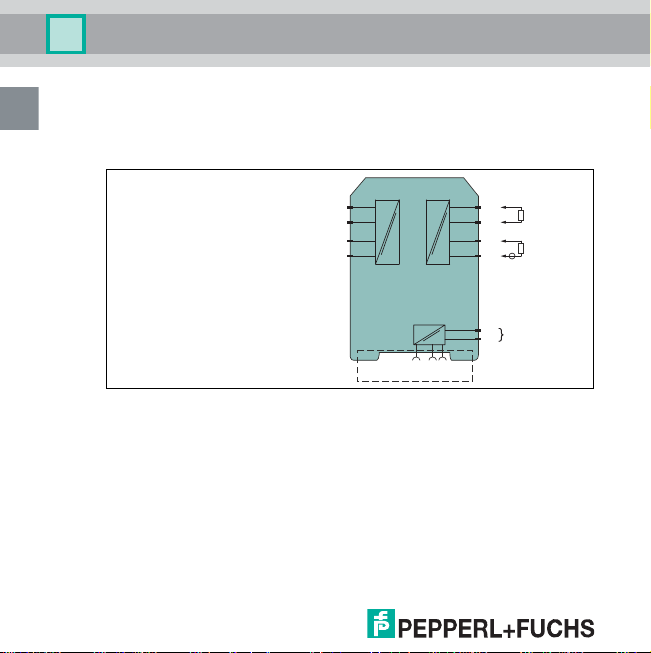

Output connection (control circuit)
The following connections are available:
• Terminals 5/6: analog current output, source
• Terminals 7/8: analog current output, sink
• Terminals 8/10: power supply 24 V DC
Zone 2
Div. 2
Zone 0, 1, 2
Div. 1, 2
KCD2-UT2-Ex1
4
3
2
+
-
TT
+
-T
1
24 V DC
9+
10-
Power Rail
24 V DCERR
5-
6+
7-
8+ V
V
KC-CJC-**

Universal Temperature Converter KCD2-UT2-(Ex)1
Mounting and connection
813968 2013-10
EN - 9
EN
If a current output is operated as a sink, the voltage across the terminals must be between 5 V and
30 V. An additional resistance is only required if the voltage is above 16.5 V. The resistance must
be between (U - 16.5 V)/0.0215 A and (U - 5 V)/0.0215 A (see diagram).
Example: U = 24 V
(24 V - 16.5 V)/0.0215 A = 350 
(24 V - 5 V)/0.0215 A = 880 
0
200
400
600
800
1000
1200
16 20 25 30
R [Ω]
U [V]
Resistance area

813968 2013-10
10 - EN
Universal Temperature Converter KCD2-UT2-(Ex)1
Mounting and connection
EN
If a current output is operated as a source, the load resistance must be between 0 and 550 .
Further information on connecting the UT2 can be found in the data sheet and in the operating
instructions for the K-System on our Internet page www.pepperl-fuchs.com/pa (under product
search, enter * UT2 * ).
5.3 Controls and indicators of the device

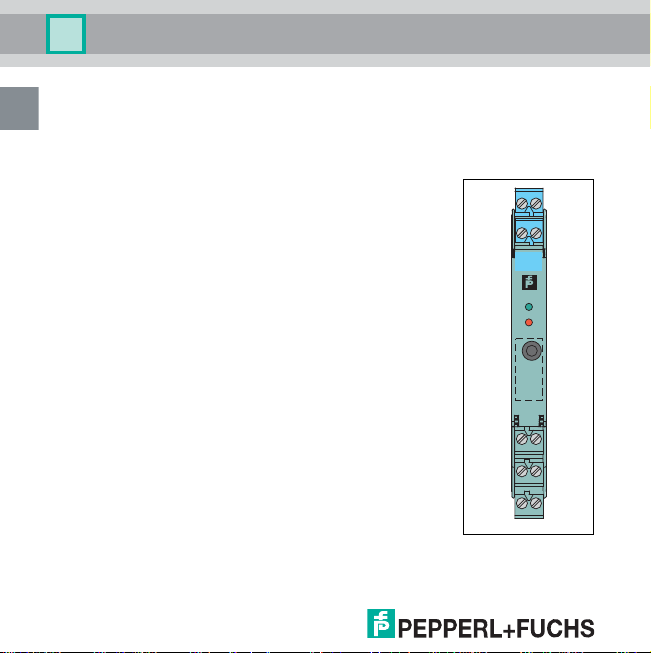

On the front panel of the UT2 you will find:
• LED ERR 1 (red) to indicate a fault signal at terminals 1 to 4
• LED PWR (green) to indicate the supply voltage
• serial RS 232 interface to connect to a PC for parameterisation and
diagnosis of the UT2 using PACTware
TM
PWR
ERR
KCD2-UT2-
Ex1
2
4
1
3
910
8
6
7
5
PROGRAM

Universal Temperature Converter KCD2-UT2-(Ex)1
Configuration tools
813968 2013-10
EN - 11
EN
6 Configuration tools
The temperature transmitters KFD2-UT2-(Ex)*(-1) are parameterised
using the configuration tool PACTware
TM
.
The PACTware
TM
on-line version can be downloaded free of charge
from our internet page www.pepperl-fuchs.com/pa under software/
PACTware. Licensed versions are available at a charge.
The device-independent features of the software are described in the
"PACTware
TM
process automation configuration tool" manual, which
can also be downloaded free of charge in several languages from our
internet page www.pepperl-fuchs.com/pa under software/PACTware.
In the following, you will find the device-specific information for the
temperature converters.
6.1 Installation and connection with the device
Install the PACTware
TM
on a PC. The system requirements and the installation steps can be found
in the "PACTware
TM
process automation configuration tool" manual.
Connect the PC and the UT2 using the K-ADP1 cable. This cable can be ordered as an accessory.
If possible, please use the new version of the cable (part number 181953, length of the jack plug
14 mm). When using the old version (length of plug 18 mm), the jack plug will project out approx.
3 mm. However, this does not affect the function.
Connect the cable with the jack plug to the RS 232 interface on the front panel of the UT2. At the
PC connect it to the 9-pin or the 25-pin connector of a free serial interface.
Start the PACTware
TM
as described in the "PACTware
TM
process automation configuration tool"
manual.
Pressing the plug in by force may damage the end devices.
Attention

813968 2013-10
12 - EN
Universal Temperature Converter KCD2-UT2-(Ex)1
Configuration tools
EN
6.2 Communication driver
In a PACTware
TM
project, communication with a UT2 is only possible via the communication driver
P2P RS232 FDT. If your project does not yet contain such a driver, please add it to the project
from the device catalogue (see "PACTware
TM
process automation configuration tool" manual).
The parameters of the communication DTM is the used PC interface and the number of retries.
The parameter is set as follows:
• Double-click the P2P RS232 FDT driver with the mouse
• Select the Communication Port
•Communication Retries: number of retries the COM DTM attempts to establish communication
to the connected device.
To add a UT2 to a project, select a P2P RS232 FDT driver of the project. Then add the UT2 from
the device catalogue.
Further information on the individual steps can be found in the "PACTware
TM
process automation
configuration tool" manual.
The description in the following chapter assumes that a UT2 has been selected in the project.

Universal Temperature Converter KCD2-UT2-(Ex)1
Configuration tools
813968 2013-10
EN - 13
EN
6.3 Measured value
If you have started the communication between PACTware
TM
and UT2 (e. g. via Device data 
Establish connection), you can open the Measured value window via Device data Measured
value. It shows the following information on the outputs of the UT2:
• Measured values at the inputs as numerical values and bar graph, displayed in the selected
units.
• Values of the analogue outputs as numerical value and bar graph, displayed in the selected
unit.

813968 2013-10
14 - EN
Universal Temperature Converter KCD2-UT2-(Ex)1
Configuration tools
EN
6.4 Simulation
If you have started the communication between PACTware
TM
and UT2 (e. g. via Device data 
Establish connection), you can open the Simulation window via Device data Simulation.

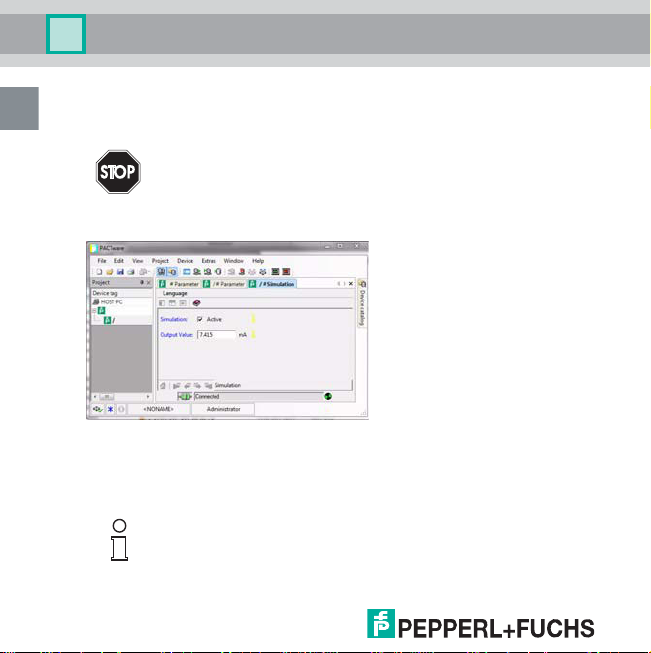

The simulation mode is started with the check box Simulation Active.
You can now specify output currents or output voltages for testing purposes. Press Enter to take
over the set numerical value.
Use the check box Simulation Active to end the simulation. The device will then immediately
back to its normal function.
If the power supply is interrupted, the device ends the simulation.
The simulation interrupts the normal function of the device!
Before starting the simulation, make sure that no dangerous condition in the plant
will result.
You can close the simulation window with the Close button or by clicking on the
Windows-standard button at the top right. The device will remain in simulation
mode, however, until you select Simulation Active again.
Warning
Note

Universal Temperature Converter KCD2-UT2-(Ex)1
Configuration tools
813968 2013-10
EN - 15
EN
6.5 Diagnosis
If you have started the communication between PACTware
TM
and UT2 (e. g. via Device data 

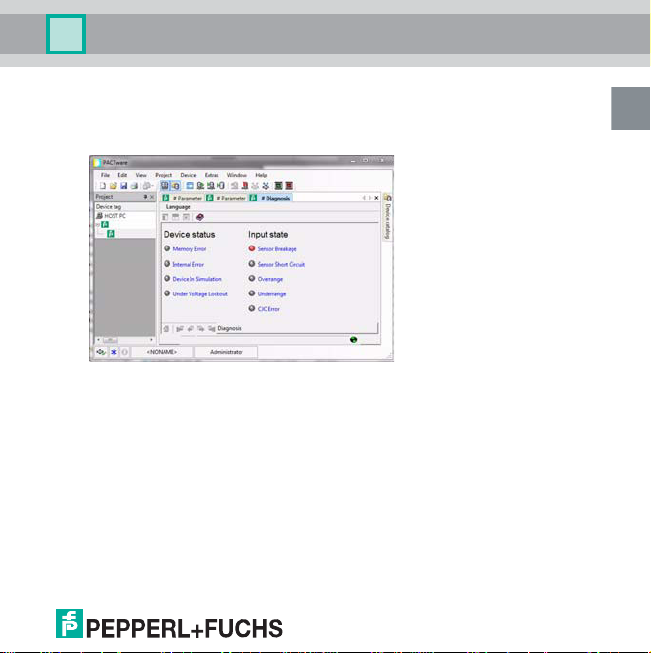

Establish connection), you can open the Diagnosis window via Device data Diagnosis. It
shows the following information:
Explanations:
•Memory error: error in the memory of the UT2; if this error was caused by an incorrect data
transfer, you can eliminate it via Device data Additional functions Service (see
section 6.6); otherwise, please contact Pepperl+Fuchs
•Internal device error: please contact Pepperl+Fuchs
•Simulation mode: see section 6.4

813968 2013-10
16 - EN
Universal Temperature Converter KCD2-UT2-(Ex)1
Configuration tools
EN
•Undervoltage lockout: the supply voltage is too low for the outputs to work properly, the outputs
return 0 mA or 0 V, no matter which fault current/which fault voltage has been selected
•Sensor breakage: see section 7.2
•Sensor short circuit: only RTD type of sensor; see section 7.2
•Overrange, Underrange: measured variable outside the maximum measuring range of the
selected sensor (see section 7.3 and section 7.4)
•CJC Error: if the cold junction compensation has been selected (see section 7.2) and a
breakage or short circuit occurs within the K-CJC-** terminal
•Input: terminals 1 to 4 (also uses terminal 4 for 4-wire resistance measurement)
6.6 Service
In menu Service the factory settings of the UT2 can be reloaded.
Reload the factory settings via pressing the button Factory Reset.

Universal Temperature Converter KCD2-UT2-(Ex)1
Editing device data
813968 2013-10
EN - 17
EN
7 Editing device data
If you call the parameters for a UT2 in PACTware
TM
(e. g. Device data Parameters, see
"PACTware
TM
process automation configuration tool" manual), a window with menus for
parameterization appears, these manues will be described as follows.
7.1 Menu Information and Description
The information in the upper part of the menu Information is read from the UT2. This information
cannot be changed.
Any change to device data will change the operation of the device!
Before transferring new data into the device, make sure that no danger to the
installation will result.
Warning

813968 2013-10
18 - EN
Universal Temperature Converter KCD2-UT2-(Ex)1
Editing device data
EN
Please specify the frequency of your supply network (50 Hz or 60 Hz) under Net frequency. This
way you achieve the best possible suppression of influences of this net frequency on the UT2.
The information in menu Description can be edited as desired.
