Pequod CERBERUS 12.1 User manual
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
CERBERUS 12.1
3x18” Bass reex subwoofer
User guide
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
Index
1 Technical Specications
2 Unpacking and Checking
3 Cables and Set-up
4 Installation and System Design
5 Accessories
6 Maintenance and Surface Protection
7 Warranty
8 Authenticity
CERBERUS 12.1
3x18” Bass reex subwoofer
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
1 Technical Specications
The Cerberus system is a bass Reex
subwoofer consisting of 3 18-inch
long-excursion woofers housed in three
ovoid volumes structure connected
and fused to form an extremely light
and rigid monolithic structure. The to-
tal power of the system is over 10000
Watts, having very high sensitivity (102
dB / W / 1m) With a total radiant surfa-
ce equivalent to a 32-inch diaphragm.
The composite material by which it is
composed allows for high stiness and
avoids the triggering of resonances of
the speaker walls. Compared to a tra-
ditional subwoofer made of wood, the
Cerberus system does not present har-
mful structural vibrations, as well as ha-
ving very high resistance to atmospheric
agents. The shape itself without parallel
walls avoids the formation of internal
standing waves with considerable ad-
vantages for having a clean and precise
sound. The Cerberus system is suitable
for creating full-range systems with high
acoustic impact. Ideal for forming a sy-
stem with Shockwave, Polyphemus,
and Kona products, where quality and
power are achieved through a compact
Subwoofer, compared to the conside-
rable power itself expressed. Although
the 3 18-inch woofers can be driven in-
dividually with 3 amplication channels
(version with 4-ohm impedance for each
18-inch, Cod.CERB04), we recommend
the setup in a parallel.

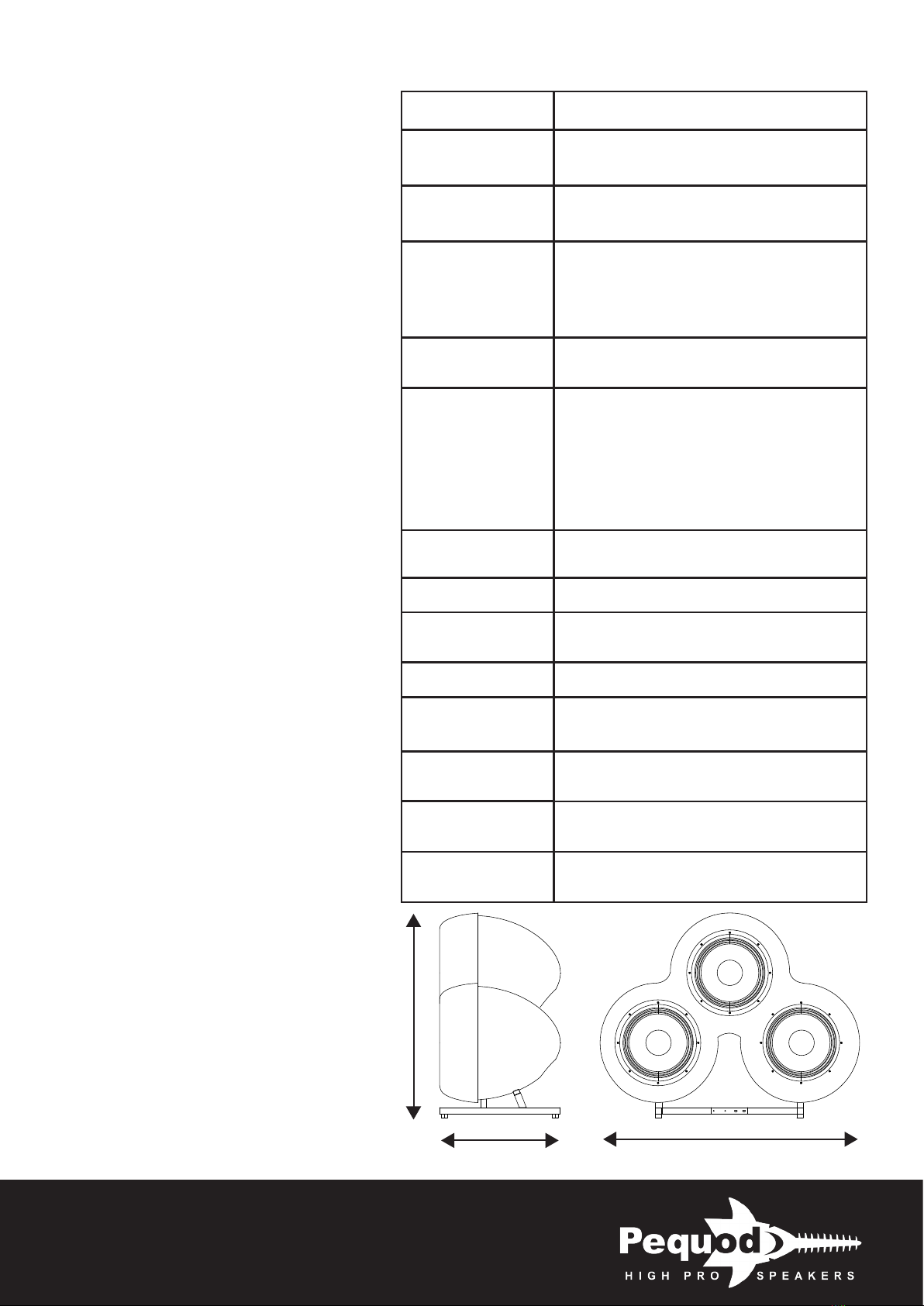

TYPE
FREQUENCY
RESPONSE
TOTAL
SENSITIVITY
NOMINAL
IMPEDANCE
POWER
HANDLING
MANAGE
RECOMMENDED
AMPLIFIER
DISPERSION
CONSTRUCTION
MATERIALS
FINISH
PROTECTIVE
GRILLES
CONNECTORS
DIMENSIONS
(WITH SUPPORT)
WEIGHT
Bass reex subwoofer in tri-ovoidal
structure
35 Hz - 1 KHz
102 dB 1W/1m
CERB08 : 2 Ohm (parallel connection)
or CERB04 : 4 Ohm x 3 (4ohm for each
18” woofer)
5100 W nominal, 10200 W power conti-
nuous program
2 Ch amplier to a couple of Cerberus
+DSP to match to satellite.
Otherwise 3 ch amplier to one Cerberus,
each 18” driven individually. High-pass
lter @25Hz, 24 dB/oct. But
Low-pass lter @100-120Hz, 24 dB/oct.
LR
2 channel amplier, around 10000W on
each channel @ 2 ohm stable
Omnidirectional
Fiber-reinforced composite, stainless
steel
all ral color and texture on order
Cerberus is usually sold with this grid
made of stainless steel
3 (6) x Neutrik NL4 or custom preferen-
ce
(W) 1450 mm (H) 1200 mm (D) 720 mm
(W) 57 inch (H) 47 inch (D) 28 inch
84 Kg (185 lb)
1450mm (57 inch )
720mm (28 inch )
1200mm 47 inch )
USER GUIDE
2: Unboxing
The Cerberus, like every other Pequod product,
is built with high standards of control and quali-
ty. At the end of the production process and be-
fore packaging, each system is tested: acousti-
cally measured and recorded in our company
database. For each Cerberus serial number, we
have the related test les recorded in the archi-
ve. Before being packed in its box we complete
an inspection of surfaces and structures. Units
are packed into wooden crates or heavy card-
board boxes with internal foam padding before
shipping.

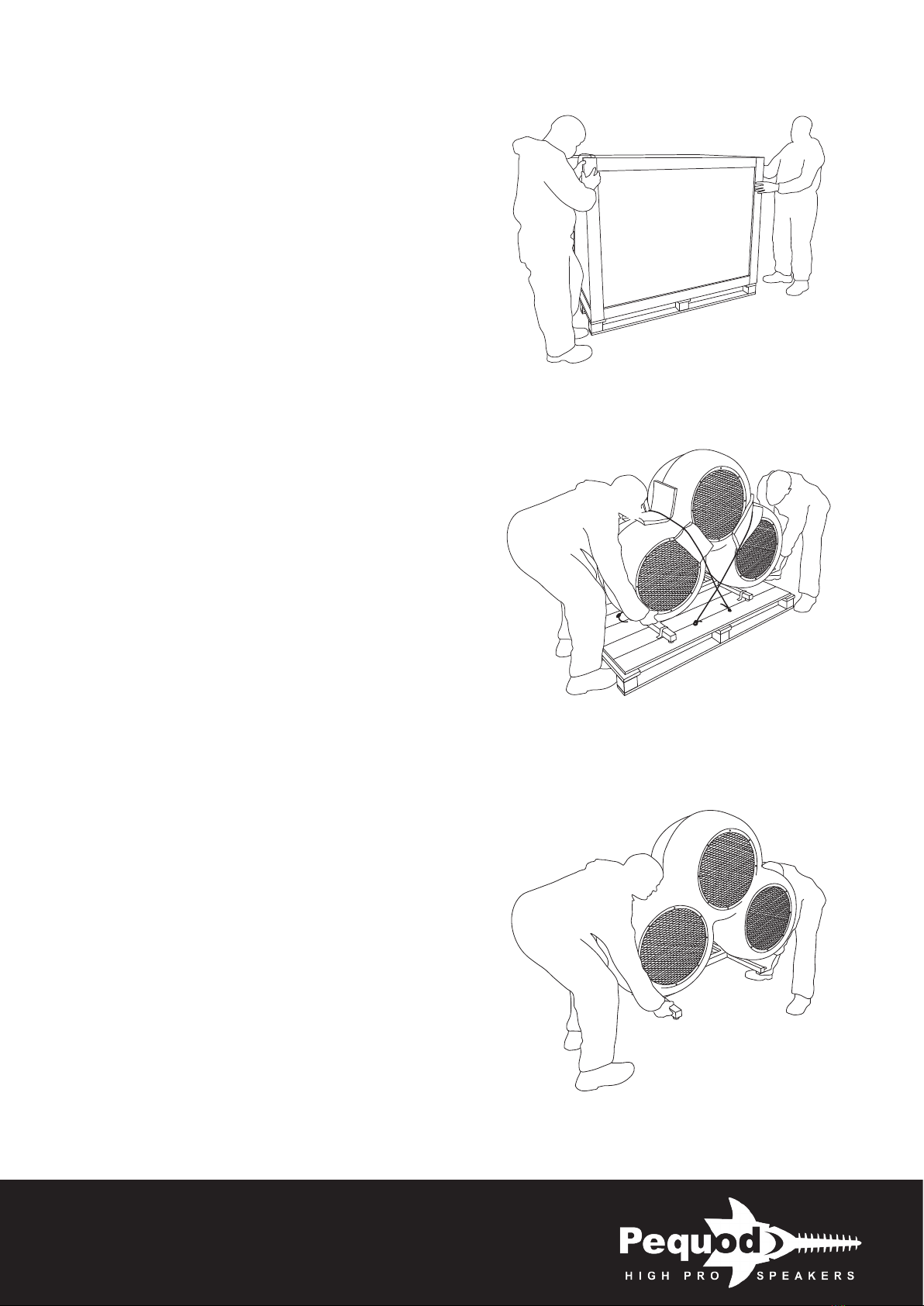

Extraction from box:
The Cerberus weighs 84 Kg (185 lb) each, and is
taken from the box simply following the steps
shown here.
Keep the packaging for further storage or tran-
sportation, unless units are to be permanently
installed.
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
1: Carefully open the
wooden packaging box
2: Remove packing materials
and save for re-use
3: Lift speaker body and base together ,with
both hands when ready
USER GUIDE
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
3 Wiring and Settings
Cerberus has inputs made with connectors NL4 female. Through a dedicated cable and terminated with 2 male
NL4Fc connectors it is connected directly to the output of the power amplier. The connectors are standard NL4
(+ 1 / -1 connected + 2 / -2 empty) or water proof on request.
In case of custom realization by the installer of the connection cables, we recommend specifying installation-gra-
de Low Smoke Zero Halogen (LSZH) cables for permanent installations. The cables should use Oxygen Free
Copper (OFC) of grade C11000 or above.
For distances of over 15 meters between Cerberus and ampliers, we recommend increasing the section of the
cable poles to 4 sq mm, to avoid excessive emission level losses. For lengths less than 15 m, you can use 2-pole
cables, each with a section of 2.5 sq mm.

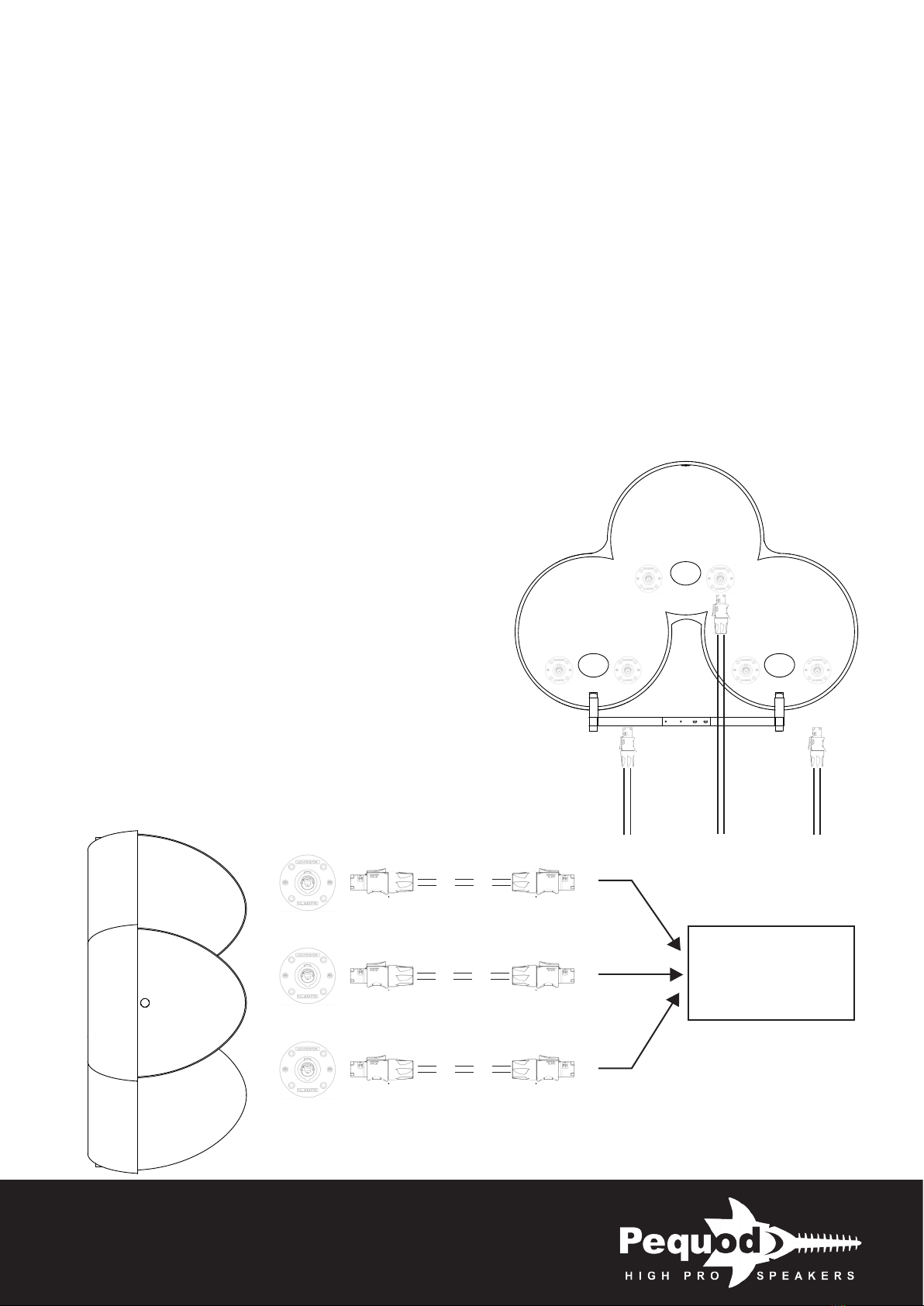

Connection diagrams:
A) Single connection for every 18 “(3 identical cables in total, see g. Below): Cable between each sub Ovoid
and amp (not supplied): 2-pole cable (2.5 sq mm minimum section per pole up to cable length of 15 m, over we
recommend switching to 4 mmq per pole), terminated with male connector Nl4Fc (+ 1 / -1 connected and cor-
responding to +1 red and -1 black on the amplier, + 2 / -2 empty) to connect at the imput of each Ovoid sub,
which has an NL4 female connector, standard or WP on request.
3 channel power
Amplier + DSP
USER GUIDE
NL4FC ( +1 -1 ) NL4FC ( +1 -1 )
2p
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
B) Total connection (in parallel)
(see g. Below):
1x Main cable between Cerberus and amp,
made with 2-pole cable. Terminals made with
male NL4 connectors (+ 1 / -1 connected + 2 /
-2 empty), terminal towards the amplier made
with male NL4 connector (+ 1 / -1 connected to
+1 red and -1 black on the amplier and + 2 / -2
empty). Sections of poles: 2.5 sq mm minimum
section per pole up to a cable length of 15 m, in
addition we recommend switching to 4 sq mm
per pole.
2x Secondary cables, 2 poles, which connect
the 3 sub Ovoids together. Terminals made with
male NL4 connectors (+ 1 / -1 connected + 2 / -2
empty). Sections of the poles: section 2.5 mmq
per pole and cable length of 1.5 m
Parallel Connection
2p
IN
IN
DSP general settings:
Band pass:
High-pass lter @25Hz, 24 dB/oct But.
Low pass lter @100-120Hz, 24 dB/oct LR.
Gain and Time Alignment : it depends on Satel-
lite utilized
USER GUIDE
NL4FC ( +1 -1 ) NL4FC ( +1 -1 )
Amplier + DSP
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
Cerberus + Polyphemus Cerberus + Kona Cerberus + Twister
4 Installation and system design
Cerberus can typically be used as a very high
quality system for sounding listening areas, such
as a dance oor or for an audience of a live con-
cert. In all cases it is necessary to use suitable
satellites (Polyphemus, SWave, Kona, Twister
available from the Pequod catalog) to have a
full range system. Cerberus represents the opti-
mal choice as a subwoofer to be combined with
the Polyphemus or Swave (or With Kona Storm,
Twister, Ostro, having a surplus of power right
on the subwoofer), to have a full range system,
of high quality and global sensitivity.
The gure shows the typical combination, with
Polyphemus, Kona and Twister.
Refer to the Polyphemus, Kona, and Twister
manual for further details.
USER GUIDE
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com

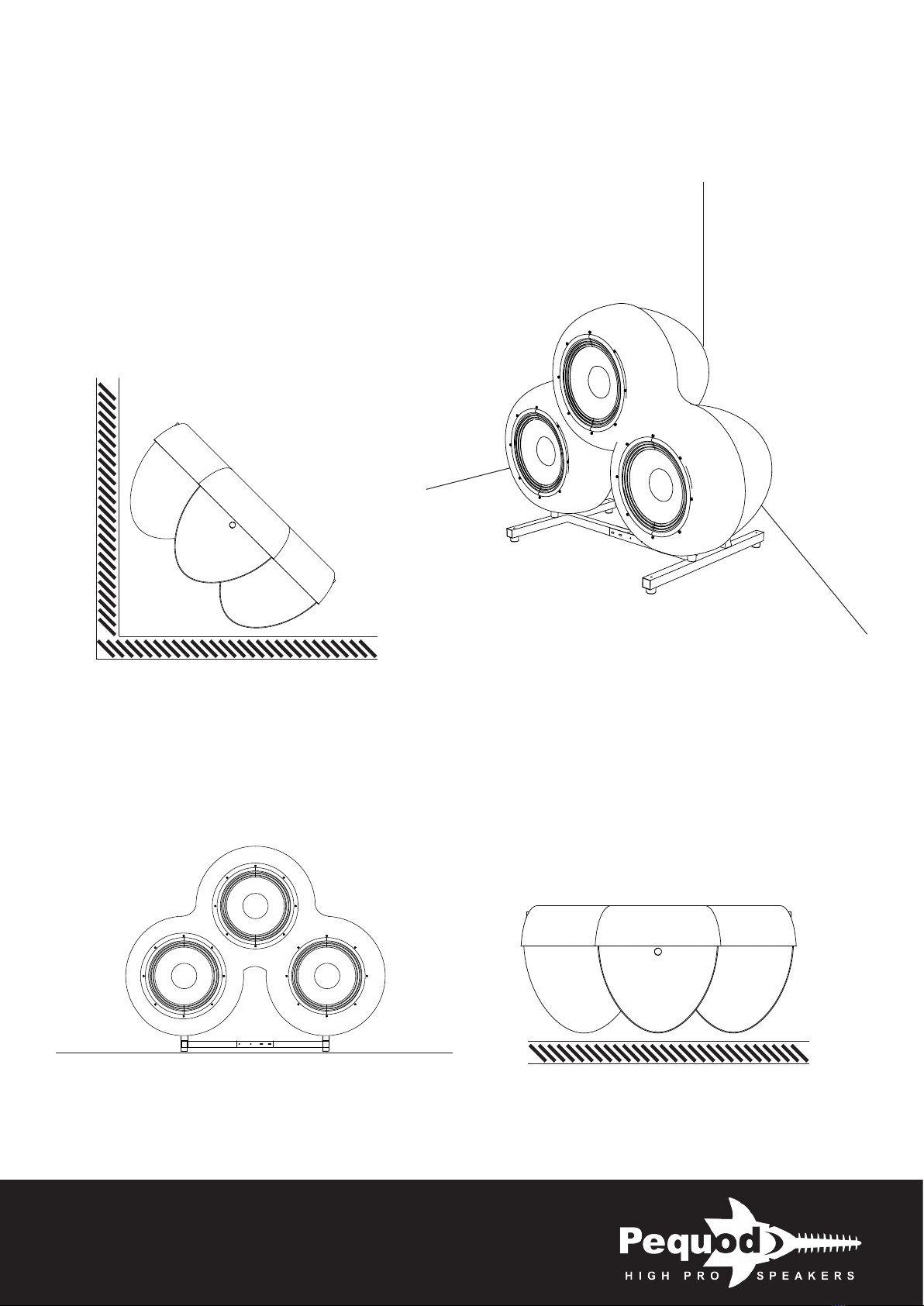

In Indoor systems:
In Indoor systems we recommend placing the
Cerberus against the wall (wall position) or in a
corner position, to avoid harmful (for the purpo-
ses of emission regularity) reections of acou-
stic waves and increase the overall performance
of the system.
Corner Position
Wall Position
USER GUIDE
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com

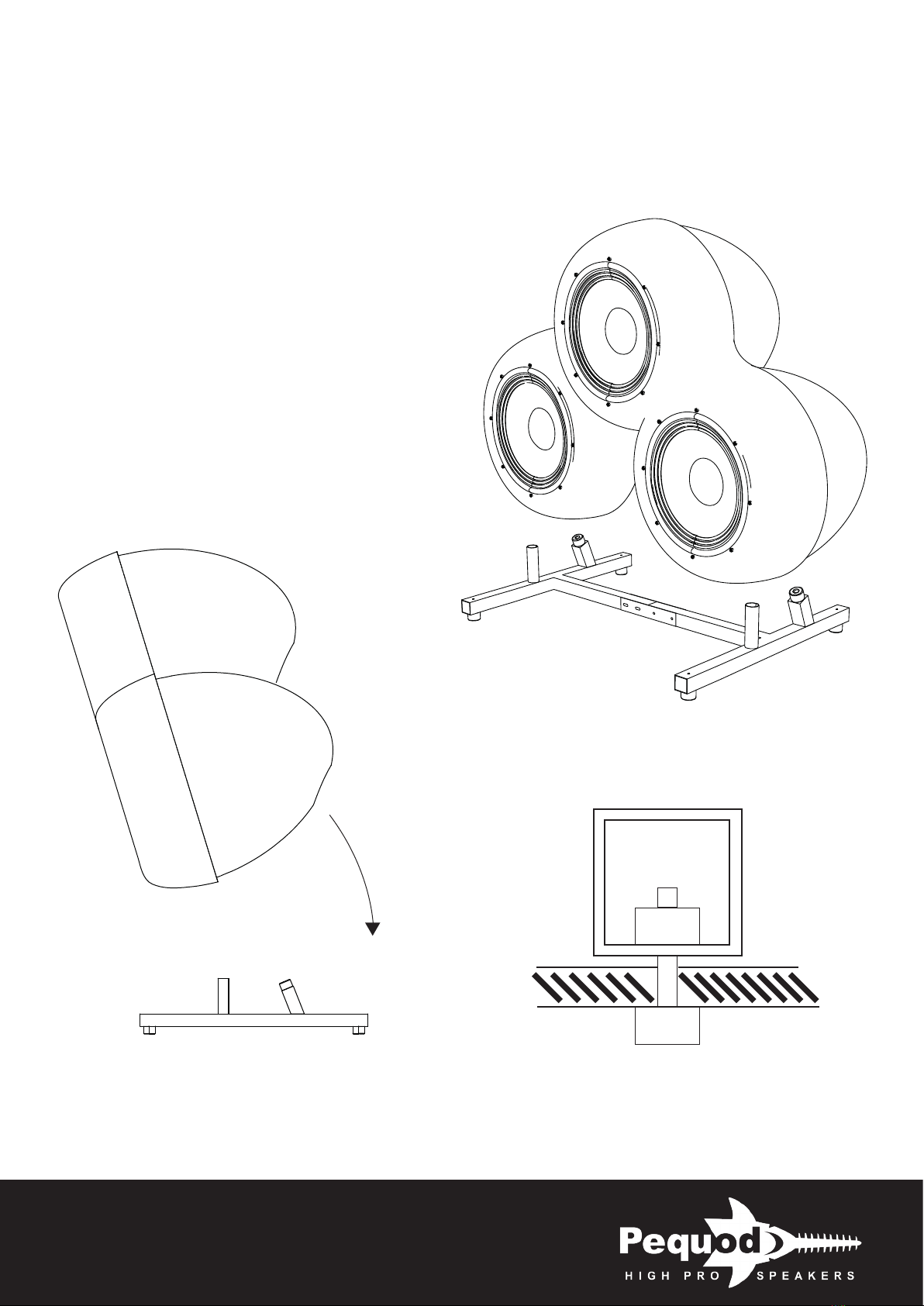

Assembly + anchoring:
As for the assembly and possible anchoring
of Cerberus during installation, the subwoofer
must be placed in its frame, inserting the tube
in the lower seat of the sub. If necessary, there
is the possibility of anchoring the feet of the fra-
me to the ground, by means of screws, metrich
thread M6, screwed between oor and M6 thre-
aded insert, placed in each foot of the product.
USER GUIDE
5: Accessories
In the Pequod catalog there are some accesso-
ries to be used with Cerberus.
Cod. BAG01CE: Protective PVC Bag sized for
Cerberus, waterproof soft nish to protect from
scratches and weather
Cod. GROV: Front Protection Grille of the 18”
woofer, made of stainless steel. Usually inclu-
ded as standard component in most orders,
delete option is available when protection is not
needed
Cod. BSCE: Stainless steel base for Cerberus
Cod. TBBOV: Interconnection pipe, stainless
steel diameter 35mm for sat. ( Lenght: 350,
550, 650 )
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
USER GUIDE
Water proof bag
Cod. BAG01CE
Cerberus connection
pipe Cod. TBBOV
Steel Mesh grille
Cod. GROV
Stainless steel base
Cod. BSCE
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
6: Maintenance and Surface Protection
All Pequod units are built from a unique high
quality composite material which is inert to at-
mospheric agents and requires minimal regular
maintenance, just a simple cleaning of the sur-
faces with a soft cloth dampened with alcohol.

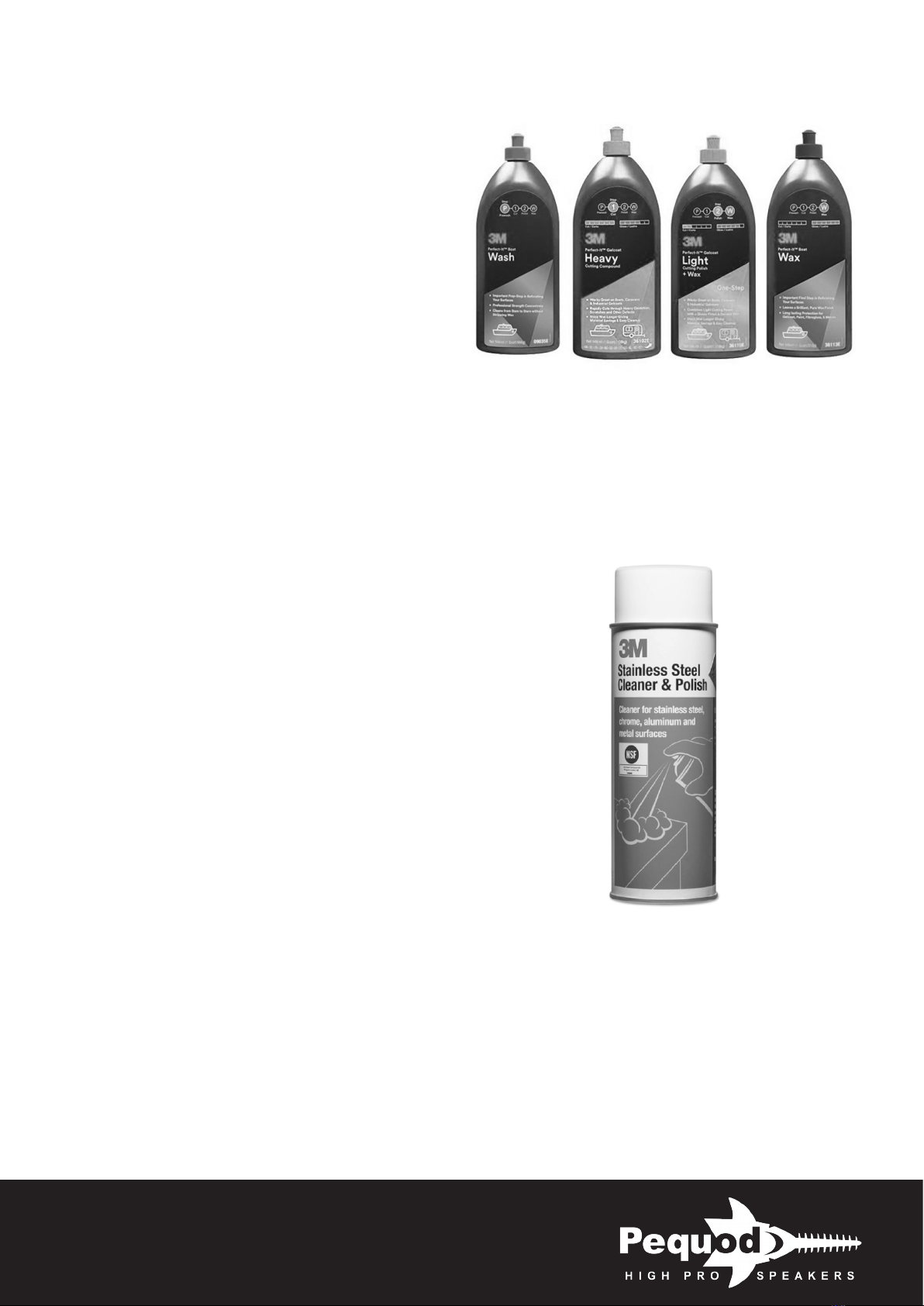

For best practice in long term care of the com-
posite components, and to obtain or restore
a truly professional level of surface nish, we
recommend using the 3M “Perfect ItTM” line of
Gelcoat cleaners and protective waxes (above
right).
Follow the instructions provided to ensure the
best possible nish for your Pequod composite
speaker bodies and accessories.
Many installations require Stainless Steel sup-
port structures or armatures to complete moun-
ting and assembly of dierent Pequod units. For
these components, we recommend cleaning
with 3MTM Stainless Steel Cleaner and Polish (ri-
ght).
USER GUIDE
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
7: Warranty
Pequod Acoustics oers a guarantee to the origi-
nal owner (person or company who purchased the
product brand new) of each new Pequod product
(provided it was purchased directly from Pequod or
through a Pequod Acoustics Authorised Dealer/ Di-
stributor) that it is free of defects in materials and
workmanship and that each product was tested in
the factory to meet or exceed all specications de-
clared. Each model has a test le recorded in our
database, related to its serial number.
The period of limited warranty is three (3) years from
the date of delivery to the original purchaser (as
shown on the original invoice or sales receipt; a copy
may be required as proof of warranty dates)
Pequod Acoustics will repair or replace (at its discre-
tion) all defective parts at no charge for labor or ma-
terials; subject to following provisions:
Pequod Acoustics shall take no responsibility for re-
pair or replacement under this warranty if:
a) The damaged product has been subject to misu-
se, accident, neglect or failure to comply with normal
maintenance procedures
b) There are improper alterations or unauthorized
parts or repairs.
c) The serial number has been altered, defaced or
removed and the original owner won’t be able to give
information related to our Anti-counterfeit authenti-
cation system (see below, section 8)
Pequod Acoustics will remedy any defect, regardless
of the reason for failure (except as excluded above)
by repair or replacement. Pequod Acoustics will ship
the product within a reasonable time after receipt of
the defective product at a Pequod Acoustics Autho-
rised Service Centre.
How to obtain service under warranty:
If a Pequod Acoustics product requires service, the
original owner must contact the Pequod Acoustics
dealer who supplied the product, to receive our Re-
turn Authorisation Code (RA code), and instructions
on how to return the product to the Pequod Authori-
sed Service Centre, or to Pequod Acoustics.
The original owner must give information about:
- Problems with the product
- Serial number
- Original invoice or sales receipt
- Anti-counterfeit system (see section 8)
After receiving the RA code the owner can pack the
unit in the original factory packaging if possible. Ple-
ase include a note describing the problem packed
together with the product. Do not send it separately.
All products being returned to the factory or service
center for repairs must be shipped prepaid. Ensure
safe transportation of your unit to the authorized ser-
vice center
Pequod Acoustics (or an Authorised Service Centre)
will initiate corrective repairs upon receipt of the re-
turned product, in order to complete the repairs and
ship back the product within a reasonable amount
of time.
If the repairs made by Pequod or a Pequod Authori-
sed Service Centre are not satisfactory to the owner,
they are instructed to give written notice to Pequod.
The original owner is not entitled to recover from
Pequod any incidental damages resulting from any
defect in the Pequod product. This includes any da-
mage to another product or products resulting from
such a defect.
The warranty is not extended by the length of time
which the owner is not engaged in active use of the
product. Repairs and replacement parts provided
pursuant to the warranty will be covered only by the
non-expired portion of the warranty.
USER GUIDE
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
USER GUIDE
8: Authentication and Anti Counterfeiting Me-
asures
Each product by Pequod Acoustics is carefully
hand made using high quality components that
are, by themselves, dicult to replicate. But we
also protect our products using special marks
on the inside and outside, which are unique and
serve to authenticate original Pequod products.
Thus, each individual product has a special
mark, placed in a unique position. For each pro-
duct (each serial number) we keep a record of
the exact position where we placed this mark.
When warranty claims are made, or other reque-
sts that require authentication of an individual
Pequod product, we will ask the owner to pro-
vide a description of the identifying marker as
further proof of originality.
Other Pequod Subwoofer manuals
