Ovoid Sub 4.1
15” Bass reex subwoofer
User guide

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
Index
1 Technical Specications
2 Unpacking and Checking
3 Cables and Set-up
4 Installation and System Design
5 Accessories
6 Maintenence and Surface Protection
7 Warranty
8 Authenticity
Ovoid Sub 4.1
15” Bass reex subwoofer

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
1 Technical Specications
The Ovoidal 4.1 sub is a long excursion
bass-reex subwoofer in an ovoidal axi-
symmetric closed structure, characte-
rized by extreme sensitivity, dynamics,
and emission power, made with an in-
credibly rigid and light structure in du-
rable composite materials. Unlike all
other alternatives currently available,
this low-frequency speaker was made
without technical and dimensional com-
promises, with structural technologies
not present in the professional audio
market. Thus it achieves maximum
acoustic performance with an elegant
design and a unique personality.
All other bass reex subwoofers on the
professional audio market are built insi-
de wooden box structures. This tech-
nology is awed due to structural reso-
nances and internal acoustic problems
related to stationary waves. Furthermo-
re, the wooden structure is very heavy
and is characterized by problems rela-
ted to protection and durability, with lit-
tle resistance to atmospheric agents.
Ovoidal 4.1 represents an exclusive
technological innovation, built from hi-
gh-quality composite materials in a
special ovoidal shell shape. The scra-
tch-resistant glossy surfaces and the
resistance to atmospheric agents, com-
bined with great power with extremely
high eciency and very high sensitivi-
ty, allow Ovoidal 4.1 to truly distingui-
sh itself when compared to any product
from the main competing brands, with
direct radiation electroacoustic bass-
reex technology. Ovoidal 4.1 guaran-
tees perfect loading of low frequencies
in sensitivity, depth, control, and SPL
expressed by the usage of very few wat-
ts. Ovoidal 4.1 uses a single hi-quality
transducer of 15” (390mm). The structu-
re is rigid and very light (considering the
overall weight and the dB/Kg ratio). The
aesthetic impact is extraordinary and
absolutely unique in the professional
sound market.
TYPE
FREQUENCY
RESPONSE
TOTAL
SENSITIVITY
NOMINAL
IMPEDANCE
POWER
HANDLING
MANAGE
RECOMMENDED
AMPLIFIER
DISPERSION
CONSTRUCTION
MATERIALS
FINISH
PROTECTIVE
GRILLES
CONNECTORS
DIMENSIONS
(WITH SUPPORT)
WEIGHT
Bass reex subwoofer in
ovoidal structure
35 Hz - 1,5 KHz
97 dB 1W/m
8 Ohm or 4 Ohm (depending on the
version) 2x Ovoid15 in parallel con-
guration : 4 ohm (2 Ovoid15, 8 ohm
version each)
2 ohm (2 Ovoid15, 4 ohm version each)
1000 W nominal, 2000 W continuous
program
2 Ch amplier to a couple of Ovoid15
(stereo)+DSP to match to satellite.
High-pass lter @30Hz, 24 dB/oct. But
Low-pass lter @100-120Hz, 24 dB/
oct. LR
Full Fatt Audio FFA 10000
Omnidirectional
Fiber-reinforced composite, stainless
steel
all ral color and texture on order
Ovoid sub is usually sold with this grid
made of stainless steel
1x Neutrik NL4 or custom preference
(W) 700 mm (H) 700 mm (D) 700 mm
(W) 28 inch (H) 28 inch (D) 28 inch
20 Kg (50 lb) w/o support
700mm (28 inch )700mm (28 inch )
700mm (28 inch )
USER GUIDE

2: Unboxing
The Ovoid 15 system, like every other Pequod
product, is built with high standards of control
and quality. At the end of the production pro-
cess and before packaging, each system is te-
sted: acoustically measured and recorded in our
company database. For each Ovoid 15 serial
number, we have the related test les recorded
in the archive. Before being packed in its box we
complete an inspection of surfaces and structu-
res. Units are packed into wooden crates or he-
avy cardboard boxes with internal foam padding
before shipping.
Extraction from box:
The Ovoid 15 weighs 20 kg each, and is taken
from the box simply following the steps shown
here.
Keep the packaging for further storage or tran-
sportation, unless units are to be permanently
installed.
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
1: Carefully cut tape and
open carboard box
2: Remove packing materials
and save for re-use
3: lift speaker body with
both hands when ready
USER GUIDE

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
3 Wiring and Settings
Ovoid 15 has an input made with a female NL4 connector. Through a dedicated cable and termi-
nated with 2 male NL4Fc connectors it is connected directly to the output of the power amplier.
The connectors are standard NL4 (+ 1 / -1 connected + 2 / -2 empty) or water proof on request.
In case of custom realization by the installer of the connection cables, we recommend specifying
installation-grade Low Smoke Zero Halogen (LSZH) cables for permanent installations.
The cables should use Oxygen Free Copper (OFC) of grade C11000 or above.
For distances of over 15 meters between Ovoid15 and ampliers we recommend increasing the
section of the cable poles to 4 sq mm, to avoid excessive emission level losses. For lengths of less
than 15 m, you can use 2-pole cables, each with a section of 2.5 sqmm.
Connection diagrams:
A) 1x Ovoid15 (see g.below): Cable between Ovoid15 and amp (not supplied): 2-pole cable (2.5
sq mm minimum section per pole up to 15 m cable length, in addition we recommend switching to
4 sq mm for pole), terminated with Nl4Fc male connector (+ 1 / -1 connected and corresponding to
+1 red and -1 black on the amplier, + 2 / -2 empty) to connect to the Ovoid15 input, which has an
NL4fc female connector, standard or WP on request.
Ovoid
NL4FC NL4FC2p
Ampli + DSP
( +1 -1 on ampli exit )
USER GUIDE

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
B) 2x Ovoid15 (in parallel, close to each other)
(see g. Below):
1x Main cable between Ovoid 15 and amp, made
with 2-pole cable.
Terminals made with NL4 male connectors
(+ 1 / -1 connected + 2 / -2 empty), terminal
towards the amplier made with NL4 male con-
nector (+ 1 / -1 connected to +1 red and -1 black
on the amplier and + 2 / -2 empty). Sections of
poles: 2.5 sq mm minimum section per pole up
to a cable length of 15 m, in addition we recom-
mend switching to 4 sq mm per pole.
1x Secondary cable, 2-pole, which connects the
2 Ovoid 15s together.
Terminals made with NL4 male connectors
(+ 1 / -1 connected + 2 / -2 empty). Sections of
poles: section 2.5 mmq per pole and cable len-
gth of about 1.5 m
Parallel Connection
Ovoid
Ovoid
NL4FC
NL4FC
NL4FC
NL4FC
2p
2p
IN
IN
DSP general settings:
Band pass:
High-pass lter @ 30Hz, 24 dB / oct.
Low pass lter @ 100-120Hz, 24 dB / oct.
Gain and Time Alignment: it depends on Satel-
lite utilized
USER GUIDE

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
Kona + Ovoid Twister + Ovoid Ostro + Ovoid
4 Installation and system design
The Ovoid15 can typically be used as a very
high quality system to sonorize listening areas,
such as a dance oor or for an audience of a
live concert. In all cases it is necessary to use
suitable satellites (Polyphemus, Swave, Kona
available from the catalog Pequod) to have a
full range system. Ovoid15 represents the opti-
mal choice as a subwoofer to be combined with
the Kona Storm, Twister, Ostro (or for Polyphe-
mus or Swave by increasing the number of Sub
Ovoid15 for each satellite, to balance the emis-
sions), to have a full range system, of high qua-
lity and global sensitivity.
The gure shows the typical combination, with
Kona, Twister and Ostro.
USER GUIDE

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]

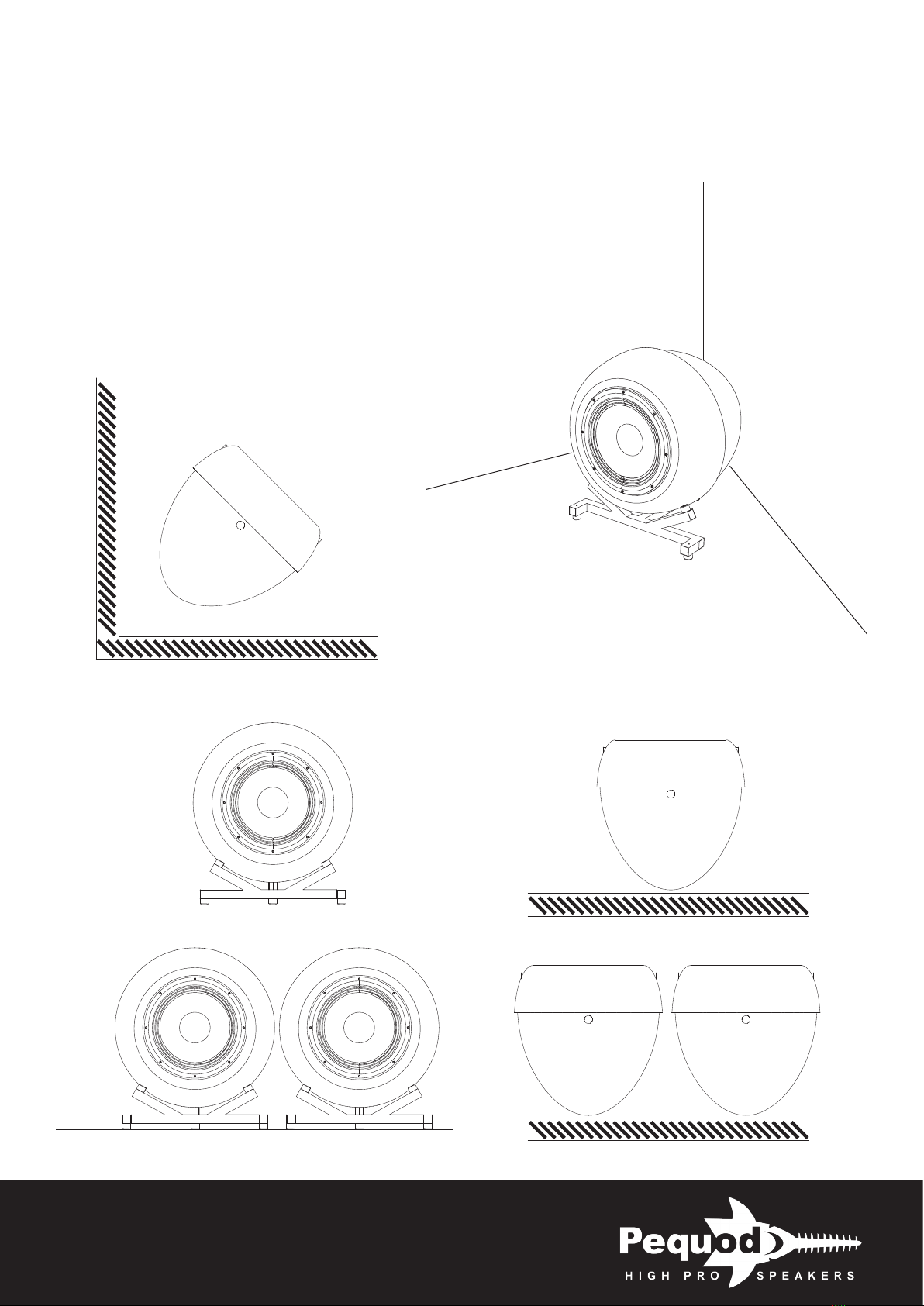

In Indoor systems:
we recommend placing the Ovoid15 against
the wall (wall position) or in a corner position,
to avoid harmful (for the purposes of emission
regularity) reections of acoustic waves and in-
crease the overall performance of the system.
Corner Position
Wall Position
x1
x2
USER GUIDE

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
Assembly + anchoring:
As for the assembly and possible anchoring of
Ovoid15 during installation, the subwoofer must
be placed in its frame, inserting the tube in the
lower seat of the sub.
If necessary, there is the possibility of anchoring
the 3 feet of the frame to the ground, by means
of screws, metric thread M6, screwed between
the oor and the threaded insert M6, placed in
each foot of the product.
USER GUIDE

5: Accessories
In the Pequod catalog there are some accesso-
ries to be used with Ovoid15.
Cod. BAG01OV: Protective PVC Bag sized for
Ovoid 4.1, waterproof soft nish to protect from
scratches and weather
Cod. GROV: Front Protection Grille of the woo-
fer, made of stainless steel. Usually included as
standard component in most orders, delete op-
tion is available when protection is not needed
Cod. BSOV: Stainless steel base for Ovoid
Cod. TBBOV: Interconnection pipe, stainless
steel diameter 35mm for sat. ( Lenght: 350,
550, 650 )
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
USER GUIDE
Water proof bag
Cod. BAG01OV
Ovoid connection
pipe
Cod. TBBOV
Steel Mesh grille
Cod. GROV
Stainless steel base for Ovoid
Cod. BSOV:

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
6: Maintenance and Surface Protection
All Pequod units are built from a unique high
quality composite material which is inert to at-
mospheric agents and requires minimal regular
maintenance, just a simple cleaning of the sur-
faces with a soft cloth dampened with alcohol.
For best practice in long term care of the com-
posite components, and to obtain or restore a
truly professional level of surface nish, we re-
commend using the 3M “Perfect ItTM” line of
Gelcoat cleaners and protective waxes (above
right).
Follow the instructions provided to ensure the
best possible nish for your Pequod composite
speaker bodies and accessories.
Many installations require Stainless Steel sup-
port structures or armatures to complete moun-
ting and assembly of dierent Pequod units. For
these components, we recommend cleaning
with 3MTM Stainless Steel Cleaner and Polish
(right).
USER GUIDE

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
7: Warranty
Pequod Acoustics oers a guarantee to the origi-
nal owner (person or company who purchased the
product brand new) of each new Pequod product
(provided it was purchased directly from Pequod or
through a Pequod Acoustics Authorised Dealer/ Di-
stributor) that it is free of defects in materials and
workmanship and that each product was tested in
the factory to meet or exceed all specications de-
clared. Each model has a test le recorded in our
database, related to its serial number.
The period of limited warranty is three (3) years from
the date of delivery to the original purchaser (as
shown on the original invoice or sales receipt; a copy
may be required as proof of warranty dates)
Pequod Acoustics will repair or replace (at its discre-
tion) all defective parts at no charge for labor or ma-
terials; subject to following provisions:
Pequod Acoustics shall take no responsibility for re-
pair or replacement under this warranty if:
a) The damaged product has been subject to misu-
se, accident, neglect or failure to comply with normal
maintenance procedures
b) There are improper alterations or unauthorized
parts or repairs.
c) The serial number has been altered, defaced or
removed and the original owner won’t be able to give
information related to our Anti-counterfeit authenti-
cation system (see below, section 8)
Pequod Acoustics will remedy any defect, regardless
of the reason for failure (except as excluded above)
by repair or replacement. Pequod Acoustics will ship
the product within a reasonable time after receipt of
the defective product at a Pequod Acoustics Autho-
rised Service Centre.
How to obtain service under warranty:
If a Pequod Acoustics product requires service, the
original owner must contact the Pequod Acoustics
dealer who supplied the product, to receive our Re-
turn Authorisation Code (RA code), and instructions
on how to return the product to the Pequod Authori-
sed Service Centre, or to Pequod Acoustics.
The original owner must give information about:
- Problems with the product
- Serial number
- Original invoice or sales receipt
- Anti-counterfeit system (see section 8)
After receiving the RA code the owner can pack the
unit in the original factory packaging if possible. Ple-
ase include a note describing the problem packed
together with the product. Do not send it separately.
All products being returned to the factory or service
center for repairs must be shipped prepaid. Ensure
safe transportation of your unit to the authorized ser-
vice center
Pequod Acoustics (or an Authorised Service Centre)
will initiate corrective repairs upon receipt of the re-
turned product, in order to complete the repairs and
ship back the product within a reasonable amount
of time.
If the repairs made by Pequod or a Pequod Authori-
sed Service Centre are not satisfactory to the owner,
they are instructed to give written notice to Pequod.
The original owner is not entitled to recover from
Pequod any incidental damages resulting from any
defect in the Pequod product. This includes any da-
mage to another product or products resulting from
such a defect.
The warranty is not extended by the length of time
which the owner is not engaged in active use of the
product. Repairs and replacement parts provided
pursuant to the warranty will be covered only by the
non-expired portion of the warranty.
USER GUIDE

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
USER GUIDE
8: Authentication and Anti Counterfeiting Me-
asures
Each product by Pequod Acoustics is carefully
hand made using high quality components that
are, by themselves, dicult to replicate. But we
also protect our products using special marks
on the inside and outside, which are unique and
serve to authenticate original Pequod products.
Thus, each individual product has a special
mark, placed in a unique position. For each pro-
duct (each serial number) we keep a record of
the exact position where we placed this mark.
When warranty claims are made, or other reque-
sts that require authentication of an individual
Pequod product, we will ask the owner to pro-
vide a description of the identifying marker as
further proof of originality.
