Perfect Aire ProAire 1PRNC6000 User manual

ROOM AIR CONDITIONER
MODEL 1PRNC6000
OWNER’S MANUAL

Safety Information............................................................................................................................3
Using the Air Conditioner
Controls.........................................................................................................................................5
Remote Control .............................................................................................................................6
Cool Mode.....................................................................................................................................6
Energy Saver Mode.......................................................................................................................6
Air Direction...................................................................................................................................7
Care and Cleaning
Grille and Case..............................................................................................................................8
Air Filter .........................................................................................................................................8
Outdoor Coils ................................................................................................................................8
Install Batteries in Remote ............................................................................................................8
Installation Instructions
Before You Begin...........................................................................................................................9
Electrical Requirements.................................................................................................................9
Parts Included .............................................................................................................................10
Window Requirements ................................................................................................................11
Prepare the Air Conditioner.........................................................................................................11
Install the Air Conditioner ............................................................................................................12
Troubleshooting Tips......................................................................................................................14
Normal Operating Sounds...........................................................................................................15
CONTENTS
IMPORTANT NOTE:
Read the manual carefully. Make sure to save this manual for future reference. Illustrations in this manual are
for explanatory purposes only, your actual product may look slightly dierent.

3
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
WARNING For your safety, the information in this manual must be followed to minimize the risk of
fire, electric shock or personal injury.
■ Use this appliance only for its intended purpose as
described in this Owner’s Manual.
■ This air conditioner must be properly installed in
accordance with the Installation Instructions before it is
used.
■ Never unplug your air conditioner by pulling on the
power cord. Always grip plug firmly and pull straight
out from the receptacle.
■ Replace immediately all electric service cords that
have become frayed or otherwise damaged. A
damaged power supply cord must be replaced with a
new power supply cord obtained from the manufacturer
and not repaired. Do not use a cord that shows cracks
or abrasion damage along its length or at either the
plug or connector end.
■ Turn the unit OFF and unplug your air conditioner
before cleaning.
■ For your safety…do not store or use combustible
materials, gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.
■ If the receptacle does not match the plug, the
receptacle must be changed out by a qualified
electrician.
■ Do not use means to accelerate the defrosting process
or to clean, other than those recommended by the
manufacturer.
■ The appliance shall be stored in a room without
continuously operating ignition sources (for example:
open flames, an operating gas appliance or an
operating electric heater.
■ Do not pierce or burn refrigerant tubing. Be aware that
refrigerants may not contain an odor.
■ Keep ventilation openings clear of obstruction.
■ When handling, installing, and operating the appliance,
care should be taken to avoid damage to the
refrigerant tubing.
■ Do not drill holes in the unit.
■ Maintenance, cleaning, and service should only be
performed by technicians properly trained and qualified
in the use of flammable refrigerants.
■ ProAire does not support any servicing of the air
conditioner.
■ Dispose of air conditioner in accordance with Federal
and Local Regulations. Flammable refrigerants require
special disposal procedures. Contact your local
authorities for the environmentally safe disposal of your
air conditioner.
WARNING
Risk of Fire or Explosion. This unit contains flammable refrigerant.
Additional safety precautions must be followed.

4
SAFETY INFORMATION
WARNING USE OF EXTENSION CORDS
RISK OF FIRE. Could cause serious injury or death.
■ DO NOT use an extension cord with this Window Air
Conditioner.
■ DO NOT use surge protectors or multi-outlet adaptors
with this Window Air Conditioner.
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances, cut or remove the third
(ground) prong from the power cord. For personal safety,
this appliance must be properly grounded.
DO NOT use an adapter plug with this appliance.
The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimize the possibility
of electric shock hazard from this appliance.
Power cord includes a current interrupter device. A test
and reset button is provided on the plug case. The device
should be tested on a periodic basis by first pressing the
TEST button and then the RESET button while plugged
into the outlet. If the TEST button does not trip or if the
RESET button will not stay engaged, discontinue use of the
air conditioner and contact a qualified service technician.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Where a 2-prong wall outlet is encountered, it is your
personal responsibility and obligation to have it replaced
with a properly grounded 3-prong wall outlet.
The air conditioner should always be plugged into its
own individual electrical outlet which has a voltage rating
that matches the rating plate.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a
fire hazard from overheated wires.
See the Installation Instructions, Electrical
Requirements section for specific electrical connection
requirements.
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
READ AND SAVE THESE INSTRUCTIONS
WARNING
Chemical Burn Hazard. Keep batteries away from children.
■ This product contains a lithium button/coin cell battery.
If a new or used lithium button/coin cell battery is
swallowed or enters the body, it can cause severe
internal burns and can lead to death in as little
as 2 hours. Always completely secure the battery
compartment. If the battery compartment does not
close securely, stop using the product, remove the
batteries, and keep it away from children.
■ If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate
medical attention.
■ The cells shall be disposed of properly, including
keeping them away from children.
■ Even used cells may cause injury.

49-5000460 Rev. 0 5
Controls
Controls
1. Power Pad
Turns air conditioner on and off. When turned on, the
display will show the set temperature.
2. Display
Shows the set temperature at all times in Cool or ECO
modes or time remaining on the Delay timer.
3. Temp and Delay Increase +/Decrease –Pads
Use to set temperature or delay time. Temperature
can be set in Cool and ECO mode.
4. Mode Pad
Use to set the air conditioner to Fan Only, Cool, or
ECO mode.
5. Fan Speed Pad
In Cool, ECO mode:
Use to set the fan speed to Auto, High, Med or Low
on the unit.
In Fan Only mode:
Use to set the fan speed to High, Med, or Low
on the unit.
6. Delay Pad
Delay ON—When the air conditioner is off, it can be
set to automatically come on in 1 to 24 hours at its
previous mode and fan settings.
Delay OFF—When the air conditioner is on,
it can be set to automatically turn off in 1 to
24 hours.
How to set:
Press the Delay 1–24hr pad on the unit or the remote
control. Each touch of the Increase +/ Decrease –
pads on the unit or the remote control will set the timer
in 1-hour intervals.
To review the remaining time on the Delay 1–24hr
timer, press the Delay 1–24hr pad on the unit or the
remote control. Use the Increase +/ Decrease –
pads on the unit or on the remote control to set a new
time if desired.
To cancel the timer, press Decrease –pad on the
unit or the remote control until the set time is zero.
After 3 seconds the light on the Delay 1-24 hour pad
goes off.
7. Filter Reset Pad
This feature automatically notifies you that the air filter
must be cleaned. The indicator light will come on after
250 hours of operation. Clean the air filter (refer to
page 8), place it back in the front panel, and press the
Filter Reset pad. The light will go off.
Features and appearance will vary.
Lights below the touch pads on the air conditioner control panel indicate the selected settings.
+
-
DELAY
MODE
ON/OFF
SPEED
TEMP/TIME
TEMP/TIME
Unit power
on/off
Mode select
Fan speed
Delay 1–24hr
Temperature
set/Delay Timer
Increase and
Decrease
Air Conditioner Controls Remote Control
2
6
3
4
5
7
1
CONTROLS

6
Using the Air Conditioner
Remote Control
■ To ensure proper operation, aim the remote control at the
signal receiver on the air conditioner.
■ The remote control signal has a range of up to 20 feet.
■ Make sure nothing is between the air conditioner and the
remote control that could block the signal.
■ Make sure batteries are fresh and installed correctly as
indicated on the remote control.
Do Not Operate in Freezing Outdoor Conditions
This cool-only air conditioner was not designed for freezing
outdoor conditions.It must not be used when the outdoor
temperature is below freezing (32°F).
Cool Mode
Use the Cool mode at Low, Med, High or Speed for
cooling. Use the Temperature Increase + / Decrease –
pads to set the desired temperature between 64°F and
86°F in 1°F increments.
An electronic thermostat is used to maintain the room
temperature. The compressor will cycle on and off
to keep the room at the set level of comfort. Set the
thermostat at a lower number and the indoor air will
become cooler. Set the thermostat at a higher number
and the indoor air will become warmer.
NOTE: If the air conditioner is off and is then turned on
while set to a Cool setting or if turned from a fan setting
to a Cool setting, it may take approximately 3 minutes for
the compressor to start and cooling to begin.
Cooling Descriptions
For Normal Cooling—Select the Cool mode and
High or Med fan with a middle set temperature.
For Maximum Cooling—Select the Cool mode
and High fan with a lower set temperature.
For Quieter and Nighttime Cooling—Select the
Cool mode and Low fan with a middle set temperature.
ECO Mode
Controls the fan.
ON—The fan will cycle on and off with the compressor.
This may result in wider variations of room temperature
and humidity. NOTE: the fan may continue to run
for a short time or may pulse intermittently after the
compressor cycles off to sample the room air.
OFF—The fan runs all the time, while the compressor
cycles on and off.
Fan Only Mode
Use the Fan Only Mode at Low, Med or High fan speed
to provide air circulation and filtering without cooling.
Since fan-only settings do not provide cooling, a Set
temperature cannot be entered. The room temperature
will appear in the display.
USING THE AIR CONDITIONER

7
Using the Air Conditioner
USING THE AIR CONDITIONER
Auto Fan Mode
Set to Auto for the fan speed to automatically set to the
speed needed to provide optimum comfort settings with
the set temperature.
If the room needs more cooling, the fan speed will
automatically increase. If the room needs less cooling,
the fan speed will automatically decrease.
Air Direction
Use the lever to adjust the air direction left to right.

8
CARE AND CLEANING
Care and Cleaning
Grille and Case
Turn the air conditioner off and remove the plug from the
wall outlet before cleaning. To clean, use water and a mild detergent. Do not use bleach or abrasives.
Air Filter
The air filter behind the front grille should be checked
and cleaned at least every 30 days or more often if
necessary.
To remove:
Slide the filter from the left side of the unit. Remove the
filter.
Clean the filter with warm, soapy water. Rinse and let the
filter dry before replacing it. Do not clean the filter in a
dishwasher.
CAUTION
DO NOT operate the air conditioner
without a filter because dirt and lint will clog it and reduce
performance.
Outdoor Coils
The coils on the outdoor side of the air conditioner should
be checked regularly. If they are clogged with dirt or soot,
they may be professionally cleaned.
How to Insert the Battery in the Remote Control
1. Remove the screw on the back of the battery cover.
2. Pinch the slide lock and pull the battery tray out at the
same time.
3. Insert new battery, making sure that the (+) and (–) of
battery are installed correctly.
4. Reinsert the battery tray and reinstall the screw.
NOTES:
■ Use one CR 2025 (3V) Lithium battery.
■ Remove the battery from the remote control if the
system is not going to be used for a long time.

9
Installation Instructions
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT –Save these
instructions for local inspector’s use.
•IMPORTANT –Observe all
governing codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Skill level – Installation of this appliance requires
basic mechanical skills.
• Completion time – Approximately 1 hour
• We recommend that two people install
this product.
• Proper installation is the responsibility
of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
• You MUST use all supplied parts and use proper
installation procedures as described in these
instructions when installing this air conditioner.
ELECTRICAL REQUIREMENTS
These models require a 115/120-volt AC,
60-Hz grounded outlet protected with a
15-amp time-delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the possibility
of electric shock hazard. If the wall outlet you plan to
use is only a 2-prong outlet, it is your responsibility
to have it replaced with a properly grounded 3-prong
wall outlet.
CAUTION
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
Do not change the plug on the power cord of this air
conditioner.
Aluminum house wiring may present special
problems—consult a qualified electrician.
Power cord includes a current interrupter device. A
test and reset button is provided on the plug case.
The device should be tested on a periodic basis
by first pressing the TEST button and then the
RESET button while plugged into the outlet. If the
TEST button does not trip or if the RESET button
will not stay engaged, discontinue use of the air
conditioner and contact a qualified service technician.

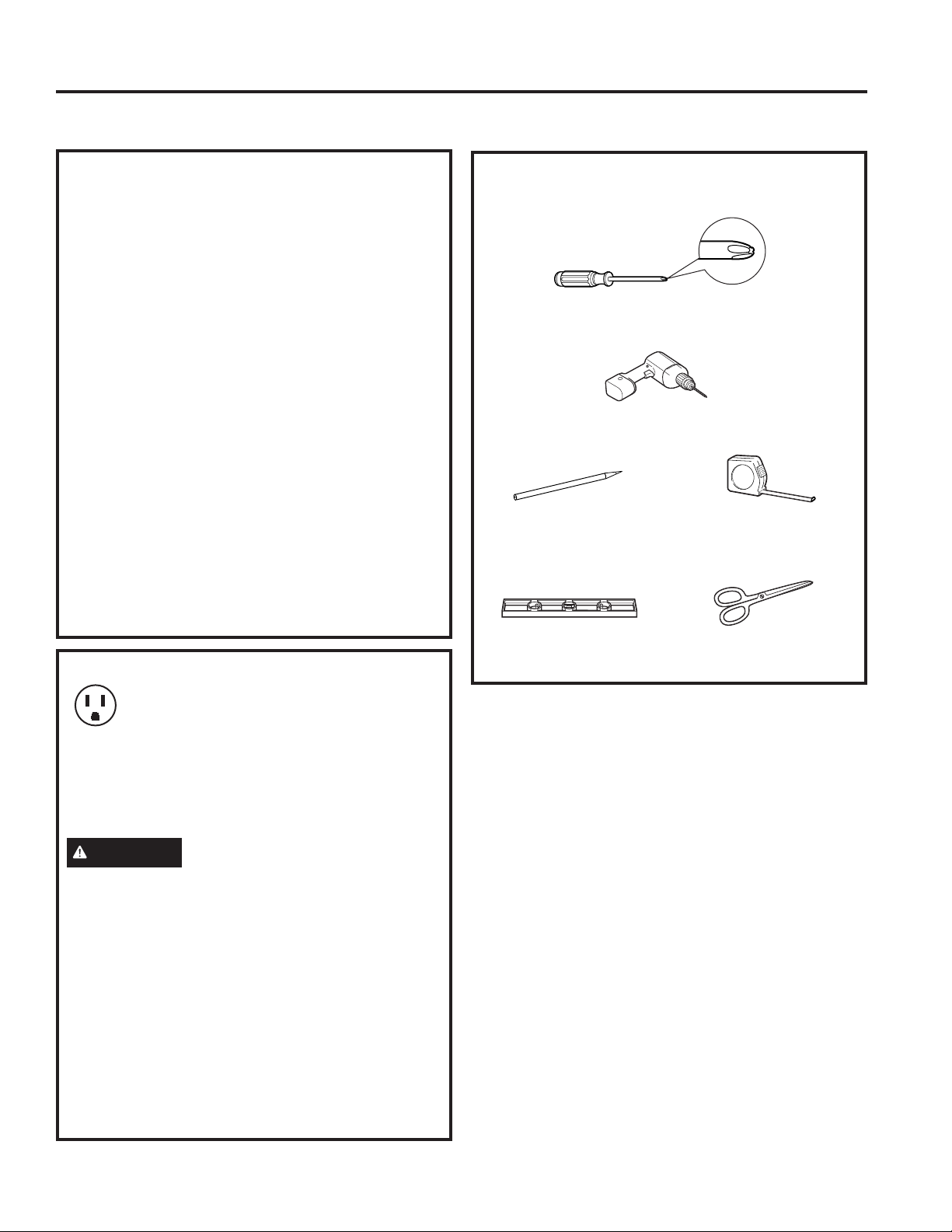

TOOLS YOU WILL NEED
Phillips head screwdriver
Ruler or tape measurePencil
Level Scissors or knife
Drill and 1/8” drill bit

10
Installation Instructions
INSTALLATION INSTRUCTIONS
Temp / Delay Hrs
-
Side Curtain
Frame
Type B (9)
Foam top window gasket
Side
Curtain (2)
Top mounting rail
Air
conditioner
Window locking
bracket (1)
Side Brackets
(2)

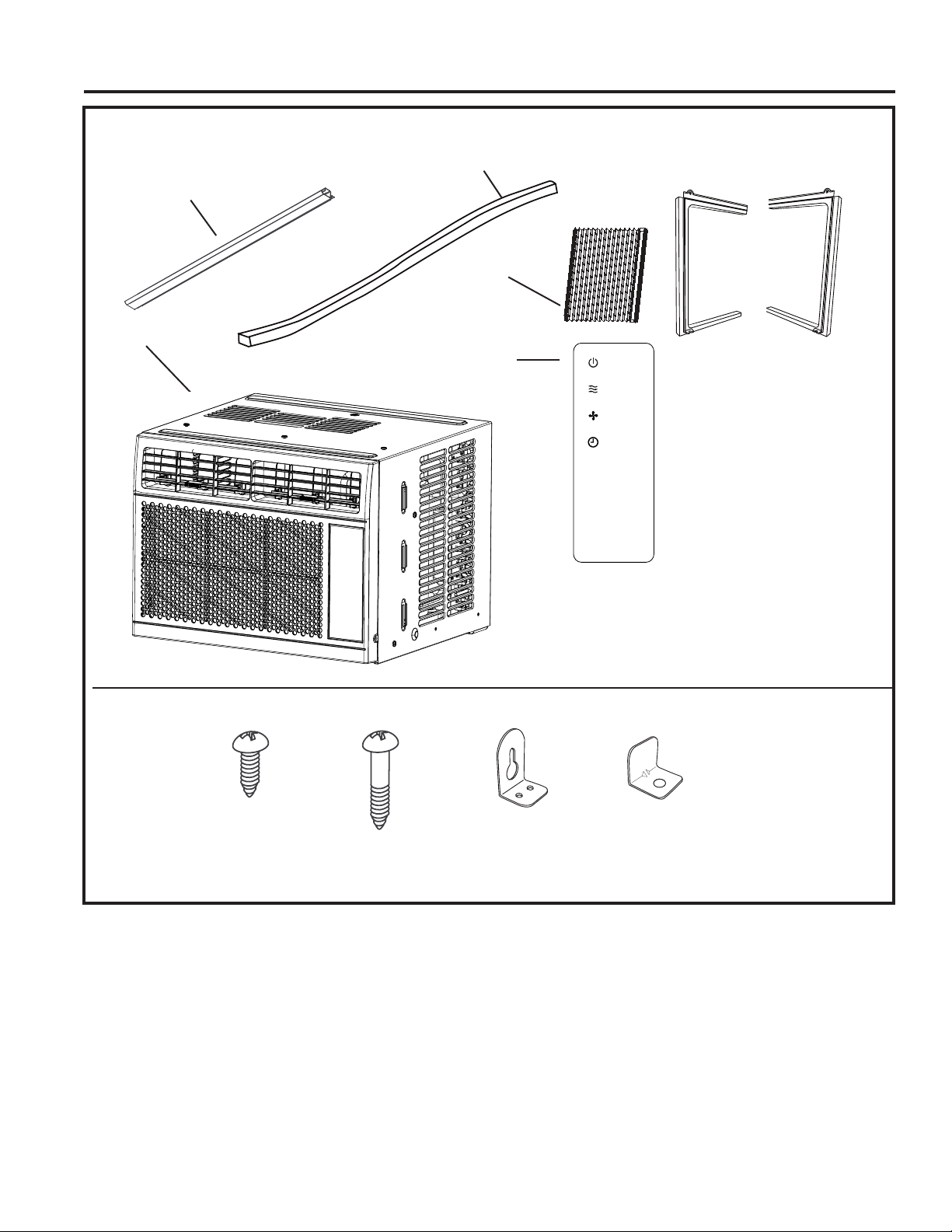

PARTS INCLUDED
(Appearance may vary)
Remote
Control
Left Right
Type A (3)
+
-
DELAY
MODE
ON/OFF
SPEED
TEMP/TIME
TEMP/TIME

11
Installation Instructions
INSTALLATION INSTRUCTIONS
3. PREPARE THE AIR CONDITIONER
A. Install the top mounting rail with Type A screws
from the outside of the case.
B. Slide the side curtain panels into the side panel
rails.
C. Slide left and right side curtain frames into top
and bottom rails. Make sure that side curtains
snap into side of the frames.
1. WINDOW REQUIREMENTS
• These instructions are for a standard
double-hung window. You will need to modify
them for other types of windows.
• The air conditioner can be installed without the
side curtain panels if needed to fit in a narrow
window. See the window opening dimensions.
• All supporting parts must be secured to firm
wood, masonry or metal.
• The electrical outlet must be within reach of
the power cord.
• Follow the dimensions in the table and
illustration for your model.
2. STORM WINDOW REQUIREMENTS
A storm window frame will not allow the air
conditioner to tilt toward the outside, and will
keep it from draining properly. To adjust for this,
attach a piece of wood to the sill.
WOOD PIECES
WIDTH: 2″
LENGTH: Long enough to fit inside the window
frame.
THICKNESS: To determine the thickness, place
a piece of wood on the sill to make it 1/2″ higher
than the top of the storm window frame or the
vinyl frame.
Attach securely with nails or screws provided by
the installer.
(With side curtain panels)
21-7/8” - 36”
13-3/8”
1/2″ higher
than storm
window
frame
Storm window
frame
Wood
Sill
1/2″ higher
than vinyl frame
(on some windows)
Vinyl frame
Top Mounting rail
CLICK
Fig. 12

12
Installation Instructions
INSTALLATION INSTRUCTIONS

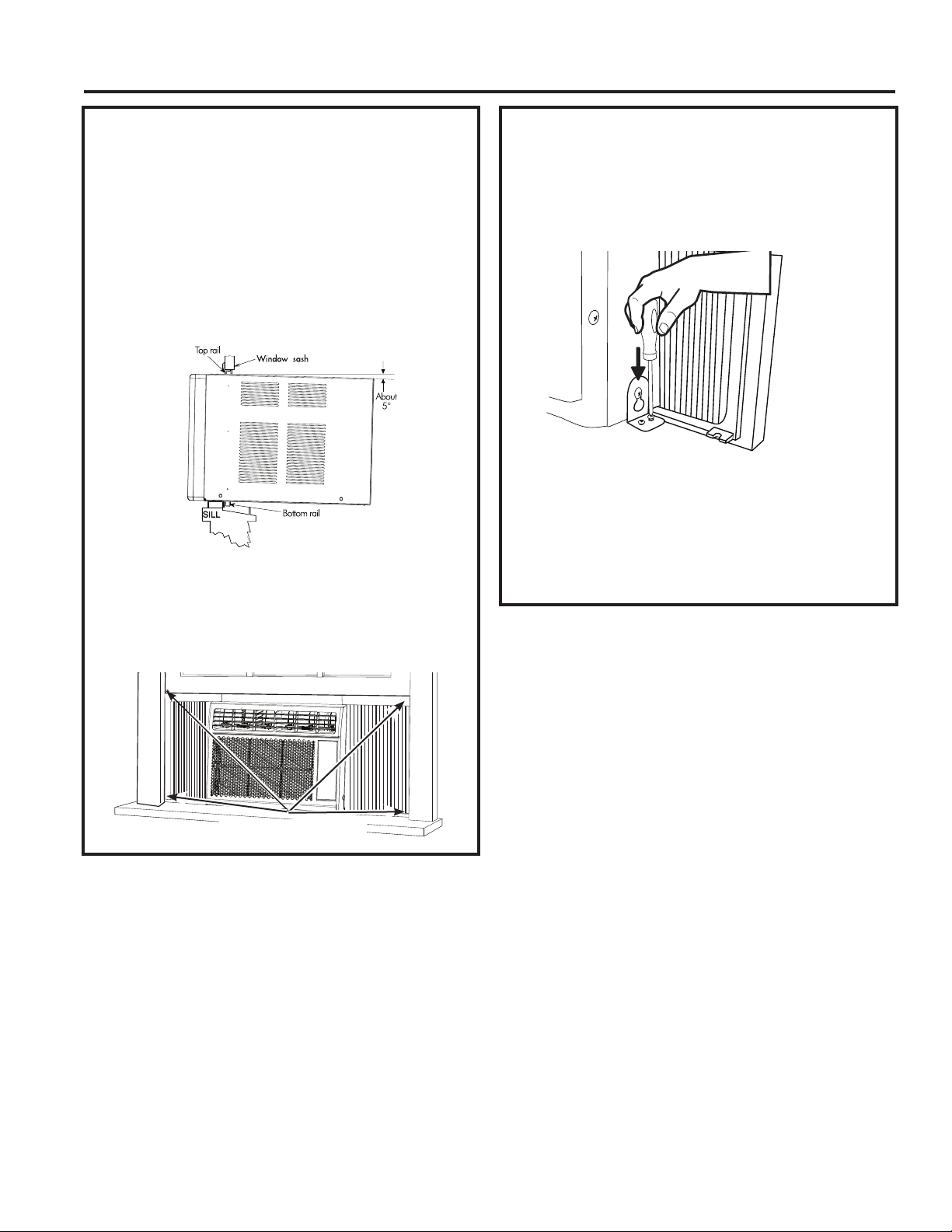

5. SECURE AIR CONDITIONER
A. Loosen the screw on the right hand side of the
air conditioner near the bottom.
B. Slide a side bracket over the screw so that the
bracket is resting on the window sill. Tighten the
screw.
C. Use a 1/8” drill bit to drill a starter hole into the
window sill through the holes in the side bracket.
Use 4 type B screws to attach the side bracket to
the window sill.
D. Repeat the side bracket installation on the left
side.
4. INSTALL THE AIR CONDITIONER
IN THE WINDOW
A. Mark the center of the window. Set the air
conditioner in the window so that is it centered.
Place the air conditioner so that front edge of the
bottom mounting rail is against the back edge of
the sill.
B. Bring the window down so that the front edge of
the top mounting is in front of the window. Make
sure that the air conditioner is level or tilting
slightly to the outside.
C. Extend the curtain panels until they fill the
window. Mark the location of the holes in each
corner. Use the drill and 1/8” drill bit to drill pilot
holes. Use 4 type B screws to secure the side
panels in place.
Type B screws

13
Installation Instructions
INSTALLATION INSTRUCTIONS
6. INSTALL WINDOW LOCK
BRACKET AND FOAM TOP
WINDOW GASKET
Use Type B Screw to install the window lock
bracket on top of the bottom window.
A. CAUTION
To prevent broken glass or
damage to windows, on vinyl
or other similarly constructed
windows, attach the window
locking bracket to the
window side jamb with one
Type B screw.
B. Cut the foam top window gasket to the window
width.
C. Stuff the foam between the glass and the
window to prevent air and insects from getting
into the room.
NOTE: If the gasket supplied does not fit your
window, obtain appropriate material locally to
provide a proper installation seal.
Wood
Vinyl

14
Troubleshooting Tips
TROUBLESHOOTING TIPS
Save time and money! Review the charts on the following pages first and you may not need to call for service.
Problem Possible Cause What To Do
Air conditionerdoes not
start. The unit is unplugged. Make sure the air conditioner plug is pushed completely into the outlet.
The fuse is blown/circuit breaker
is tripped. Check the house fuse/circuit breaker box and replace the fuse or reset the breaker.
Power Failure. The unit will automatically restart in the setting last
used after the power is restored.
There is a protective time delay (approximately
3 minutes) to prevent tripping of the compressor
overload. For this reason, the unit may not start normal
cooling for 3 minutes after it is turned back on.
The current interrupter device is
tripped. Press RESET button located on the power cord plug.
If the RESET button will not stay engaged, discontinue
use of the air conditioner and contact a qualified
service technician.
Air conditioner does not
cool as it should. Indoor airflow is restricted. Make sure there are not curtains, blinds or furniture blocking the front of the air conditioner.
The temp control may not be set
properly. Turn the temperature control to a higher number.
The air filter is dirty. Clean the filter at least every 30 days. See Care and
Cleaning section.
The room may have been hot. When the air conditioner is first turned on, you need to
allow time for the room to cool down.
Cold air is escaping. Check for open furnace registers and cold air returns.
Cooling coils have iced up. See “Air conditioner freezing up” below.
Air conditioner freezing up Ice blocks the air flow and stops
the air conditioner from cooling
the room.
Set the mode control to High Fan or High Cool with the
temperature setting as high as it can be set.
Water drips outside Hot, humid weather. This is normal.
Water drips inside The air conditioner is not tilted to
the outside. For proper disposal, make sure the air conditioner slants slightly from the case front to the rear.
Water collects in base pan Moisture removed from air and
drain into base pan. This is normal for a short period in areas with little humidity; normal for a longer period in very humid
areas.

15
■ You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days
or when the humidity is high. This design feature helps remove moisture and improve efficiency.
■ You may hear the thermostat click when the compressor cycles on and off.
■ Water will collect in the base pan during high humidity or on rainy days. The water may overflow and drip from the
outdoor side of the unit.
■ The fan may run even when the compressor does not.
■ Water droplets being thrown against the outside coils can make a pinging noise. This helps cool the condenser.
You can reduce this noise by removing the subbase water plug.
To ensure maximum efficiency it is recommended to check to ensure the rubber drain plug is properly inserted.
This plug may be removed during operation to minimize water in the back of the unit; however, removing it will
lower the efficiency of your unit.
NOTE: Do not drill hole in the base pan.
Normal Operating Sounds
TROUBLESHOOTING TIPS
Subbase Water Plug

OWNER’S MANUAL
844-4PA-AIRE |844-472-2473 |www.perfectaire.us
Distributed by
Perfect Aire, LLC
5401 Dansher Road
Countryside, IL 60525
Printed in China |0221_M698
