Periso SOLS Propacare JoyBion 400 Guide

AIR PURIFICATION
IONIZATION
SANIFICATION
USER MANUAL AND
MAINTENANCE

www.propa.care
2
The JoyBion 400 is manufactured in Switzerland exclusively for Propacare and
SOLS by
Periso SA manufactures and designs innovative technologies for medical and
industrial applications, able to improve everyone’s quality of life. For over three
decades, Periso SA has specialized in the sectors of biomedicine, energy, industrial
assembly and air treatment, providing ground-breaking and unique technological
developments driven by a strong commitment to research and Swiss quality.
www.periso.ch

www.propa.care
3
INDEX
1. Benefits of the Technology page 4
2. Reference Directives and Regulations page 6
3. Warnings page 8
4. Instructions for Use page 9
5. Maintenance page 11
6. Technical Data page 16
7. Warranty page 17
8. Annotations page 18

www.propa.care
4
1. Benefits of the Technology
Quality of life is of crucial importance in the
consideration of public and private spaces,
to optimize and protect the wellbeing of the
people who live or work there.
In order to achieve the optimal conditions of wellbeing and health to ensure that
most people can live in the best possible manner, over time various environmental
guidelines and regulations have been defined to control and focus on indoor
pollutants, their actions on health, the environmental quality standards to be
pursued and the best building and engineering procedures and technologies to
obtain them in high efficiency.
From over 30 years of research, air ionization combined with purification and
sanitation, has shown to be a leading parameter that acquires more and more
importance from the environmental point of view, due to the biological effects it
entails, and for the wide range of applications.
The technology of controlled bipolar ionization has a positive result for the health
of people as it has a beneficial influence on human health, stress and cognition.
Bipolar ionization is a well-researched and utilized technology often found in
schools, hospitals, airports, restaurants and many commercial and industrial air
systems.
The JoyBion’s controlled bipolar ionization simultaneously generates both negative
and positive ions, using Periso SA’s patented control process to make sure that the
amount of positive and negative ions are most similar to the generation that occurs
naturally in healthy outdoor environments. These charged ions attach and
deactivate harmful substance in the air and environment like bacteria, mold,
allergens, viruses and VOC (Volitile Organic Compounds).
It is a natural process which is both bolstering and revitalizing, that also involves
the respiratory system, representing a valid line of defense against problems
related to allergies, asthma and infections.
-
+
-
+
+
-
+
-
-
+

www.propa.care
5
The ozone on-demand feature provides an additional and powerful layer of
security for your environment, allowing a sanitization effect to occur with the
space.
The positive bactericidal effect of the technology increases defenses against
germs, becoming a valid means to neutralize odors, which are absorbed thanks to
the action of activated oxygen ions.
The JoyBion 400 can be used as an air
purifier combined with a 2-step prefiltration
process – electrostatic and activated carbon
filters - enhanced by controlled bipolar
ionization.
Thanks to the unique emission of ions, the electrostatic filter removes from the air
solid impurities up to a diameter of 0.1 μm. The activated carbon filter assists to
remove VOC’s, as well as unpleasant odors, from the environment.
Simultaneously the addition of positive ions
and negative ions to the air in the room, allows
to neutralize and remove unwanted particles
from the air, revitalizing the air in a natural
way.
The bipolar ionization metering system is the
subject of an international patent by Periso
SA, and allows to reproduce the natural
ionization which happens in nature, where the
air is fresh and clean.
The SOLS Magma 13 Bionomic Module is a Swiss technology, designed by SOLS,
that generates nanomechanical vibration which in turn diffuse the energization and
harmonization process. This module increases the natural ambient energy
produced by the unit.
The JoyBion 400 is designed by SOLS and produced by Periso exclusively for the
Propacare Division of Propagroup.
-
+
-
+
+
-
+
-
-
+

www.propa.care
6
2. Reference Directives and Regulations
Periso SA declares that the device has been designed and built-in accordance with the necessary
reference standards according to the Swiss and European Directive on Safety.
DICHIARA CHE
/ DECLARE THAT
il prodotto/
the product
E’ CONFORME
/ F U L F I L S
alle seguenti Direttive Europee:
/ the requirements of the Directive:
alla Direttiva 2014/35/UE relativa alla bassa tensione / LVD directive
alla Direttiva 2014/30/UE relativa alla compatibilità elettromagnetica / EMC directive
norme applicate/applied standards
EN 60335-1
Sicurezza degli apparecchi elettrici d’uso domestico e similare — Norme generali (LVD)
EN 60335-2-65
Sicurezza degli apparecchi elettrici d’uso domestico e similare (LVD)
Norme particolari per gli apparecchi per la purificazione dell’aria
EN 61000-6-3
Compatibilità elettromagnetica (EMC)
Prescrizioni per gli elettrodomestici, gli utensili elettrici e gli apparecchi similari —Emissione
EN 61000-6-1
Compatibilità elettromagnetica — Requisiti di immunità per gli elettrodomestici, gli utensili elettrici e gli apparecchi similari —Immunità
EN 61000-3-2
Compatibilità elettromagnetica (EMC)
Limiti per le emissioni di corrente armonica
EN 61000-3-3
Compatibilità elettromagnetica (EMC)
Limitazione delle variazioni di tensioni, fluttuazioni di tensione
Altre direttive europee applicate:
/ other directives applied:
Direttiva RAEE 2012/19/UE sui Rifiuti di Apparecchiature Elettriche ed Elettroniche
/ Directive on Waste Electrical and Electronic Equipment (WEEE)
Direttiva ROHS 2011/65/CE sul divieto di utilizzo di determinate sostanze nelle apparecchiature Elettriche ed Elettroniche
/ Directive on restriction of certain Hazardous Substances (ROHS)
Into Electrical and Electronic Equipment
Product:
• Room air purifier and ionizer with ozone on-demand

www.propa.care
7
Periso SA declares that the device has been designed and built-in accordance with the necessary
reference standards according to the Swiss and European Directive on Safety.
1. Normative di riferimento
DECLARATION OF CONFORMITY
Periso SA - Isone (CH) declares in good faith, under its own responsibility to have carefully
followed every possible precaution for electrical safety and that the appliance:
Models: JoyBion 400
Year of manufacture: 2020
Electrical characteristics: 220-240VAC, 50-60 Hz
Degree of protection: IPX0
Classification: Class I
Conforme
alla Direttiva 2014/35/UE relativa alla bassa tensione / LVD directive
alla Direttiva 2014/30/UE relativa alla compatibilità elettromagnetica / EMC directive
Direttiva RAEE 2012/19/UE sui Rifiuti di Apparecchiature Elettriche ed Elettroniche
/ Directive on Waste Electrical and Electronic Equipment (WEEE)
Direttiva ROHS 2011/65/CE sul divieto di utilizzo di determinate sostanze nelle apparecchiature Elettriche ed
Elettroniche
/ Directive on restriction of certain Hazardous Substances (ROHS)
Into Electrical and Electronic Equipment
The electrical measurements and safety tests were performed using the following certified
instrument: CE MultiTester METREL MI2094.
The company operates with a certified quality system according to:
EN ISO 9001:2015 e EN ISO 14001:2015.

www.propa.care
8
3. Warnings
Attention must be paid from people with reduced physical, sensory and mental
capacities; as well as people with little experience and knowledge in the operations
of the device. In these instances, use only when instructed on the safe use of the
device, and understand the dangers that could derive from improper use.
Do not allow children to play with the appliance. The cleaning and maintenance of
the device by children must be supervised and controlled by an adult.
ATTENTION: the original packaging must be kept for future shipment to the
manufacturer.
IDENTIFICATION OF RISKS
High voltage:
Inside the devices, there are elements operating in high voltage.
Do not open or tamper with the ionizer while it is electrically powered and in
operating mode.
Don't touch the electrodes (see point 5) with device switched on.
Temperature:
Do not bring the ionizer devices near open flames or other high temperature
sources.
Humidity:
Do not use the ionizing devices in excessively humid environments that may
compromise correct operation of the device.
Ozone:
Thanks to Periso’s patented Technology for Sanification with Controlled Ozone,
the levels of produced ozone will always be within a safe range for human
exposure. However, during ozone sanification phase, it is suggested that there be
no people and / or animals inside the environment, as ozone can be a respiratory
irritant. At the end of the sanitization, allow the rooms to air for a few minutes
before the room is again occupied by people and / or animals.

www.propa.care
9
4. Instructions for Use
The device has been designed for continuous operation.
Energy consumption is minimal.
The ideal location to place the JoyBion 400 device is on a table and not directly
against a wall, and spaced at least 20 cm.
To achieve an optimal purifying action effects of the unit, the JoyBion 400 should
be placed at least 2 m away from televisions, computers, humidifiers and heat
sources.
The JoyBion 400 can be put into operation immediately. Its use is very simple.
a. Insert the plug into a power outlet with
voltage
220-240VAC / 50-60 Hz.
b. Position the ignition switch on the back
of the device on "I".
The device is now in "stand by" mode
On the front of the device, there is a:
- LCD screen
- Red button (Sanitize) for ozone activation
- Green button (Ionize) for speed adjustment
- Red LED that signals the production of ozone

www.propa.care
10
When the device is turned on, the LCD screen displays the wording "PERISO" and
the serial number of the command module (left photo). This will let you know that
the patented bipolar ionization is in effect. Subsequently, the message “ALL OFF”
appears. To activate the fan, press the green button (Ionize) and the first speed
that appears is the silent mode (right image).
To change the fan speed, the green button (Ionize) must be used in sequence. The
fan modes are “Silent”, “Min”, “Med”, and “Max”, the relative icons are shown
below.
Silent mode of the
appliance
Minimum Fan Speed
Medium Fan Speed
Maximum Fan Speed
Using the green button (Ionize). it is possible to turn off the ionization and the icon
that appears on the screen is the following:
To activate ozone production, use the red button (Sanitize). When ozone
production is active, the red LED lights up and the fan speed is automatically set to
medium level. The following icon appears on the screen:
The time also appears on the screen, set using the red button (Sanitize) which
activates the production of ozone. The time can be 15, 45, 90, 180 minutes and the
countdown appears on the screen and when the time reaches 0 (Zero), the device
goes back to operating in the ionization mode that was previously set, including
the ALL position OFF, and the red led turns off.
To exit the ozone function, you can either press the red button (Sanitize) or the
green button (Ionize).

www.propa.care
11
5. Maintenance
For a correct functioning of the appliance and to guarantee its maximum
purification efficiency, the following is maintenance is recommended:
a) Filter replacement
b) Cleaning of carbon fiber electrodes
c) Cleaning glass electrodes
CAUTION:
Before cleaning the electrodes and before replacing the filters, make sure to
switch off the device using the rear button and to disconnect it from the power
supply network.
The unit is equipped with a kit containing:
1 electrostatic filter (white)
1 activated carbon filter (black)
1 ESD brush for cleaning the electrodes
1 M3 key (Allen key) to open the grille containing the filters

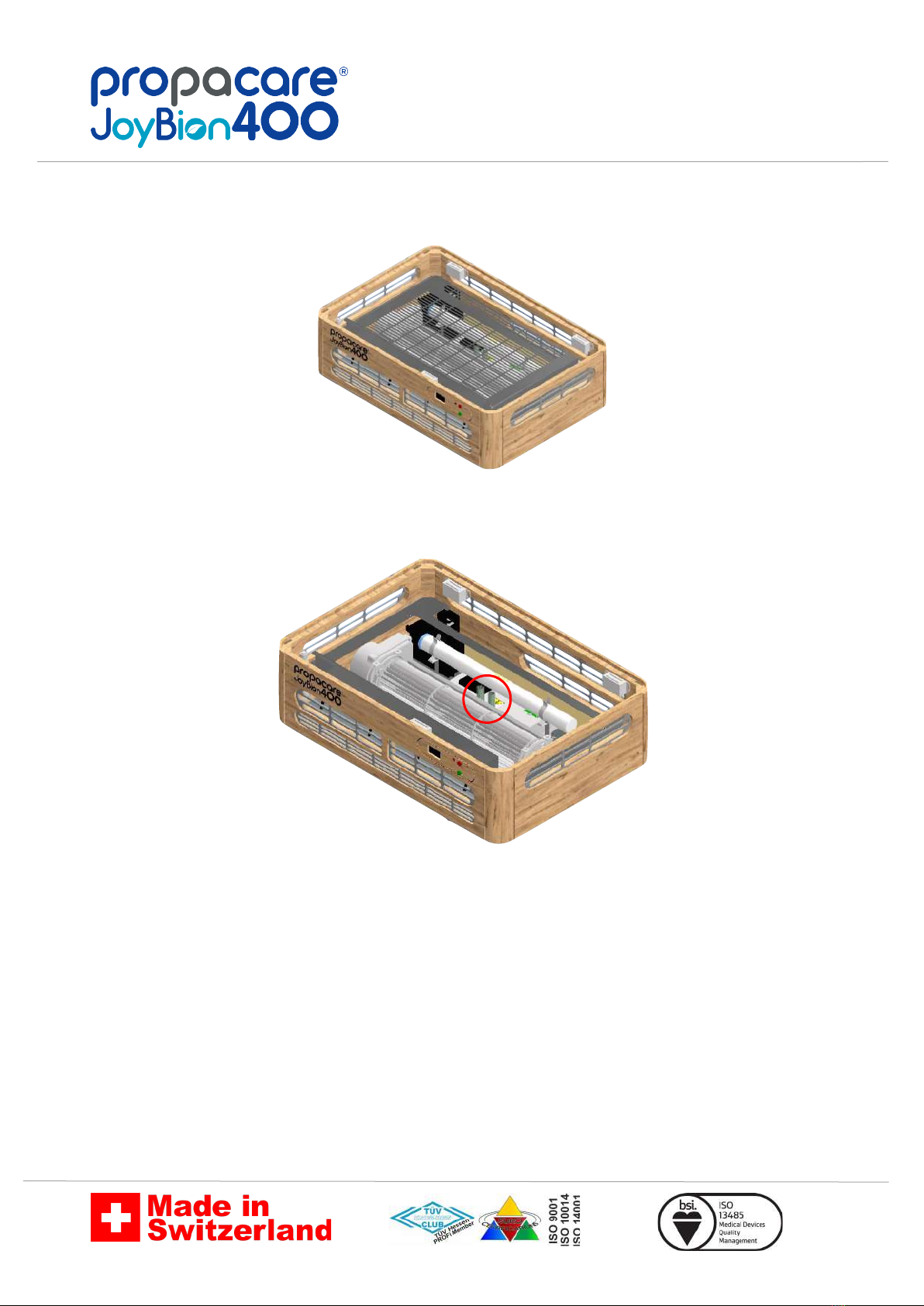

a. Electrostatic Filter and Activated Carbon Filter
Replace the device filters by removing the top cover by
pressing on “Press to Open”.
Electrostatic filter (white) should be changed 2-4 times per
year and activated carbon filter (black) should be changed
twice a year (*). Failure to replace the filters entails the
deposit of dust and dirt inside the device, with possible risk of
damage to the fan with increased noise emitted.
(*)The environmental conditions in which the device is placed may be such that as to suggest the
user to change the filter more frequently than as indicated by the manufacturer. In some
environments particularly characterized by suspended particles, including dust, it is suggested
to change the electrostatic filter (white) more frequently. The presence of strong organic smells
or considerable particles in suspension (smoke), may require a more frequent replacement of the
filters to ensure the efficiency of the ionizing system. A significant increase of noise caused by
internal ventilation may depend on the fact that the filters are saturated and must be replaced.

www.propa.care
12
To replace the filters, remove the upper cover by pressing on “Press to Open”.
Remove the grill containing the filters by lifting it sideways from the rear
Remove the filters and replace the new ones by inserting them correctly and in the
same order.
Grid containing filters

www.propa.care
13
Riposizionare la griglia contente i filtri all’interno dell’apparecchio: avendo cura di
insert the two slots (indicated in the red circles in the previous image) in the fins on
the internal grid (indicated by the red circles in the right image), then lower the grid
onto the base to ensure the spring lock.
Close the device by placing the top cover.
b. Carbon fiber electrodes
It is recommended not to obstruct the front of the appliance for a correct bipolar
ionization emission.

www.propa.care
14
Inside the duct, 4 carbon fiber electrodes
are visible that have the purpose of
emitting positive and negative ions in a
correct proportion.
It is recommended to keep the electrodes clean using only the antistatic brush
(ESD) supplied. When the device is switched off, only touch the electrodes with
the specially designed brush (ESD) very gently in order to avoid damages or
electrode fibers bending.
In order to guarantee the efficiency of bipolar ionization, it is necessary to remove
the dust that can accumulate on the ionizing fibers 1-2 times per month.
Environments with higher levels of dust should clean the electrodes every 15 days.
c. Glass Electrodes
It is recommended once a year to clean the glass electrodes to remove the dust
that has settled.
The operations to be performed are as follows:
Remove the top cover by pressing on "Press to Open"
NB: In dusty environments, more frequent cleaning may be required.

www.propa.care
15
Remove the grille containing the filters by lifting it sideways from the rear
part.
Remove the internal grid, unscrewing the 4 fixing screws with an M3 wrench,
moving it forward a few millimeters and finally lifting it
Clean the glass electrodes (indicated by the red circle in the previous image)
and the motor (without force on the blades) with the supplied antistatic
brush (ESD), taking care not to damage any component.
Repeat the operations in reverse to reassemble the appliance.

www.propa.care
16
6. Technical Data
Supply 220-240VAC / 50-60 Hz
Consumption With ventilation at maximum 15 Watt (0.015 KW/h)
Fuse: Fuse 20 x 5 mm 1A (T)
Type of ionization: Bipolar with carbon fiber electrodes
Ionization voltage: ~5.0 kV negative
~5.0 kV positive
Sanitation efficiency: Up to 90 m2
Ionization strength: ~280'000 ions/cm3* ventilation at min.
~390'000 ions/cm3* ventilation at max.
For rooms up to 100 m2
Nominal Air flow: 220m3/h at max.
Fan: Tangential fan, suitable for continuous
operation (ball bearings)
Filters: 1 Electrostatic filter and
1 Activated carbon filter (replaceable)
Dimensions: 482 x 332 x 140 mm (LxWxH)
Weight: ~8 kg
Command: Manual
Installation: Portable
* Measurements were made at a distance of 1 meter distance between JoyBion 400 and the ION-METER PN-2001.

www.propa.care
17
7. Warranty
The JoyBion 400 has a two (2) year Warranty for the (from the time of initial purchase)
against manufacturing defects in material or workmanship.
This warranty does not cover any damage, deterioration or malfunction resulting from
any alteration, modification, improper or unreasonable use or maintenance, accident,
neglect, exposure to excess moisture, fire, lightning, power surges, or other acts of
nature. To maintain the device warranty, the JoyBion must be used in accordance with
the use and maintenance instructions within this user manual.
Periso SA, SOLS SA and/or Propagroup SpA will repair or replace, at its discretion, any
unit meeting these limited warranty conditions that is found to be defective within the
scope of normal and appropriate use and are within the two (2) Year Warranty period.
Warranty claims must include receipt of purchase to validate warranty, and optimally the
original box of the unit for shipping. Please have this information available when
contacting customer service.
For warranty service in the European Union, visit the following pages of the Propacare
website in the desired language:
Italiano www.propa.care/it/assistenza
English www.propa.care/uk/assistance
Español www.propa.care/es/asistencia
Français www.propa.care/fr/assistance
Deutsche www.propa.care/de/unterstützung
For service within Switzerland, contact SOLS customer service ([email protected]ss or
41 (0)91 228 0640). Instructions will be given for the repair or return of the device.
Date of Purchase:
Purchased From:

www.propa.care
18
8. Annotations
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________

www.propa.care
19
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________

www.propa.care
20
JoyBion 400_V01D_EN
