Perko Power R104 User manual

R104
IMPORTANT NOTICE - FOR FIRE DOOR INSTALLATIONS
REFER TO ITEM 1 IN FITTING INSTRUCTIONS
PLEASE READ FITTING INSTRUCTIONS THOROUGHLY
BEFORE INSTALLATION
• FOR USE WITH SIMONSWERK TE540, TE540FR & TE527 HINGES
•
• Should NOT be used with rising butt hinges.
• Maximum door weight 175lbs, width 36”.
• Can be adjusted to aid ADA compliance.
• Adjustable speed control.
• Adjustable power latching action.
•Approved to UL10C, UL10B, UL238 & ANSI 156.4 reg.

CHECK ALL COMPONENT PARTS AGAINST PARTS LIST.
TOOLS REQUIRED
PARTS LIST
Door Closer - x 1
Fixing Plates
(A) (B) (C)
(E)(D)
• Screwdriver (Plain Slotted)
• Screwdriver (Phillips)
• Wood Chisel 1” x 7” blade
• Solid Centre Auger Bit or Spade Bits

• Awl
• Power Drill
• Tape Measure
• Pencil
• Adjustable Spanner
• Ruler
The use of a dedicated
morticing tool is highly
recommended for multiple
installations
Order code R98.XX which
includes everything you need.
Eye protectors,
Ear Defenders and a
Face Mask are recommended
during installation of
Perkopower.
Allen Keys - x 2 Screws - x 12
Extractor Bolt - x 1
Allen
Key for
Adjuster Screw
(Locking) - x 1

IMPORTANT NOTICE
DOOR CLOSER POSITIONING
DOOR CLOSERS FITTED
TO A FIRE DOOR
• Perkopower, conforms to
Grade 3 of ANSI/BHMA A156-4
when the power latching action is
set to maximum.
• Turn adjuster screw fully to
positive (+) as explained in 9.
•

of a hinge.
• Closer and plates should be
bedded in Alfacryl FR Intumescent
Acrylic Mastic available from
Samuel Heath.
• For ADA requirements turn power
latching adjuster screw towards
negative until opening forces are
achieved.

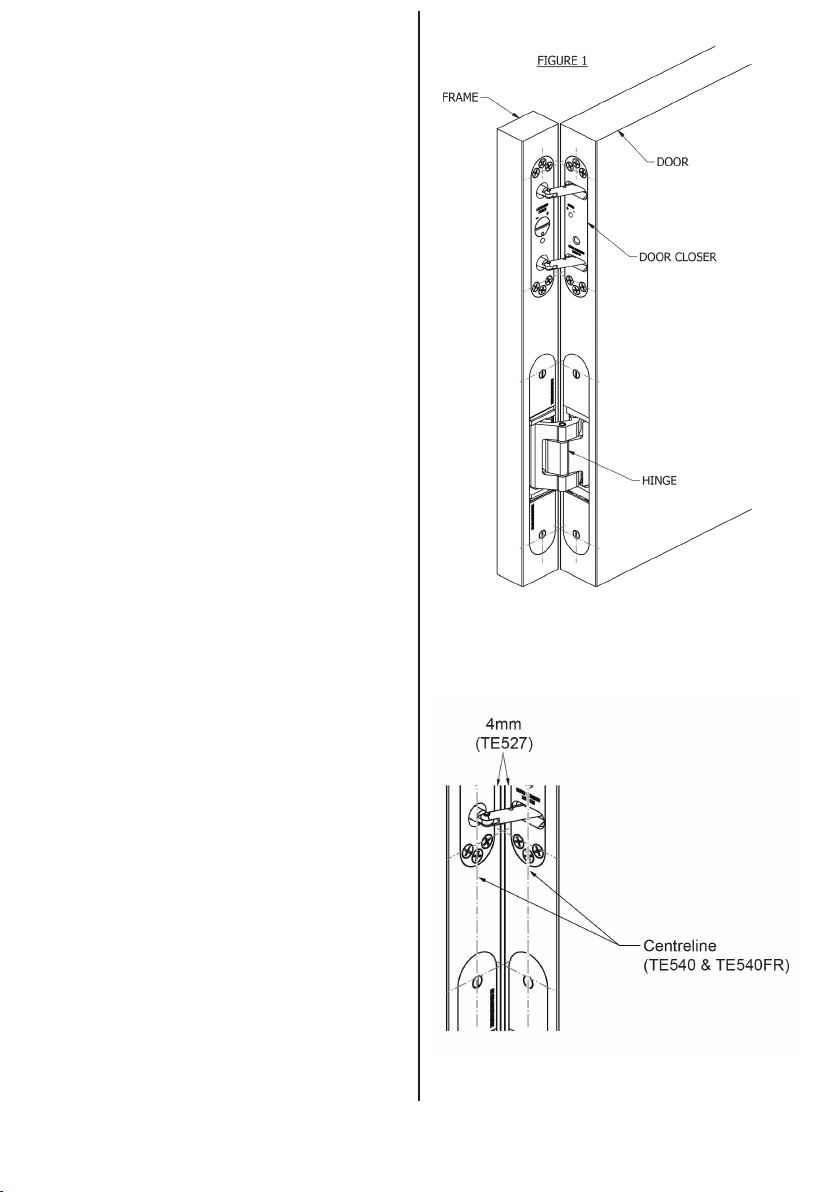

• The hinge is installed 4mm from the inside
edge of the door. For use with TE540 and
TE540FR hinges, our door closer 
 mounting
plates in line with the centreline of the hinge
mounting plates. The door closer should be
located between the bottom and middle
hinge.
For use with TE527 hinges, the closer should
be installed with the mounting plates 4mm
from the pivoting edge of the door/frame.
• The door closer must be installed within the
dimensional constraints 
• A door stop must be installed to restrict the
door opening angle to a maximum of 105° as
shown in figure 2.



To achieve a maximum opening angle of 105° the closer must be


FRAME PREPARATION FOR
FRAME PLATE
DOOR PREPARATION FOR
BODY & DOOR PLATE
 

will need to be factory welded in place.
Order item R199.XX
NB To ensure correct operation of
closer there must be a 1/8” gap between
the two xing plates when the door is in
the closed position.
• 
accept frame plate assembly as indicated
on template
• 
ends. 
between plates when fitted.
• Remove excess timber between drilled
holes to accommodate frame plate.
• 
frame plate assembly as indicated on
template
• 
ends. 
between plates when fitted.
• Remove excess timber between drilled
holes to accept the closer body and door
plate.

INSTALLING CLOSER
 
• Insert closer body into door.
• Insert extractor bolt (E) into position and
rotate clockwise until holes in link rods
appear.
• Generally for thicker doors expose both
holes on each rod.
• Insert the Allen keys (C) through both
top and bottom link rod holes.
Both Allen keys must be correctly
located
• Remove extractor bolt.
• Secure door plate to door with six screws
(D).
IMPORTANT
With composite doors and door linings



ADJUSTMENT -
CLOSING SPEED
 
• With the closer secure and now held

push both link rods across door plate
󰀨
Secure with six screws (D).
• Open door slightly and remove Allen
keys.
• Installation is now complete.
• Remove dust cap.
• Use one of the Allen keys (C) to
adjust closing speed.
• Positive (+) increases door speed.
Negative (-) reduces door speed, as
indicated on door plate.

Issue: B
9-395-R104
Leopold Street
Birmingham
B12 0UJ, England
T: [phone]
F: [phone]
󰀩
[email protected]
ADJUSTMENT -
POWER LATCHING ACTION
• The power latching action can be

screwdriver.
• Loosen locking screw using Allen key
(F) to allow the adjuster screw to turn.
• Positive (+) increases the angle at
which latching action engages.
Negative (-) decreases angle at which
the latching action engages.
• Re-tighten locking screw when
correct power latching action achieved.

CANADA
1038953
2000-602490
82862
EP1605126
156554
6625847
2004/0111831
2365822
2436363
GB25447175
GB2415014
EP1605126
The Perkopower is protected by the
following Patents and Applications.
